Forest biomass dataset

Forest biomass dataset. Alterra, Wageningen UR and European Forest Institute. Geerten Hengeveld, Katja Gunia , Markus Didion, Sergey Zudin , Sandra Clerkx, Mart-Jan Schelhaas. Validation data for the CARBONES CCDAS system. Forest pools and uncertainties (annual)

Download Presentation

Forest biomass dataset

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Forest biomass dataset Alterra, Wageningen UR and European Forest Institute Geerten Hengeveld, KatjaGunia, Markus Didion, Sergey Zudin, Sandra Clerkx, Mart-Jan Schelhaas

  2. Validation data for the CARBONES CCDAS system • Forest pools and uncertainties (annual) • Forest area (km2) • Timber volume (m3) • Aboveground biomass (kg) • Carbon in aboveground biomass (kg) • Belowground biomass (kg) • Carbon in belowground biomass (kg) • Total biomass (kg) • Carbon in total biomass (kg) • Changes in pools per 5 years

  3. Data • FAO-FRA (Global Forest Resources Assessments) • MCPFE (Europe) • UNECE • Per Country • 1948-2011 (minimal 5 year interval) • Forest Area • Growing Stock • IPCC 2006 good practice guidance for biomass conversion and expansion factors to estimate above-ground and below-ground biomass and carbon

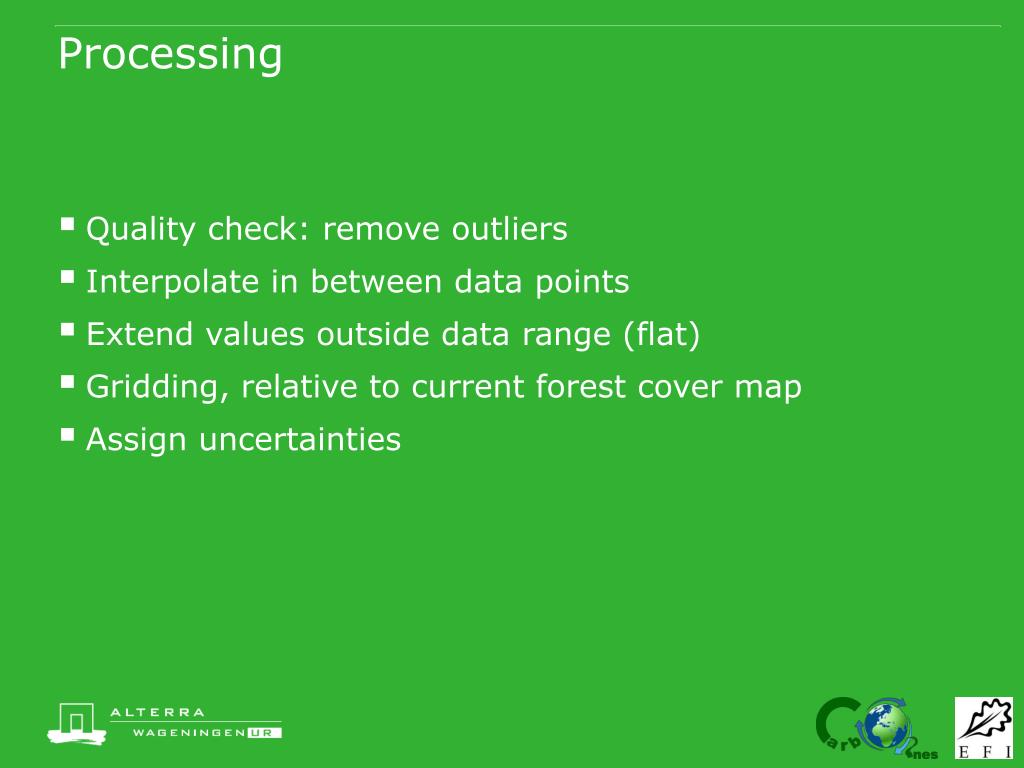

  4. Processing • Quality check: remove outliers • Interpolate in between data points • Extend values outside data range (flat) • Gridding, relative to current forest cover map • Assign uncertainties

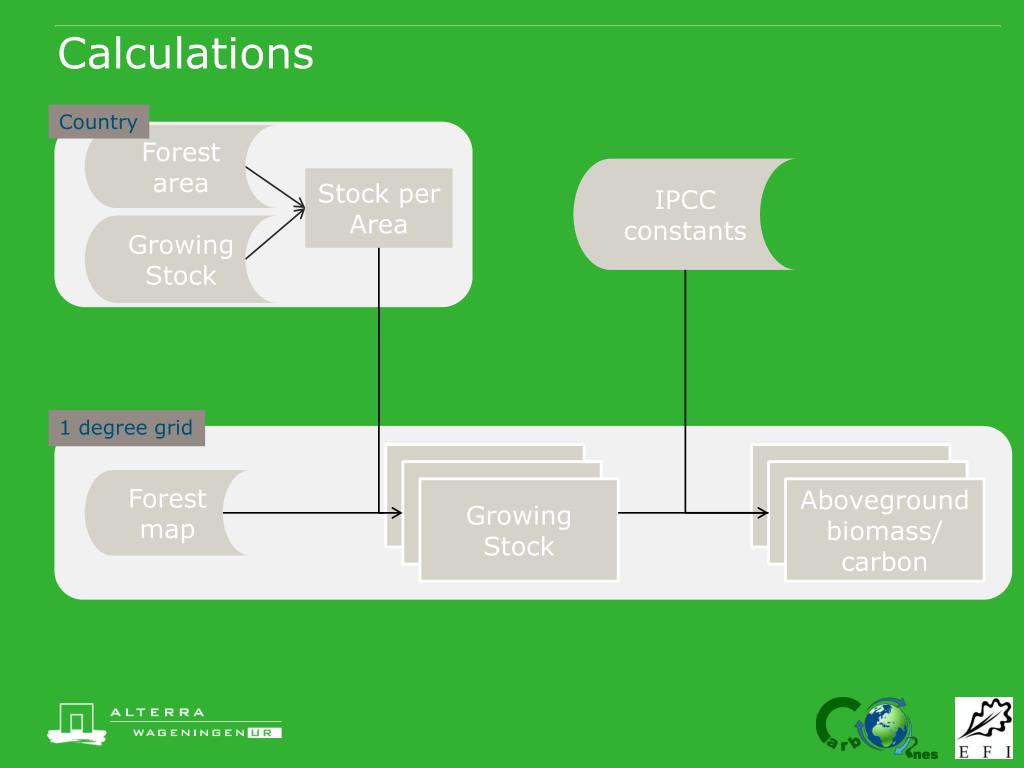

  5. Calculations Country Forest area IPCC constants Stock per Area Growing Stock 1 degree grid Growing Stock Growing Stock Growing Stock Growing Stock Forest map Growing Stock Aboveground biomass/ carbon

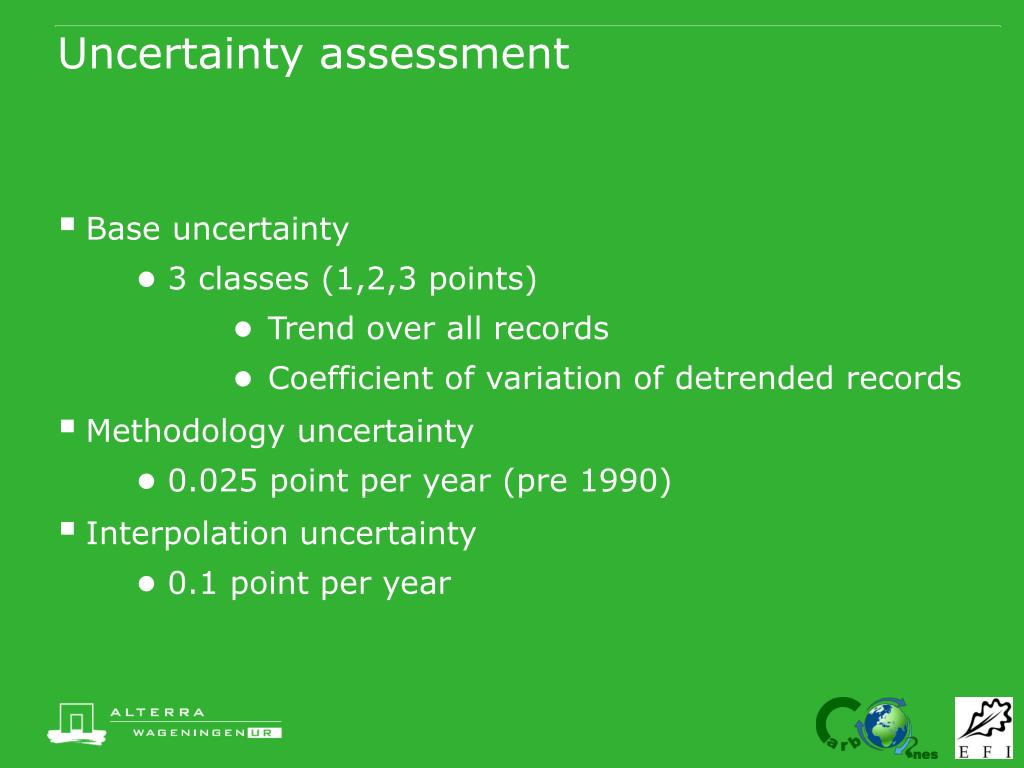

  6. Uncertainty assessment • Base uncertainty • 3 classes (1,2,3 points) • Trend over all records • Coefficient of variation of detrended records • Methodology uncertainty • 0.025 point per year (pre 1990) • Interpolation uncertainty • 0.1 point per year

  7. Technical specifications • 1 degree grid • Global cover • Mollweideprojection, Datum WGS84 • NetCDF file

  8. Data policy • Free to use • Proper referencing (Hengeveld et al., in prep) • Downloadable at • the CARBONES portal • or http://opendap.cgi-systems.nl/thredds/catalog/projecten/EuropeanForest/carbones/catalog.html

  9. Exemple: above ground forest biomass(5 years mean) around 2005

  10. Reference: Hengeveld, G.M.H., K. Gunia, M. Didion, S. Zudin, A.P.P.M. Clerkx, M.J. Schelhaas. Gridded maps as derived from a compilation of global forest biomass estimates 1950-2010. To be submitted to Earth System Science Data.
