Presentation Transcript

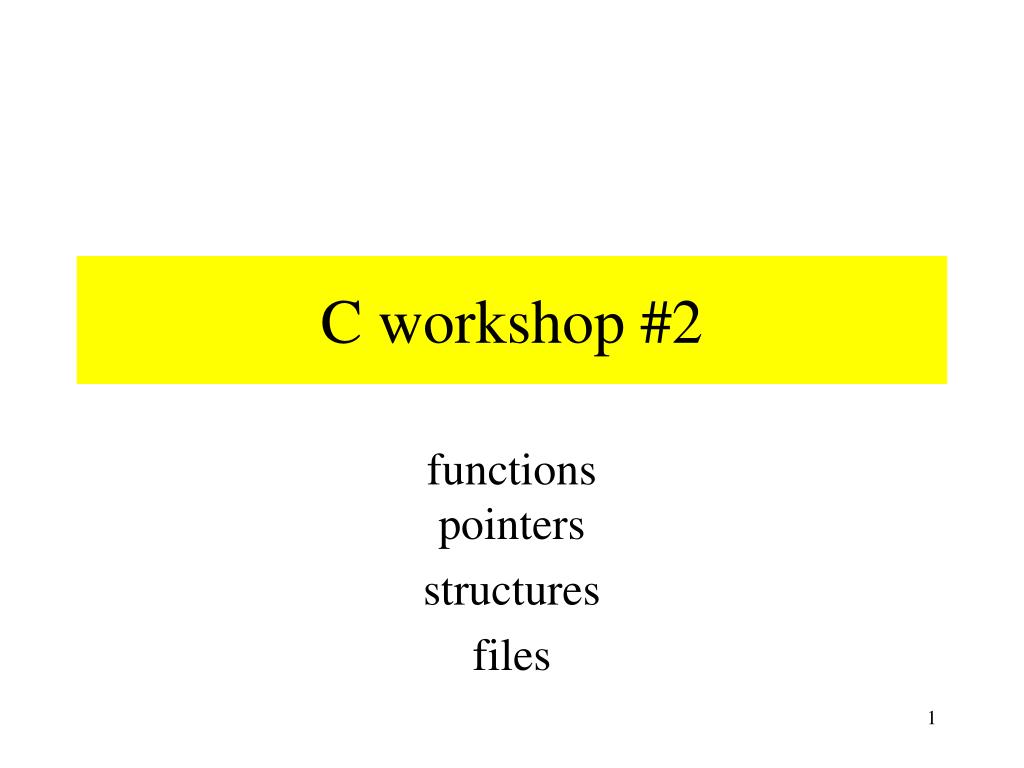

C workshop 2

C workshop #2

functionspointers

structures

files


Functions

Functions

  • Return-value function-name( parameters ) { … returnvalue; }orvoid function-name( parameters ) { … return; (optional)}

  • Calling the function:I = function-name( 10, 20 );


Function example

Function example

#include <stdio.h>

int Add2( int A, int B )

{

int C;

C = A + B;

return C;

}

void main()

{

int I;

I = Add2( 10, 20 );

printf("Add2 function returns = %d\n", I);

}

Output:

Add2 function returns = 30

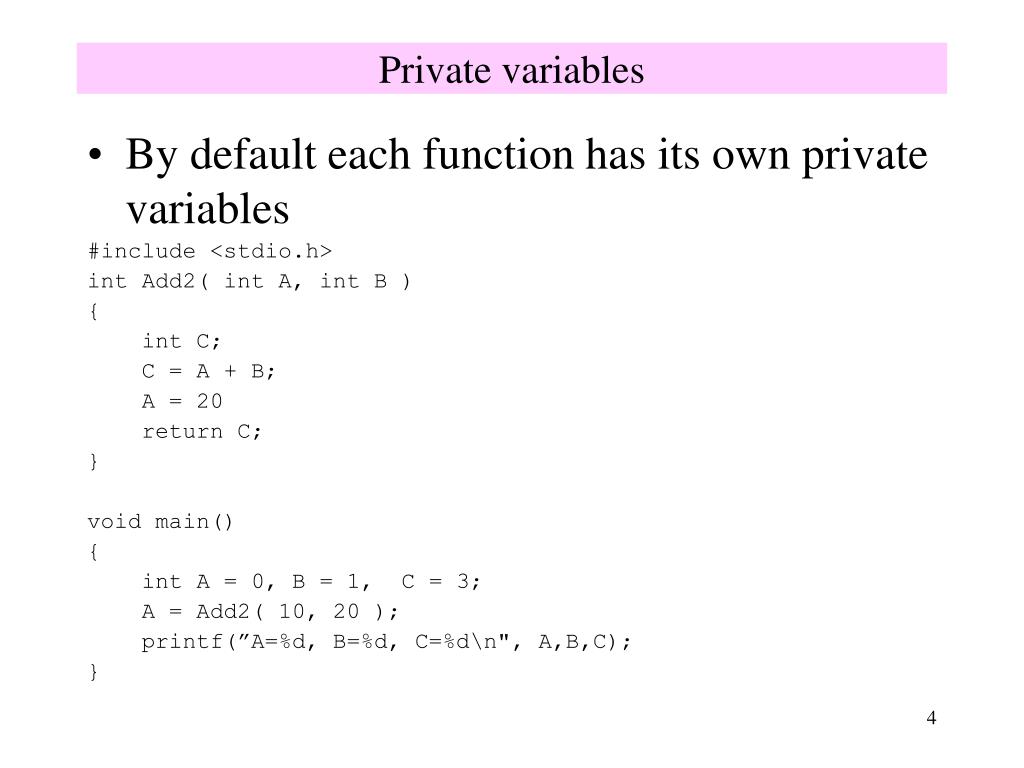

Private variables

Private variables

  • By default each function has its own private variables

    #include <stdio.h>

    int Add2( int A, int B )

    {

    int C;

    C = A + B;

    A = 20

    return C;

    }

    void main()

    {

    int A = 0, B = 1, C = 3;

    A = Add2( 10, 20 );

    printf(”A=%d, B=%d, C=%d\n", A,B,C);

    }


Global variables

Global variables

  • A variable that is defined outside of all functions can be used by any function

    #include <stdio.h>

    int Offset;

    int AddWithOffset( int A, int B )

    {

    int C;

    C = A + B + Offset;

    Offset--;

    return C;

    }

    void main()

    {

    int A;

    Offset = 33;

    A = AddWithOffset( 10, 20 );

    printf(”A=%d, B=%d, C=%d\n", A,B,C);

    }


Structures

structures

  • Organize variables under same ‘umbrella’

    struct {

    double Fahrenheit, Celsius;

    int I;

    } Temperature;

    struct {

    int X,Y;

    } Point[ 10 ];

  • examples

    Point[I].X = 10;

    Temperature.Fahrenheit = 10.22;

    Temperature.I = 10;


C workshop 2

#include <stdio.h>

void main()

{

int I;

struct { int X,Y; } Point[ 10 ];

for ( I = 0 ; I < 10 ; I++ ) Point[I].X = I;

for ( I = 0 ; I < 10 ; I++ ) Point[I].Y = Point[9 - I].X * 100;

for ( I = 0 ; I < 10 ; I++ ) printf( "Point %d = (%d,%d)\n", I, Point[I].X, Point[I].Y );

}

Output:

Point 0 = (0,900)

Point 1 = (1,800)

Point 2 = (2,700)

Point 3 = (3,600)

Point 4 = (4,500)

Point 5 = (5,400)

Point 6 = (6,300)

Point 7 = (7,200)

Point 8 = (8,100)

Point 9 = (9,0)


Pointers

Pointers

  • A varaiable that points to a memory location

  • Example #1int I,J;int *pI;I = 10; J = 30;pI = &I;*pI = 44;printf(“%d\n”, I, J );

  • Example #2int A[20];int *pI;for ( I = 0 ; I < 20 ; I++ ) A[I] = I * 3; pI = &A[0];*pI++ = 44; *pI++ = 33; pI++; *pI++ = 55; printf(“%d,%d,%d,%d\n”, A[0], A[1], A[2], A[3] );

Output:

44


Pointers continue

Pointers continue

  • Using pointers to return multiple values from a function

  • Example

    #include <stdio.h>

    int Func( int I, int J, int *Ret )

    {

    *Ret = I + J;

    if ( I > J ) return 0;

    return 1;

    }

    void main()

    {

    int I,J;

    J = Func( 10, 20, &I );

    printf("%d, %d\n", I, J);

    }

Output:

0, 30


Pointers continue even more

Pointers continue even more...

  • Using pointers to pass structures to and from a function

    #include <stdio.h>

    typedef struct {

    int X,Y;

    } POINT;

    int Func( POINT *P )

    {

    return P->X + P->Y;

    }

    void main()

    {

    int J,K,L;

    POINT Point[10];

    for ( J = 0 ; J < 10 ; J++ ) {

    Point[J].X = J*2;

    Point[J].Y = J*3 + 1;

    }

    K = Func( &Point[0] );

    L = Func( &Point[1] );

    printf("%d,%d\n", K,L);

    }

Output:

1,6


Fopen fprintf fclose

fopen, fprintf, fclose

  • Use ‘pointer’ to predetermined structureFILE *F;

  • To create / open file: F = fopen( “file_name”, “type” );examples:F = fopen(“file1.dat”, “w” );F_Read = fopen(“file2.dat”,”r” );

  • ALWAYS need to close the file before program terminatesfclose( F );

  • One way to write to a file – very similar to printf();fprintf( F, “test\n” );


File write example 1

File write example #1

A new file by the name ‘file1.dat’ is created, and its content is:

ABCDE

Second Line

0, 1, 2, 3, 4, 5, 6, 7, 8, 9,

#include <stdio.h>

void main()

{

FILE *F;

int I;

F = fopen("file1.dat", "w" );

fprintf( F, "ABCDE\n" );

fprintf( F, "Second Line\n" );

for ( I = 0 ; I < 10 ; I++ )

fprintf( F, "%d, ", I);

fclose(F);

}


File read example 2

File read example #2

The content of the file ‘num10.dat’:

10

20

30

40

99

32

1

999

-22

4423

#include <stdio.h>

void main()

{

FILE *F;

int I, J;

F = fopen("num10.dat", "rt" );

printf("Reading from the file:\n");

for ( I = 0 ; I < 10 ; I++ ) {

fscanf( F, "%d" , &J );

printf( "%d, ", J );

}

fclose(F);

}

Output (on the monitor):

Reading from the file:

10, 20, 30, 40, 99, 32, 1, 999, -22, 4423,

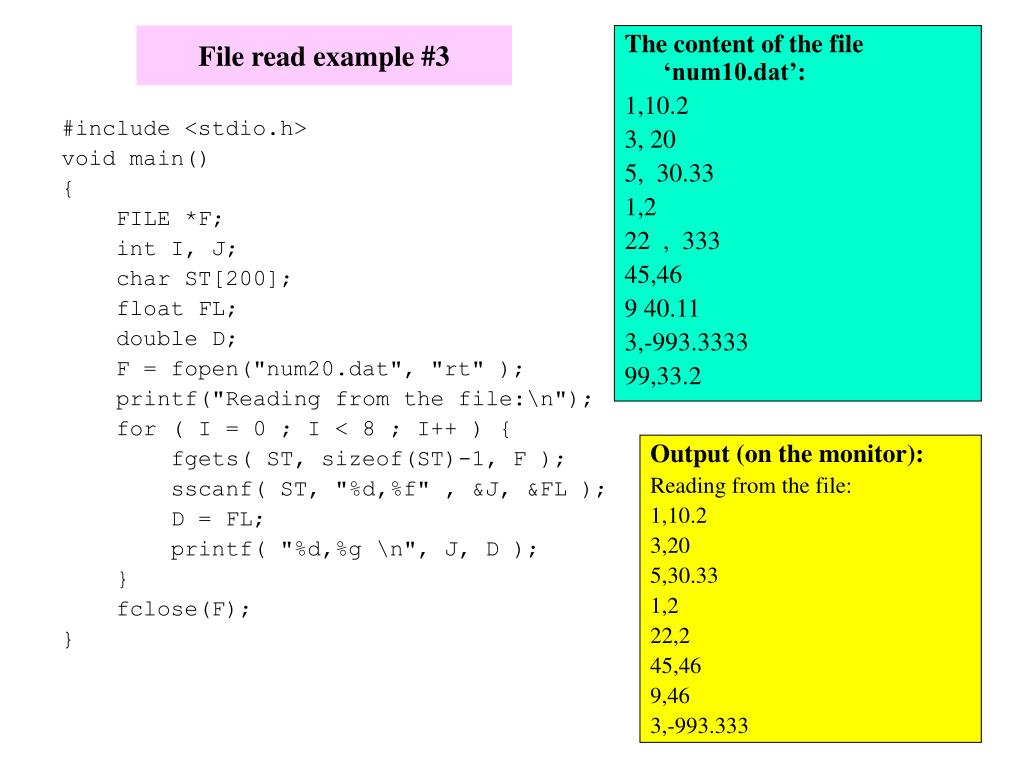

File read example 3

The content of the file ‘num10.dat’:

1,10.2

3, 20

5, 30.33

1,2

22 , 333

45,46

9 40.11

3,-993.3333

99,33.2

Output (on the monitor):

Reading from the file:

1,10.2

3,20

5,30.33

1,2

22,2

45,46

9,46

3,-993.333

File read example #3

#include <stdio.h>

void main()

{

FILE *F;

int I, J;

char ST[200];

float FL;

double D;

F = fopen("num20.dat", "rt" );

printf("Reading from the file:\n");

for ( I = 0 ; I < 8 ; I++ ) {

fgets( ST, sizeof(ST)-1, F );

sscanf( ST, "%d,%f" , &J, &FL );

D = FL;

printf( "%d,%g \n", J, D );

}

fclose(F);

}


Compiling under unix

Compiling under UNIX

  • File name: test.c

  • gcc test.corcc test.c

  • The file that it generates is a.out

  • To run it: ./a.out
