BIN401 Master Data Management – Merging from Multiple Sources

2. BIN401Master Data Management – Merging from Multiple Sources Dejan Sarka Solid Quality Mentors

3. Agenda • The Problem • Soundex, Difference and Beyond • MDS String Similarity Functions • Avoiding Large Cross Joins • Fuzzy Lookup • No Master Data Source Defined

4. The Problem (1)

5. The Problem (2) • In an enterprise, multiple sources of master data (e.g., customers data) can exist • There is no common key to make simple joins • Data merging has to be done based on similarities of strings • Name, address, e-mail, city, etc. • Which similarity algorithm to use?

6. The Problem (3) • For approximate merging, any row from one side can be joined to any row from the other side • We have a cross join • Even small data sets can produce performance problems • E.g., cross join of 18,484 rows with 18,484 rows (AdventureWorksDWvTargetMail) means 341,658,256 rows!

7. The Problem (4) • Data can change in any source • We would like to merge changes only • Can have master data defined • A privileged, trustworthy source • Update other sources to values from master source • No master data defined • All sources have equal priority

8. Soundex and Difference • Soundex takes a word, such as a person's name, as input and produces a character string which identifies a set of words that are (roughly) phonetically alike • Phonetically alike means US English phonetically alike • Difference returns an integer indicating difference between the SOUNDEX values • Value between 0 and 4 • Soundex is very basic

9. More Soundex Algorithms • There are many additional algorithms developed for comparing strings phonetically • T-SQL Soundex is actually American Soundex System • Russell Soundex Code, Henry Soundex Code • Daitch-Mokotoff Soundex System • New York State Identification and Intelligence System (NYSIIS) Phonetic Encoder • Some T-SQL functions already written

10. MDS Similarity Algorithms • Master Data Services implements couple of known similarity algorithms • Levenshtein (aka Edit Distance) • Jaccard index • Jaro-Winkler • Simil (aka longest common substring, aka Ratcliff-Obershelp) • SSIS Fuzzy Lookup algorithm should be implemented in MDS through T-SQL CLR functions

11. Levenshtein Distance • Levenshtein (edit) distancemeasures minimum number of edits needed to transform one string into the other • E.g., distance between kitten and sitting is 3 • kitten → sitten (substitution of 's' for 'k') • sitten → sittin (substitution of 'i' for 'e') • sittin → sitting (insert 'g' at the end) • Similarity is normalized between 0 and 1

12. Jaccard Index • The Jaccard index (similarity coefficient) measures similarity between sample sets • The size of the intersection divided by the size of the union of the sample sets

13. Jaro Distance • Jaro distance combines matches and transpositions • m is the number of matching characters • tis the number of transpositions • Characters are matching if no farther than

14. Jaro-Winkler Distance • Jaro-Winkler distance uses a prefix scale p which gives more favorable ratings to strings that match from the beginning - • dj is the Jaro distance • is the length of common prefix at the start of the string up to a maximum of 4 characters • p is a scaling factor for common prefixes • pshould not exceed 0.25, otherwise the distance can become larger than 1 (usually 0.1)

15. Simil Algorithm • The Simil algorithm looks for the longest common substring in two strings • Then searches for next longest common substring in remainders from let and right • Continues recursively till no more common substrings found • Calculates coefficient between 0 and 1 by dividing the sum of the lengths of the substrings by the lengths of the strings themselves

16. SSIS Fuzzy Lookup • Fuzzy Lookup and Fuzzy Grouping use a custom, domain (language) - independent distance function • Takes into account the edit distance, the number of common tokens (NGrams), token order, and relative frequencies • Not as easily misled by transpositions and can detect higher level patterns than an approach that uses only edit distance

17. Linearize Cross Joins

18. Divide and Conquer • Divide and Impera solution: merge parts of the rows at a time • Start with exact merge (inner join) • Then merge similar strings • Then merge less similar strings • … • Then merge manually • How do we define which strings are similar, if we search for string similarity?

19. Pre-Similarity (1) • Difference T-SQL function • Language dependent • Use bitmasks (Bouche, Sommarskog) • Less frequent characters get higher weights (e.g., E gets 21 and Z gets 225 in English) • Build frequency dynamically to get language-independent value • Hard to find good matches • Neither too many rows (nearly cross-join) • Nor too few rows (the correct match lost)

20. Pre-Similarity (2) • Tokenize strings to substrings of length n • Tokens are called NGrams • MDS has mdq.NGrams function • Calculate overall frequency of tokens • Compare strings that have at least m common NGrams with less than p frequency • Can tweak m, n and p in a loop • Start with stricter matching

21. Conclusion • String similarity matching is a complex problem • Do not count on 100% exact matches • Try and learn and then • Try and learn and then • Try and learn and then… • SSIS Fuzzy Lookup does great job • Hope we get it soon in MDS

22. No Master Source • The problem: we do not have a master source defined • All sources peers • We do not have a master identification for id mapping • In addition, we need to do continuous merge on changes from previous merge only • The merged data can become the master (privileged) source

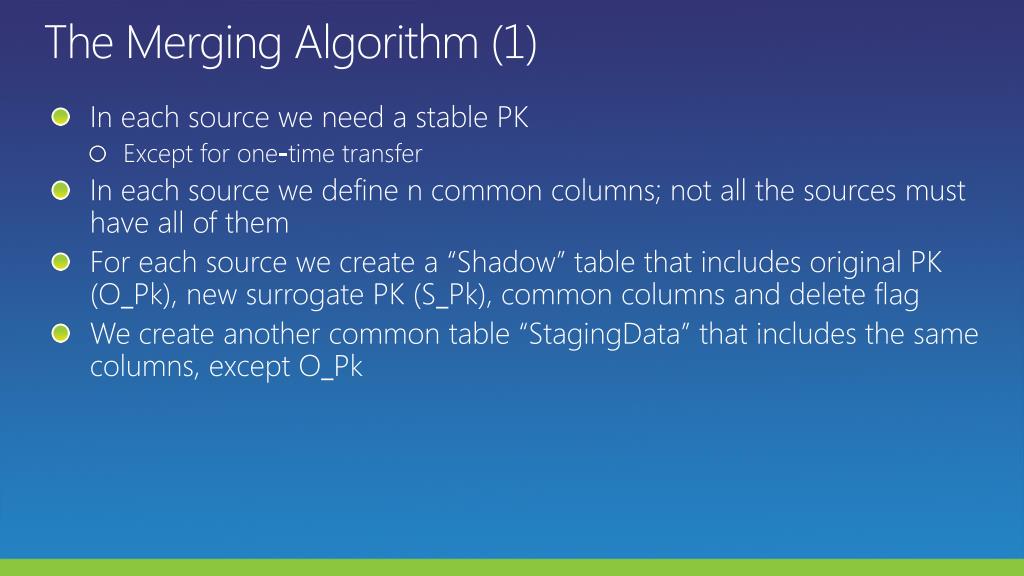

23. The Merging Algorithm (1) • In each source we need a stable PK • Except for one-time transfer • In each source we define n common columns; not all the sources must have all of them • For each source we create a “Shadow” table that includes original PK (O_Pk), new surrogate PK (S_Pk), common columns and delete flag • We create another common table “StagingData” that includes the same columns, except O_Pk

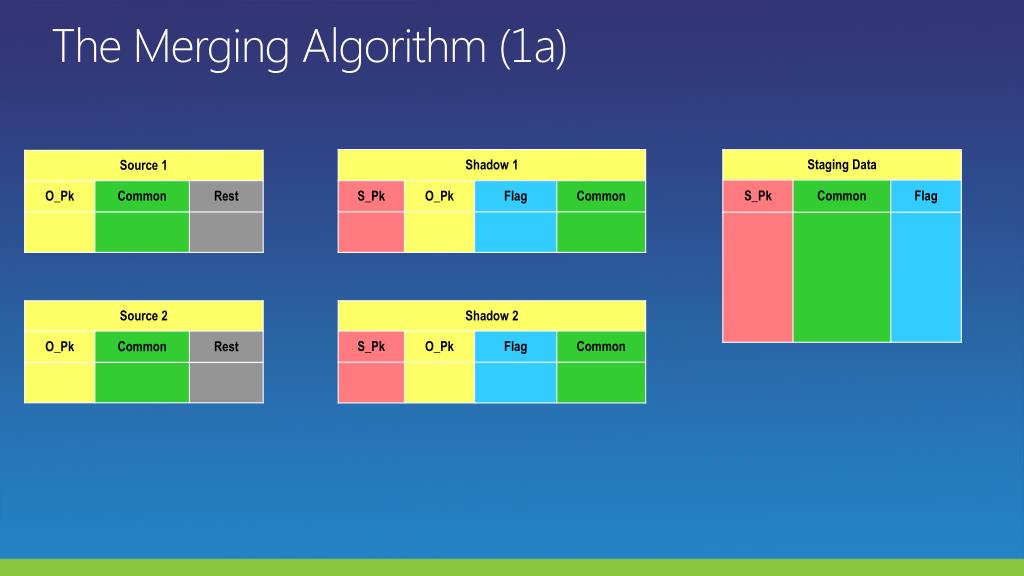

24. The Merging Algorithm (1a)

25. The Merging Algorithm (2) • In the 1st step we transfer (and transform, if needed) all rows from each source in its shadow table and in StagingData • We generate S_Pk, now we have a common Pk • Then we merge rows in StagingData using different algorithms • Common columns equal, priority of source,… • When we merge rows, we correct S_Pks in shadow tables • Finally we have to merge rows manually • We can merge using columns from different rows • We can use different sorts (even functions), searches, …

26. The Merging Algorithm (2a)

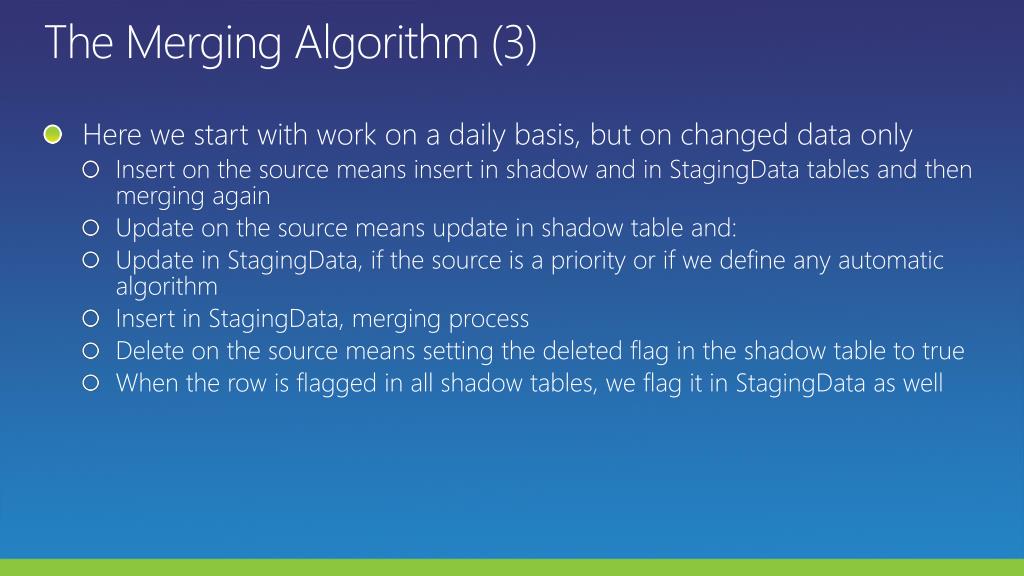

27. The Merging Algorithm (3) • Here we start with work on a daily basis, but on changed data only • Insert on the source means insert in shadow and in StagingData tables and then merging again • Update on the source means update in shadow table and: • Update in StagingData, if the source is a priority or if we define any automatic algorithm • Insert in StagingData, merging process • Delete on the source means setting the deleted flag in the shadow table to true • When the row is flagged in all shadow tables, we flag it in StagingData as well

28. The Merging Algorithm (3a)

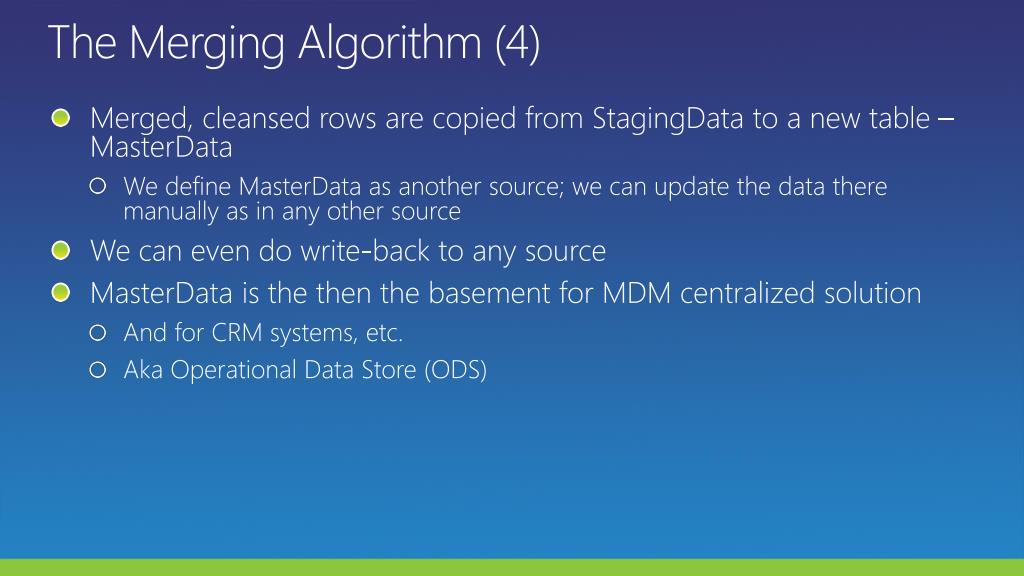

29. The Merging Algorithm (4) • Merged, cleansed rows are copied from StagingData to a new table – MasterData • We define MasterData as another source; we can update the data there manually as in any other source • We can even do write-back to any source • MasterData is the then the basement for MDM centralized solution • And for CRM systems, etc. • Aka Operational Data Store (ODS)

30. The Merging Algorithm (4a)

31. Review • The Problem • Soundex, Difference and Beyond • MDS String Similarity Functions • Avoiding Large Cross Joins • Fuzzy Lookup • No Master Data Source Defined

32. References • Books: • Carlo Batini, Monica Scannpieco: Data Quality – Concepts, Methodologies and Techniques • DavideMauri, Gianluca Hotz, DejanSarka: Master Data Management with SQL Server 2008 R2 • Links: • Beyond SoundEx - Functions for Fuzzy Searching in MS SQL Server • Presentations: • Presentations on various conferences by Solid Quality Mentors
