Ph15010

PH15010

Laboratory Techniques -

An Introduction to MATHCAD

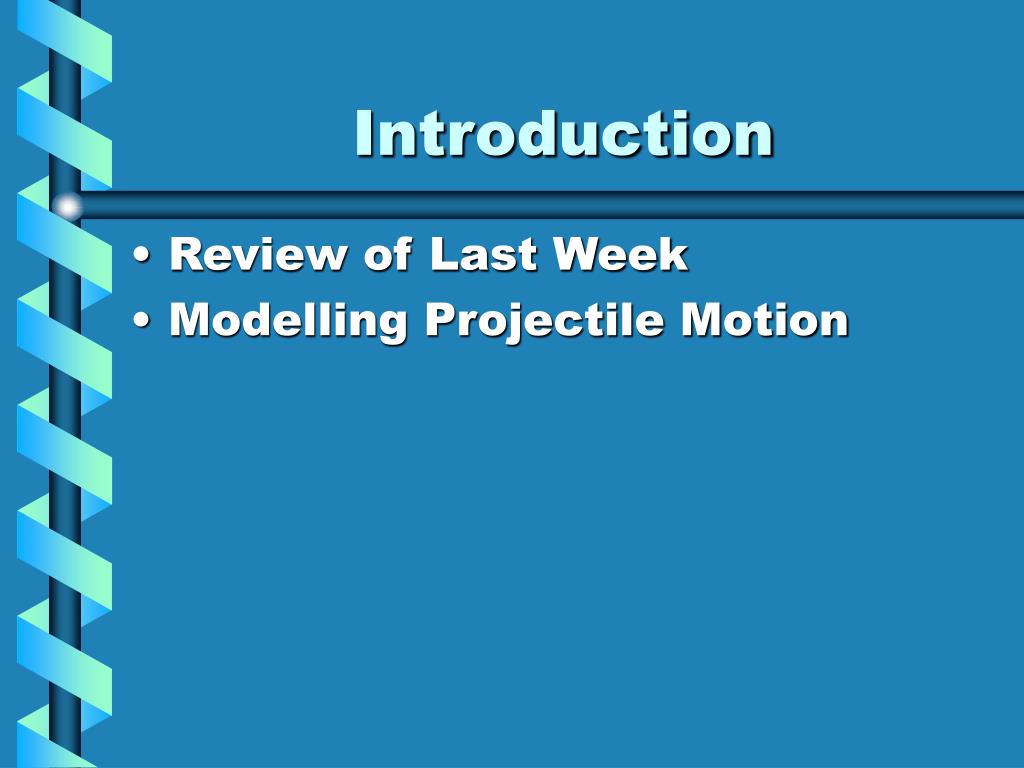

Introduction

Introduction

  • Review of Last Week

  • Modelling Projectile Motion

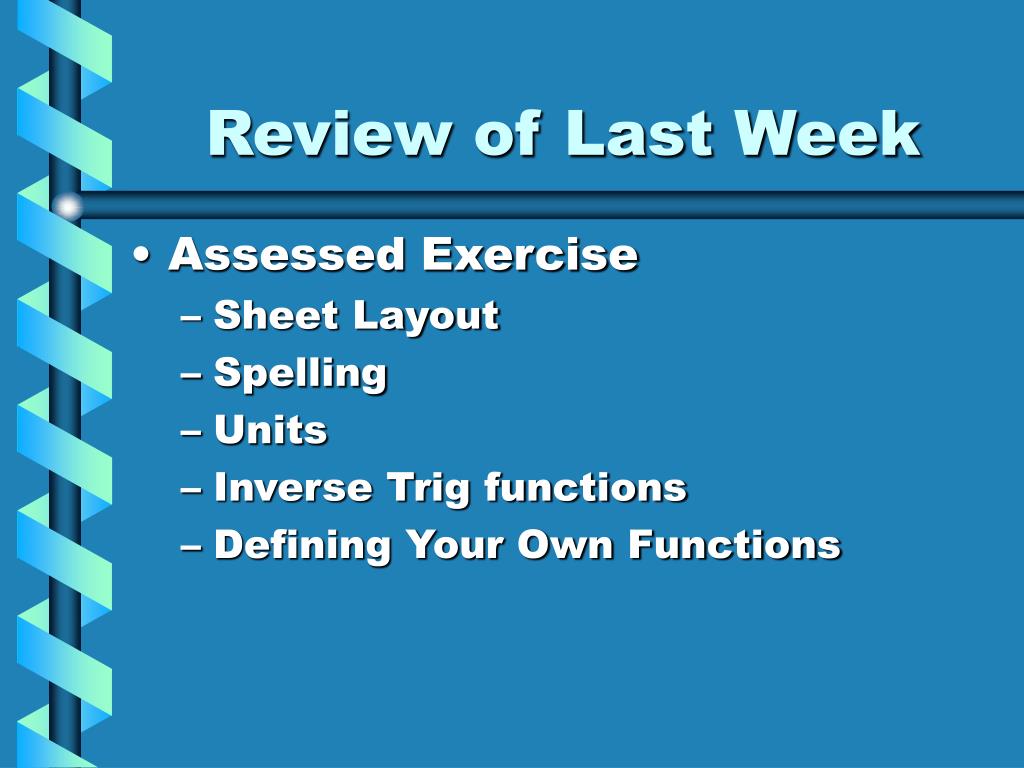

Review of last week

Review of Last Week

  • Assessed Exercise

    • Sheet Layout

    • Spelling

    • Units

    • Inverse Trig functions

    • Defining Your Own Functions


Sheet layout

Sheet Layout

  • Change sheet to A4 format

    • File|Page Setup…|Paper Size|A4

  • Put your initials/email in page header

    • Format|Header/Footers…

  • Use Page Breaks

    • Insert|Page Break


More layout spelling

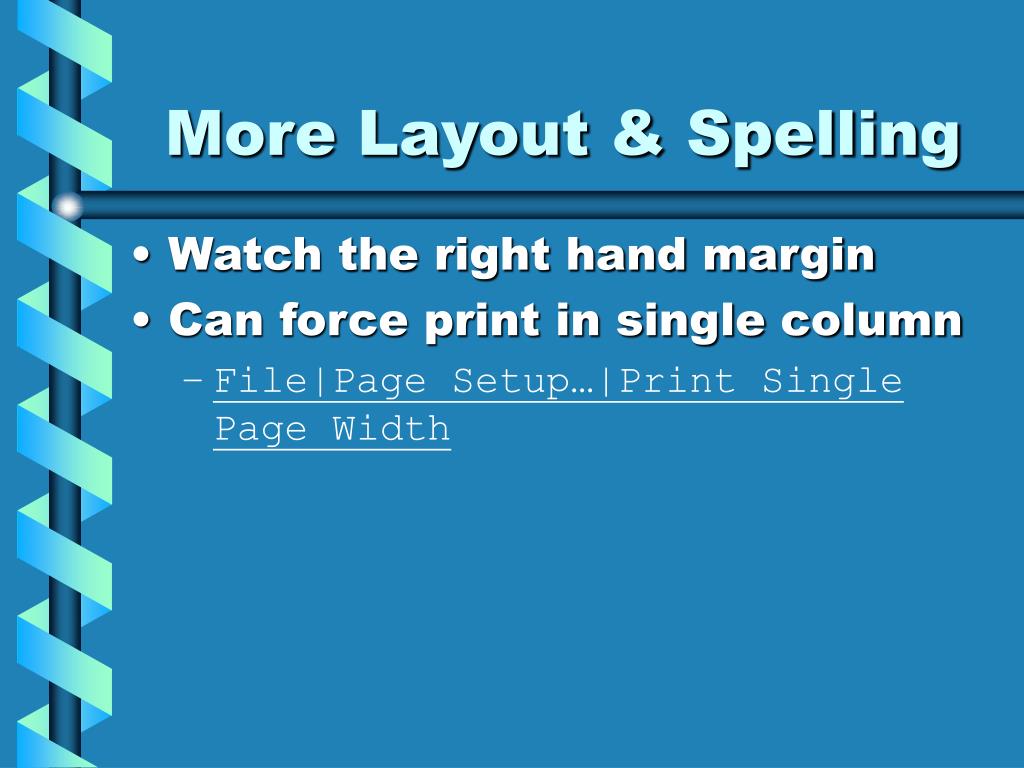

More Layout & Spelling

  • Watch the right hand margin

  • Can force print in single column

    • File|Page Setup…|Print Single Page Width


Aligning regions

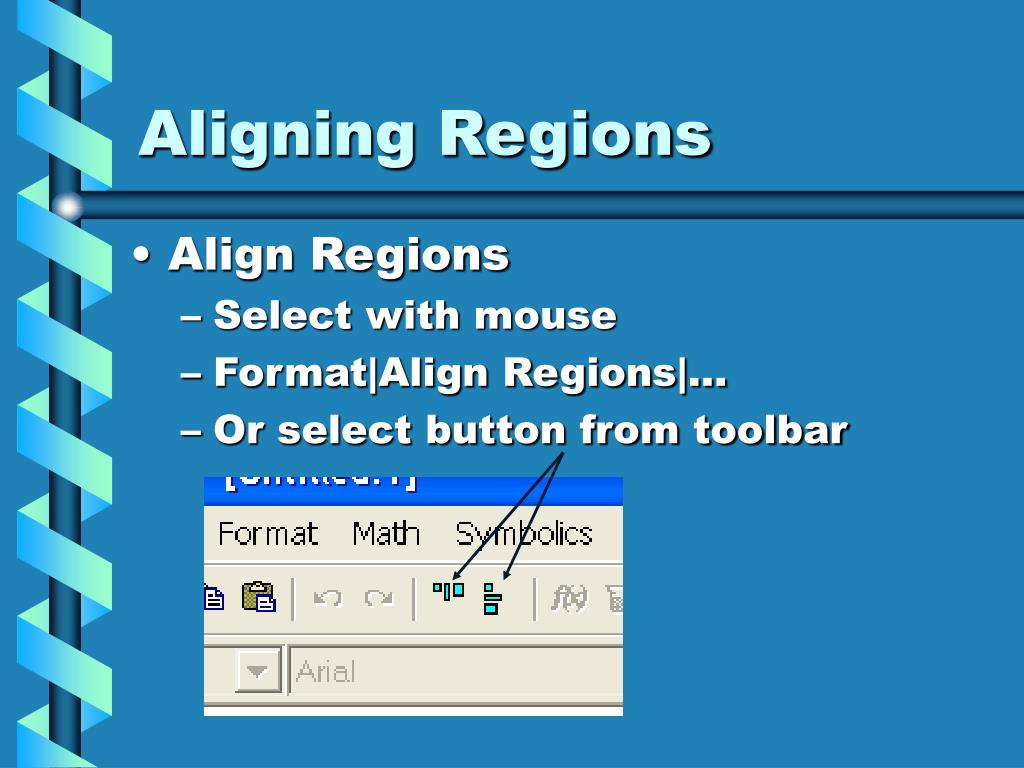

Aligning Regions

  • Align Regions

    • Select with mouse

    • Format|Align Regions|…

    • Or select button from toolbar


Aligning regions before and after

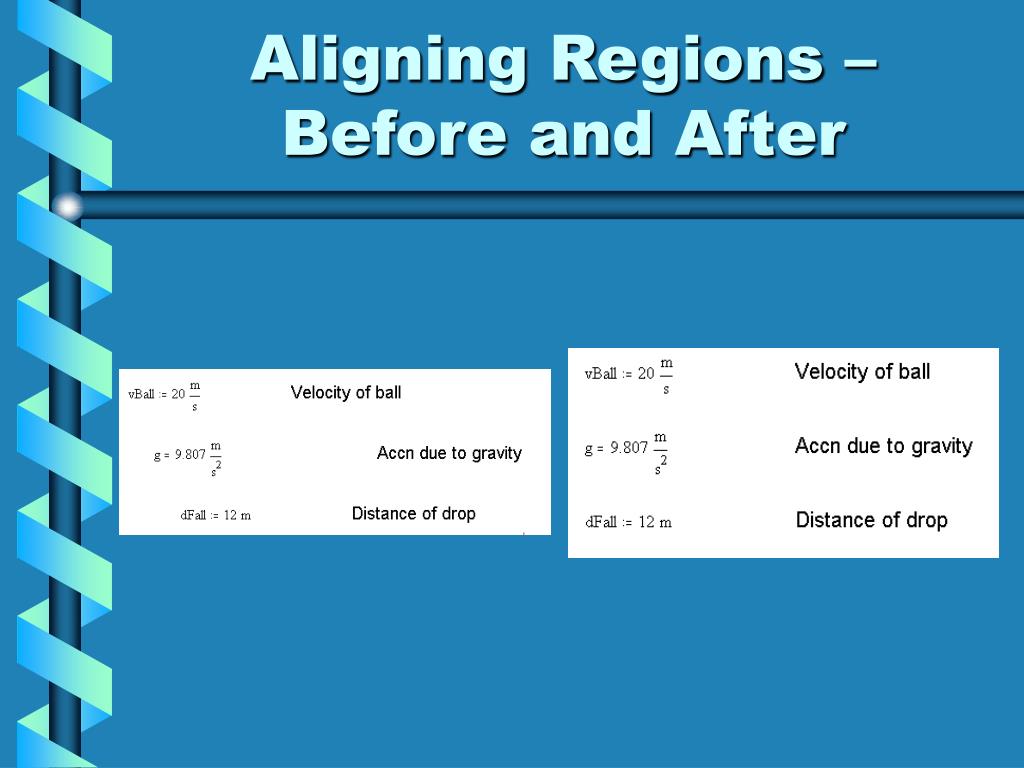

Aligning Regions –Before and After


Separating regions

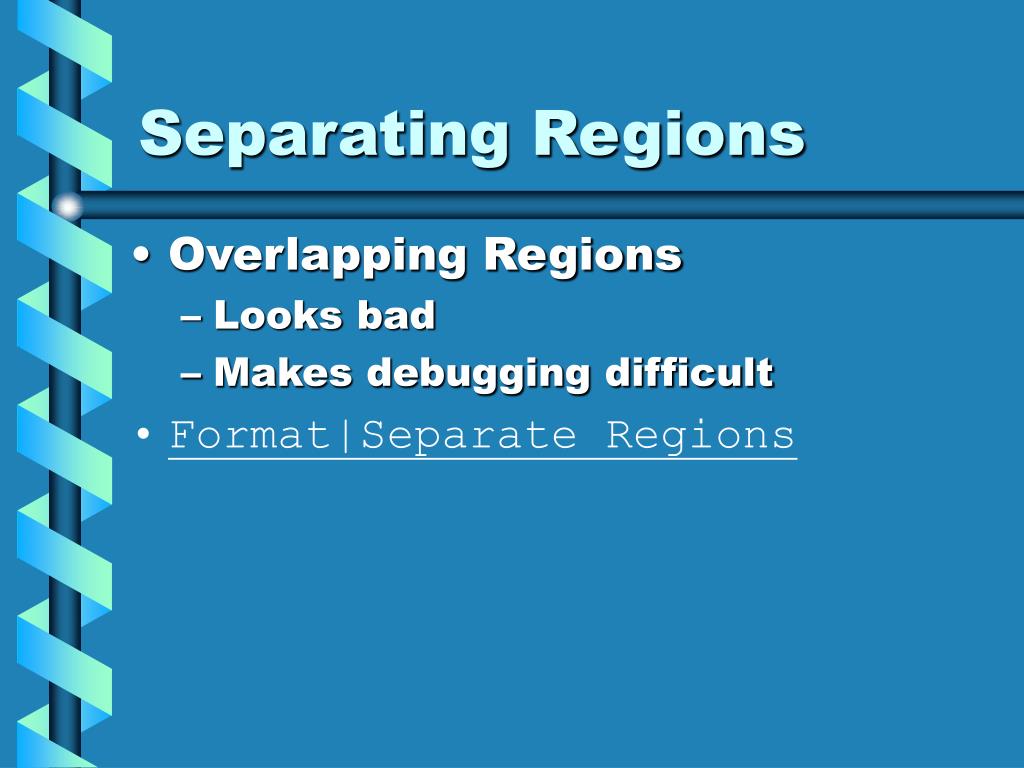

Separating Regions

  • Overlapping Regions

    • Looks bad

    • Makes debugging difficult

  • Format|Separate Regions


Spelling check

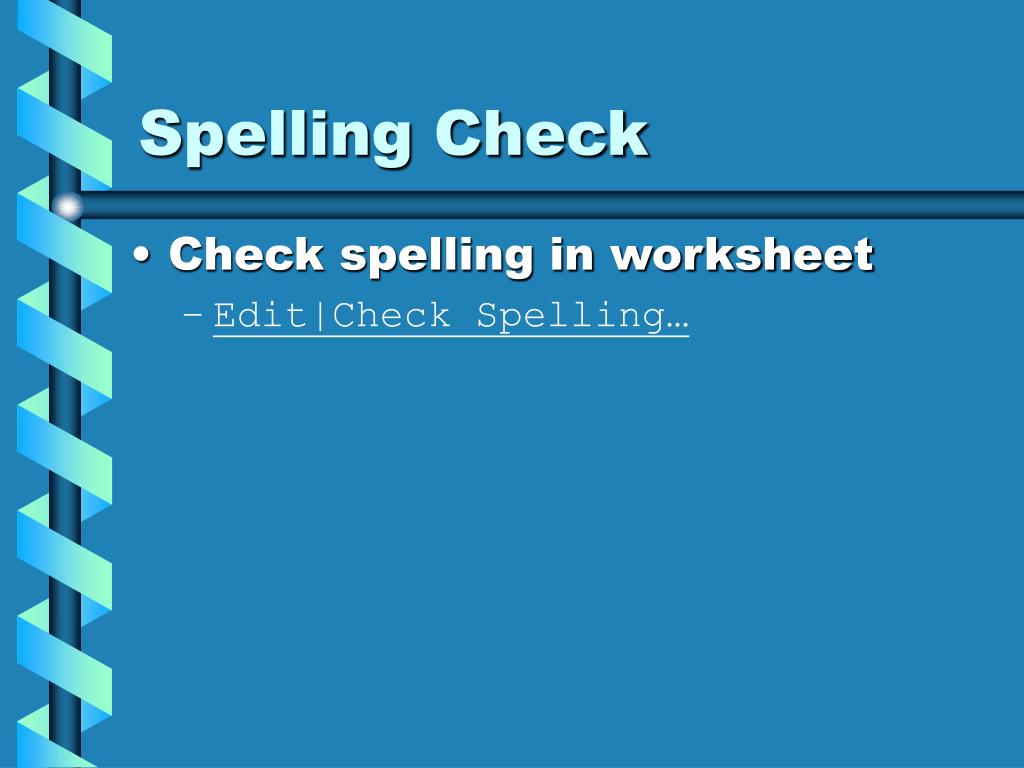

Spelling Check

  • Check spelling in worksheet

    • Edit|Check Spelling…

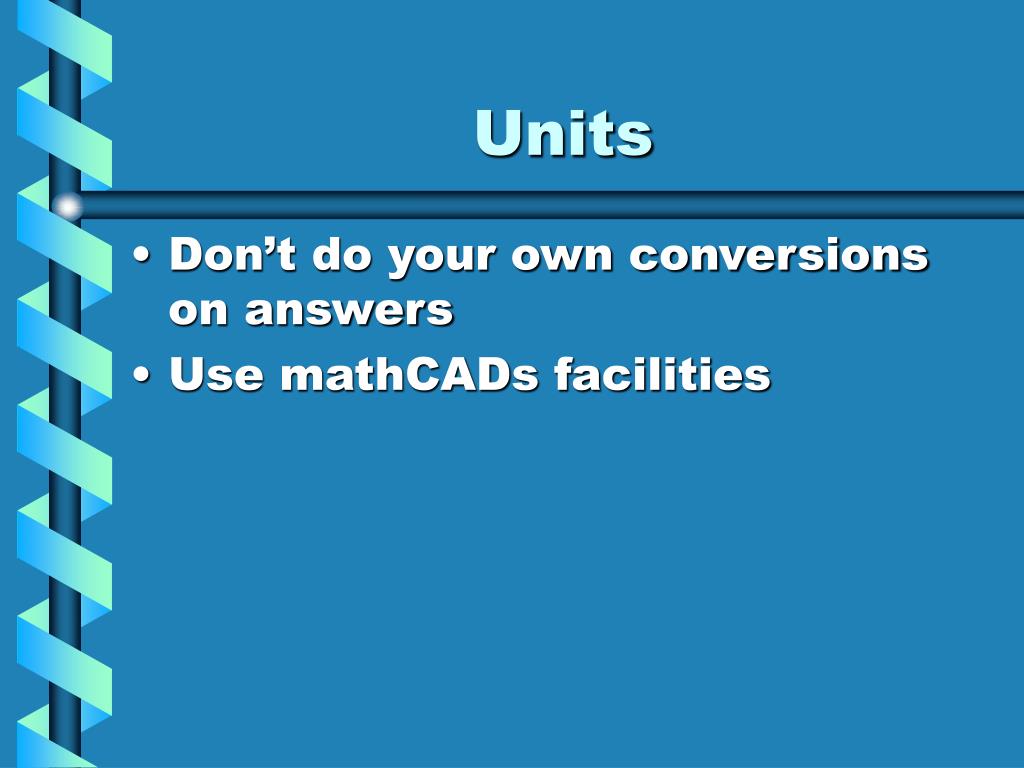

Units

Units

  • Don’t do your own conversions on answers

  • Use mathCADs facilities


Unit conversions of answers

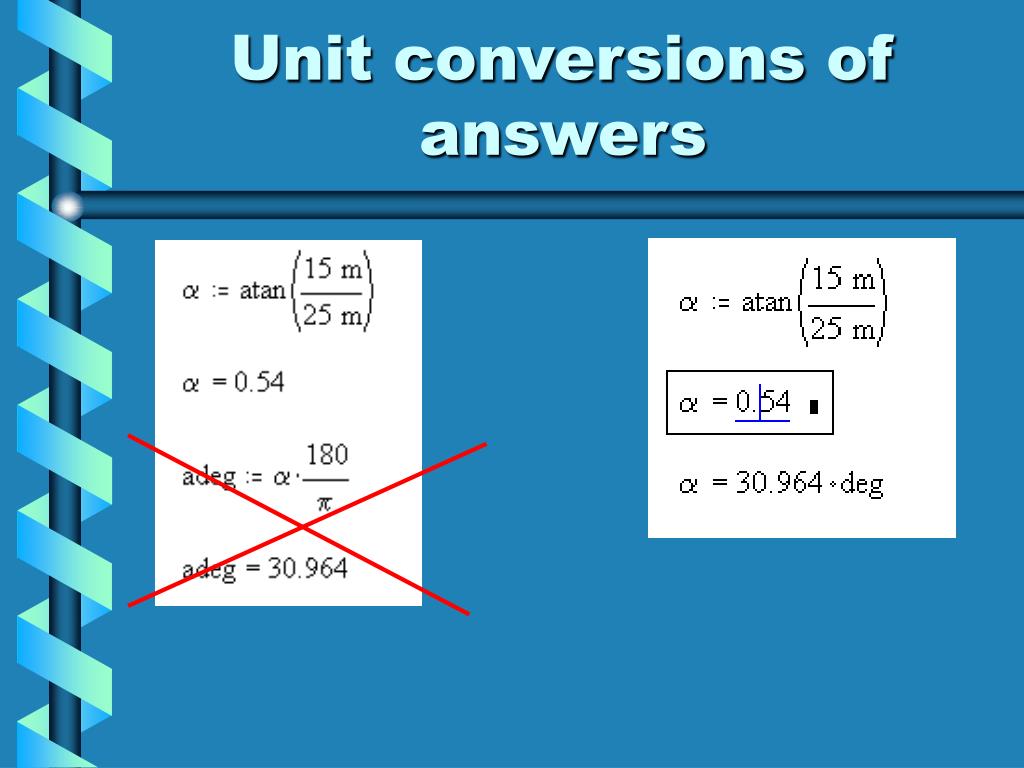

Unit conversions of answers


Inverse trig functions

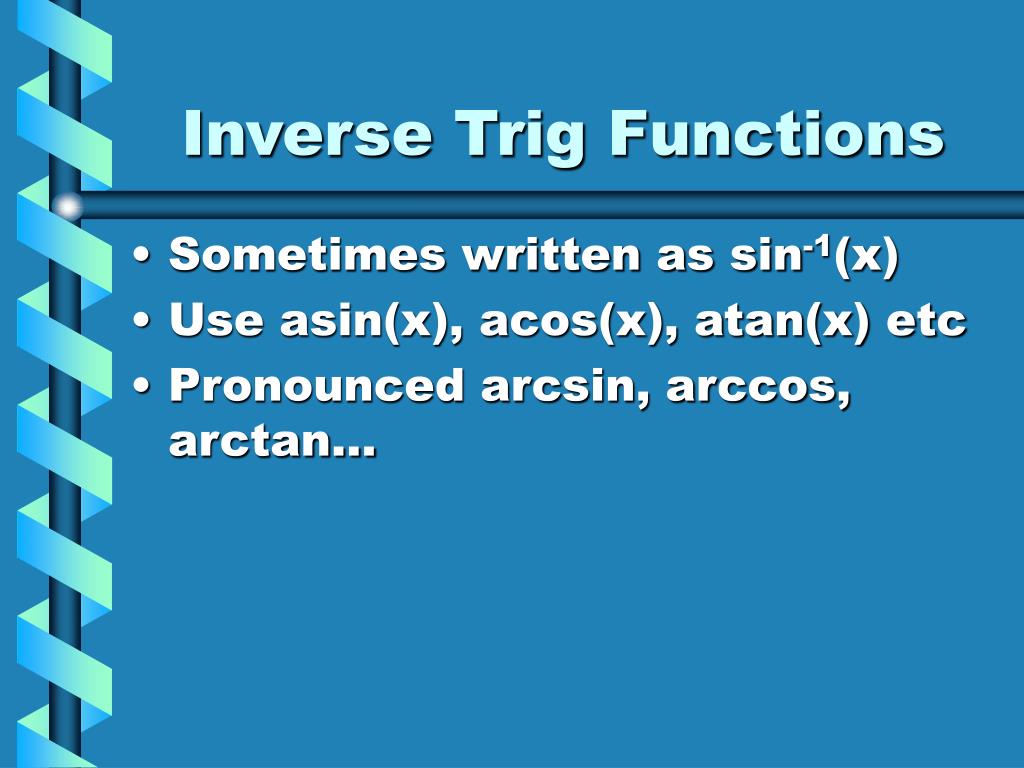

Inverse Trig Functions

  • Sometimes written as sin-1(x)

  • Use asin(x), acos(x), atan(x) etc

  • Pronounced arcsin, arccos, arctan…


User defined functions in mathcad

User Defined Functions in MathCAD

  • Define Once

  • Use many times


User defined functions in mathcad 2

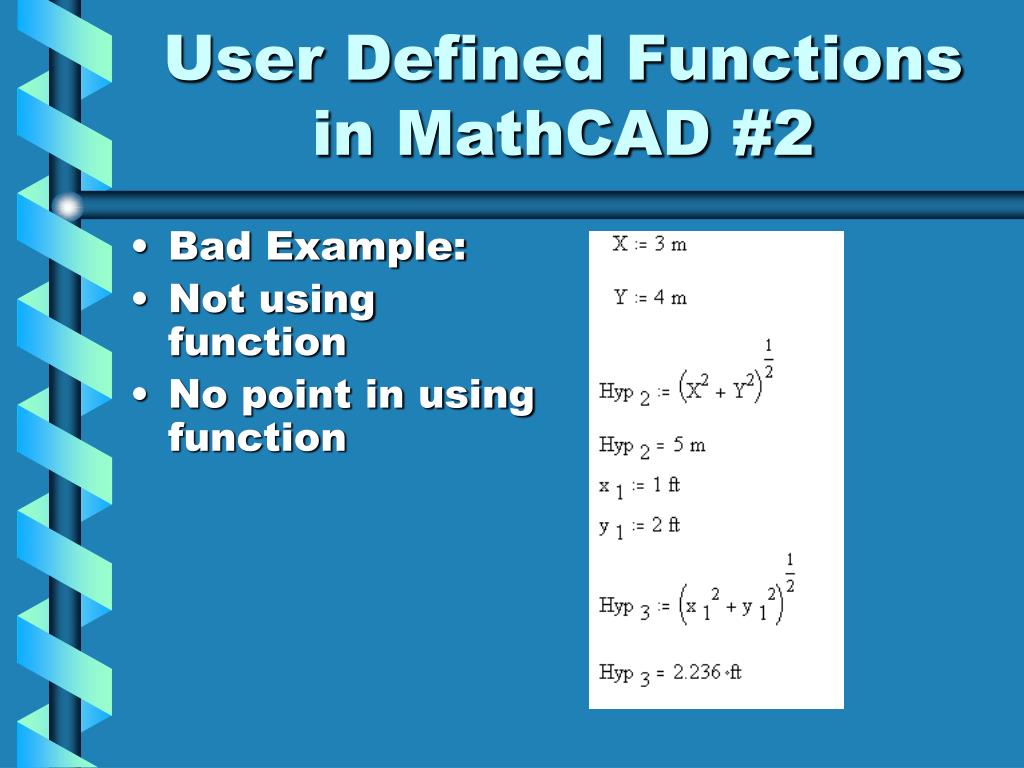

User Defined Functions in MathCAD #2

  • Bad Example:

  • Not using function

  • No point in using function


User defined functions in mathcad 3

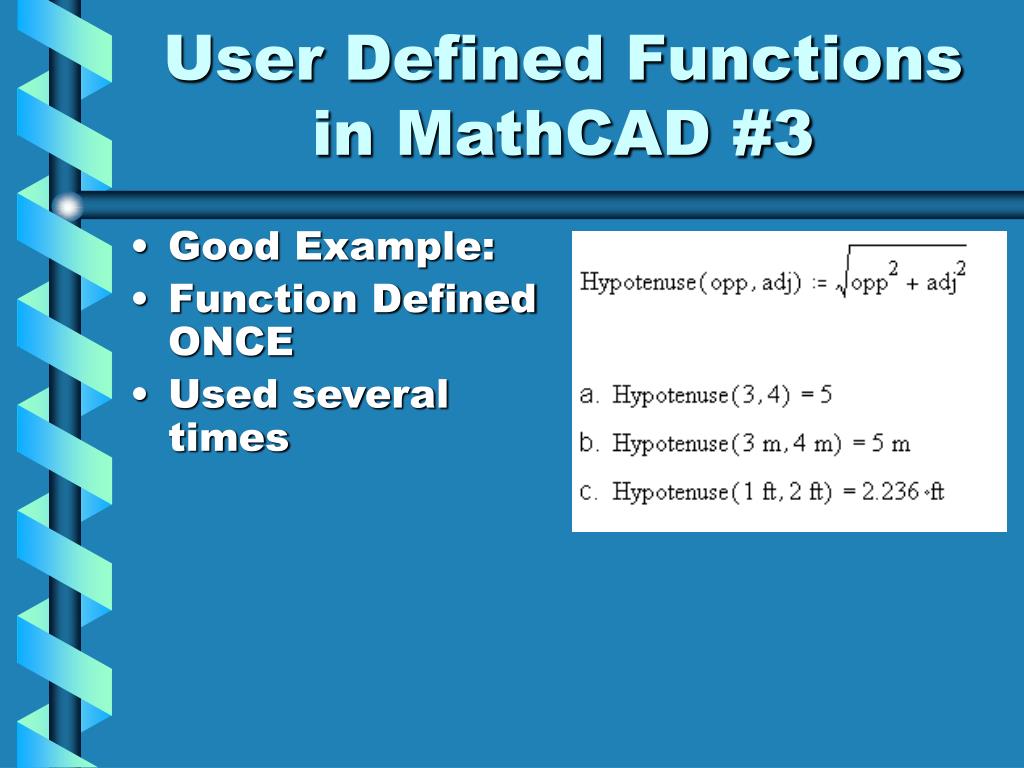

User Defined Functions in MathCAD #3

  • Good Example:

  • Function Defined ONCE

  • Used several times

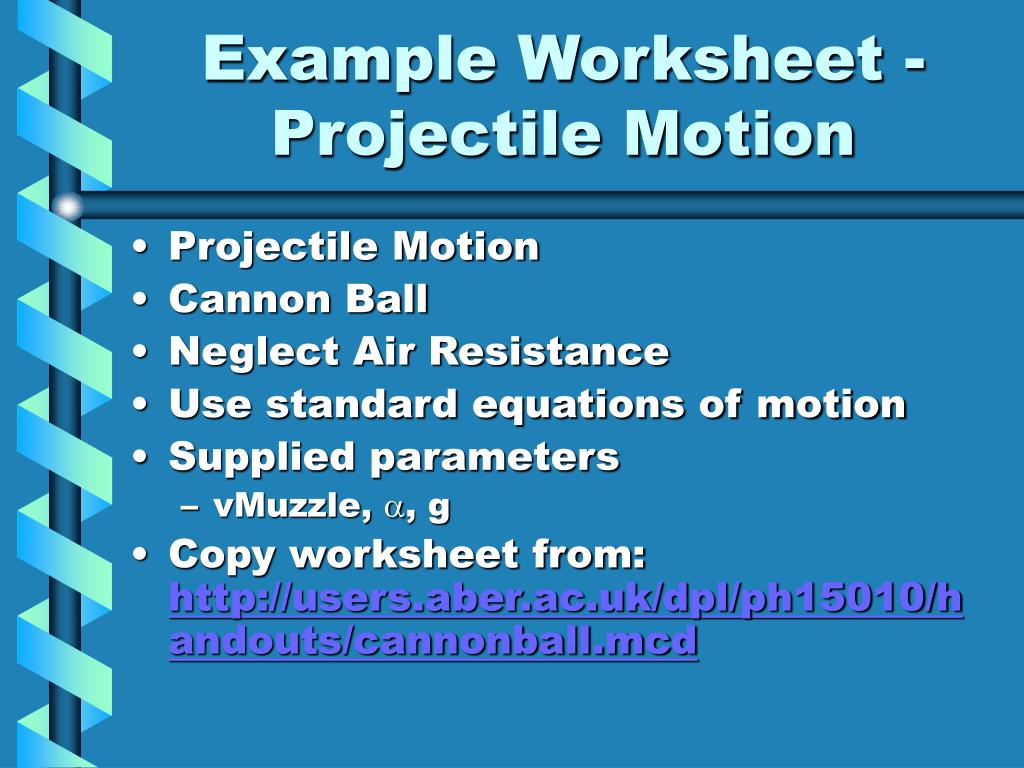

Example worksheet projectile motion

Example Worksheet - Projectile Motion

  • Projectile Motion

  • Cannon Ball

  • Neglect Air Resistance

  • Use standard equations of motion

  • Supplied parameters

    • vMuzzle, a, g

  • Copy worksheet from:http://users.aber.ac.uk/dpl/ph15010/handouts/cannonball.mcd


Projectile motion 2

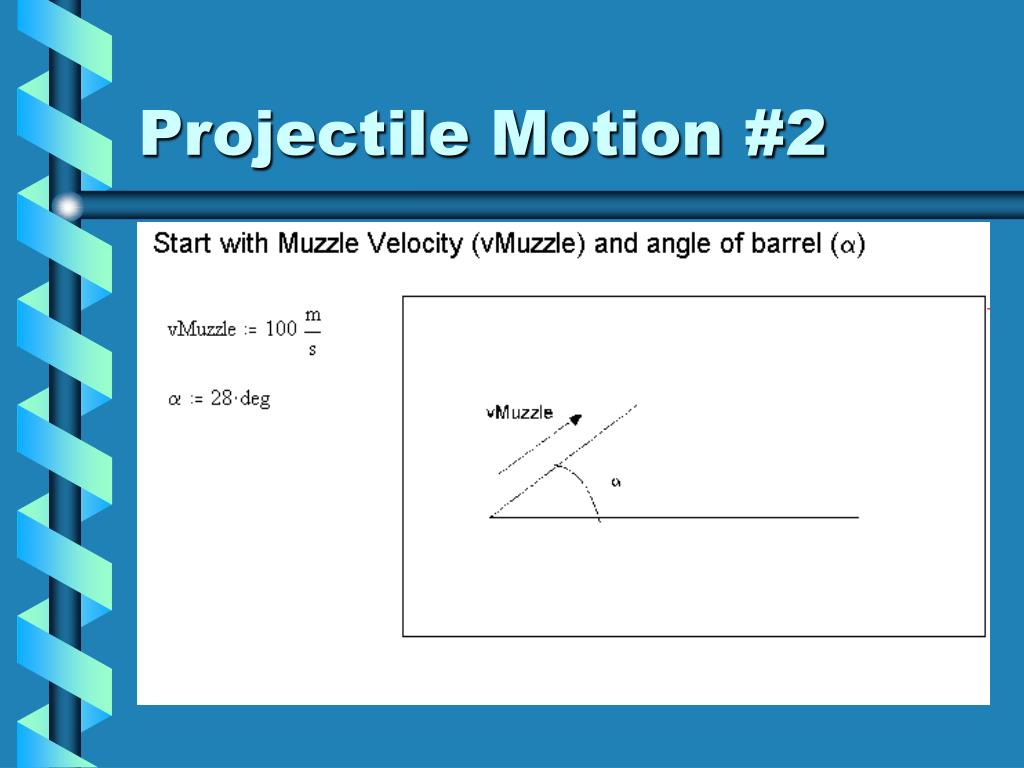

Projectile Motion #2


Projectile motion 3

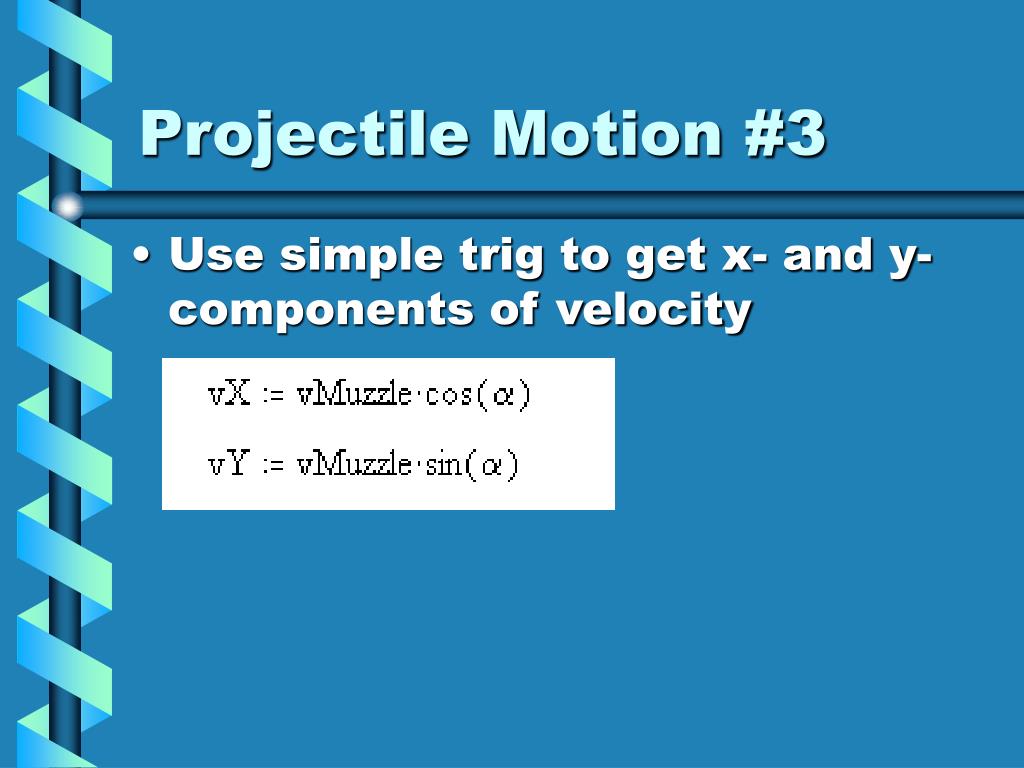

Projectile Motion #3

  • Use simple trig to get x- and y- components of velocity

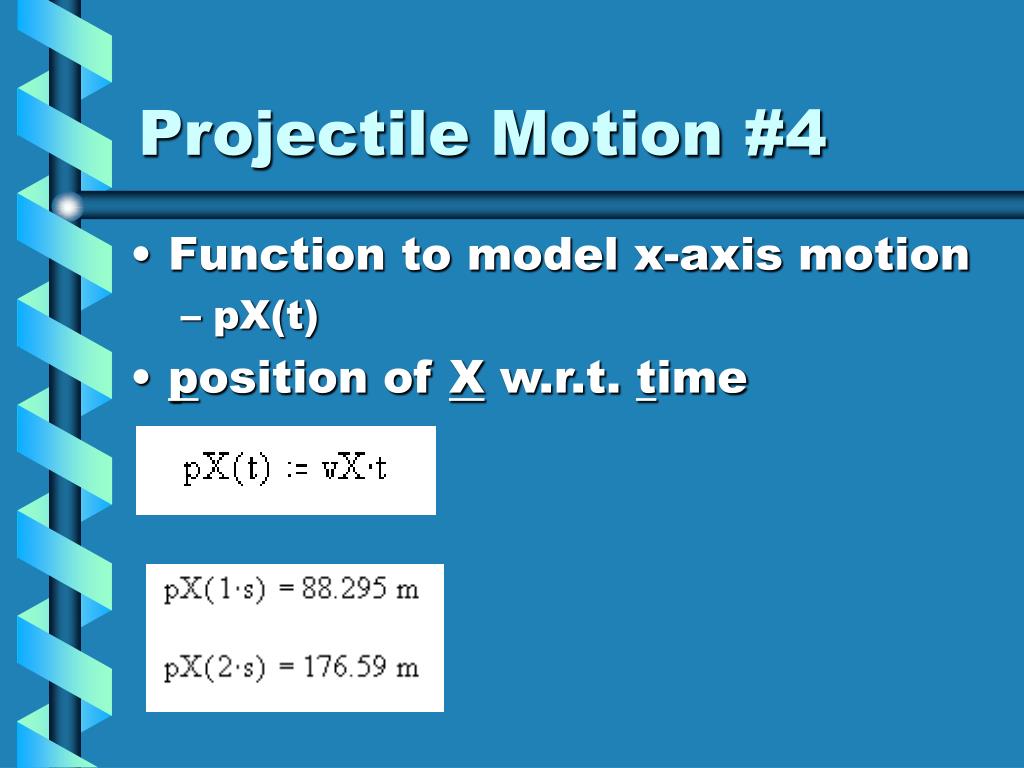

Projectile motion 4

Projectile Motion #4

  • Function to model x-axis motion

    • pX(t)

  • position of X w.r.t. time

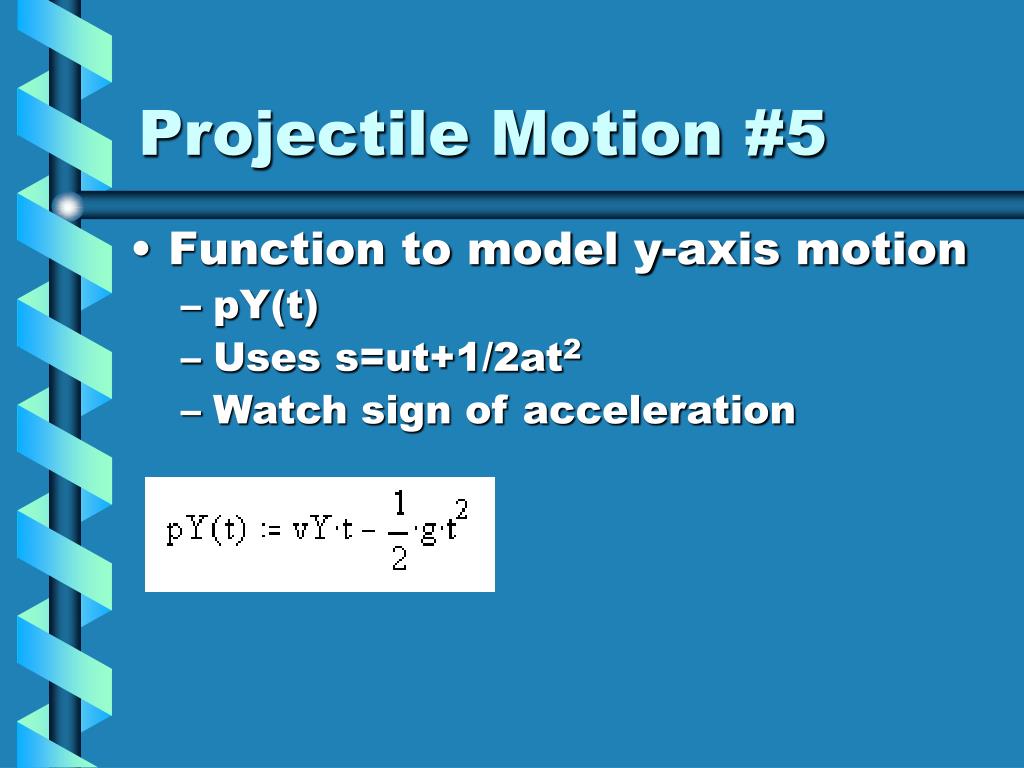

Projectile motion 5

Projectile Motion #5

  • Function to model y-axis motion

    • pY(t)

    • Uses s=ut+1/2at2

    • Watch sign of acceleration


Projectile motion 6 graph of px t py t vs t

Projectile Motion #6Graph of pX(t) & pY(t) vs t


Projectile motion 7

Projectile Motion #7

  • Want to:

    • Determine time of impact

    • Plot parabola of pY vs pX

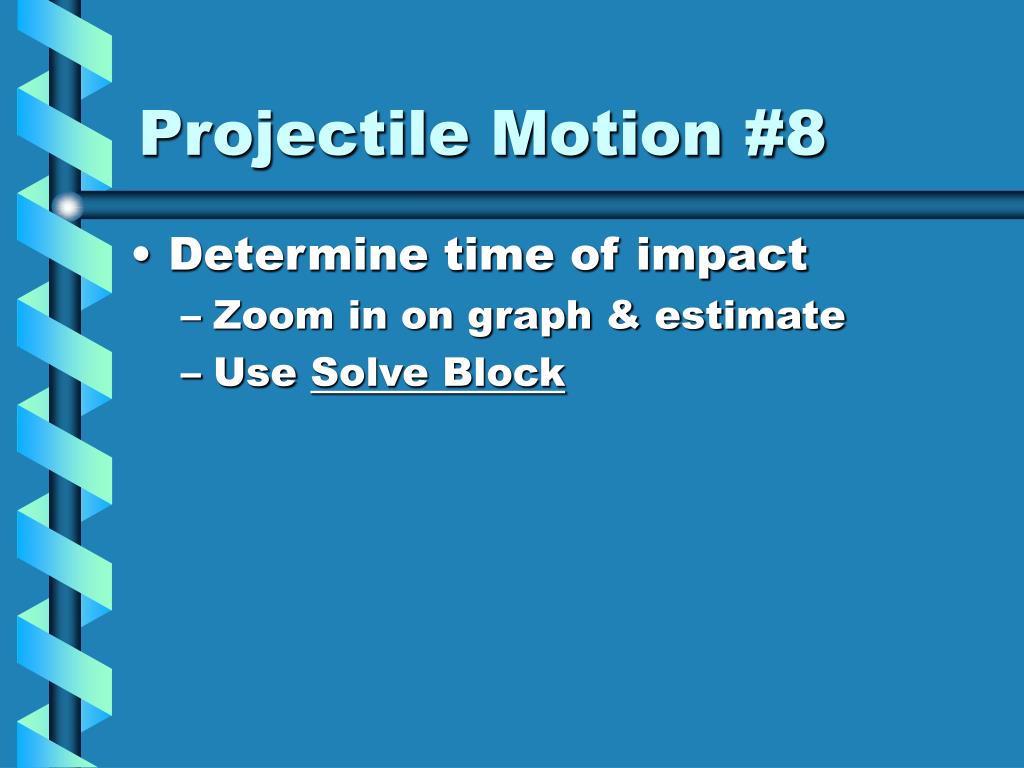

Projectile motion 8

Projectile Motion #8

  • Determine time of impact

    • Zoom in on graph & estimate

    • Use Solve Block

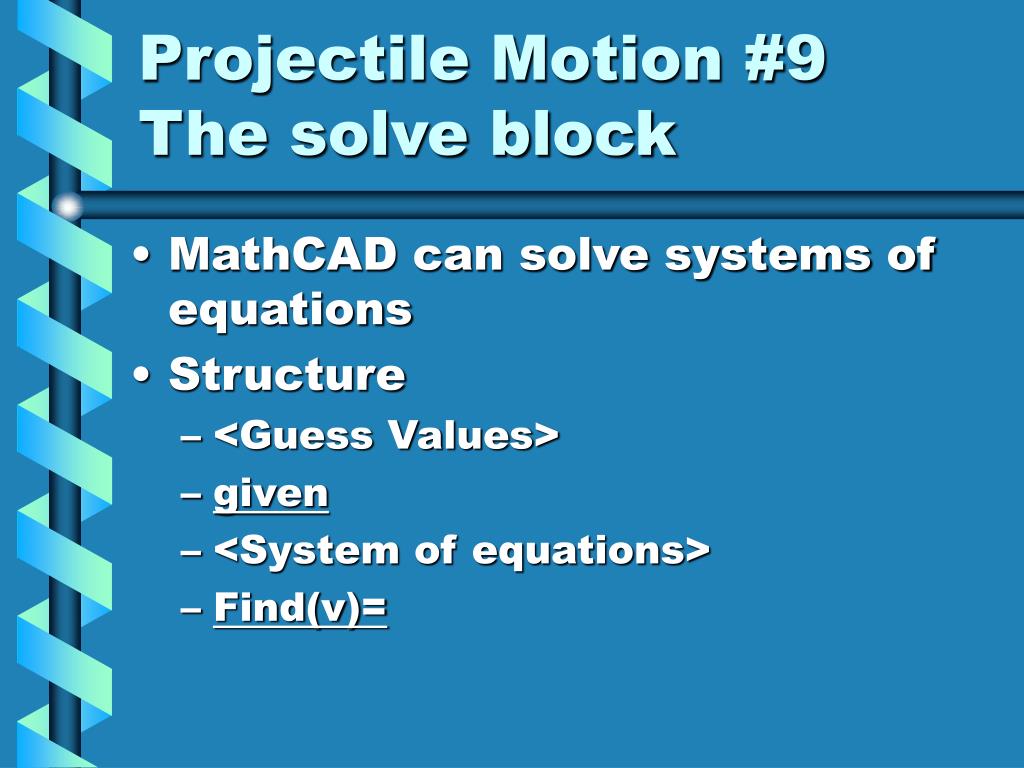

Projectile motion 9 the solve block

Projectile Motion #9The solve block

  • MathCAD can solve systems of equations

  • Structure

    • <Guess Values>

    • given

    • <System of equations>

    • Find(v)=


The solve block

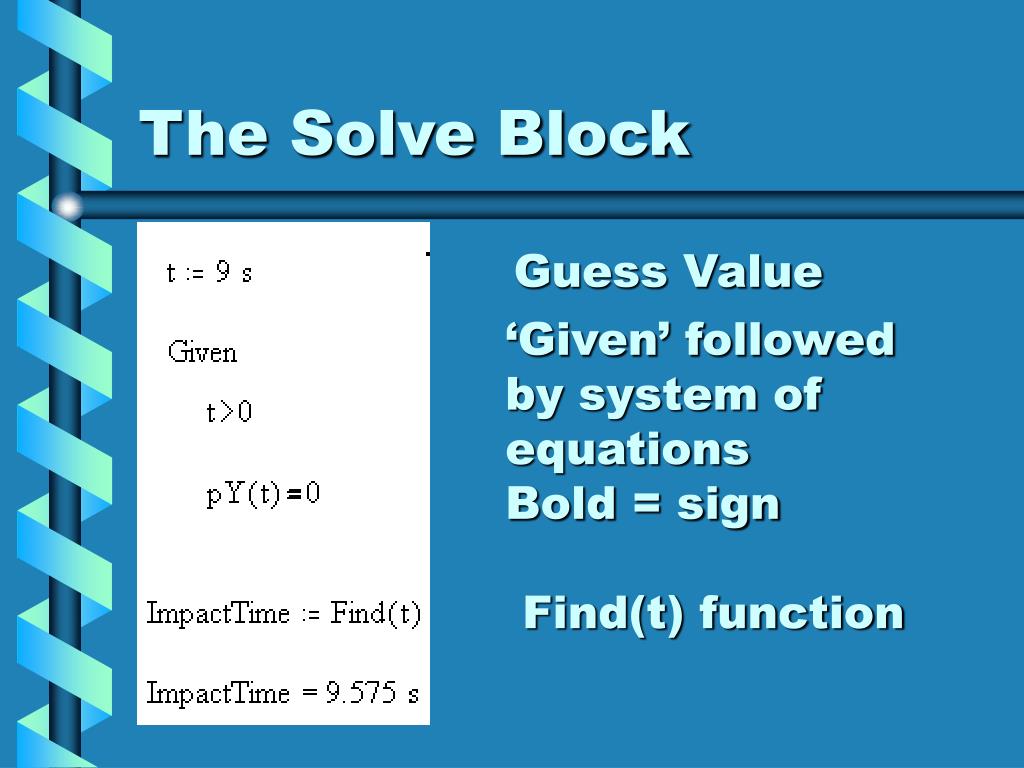

The Solve Block

Guess Value

‘Given’ followed by system of equations

Bold = sign

Find(t) function


Range variables

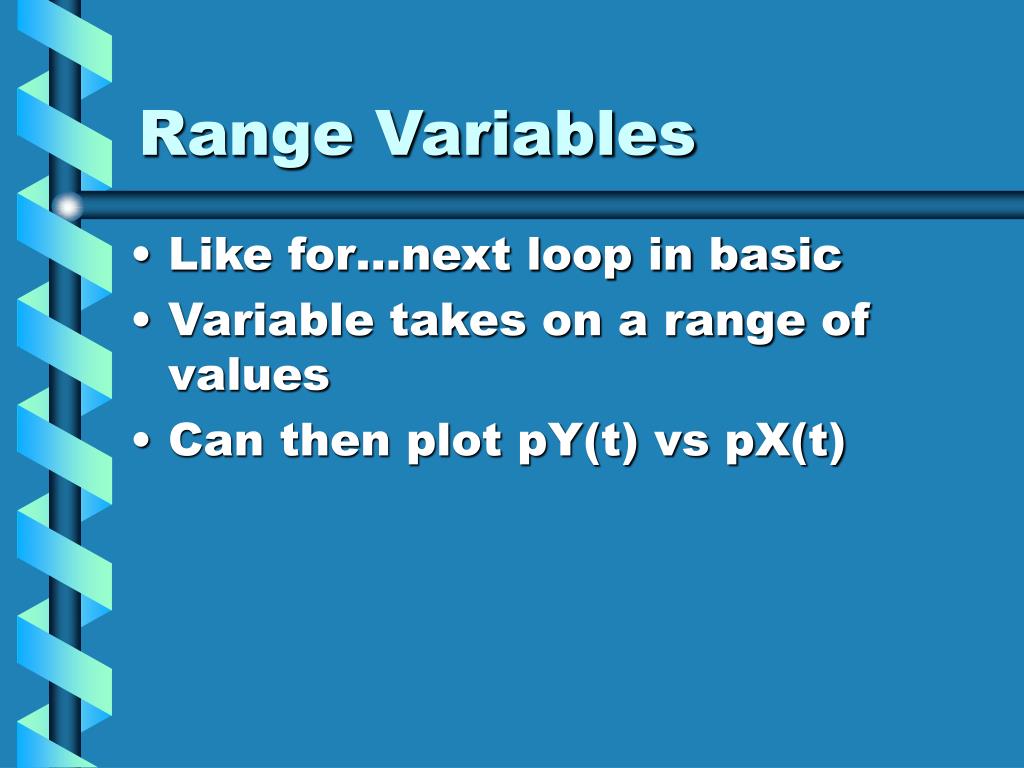

Range Variables

  • Like for…next loop in basic

  • Variable takes on a range of values

  • Can then plot pY(t) vs pX(t)


Projectile motion py vs px

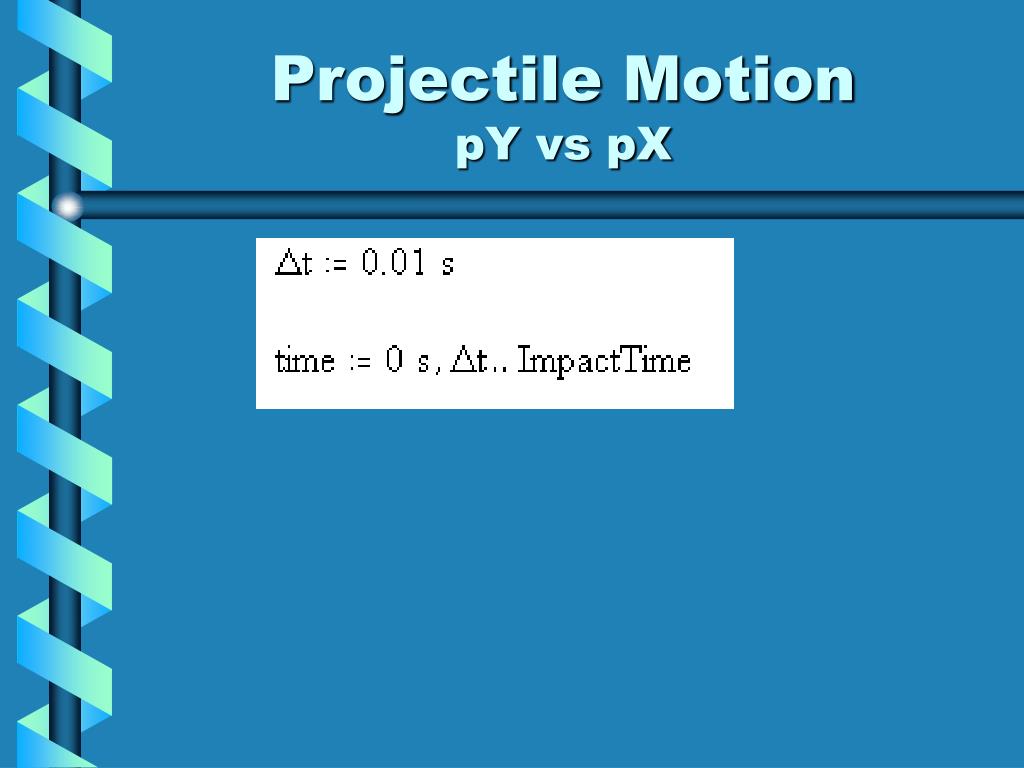

Projectile MotionpY vs pX


Projectile motion py vs px1

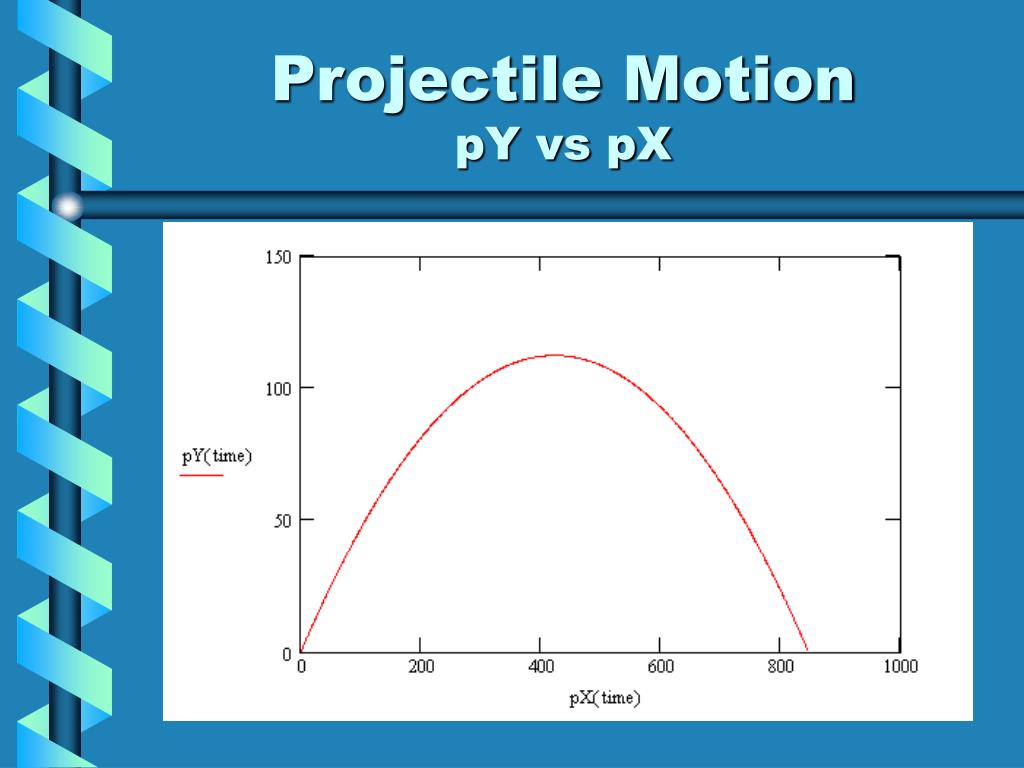

Projectile MotionpY vs pX
