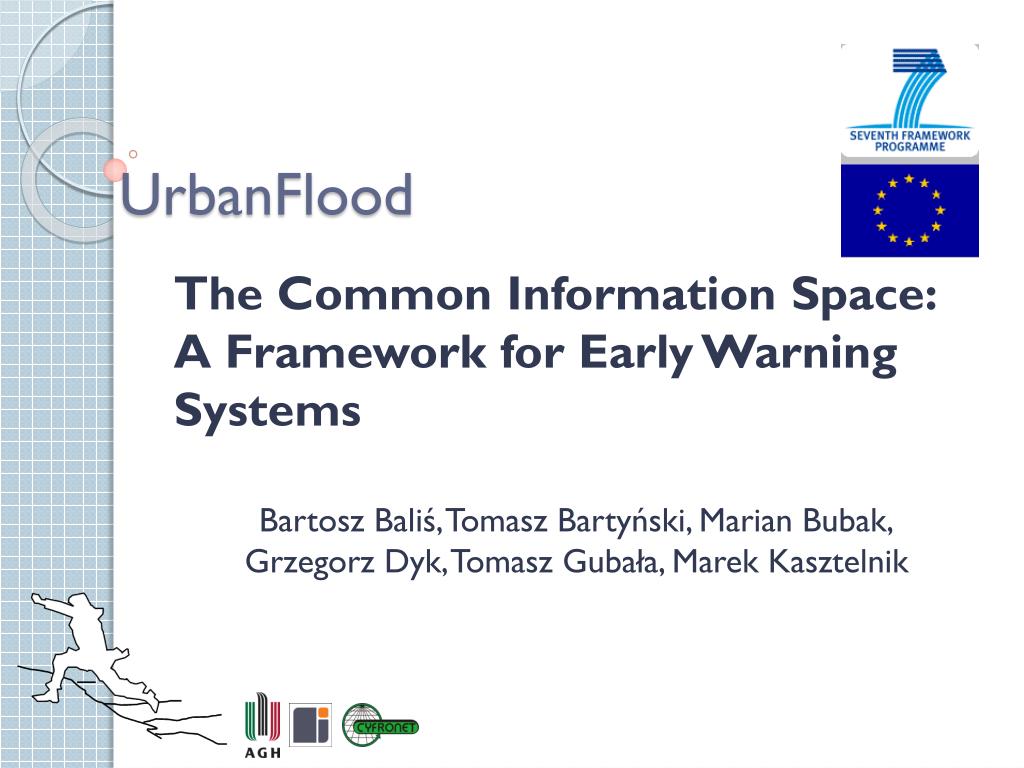

The Common Information Space: A Framework for EarlyWarning Systems

Bartosz Baliś, Tomasz Bartyński, Marian Bubak,Grzegorz Dyk, Tomasz Gubała, Marek Kasztelnik

Motivation early warning systems against natural disasters

Motivation: EarlyWarning Systems againstnaturaldisasters

  • Complexdistributedsystems

  • Mission and time-critical

  • Involveresource-intensivecomputations and data analysis

  • Requirecompositions of resourcesintocomplexscenarios

    • Sensors monitoring objects and naturalphenomena

    • Apps for data analysis & simulation

    • ICT infrastructure (hardware + software)

Example urban area flood simulation

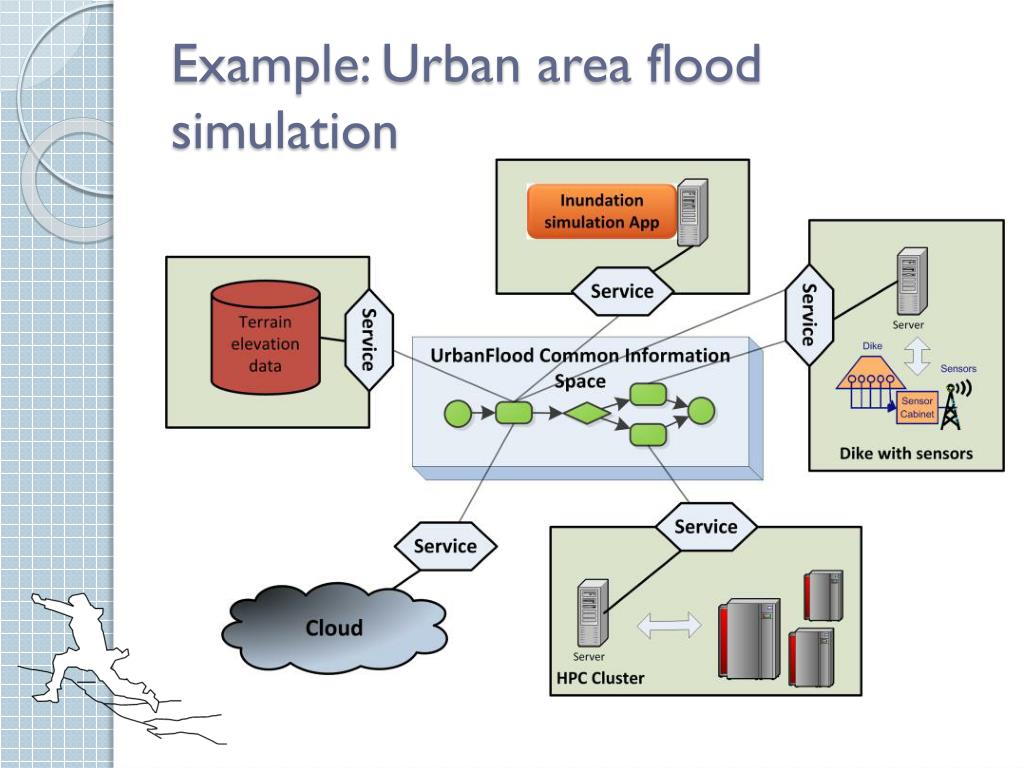

Example: Urban areafloodsimulation



Develop a frameworkfacilitating development, deployment and execution of EWSs: the Common Information Space

EWS development

EWS reference model

EWS development framework

EWS deployment

EWS blueprints


EWS execution

CIS runtime services for resourceallocation, self-monitoring, self-healing, mission-criticaloperation, and urgentcomputing

Cis architecture and ews reference model

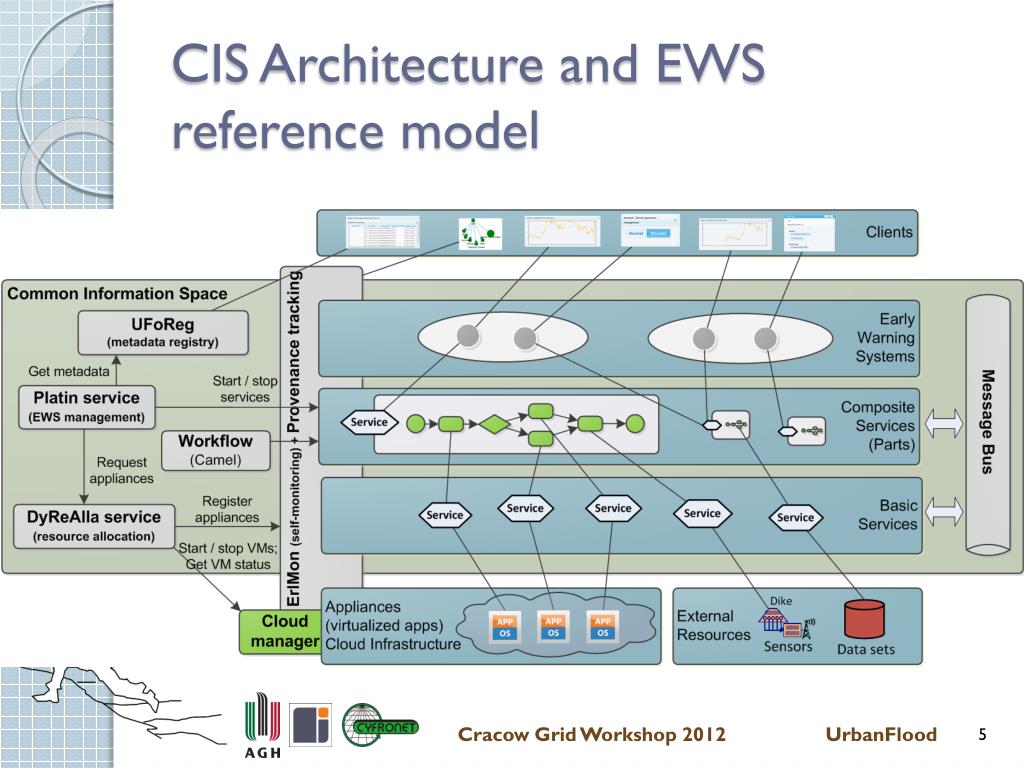

CIS Architecture and EWS reference model

Cis as a system factory

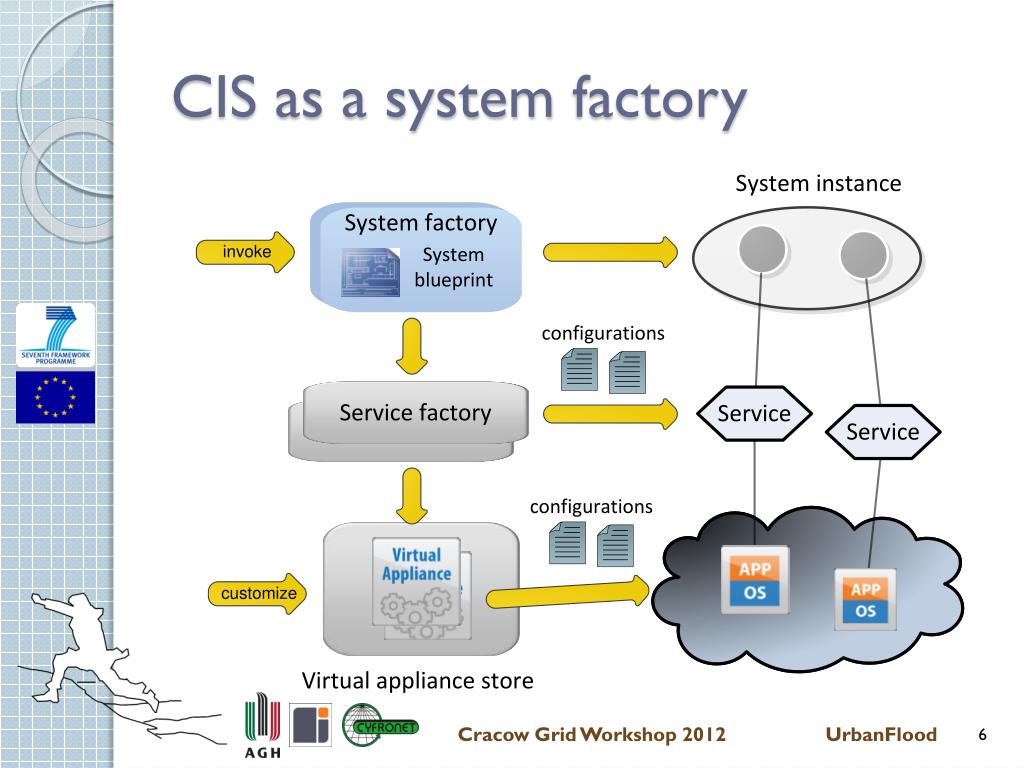

CIS as a system factory

Case study flood early warning system

Case study: FloodEarlyWarning System

  • Protection of urbanareasagainstfloodsdue to dikefailures

  • Real-time monitoring of embankmentsusingwirelesssensors

  • A casade of modelsfor:

    • Anomalydetection

    • Riskassessment

    • Impactprediction

Dike anomaly detection

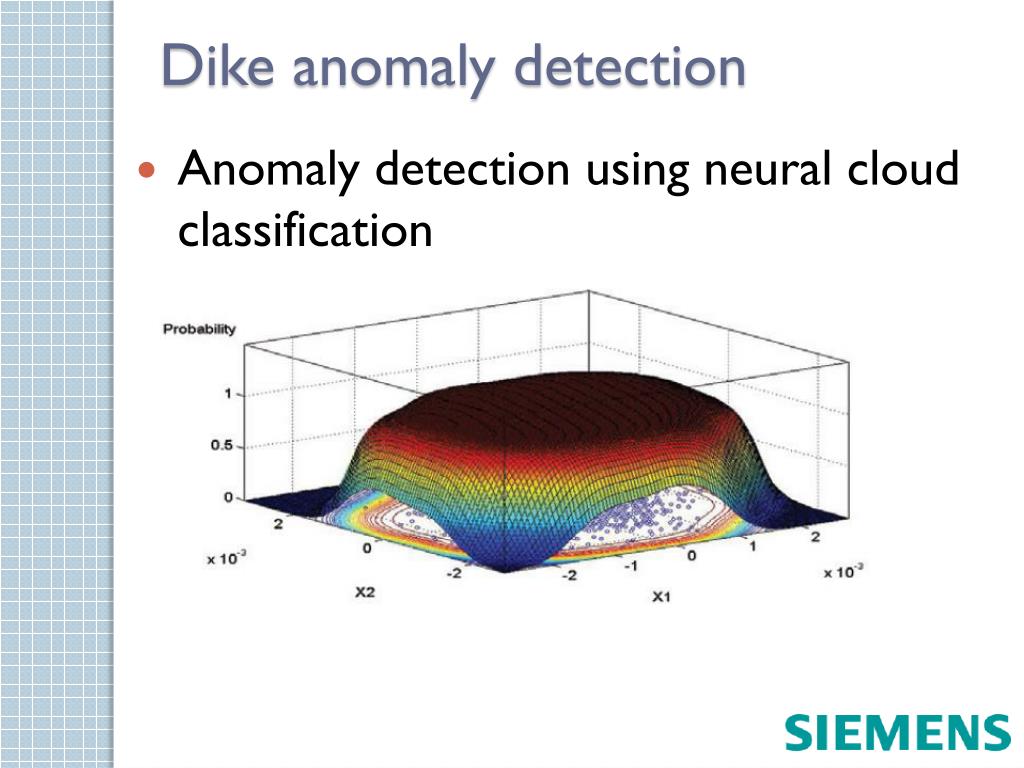

Dike anomaly detection


Dike breach risk computation

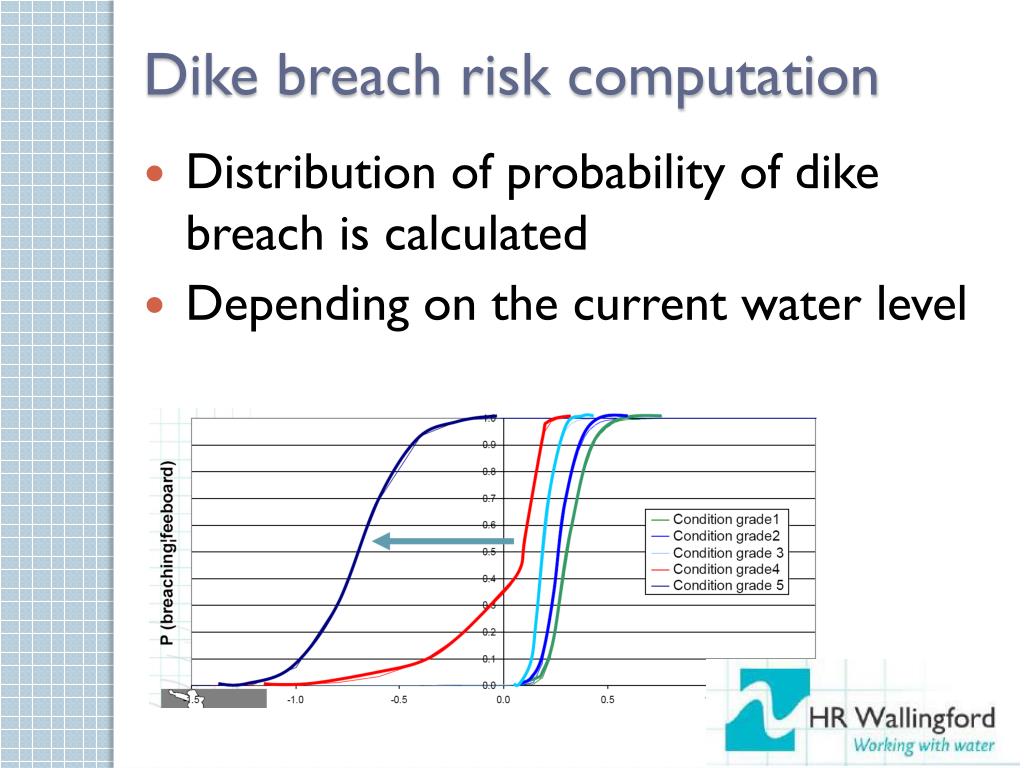

Dike breach risk computation

Distribution of probability of dike breach is calculated

Depending on the current water level

Flood simulation

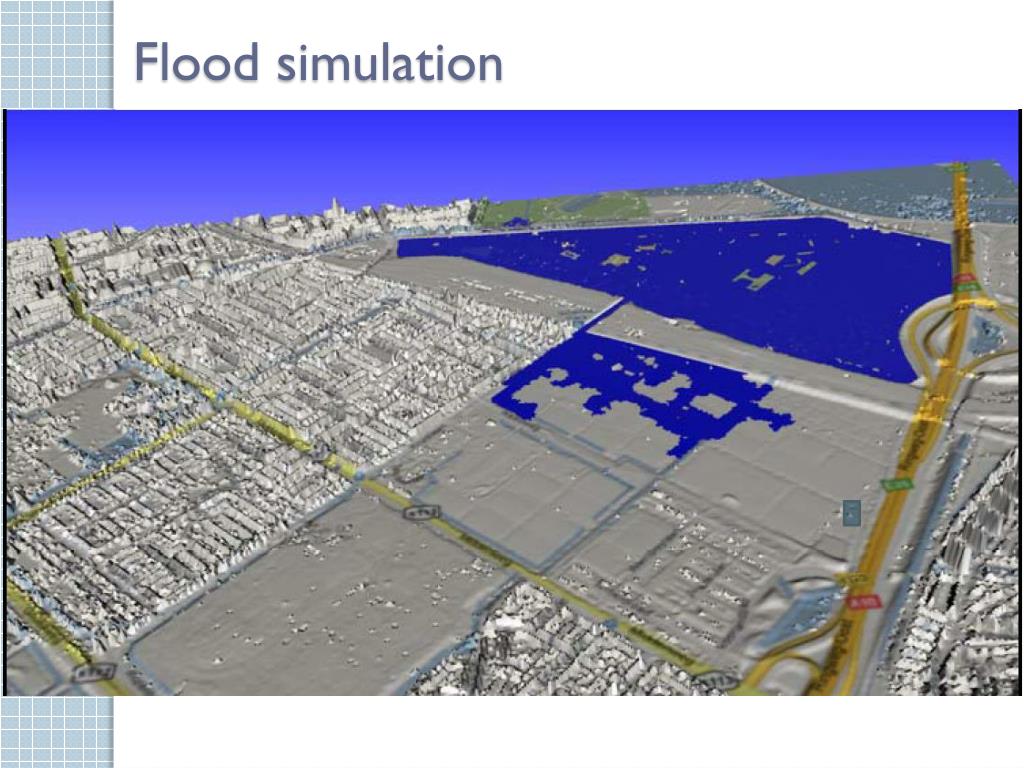

Flood simulation

Life safety model

Life Safety Model

Loss of life estimatedue to flood

Initialstate of the world

Post-eventsummary 

(red color = deceased)

Virtual dike

Virtual Dike

Computer model of a dike

Simulation of dike behaviour

Useful for „what-if” experiments

Also for testing the real EWS („emergency drill”)

Flood early warning system workflow

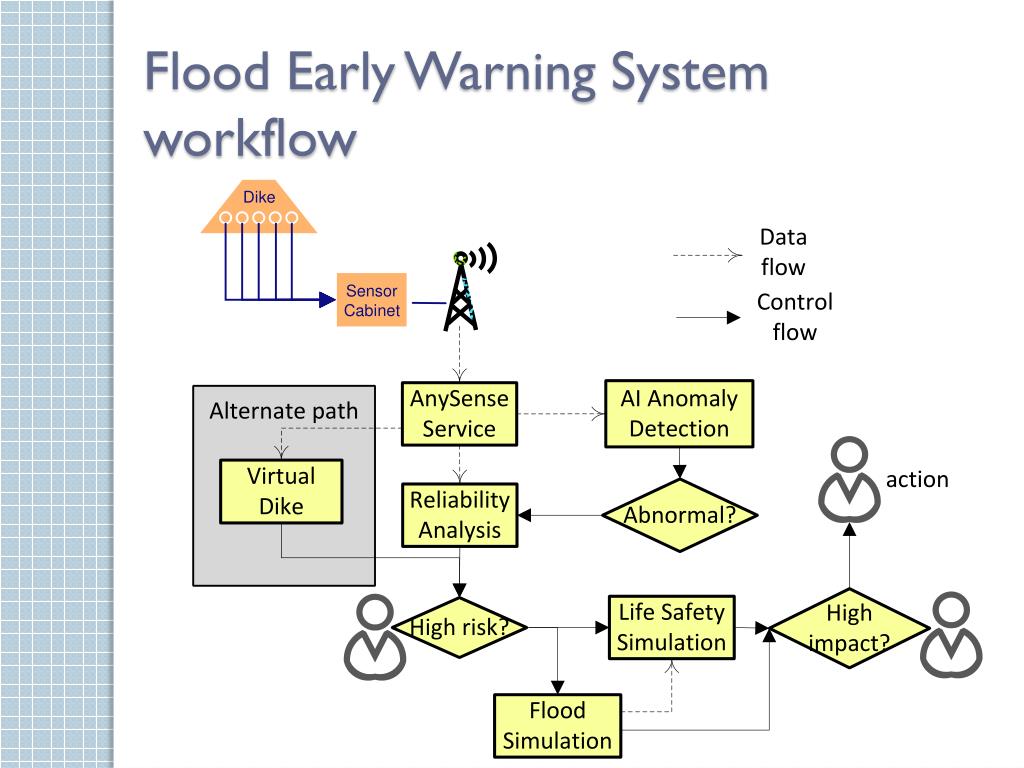

FloodEarlyWarning System workflow

Flood ews implementation

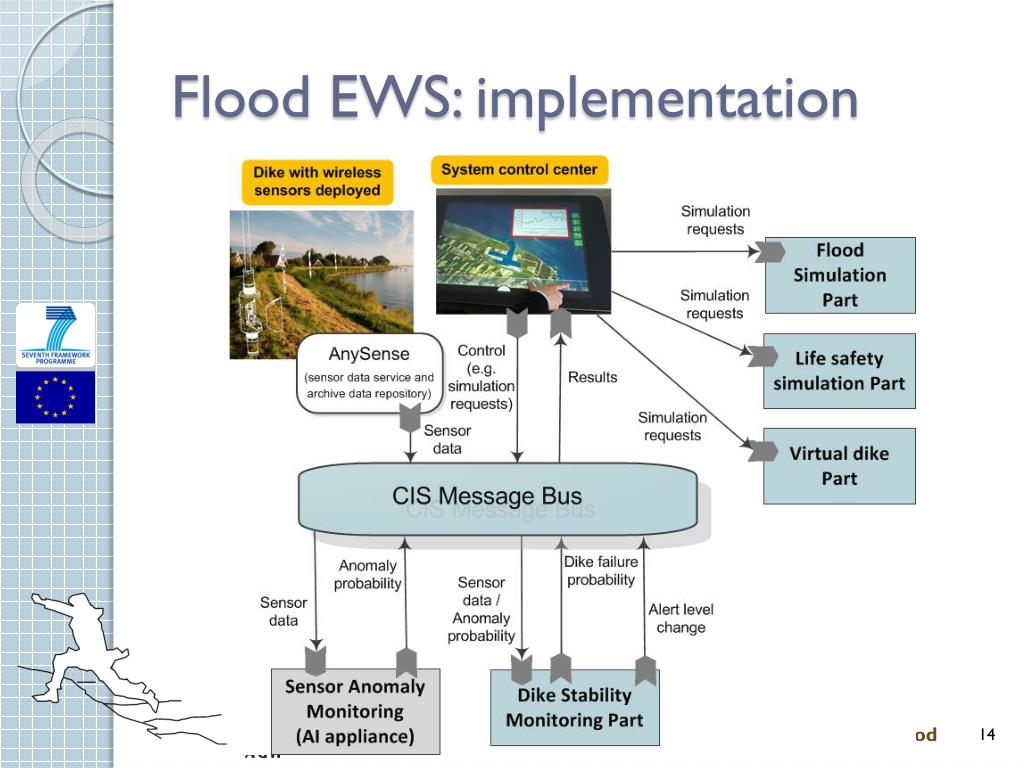

Flood EWS: implementation

Example flood simulation part

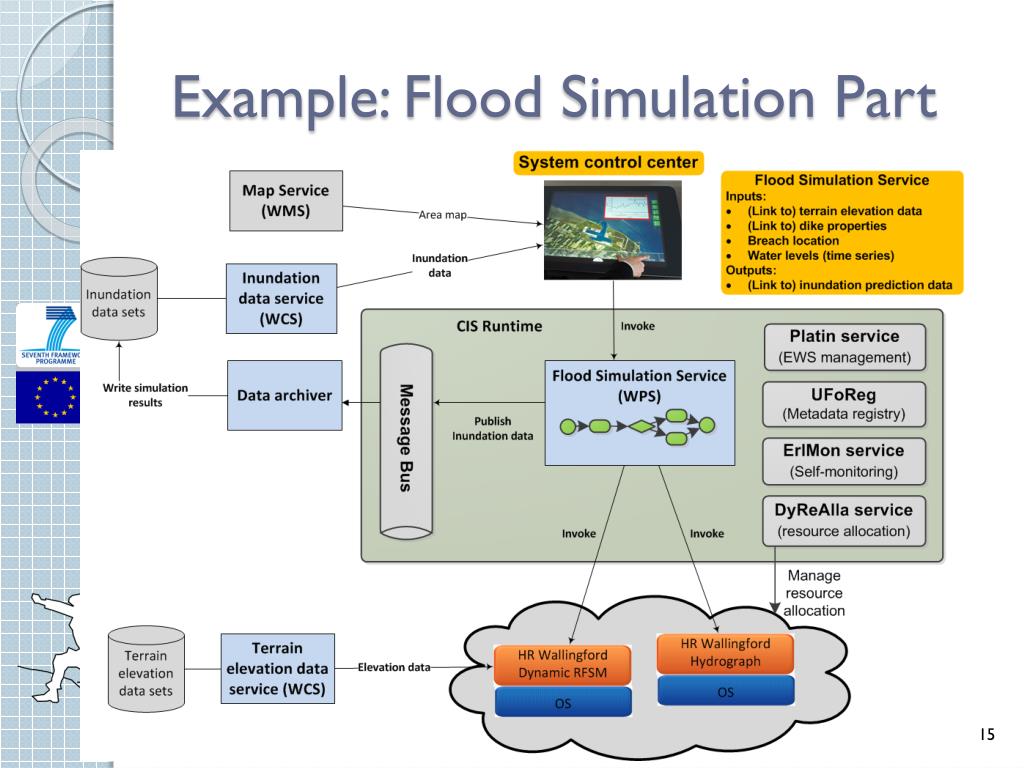

Example: FloodSimulation Part



CIS contributes conceptually andtechnologically in the following areas:

  • CIS as a factory for Early Warning Systems

    • Proven by theimplementation of the Flood EWS

  • CIS as a geo-ICT technology for spatial data processingservices

    • CIS adopts guidelines of the INSPIRE directive andleverages OGC standards for service interfaces

  • CIS as a runtime infrastructure forresource-intensivemission-critical systems
