Elm mitigation with smbi cji fuelling in hl 2a h mode plasmas

ELM mitigation with SMBI-CJI fuelling in HL-2A H-mode plasmas

C. Y. Chen, L. H. Yao, B.B. Feng, Z. B. Shi, W.L. Zhong, J. Cheng, D. L. Yu, X. R. Duan

Southwestern Institute of Physic

2012/05/17


Outline

SMBI & CJI

Fuelling deposition area

ELM mitigation

ELM mitigation with SMBI

ELM mitigation with CJI

Summary and discussion

Outline


Smbi cji

A

Solid / liquid

(P

,T

)

0

0

log P

isentrope

B

C

P

(T)

v

gas

P(T)

log T

SMBI & CJI

The gas state changes follow the isentrope, over the saturated vapor pressure line, molecular combined together to clusters in the beam.

The gas expands adiabatically, the flow velocity increases and Mach number continues to increases to M>>1 in the zone of silence.


Smbi cji1

SMBI & CJI

Rayleigh scattering and electron fluorescence method to measure the clusters.


Smbi cji2

SMBI & CJI

Pressure: 1.65MPa

Pulse duration: 2 ms

Temprature: -156℃

Delay time: ~1 ms

~1ms

Pressure: 1.45 MPa

Pulse duration: 2 ms

Room temprature

Delay time: ~ 0.8 ms

~0.8ms


H mode discharge on hl 2a

H-mode discharge on HL-2A

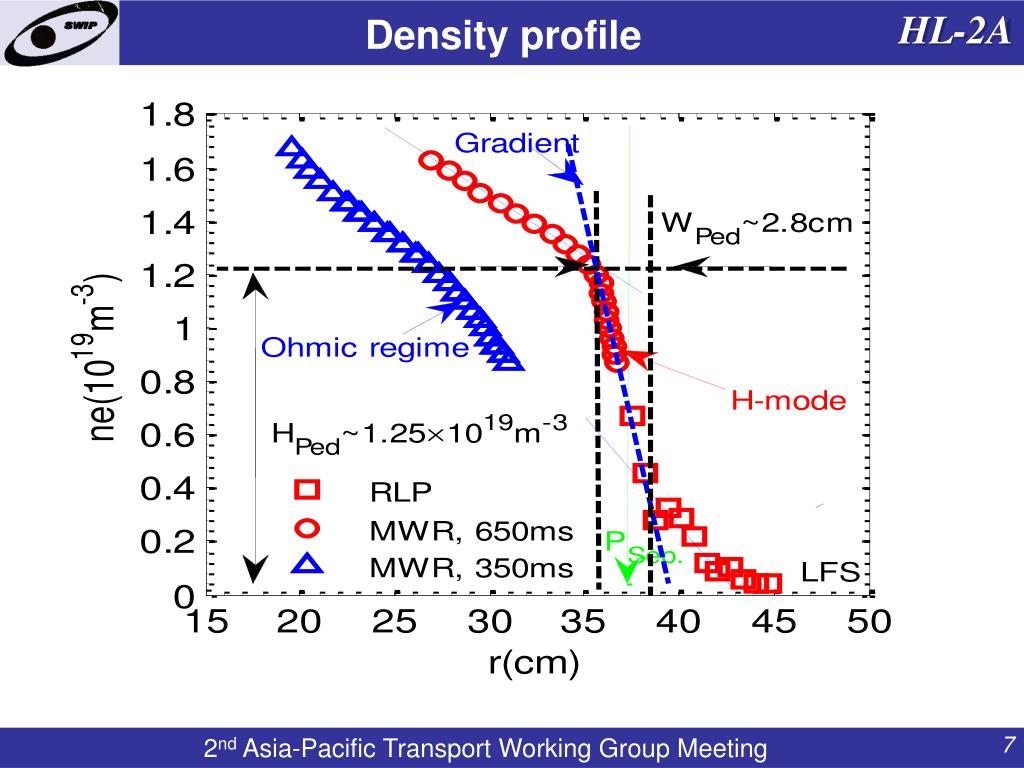

Density profile

Density profile


Deposition area of smbi

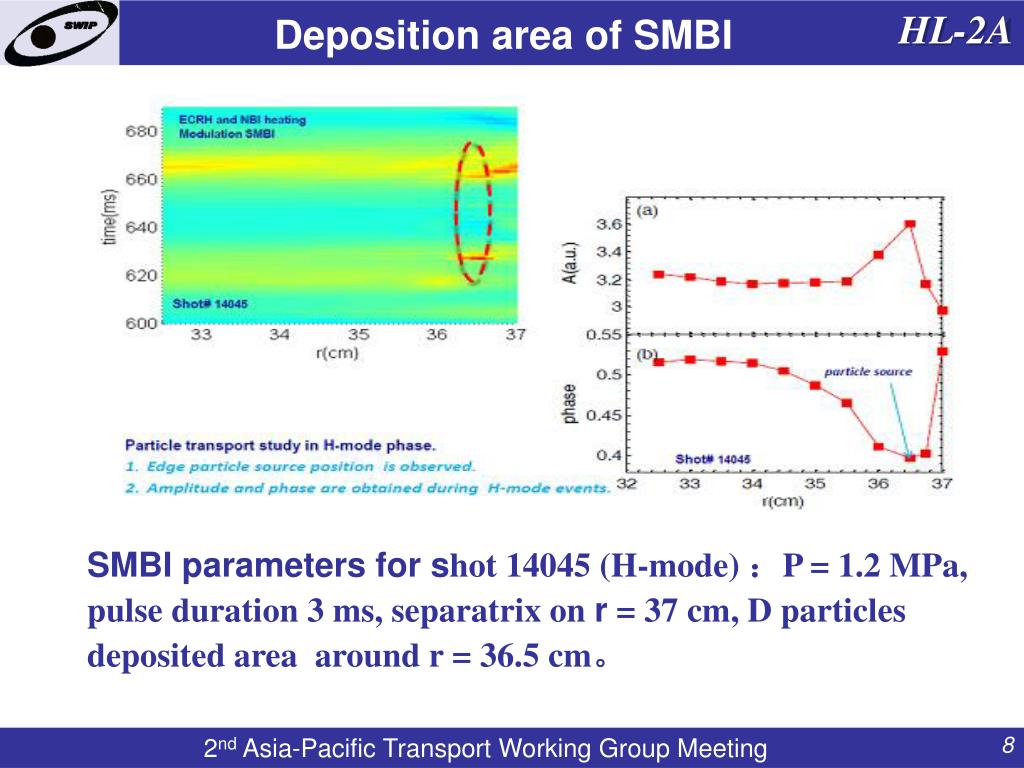

Deposition area of SMBI

SMBI parameters for shot 14045 (H-mode) :P = 1.2 MPa, pulse duration 3 ms, separatrix on r = 37 cm, D particles deposited area around r = 36.5 cm。


Deposition area of cji

Deposition area of CJI

  • CJI could send particles to the pedestal top.


Elm mitigation

ELM mitigation

a

b

c

Bt: 1.4 T

IP: 150 ~ 180 kA

Ne: 1.4 ~ 2.4

ECRH:1 ~ 1.5 MW

NBI: 0.5 ~ 0.8 MW

ELMs mitigation with SMBI (a),CJI (b),He SMBI (c).


Elm mitigation with smbi

ELM mitigation with SMBI

~ 2-3.5 are achieved.

  • Significant change of the ELM signal after SMBI pulse.

  • The influence persistence time last longer as the injected particles increasing.


Elm mitigation with cji

ELM mitigation with CJI

Multi - CJI

Pressure: 1.4 MPa

Duration: 2 ms

Power: 1 MW NBI


Elm mitigation1

ELM mitigation

Pressure: 1.1 MPa

Duration: 4 ms

Room temperature

Pressure: 4 MPa

Duration: 0.6 ms

Temperature: - 156 ℃

The comparison of SMBI and CJI on ELM mitigation


Elm mitigation2

ELM mitigation

  • The heat flux at divertor plate remains the same approximately, the filaments number (2.5) increases by 30%.

  • Per-ELM filament carried heart flux at the strike-point decreased 27%, 38%, 57%.


Elm mitigation3

ELM mitigation

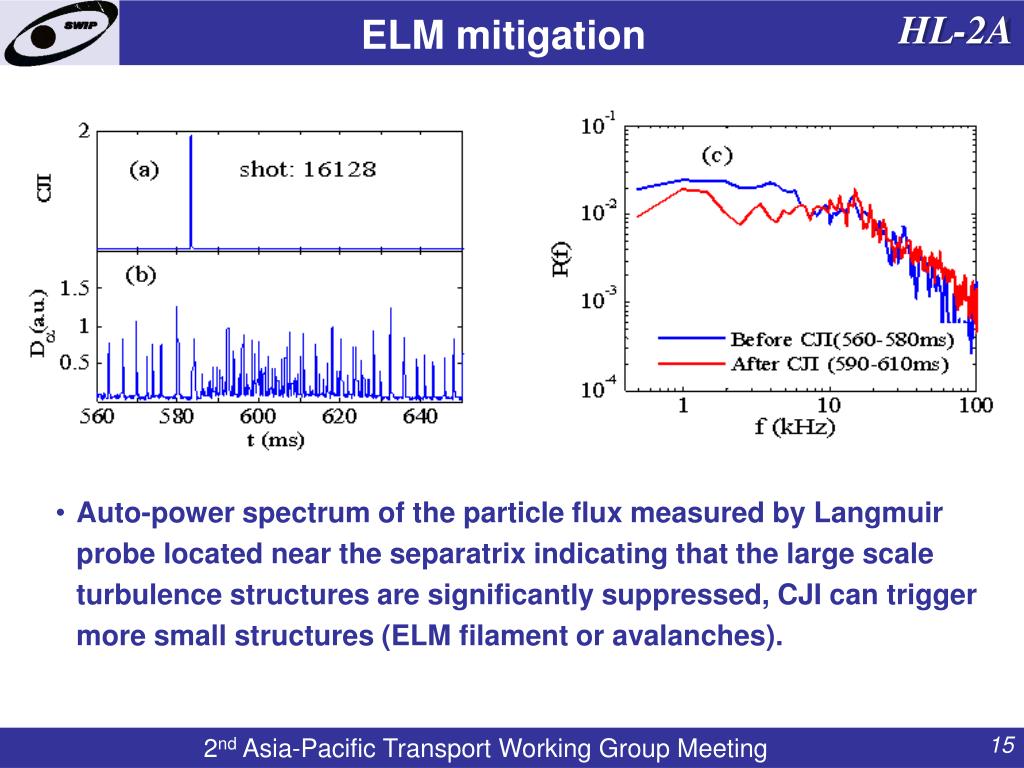

  • Auto-power spectrum of the particle flux measured by Langmuir probe located near the separatrix indicating that the large scale turbulence structures are significantly suppressed, CJI can trigger more small structures (ELM filament or avalanches).

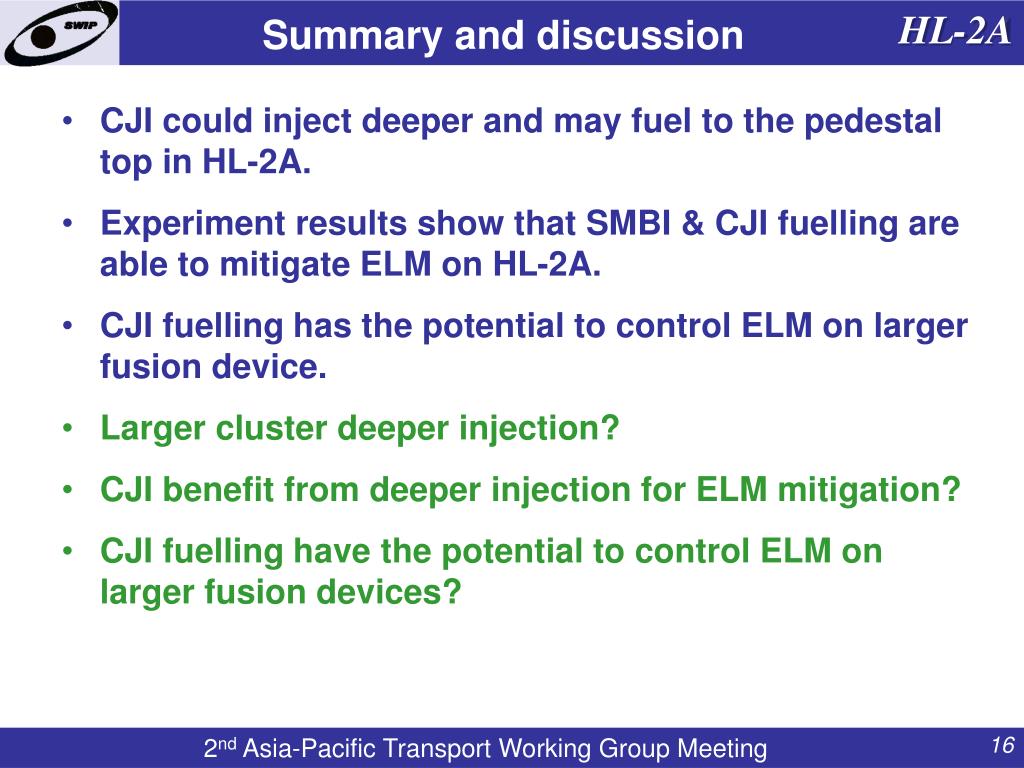

Summary and discussion

CJI could inject deeper and may fuel to the pedestal top in HL-2A.

Experiment results show that SMBI & CJI fuelling are able to mitigate ELM on HL-2A.

CJI fuelling has the potential to control ELM on larger fusion device.

Larger cluster deeper injection?

CJI benefit from deeper injection for ELM mitigation?

CJI fuelling have the potential to control ELM on larger fusion devices?

Summary and discussion


Elm mitigation with smbi cji fuelling in hl 2a h mode plasmas

Thank you for your attention!
