1. Autonomic Mix-Aware Provisioning on Amazon EC2 Tony Schneider, Derek Bender, Andrew Hahn Based on R. Singh et. al [1] Powerpoint Templates Powerpoint Templates

2. Introduction • Our Goals • Background • Implementation • Results • Future Work Powerpoint Templates Our Goals •Background• Implementation • Results • Future Work

3. Main Idea • Implement Singh et. al. • Gain some experience with EC2 • Implement a functional provisioning system • ...And gain some additional insight of SMCS • Full Disclosure: Not quite done yet (but close!) Powerpoint Templates Our Goals •Background• Implementation • Results • Future Work

4. Why? • Implement Singh et. al. • Deals primarily with workload provisioning • Recurring idea • Good entrance to the field • Promising theory Powerpoint Templates Our Goals •Background• Implementation • Results • Future Work

5. Why? • EC2 • Unknown quantity • Gain some idea towards its efficacy • How it works • What works and what doesn’t • Cost Powerpoint Templates Our Goals •Background• Implementation • Results • Future Work

6. Mix-aware provisioning • Many systems only reflect absolute number of requests • Ignores type of requests • Higher volume in requests ≠ higher demand (always) • Mix-aware solves this oversight Powerpoint Templates Our Goals •Background• Implementation • Results • Future Work

7. Mix-aware provisioning • So what is it? • Find frequencies of different request types • Long versus Short requests • Increase in long requests requires more resources • Uses these categories to determine “true” workload Powerpoint Templates Our Goals •Background• Implementation • Results • Future Work

8. Mix-aware provisioning • (Brief) example: • Short Request: 1ms, Long: 90ms • 100 Requests/Sec • 90short*1ms + 10long*90ms = 990ms • vs. • 10short*1ms + 90long*90ms = 3610ms Powerpoint Templates Our Goals •Background• Implementation • Results • Future Work

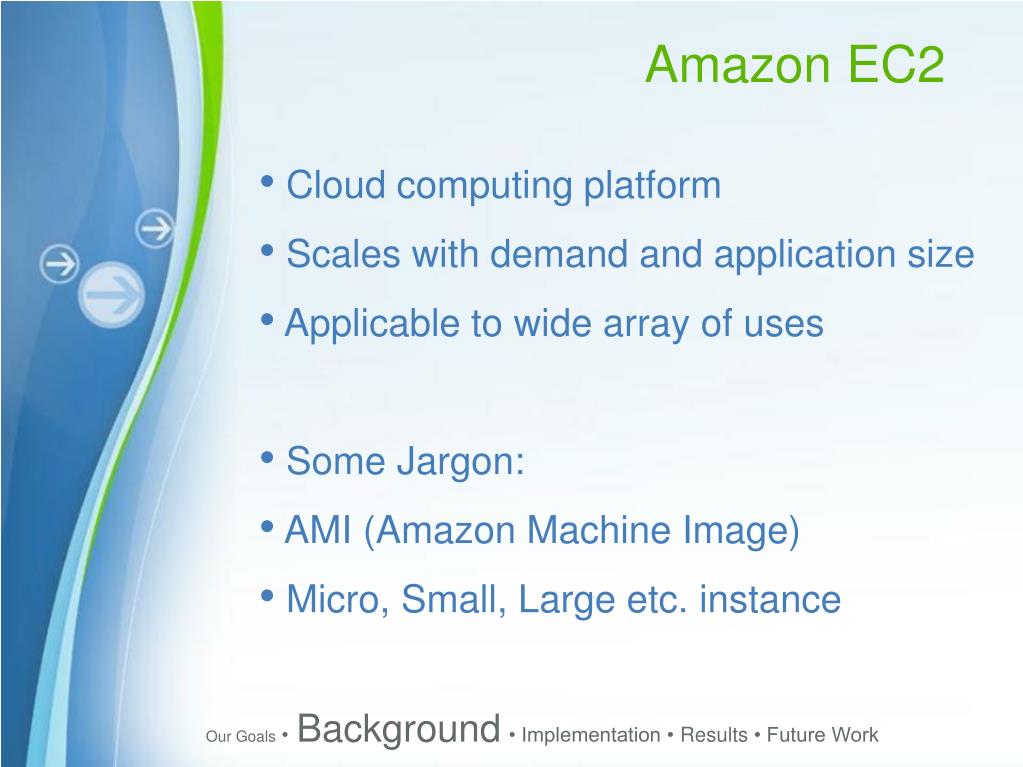

9. Amazon EC2 • Cloud computing platform • Scales with demand and application size • Applicable to wide array of uses • Some Jargon: • AMI (Amazon Machine Image) • Micro, Small, Large etc. instance Powerpoint Templates Our Goals •Background• Implementation • Results • Future Work

10. Amazon EC2 • How it works • Select an AMI (or make one) • VMs in EC2 automatically boot with the image • VMs hosted across several physical machines • Variety of options for provisioning, load balancing, etc. Powerpoint Templates Our Goals •Background• Implementation • Results • Future Work

11. K-Means Algorithm • Used to characterize mixes • Groups similarly sized workloads • Clusters used to determine capacity provisioning • Quick and dirty way to estimate service classes • Problem: Number of clusters required prior to running Powerpoint Templates Our Goals •Background• Implementation • Results • Future Work

12. K-Means Algorithm • Step 1: • Use unique request types to partition the request types into clusters • Step 2: • Adjust for tail-heavy workloads • Step 3: • Compute actual cluster means • Step 4: • Update cluster means Powerpoint Templates Our Goals •Background• Implementation • Results • Future Work

13. Step 1: Find N Clusters • Problem: Number of clusters required prior to running • Solution: Run K-means for every possible K, determine an optimal value • Optimal value based on variance • Can be somewhat slow • May not be necessary to run for all • K < N Powerpoint Templates Our Goals •Background• Implementation • Results • Future Work

14. Step 1: Find N Clusters • Variance between clusters: • Maximized • Provides “distinctness” between service classes • Variance within clusters: • Minimized • Ensures like elements grouped in correct service class • Assumes that variance is a good model for the service class Powerpoint Templates Our Goals •Background• Implementation • Results • Future Work

15. Step 2: Redistribute Loads • Tail ends of clusters often quite big • Caused by lots of infrequent but large service times • Causes too much change in a cluster mean when frequency changes • Alleviate naïvely • Force kth cluster to have at most n service classes Powerpoint Templates Our Goals •Background• Implementation • Results • Future Work

16. Step 3: Compute Means • Use all service times in a cluster • Not just the unique ones! • Offers a more accurate modeling of the cluster mean Powerpoint Templates Our Goals •Background• Implementation • Results • Future Work

17. Step 4: Recompute Means • System may begin to differ from starting to state • Need to recompute means on occasion (cluster centroids) • Not drastic changes (5%) • Generally not necessary Powerpoint Templates Our Goals •Background• Implementation • Results • Future Work

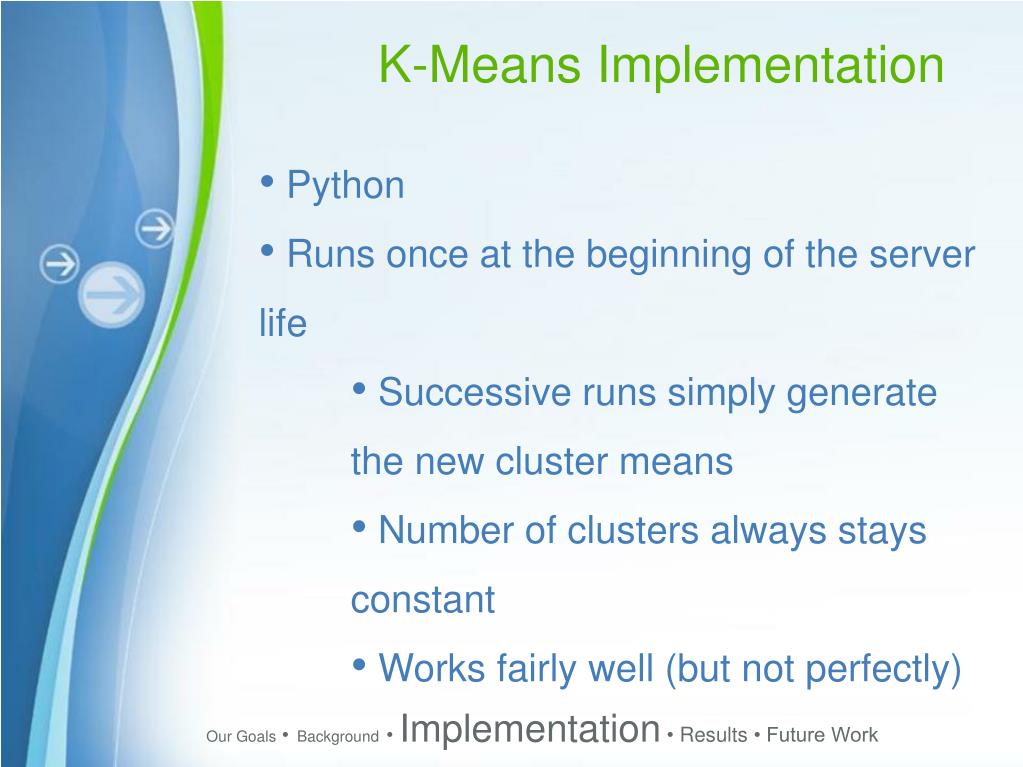

18. K-Means Implementation • Python • Runs once at the beginning of the server life • Successive runs simply generate the new cluster means • Number of clusters always stays constant • Works fairly well (but not perfectly) Powerpoint Templates Our Goals •Background• Implementation • Results • Future Work

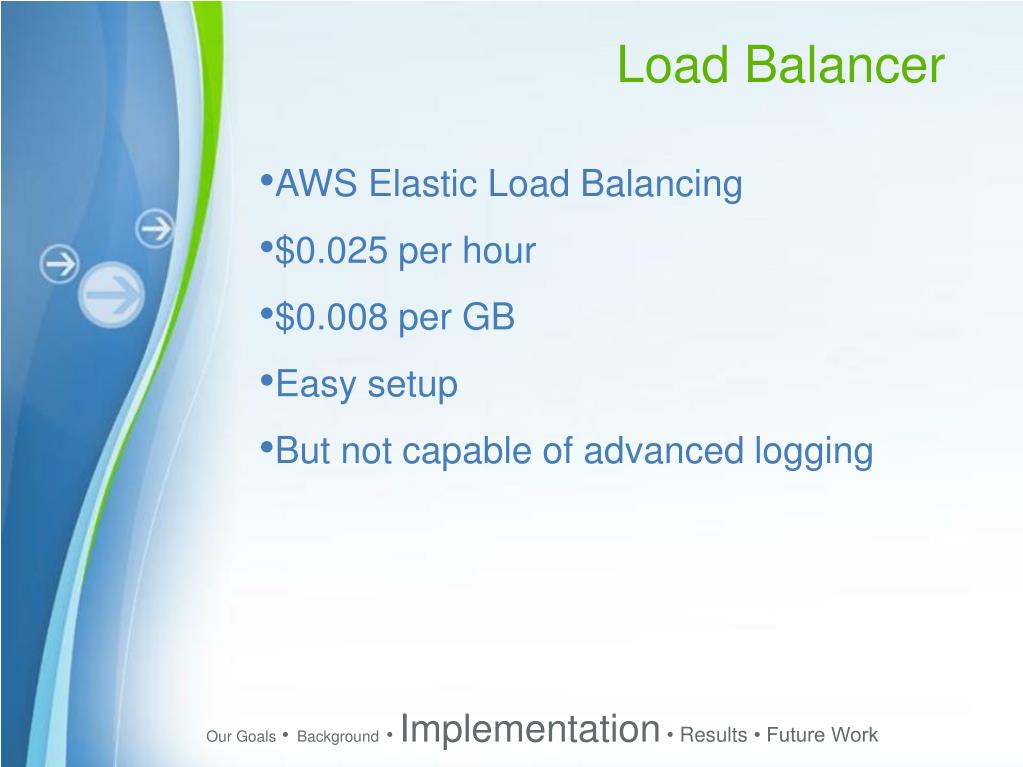

19. Load Balancer • AWS Elastic Load Balancing • $0.025 per hour • $0.008 per GB • Easy setup • But not capable of advanced logging Powerpoint Templates Our Goals •Background• Implementation • Results • Future Work

20. Load Balancer • EC2 node running HAProxy • $0.02 per hour (or free!) • $0.150 per GB (first GB free!) • Non-trivial configuration • Advanced logging features • syslog Powerpoint Templates Our Goals •Background• Implementation • Results • Future Work

21. HAProxy • HAProxy chosen for more control • Configuration • Log all connection to syslog • Roundrobin dns balancing • Leave stats page on for monitoring • haproxy.cfg can be hot-reloaded Powerpoint Templates Our Goals •Background• Implementation • Results • Future Work

22. Web Server • Apache webserver running on all nodes • phusion_passenger (modrails.com) • Serve ruby applications in apache • Sinatra (sinatrarb.com) Sinatra is a Ruby DSL for quickly creating web applications: require 'sinatra' get '/' do 'Hello world!' end Powerpoint Templates Our Goals •Background• Implementation • Results • Future Work

23. Web Server • Short request: • get '/short' do • 'Hello world!'end • Long request: • get '/long' do • 10.times do BCrypt::Password.create("foo") end • 'done!'end Powerpoint Templates Our Goals •Background• Implementation • Results • Future Work

24. Web Server • BCrypt::Password.create("foo") • BCrypt • “Basically, it's slow as hell.” • Blowfish encryption variant • Hashing ten times takes ~800ms Powerpoint Templates Our Goals •Background• Implementation • Results • Future Work

25. Integration • Putting it all together: • EC2 launches our AMI • Pre-loaded with HAP and the K-means algorithm • Designated the “master” node • Waits for 200 requests, then executes the K-means to find the typical mix Powerpoint Templates Our Goals •Background• Implementation • Results • Future Work

26. Integration • After the cluster centroids are returned: • Ruby script (front-end) takes over • Tracks... • Inter-arrival time • Request rate • Number of requests per cluster • Service times • Information passed to provisioning algorithm to calculate the number of servers Powerpoint Templates Our Goals •Background• Implementation • Results • Future Work

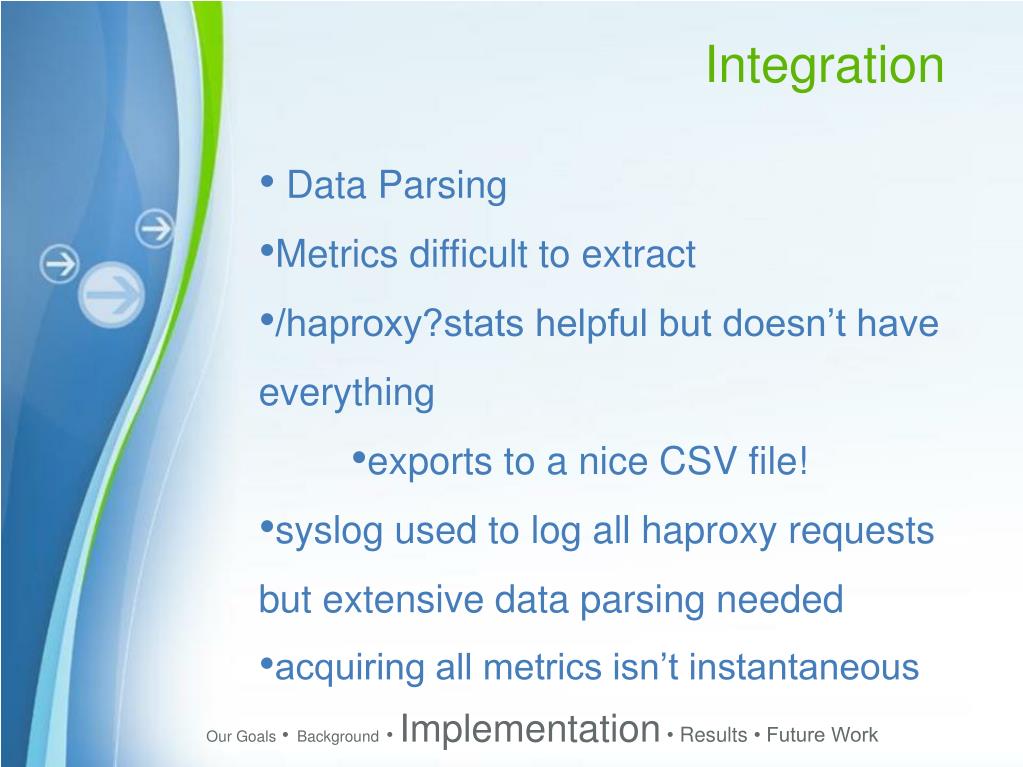

27. Integration • Data Parsing • Metrics difficult to extract • /haproxy?stats helpful but doesn’t have everything • exports to a nice CSV file! • syslog used to log all haproxy requests but extensive data parsing needed • acquiring all metrics isn’t instantaneous Powerpoint Templates Our Goals •Background• Implementation • Results • Future Work

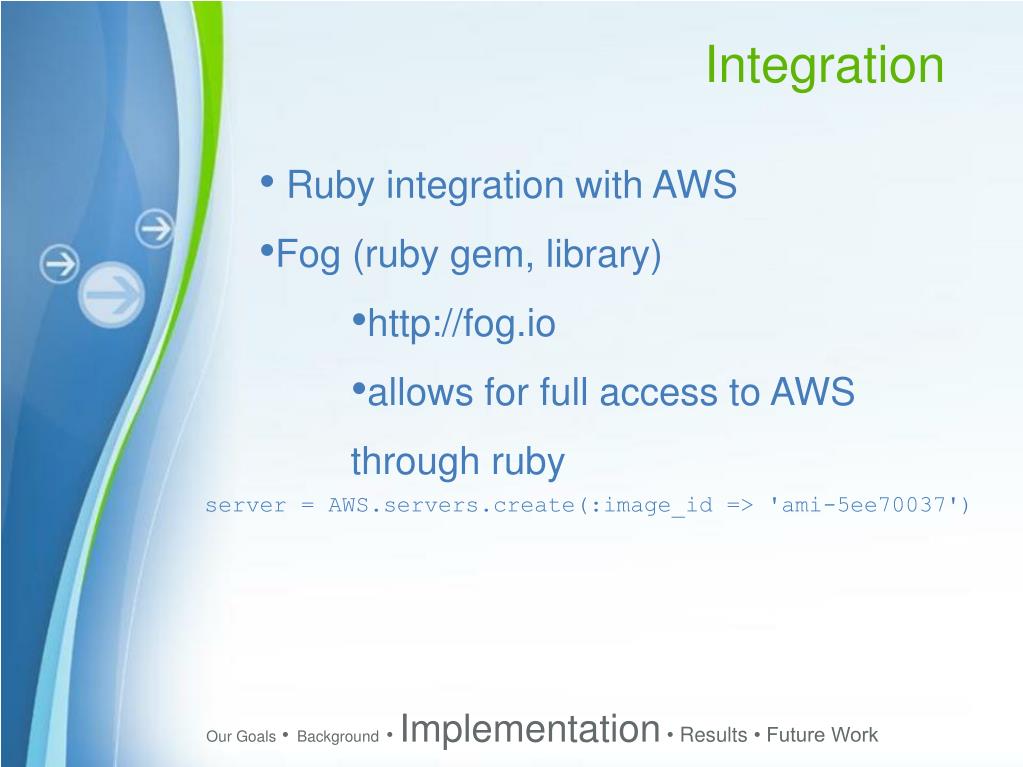

28. Integration • Ruby integration with AWS • Fog (ruby gem, library) • http://fog.io • allows for full access to AWS through ruby server = AWS.servers.create(:image_id => 'ami-5ee70037') Powerpoint Templates Our Goals •Background• Implementation • Results • Future Work

29. Provisioning 1. Estimate arrival rate per cluster: Use previous sampling periods request rate and percentage of requests ƛt = Request rate of entire cluster Pi[t] = Percent of requests at cluster i ƛi [t-1]= Pi [t-1] / ƛt-1 Powerpoint Templates Our Goals •Background• Implementation • Results • Future Work

30. Provisioning 2. Predict Capacity Probabilistically determine waiting time in the queue σ2a = inter-arrival time variance σ2b = service time variance ƛ = request arrival rate X = average service time y = SLA guarantee (seconds) Max rate of requests per server : Powerpoint Templates Our Goals •Background• Implementation • Results • Future Work

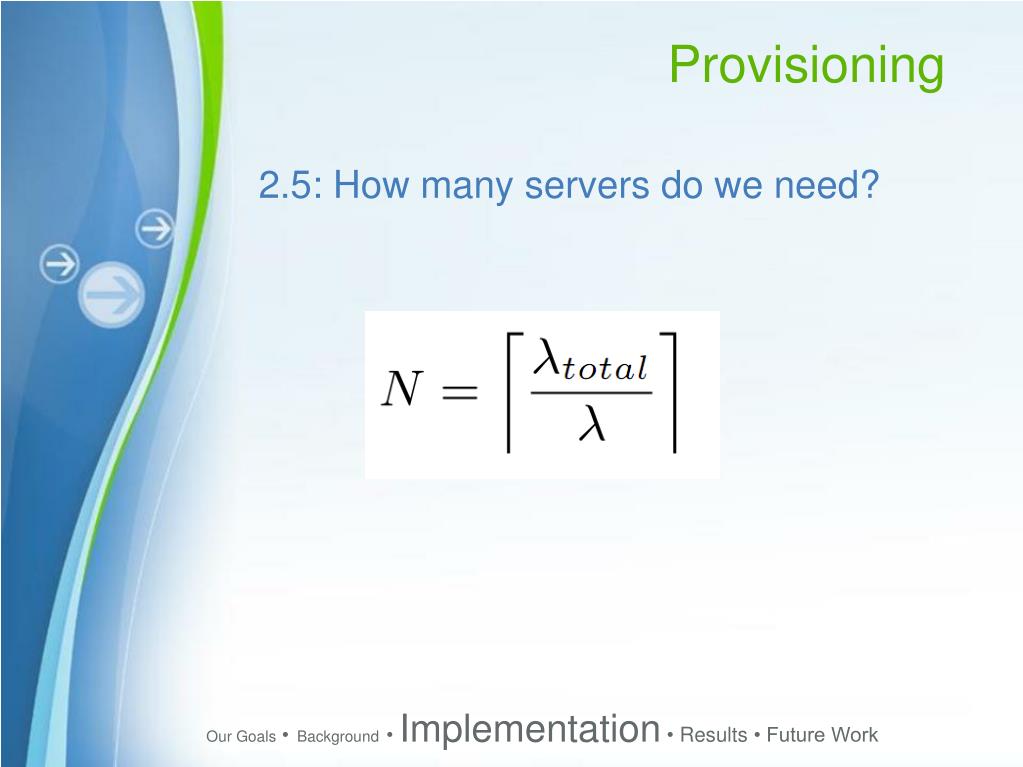

31. Provisioning 2.5: How many servers do we need? Powerpoint Templates Our Goals •Background• Implementation • Results • Future Work

32. Provisioning • 3: Applying this configuration • Currently adding only a single type of Amazon machine • Larger machines more expensive • Would be more difficult to configure • Use a basic round robin assignment system • EC2 offers their own load balancer Powerpoint Templates Our Goals •Background• Implementation • Results • Future Work

33. Results • Unfortunately, nothing discrete yet... • However: • Revised k-means works very well • Converges in fewer than 100 iterations (generally) • Variance may not be the best predictor Powerpoint Templates Our Goals •Background• Implementation • Results • Future Work

34. Results • What’s the hold up? • Log parsing significantly harder than we anticipated • Getting the raw data is tedious • Hard to acquire sensibly • Robustness proving hard to guarantee • Integration difficult because architecture was hard to plan in advance • EC2 Free tier - For new customers only Powerpoint Templates Our Goals •Background• Implementation • Results • Future Work

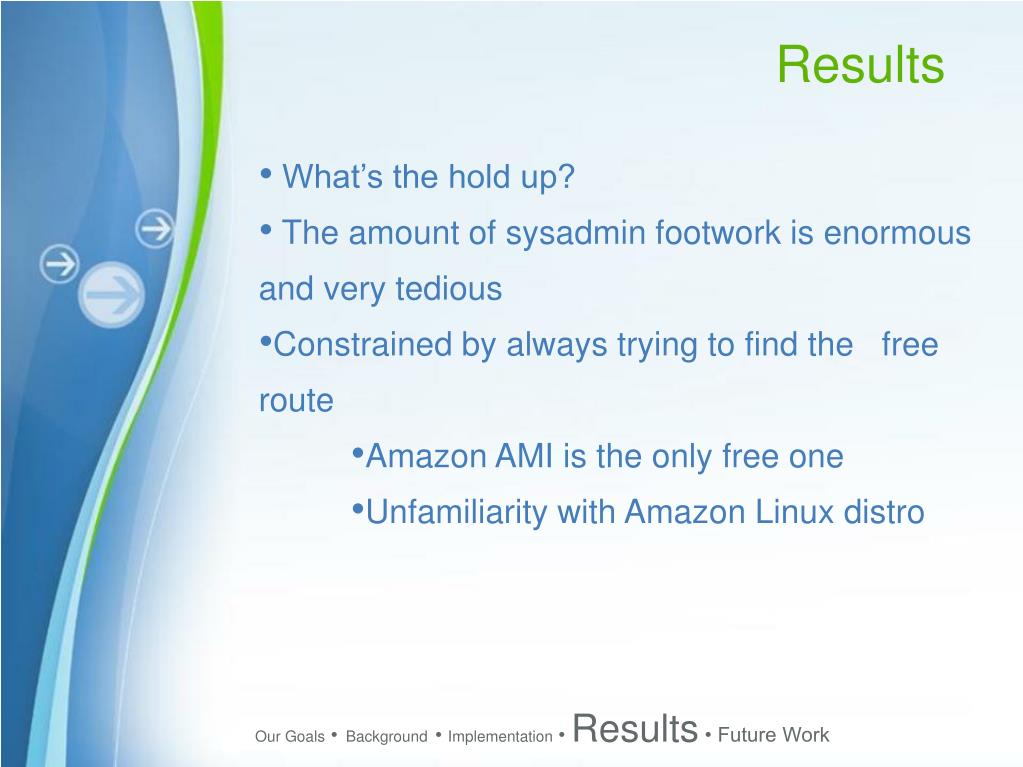

35. Results • What’s the hold up? • The amount of sysadmin footwork is enormous and very tedious • Constrained by always trying to find the free route • Amazon AMI is the only free one • Unfamiliarity with Amazon Linux distro Powerpoint Templates Our Goals •Background• Implementation • Results • Future Work

36. Results • EC2 • Thus far, feelings are mixed • Works well enough • Easily customizable • AMIs are readily available for use • Seems reliable (!) • However, everything comes with a price Powerpoint Templates Our Goals •Background• Implementation • Results • Future Work

37. Future Work • Finish? • Current task: Finish provisioning script, integrate all the components • Test with demands and rates of various sizes • Different machine sizes? Powerpoint Templates Our Goals •Background• Implementation • Results • Future Work

38. Future Work • Questions? Powerpoint Templates Our Goals •Background• Implementation • Results • Future Work
