Systems Engineering Thoughts from an INCOSE Member in Healthcare. Rick Biehl 03/19/2009. Source Behaviors. Operational Systems. Source Data. ETL System. Data Warehouse. Reference & Metadata Management System. System of Internal Controls. Extraction System. Data Marts.

Download Presentation

Systems Engineering Thoughts from an INCOSE Member in Healthcare

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Systems engineering thoughts from an incose member in healthcare

Systems Engineering Thoughts from an INCOSE Member in Healthcare

Rick Biehl03/19/2009


Systems engineering thoughts from an incose member in healthcare

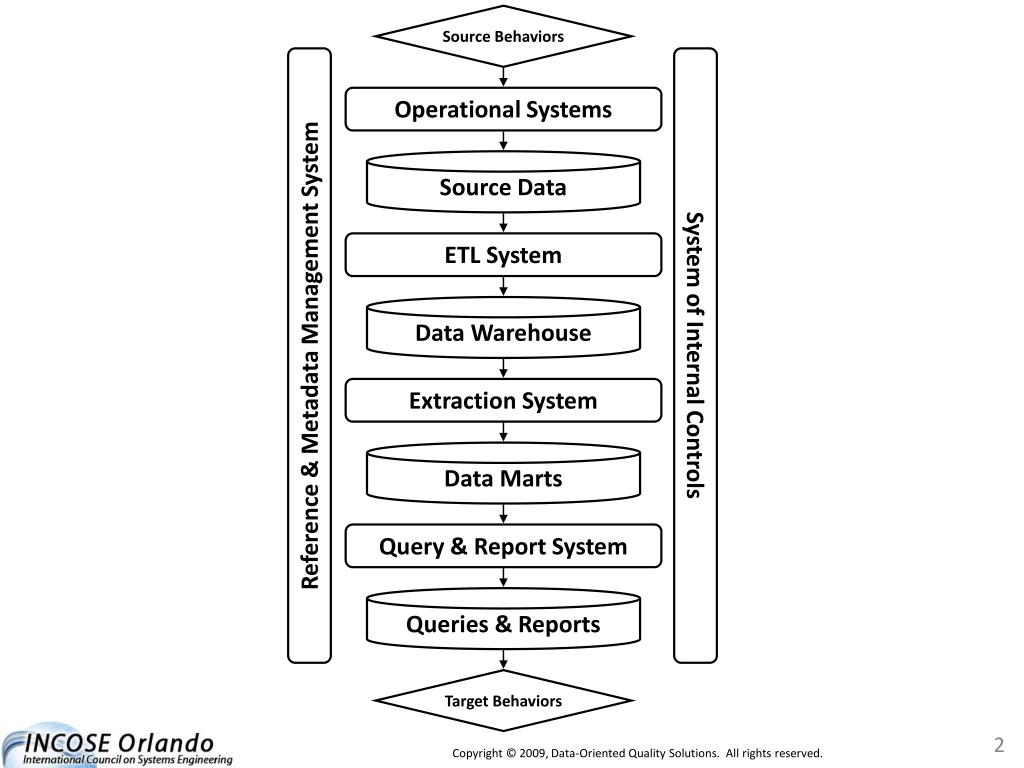

Source Behaviors

Operational Systems

Source Data

ETL System

Data Warehouse

Reference & Metadata Management System

System of Internal Controls

Extraction System

Data Marts

Query & Report System

Queries & Reports

Target Behaviors


Customer supplier model sipoc

Customer-Supplier Model (SIPOC)


Timeline measurement error

Timeline Measurement Error

OrderAction

FulfillAction

FulfillAction

FulfillAction

ChargeAction

ChargeAction

OrderEntry

FulfillEntry

FulfillEntry

FulfillEntry

ChargeAction

MeasurementError

MeasurementError

MeasurementError

MeasurementError

DownstreamSystem

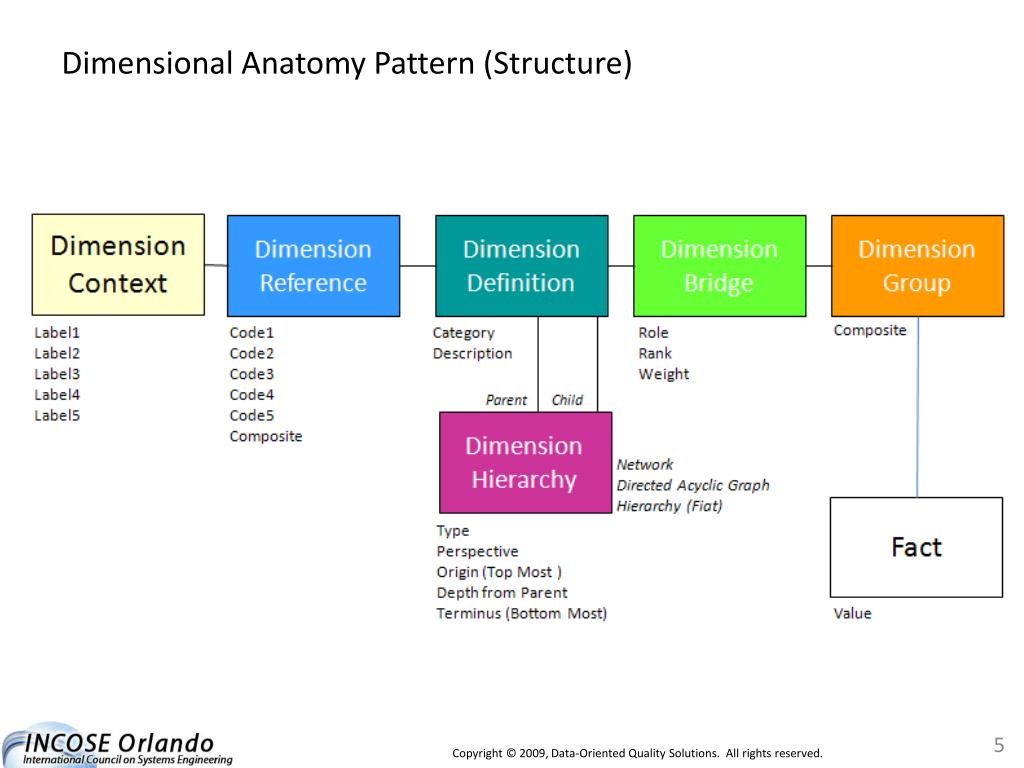

Dimensional anatomy pattern structure

Dimensional Anatomy Pattern (Structure)


Warehousing uom pattern syntax

Warehousing UOM Pattern (Syntax)

FACT

D_UOM

SCALE

CLASS

UNIT

MEASURE

VALUE

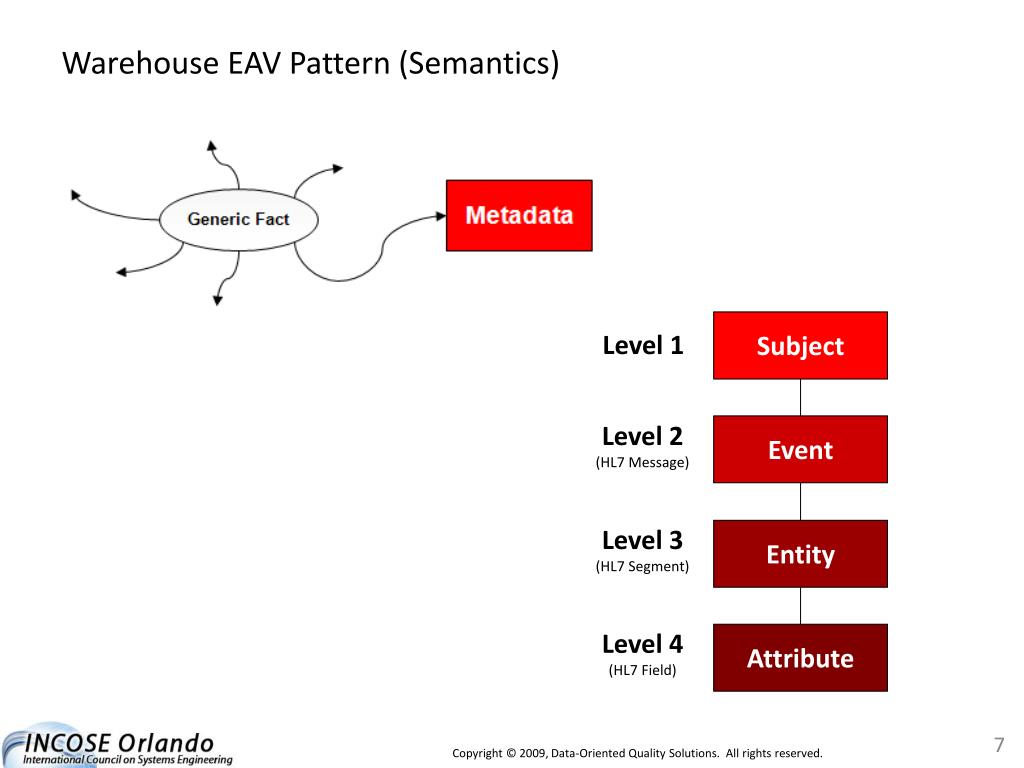

Warehouse eav pattern semantics

Warehouse EAV Pattern (Semantics)

Subject

Level 1

Level 2(HL7 Message)

Event

Level 3(HL7 Segment)

Entity

Level 4(HL7 Field)

Attribute


Systems engineering thoughts from an incose member in healthcare

Organization

Calendar

Person

Time of Day

Encounter

Operation

Caregiver

Data Feed

Payor

Data Quality

Diagnosis

U.O.M

Procedure

Data State

Material

Keyword

Facility

Metadata

Accounting

Fact


Systems engineering thoughts from an incose member in healthcare

Service-Unit

Manufacturer

Supplier

ORGANIZATION

Country

City

Address

GEOPOLITICS

ProviderUser

Source

CAREGIVER

YearMonth

Day

CALENDAR

CohortPersonSpecimen

PATIENT

HourMinuteSecond

CLOCK

Inpatient

Ambulatory

Emergency

ENCOUNTER

ANNOTATION

Keyword

Concept

Body LocationSite

Tooth

ANATOMY

Placer Order

Filler Order

OPERATION

Problem

ReactionRisk Factor

DIAGNOSIS

Unit

Measure

Value

UOM

Lab Test

ExaminationObservation

PROCEDURE

Active

SupersededInactive

DATA STATE

MedicationImmunization

Contraceptive

MATERIAL

SourceApplication

DATA FEED

InstallationMTFClinic

FACILITY

Event

Entity

Attribute

METADATA

ACCOUNTING

MEPRS

Secondary Dimensions

Primary Dimensions

FACT


Systems engineering thoughts from an incose member in healthcare

Provider

Staff

Contractor

CAREGIVER

LOCATION

City

Address

CohortPersonSpecimen

PATIENT

Almanac Dimensions

YearMonth

Day

CALENDAR

Encounter

Study

Assignment

INTERACTION

Unit

Measure

UOM

DecisionAnalysisDimensions

Problem

ReactionRisk Factor

DIAGNOSIS

Test

ExaminationMaintenance

PROCEDURE

AnalystSupportDimension

Keyword

Observation

Note

ANNOTATION

MedicationImmunization

Device

MATERIAL

Active

SupersededInactive

DATA STATE

VHA FacilityNCA LocationVBA Office

Warehouse Internal Control Dimensions

FACILITY

SourceApplication

DATA FEED

G/L AccountSubsidiary Account

Memo Account

ControlDimensions

ACCOUNTING

Event

Entity

Attribute

METADATA

ORGANIZATION

Dept. of VA

VHA

FACT


Systems engineering thoughts from an incose member in healthcare

Gene

Sequence

Mutation

Genome

Ecology

Nature

Setting

Chromatin StructureTranscription Factor Target

Regulome

Environment

Ecology, Population,

Organism, Organ, Tissue, Cell, Protein, Gene, B.P.

Transcriptome

mRNA

System

-omes

Type

Proteome

Proteins

Specimen

Sample

Subject

Instance

Epigenome

Methylation

to Clinical Data Warehouse

Fact

Metabalome

Signal Transduction

Experiment

Instrument

Measurement

Publication

Investigation

Interaction

Expression

Function

Outcome

Confidence

Finding

DiseaseAppearance

Trait

Phenotype

Speculation

Knowledge

Assertion

Epistemology

Physiology

Reaction

Process

Life Cycles

Growth Stages

Development

Element

Molecule

Macromolecule

Pharmacology

Chemistry

Resistance

Perturbation

Pathology

Quantity

Quality

Space

Time

Treatment

Protocol

Therapy

Measure

Anatomy

Makeup

Structure

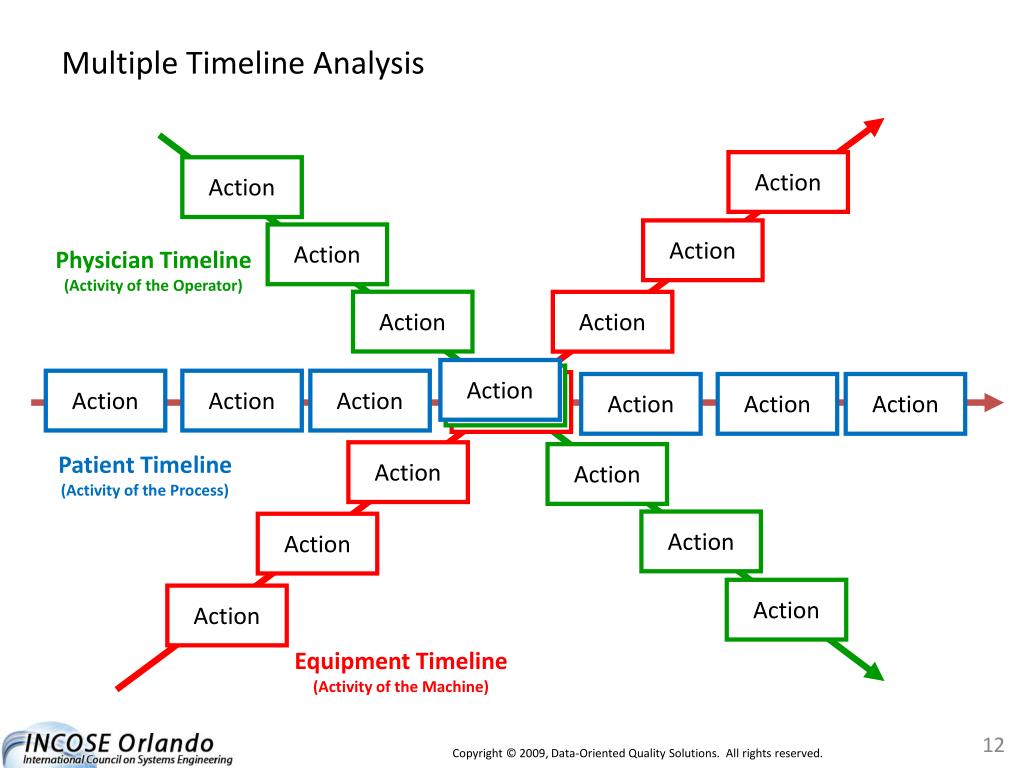

Multiple timeline analysis

Multiple Timeline Analysis

Action

Action

Action

Action

Physician Timeline

(Activity of the Operator)

Action

Action

Action

Action

Action

Action

Action

Action

Action

Action

Action

Action

Patient Timeline

(Activity of the Process)

Action

Action

Action

Action

Action

Equipment Timeline

(Activity of the Machine)

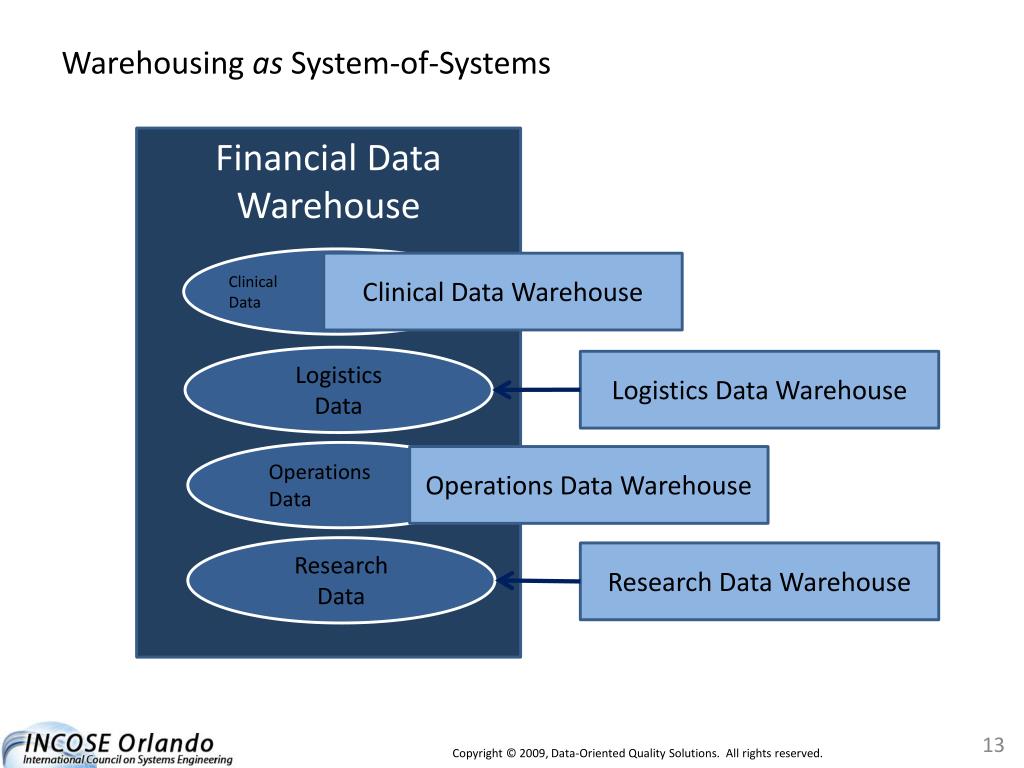

Warehousing as system of systems

Warehousing as System-of-Systems

Financial Data Warehouse

ClinicalData

Clinical Data Warehouse

LogisticsData

Logistics Data Warehouse

Operations Data

Operations Data Warehouse

ResearchData

Research Data Warehouse
