  1. An Introduction to Windows Azure Jimmy Narang

  2. Cloud Services • A service in the cloud has to: • Be able to handle arbitrary node failures • Be available all the time • Be able to scale up or down on demand without the need to re-write the code • Handle platform or software upgrades

  3. Cloud Services: Architecture • The service design must be: • Loosely coupled • Such that node failures do not affect functionality • Nodes can be initialized and added easily • State of the service is decoupled from nodes • Scale can be achieved through quantity (scale out)

  4. Azure • Cloud: thousands of connected servers • Azure: an operating system for the cloud • Abstracts away hardware – switches, servers, disks, routers, load-balancers • Manages deployment, so that developer can upload code and hit ‘run’ • Provides reliable common storage that can be accessed from any mode • Provides a familiar development platform

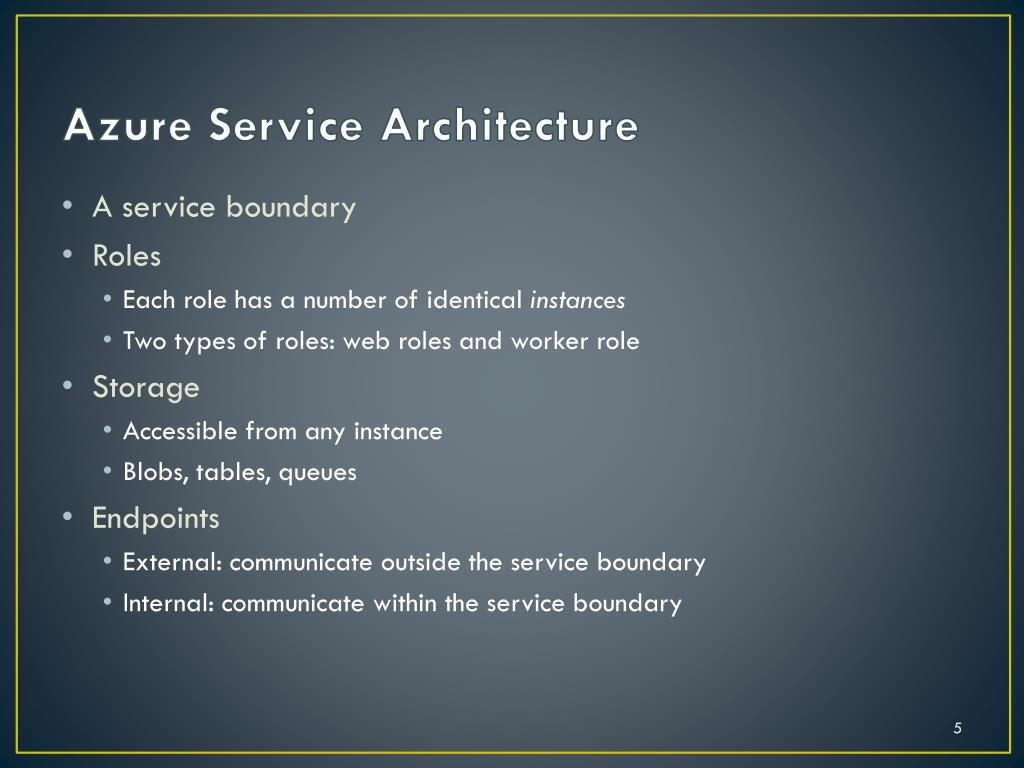

  5. Azure Service Architecture • A service boundary • Roles • Each role has a number of identical instances • Two types of roles: web roles and worker role • Storage • Accessible from any instance • Blobs, tables, queues • Endpoints • External: communicate outside the service boundary • Internal: communicate within the service boundary

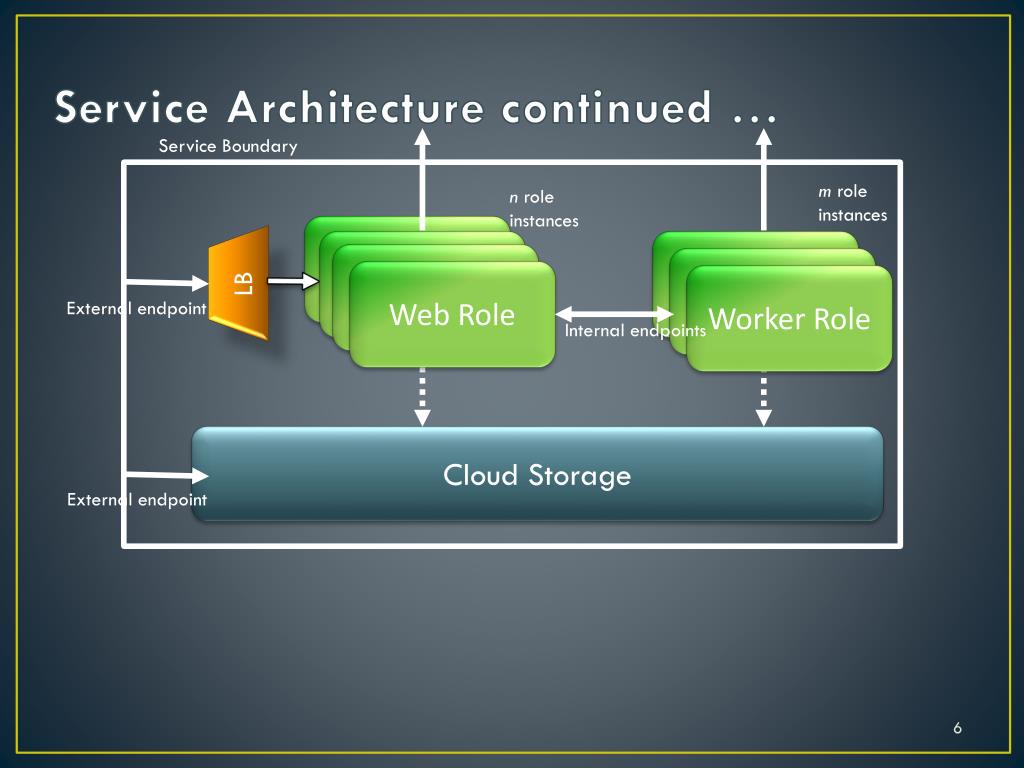

  6. Service Architecture continued … Service Boundary m role instances n role instances Web Role Worker Role Web Role Web Role Worker Role LB Web Role Worker Role External endpoint Internal endpoints Cloud Storage External endpoint

  7. Azure: Programming Model • Developers write their code and describe a service model • Service model includes role definitions, VM Size, instance counts, endpoints, etc. • code + service model is packed and uploaded to Azure, which deploys the service in Microsoft Datacenters

  8. Roles and Role Instances • Two types: web roles and worker roles • No Admin access; cannot install applications • Choose a particular VM capacity for each role • Specify number of instances per role • Azure starts a fresh instance if an existing one crashes • Code: • Extend RoleEntryPointclass for worker roles; optional for web roles. • Asp.Net for web roles

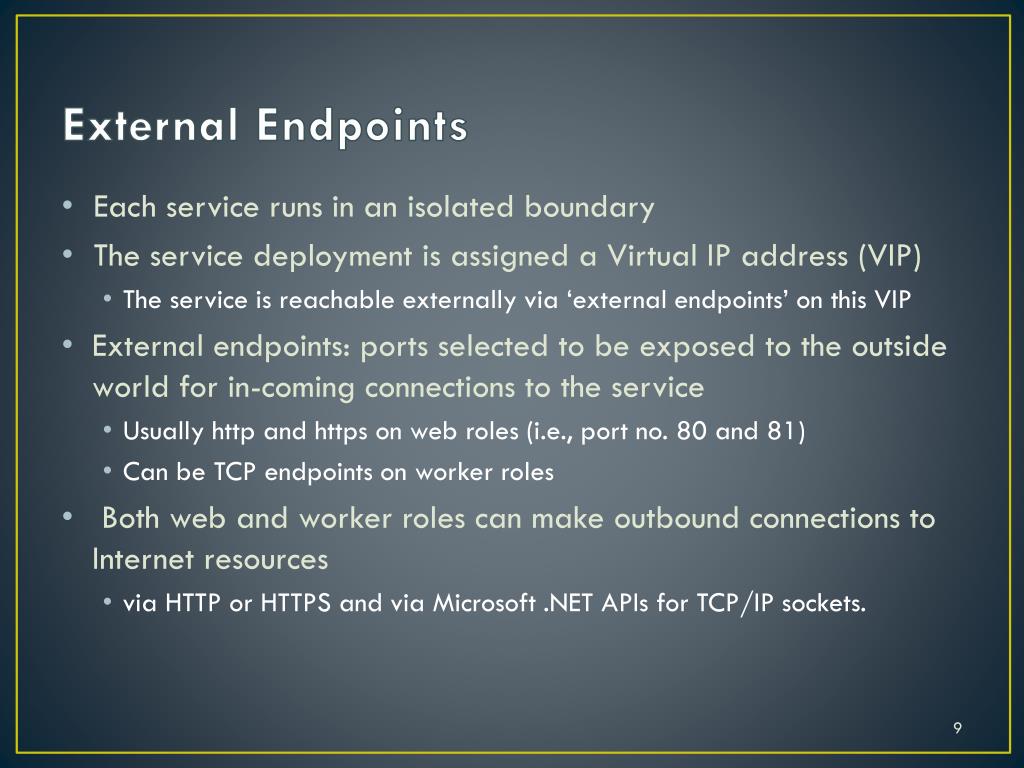

  9. External Endpoints • Each service runs in an isolated boundary • The service deployment is assigned a Virtual IP address (VIP) • The service is reachable externally via ‘external endpoints’ on this VIP • External endpoints: ports selected to be exposed to the outside world for in-coming connections to the service • Usually http and https on web roles (i.e., port no. 80 and 81) • Can be TCP endpoints on worker roles • Both web and worker roles can make outbound connections to Internet resources • via HTTP or HTTPS and via Microsoft .NET APIs for TCP/IP sockets.

  10. Internal Endpoints • Azure provides APIs to obtain internal IPs of each instance in each role • Roles can define ‘internal endpoints’ (ports exposed within the service) to communicate between instances

  11. Azure Storage • Accessed from anywhere using account name and storage key • Exposed in the form of URIs: • http://<accntName>.queue.core.windows.net/<queueName> • http://<accntName>.blob.core.windows.net/<container>/<blobName> • http://<accntName>.table.core.windows.net/<tableName>

  12. Azure Storage: Queues • Queues: often the best way to communicate between roles • Messages can be 8kb max • use messages as pointers to blobs/tables for larger data • Can create several queues per account • Not guaranteed Fifo; no priority queues either. • Guaranteed each message will be seen at least once

  13. Queue Operations • Create / Delete queue • Get / Put message • Peek message (queueName, n) • Delete message (queueName, msgId, popreceipt) • ‘get message’ does not lead to deletion! • Clear Queue

  14. Queue Messages • MessageID: A GUID associated with each msg • VisibilityTimeOut: default 30 seconds, max: 2 hours. Messages not deleted within this interval will return to the queue • PopReceipt: A string retrieved with every get-msg. • PopReceipt+MsgID required to delete a msg • MessageTTl: (7 days) messages not deleted within this interval are garbage collected

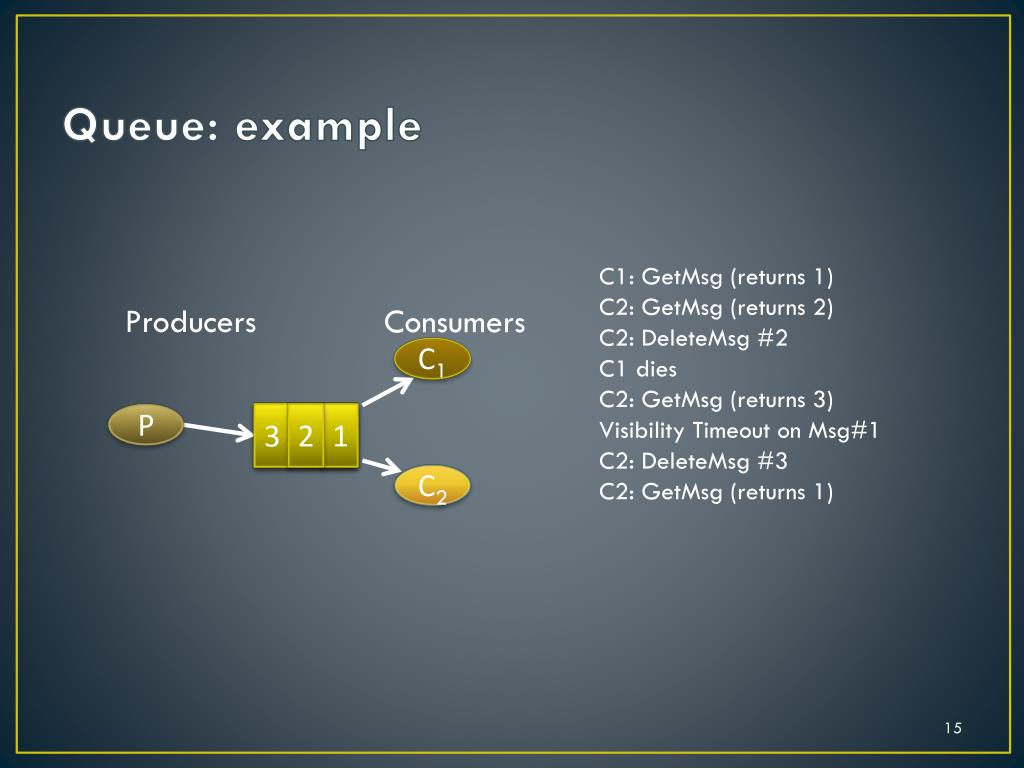

  15. Queue: example Producers Consumers C1: GetMsg (returns 1) C2: GetMsg (returns 2) C2: DeleteMsg #2 C1 dies C2: GetMsg (returns 3) Visibility Timeout on Msg#1 C2: DeleteMsg#3 C2: GetMsg (returns 1) C1 1 2 3 3 2 2 1 1 P C2

  16. Azure storage: Blobs • A large chunk of (raw binary) data • Blob Operations: • Create / Delete • Read / Write: byte range (page blob) or blocks (block blob) • Lease the blob • Create a Snapshot • Create a copy • Mount as Drive (page blob)

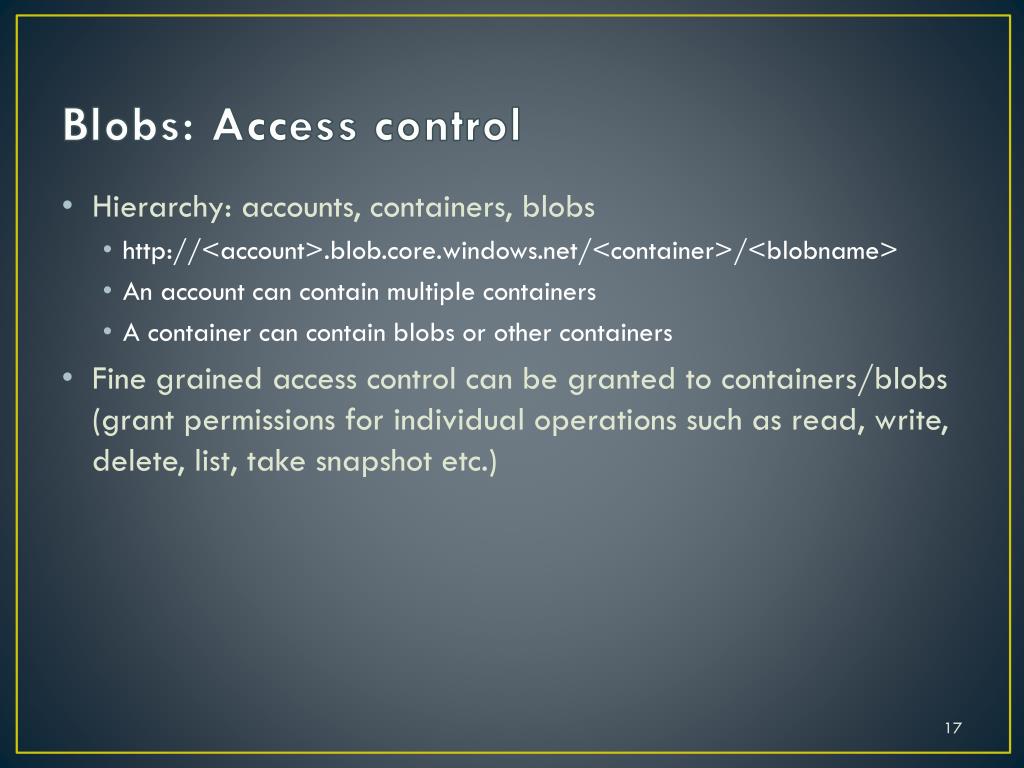

  17. Blobs: Access control • Hierarchy: accounts, containers, blobs • http://<account>.blob.core.windows.net/<container>/<blobname> • An account can contain multiple containers • A container can contain blobs or other containers • Fine grained access control can be granted to containers/blobs (grant permissions for individual operations such as read, write, delete, list, take snapshot etc.)

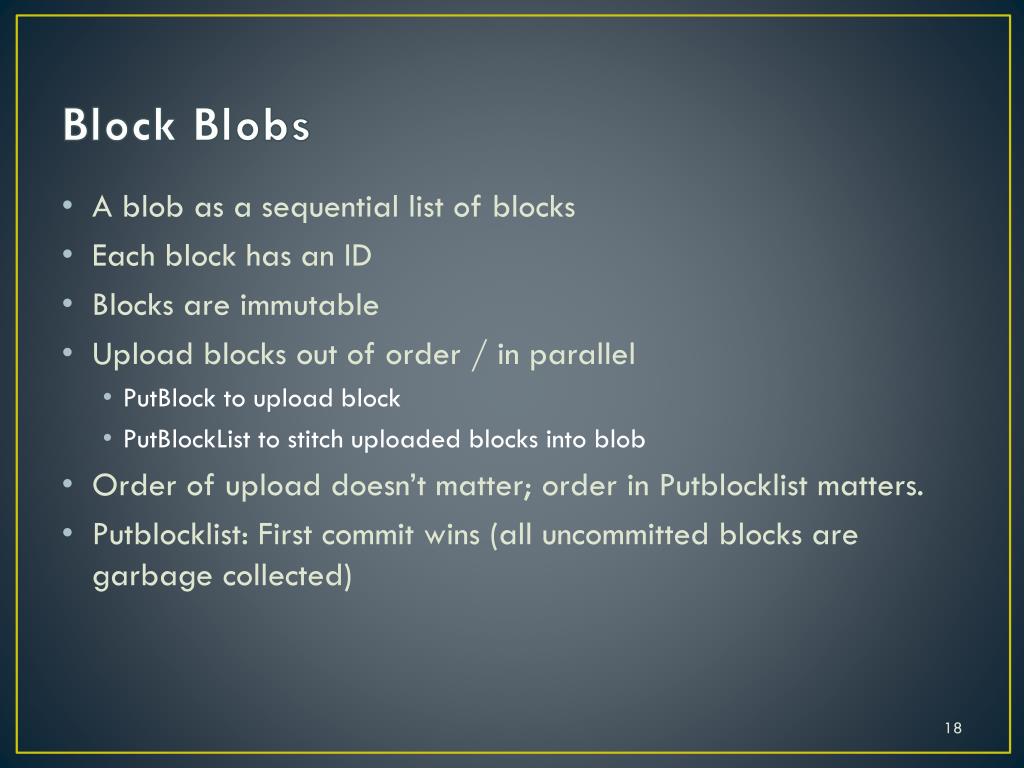

  18. Block Blobs • A blob as a sequential list of blocks • Each block has an ID • Blocks are immutable • Upload blocks out of order / in parallel • PutBlock to upload block • PutBlockList to stitch uploaded blocks into blob • Order of upload doesn’t matter; order in Putblocklist matters. • Putblocklist: First commit wins (all uncommitted blocks are garbage collected)

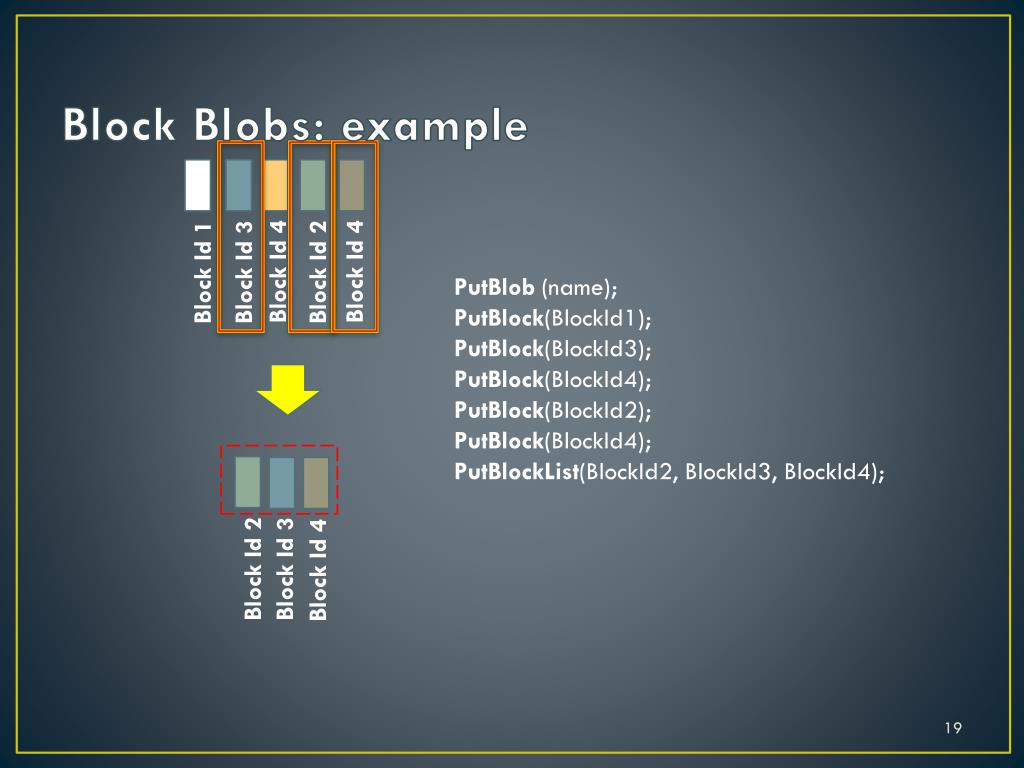

  19. Block Blobs: example PutBlob(name); PutBlock(BlockId1); PutBlock(BlockId3); PutBlock(BlockId4); PutBlock(BlockId2); PutBlock(BlockId4); PutBlockList(BlockId2, BlockId3, BlockId4); Block Id 1 Block Id 3 Block Id 2 Block Id 4 Block Id 4 Block Id 2 Block Id 3 Block Id 4

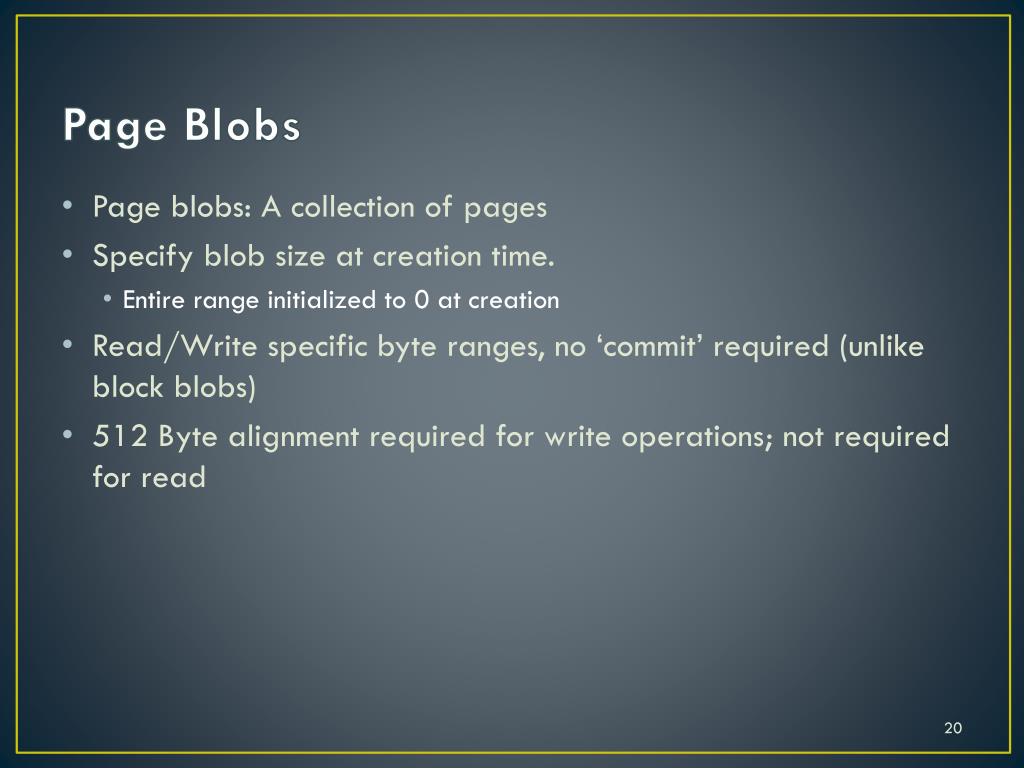

  20. Page Blobs • Page blobs: A collection of pages • Specify blob size at creation time. • Entire range initialized to 0 at creation • Read/Write specific byte ranges, no ‘commit’ required (unlike block blobs) • 512 Byte alignment required for write operations; not required for read

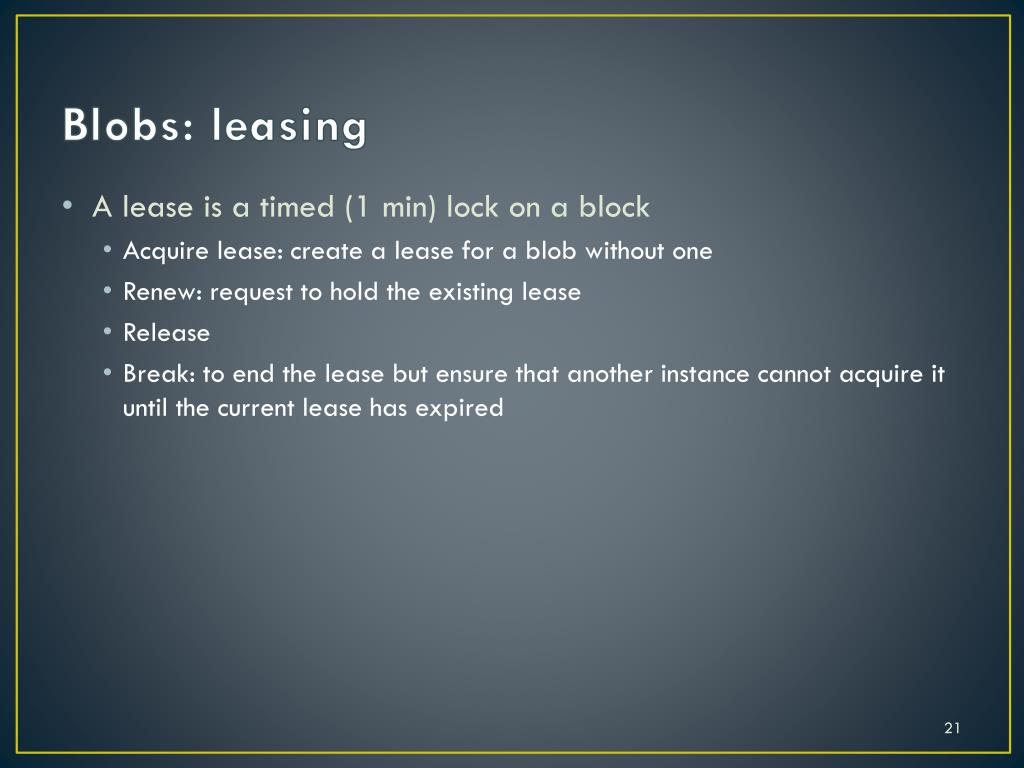

  21. Blobs: leasing • A lease is a timed (1 min) lock on a block • Acquire lease: create a lease for a blob without one • Renew: request to hold the existing lease • Release • Break: to end the lease but ensure that another instance cannot acquire it until the current lease has expired

  22. Azure storage: Tables • Can scale up to billions of entries and terabytes of data • Contain set of ‘entities’ (rows) with ‘properties’ (columns) • (Partition Key, Row Key) defines the primary key • Partition key is used to partition the table into storage nodes • Row key uniquely identifies an entity within a partition

  23. Azure storage: Tables • No Fixed schema, except for Partition Key, Row Key, and Timestamp • Properties are stored as <name, typed value> • Two entities can have very different properties • Common data types – int, string, guid, timestamp etc. – supported. • Limits on the size of an entity (1MB), and # of properties(255, including keys & timestamp)

  24. Table: Operations • Queries: • always return whole entities, no projections • Only ‘From’, ‘Take’ (max 1000), ‘where’ operators supported – no select, sort, group-by, join, etc. • Normal Boolean and comparison operators supported. • For good performance, ‘where’ should have the partition key • Insert / Delete • Update: Replaces the original entity • Merge: modifies properties in place

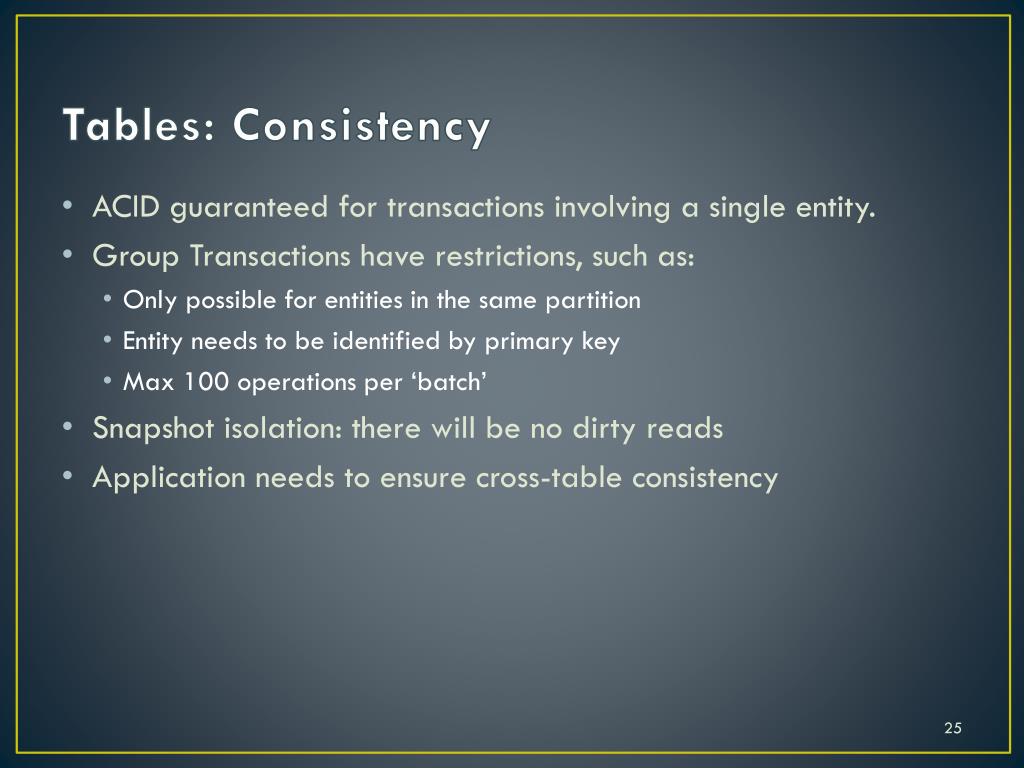

  25. Tables: Consistency • ACID guaranteed for transactions involving a single entity. • Group Transactions have restrictions, such as: • Only possible for entities in the same partition • Entity needs to be identified by primary key • Max 100 operations per ‘batch’ • Snapshot isolation: there will be no dirty reads • Application needs to ensure cross-table consistency

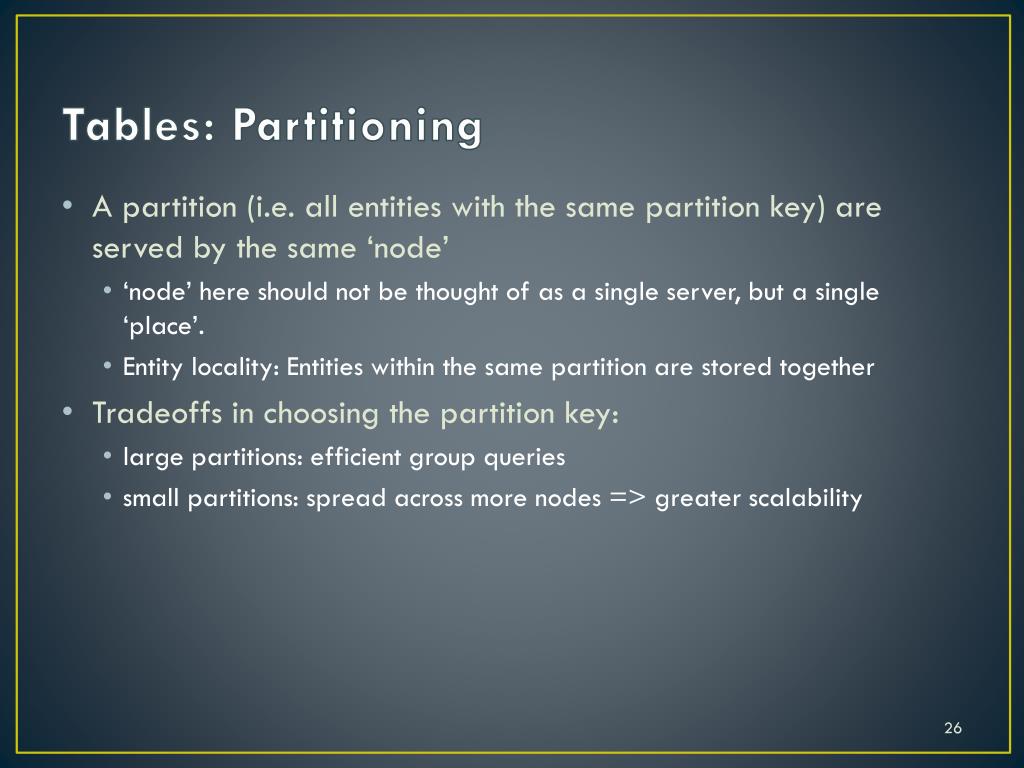

  26. Tables: Partitioning • A partition (i.e. all entities with the same partition key) are served by the same ‘node’ • ‘node’ here should not be thought of as a single server, but a single ‘place’. • Entity locality: Entities within the same partition are stored together • Tradeoffs in choosing the partition key: • large partitions: efficient group queries • small partitions: spread across more nodes => greater scalability

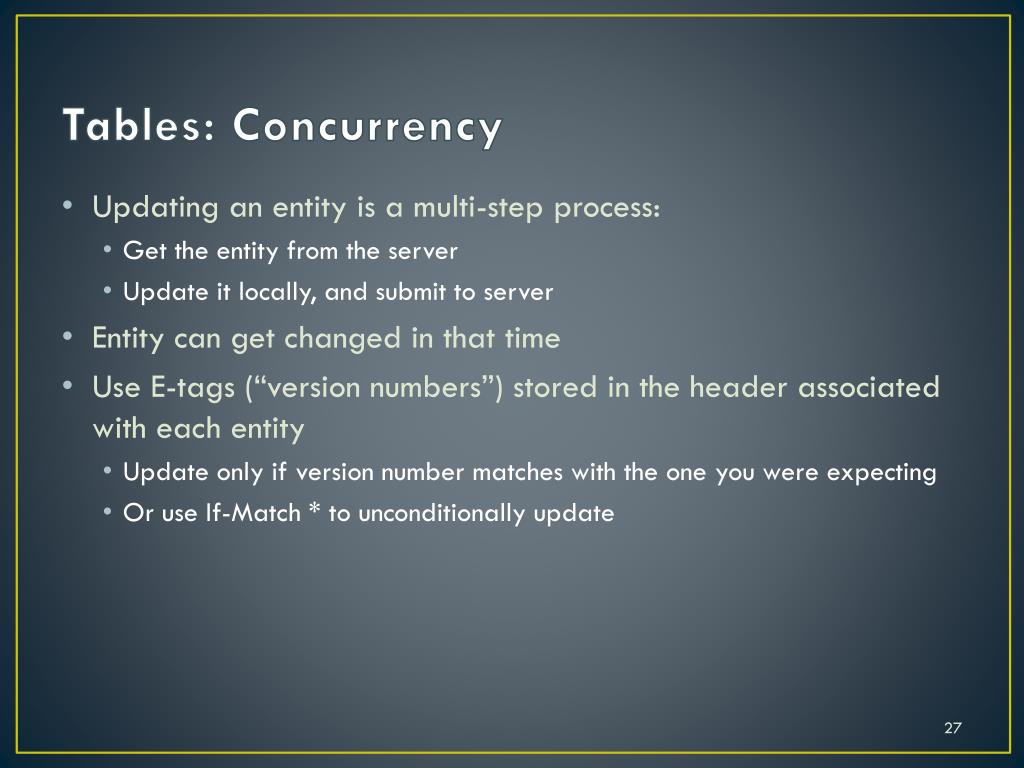

  27. Tables: Concurrency • Updating an entity is a multi-step process: • Get the entity from the server • Update it locally, and submit to server • Entity can get changed in that time • Use E-tags (“version numbers”) stored in the header associated with each entity • Update only if version number matches with the one you were expecting • Or use If-Match * to unconditionally update

  28. Azure Diagnostics • Use for debugging, performance monitoring, traffic analysis etc. • Based on logging: no remote desktop access to instances • Choose the required Log sources: Azure, IIS logs, Windows event logs, Perf counters, Crash dumps (and others) • Then dump the logs locally or store them in Azure storage (at scheduled intervals or on-demand)

  29. Azure: other features • X Drive • Mount a page blob as a VHD (per instance) • SQL Azure • Complete relational SQL storage in the cloud • Azure appliance • A container of pre-configured hardware with Azure installed • Content Delivery Network • Mark public blobs to be copied to edge locations across a region

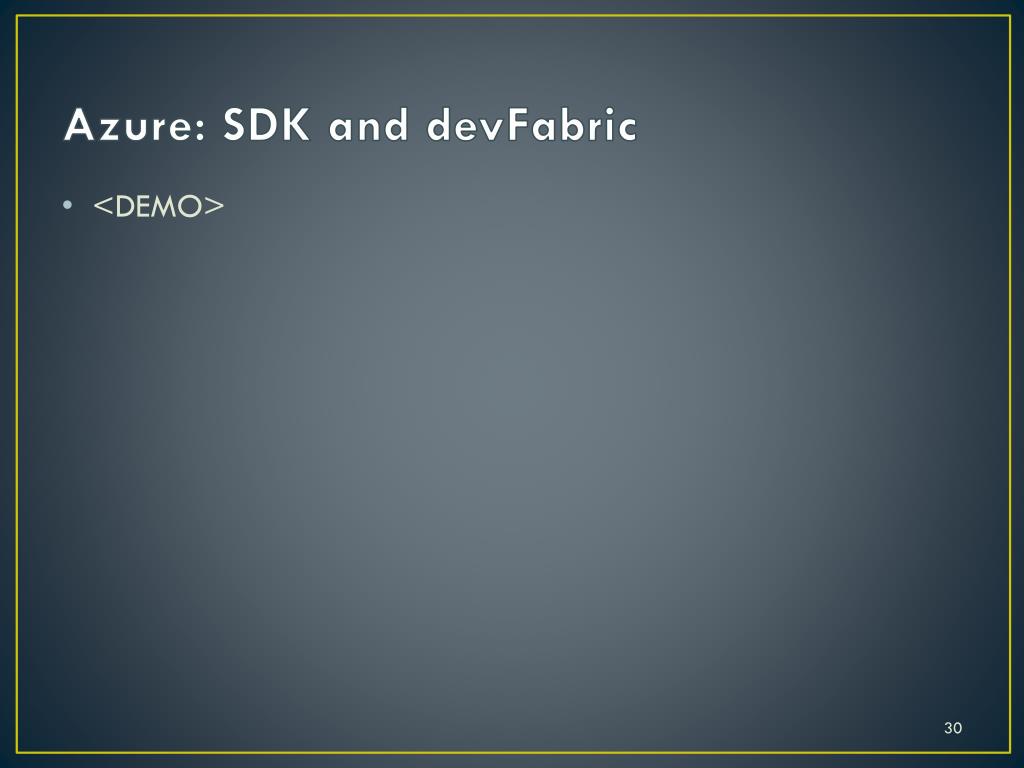

  30. Azure: SDK and devFabric • <DEMO>
