  1. Teaching the Chlorine Rule Ray A. Gross, Jr. Prince George’s Community College

  2. The 19th Biennial Conference on Chemical Education July 31, 2006

  3. Home of the boilermakers.

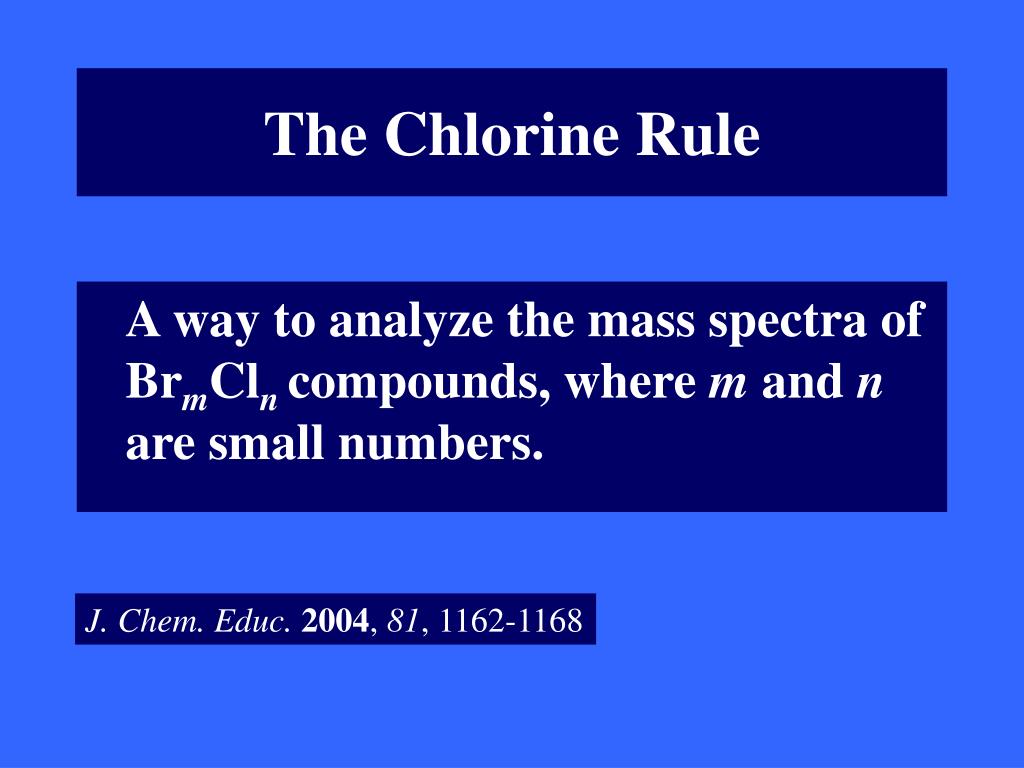

  4. The Chlorine Rule A way to analyze the mass spectra of BrmClncompounds, where m and n are small numbers. J. Chem. Educ.2004, 81, 1162-1168

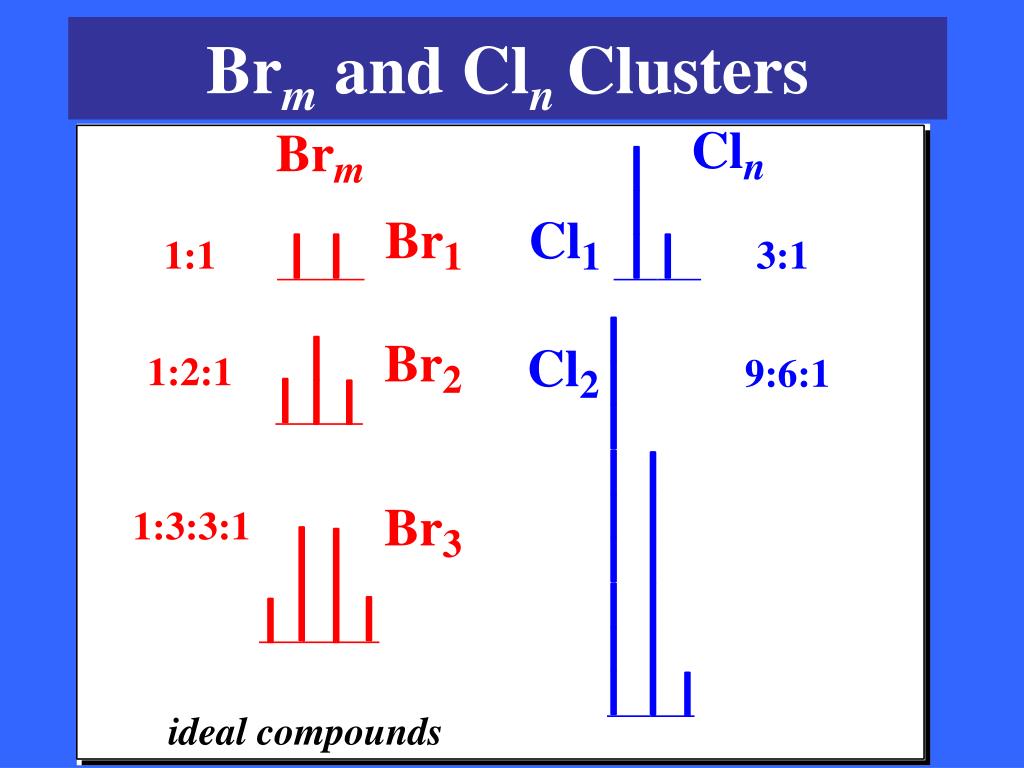

  5. Brm and ClnClusters

  6. What we (need to) know • The end cluster peaks for Brm compounds are always ~1:1 in intensity. • The end cluster peaks for Cln compounds are ~3:1 for Cl1, ~9:1 for Cl2, and ~3n:1 for Cln. • The number of significant cluster peaks is one more then the number of halogens, m + n.

  7. New Idea • Bromine makes the same 1:1 contribution to the end peaks of a BrmClnspectrum that it makes to a Brm spectrum.

  8. Which means • Differences in end-peak intensities are attributable to the number of Cl atoms only.

  9. The Chlorine Rule • For BrmCln compounds, the intensity ratio of the leftmost to rightmost cluster peak rises with the nth power of three. • I = 3n

  10. Structure begets properties!

  11. Conclusions • The chlorine rule provides an efficient method for determining small numbers of Br and Cl atoms in an unknown’s mass spectrum. • It complements the nitrogen rule.

  12. Acknowledgement • SDBS Website http://www.aist.go.jp/RIODB/SDBS/cgi-bin/cre_index.cgi (accessed July 2006)
