Presentation Transcript

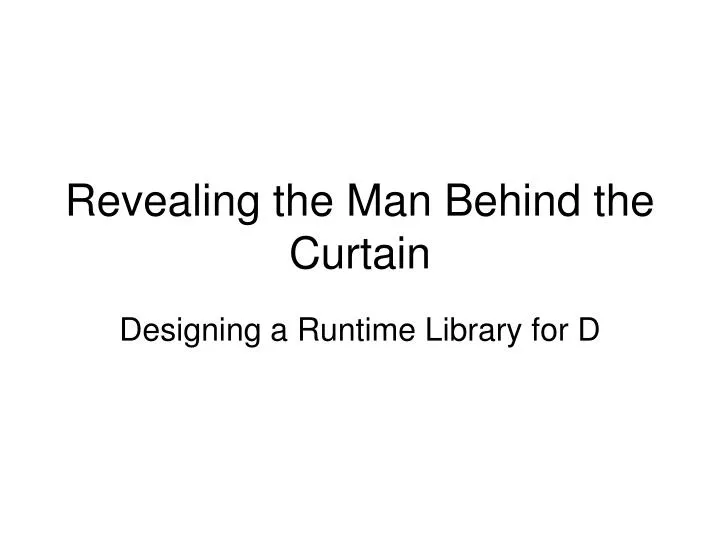

Revealing the man behind the curtain l.jpg

Revealing the Man Behind the Curtain

Designing a Runtime Library for D


The language l.jpg
The Language

  • High-level programming

    • Dynamic and associative arrays

    • Garbage collection

    • Unicode-aware

  • Systems programming

    • Pointers

    • Inline assembly

    • Direct calling of C code


User requirements l.jpg
User Requirements

  • High-level

    • Low barrier for entry / ease of use

      • It should be trivial to write a simple application

      • Applications should behave in a safe and predictable manner by default

  • Systems-oriented

    • Specialized information or access

      • Systems applications can often benefit from access to low-level information about the program or control over program behavior

    • Only get what you pay for

      • Systems programmers may have very explicit requirements regarding code size, so hidden dependencies must be avoided


Designer requirements the compiler writer l.jpg
Designer Requirements:The Compiler Writer

  • Language support routines

    • Dynamic array manipulation

      • Concatenation

      • Resizing

      • Sorting

    • Associative arrays

    • UTF conversions

    • Memory allocation / garbage collection


Designer requirements the library developer l.jpg
Designer Requirements:The Library Developer

  • User-accessible code

    • Thread management

    • Error handling

    • Input/output

    • Text processing


First cut monolithic l.jpg
First Cut: Monolithic

  • Resources

    • Compiler team and library team

  • Team Interaction

    • Close collaboration for integrated features

      • Multithreading

      • Language / system exceptions

      • User control of garbage collection

    • Synchronized / inclusive releases


Second cut a binary design l.jpg
Second Cut: A Binary Design

  • Must formalize the interaction between components to decouple development effort

    • Language support component

    • Standard library component

  • Design limitations to eliminate compile-time dependencies

    • Functions

    • Structs

    • Simple data types


Standard library interface threads l.jpg
Standard Library Interface: Threads

The garbage collector must interact with thread code to coordinate collection:

void thread_suspendAll();

void thread_scanAll( void delegate( void*, void* ) scan,

void* curStackTop = null );

void thread_resumeAll();


Standard library interface exceptions l.jpg
Standard Library Interface: Exceptions

Expose a means of signaling system errors to decouple exception hierarchy from language support component:

void onArrayBoundsError( char[] file, size_t line );

void onAssertError( char[] file, uint line );

void onOutOfMemoryError();


Third cut a modular design l.jpg
Third Cut: A Modular Design

  • Garbage collector research

    • Team skills: memory allocator and garbage collector design is a specialized field

    • Utilize externally developed garbage collectors to minimize team effort and obtain “best of breed” implementation

  • Varying needs of the users

    • Specialized garbage collectors

      • Typical vs. real-time


Language support interface platform specific functionality l.jpg
Language Support Interface: Platform-Specific Functionality

The compiler is most suited for providing information about the target architecture:

void* rt_stackTop();

void* rt_stackBottom();

void rt_scanStaticData( void delegate( void*, void* ) );

void rt_finalize( void* p, bool det = true );


Memory management interface l.jpg
Memory Management Interface

void gc_enable();

void gc_disable();

void gc_collect();

uint gc_getAttr( void* p );

uint gc_setAttr( void* p, uint a );

uint gc_clrAttr( void* p, uint a );

void* gc_malloc( size_t sz, uint ba = 0 );

void* gc_calloc( size_t sz, uint ba = 0 );

void* gc_realloc( void* p, size_t sz, uint ba = 0 );

void gc_free( void* p );

size_t gc_sizeOf( void* p );


The design realized l.jpg
The Design Realized

  • Three components:

    • Language support

    • Garbage collector

    • Standard library

  • Proof of concept: Replaceable GC

    • Mark / sweep vs. C malloc

    • Link-time selection


Slide14 l.jpg

private import tango.stdc.stdlib;

private extern (C) void thread_init();

private extern (C) void onOutOfMemoryError();

extern (C) void* gc_malloc( size_t sz, uint ba = 0 )

{

void* p = malloc( sz );

if( sz && p is null ) onOutOfMemoryError();

return p;

}

extern (C) void* gc_calloc( size_t sz, uint ba = 0 )

{

void* p = calloc( 1, sz );

if( sz && p is null ) onOutOfMemoryError();

return p;

}

extern (C) void* gc_realloc( void* p, size_t sz, uint ba = 0 )

{

p = realloc( p, sz );

if( sz && p is null ) onOutOfMemoryError();

return p;

}

extern (C) void gc_free( void* p )

{

free( p );

}


Slide15 l.jpg

import tango.core.Memory;

import tango.stdc.stdio;

class C

{

this( char[] n )

{

printf( "ctor: %.*s\n", name = n );

}

~this()

{

printf( "dtor: %.*s\n", name );

}

char[] name;

}

void main()

{

auto autoVal = new C( "autoVal" );

scope scopeVal = new C( "scopeVal" );

autoVal = null;

GC.collect();

}


Slide16 l.jpg

31,744 gcbasic.lib

1,517 gcmalloc.d

383 Main.d

199,680 phobos.lib

66,048 tango.lib

> dmd -release Main gcbasic.lib tango.lib

> Main

ctor: autoVal

ctor: scopeVal

dtor: autoVal

dtor: scopeVal

> dmd -release Main gcmalloc.d tango.lib

> Main

ctor: autoVal

ctor: scopeVal

dtor: scopeVal

104,476 Main.exe - using gcbasic.lib

91,164 Main.exe - using gcmalloc.d

-------

13,312


Leak detection and disposable l.jpg
“Leak Detection” and Disposable

  • Validate program behavior

  • Specialized clean-up

    void rt_finalize( void* p, bool det = true );

    bool onCollectResource( Object obj );


Slide18 l.jpg

class Disposable {

~this() { printf( "dtor: Disposable\n" ); }

void dispose() { printf( "dispose: Disposable\n" ); }

}

static this() { GC.collectHandler = &onCollect; }

bool onCollect( Object o ) {

if( auto d = cast(Disposable) o ) {

d.dispose(); return false;

}

return true;

}

void discardDisposable() {

auto d = new Disposable;

}

void main() {

auto d = new Disposable;

printf( "\n***** delete *****\n" );

d = new Disposable; delete d;

printf( "\n*** GC.collect ***\n" );

GC.collect();

}

> Main

***** delete *****

dtor: Disposable

*** GC.collect ***

dispose: Disposable


Overridable object monitors l.jpg
Overridable Object Monitors

  • Given the following interface:

    class Object {

    interface Monitor {

    void lock();

    void unlock();

    }

    }

  • Object monitors must be strucutred as:

    alias Object.Monitor IMonitor;

    struct Monitor {

    IMonitor impl;

    /* data */

    }


Library mutexes as object monitors l.jpg
Library Mutexes as Object Monitors

auto mutex = new Mutex;

auto cond = new Condition;

bool ready = false;

synchronized( mutex ) {

while( !ready )

cond.wait(); // mutex released / acquired

}

synchronized( mutex ) {

ready = true;

cond.notify();

}
