Presentation Transcript


Esys 150 lecture 9 transform fault earthquakes in southern california l.jpg

ESYS 150LECTURE 9TRANSFORM FAULT EARTHQUAKES IN SOUTHERN CALIFORNIA

Transform Fault Earthquakes

Earthquake Prediction

Thrust Earthquakes around Transforms

San Diego County Earthquakes


North america 38ma present development of san andreas fault l.jpg

NORTH AMERICA 38MA - PRESENTDEVELOPMENT OF SAN ANDREAS FAULT


Transform fault earthquakes san andreas fault cape mendocino to gulf of california l.jpg

TRANSFORM FAULT EARTHQUAKESSAN ANDREAS FAULTCape Mendocino to Gulf of California

Coast line in blue. San Andreas fault heavy dark line.Very complex system of faults especially in southern California.


Transform earthquakes locked sections 1857 fort tejon and 1906 san francisco l.jpg

TRANSFORM EARTHQUAKESLOCKED SECTIONS1857 Fort Tejon and 1906 San Francisco

Two sections of the fault locked for long periods of time.

Then gave way very quickly creating two major ruptures

Fort Tejon 360 km long

San Francisco 430 km long.

Two very large earthquakes


Transform earthquakes 1906 san francisco locked section moved l.jpg

TRANSFORM EARTHQUAKES1906 SAN FRANCISCOLocked section moved

Moved 6m along 430 km of fault.

Had 60 secs of shaking.

Magnitude 7.8 earthquake

Most damage due to fire and disease.

Important for developing elastic rebound theory for earthquakes


Transform earthquakes 1989 loma prieta during world series l.jpg

TRANSFORM EARTHQUAKES1989 LOMA PRIETADuring World Series

Bend of San Andreas, where two faults split off from main fault, ruptured.

Earthquake did not rupture the ground.

Moved 1.9 m horizontally and 1.3 m vertically. Magnitude 6.9

Caused a lot of damage in San Francisco.


Transform earthquakes loma prieta 1989 damage in marina district san francisco l.jpg

TRANSFORM EARTHQUAKESLOMA PRIETA 1989Damage in Marina District San Francisco

  • Water saturated sediments were shaken became a slurry and flowed. Foundations collapsed especially soft buildings.

    (b)Bottom floors used for garaging cars collapsed.


Transform earthquakes 1989 loma prieta interstate 880 collapse l.jpg

TRANSFORM EARTHQUAKES1989 LOMA PRIETAInterstate 880 collapse

Portion of the elevated 880 built on soft mud. The soft mud resonated with the earthquake waves and the mud liquified. The hard rock had much smaller accelerations


Transform earthquakes 1989 loma prieta interstate 880 collapse9 l.jpg

TRANSFORM EARTHQUAKES1989 LOMA PRIETAInterstate 880 collapse

The bridge had roughly the same frequency as the amplified surface waves and shook severely.

The support columns failed at the joints. There were 20 #18 steel bars in the columns but they were discontinuous at the joints.

With repeated shaking the joints failed and the bridge collapsed.


Earthquake prediction how faults work elastic rebound theory l.jpg

EARTHQUAKE PREDICTIONHOW FAULTS WORKElastic rebound theory

  • Active fault with road as reference.

  • Deformation occurs either side of the fault but because of friction at the fault, no movement

  • Deformation so great fault ruptures and two side snap away from each other.

    Current models add propagation of fault break. Like a ripple on a carpet.


Earthquake prediction paleoseismology sag ponds l.jpg

EARTHQUAKE PREDICTIONPALEOSEISMOLOGYSag ponds

Topography along the central San Andreas

Sag ponds - down dropped areas along the fault.

Sediments deposited allow the prehistoric record to be read.


Earthquake prediction paleoseismology results from trenching l.jpg

EARTHQUAKE PREDICTIONPALEOSEISMOLOGYResults from trenching

Diagram of section across a trench wall. A fault has offset the sediment layers. No offset since upper layer of organic material formed. The 500 year old layer is offset and 745 year old layer is offset twice as much.


Earthquake prediction seismic gaps cross section of seismicity san andreas 1969 to 1989 l.jpg

EARTHQUAKE PREDICTIONSEISMIC GAPSCross section of seismicity, San Andreas 1969 to 1989

  • Dense cluster in central creeping section of the fault.

  • 1989 Loma Prieto earthquake and after shocks filled in a gap

    Gap exists south of San Francisco.


Earthquake prediction prediction for san andreas l.jpg

EARTHQUAKE PREDICTIONPREDICTION FOR SAN ANDREAS

Prediction of magnitude and probability of occurring before 2030.

Forecasts based on historic records, dated trench wall offsets and gps

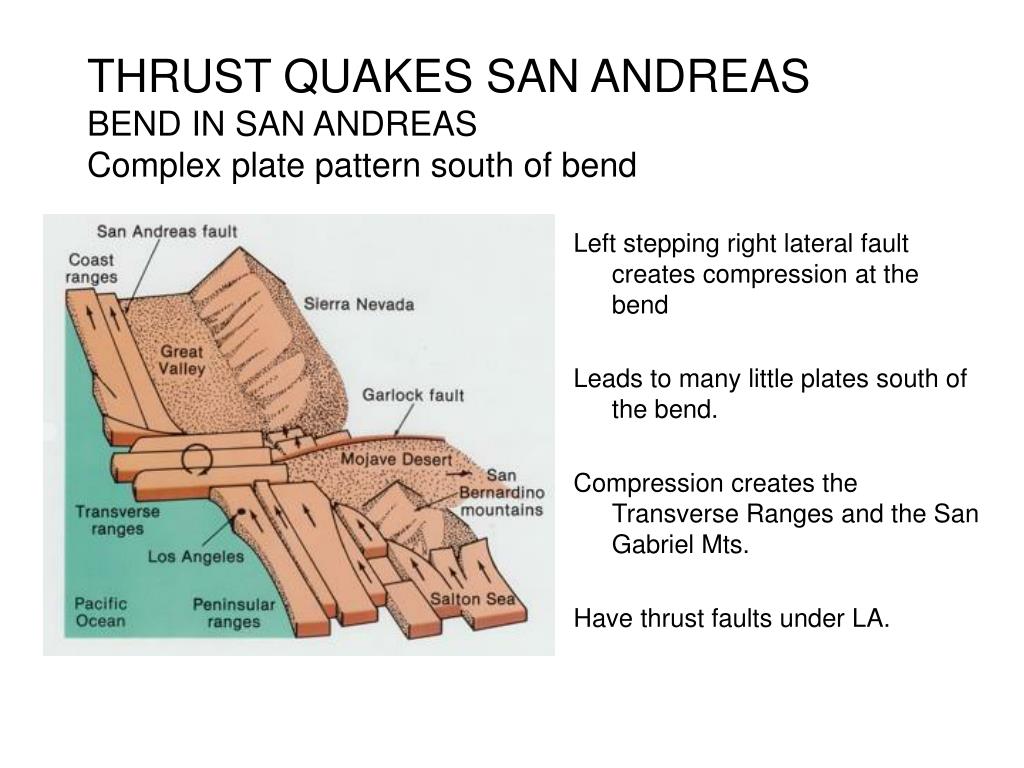

Slide15 l.jpg

THRUST QUAKES SAN ANDREASBEND IN SAN ANDREASComplex plate pattern south of bend

Left stepping right lateral fault creates compression at the bend

Leads to many little plates south of the bend.

Compression creates the Transverse Ranges and the San Gabriel Mts.

Have thrust faults under LA.


Thrust quakes san andreas blind thrusts san fernando 1971 northridge 1994 l.jpg

THRUST QUAKES SAN ANDREASBLIND THRUSTSSan Fernando 1971, Northridge 1994

Blind thrusts close together but dipping in opposite directions

1994 Northridge on Pico Fault dipping to the south.

Overthrust plate moved up 3.5 m

Intense ground shaking in cities on overriding plate.

1.8 g horizontal accel.

1.2 g vertical accel.


Thrust quakes san andreas the big one comparison with 1957 mongolian quake l.jpg

THRUST QUAKES SAN ANDREASTHE BIG ONEComparison with 1957 Mongolian quake

Comparison at same scale of Gobi-Altay Mongolia and San Andreas

Offsets on faults are similar and both have regions of thrust faults.

Whole Mongolian fault system went in 1957. > 8. Magnitude


San diego county earthquakes major faults l.jpg

SAN DIEGO COUNTY EARTHQUAKESMAJOR FAULTS

San Andreas 30 mm/yr

San Jacinto 12 mm/yr

Elsinore 5 mm/yr

Newport/Inglewood

/Rose Canyon 2 mm/yr


San diego county earthquakes historical earthquakes l.jpg

SAN DIEGO COUNTY EARTHQUAKESHISTORICAL EARTHQUAKES

1800 damaged San Diego Mission, 6.5 M

1862 damaged town, Rose Canyon Fault, 6.0 -7.0 M

1892 Laguna Salada Fault (extension of the Elsinore), > 7.0 M

1933 Long Beach earthquake on extension of Rose Canyon Fault. Very damaging earthquake, affected schools


San diego county earthquakes rose canyon plan view l.jpg

SAN DIEGO COUNTY EARTHQUAKESROSE CANYON PLAN VIEW

Freeways (red)

Rose Canyon Fault (black)

Separates La Jolla, Pacific Beach and Point Loma from the rest of San Diego.

Portions of Interstate 5 run down the fault.

It runs out to sea off Coronado

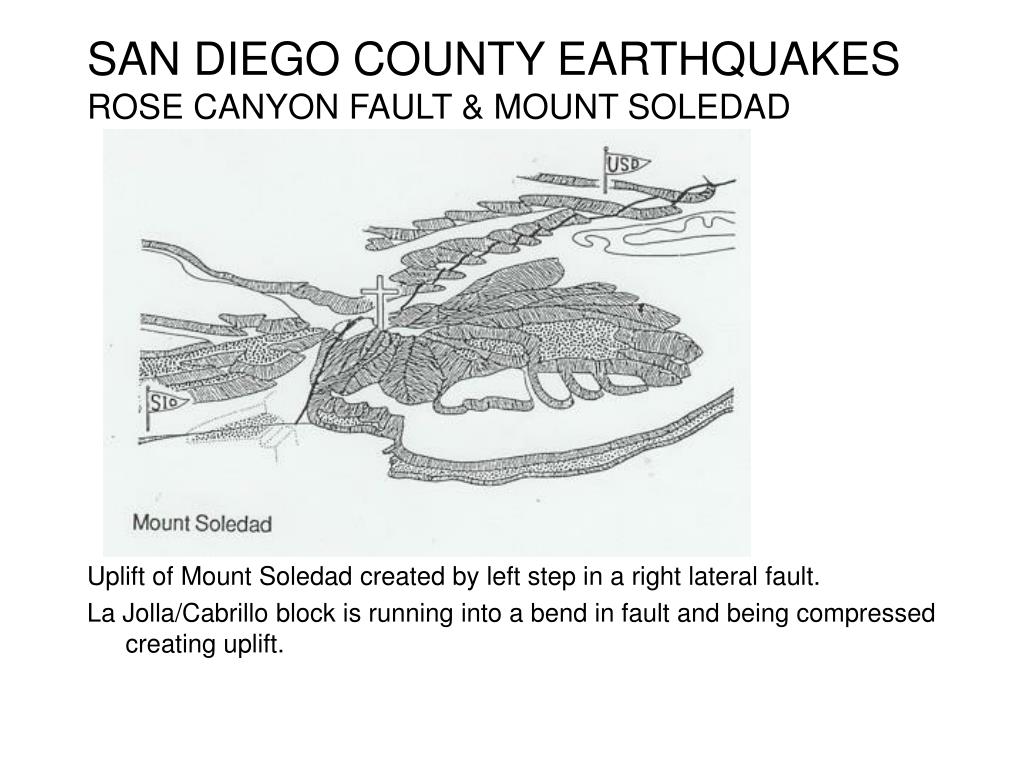

San diego county earthquakes rose canyon fault mount soledad l.jpg

SAN DIEGO COUNTY EARTHQUAKESROSE CANYON FAULT & MOUNT SOLEDAD

Uplift of Mount Soledad created by left step in a right lateral fault.

La Jolla/Cabrillo block is running into a bend in fault and being compressed creating uplift.


San diego earthquakes trenching study rose canyon fault l.jpg

SAN DIEGO EARTHQUAKESTRENCHING STUDY ROSE CANYON FAULT

Site was located in the SDG&E parking lot.

Right by Interstate 5

Where active section of Rose Canyon fault is known to run.

Used pre War II air photo’s

to locate the fault.


San diego earthquakes trenching in rose canyon fault l.jpg

SAN DIEGO EARTHQUAKESTRENCHING IN ROSE CANYON FAULT

Southward view of hand-excavated trench.

Fault strikes from upper left to lower right corner


San diego earhquakes plan view of actual trench l.jpg

SAN DIEGO EARHQUAKESPLAN VIEW OF ACTUAL TRENCH

Grey shows area dug out to a depth of 2 m. Dashed lines show strands of the

fault. The redline shows buried channel offset across the Rose Canyon Fault

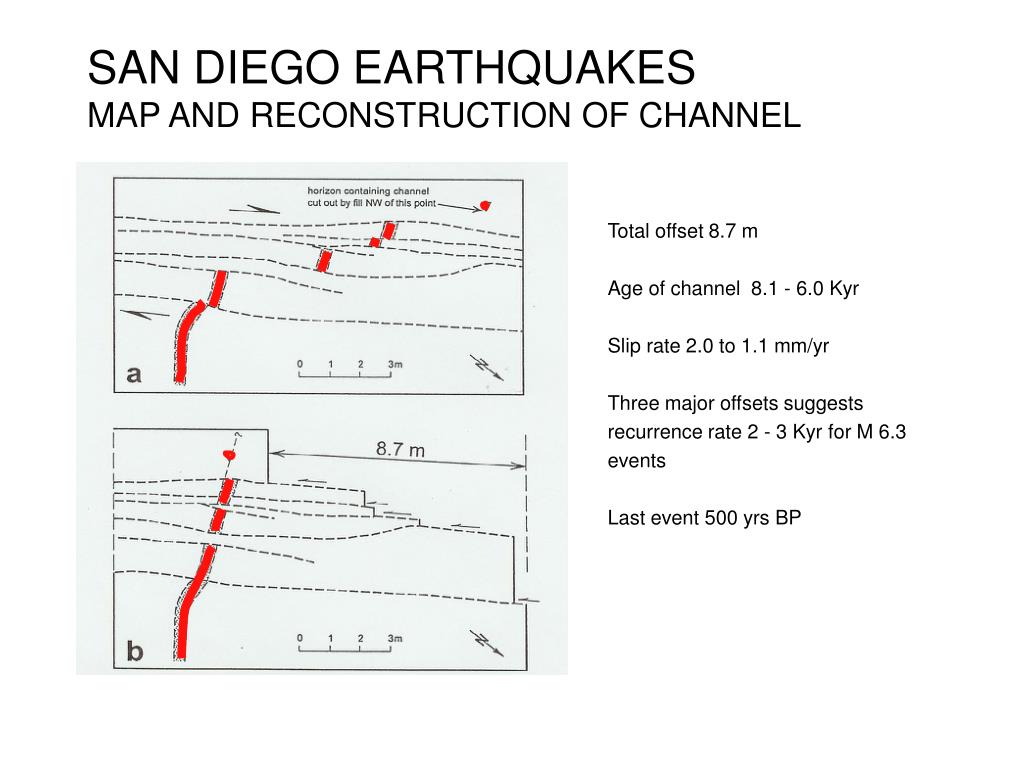

San diego earthquakes map and reconstruction of channel l.jpg

SAN DIEGO EARTHQUAKESMAP AND RECONSTRUCTION OF CHANNEL

Total offset 8.7 m

Age of channel 8.1 - 6.0 Kyr

Slip rate 2.0 to 1.1 mm/yr

Three major offsets suggests

recurrence rate 2 - 3 Kyr for M 6.3

events

Last event 500 yrs BP


San diego county earthquakes coastal fault zone l.jpg

SAN DIEGO COUNTY EARTHQUAKESCOASTAL FAULT ZONE

Paleoseismic motions on the Coastal Fault Zone with dates of most recent rupture. Note the northward propagation of the events. All except 1933 Long Beach earthquake were determined from trenching.
