Chapter 8 The Console

Chapter 8 The Console. The Console is the part of the machine that the operator controls the operation of the x-ray machine. All machine console are a little different but there are always similarities. The console is where we control x-ray tube current and voltage. The Console Controls.

albert
Download Presentation

Chapter 8 The Console

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Chapter 8 The Console • The Console is the part of the machine that the operator controls the operation of the x-ray machine. • All machine console are a little different but there are always similarities. The console is where we control x-ray tube current and voltage.

  2. The Console Controls • The console will have controls for: • mA and time or mAs • kVp • Focal Spot • Line Voltage Compensation • Automatic Exposure Control

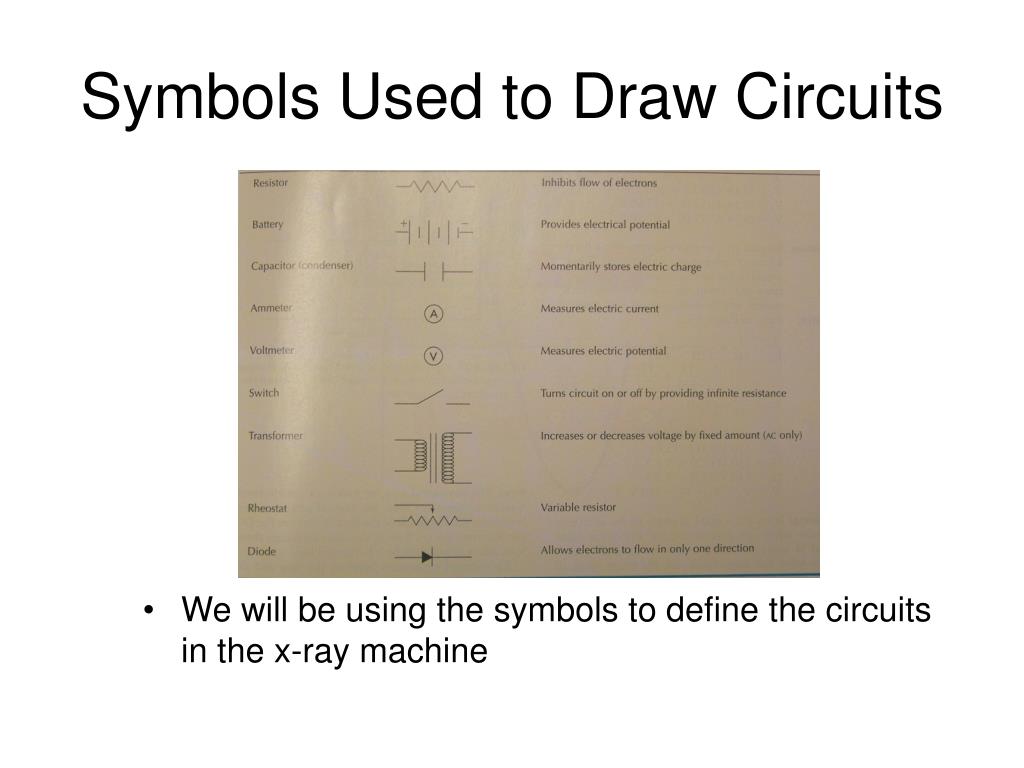

  3. Symbols Used to Draw Circuits • We will be using the symbols to define the circuits in the x-ray machine

  4. Console Circuits

  5. Line Compensation • At the bottom left is the controls for line voltage compensation. • Most machine are designed to operate at 220 volts while some will work with 110 volts or 440 volts

  6. Line Compensation • The power company often cannot provide exactly 220 volts at all times. • Elevators and Air Conditioners may reduce the voltage available for the x-ray unit.

  7. Line Compensation • Older machine have a meter to monitor the line voltage attached to the autotransformer. • The operator can adjust the taps on the transformer to account for low or high incoming voltage.

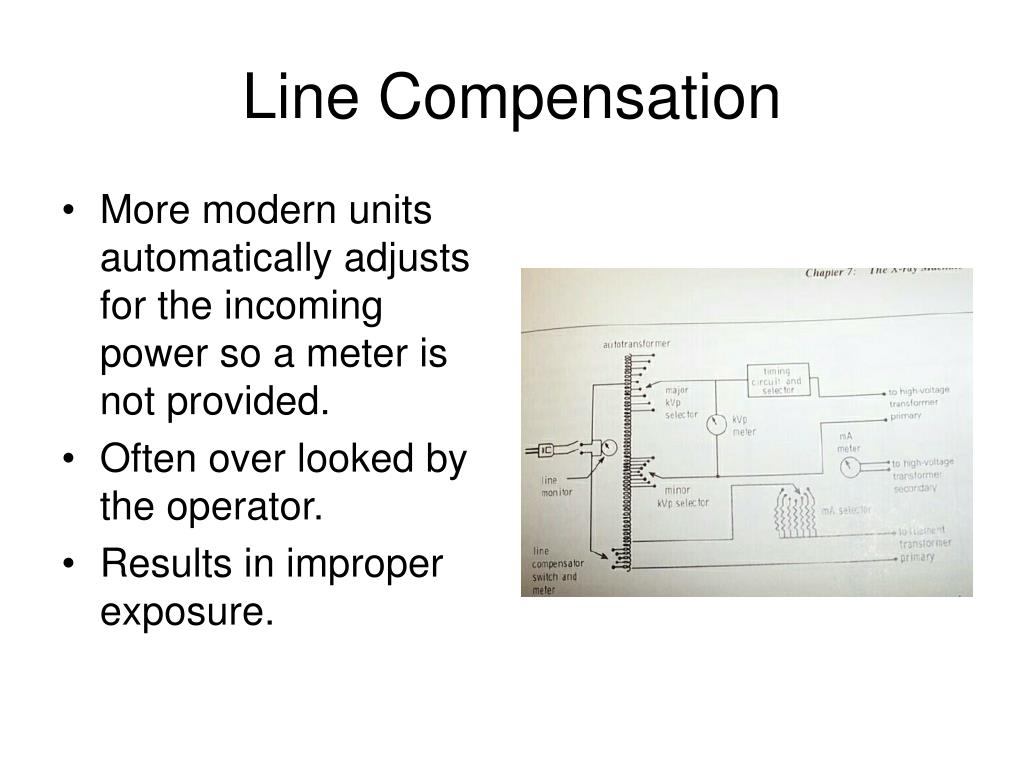

  8. Line Compensation • More modern units automatically adjusts for the incoming power so a meter is not provided. • Often over looked by the operator. • Results in improper exposure.

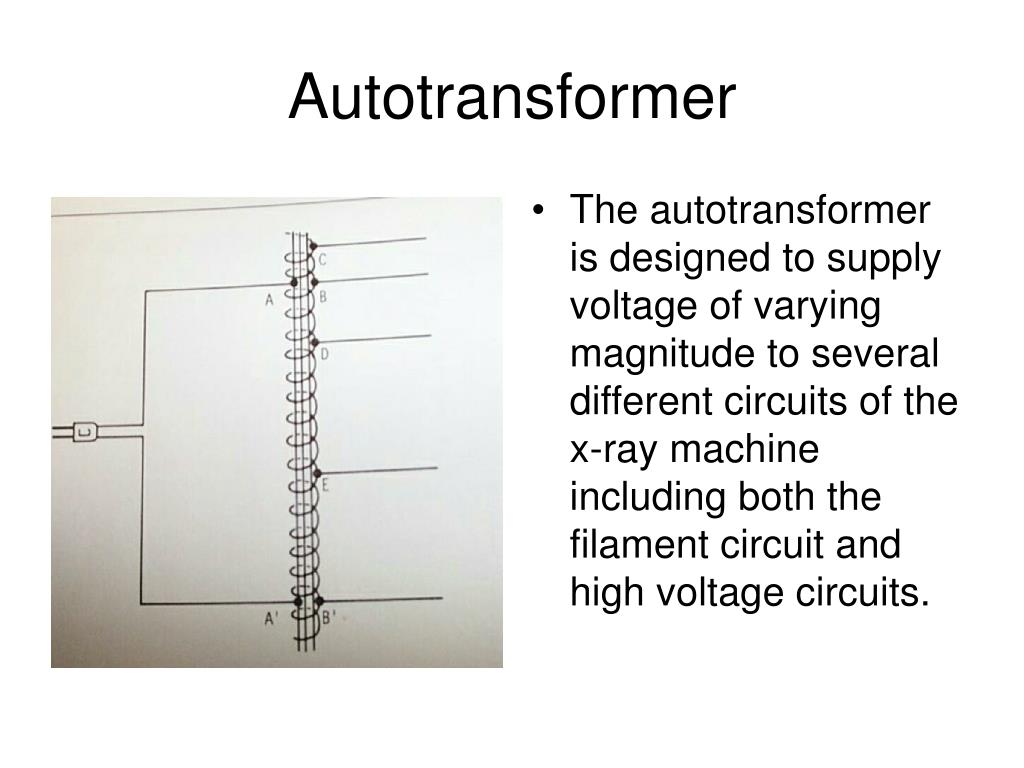

  9. Autotransformer • The autotransformer is designed to supply voltage of varying magnitude to several different circuits of the x-ray machine including both the filament circuit and high voltage circuits.

  10. Autotransformer • The autotransformer has only one winding and one core. • The single winding has a number of connection or electric taps.

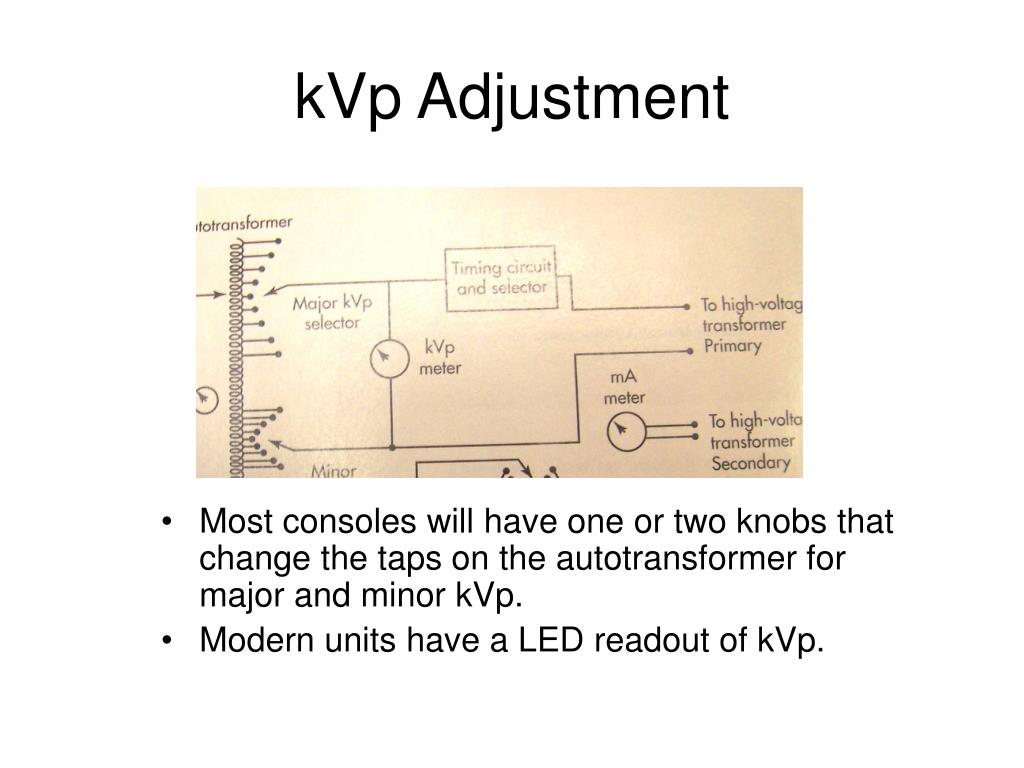

  11. kVp Adjustment • Most consoles will have one or two knobs that change the taps on the autotransformer for major and minor kVp. • Modern units have a LED readout of kVp.

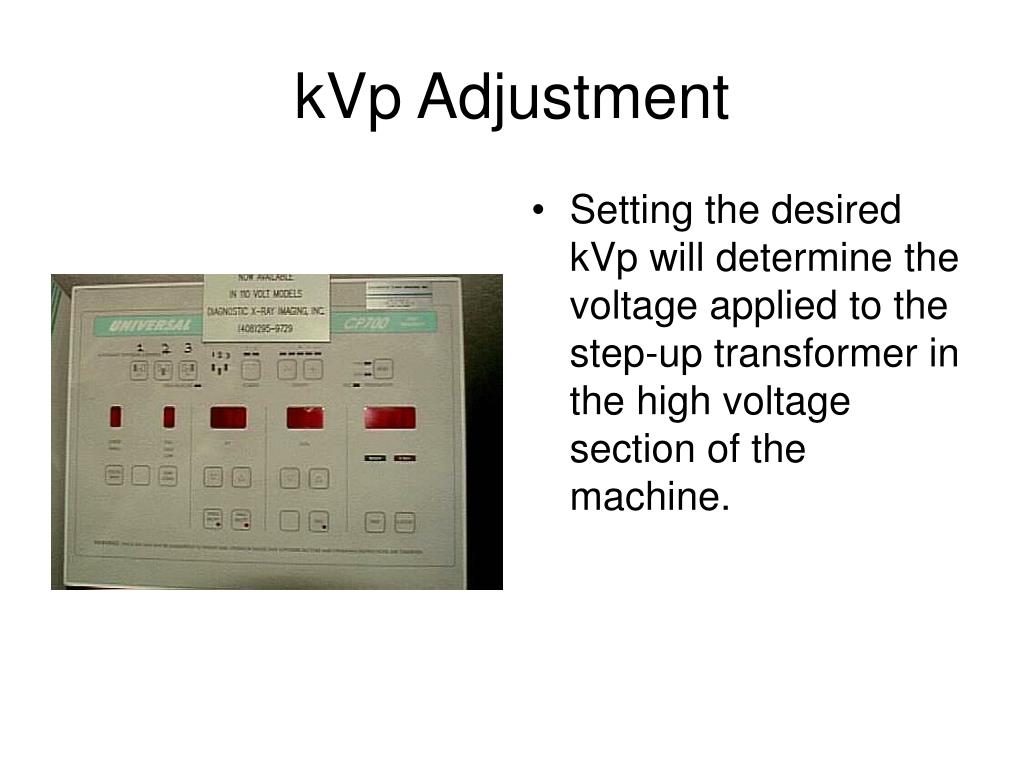

  12. kVp Adjustment • Setting the desired kVp will determine the voltage applied to the step-up transformer in the high voltage section of the machine.

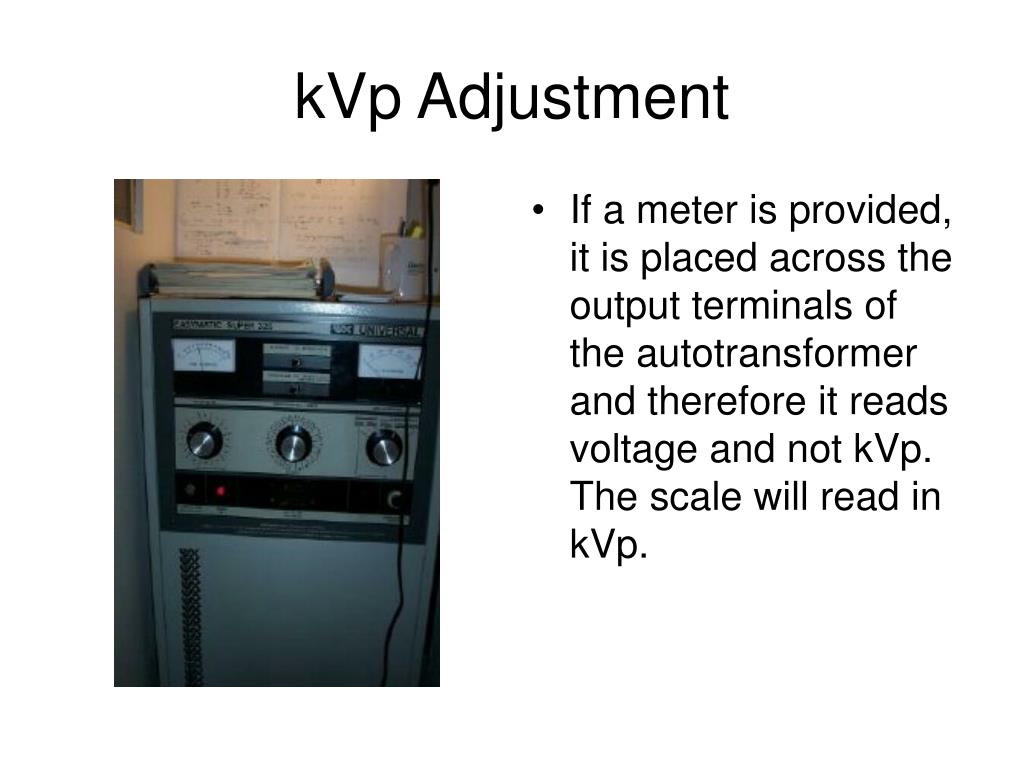

  13. kVp Adjustment • If a meter is provided, it is placed across the output terminals of the autotransformer and therefore it reads voltage and not kVp. The scale will read in kVp.

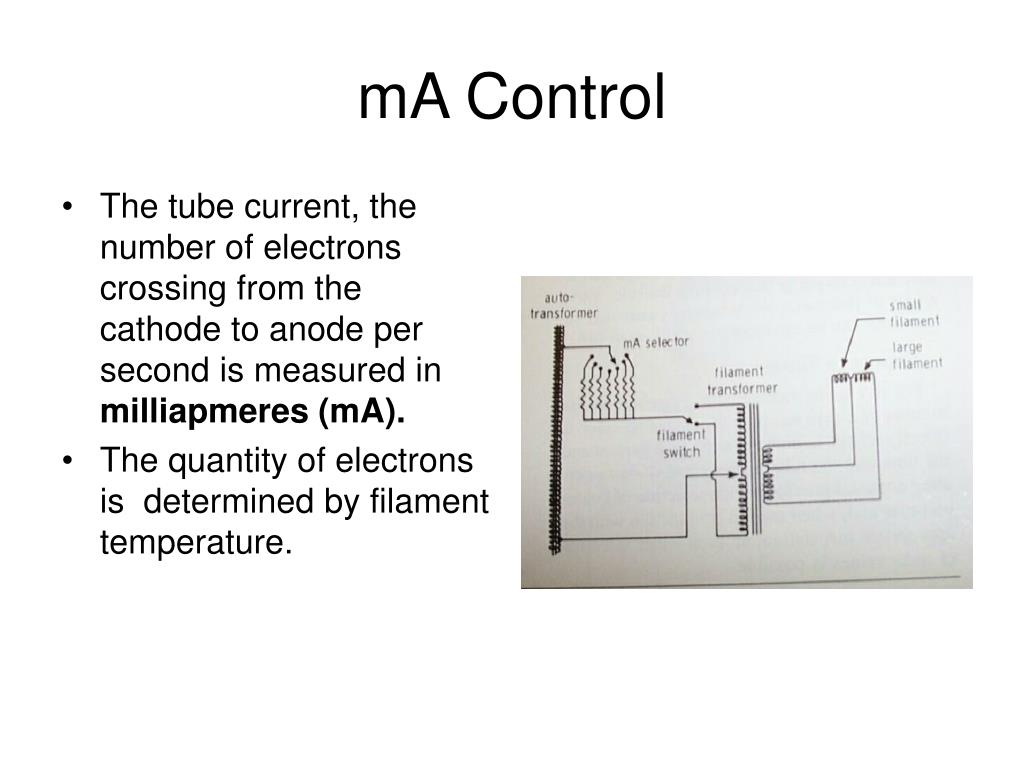

  14. mA Control • The tube current, the number of electrons crossing from the cathode to anode per second is measured in milliapmeres (mA). • The quantity of electrons is determined by filament temperature.

  15. mA Control • The filament normally operates at currents between 3 and 6 A. • The Tube Current is controlled through a separate circuit called the filament circuit

  16. mA Control • Voltage is provided by taps of the autotransformer. This voltage is reduced with precise resisters to a value corresponding to the mA stations available.

  17. mA Control • Tube current is usually not continuously variable, usually only currents of 50, 100, 150, 200 & 300 mA and higher are provided. • Newer units are continuously variable.

  18. mA Control • The voltage is then delivered to the filament transformer. The filament transformer lowers the voltage so it is called a step down transformer.

  19. mA Control • The selection of the small or large filament is connected to the mA selection or as a separate control.

  20. Exposure Timers • For any given radiographic examination, the number of x-rays reaching the image receptor is directly related to the tube current and the time that the tube in energized. • The timer circuit is separate from the other main circuits.

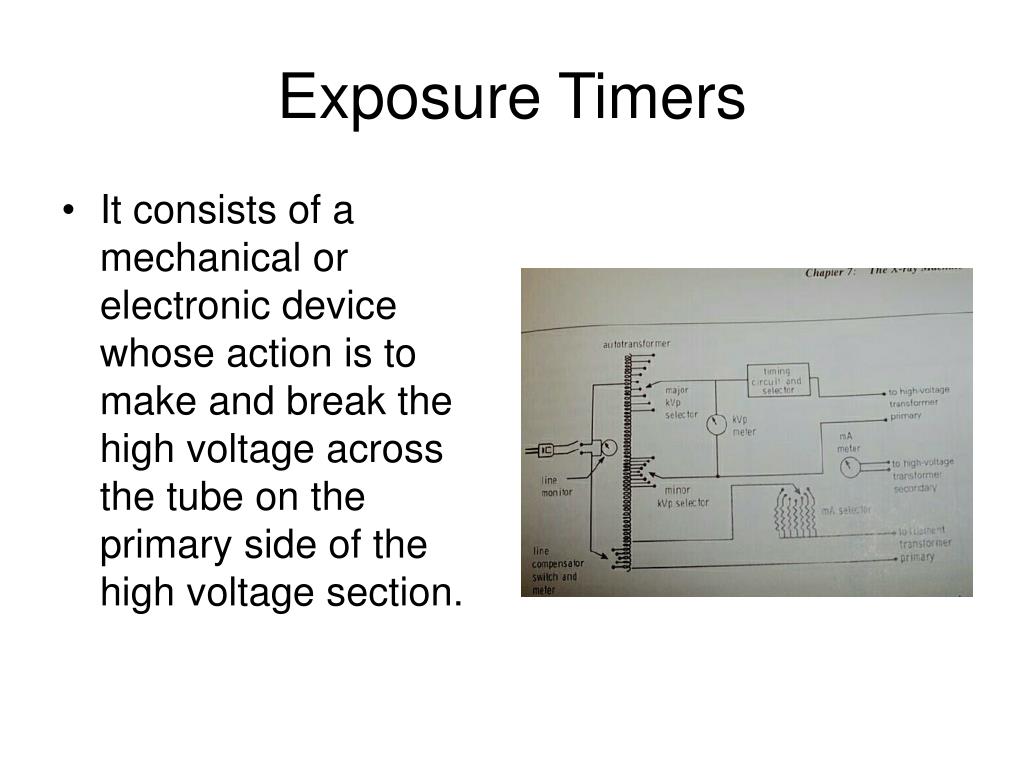

  21. Exposure Timers • It consists of a mechanical or electronic device whose action is to make and break the high voltage across the tube on the primary side of the high voltage section.

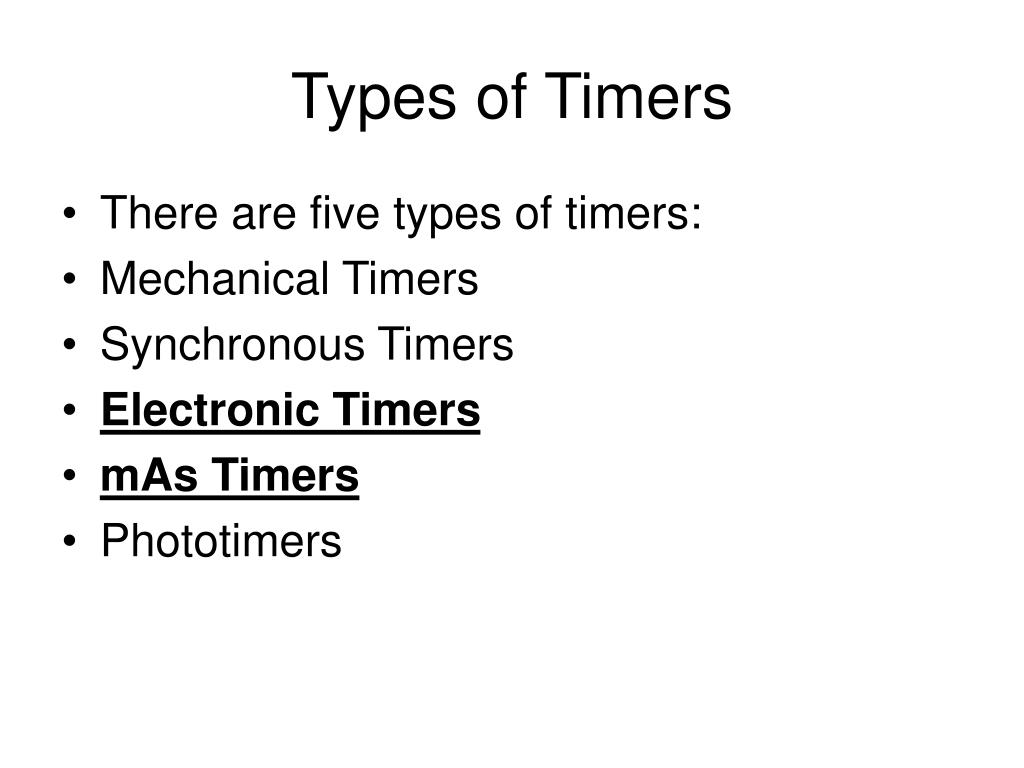

  22. Types of Timers • There are five types of timers: • Mechanical Timers • Synchronous Timers • Electronic Timers • mAs Timers • Phototimers

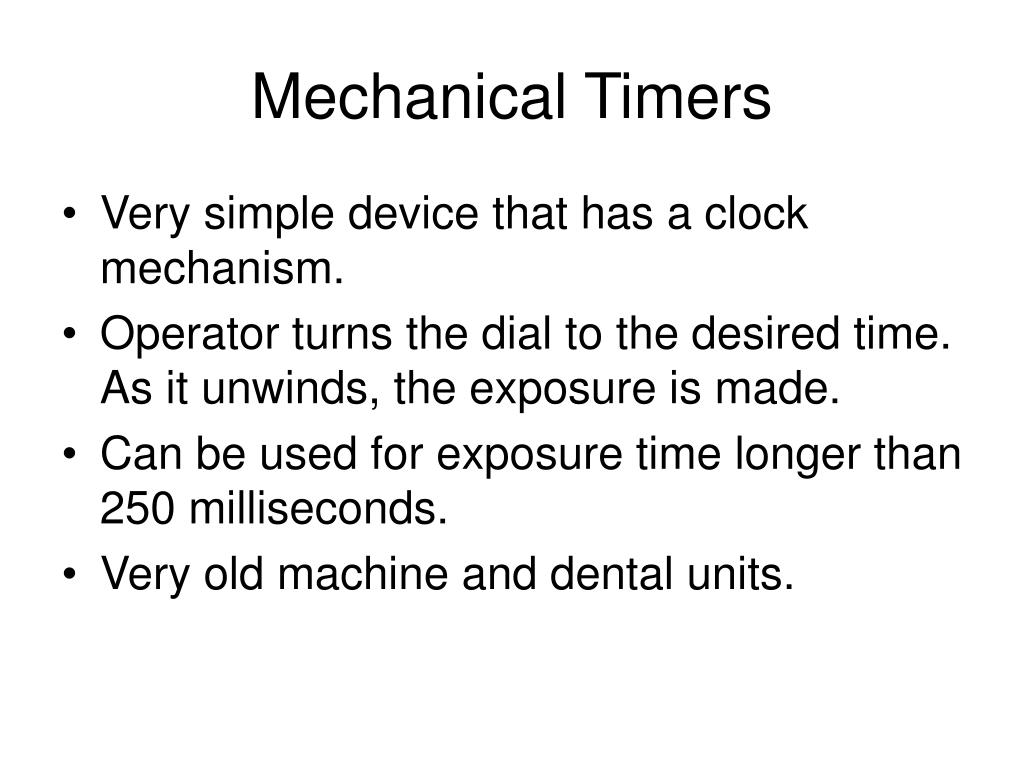

  23. Mechanical Timers • Very simple device that has a clock mechanism. • Operator turns the dial to the desired time. As it unwinds, the exposure is made. • Can be used for exposure time longer than 250 milliseconds. • Very old machine and dental units.

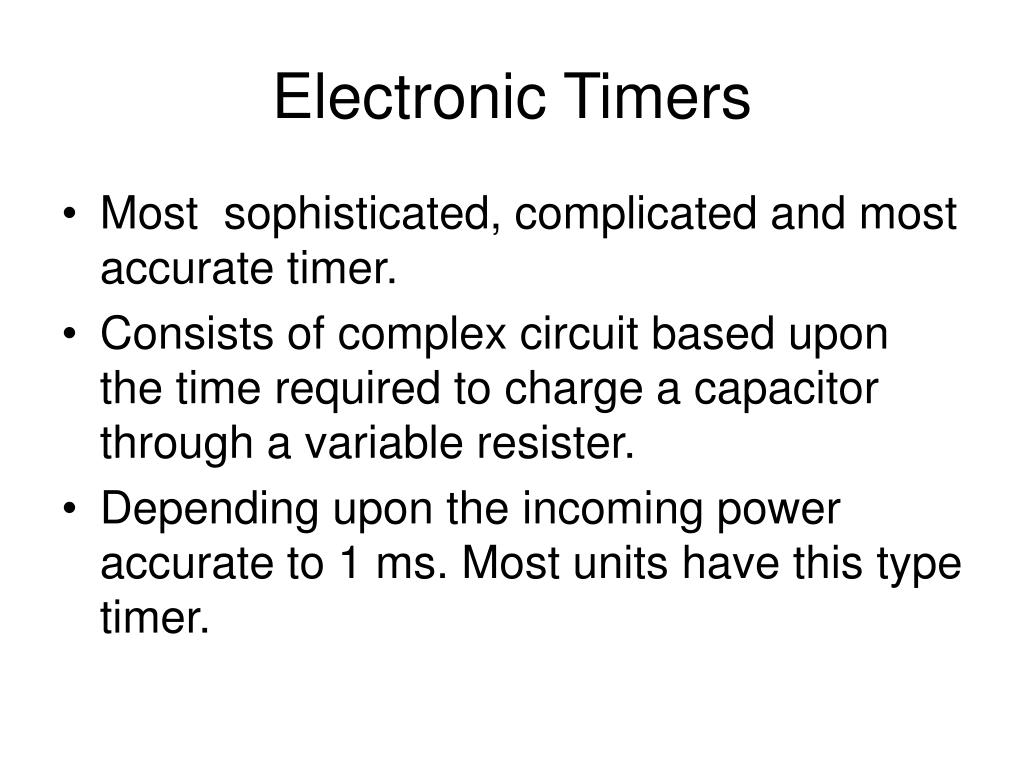

  24. Electronic Timers • Most sophisticated, complicated and most accurate timer. • Consists of complex circuit based upon the time required to charge a capacitor through a variable resister. • Depending upon the incoming power accurate to 1 ms. Most units have this type timer.

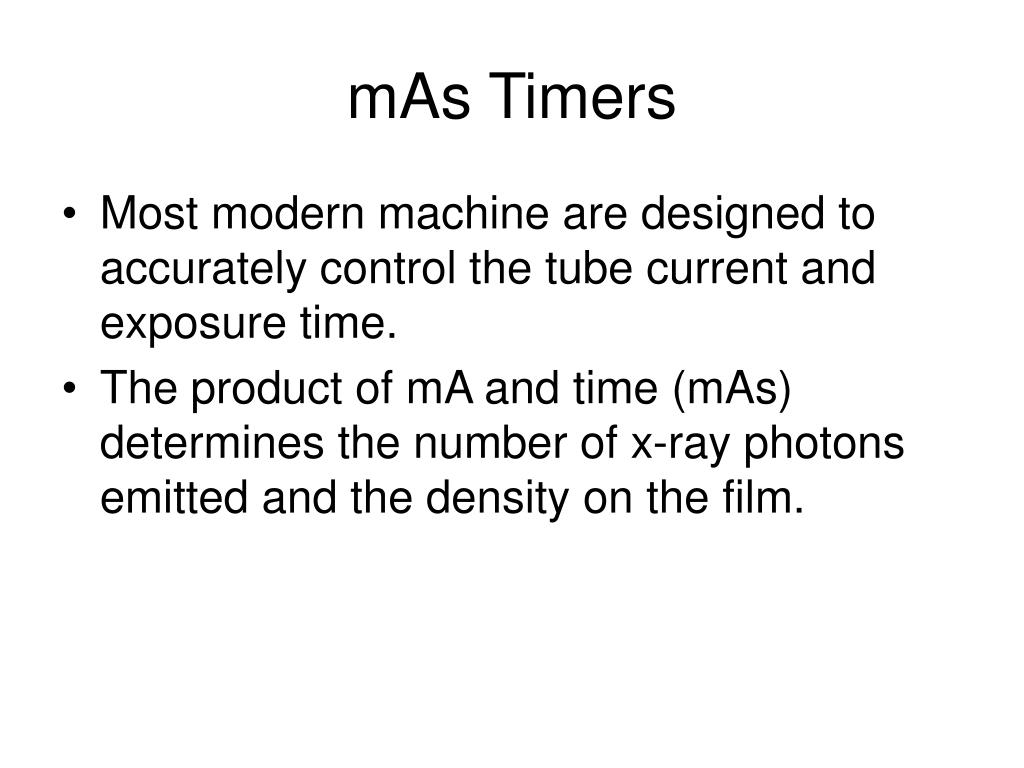

  25. mAs Timers • Most modern machine are designed to accurately control the tube current and exposure time. • The product of mA and time (mAs) determines the number of x-ray photons emitted and the density on the film.

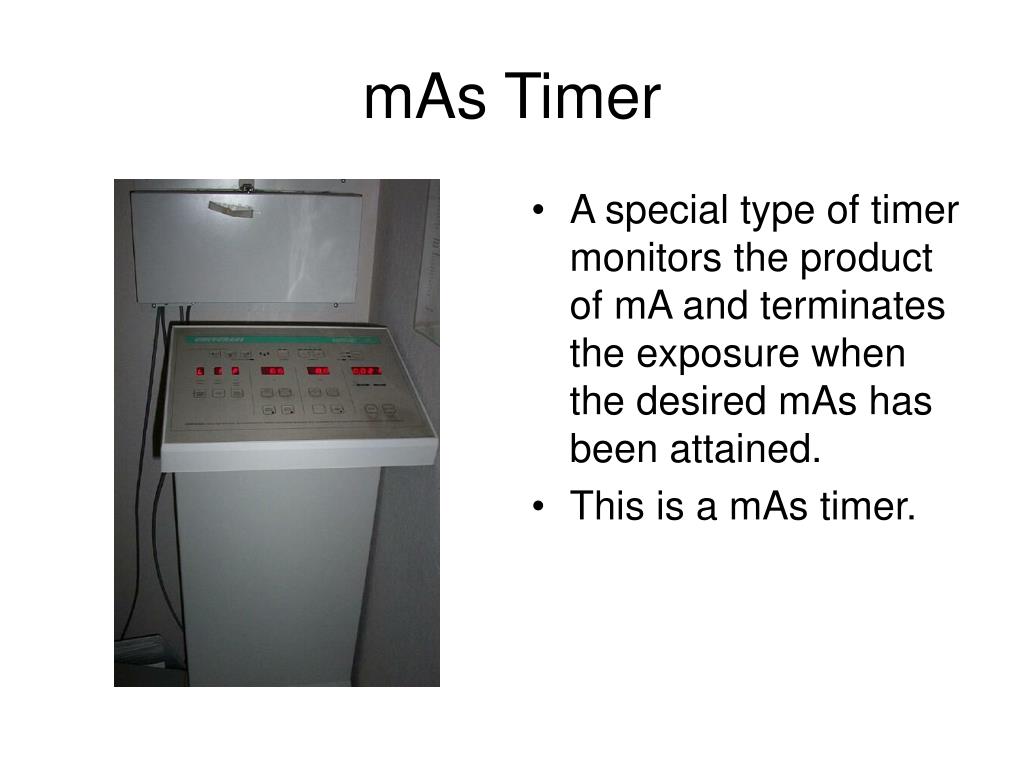

  26. mAs Timer • A special type of timer monitors the product of mA and terminates the exposure when the desired mAs has been attained. • This is a mAs timer.

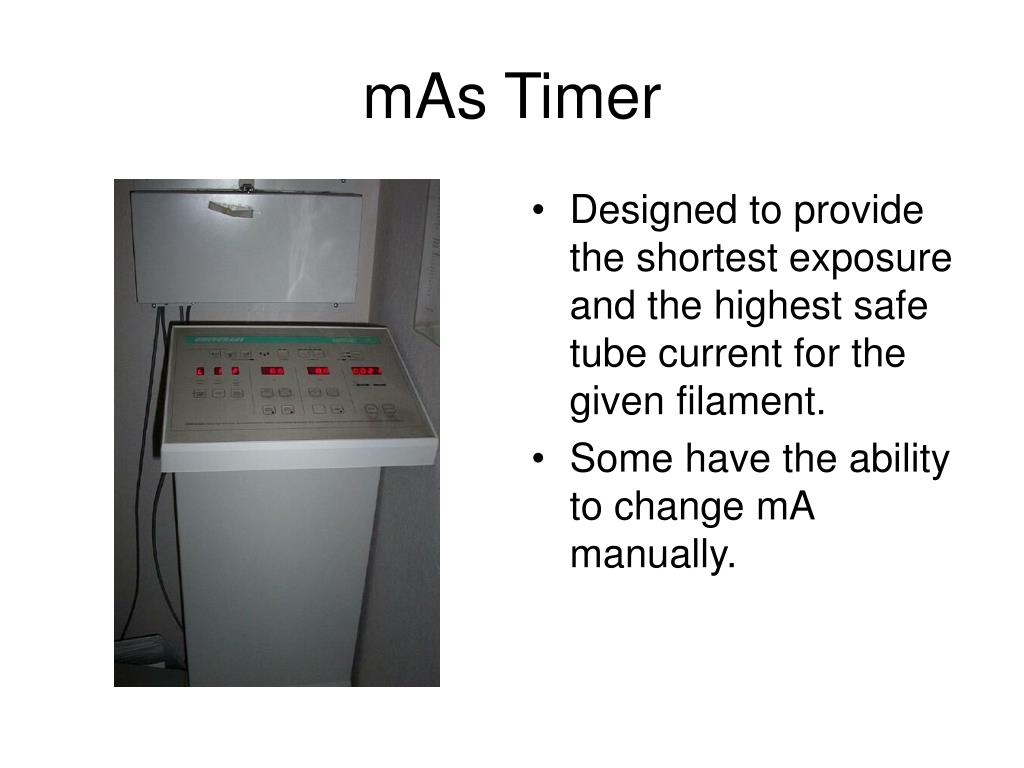

  27. mAs Timer • Designed to provide the shortest exposure and the highest safe tube current for the given filament. • Some have the ability to change mA manually.

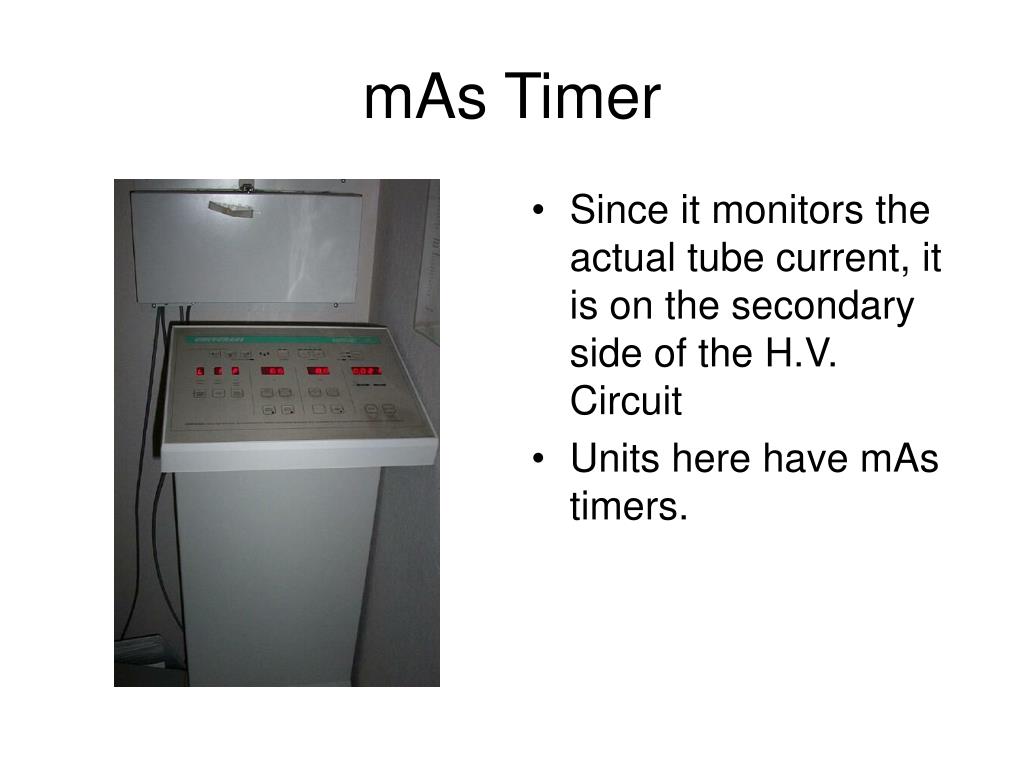

  28. mAs Timer • Since it monitors the actual tube current, it is on the secondary side of the H.V. Circuit • Units here have mAs timers.

  29. mAs Timer • APR or Anatomically Programs Timers have computers that store the technical factors in the machine. • Select the view and enter the patient size and the machine is ready!!!!

  30. Phototimers • A phototimer that measures the quantity of radiation reaching the receptor and terminates the exposure when sufficient radiation needed to produce the correct density on the film. • Offered in addition to a manual timer.

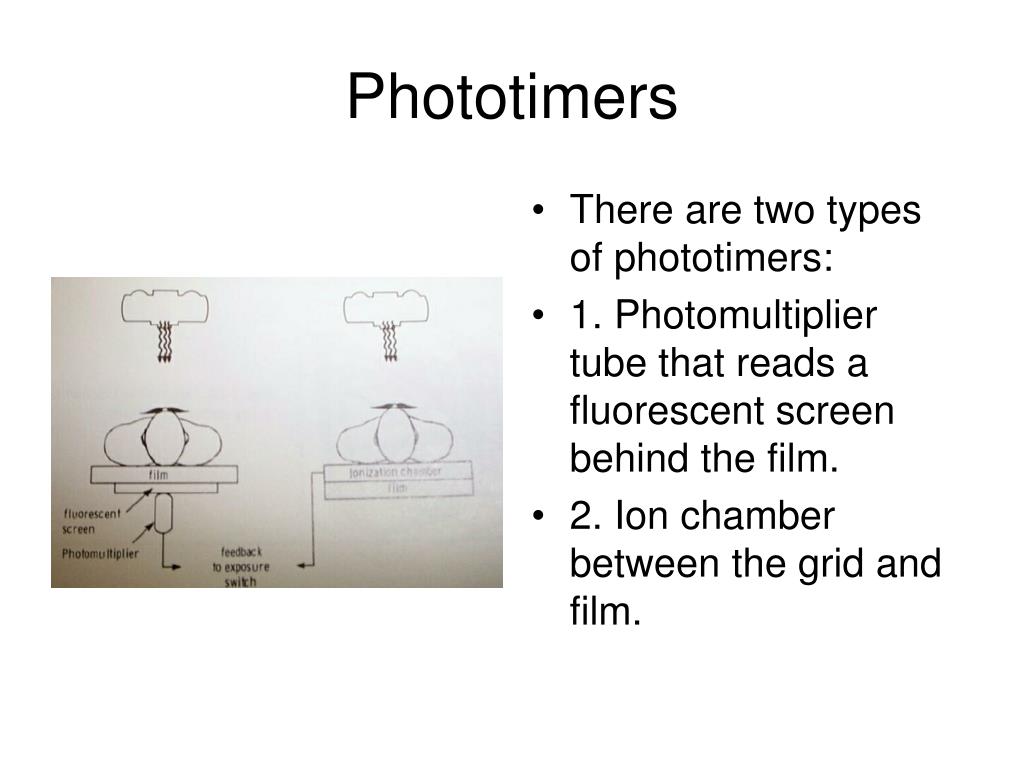

  31. Phototimers • There are two types of phototimers: • 1. Photomultiplier tube that reads a fluorescent screen behind the film. • 2. Ion chamber between the grid and film.

  32. Phototimers • Ion Chambers is used on most modern x-ray units. • It is flat and radiolucent so it will not interfere with the image. Multiple chambers can be used to optimize the image.

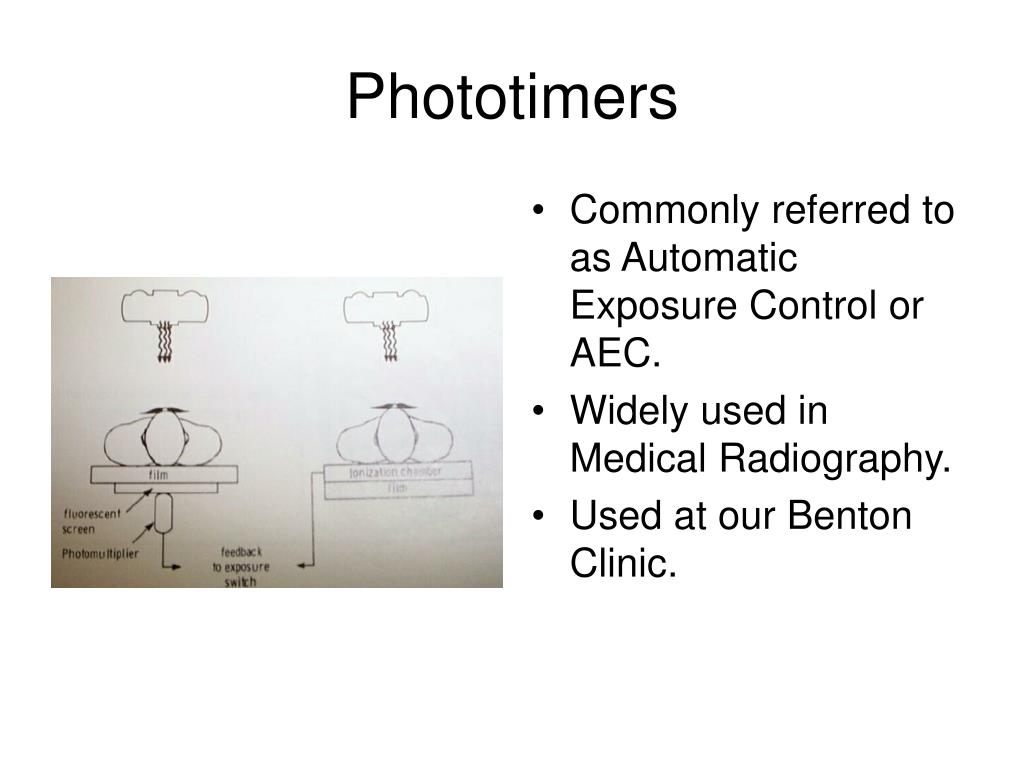

  33. Phototimers • Commonly referred to as Automatic Exposure Control or AEC. • Widely used in Medical Radiography. • Used at our Benton Clinic.

  34. AEC Console • With AEC, the operator can select: • Where to read the radiation. • The desired film density • kVp and backup mAs

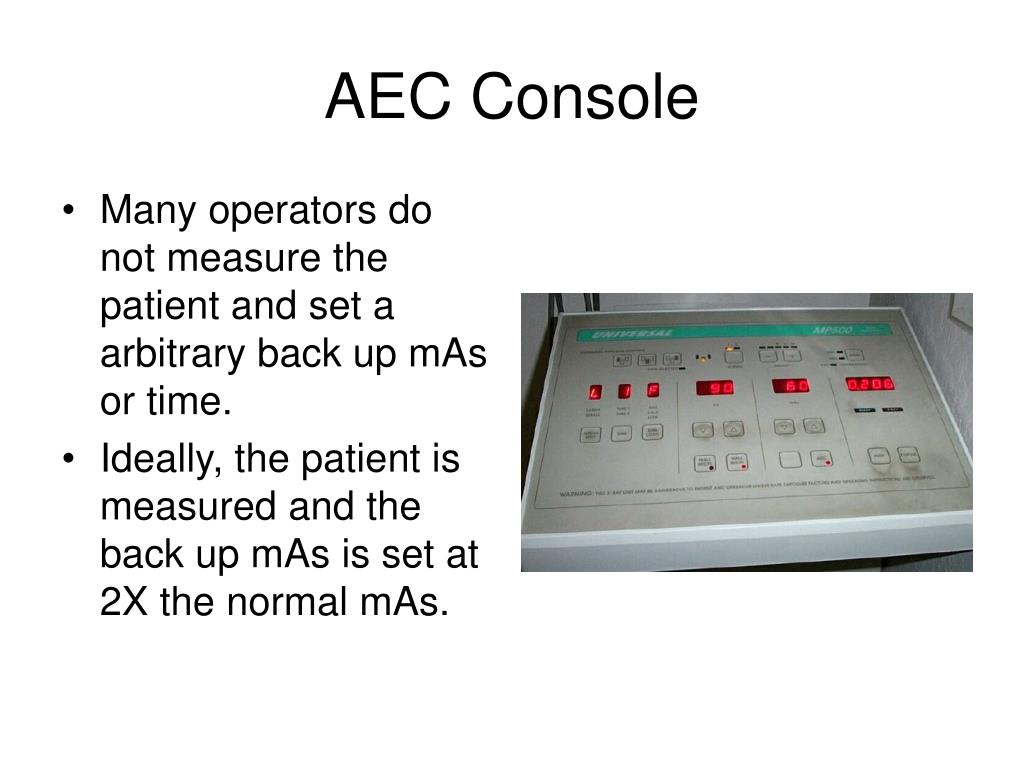

  35. AEC Console • Many operators do not measure the patient and set a arbitrary back up mAs or time. • Ideally, the patient is measured and the back up mAs is set at 2X the normal mAs.

  36. AEC Console • This allows the AEC to adjust exposure for the patient’s habitus and area density. • Radiation is measured at the center of the film or off to the sides of the film.

  37. AEC Console • The center is read for most radiography and especially for the spine. • The sides are read for PA chest, abdomen and rib radiography.

  38. Other functions on the Control Console. • The console will also have the exposure button or buttons. • The prep button is depressed to prepare the tube for exposure. • The rotor will spin up to 3400 RPM.

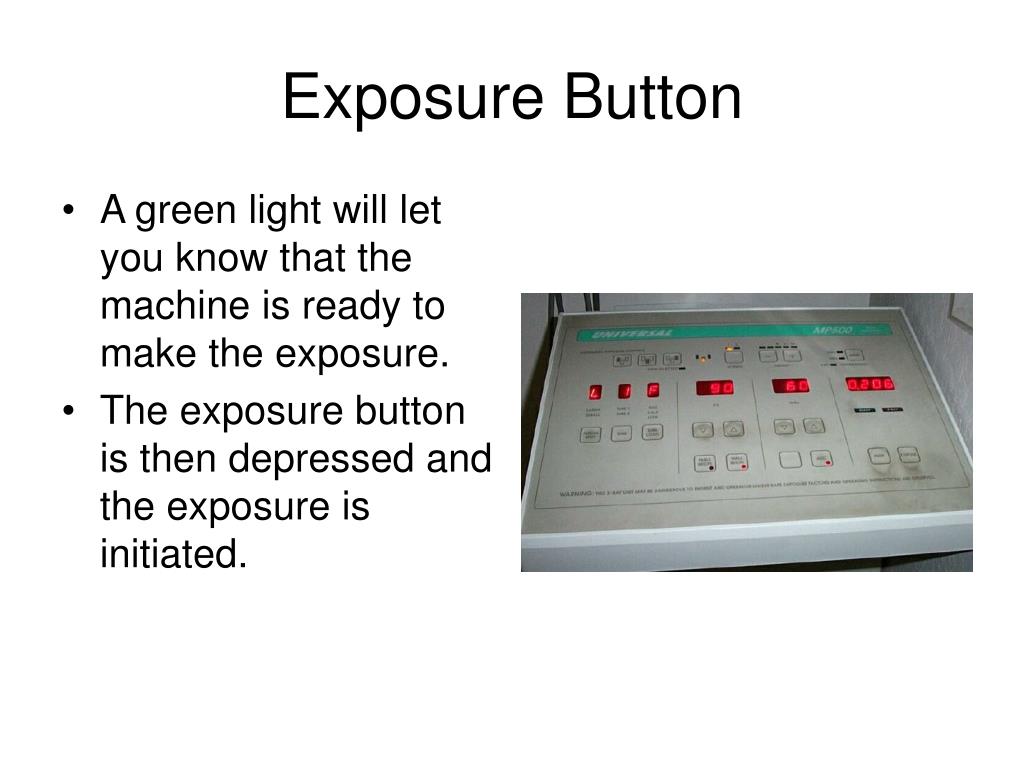

  39. Exposure Button • A green light will let you know that the machine is ready to make the exposure. • The exposure button is then depressed and the exposure is initiated.

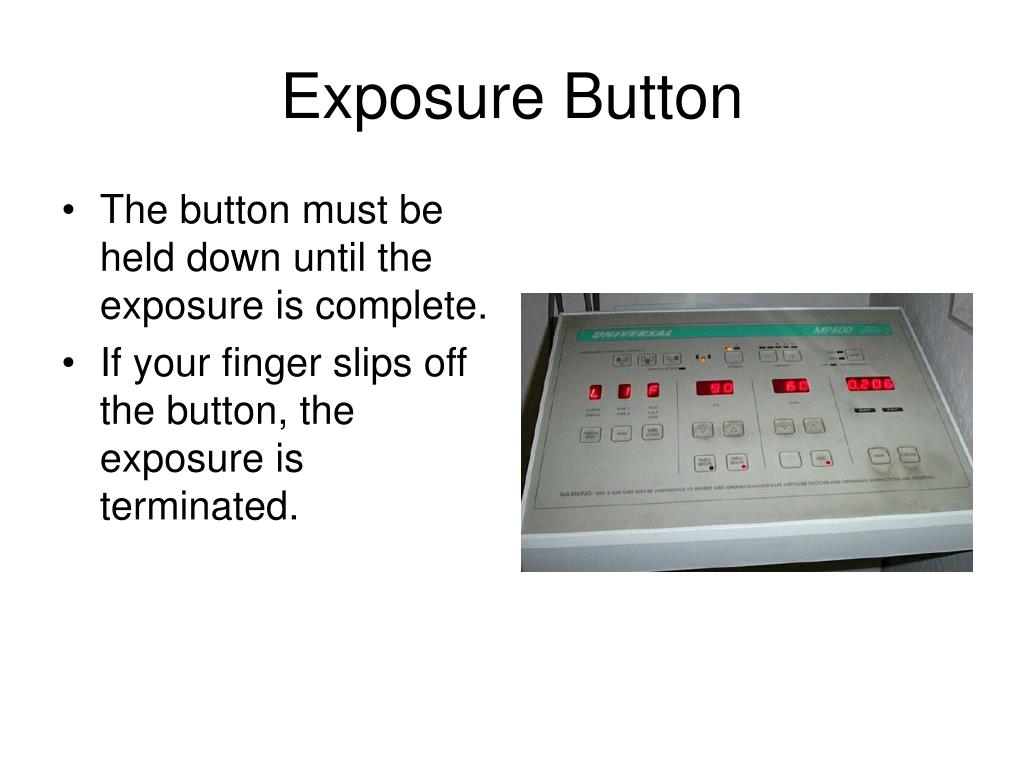

  40. Exposure Button • The button must be held down until the exposure is complete. • If your finger slips off the button, the exposure is terminated.

  41. Exposure Button • The exposure control buttons are referred to as a”Dead man Switch” • After the buttons are released, the rotor motor reverses and the rotor reduces speed.

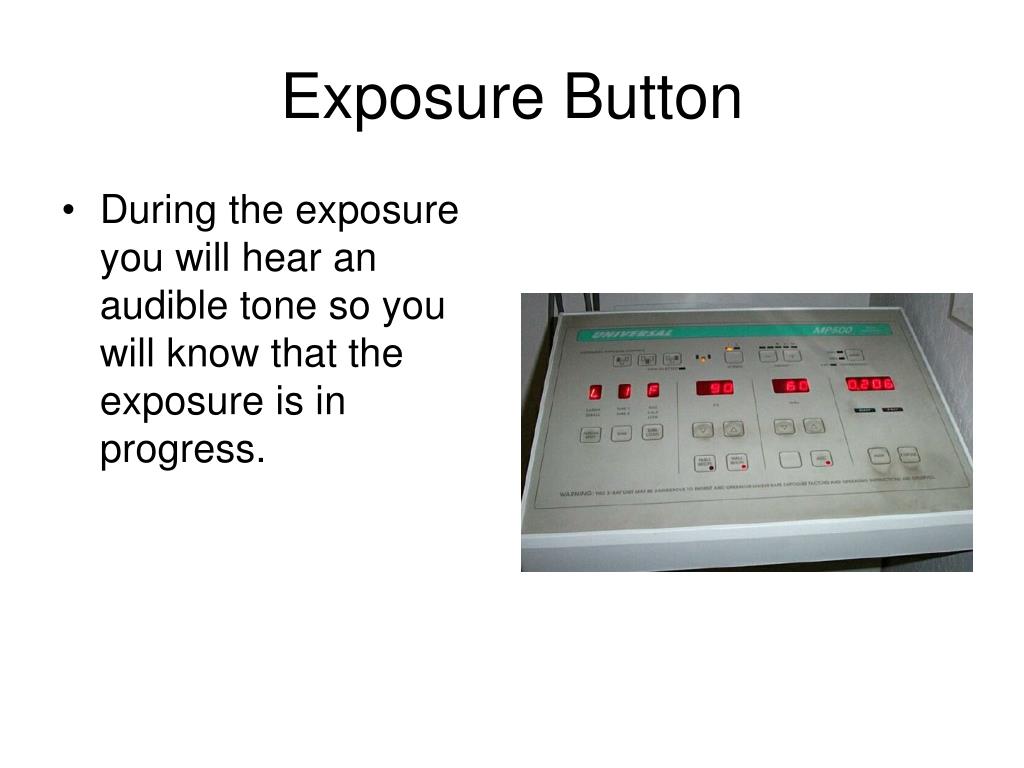

  42. Exposure Button • During the exposure you will hear an audible tone so you will know that the exposure is in progress.

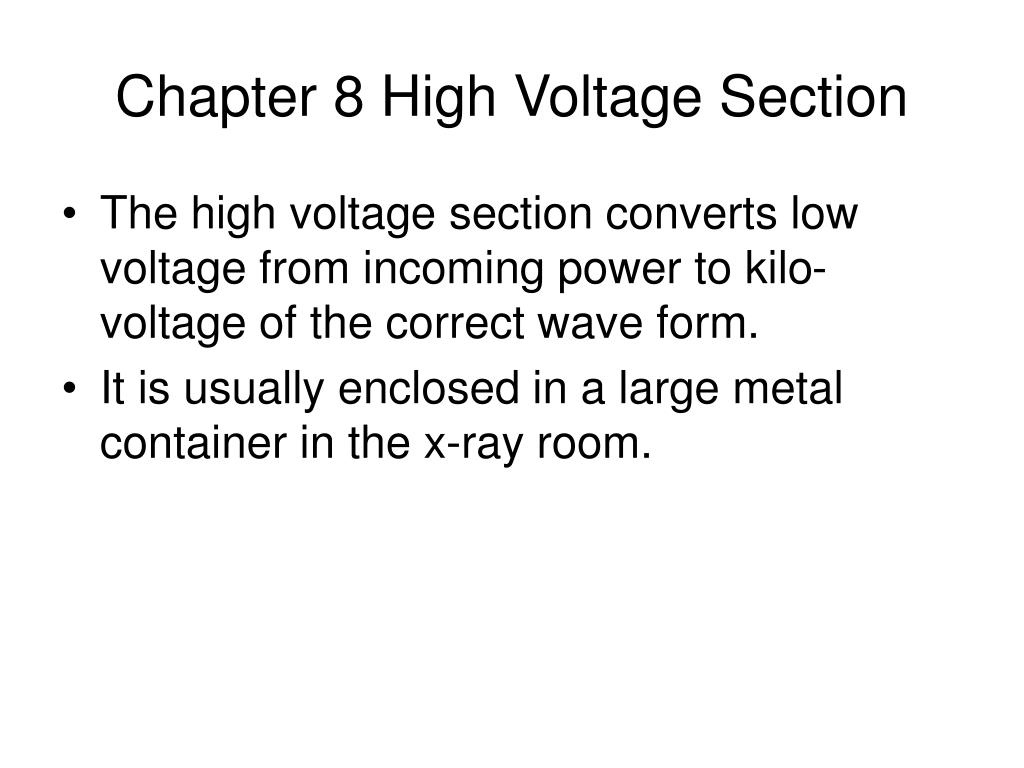

  43. Chapter 8 High Voltage Section • The high voltage section converts low voltage from incoming power to kilo-voltage of the correct wave form. • It is usually enclosed in a large metal container in the x-ray room.

  44. High Voltage Section • It consists of three primary sections: • High voltage step up transformer • Filament Transformer • Rectifiers ( Diodes) • All components immersed in oil.

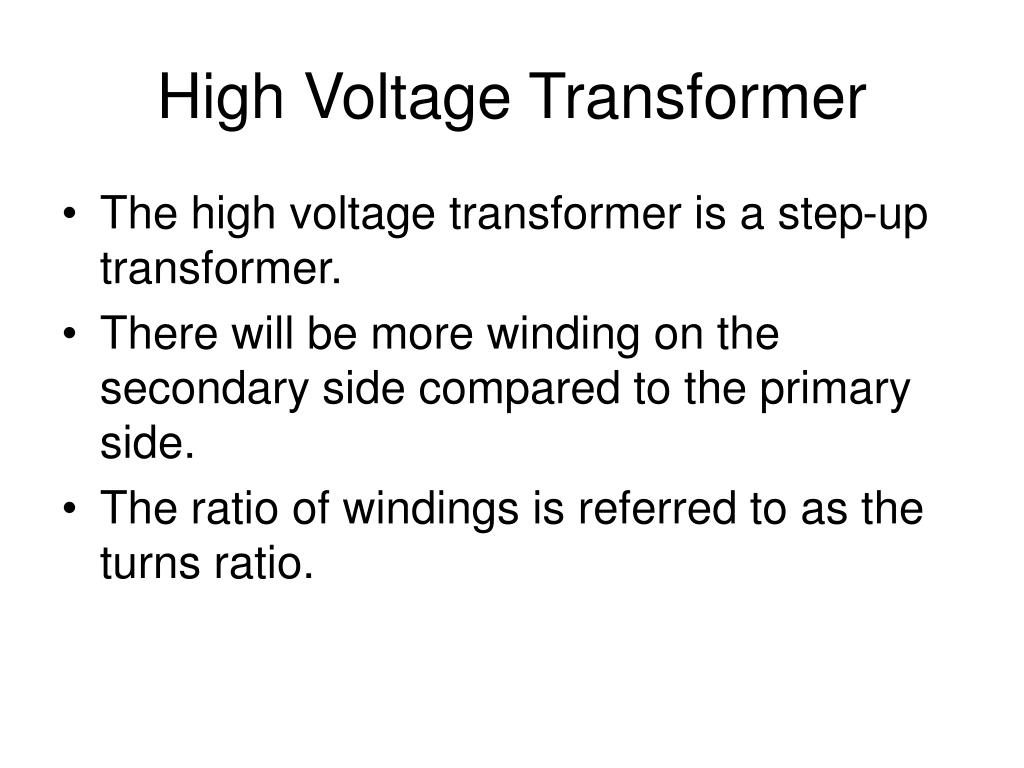

  45. High Voltage Transformer • The high voltage transformer is a step-up transformer. • There will be more winding on the secondary side compared to the primary side. • The ratio of windings is referred to as the turns ratio.

  46. High Voltage Transformer • The only difference between the primary and secondary waveforms is the amplitude. • The turn ratio for most x-ray high voltage transformers is between 500 and 1000. • Incoming Volts converted to output: Kilovolts.

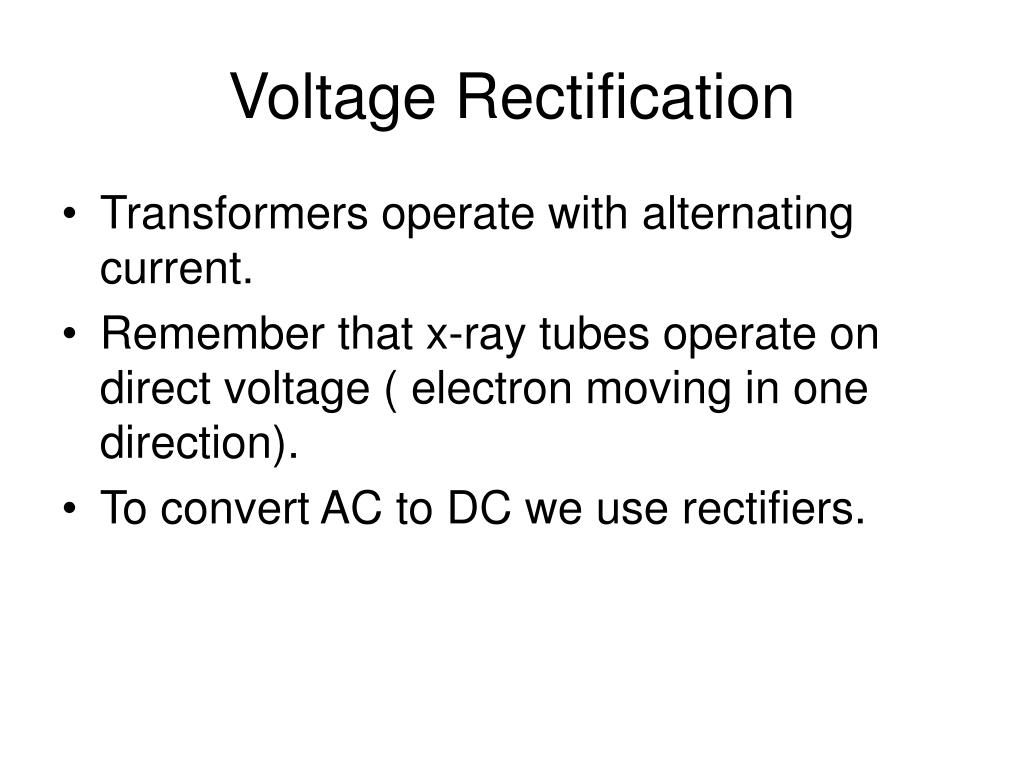

  47. Voltage Rectification • Transformers operate with alternating current. • Remember that x-ray tubes operate on direct voltage ( electron moving in one direction). • To convert AC to DC we use rectifiers.

  48. Half-Wave Rectification • Sometimes the x-ray tube alone will work as the diode this is called self-rectification. • When one or two diodes are placed in the circuit that stops the negative flow of electrons it is called Half Wave Rectification. • 60 pulses per second.

  49. Full-Wave Rectification • Full wave rectified x-ray machines contain at least four diodes. • It changes the polarity of the negative half of the wave. • This allows 120 pulses of x-ray per second. • The exposure time can be cut in half compared to half-wave systems.

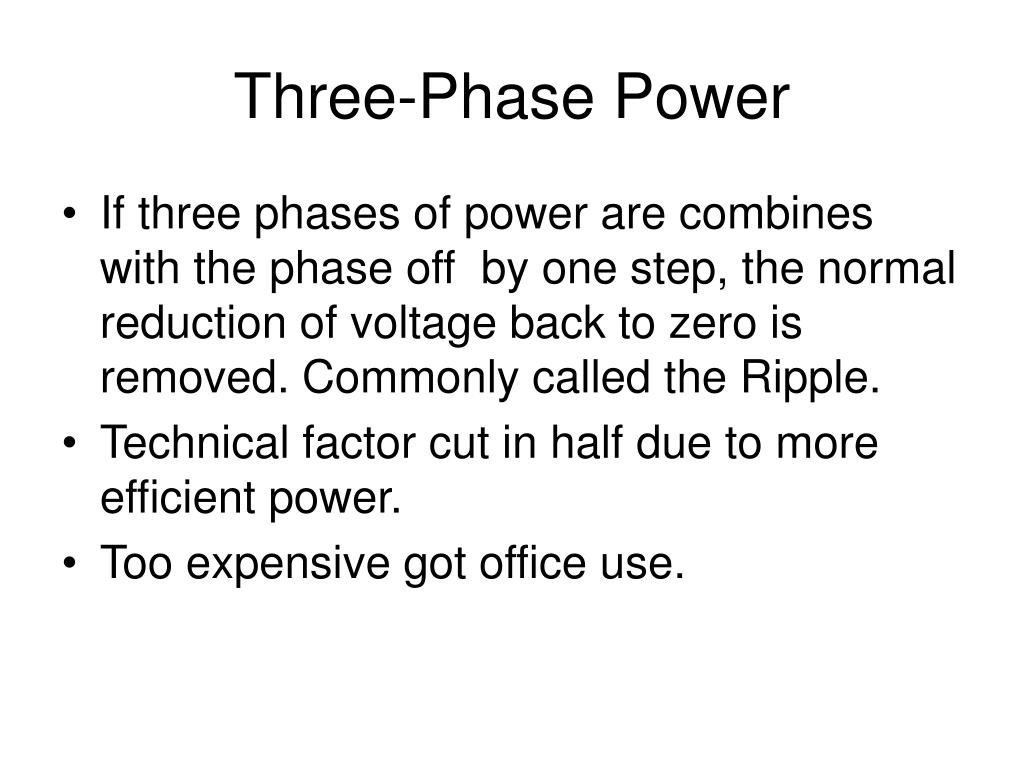

  50. Three-Phase Power • If three phases of power are combines with the phase off by one step, the normal reduction of voltage back to zero is removed. Commonly called the Ripple. • Technical factor cut in half due to more efficient power. • Too expensive got office use.
