40mm MK19 Non-Lethal

Short Range and Long Range Ammunition

Presented to the

National Defense Industrial Association

12 MAY 2004

Frank Dindl

U.S. Army ARDEC

AMSRD-AAR-AEW-M(D); Bldg 7

Picatinny, NJ 07806-5000

(973) 724-6761

<[email protected]>

Anthony Cautero

U.S. Army TACOM-ARDEC

AMSRD-AAR-AEW-M(D); Bldg 7

Picatinny, NJ 07806-5000

(973) 724-6085

<[email protected]>


40mm mk19 non lethal short range cartridge 40mm non lethal multiple ball xm1057
40mm MK19 Non-Lethal Short RangeCARTRIDGE, 40MM, NON-LETHAL: multiple ball, XM1057


40mm MK19 Non-Lethal Short Range

The MK19 Non-Lethal Short Range cartridge uses a telescoping cartridge case to provide weapon powering while launching non-lethal payloads.

A variety of candidate payloads have been demonstrated, with multiple rubber balls being the leading candidate for initial fielding.


Cartridge prior to chambering

Cartridge chambering,

case starting to telescope

Case fully telescoped closed at the moment of firing

Fired cartridge

fully telescoped open

Bolt recoiling with fired cartridge

Blank cartridge

Non-Lethal Payload Cartridge

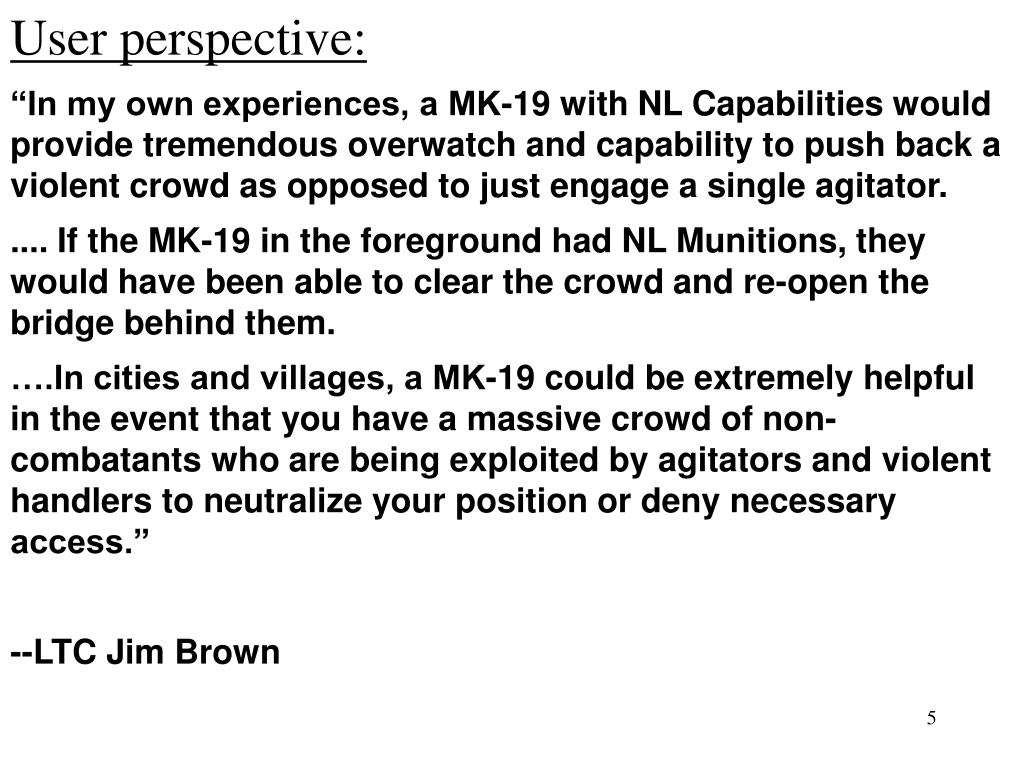

User perspective:

“In my own experiences, a MK-19 with NL Capabilities would provide tremendous overwatch and capability to push back a violent crowd as opposed to just engage a single agitator.

.... If the MK-19 in the foreground had NL Munitions, they would have been able to clear the crowd and re-open the bridge behind them.

….In cities and villages, a MK-19 could be extremely helpful in the event that you have a massive crowd of non-combatants who are being exploited by agitators and violent handlers to neutralize your position or deny necessary access.”

--LTC Jim Brown


40mm MK19 Non-Lethal Short Range

  • Preliminary performance requirements:

  • Minimum engagement range of 10 meters

  • Maximum effective range of 50 meters

  • Weapon cyclic rate 275 shots per minute

  • Other considerations:

  • No weapon modifications required

  • Trajectory compatible with weapon sights


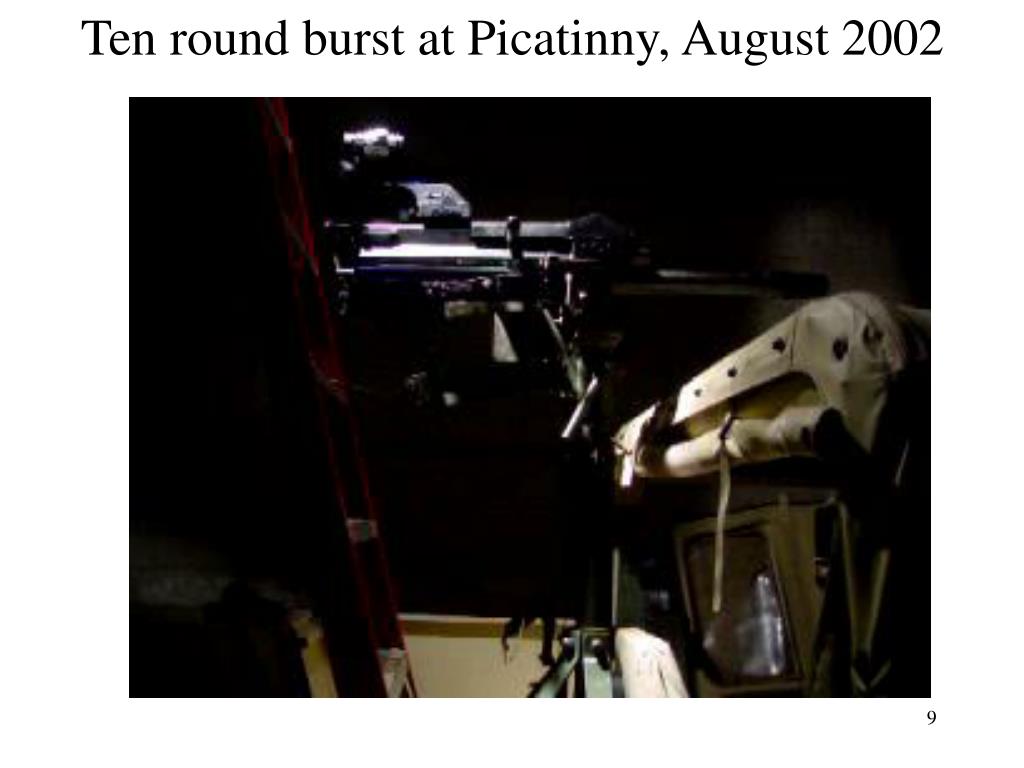

40mm MK19 Non-Lethal Short Range

Concept of Employment Firing Demonstration:

Conducted at Fort Leonard Wood on 25 SEP 2002

Representatives from the various services

witnessed the demonstration, including BG

Curry, Commandant, US Army Military Police

School; COL Lamb, Assistant Commandant;

COL Karcher, Director of the Joint Non-Lethal

Weapons Directorate; and senior NCOs from

the various services.



Five round burst of multiple rubber balls:

Fort Leonard Wood, MO September 2002


Mk19 non lethal short range fy04 progress continued
MK19 Non-Lethal Short Range FY04 Progress (continued)

  • Focused primarily on maturing the cartridge design to make it ready for production

  • Design improvements address reliability, producibility, corrosion resistance, waterproofness, etc.

  • Volumetric propellant loaders fabricated to eliminate weighing propellant charges

  • Crimping tooling being instrumented to monitor crimp process during cartridge assembly

  • Modeling and simulation effort underway to support future production and to identify potential problems


MK19 Non-Lethal Short Range Summary:

  • The 40mm MK19 Non-Lethal Short Range cartridge concept has been successfully demonstrated

  • Cartridge configuration adaptable to a wide variety of payloads

  • Cartridge configuration is rapidly maturing into the production configuration

  • Type Classification Standard scheduled for FY06.

  • Fourth patent pending


40mm MK19 Non-Lethal Long Range

Description:

Provides MK19 non-lethal capability with 50 to 1500 meter effective range. Uses “Davis Projectile” concept with airburst or proximity fuze to decelerate projectile at target location. Dispenses non-lethal payloads such as rubber balls. Uses conventional cartridge case and ammunition impulse to power the weapon mechanism for rapid-fire.

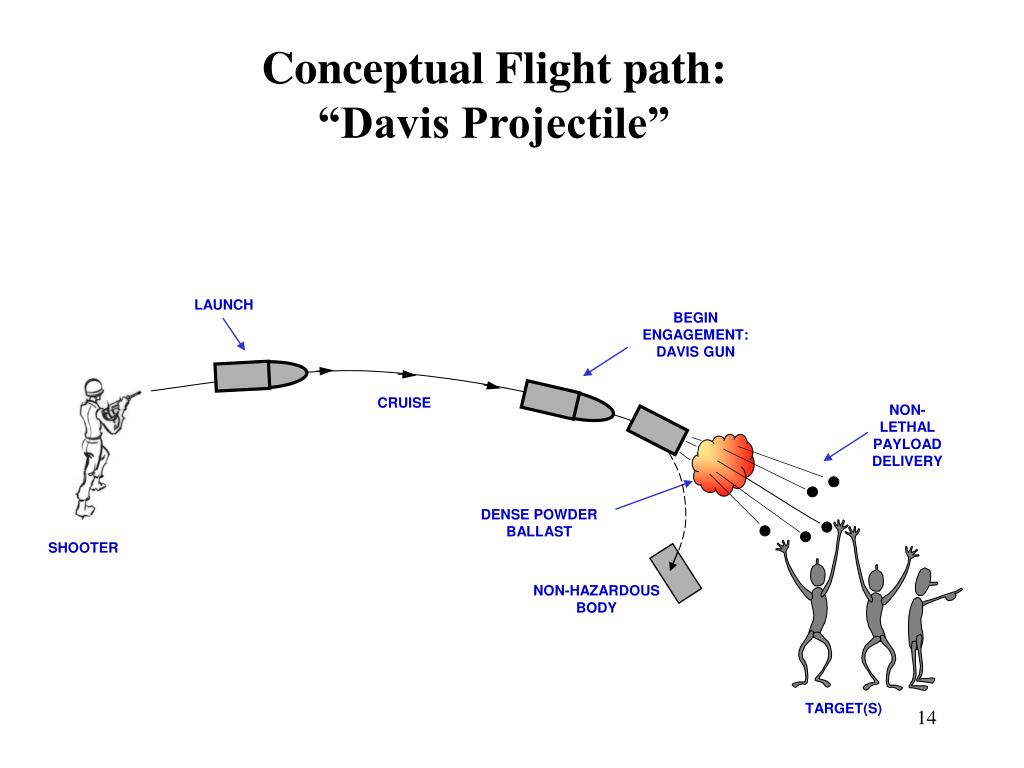

Conceptual Flight path: “Davis Projectile”

LAUNCH

BEGIN ENGAGEMENT:

DAVIS GUN

CRUISE

NON-LETHAL

PAYLOAD

DELIVERY

DENSE POWDER BALLAST

SHOOTER

NON-HAZARDOUSBODY

TARGET(S)


40mm mk19 non lethal long range

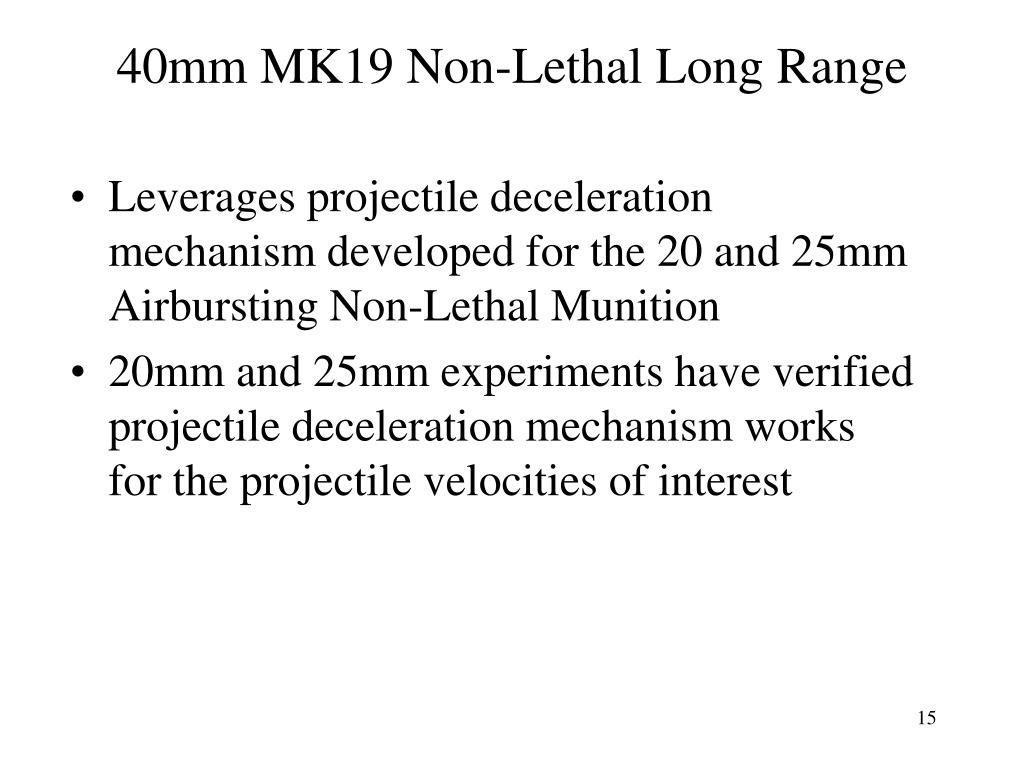

40mm MK19 Non-Lethal Long Range

  • Leverages projectile deceleration mechanism developed for the 20 and 25mm Airbursting Non-Lethal Munition

  • 20mm and 25mm experiments have verified projectile deceleration mechanism works for the projectile velocities of interest

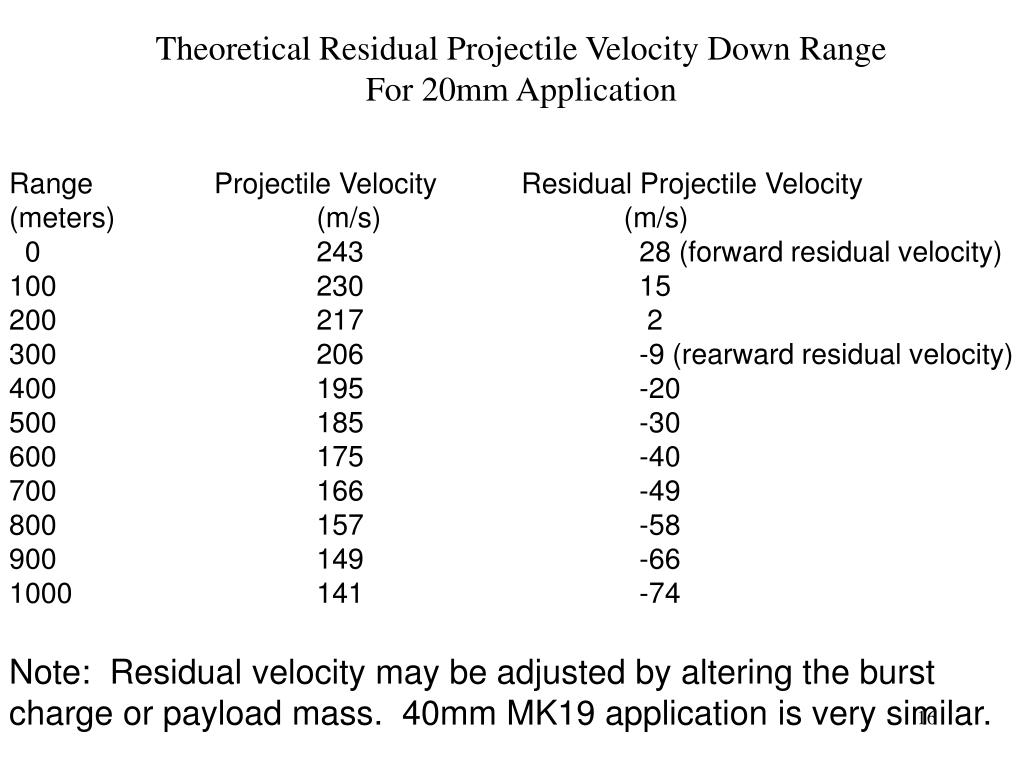

Theoretical Residual Projectile Velocity Down Range

For 20mm Application

Range Projectile Velocity Residual Projectile Velocity

(meters) (m/s) (m/s)

0 243 28 (forward residual velocity)

100 230 15

200 217 2

300 206 -9 (rearward residual velocity)

400 195 -20

500 185 -30

600 175 -40

700 166 -49

800 157 -58

900 149 -66

1000 141 -74

Note: Residual velocity may be adjusted by altering the burst charge or payload mass. 40mm MK19 application is very similar.


20mm NL Projectile Components

Expulsion charge

20mm case

Projectile body

Windshield

Primer

Propellant

Primer

Tungsten powder

Ignition shaft

Firing pin

Wad/Gas Seal

Smoke pellets

FEB 2002 Demonstration Hardware

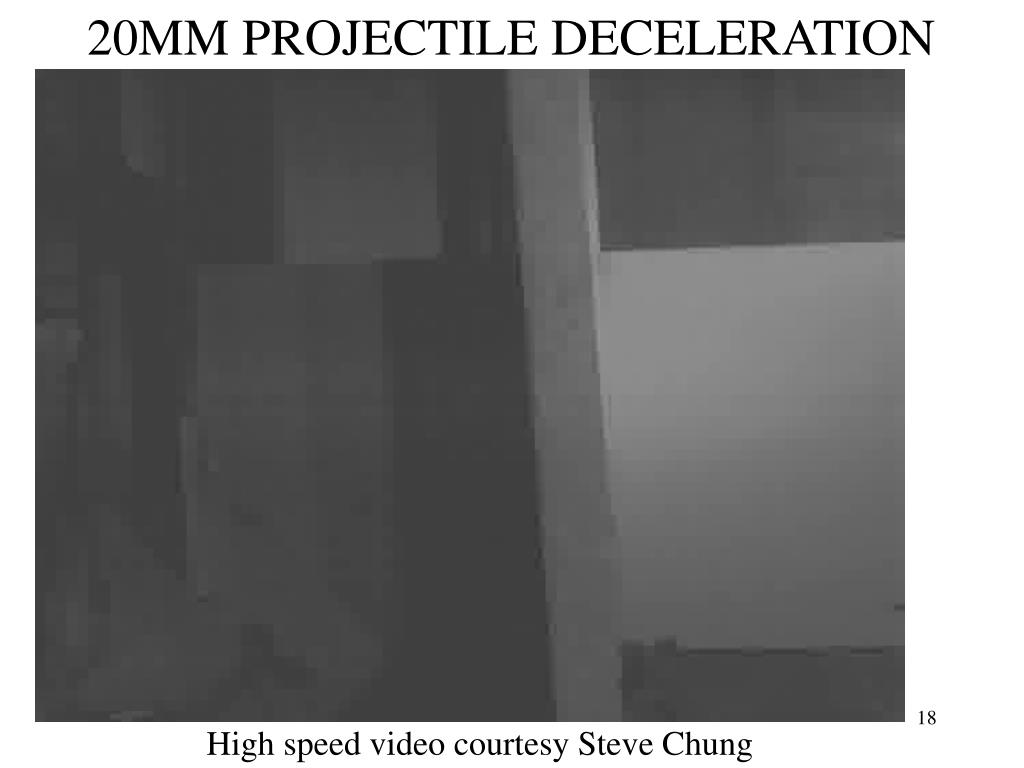

20MM PROJECTILE DECELERATION

High speed video courtesy Steve Chung

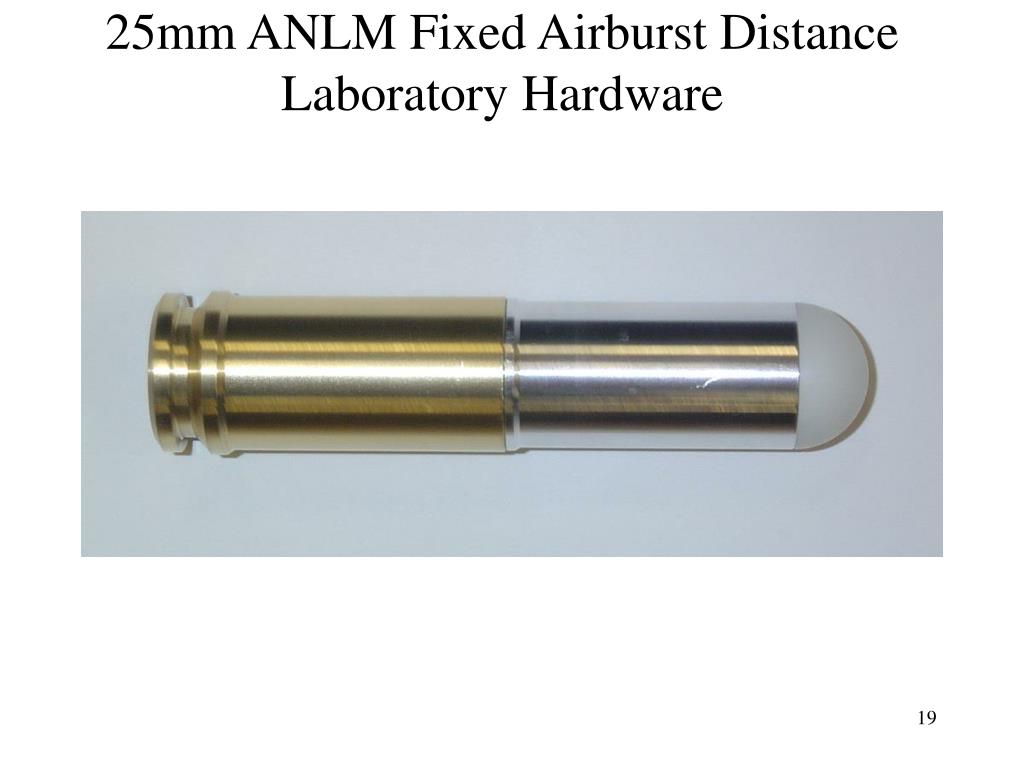

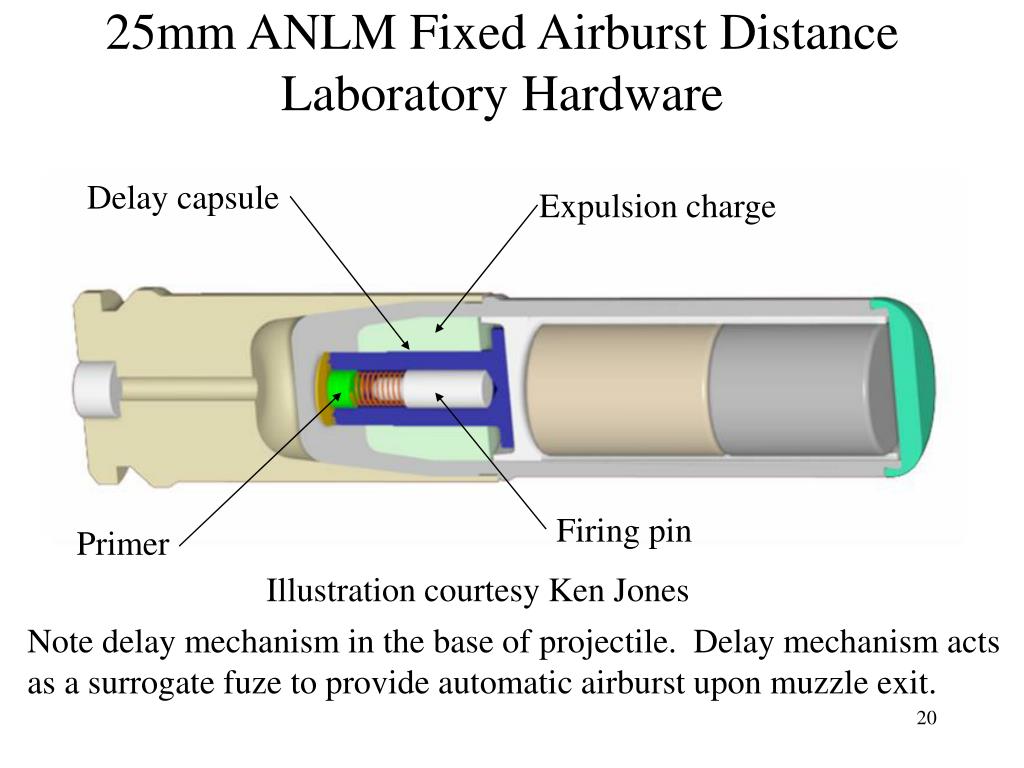

25mm ANLM Fixed Airburst Distance

Laboratory Hardware

Delay capsule

Expulsion charge

Firing pin

Primer

Illustration courtesy Ken Jones

Note delay mechanism in the base of projectile. Delay mechanism acts as a surrogate fuze to provide automatic airburst upon muzzle exit.


Vertical firing of 25mm laboratory prototype

Projectile airbursts immediately upon exiting the muzzle

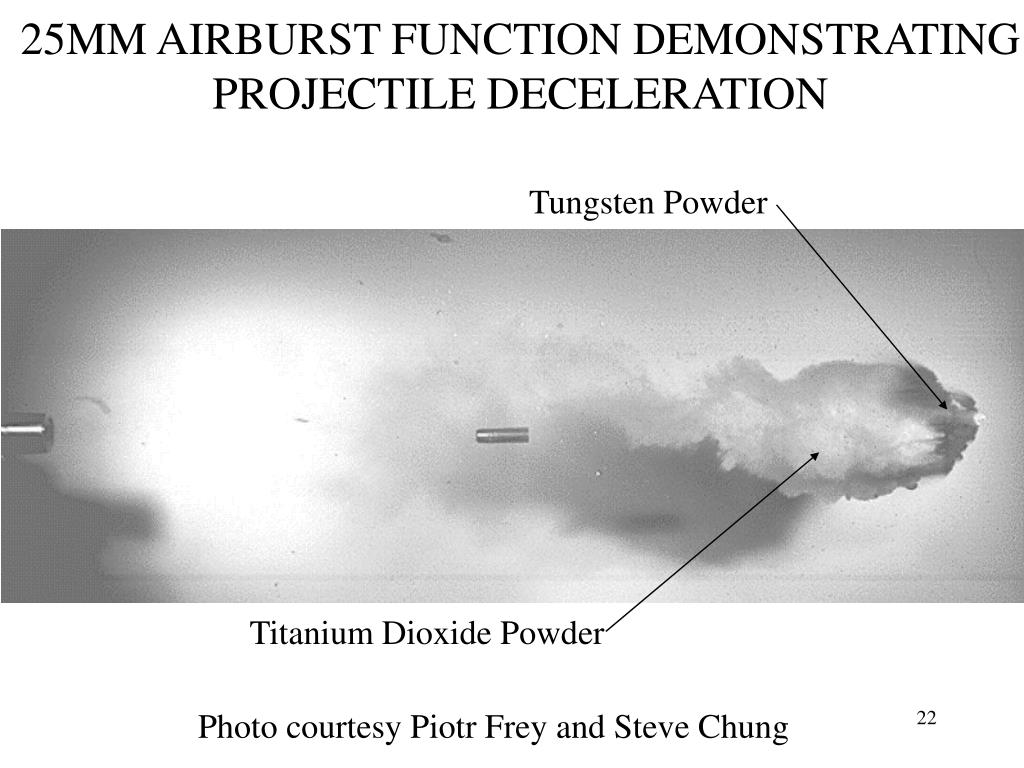

25MM AIRBURST FUNCTION DEMONSTRATING PROJECTILE DECELERATION

Tungsten Powder

Titanium Dioxide Powder

Photo courtesy Piotr Frey and Steve Chung


MK19 Non-Lethal Long Range Status:

  • Approved for FY04 new start by the Joint Non-lethal Weapons Directorate (JNLWD).

  • Projectile deceleration mechanism successfully demonstrated in 20mm and 25mm using crude laboratory airburst mechanisms.

  • US Patent 6,7,22,283 issued April 20, 2004

  • First adjustable burst distance non-lethal projectile using an electronic fuze to be demonstrated in 25mm in September 2004 as part of the Airbursting Non-Lethal Munition program.

  • Development of an appropriate airbursting fuze or proximity fuze mechanism is the key to success.
