Presentation Transcript

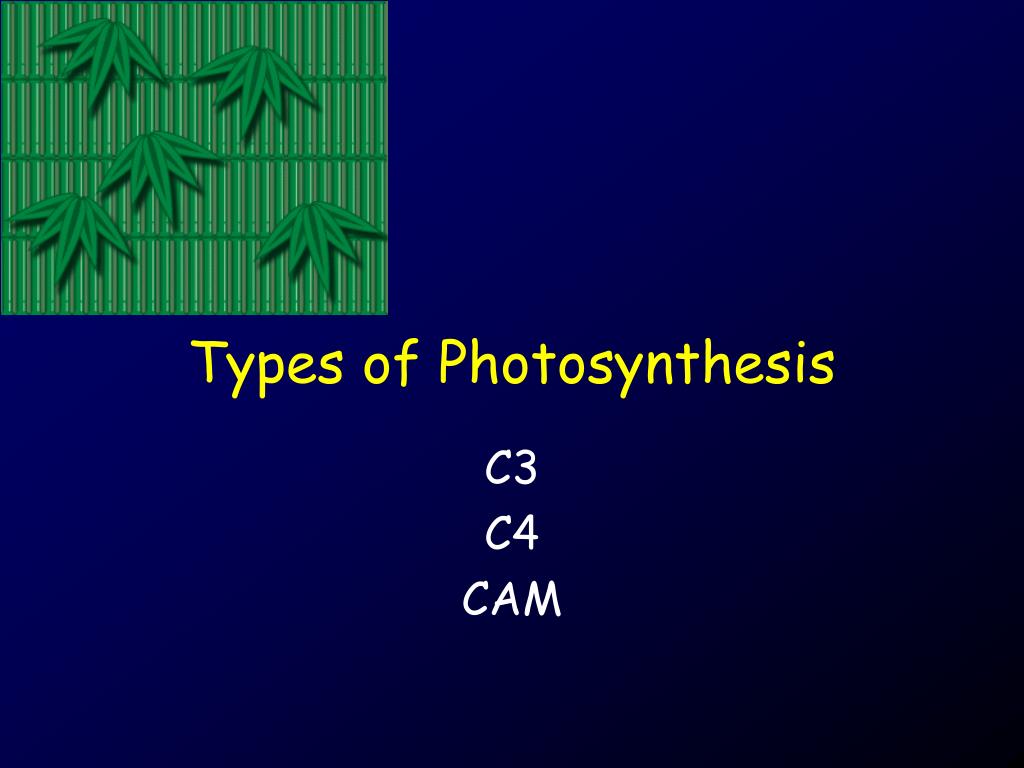

Types of photosynthesis

Types of Photosynthesis

C3

C4

CAM

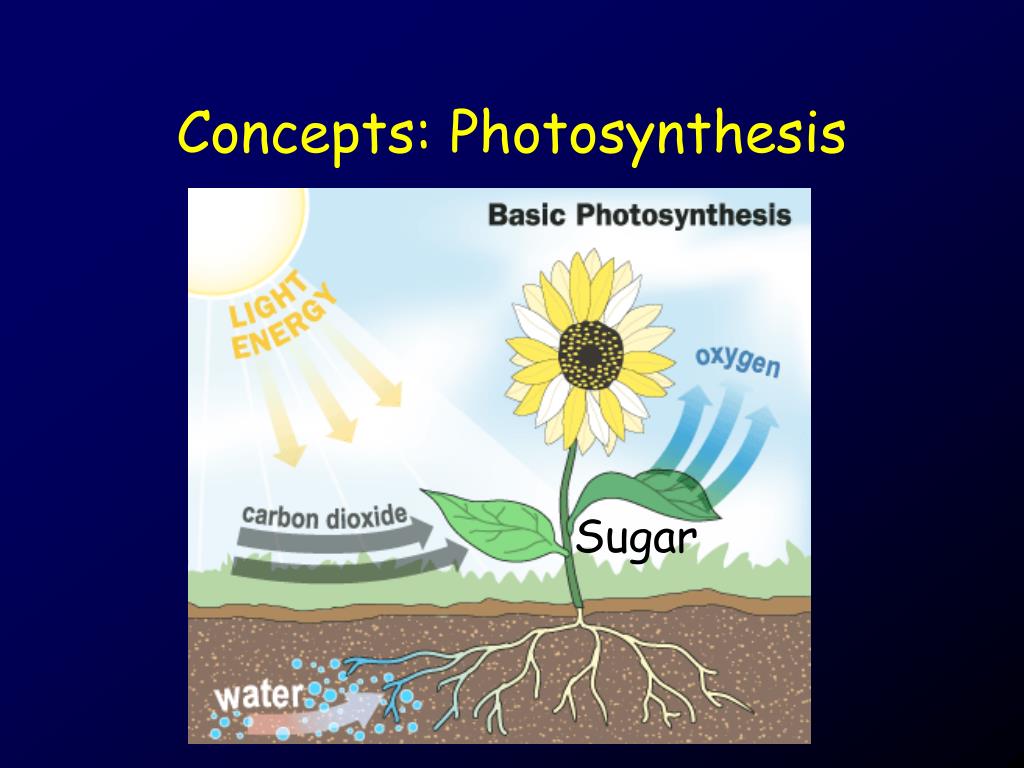

Concepts photosynthesis

Concepts: Photosynthesis

Sugar


Concepts

Stomata

Concepts

+ Solar

Energy

  • Photosynthesis: CO2 + Water --> Sugar + O2

    • Photosynthesis is the production of sugar (stored energy) and oxygen using energy from the sun to combine carbon dioxide and water.

    • CO2 is brought into plants and O2 is released from plants through pores (stomata) in their leaves and other tissues.

    • RUBISCO is the enzyme plants use to undergo photosynthesis.

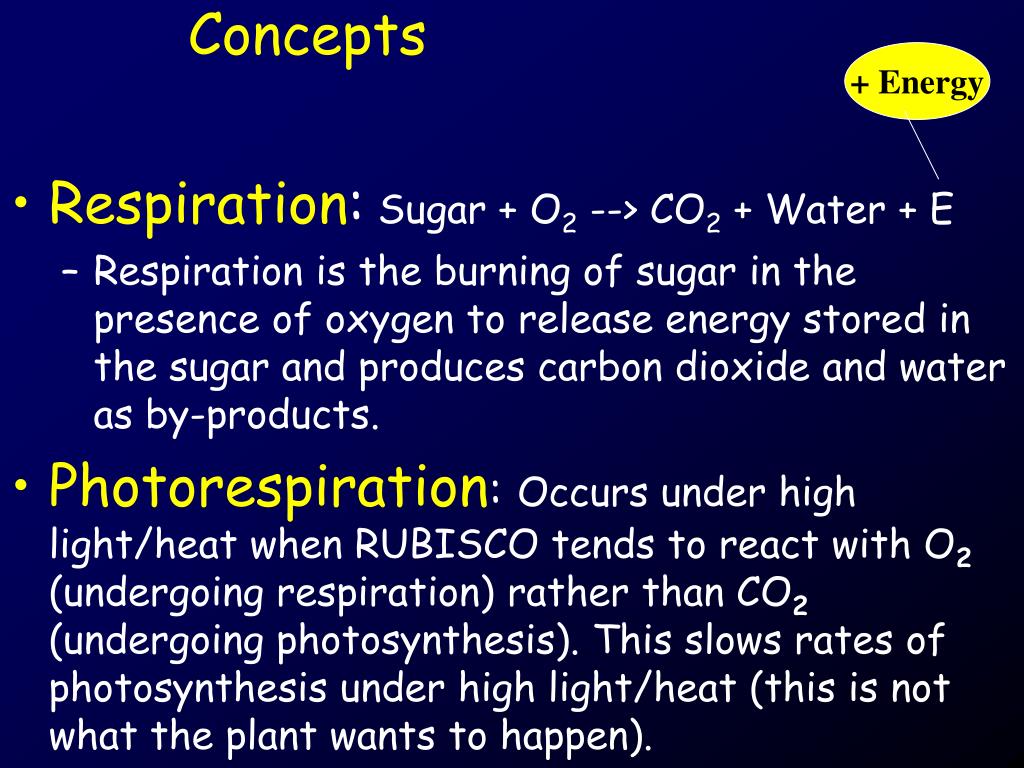

Concepts1

+ Energy

Concepts

  • Respiration: Sugar + O2 --> CO2 + Water + E

    • Respiration is the burning of sugar in the presence of oxygen to release energy stored in the sugar and produces carbon dioxide and water as by-products.

  • Photorespiration: Occurs under high light/heat when RUBISCO tends to react with O2 (undergoing respiration) rather than CO2 (undergoing photosynthesis). This slows rates of photosynthesis under high light/heat (this is not what the plant wants to happen).

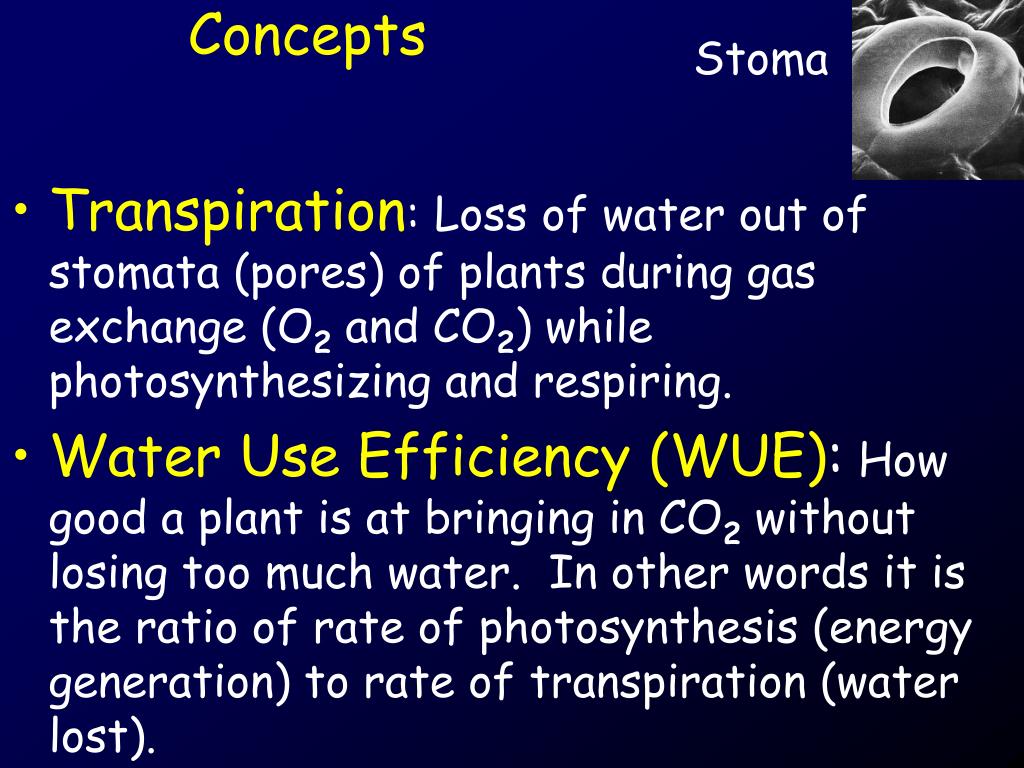

Concepts2

Stoma

Concepts

  • Transpiration: Loss of water out of stomata (pores) of plants during gas exchange (O2 and CO2) while photosynthesizing and respiring.

  • Water Use Efficiency (WUE): How good a plant is at bringing in CO2 without losing too much water. In other words it is the ratio of rate of photosynthesis (energy generation) to rate of transpiration (water lost).


Type 1 c3 photosynthesis

Type 1: C3 Photosynthesis

  • Adaptive Value

    • More efficient under normal light, temperature, and moisture.

  • How

    • Uses RUBISCO to collect CO2 during the day and undergo photosynthesis

  • Who: most plants

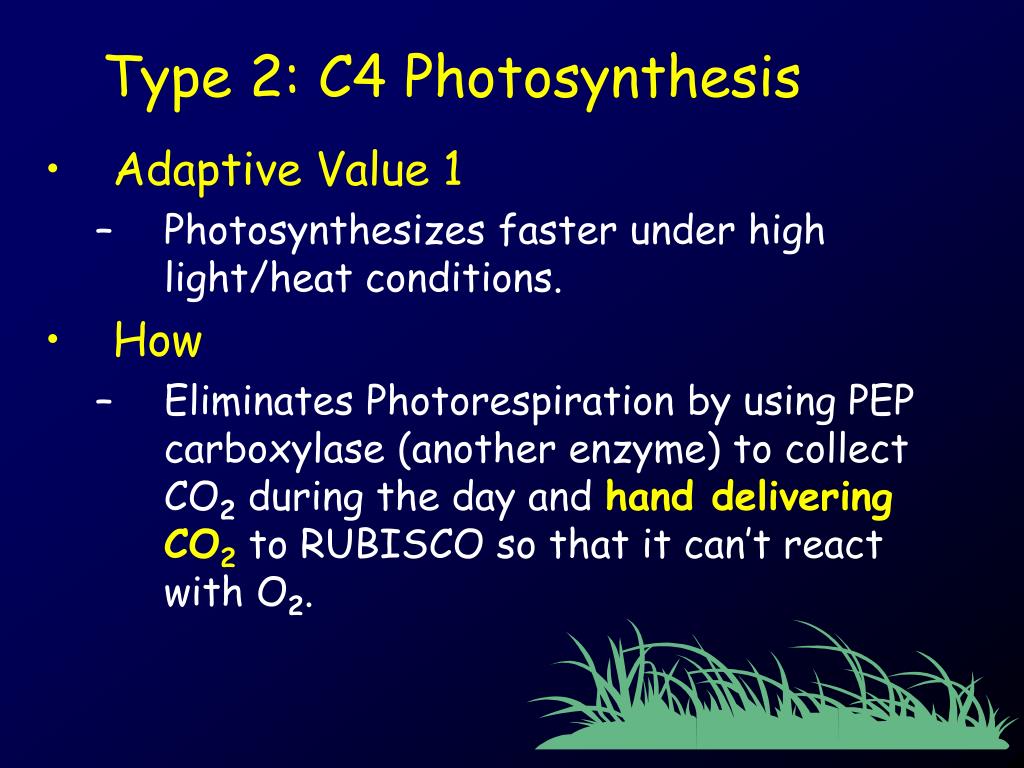

Type 2 c4 photosynthesis

Type 2: C4 Photosynthesis

  • Adaptive Value 1

    • Photosynthesizes faster under high light/heat conditions.

  • How

    • Eliminates Photorespiration by using PEP carboxylase (another enzyme) to collect CO2 during the day and hand delivering CO2 to RUBISCO so that it can’t react with O2.


Type 2 c4 photosynthesis1

Type 2: C4 Photosynthesis

  • Adaptive Value 2

    • Better water use efficiency

  • How

    • PEP carboxylase is faster at pulling in CO2 so stomata don’t have to be open as much so don’t lose as much water.

  • Who

    • many desert summer annuals and grasses


Type 3 cam photosynthesis

Type 3: CAM Photosynthesis

  • Adaptive Values

    • Better water use efficiency

    • Cam-idling

  • How

    • Uses PEP carboxylase to collect CO2 during the night (when evaporation rates are less), stores the CO2 as acid, closes stomata during day when conducts photosynthesis.

    • Can keep stomata closed all the time, using CO2 from respiration to photosynthesize and O2 from photosynthesis for respiration.

  • Who: cactuses, agaves, bromeliads


Review of photosynthesis types

Review of Photosynthesis Types

  • Adaptive Values

    • C3 photosynthesis

      • More efficient under normal light, temperature, and moisture.

    • C4 photosynthesis

      • Photosynthesizes faster under high light/heat conditions.

      • Better water use efficiency

    • CAM photosynthesis

      • Better water use efficiency

      • Cam-idling

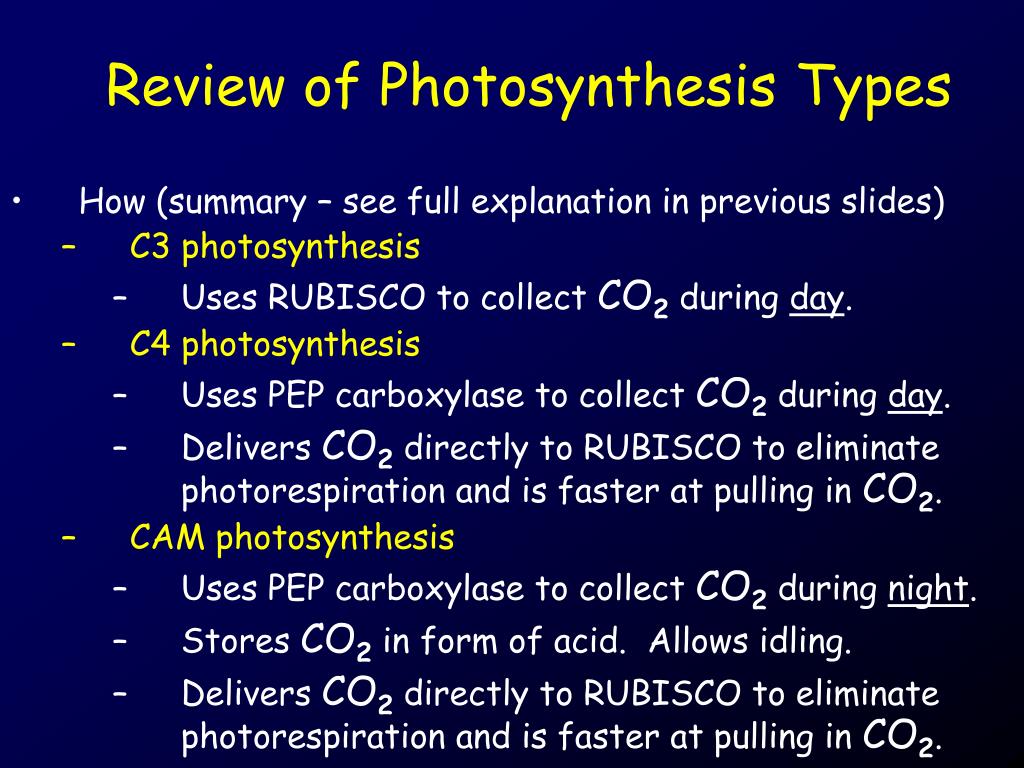

Review of photosynthesis types1

Review of Photosynthesis Types

  • How (summary – see full explanation in previous slides)

    • C3 photosynthesis

      • Uses RUBISCO to collect CO2 during day.

    • C4 photosynthesis

      • Uses PEP carboxylase to collect CO2 during day.

      • Delivers CO2 directly to RUBISCO to eliminate photorespiration and is faster at pulling in CO2.

    • CAM photosynthesis

      • Uses PEP carboxylase to collect CO2 during night.

      • Stores CO2 in form of acid. Allows idling.

      • Delivers CO2 directly to RUBISCO to eliminate photorespiration and is faster at pulling in CO2.


Review of photosynthesis types2

Review of Photosynthesis Types

  • Who

    • C3 photosynthesis

      • Most plants

    • C4 photosynthesis

      • A variety of plants, especially our summer annuals and many of our grasses

    • CAM photosynthesis

      • Cacti, agaves, bromeliads, and others
