Presentation Transcript


Programmeerimine delphi keskkonnas mtat 03 214

Programmeerimine Delphi keskkonnasMTAT.03.214

Jelena Zaitseva

[email protected]


Programmeerimine delphi keskkonnas mtat 03 214

http://www.automatedqa.com/products/aqtime/


Programmeerimine delphi keskkonnas mtat 03 214

  • AQtime's user interface consists of panels, the main menu and toolbars


Programmeerimine delphi keskkonnas mtat 03 214

Usually a complete profiling operation involves the following steps:

  • Compiling your application with debug information

  • Opening your application in AQtime

  • Controlling what to profile and when to profile

  • Selecting the profiler to run

  • Running the selected profiler and analyzing the results


1 compiling your application with debug information

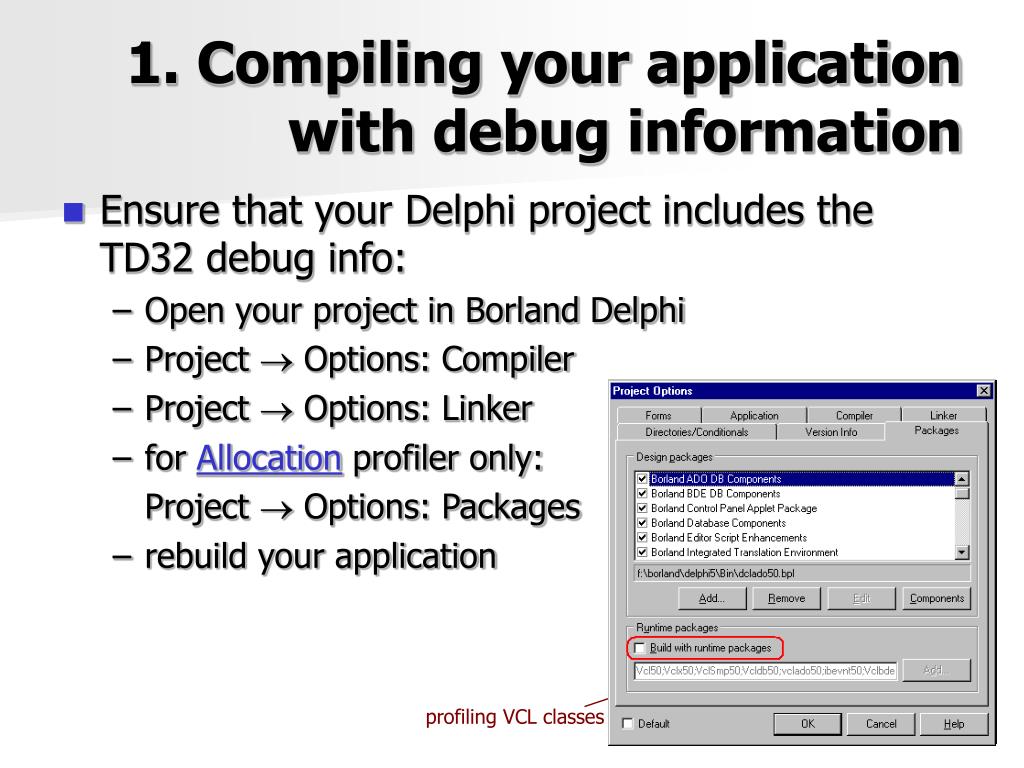

1. Compiling your application with debug information

  • Ensure that your Delphi project includes the TD32 debug info:

    • Open your project in Borland Delphi

    • Project  Options: Compiler

    • Project  Options: Linker

    • for Allocation profiler only:

      Project  Options: Packages

    • rebuild your application

profiling VCL classes


2 opening your application in aqtime

2. Opening your application in AQtime

  • Opening a project in AQtime

    • create a new project: File  New Project

      Once the project has been created, you can add modules to profile with it

    • add a new module:

      • Project  Add Module;

      • from Open File dialog select an executable (EXE, DLL)

    • (add areas: Project  Add Area…)


Programmeerimine delphi keskkonnas mtat 03 214

  • AQtime includes ten profilers:

    • Allocation

    • Resource

    • Coverage

    • Performance

    • Platform Compliance

    • Sequence Diagram Link

    • Static Analysis

    • Exception Trace

    • Function Trace

    • Load Library Tracer


Profiling levels

Profiling Levels

  • routine level1: gathers information for the entire routine. For example, the Performance profiler will trace how many times the routine was called, how long it worked, etc.

  • line level1: gathers information for each line of source code within it. For instance, for each source line, the Performance profiler will measure execution time, Hit Count value, etc.

  • class level2: the profiler tracks the creation and deletion of objects whose class names were added to these areas.

  • ___________________________________________

    • supported by the Performance and Coverage profilers only

    • supported by the Allocation profiler only.


Profilers

Profilers

  • Allocationprofiler traces the memory use during the application run:

    • the number of objects created in the application

    • the size of these objects in memory

    • the creation point of an object and the stack of function that calls for it

    • references between managed objects

    • the usage of allocated memory blocks

      It helps to determine whether allocated memory blocks or objects remain in memory after the application execution is over.


Profilers allocation profiler results

Profilers: Allocation Profiler Results

Important!


Profilers1

Profilers

  • Coverageprofiler tracks one thing: whether a routine or a line was called during the run or not.

    • keeps track of

      untested code

    • finds unnecessary code

      that you can remove,

      once you see that the

      method or line remains

      unexecuted under all

      possible conditions.


Profilers2

Profilers

  • Performanceprofiler monitors

    • the time spent for executing a routine,

    • the number of routine calls,

    • the hierarchy of function calls,

    • the number of CPU cache updates that occurred during the routine execution,

    • etc.


Profilers performance profiler results

Profilers: Performance Profiler Results

Report panel

Profiler results

(the critical path for the routine is displayed in bold )

Three

categories of profiling results
