Stable rise pull and swivel top

Stable Rise –Pull and Swivel Top

Installation and Set Up Guide

Jaymil Ergo & Office Solutions 150 Dow Street, Tower 4, Manchester, NH 603.629.9995


Tools required

Tools Required

Drill

½” Drill Bit

Philips or Flat Head Bit (to be confirmed)

Level

Measuring Tape

Allen Wrench #5

Jaymil Ergo & Office Solutions 150 Dow Street, Tower 4, Manchester, NH 603.629.9995


Assemble column

Assemble Column

Cord

Wall Mount Bracket

  • Lay column down with cord facing up.

  • Install bracket around the column with the Wall Mount Bracket facing up.

  • Install top bracket approximately 4” down from top.

  • Use an #5 Allen Wrench to tighten screws into bracket.

  • Install base bracket at bottom with 6 screws

Jaymil Ergo & Office Solutions 150 Dow Street, Tower 4, Manchester, NH 603.629.9995


Assemble column with optional column extender

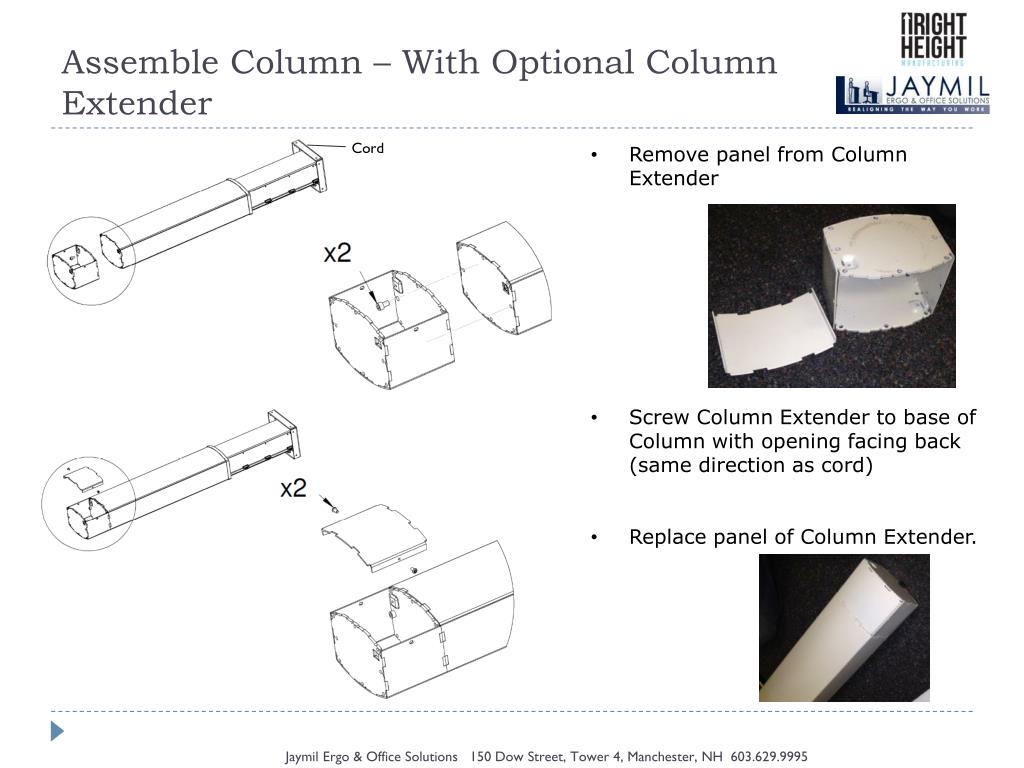

Assemble Column – With Optional Column Extender

Cord

  • Remove panel from Column Extender

  • Screw Column Extender to base of Column with opening facing back (same direction as cord)

  • Replace panel of Column Extender.

Jaymil Ergo & Office Solutions 150 Dow Street, Tower 4, Manchester, NH 603.629.9995


Assemble column with optional column extender1

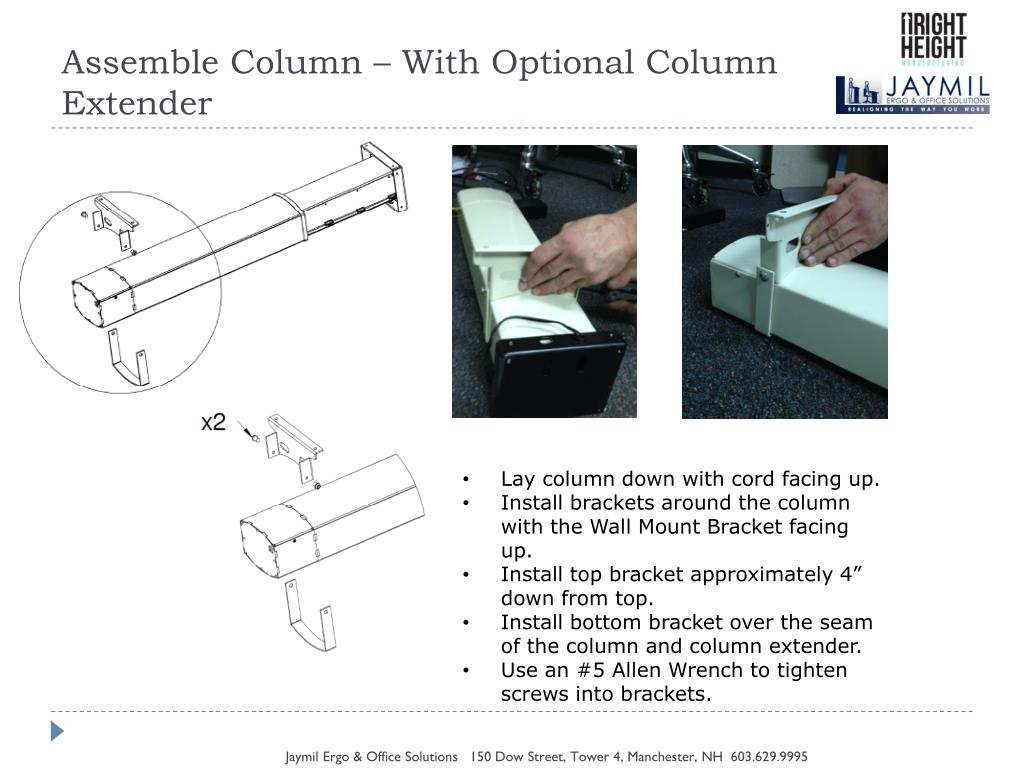

Assemble Column – With Optional Column Extender

Cord

Wall Mount Bracket

  • Lay column down with cord facing up.

  • Install brackets around the column with the Wall Mount Bracket facing up.

  • Install top bracket approximately 4” down from top.

  • Install bottom bracket over the seam of the column and column extender.

  • Use an #5 Allen Wrench to tighten screws into brackets.

Jaymil Ergo & Office Solutions 150 Dow Street, Tower 4, Manchester, NH 603.629.9995


Install brackets pull and swivel

Install Brackets– Pull and Swivel

  • Before mounting column to wall follow the below instructions.

  • Mount pull and Swivel head with 4 screws.

  • NOTE: Column Cord can be facing the front or back. The Column Cord does NOT go through a hole in the Pull and Swivel Head. Cord should be sandwiched pointing down by the Pull and Swivel Head (if cord is at the front of column) or Power Supply Bracket (if cord is at the back of column).

Insert drawing images

Jaymil Ergo & Office Solutions 150 Dow Street, Tower 4, Manchester, NH 603.629.9995


Install brackets pull and swivel1

Install Brackets– Pull and Swivel

Insert drawing images

  • Mount Control and Power Supply Brackets with supplied screws to column per drawing.

  • Screw Control to Control Bracket.

  • Power Supply will mount with Power Supply Bracket or Velcro to back side of Column.

Jaymil Ergo & Office Solutions 150 Dow Street, Tower 4, Manchester, NH 603.629.9995


Mount to wall pull and swivel

Mount to Wall– Pull and Swivel

Now that the brackets are installed to the column, mount to the wall.

Jaymil Ergo & Office Solutions 150 Dow Street, Tower 4, Manchester, NH 603.629.9995


Mount column to wall

Mount Column to Wall

  • Select position on wall. Column will need access to a power outlet.

  • Position Column on wall, level and mark holes. Check for studs in wall.

  • Move column aside and drill pilot holes in the drywall to test for studs. Avoid studs if possible.

  • If you hit a wood stud: use wood screws into the wood studs instead of anchors. Use TogglerSnaptoggle Anchor in other points.

  • If you hit a metal stud: drill out metal stud and use TogglerSnaptoggle Anchor.

  • Install to Drywall: use TogglerSnaptoggle Anchor and screws (supplied), see instructions next page.

Jaymil Ergo & Office Solutions 150 Dow Street, Tower 4, Manchester, NH 603.629.9995


Mount column to wall snaptoggle anchor installation

Mount Column to Wall – Snaptoggle Anchor Installation

Drill ½” hole. Hold metal channel flat alongside plastic straps & slide channel through the hole. Minimum clearance behind wall: only 1 7/8".

Hold ends of straps together between thumb & forefinger and pull toward you until channel rests behind wall. Ratchet cap along straps with other hand until flange of cap is flush with wall.

Place thumb between straps at wall. Push thumb side to side, snapping off straps level with flange of cap.

You should have the flange like the below at this point.

Position brackets over flange. Insert bolt and tighten until snug against item, then stop. Use supplied ¼-20 Bolt.

Be sure to check level before tightening bolt down. Level can be adjusted slightly at this point.

Jaymil Ergo & Office Solutions 150 Dow Street, Tower 4, Manchester, NH 603.629.9995


Mount column to wall1

Mount Column to Wall

  • The column should now be mounted to the wall and bolted at all 4 mounting points.

Jaymil Ergo & Office Solutions 150 Dow Street, Tower 4, Manchester, NH 603.629.9995


Install counter pull and swivel

Install Counter – Pull and Swivel

  • Mount Counter to Pull and Swivel Head by screwing bracket to counter from underneath.

  • Mount counter off center based on how you want the counter to swivel.

  • Tip: move Pull and Swivel Head to access all screw holes.

Jaymil Ergo & Office Solutions 150 Dow Street, Tower 4, Manchester, NH 603.629.9995
