HOW DOES THE HEAT EXCHANGER SYSTEM WORK

The heat exchanger is the device that transfers the heat between fluids without mixing or blending them. There are walls that have a high thermal conductivity which separates the fluid. The walls are thick so that it prevents the mixing of fluids or direct contact between them.

alaquainc1
Download Presentation

HOW DOES THE HEAT EXCHANGER SYSTEM WORK

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

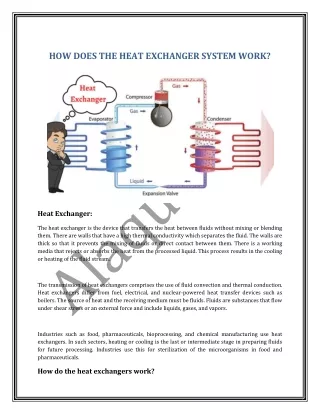

  1. HOW DOES THE HEAT EXCHANGER SYSTEM WORK? Heat Exchanger: The heat exchanger is the device that transfers the heat between fluids without mixing or blending them. There are walls that have a high thermal conductivity which separates the fluid. The walls are thick so that it prevents the mixing of fluids or direct contact between them. There is a working media that rejects or absorbs the heat from the processed liquid. This process results in the cooling or heating of the fluid stream. The transmission of heat exchangers comprises the use of fluid convection and thermal conduction. Heat exchangers differ from fuel, electrical, and nuclear-powered heat transfer devices such as boilers. The source of heat and the receiving medium must be fluids. Fluids are substances that flow under shear stress or an external force and include liquids, gases, and vapors. Industries such as food, pharmaceuticals, bioprocessing, and chemical manufacturing use heat exchangers. In such sectors, heating or cooling is the last or intermediate stage in preparing fluids for future processing. Industries use this for sterilization of the microorganisms in food and pharmaceuticals. How do the heat exchangers work?

  2. The heat exchanger in a gas furnace is near the combustion chamber. If we talk about an electric furnace, it is near the coil. The heat source heats up the exchanger and warms up the air present outside. There are two heat exchangers present in some furnaces. They consist of primary and secondary heat-exchanging systems. The primary exchangers are of aluminized steel that transfers heat better than stainless steel. Secondary heat exchangers are made up of a series of pins that finish the cycle of converting exhaust gases into water. Mechanism of Heat Transfer- The mechanism of transfer of heat involves conduction and convection. The driving force of heat transfer is the temperature difference between the inlet and the outlet. Approach Temperature- This method is the difference between the fluid stream’s outlet and inlet temperatures minus the process stream’s inlet and outlet temperatures. In hot approach temperatures, the difference is between the inlet hit inlet and cold outlet temperatures. On the other hand, in the cold approach, there is a cold and hot outlet approach. Every heat exchanger has an ideal approach temperature. When buying heat exchangers, one must keep this in mind when buying heat exchangers. Since the miscalculation can lead to the wrong heat exchangers for a process. Conduction- Conduction is the heat transfer by direct collisions of adjacent molecules. A molecule having higher kinetic energy transfers the kinetic energy to the molecule having lower kinetic energy. This situation generally occurs in solids. Read More:- HOW DOES THE HEAT EXCHANGER SYSTEM WORK?
