Promising services to boost ngn

Promising services to boost NGN

Helmut Schink

VP Network Standards, Siemens ICN


Promising services to boost ngn

Support of different service quality

Mobility

&

Security

Dynamic Delivery

Of New Services

Remotely Managed

& Upgradable

Internet

Enabled

devices

Connectivity

to Multiple devices

on Home Network

Networking

Within the

home

Broadband

Connectivity

to One Device

Modem

Router

Service gateways

Evolution of CPE devices

1999

2000

2001

2002

2003

Workshop on Next Generation Networks: What, When & How?


Intelligent services gateway interface to application domains

Intelligent Services Gateway Interface to Application Domains

Home Gateway

External

BB network

Home Security

Wireless Connectivity

Home Management

Communications,

Information,

Work-At-Home,

Education

Entertainment

Workshop on Next Generation Networks: What, When & How?


Multiservice access the dslam grows up

xDSL

POTS

ISDN-BA

ISDN-PRA

V5.x

E1 / LL

Multiservice accessThe DSLAM grows up!

Residential

Splitter /Modem

Multi-service access combines voice and data access capabilities in a single backbone

Bundle DSL with a new POTS proposition and get rid of legacy features!!!

Advancedresidential – SME

Homegate-way

WLAN BS

Phase 2: Packed-based backbone for voice and data

Evolution and gradual DLE replacement

Phase 1: Separate backbones for voice and data

Initial DSL roll-out

Media Gateway Controller

Signaling Gateway

Call Feature Server

Voice

MGCP / H.248

TDM network

Data

Voice and Data

IP network

Any

DSLAM

QoS IP network

Workshop on Next Generation Networks: What, When & How?


Pstn evolution

PSTN evolution

  • The classical PSTN market is stagnating

  • Obsolescence is not key, but lack of flexibility within current PSTN network is a limiting factor

  • Main threat for PSTN operators:

  • Shift of telephony services to other infrastructure providers

  • Main opportunity for PSTN operators:Migration of existing infrastructure towards broadband

  • Voice drives the revenues of the telcos, but focus for investment is NGN

  • Media gateways, call feature servers, and signaling gateways are the key building blocks of a multi-service architecture

Workshop on Next Generation Networks: What, When & How?


Promising services to boost ngn

SIP

AS

MM PC

MM PC

SIP

Proxy

Server

SIP

Proxy

Server

The SIP challengeWho's selling the services?

Security,

Authentication

Presence

IM

MyService

3rd party

appli-cations

Session Control Layer

LAN

DSL Modem

DSL Modem

Applications

SIP

SIP

Call data

IP

IP

IP

IP

Network Layer

SIPPhone

PER

SIP

PER

IP

DSL Modem

IP

Connectivity

Workshop on Next Generation Networks: What, When & How?


Promising services to boost ngn

SIP

AS

MM PC

SIP

Proxy

Server

SIP

Proxy

Server

The SIP Challenge:Ownership of user data

MyService

ISP

3rd party

appli-cations

3rd party

appli-cations

DSL Modem

3rd party

appli-cations

LAN

DSL Modem

User Database,

Security,

Authen-tication

SIP-Phone

Presence

IM

Appli-cations

UTRAN

Network Layer

PER

PER

UMTS

Connectivity

Workshop on Next Generation Networks: What, When & How?


Towards value added services

  • Value-added services will become the main differentiator

  • Most added value services are based on voice, data, andmobility convergence and require support beyond best effort

towards value-added services

Services

Business vision

Key requirements

Mission critical businessapplications

Business

specific

applications

Customerconfidence

Value-added services

e-Commerce

Web hosting

IP VPN

Availability

Reliability

Businessleadership

(innovations)

Customer

service

Security

QoS

Differentiation: Business opportunity

IP networking

Operationalleadership

Transport service

Commodities

Workshop on Next Generation Networks: What, When & How?


The new service architecture

VOIP

VPN

GAMING

INET

The new service architecture

The service architecture delivers:

  • Service models focusing on the experience, not the connection

  • Business models that are flexible and easily adaptable

    • Different services for different markets with different billing

    • Simultaneously delivery of:

      • Low volume / high margin services

      • High volume / lower margin services

  • Drive model from bits to experiences

  • Product creation and definition for fast market trial

Service Models

Assured experience

Better than best effort

Best effort

Workshop on Next Generation Networks: What, When & How?


Promising services to boost ngn

  • The "IN" of the data network

  • Virtualization of the service

    • Customer-centric view

  • Manage services, not bits

  • Real time changes to theconnection between

    • Customer and content, or

    • Customer and customer

Service Delivery Domain

Contentdomain

  • Delivers scalability and reach

    • "Any Access"

    • DSL & WLAN

  • Service Resiliency

  • Carrier-, not enterprise-focused

  • Performance for all traffic types

  • Virtualization of the network

  • Meditation of legacy systems

  • Ease of management

Access

IP Core

On the

Move

WLAN

VPN

POTS/ ISDN

PSTNHome

ATM /

Ethernet

WLAN

BS

Broad-bandhome,SME

Edge

Router

xDSL

(MPLS)Core

HGW

The New Broadband Service Control Architecture

Service Intelligence Domain

Network / service

management

Policy management

(service control)

Workshop on Next Generation Networks: What, When & How?


Example the turbo mode browser talks bras

Demand for more Speed

+ User ID

Contentdomain

Higher Bandwidth

+ Advertising

Example: The Turbo Mode - browser talks BRAS

  • Opens an Ad Window

  • Demands Higher Speed from the Unisphere ERX Router

  • Sends Unique User ID Data to the ISP

  • ISP Allows more Speed and Sends Targeted Advertising

IP Core

Edge

Router

(MPLS) Core

BRAS

Opera Browser

Workshop on Next Generation Networks: What, When & How?


Promising services to boost ngn

Voice

Softswitch

other

SIP Apps.

Gaming

e.g. VoD

  • Architecture allows separation of service selection and service interaction

  • Service interaction most probably SIP based

  • Architecture allows controlled access of independent service providers (e.g. gaming, VoD)

    • controlled access b/w

    • controlled QoS

    • billing/accounting possibilities

Service Intelligence

SIP-T

SIP-T

SIP

Service Selection Control

SIP Proxy

PSTN / PLMN

MGCP/H.248

SIP

Service Delivery Domain

Access

IP Core

On the

Move

WLAN

VPN

POTS/ ISDN

PSTNHome

ATM /

Ethernet

WLAN

BS

Broad-bandhome,SME

Edge

Router

xDSL

(MPLS)Core

HGW

The New Broadband Service Control Architecture

(Session Control)

Workshop on Next Generation Networks: What, When & How?


Today s network overview

SDH/DWDM

TransitSW

TransitSW

LocalSW

LocalSW

ATM

PBX

PBX

PBX

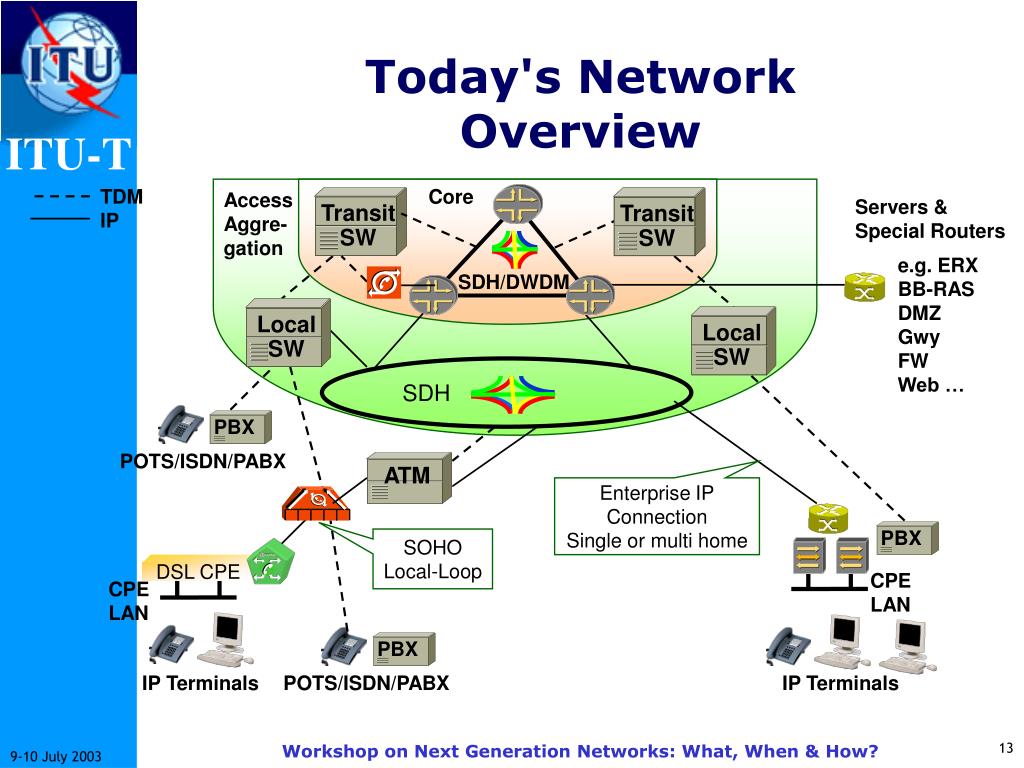

Today's NetworkOverview

TDMIP

Core

AccessAggre-gation

Servers &Special Routers

e.g. ERXBB-RASDMZGwyFWWeb …

SDH

POTS/ISDN/PABX

Enterprise IPConnectionSingle or multi home

SOHOLocal-Loop

DSL CPE

CPELAN

CPELAN

IP Terminals

POTS/ISDN/PABX

IP Terminals

Workshop on Next Generation Networks: What, When & How?


All ip network multi operator scenario

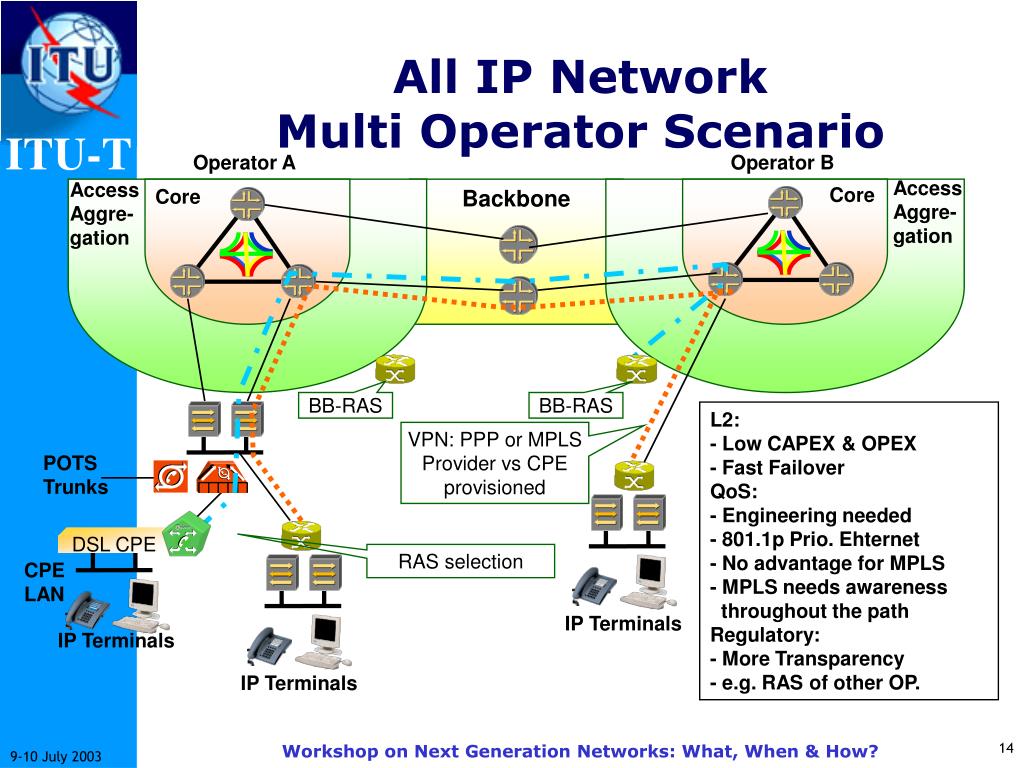

All IP NetworkMulti Operator Scenario

Operator A

Operator B

AccessAggre-gation

AccessAggre-gation

Core

Core

Backbone

BB-RAS

BB-RAS

L2: - Low CAPEX & OPEX- Fast Failover

QoS: - Engineering needed- 801.1p Prio. Ehternet- No advantage for MPLS - MPLS needs awareness throughout the path

Regulatory: - More Transparency- e.g. RAS of other OP.

VPN: PPP or MPLSProvider vs CPE provisioned

POTSTrunks

DSL CPE

RAS selection

CPELAN

IP Terminals

IP Terminals

IP Terminals

Workshop on Next Generation Networks: What, When & How?


Promising services to boost ngn

Applications /Content

SCP

Open

I/f

CDN

Appl.

IN

Parlay, CORBA

HLR

CallContr.

Softswitch, (Call Agent,

MSC-S, CSCF, MGCF)

Signaling

(STP, SGW, GTT, LNP)

Service Control

VLR

COPS, …

SIP, MGCP / MEGACO

Access

PSTN / PLMN

IP Core

Mobile

Access

Gateway

UMTS/GSM

On the

Move

IP / Ethernet Metro

WLAN

WLAN

BS

VPN

PSTN Home

POTS/ISDN

GE

VoTDM

Management / OSS

Resource Control / Self Managing Network

ATM/

Ethernet

Data, VoIP

Broad-band Home,SME

Voice

Gateway

RPR / MPLS

Edge

Router

Multi Service

Acc. Gatew.

(MPLS)Core

xDSL

HGW

Corporate &

High End SME

Ethernet /LL / VPN

NG Multi-Service Optical Networking Platform

Customer

The 21st Century network architecture ?

  • Co-existence and interworkingof multiple control architectures.

  • PSTN and PLMN will be about for some time

  • Co-existence with NGN

  • Gradual migration of customers

  • Who owns the intelligencewins the revenue !

  • Open service creation environment

  • Agnostic to delivery networks

  • Open interfaces between element layer and OSS

  • Customer centric view

  • Customer access to management

  • Multiple access technologies (WLAN, xDSL, GE, …)

  • DSLAM is evolving into the prime multi-serviceaccess gateway

  • Multi-Service Integration on the optical layer

  • Dynamic assignment of capacity

  • Low end CPE - a commodity

  • High end CPE - multi service platform, mobility, security and managed

  • Customer lock-in by delivering managed services

  • Becomes commodity

  • GE and Lambda products in metro

  • Legacy ATM access

  • QoS support

Workshop on Next Generation Networks: What, When & How?


Not to forget

Not to forget

  • Basic services need to be

    • interoperable

    • easy to use

    • affordable

  • Differentiation needs to be supported for

    • businesses

    • high end users

Workshop on Next Generation Networks: What, When & How?
