Ms46522a 010 shockline tm value vna

Introducing…

MS46522A-010ShockLineTMValue VNA

Low cost VNA for testing passive devices in production environment


Shockline tm value vector network analyzers

ShockLineTM Value Vector Network Analyzers

  • Target passive device manufacturing applications

    • Cables, Connectors, Electromechanical Switches , Attenuators, Couplers, Filters, isolators, Circulators, Phase shifters etc.

  • Key features of the family

    • Targeted performance capabilities at low cost

    • Fast, simple measurements

    • Remote programmability over LAN

    • Powerful GUI

    • Small size

    • Anritsu’s leading technology

    • Worldwide support


Low cost solution for manufacturing

Low Cost Solution for Manufacturing

  • Many production applications do not require high performance and high priced VNAs with premium features

  • MS46522A is designed as a low price solution for cost-sensitive, mid-performance applications

Premium

High Cost

High Performance

Value

Low Cost

Good performance

Performance

ShockLineValue VNA

(MS46522A)

Price

Note: Figure not to scale


How did anritsu achieve low cost

How did Anritsu achieve low cost?

  • Patented ShockLineTM VNA on a chip architecture

    • Achieves microwave and millimeter-wave frequency

  • Simplified internal architecture

    • Single board RF VNA implementation

    • COTS PC and Power Supply

  • Eliminated front-panel

    • Focus on remote control for automation

  • Eliminated complex features and functions

    • Provide basic S-parameter measurements


What is shockline tm

What is ShockLineTM?


Shockline sampler based vna

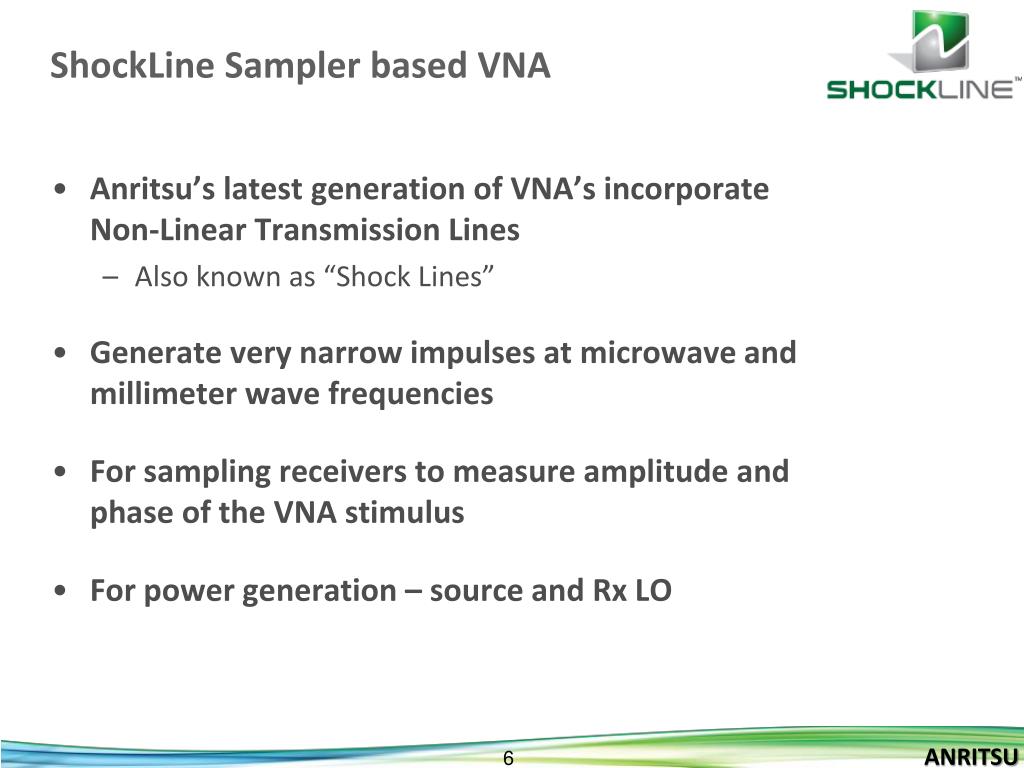

ShockLine Sampler based VNA

  • Anritsu’s latest generation of VNA’s incorporate Non-Linear Transmission Lines

    • Also known as “Shock Lines”

  • Generate very narrow impulses at microwave and millimeter wave frequencies

  • For sampling receivers to measure amplitude and phase of the VNA stimulus

  • For power generation – source and Rx LO


What is shockline technology

What is ShockLine technology?

Non Linear Transmission Line -


Advantages of shockline

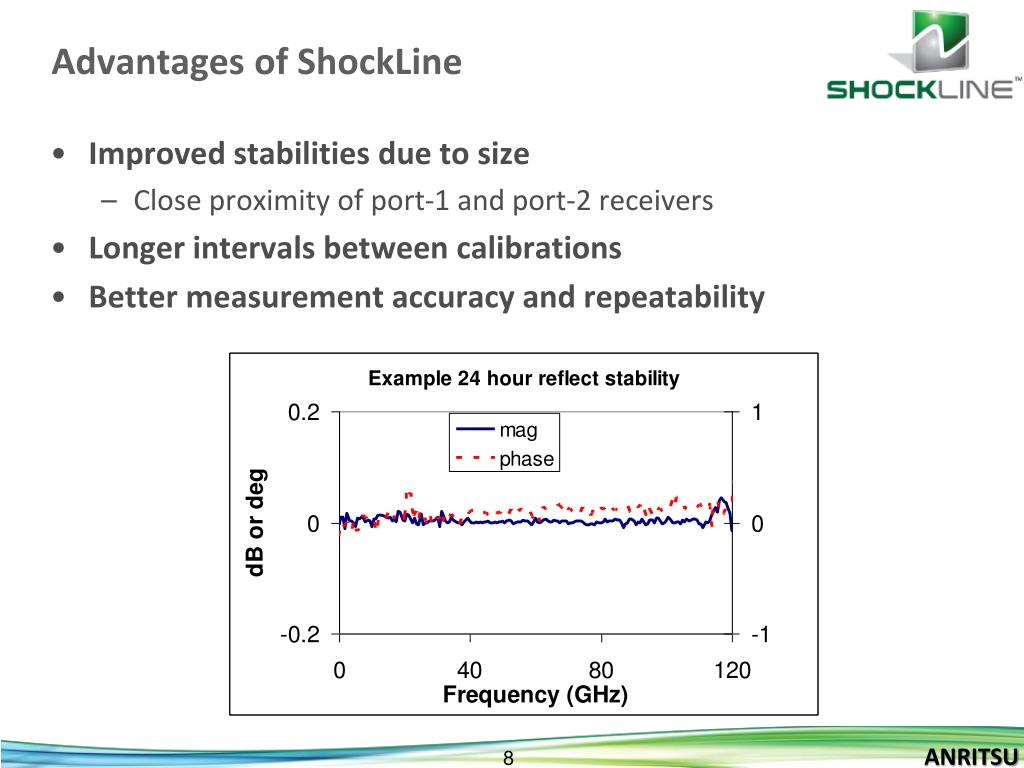

Advantages of ShockLine

  • Improved stabilities due to size

    • Close proximity of port-1 and port-2 receivers

  • Longer intervals between calibrations

  • Better measurement accuracy and repeatability

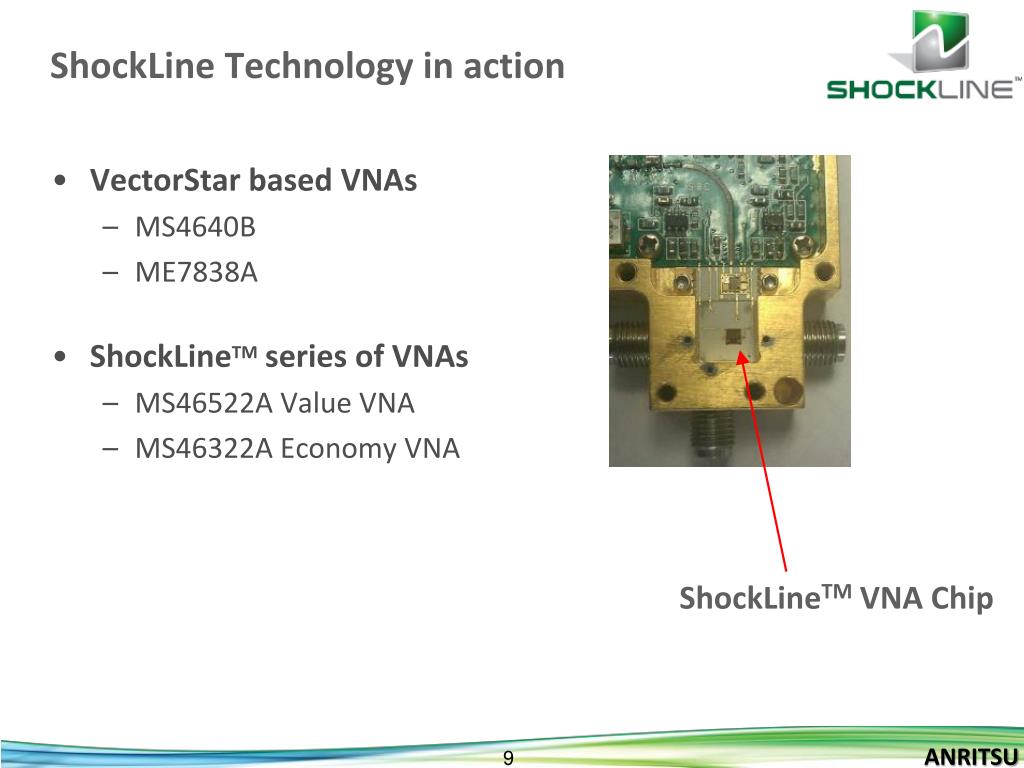

Shockline technology in action

ShockLine Technology in action

  • VectorStar based VNAs

    • MS4640B

    • ME7838A

  • ShockLineTM series of VNAs

    • MS46522A Value VNA

    • MS46322A Economy VNA

ShockLineTM VNA Chip


Product overview

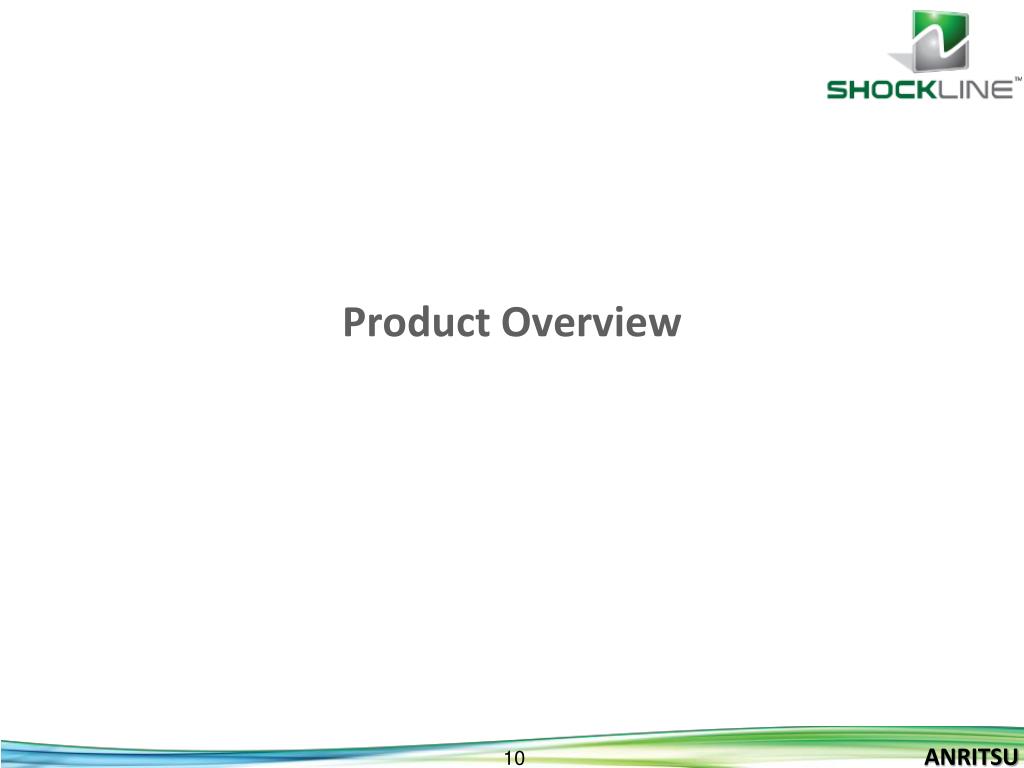

Product Overview


Key highlights of ms46522a 010

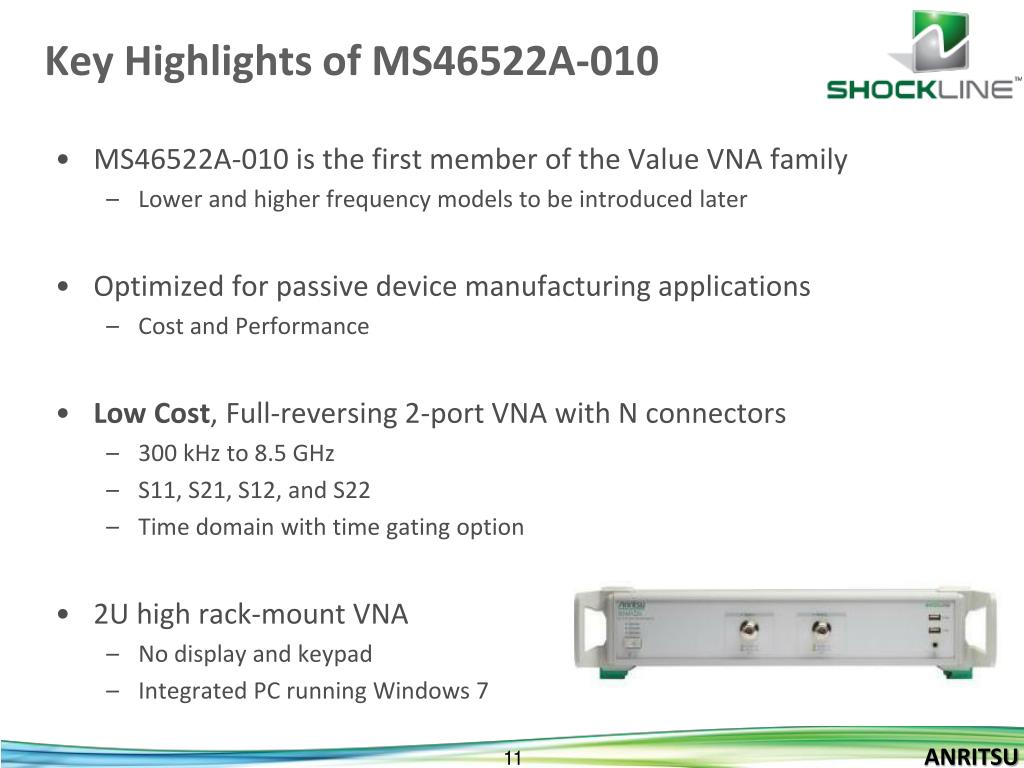

Key Highlights of MS46522A-010

  • MS46522A-010 is the first member of the Value VNA family

    • Lower and higher frequency models to be introduced later

  • Optimized for passive device manufacturing applications

    • Cost and Performance

  • Low Cost, Full-reversing 2-port VNA with N connectors

    • 300 kHz to 8.5 GHz

    • S11, S21, S12, and S22

    • Time domain with time gating option

  • 2U high rack-mount VNA

    • No display and keypad

    • Integrated PC running Windows 7

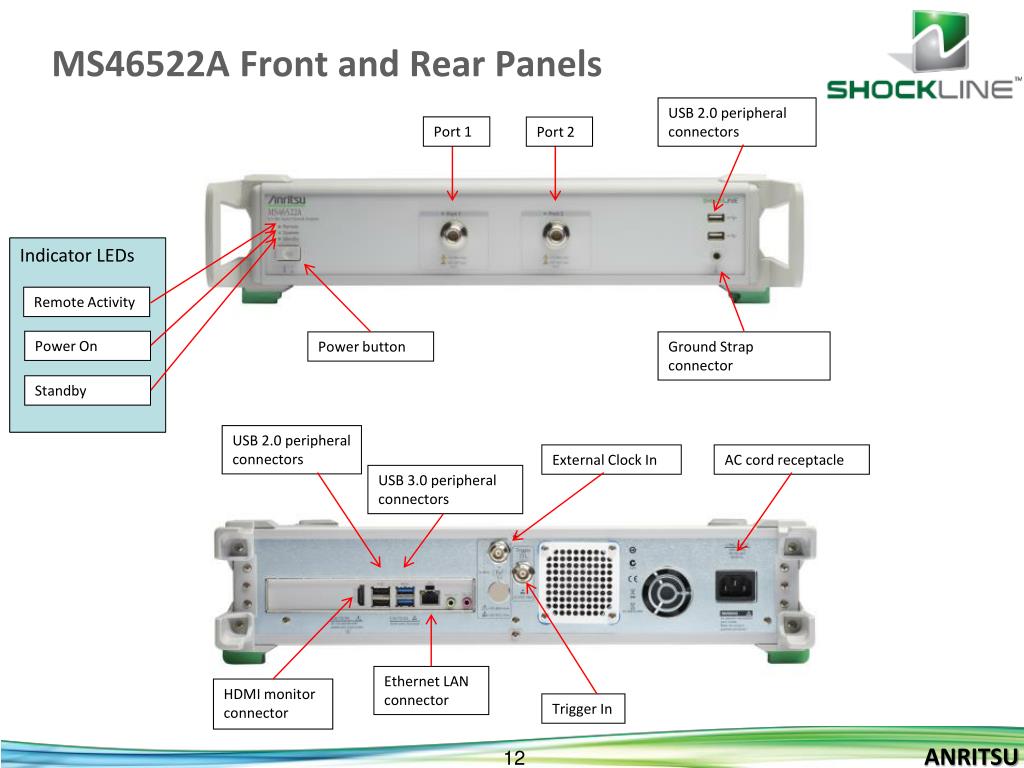

Ms46522a front and rear panels

MS46522A Front and Rear Panels

USB 2.0 peripheral connectors

Port 1

Port 2

Indicator LEDs

Remote Activity

Power On

Power button

Ground Strap connector

Standby

USB 2.0 peripheral connectors

External Clock In

AC cord receptacle

USB 3.0 peripheral connectors

Ethernet LAN connector

HDMI monitor connector

Trigger In

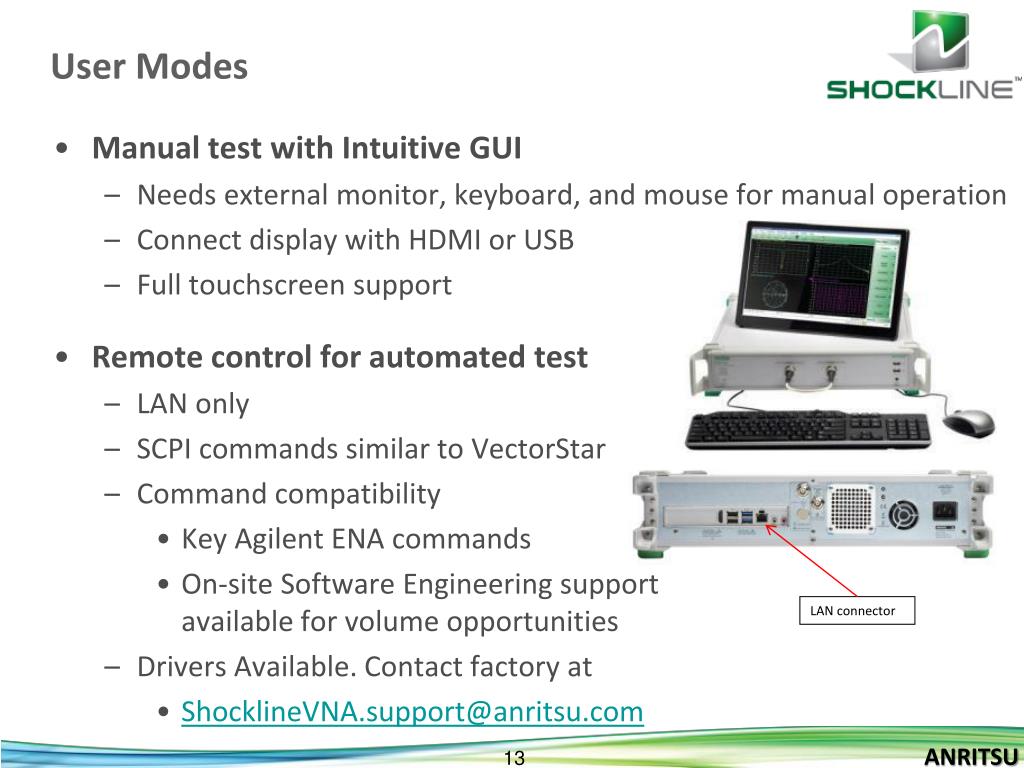

User modes

User Modes

  • Manual test with Intuitive GUI

    • Needs external monitor, keyboard, and mouse for manual operation

    • Connect display with HDMI or USB

    • Full touchscreen support

  • Remote control for automated test

    • LAN only

    • SCPIcommands similar to VectorStar

    • Command compatibility

      • Key Agilent ENA commands

      • On-site Software Engineering support available for volume opportunities

    • Drivers Available. Contact factory at

      • [email protected]

LAN connector

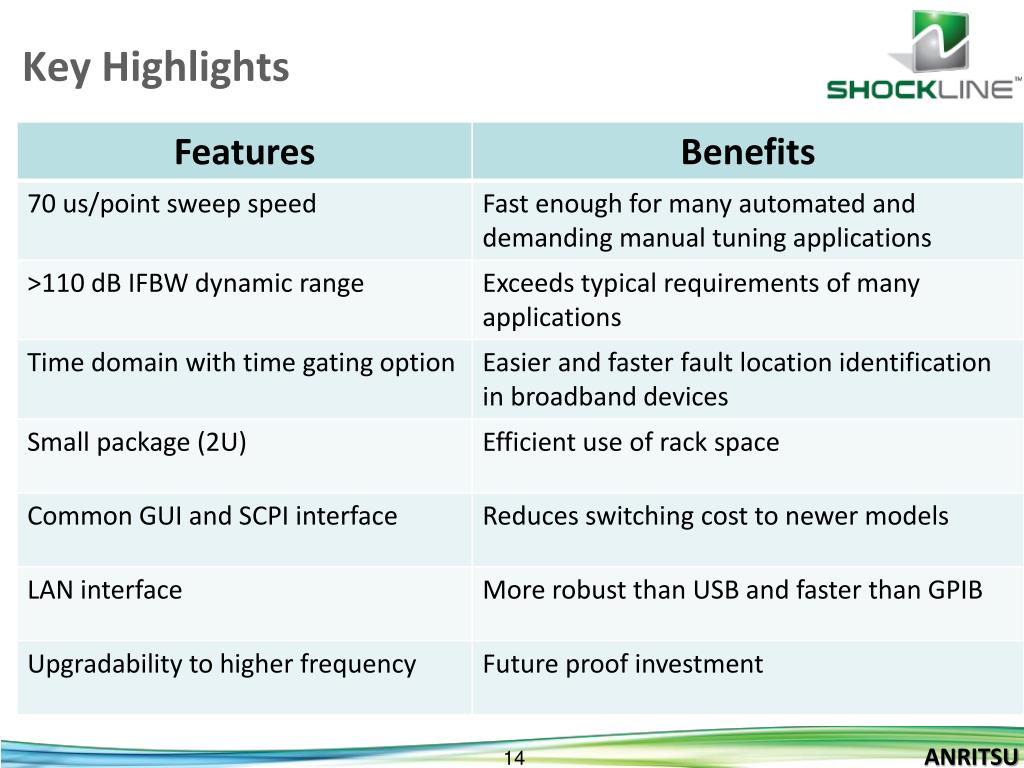

Key highlights

Key Highlights


Ms46522a 010 production test capabilities

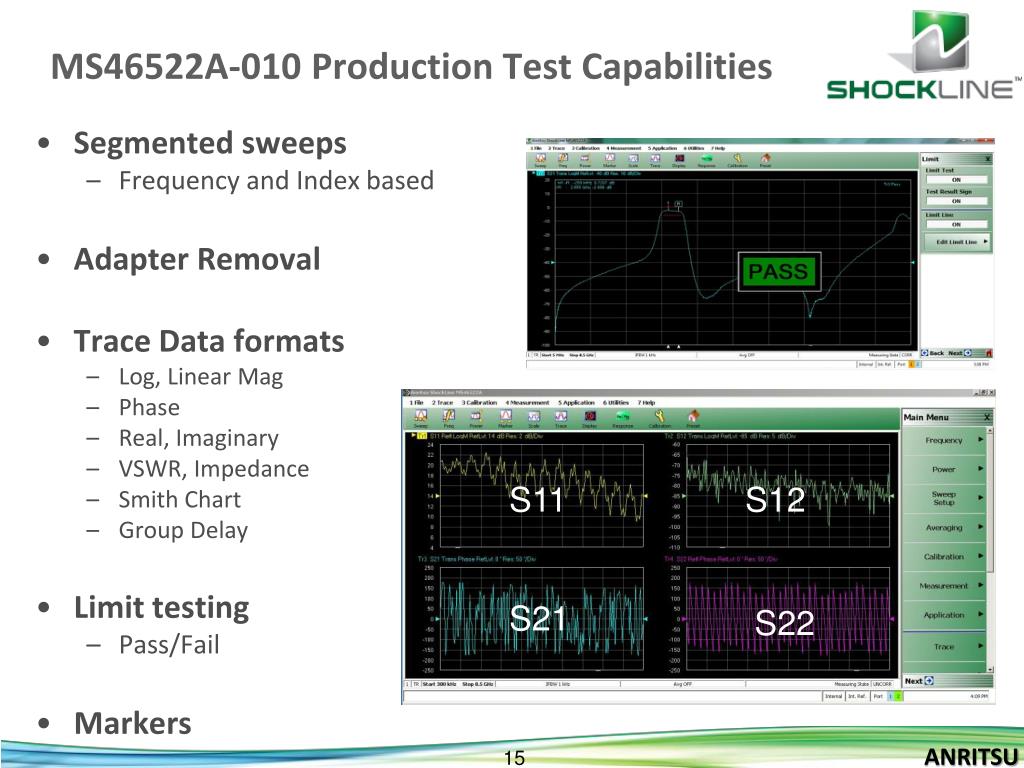

MS46522A-010 Production Test Capabilities

  • Segmented sweeps

    • Frequency and Index based

  • Adapter Removal

  • Trace Data formats

    • Log, Linear Mag

    • Phase

    • Real, Imaginary

    • VSWR, Impedance

    • Smith Chart

    • Group Delay

  • Limit testing

    • Pass/Fail

  • Markers

S11

S12

S21

S22

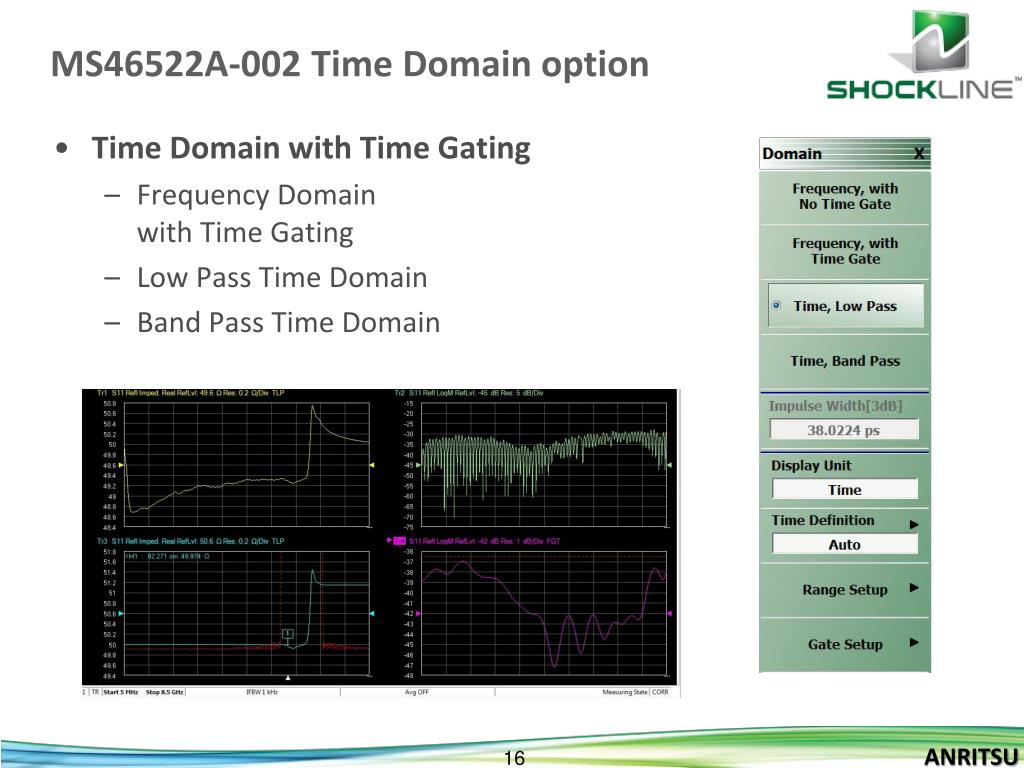

Ms46522a 002 time domain option

MS46522A-002 Time Domain option

  • Time Domain with Time Gating

    • Frequency Domain with Time Gating

    • Low Pass Time Domain

    • Band Pass Time Domain

S11

S12

S21

S22


Anritsu s unique value

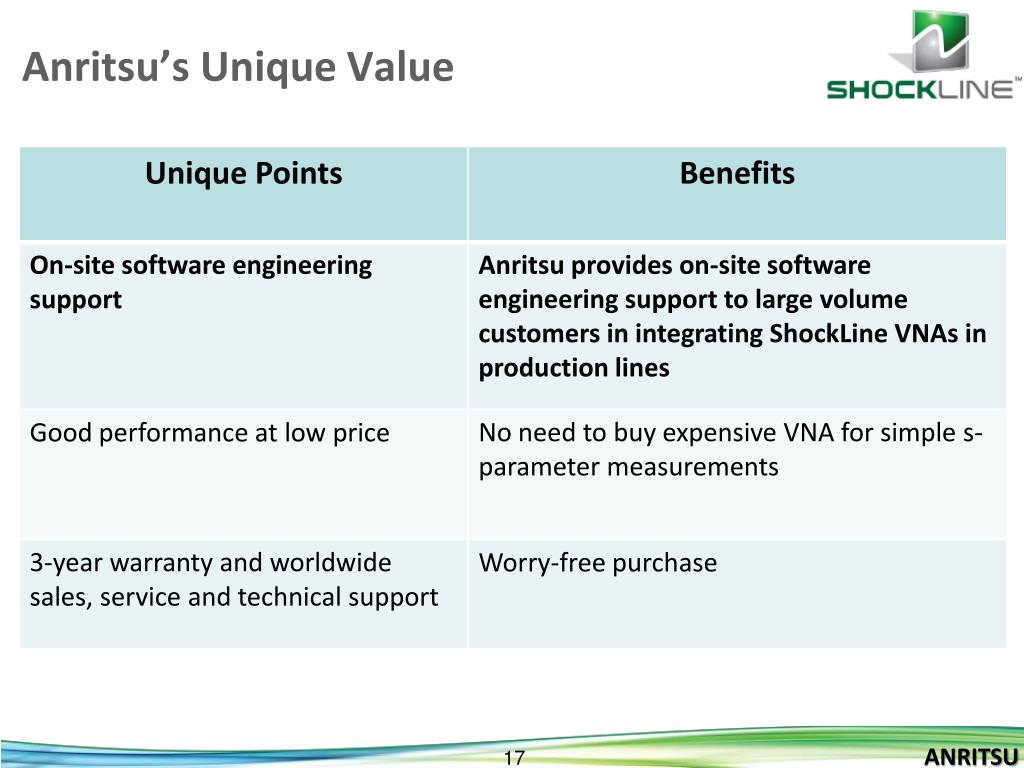

Anritsu’s Unique Value


Product performance

Product performance

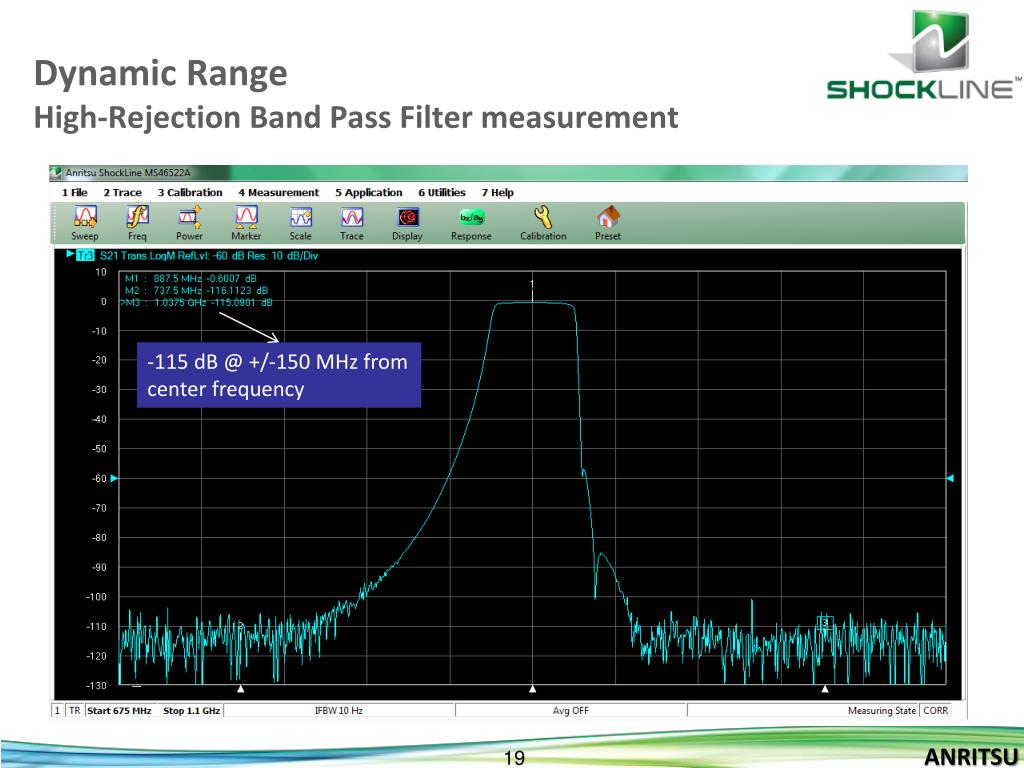

Dynamic range high rejection band pass filter measurement

Dynamic Range High-Rejection Band Pass Filter measurement

-115 dB @ +/-150 MHz from

center frequency


Dynamic range

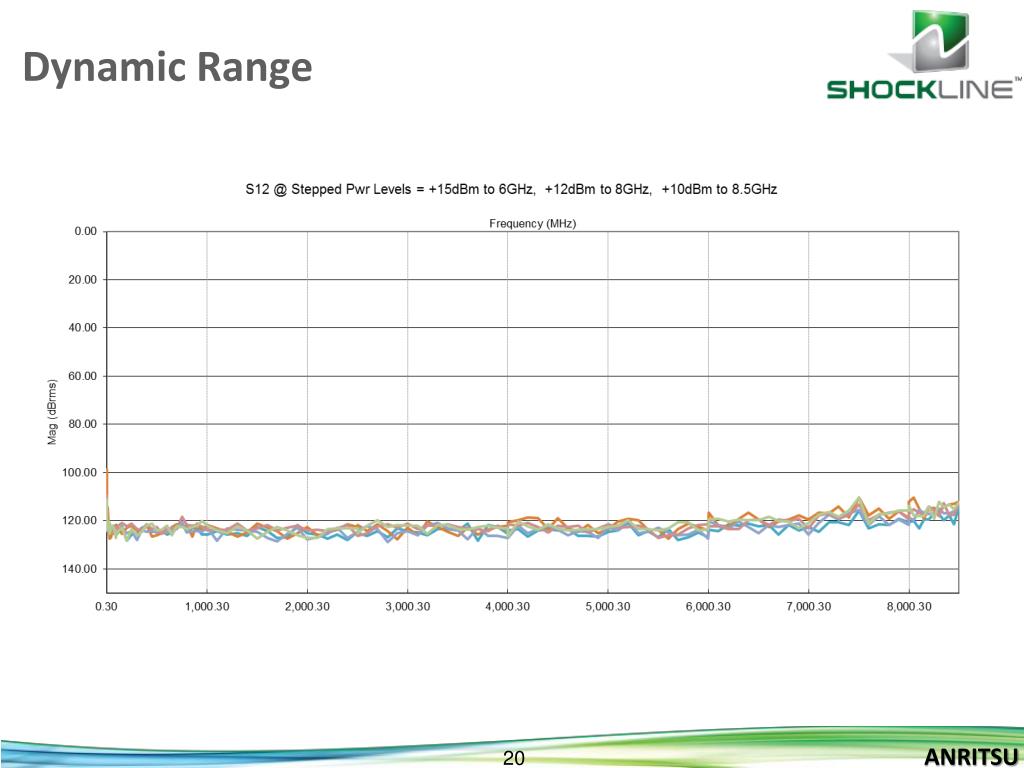

Dynamic Range

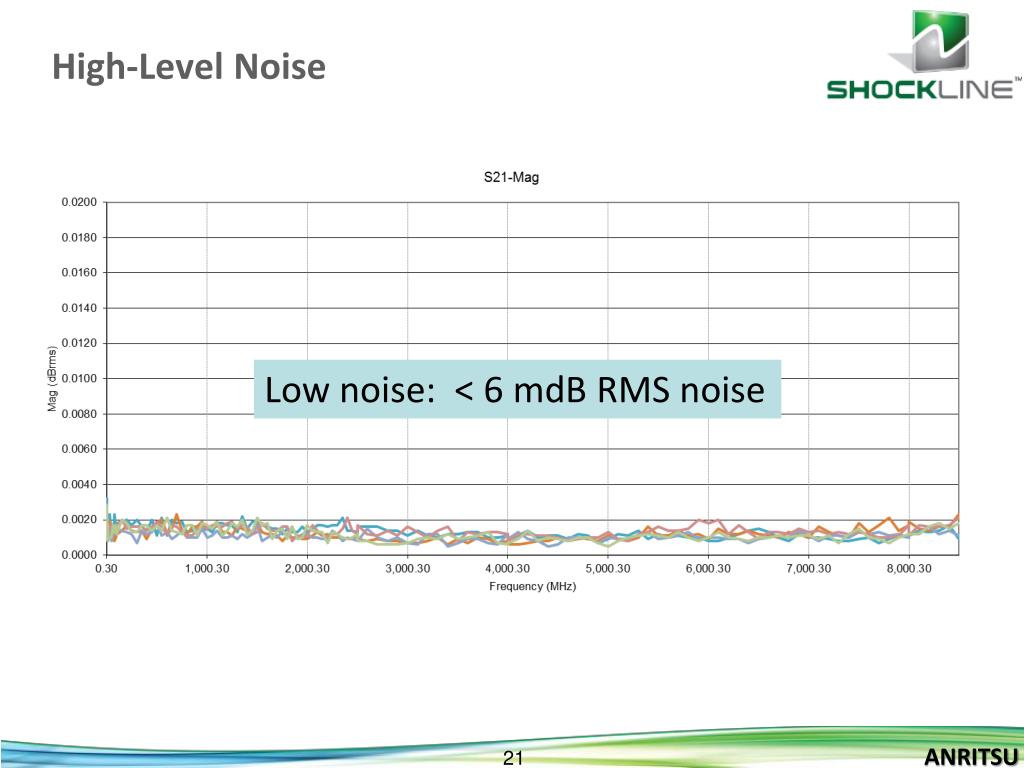

High level noise

High-Level Noise

Low noise: < 6 mdBRMS noise

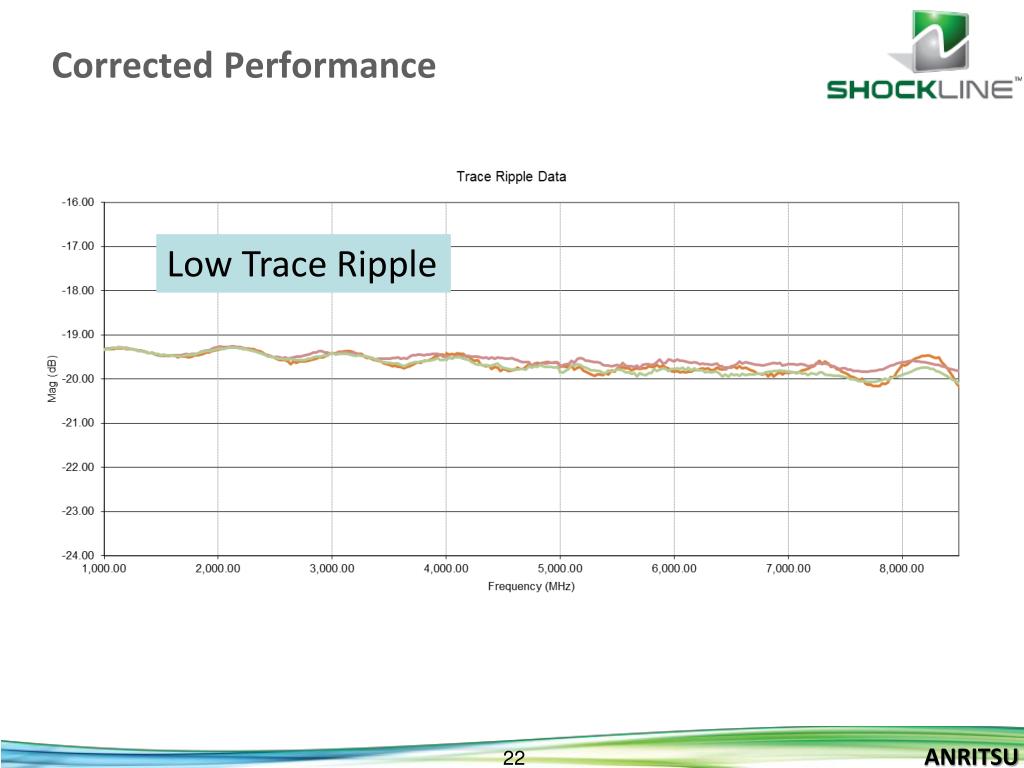

Corrected performance

Corrected Performance

Low Trace Ripple

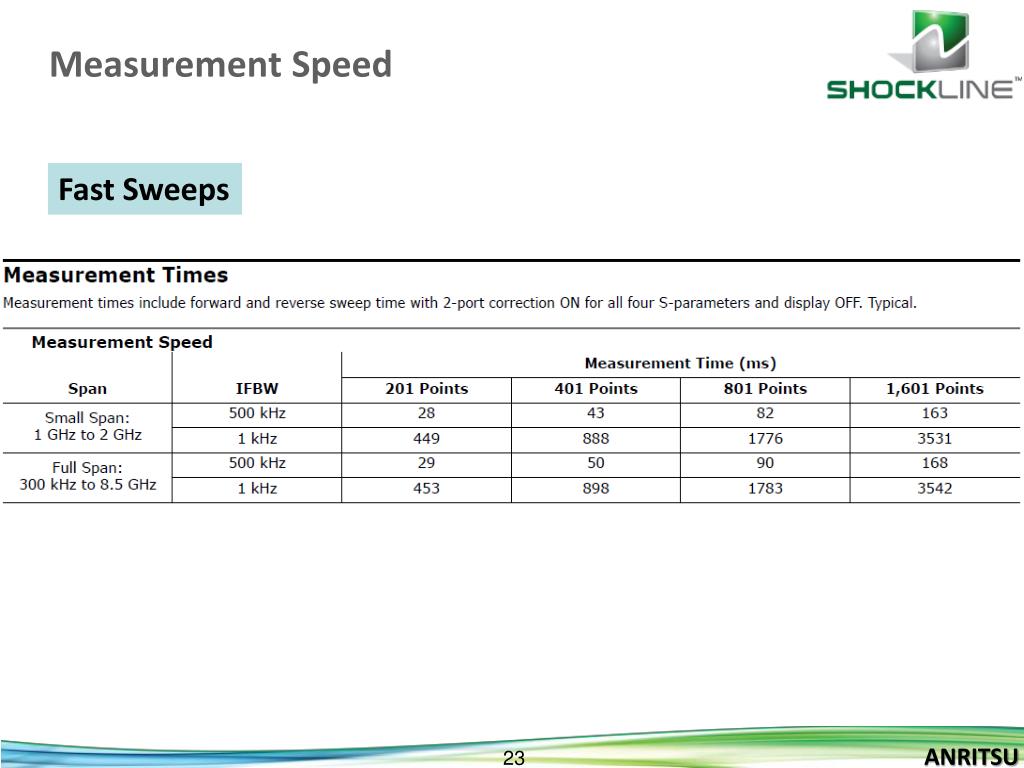

Measurement speed

Measurement Speed

Fast Sweeps


Product accessories technical documentation

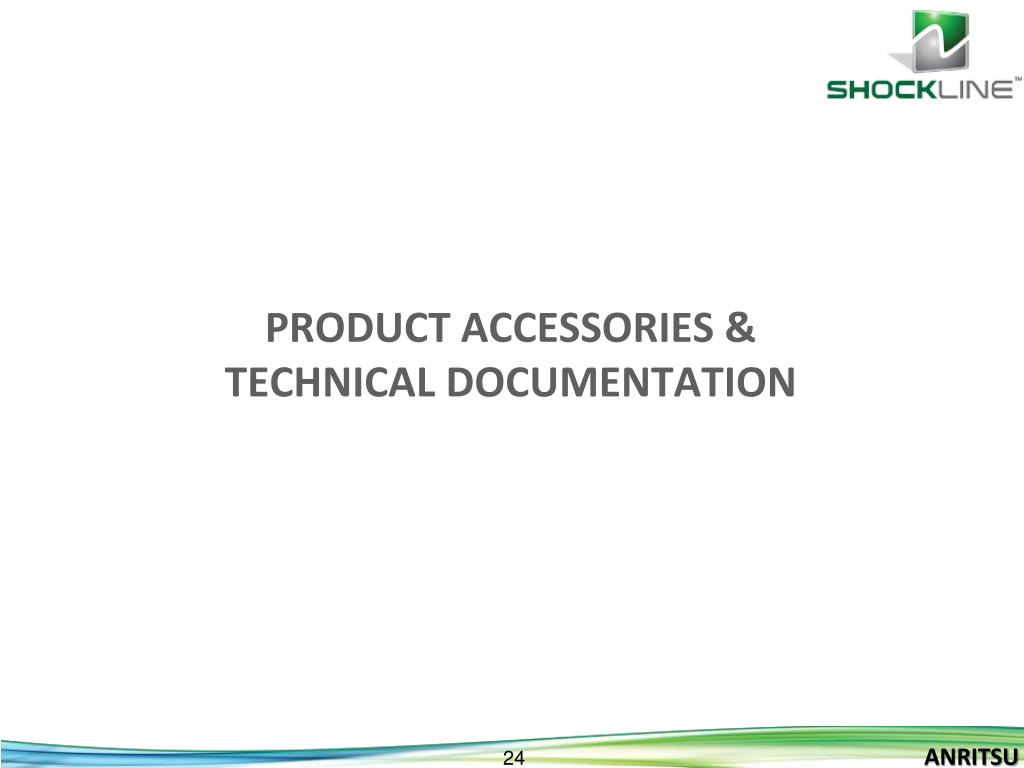

Product Accessories &Technical documentation


Key accessories

Key Accessories

  • Mechanical Calibration Kits

    • 3653A, 3650 , TOSLN50A-18, TOSLNF50A-18, TOSLK50A-20, TOSLKF50A-20

  • Verification Kits

    • 3663

  • RF cables and adapters

    • N120-6, NS120MF-6, 1091-26-R, 1091-27-R, 1091-80-R, 1091-81-R, 34NFNF50, 34NK50, 34NKF50, 34NFK50, 34NFKF50

  • Test Port Cables, Flexible, Ruggedized, Phase Stable

    • 15NNF50-1.0B, 15NNF50-1.5B, 15NN50-1.0B, 15LL50-1.0A, 15LLF50-1.0A, 15KK50-1.0A, 15KKF50-1.0A

  • Transit Case

    • 760-269

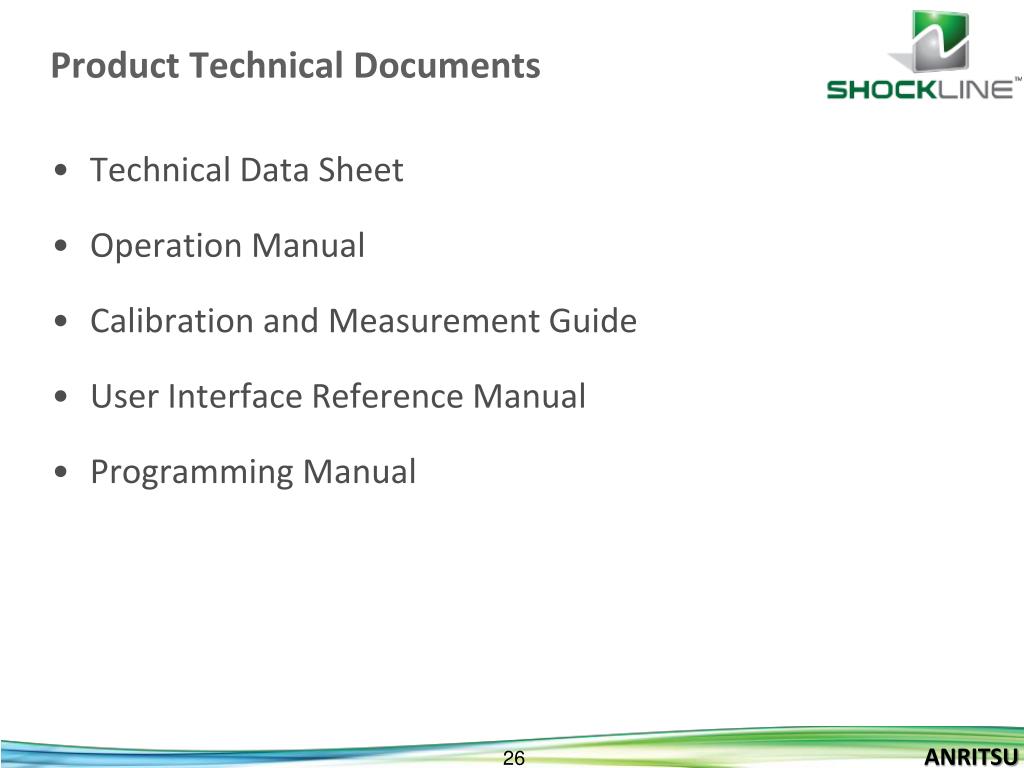

Product technical documents

Product Technical Documents

  • Technical Data Sheet

  • Operation Manual

  • Calibration and Measurement Guide

  • User Interface Reference Manual

  • Programming Manual


Summary

Summary

  • MS46522A-010 is the first in the family of ShockLineTM Value Vector Network Analyzers

  • It is a low cost, Fully-reversing, 2-port, 300 kHz to 8.5 GHz VNA

    • without an integrated display.

    • Supports remote control over LAN,

    • Local control via a powerful graphical user interface.

  • Ideal for testing passive devices in manual or automated production environments.

  • Anritsu Provides On-site software engineering support

    • For large volume opportunity customers
