  1. Integrating Design and Analysis Into a PDM Environment Keith Hunten, P.E. Lockheed Martin Aeronautics

  2. Overview • Enterprise Design and Analysis Information Integration with ISO 10303-209 • Critical and Detailed AP209 - Based PDM Concepts • An AP209 Integrated Iterative Design - Analysis Cycle • Conclusions

  3. PDM CAD CAE AP209 Enterprise Design and Analysis Information Integration with ISO 10303-209 • Enables sharing of PDM controlled composite and metallic design, analysis, material properties/specs information • Enables automated, electronic feedback of product shape, performance, and property analyses to CAD with respect to PDM product structure and versioning • Platform to extend engineering analysis STEP coverage into other analysis disciplines such as Fluid Dynamics • Provides a long term, potentially growing, repository crucial to many industries and vendors • Neutral format for PDM/CAD/CAE

  4. Next Higher Assembly / Version Part / Version Part / Version Design Documents Nominal Design Shape File Standard PDM Design Information Management • Indentured list of assemblies and components • Configuration and revision management • Associated data management • Design shape model(s) • Other related design information

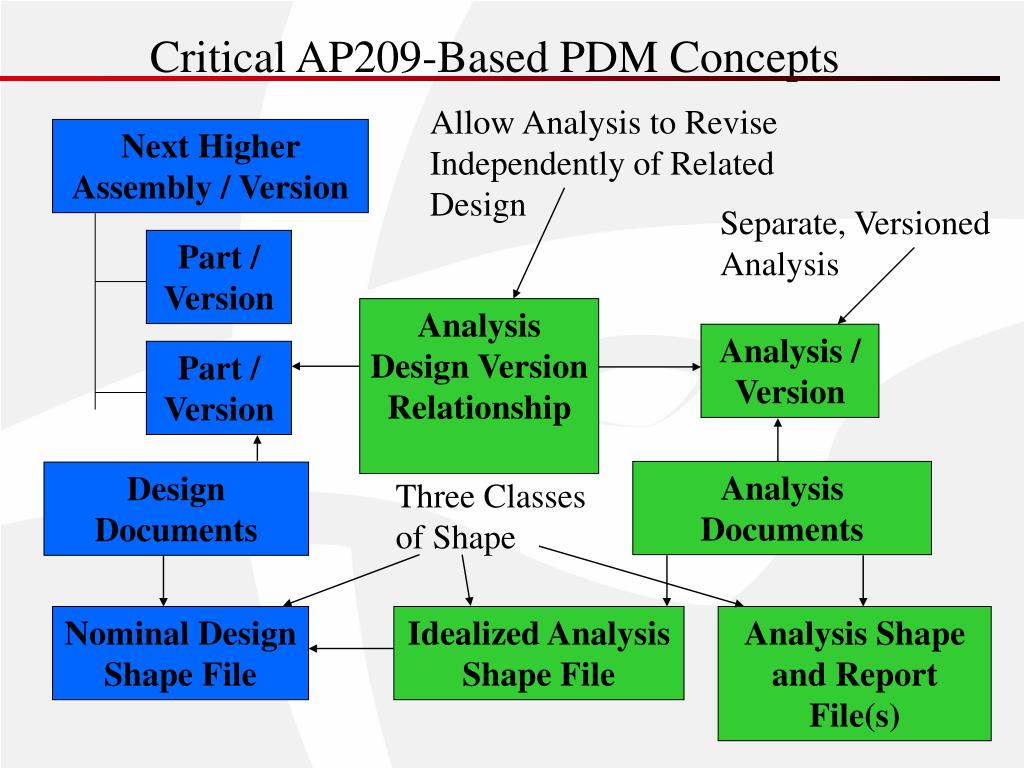

  5. Critical AP209-Based PDM Concepts Allow Analysis to Revise Independently of Related Design Next Higher Assembly / Version Separate, Versioned Analysis Part / Version Analysis Design Version Relationship Analysis / Version Part / Version Analysis Documents Design Documents Three Classes of Shape Nominal Design Shape File Idealized Analysis Shape File Analysis Shape and Report File(s)

  6. Detailed AP209 PDM Concepts Part Analysis Analysis Design Version Relationship Part Version Analysis Version Assembly Analysis Discipline Product Definition Design Discipline Product Definition Nominal Design Shape Idealized Analysis Shape Finite Element Analysis Shape

  7. An AP209 Integrated Iterative Design - Analysis Cycle • Key features include: • The management of nominal and idealized shapes • Multiple idealized shapes • Multiple analyses • Electronic feedback of analysis modifications and recommendations to design

  8. Details of an AP209 Integrated Iterative Design - Analysis Cycle Part1_Version1 Analysis1_Design1_ Version_Relationship1 Analysis1_Version1 Analysis1 Part1 FEM1 Nominal Design Shape Design Step 1 Analysis Step 2 Idealized Analysis Shape1 Part1_Version2 Analysis_Design_ Version_Relationship2 Analysis2_Version1 Analysis2 FEM2 Analysis Step 3 Next_Higher_ Assembly1 Idealized Analysis Shape2 Analysis_Design_ Version_Relationship3 Analysis2_Version2 Analysis Report Representation Assembly1 FEM3 Analysis Step 4 Idealized Analysis Shape3

  9. AP209 Enables Analysis Feedback to Design • The original Part1 and it’s nominal design shape (NDS1) for a point of reference (node to hook into PDM) • Part1_Version2, the final Analysis_Version2 (FEM3) and the idealized analysis shape that reflects the performance requirement changes (IAS3) • The analysis report containing the rationale documenting the design changes (modes/frequencies, stiffener buckling, model idealization and tuning process) Part1_Version1 Analysis2 Analysis_Design_ Version_Relationship1 Analysis2_Version2 Part1 NDS1 Cross-Section Shape Representation FEM3 Analysis Report Representation Part1_Version2 IAS3

  10. Integration of Design and Analysis Information in a PDM is a Powerful Systems Integration Approach • ISO 10303-209 provides a standardized meta-model for the implementation of PDM Design - Analysis data management • PDM Customization straight-forward • Automation of a PDM - managed Design - Analysis cycle furthers the goal of truly integrated systems • AP209 provides a standardized capability to share information between Design and Analysis disciplines
