Pegboard toy

Pegboard Toy

Assembly and Sides

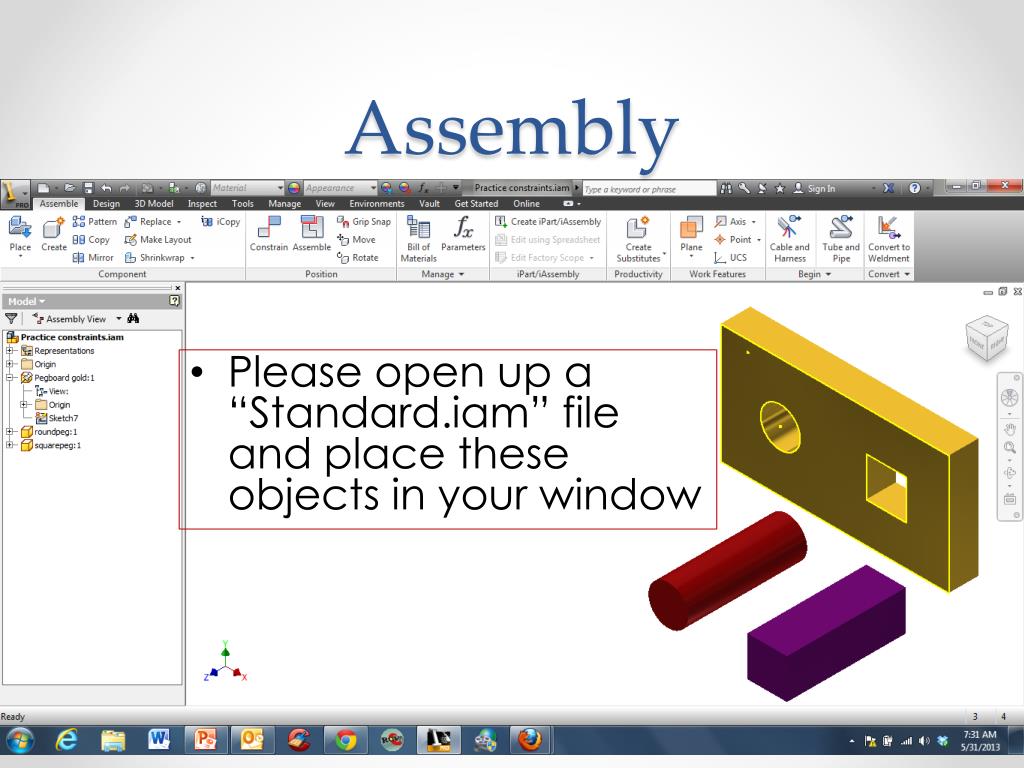

Assembly

Assembly

  • Please open up a “Standard.iam” file and place these objects in your window


Feeling frustrated

Feeling Frustrated?

  • It will happen at some point or another, but don’t give up. Feeling frustrated is all a part of learning.


Assembly1

Assembly

  • PLACE the pegboard and pegs into an assembly window (.iam)


Constrain

Constrain

  • Use the constrain feature to connect parts of your assembly.


Constrain round peg

Constrain Round Peg

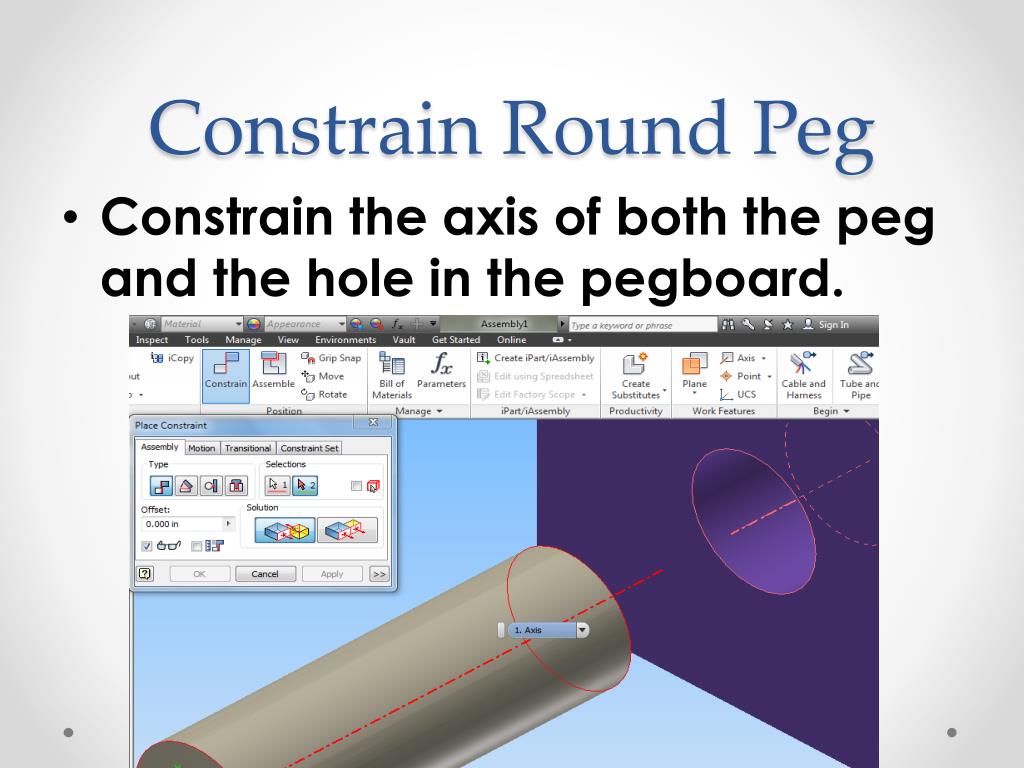

  • Constrain the axis of both the peg and the hole in the pegboard.


Constrain square peg

Constrain Square Peg

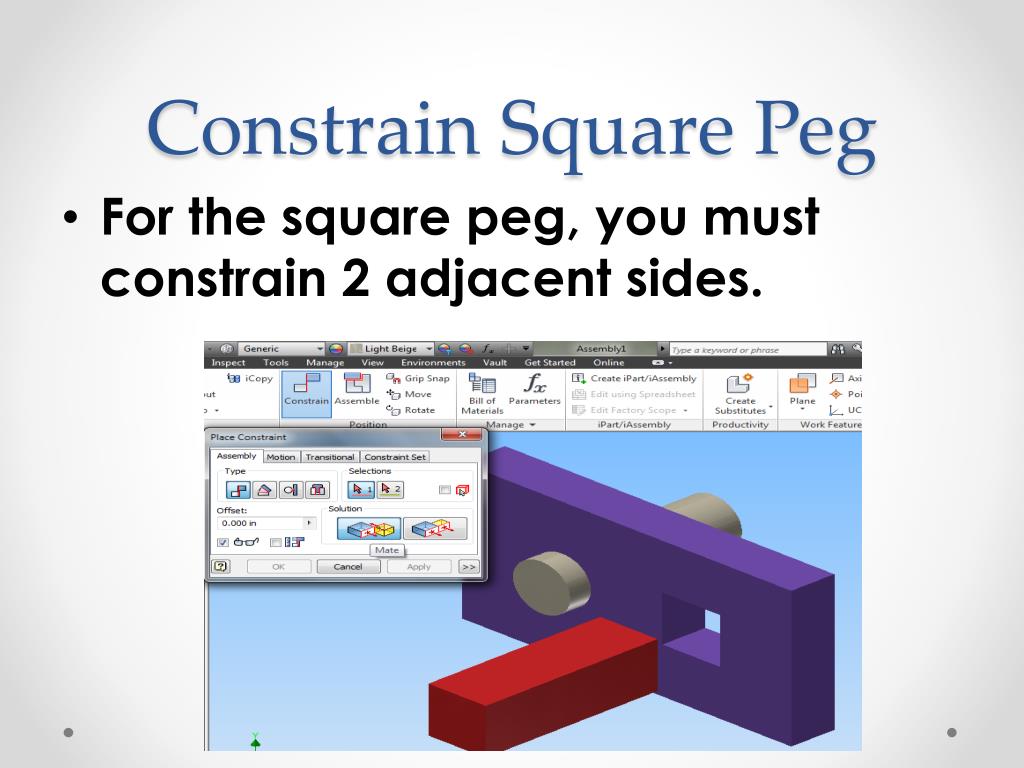

  • For the square peg, you must constrain 2 adjacent sides.


Constrain square peg1

Constrain Square Peg

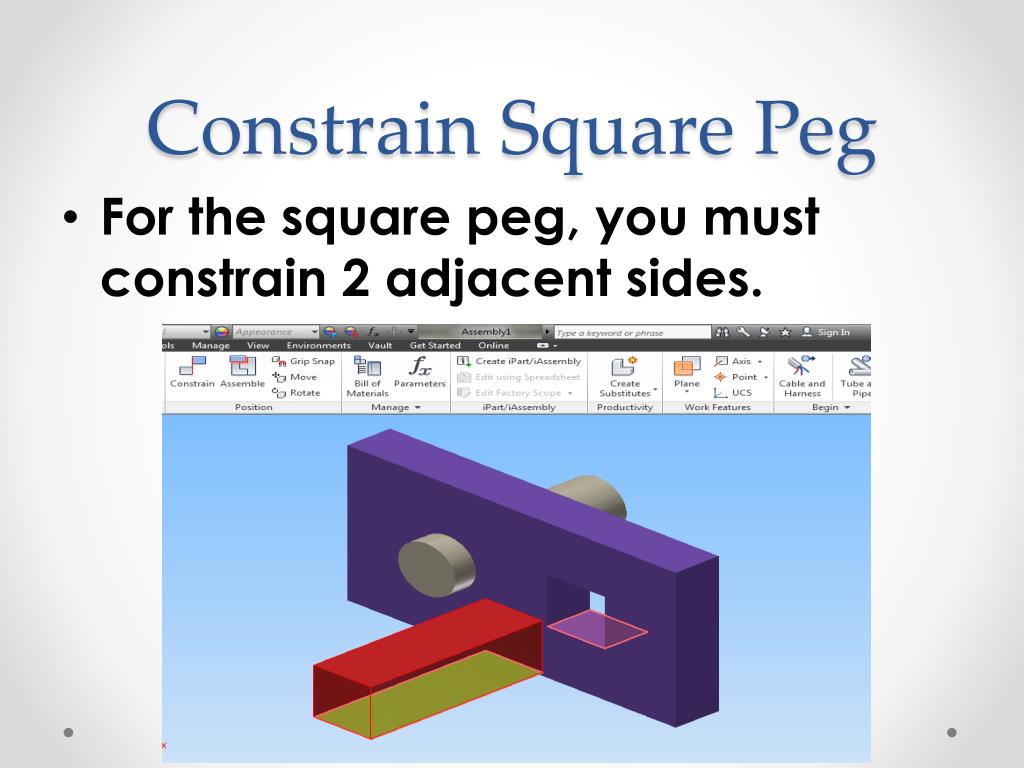

  • For the square peg, you must constrain 2 adjacent sides.


Constrain square peg2

Constrain Square Peg

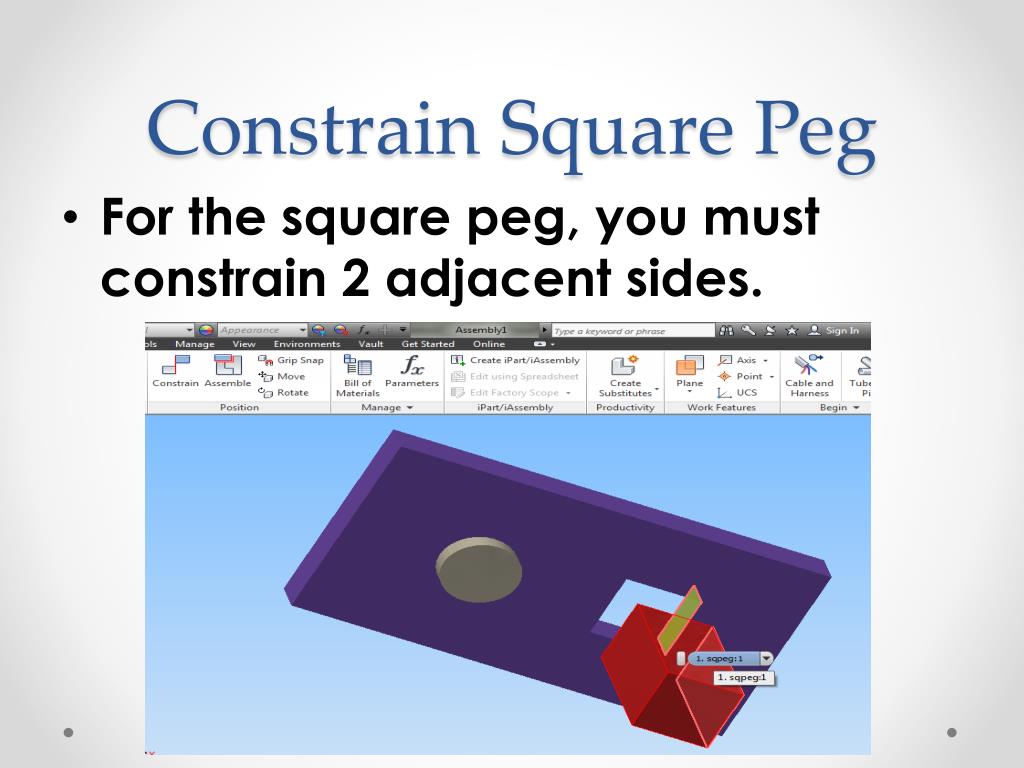

  • For the square peg, you must constrain 2 adjacent sides.


Pegboard toy

Next…

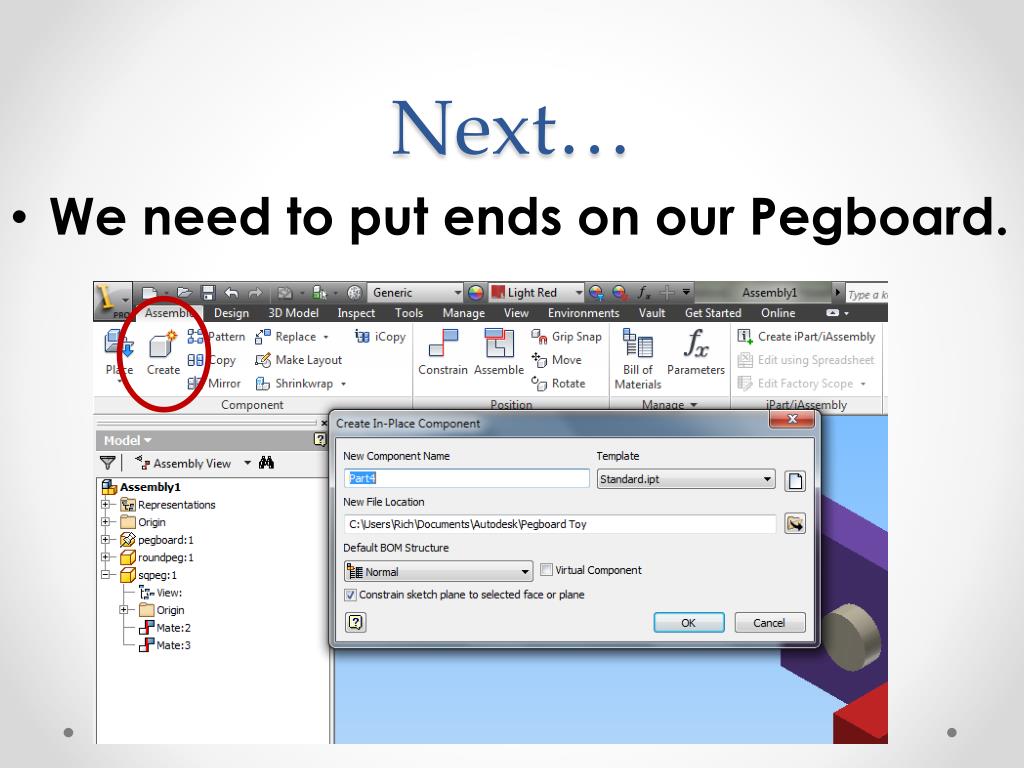

  • We need to put ends on our Pegboard.


Sides

Sides!


Pegboard toy

End to your pegboard

Draw

Extrude

Save

.75” wide

.375” cut out


3 clicks before you draw

3 “Clicks” before you draw…

  • Click on the side you want to work on.

  • Click on “Create 2D sketch”

  • Click on the same side as you did in #1

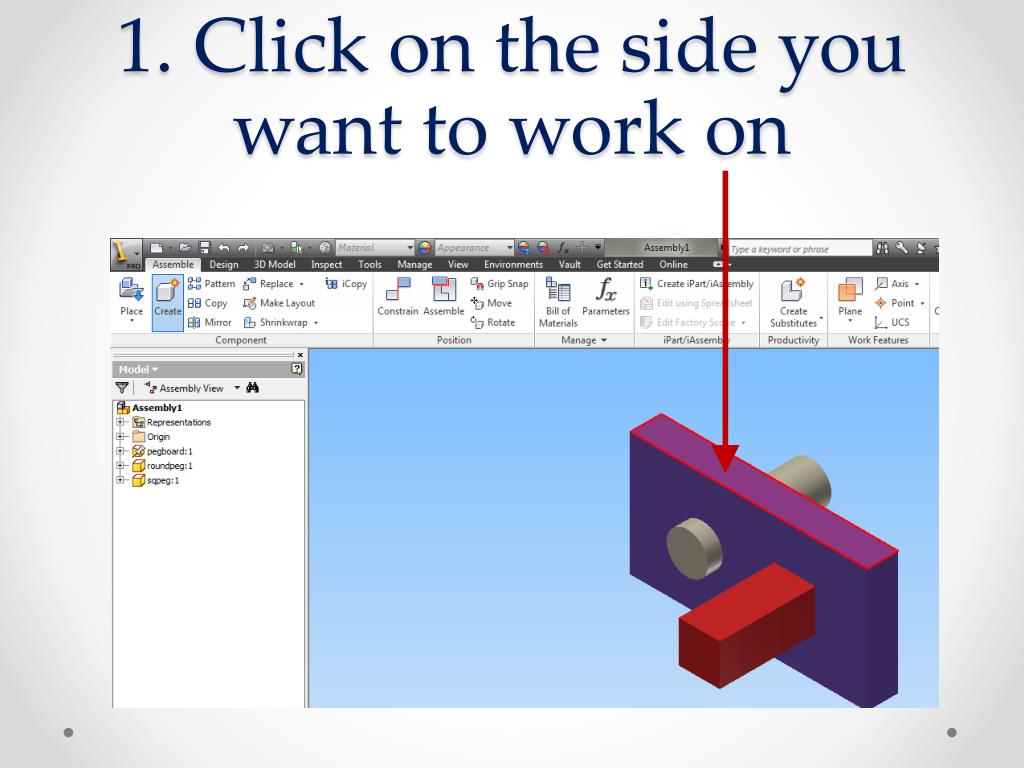

1 click on the side you want to work on

1. Click on the side you want to work on

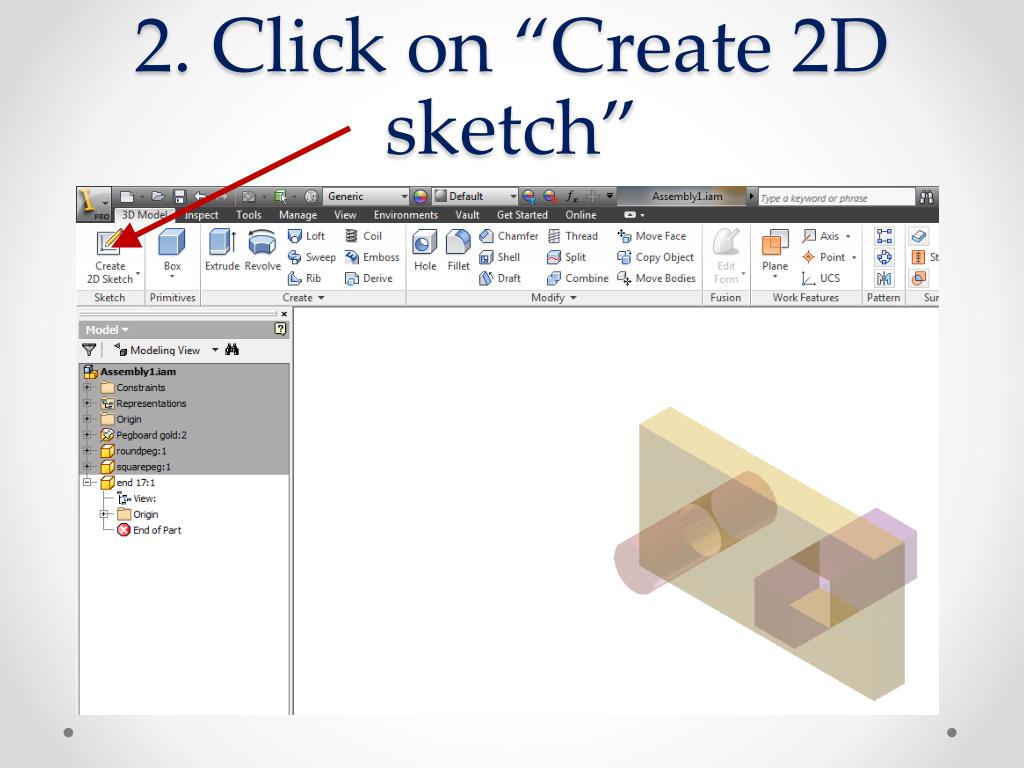

2 click on create 2d sketch

2. Click on “Create 2D sketch”

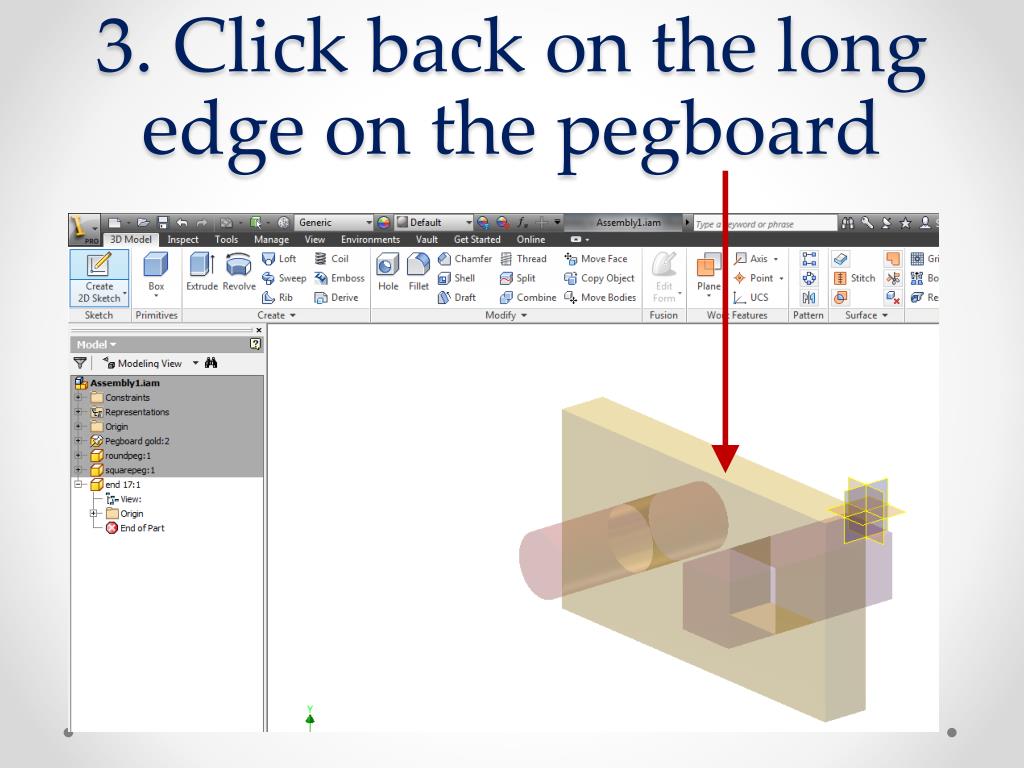

3 click back on the long edge on the pegboard

3. Click back on the long edge on the pegboard


Your pegboard will look like this

Your pegboard will look like this…


Ok remember this

OK…Remember this?


Draw an end piece

Draw an End Piece

  • Use the line tool to draw around the end of the pegboard.


Finish sketch and extrude

Finish Sketch and Extrude

  • Extrude the end 3” – the same as the width of the pegboard.


Return

RETURN!

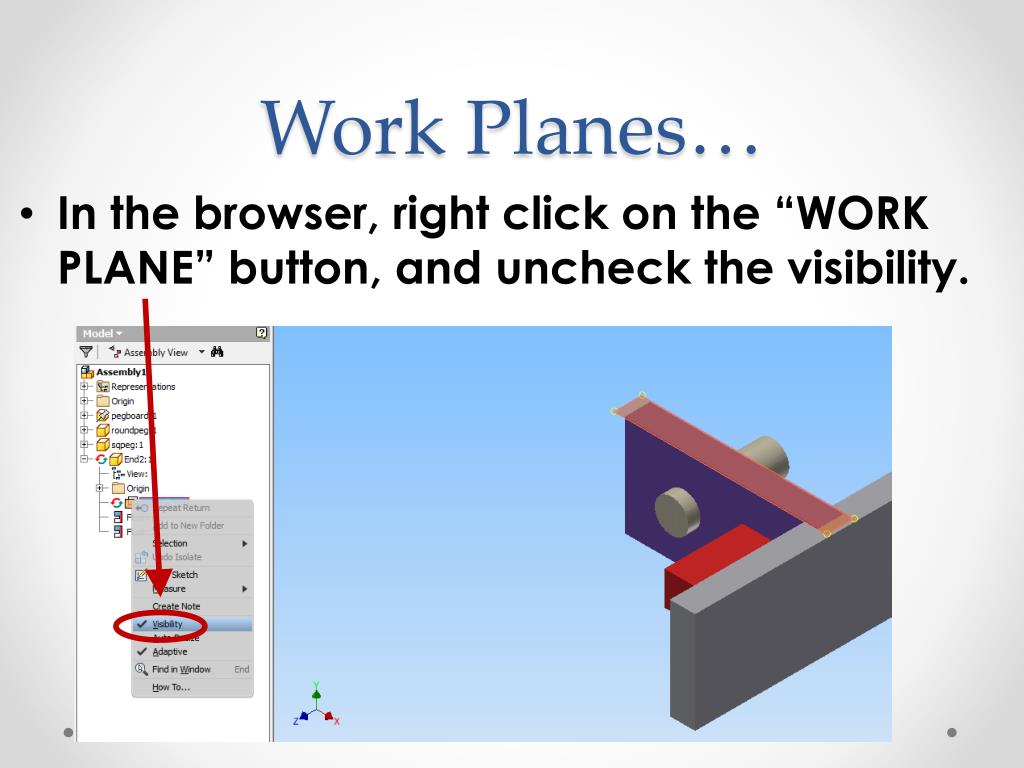

Work planes

Work Planes…

  • In the browser, right click on the “WORK PLANE” button, and uncheck the visibility.


Other end

Other End…

  • “PLACE” the other end on the screen, and constrain it into place.


Viola finished

Viola! Finished!?!

  • Now you have a wonderful pegboard toy!
