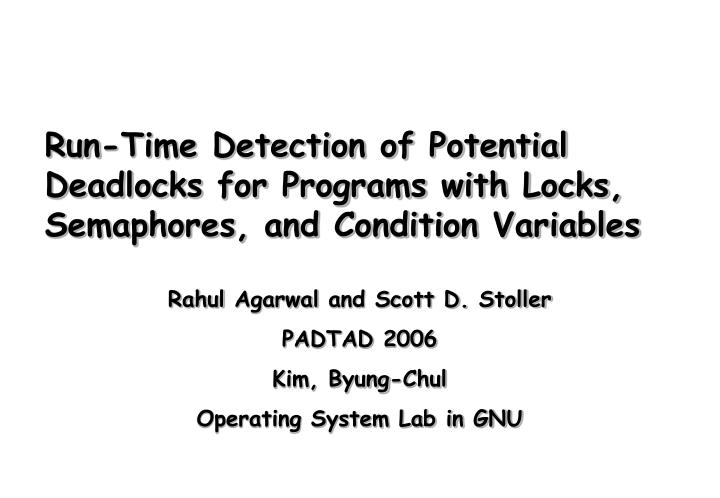

Run-Time Detection of Potential Deadlocks for Programs with Locks, Semaphores, and Condition Variables

RahulAgarwal and Scott D. Stoller

PADTAD 2006

Kim, Byung-Chul

Operating System Lab in GNU


Abstract

AgSt06

Abstract

  • Deadlock

    • A common kind of concurrency errors in concurrent programs

    • occurs when some threads are permanently blocked

    • difficult to reproduce and diagnose

  • Previous work on run-time detection of potential deadlocks

    • for only programs with locks.

  • This paper

    • defines a run-time notion of potential deadlock in such programs with locks, semaphores, and condition variables

    • presents run-time algorithms to detect potential deadlocks in programs with locks, semaphores, and condition variables


Synchronization mechanisms

AgSt06

Synchronization Mechanisms

  • Locks

    • lock acquire, and lock release operations

  • Semaphores

    • up, and down operations

  • Condition variables

    • wait, and notity/notifyAll operations

  • Fork and join

    • start and join operations


Blocking event

AgSt06

Blocking Event

  • An event is one step in the execution of a program

    • Synchronization events and access events to shared variables

  • A trace is a sequence of events in a given program

  • A event e is called a blocking event if one of the following holds

    • e is an acquire of a lock l by thread t, and l is currently held by another thread when e occurs

    • e is a wait on a condition variable

    • e is a down on a semaphore whose value is 0


Deadlock

AgSt06

Deadlock

Blocking events

t1

t2

t3

T = {T2, T3}

A trace tr deadlocks if a set T of threads in tr exists, such that the last event for each thread in T is a blocking event, and all threads in tr not in T have terminated


Feasible permutation of a trace

AgSt06

Feasible Permutation of a Trace

  • A feasible permutation of a trace is a trace that is

    • Consistent with the origin order of events from each thread

    • Consistent with the constraints imposed by synchronizations

      • Constraints by locks: no lock is held by multiple threads at the same time

      • Constraints by others: happens-before orderings


Happens before ordering

AgSt06

Happens-Before Ordering

t2.start

t1

t1

t2

t2

t1.join

  • Happens-before is a partial order on the events in an execution.

    • If event e1 happens-before event e2, then e1 must occur before e2 in all feasible permutations of the trace

  • Happens-before orderings due to start/join operations


Potential for deadlock

AgSt06

Potential for Deadlock

  • A trace has potential for deadlock, if some feasible permutation of the trace deadlocks

    • This definition considers all synchronization mechanisms together


Potential for deadlock due to locks

AgSt06

Potential for Deadlock due to Locks

  • A trace has potential for deadlock due to locks if some feasible permutation of the trace restricted to operations on locks and operations on threads deadlocks.

    • A simpler condition can be checked more efficiently but produce false alarms

    • Ignoring the effect of gate locks and thread synchronizations

  • A program has potential for deadlock due to locks ignoring gate locks (PDL-IGL) if there exist distinct threads t0,…,tm-1 and locks l0,…,lm-1 in the given trace tr such that, for all i = 0,…,m-1, ti holds lock li while acquiring lock li+1 mod m.


Rahul agarwal and scott d stoller padtad 2006 kim byung chul operating system lab in gnu

AgSt06

acquire (l4);

T4

acquire (l3);

acquire (l1);

l4

l3

release (l4);

release (l1);

l3

l1

l1

release (l3);

  • Run-time lock trees

    • keeps track of which locks are held by a thread when it acquires another lock.


Rahul agarwal and scott d stoller padtad 2006 kim byung chul operating system lab in gnu

AgSt06

T1

T4

l1

l3

l4

l3

l2

l4

l3

l1

  • Run-time lock graph G = (V, E)

    • V: all the nodes of all the run-time lock trees

    • E: tree edges or inter edges between two distinct nodes

      • tree edges: directed edges in each of the run-time lock trees

      • inter edges: bidirectional edges between nodes that are labeled with the same lock and that are in different run-time lock trees.


Rahul agarwal and scott d stoller padtad 2006 kim byung chul operating system lab in gnu

AgSt06

  • PDL-IGL holds iif the run-time lock graph G contains a valid cycle

  • A valid cycle is a cycle

    • that does not contain consecutive inter edges and

    • such that nodes from each thread appear as at most one consecutive subsequence in the cycle


Example of a lock graph

AgSt06

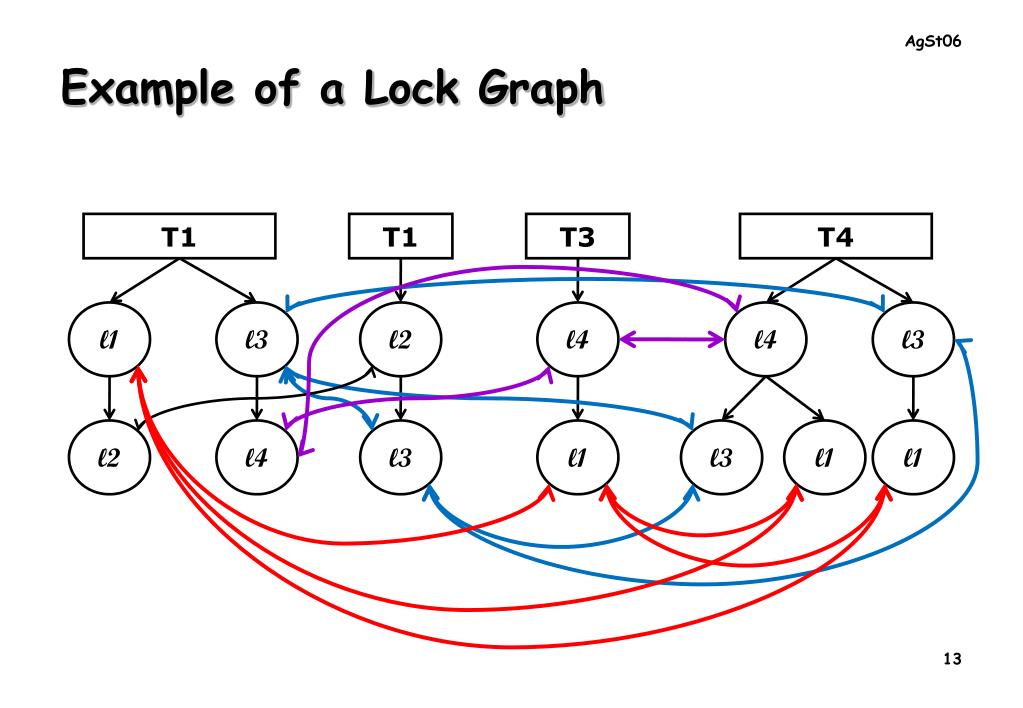

Example of a Lock Graph

T1

T1

T3

T4

l1

l3

l2

l4

l4

l3

l2

l4

l3

l1

l3

l1

l1


Non valid cycle

AgSt06

Non-Valid Cycle

T1

T1

T3

T4

l1

l3

l2

l4

l4

l3

l2

l4

l3

l1

l3

l1

l1


Non valid cycle1

AgSt06

Non-Valid Cycle

T1

T1

T3

T4

l1

l3

l2

l4

l4

l3

l2

l4

l3

l1

l3

l1

l1


Valid cycles

AgSt06

Valid Cycles

T1

T1

T3

T4

l1

l3

l2

l4

l4

l3

l2

l4

l3

l1

l3

l1

l1


Rahul agarwal and scott d stoller padtad 2006 kim byung chul operating system lab in gnu

AgSt06

lg

lg

l0

l1

l0

l1

l1

l0

l1

l0

deadlock

no deadlock

Gate Lock


Potential for deadlocks with locks pdl

AgSt06

Potential for Deadlocks with Locks (PDL)

  • A program has potential for deadlocks with locks if there exists distinct t0,…,tm-1 and lock l0,…,lm-1 such that for all i=0,…,m-1, ti holds lock li while acquiring lock li+1mod m and there not do not exist ti, tj, and l such that ti and tj hold l when acquiring li and lj, respectively.

  • The algorithm of PDL-IGL is extended for PLD

    • Each thread maintains for each edge (l, l’), a set of locks that were held but not released at the time the thread acquired lock l’ while also holding lock l.

    • After detecting a valid cycle, check if two edges in the cycle share a common lock.


Rahul agarwal and scott d stoller padtad 2006 kim byung chul operating system lab in gnu

AgSt06

lock graph for PDL-IGL

lock graph for PDL

T0

T1

T0

T1

lg

l0

lg

l1

lg

l0

lg

l1

lg,l0

lg,l1

l0

l1

l1

l0

l0

l1

l1

l0


Detection of potential for deadlock due to semaphores

AgSt06

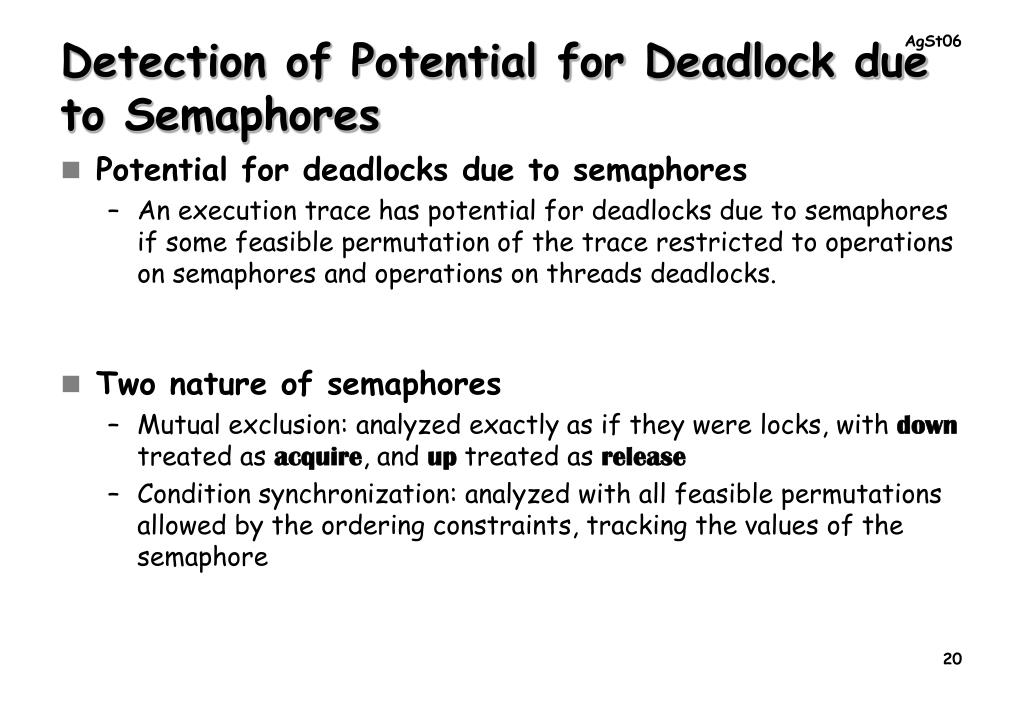

Detection of Potential for Deadlock due to Semaphores

  • Potential for deadlocks due to semaphores

    • An execution trace has potential for deadlocks due to semaphores if some feasible permutation of the trace restricted to operations on semaphores and operations on threads deadlocks.

  • Two nature of semaphores

    • Mutual exclusion: analyzed exactly as if they were locks, with down treated as acquire, and up treated as release

    • Condition synchronization: analyzed with all feasible permutations allowed by the ordering constraints, tracking the values of the semaphore


Happens before ordering due to semaphore for condition synchronization

AgSt06

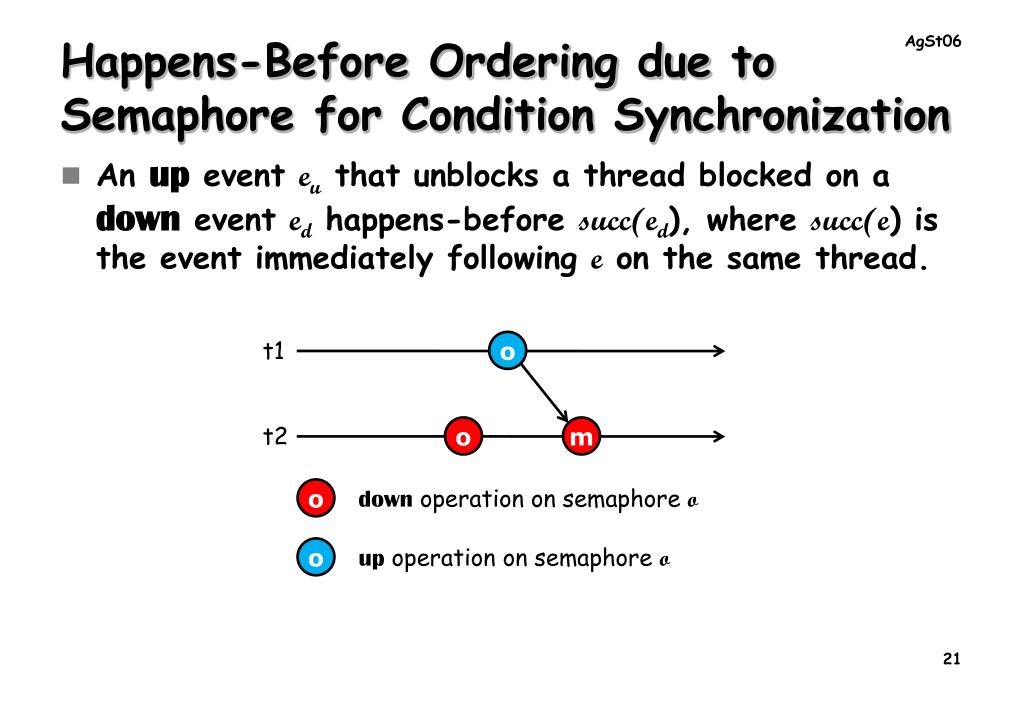

Happens-Before Ordering due to Semaphore for Condition Synchronization

o

t1

o

m

t2

o

down operation on semaphore o

o

up operation on semaphore o

  • An up event eu that unblocks a thread blocked on a down event ed happens-before succ(ed), where succ(e) is the event immediately following e on the same thread.


Deadlock free trace

AgSt06

Deadlock-free trace

t

p

o

init values

o = 1;

t = 0;

p = 0;

m = 0;

p

m

o

t1

o

p

m

o

t

p

t2

t3

t

down operation on semaphore t

t

up operation on semaphore t


Happens before ordering for the trace

AgSt06

Happens-Before Ordering for the Trace

t

p

o

p

m

o

t1

t2

o

p

m

o

t

p

t3


Feasible permutation with deadlock

AgSt06

Feasible Permutation with Deadlock

init values

o = 1;

t = 0;

p = 0;

m = 0;

t

p

p

m

t1

t2

o

o

t

p

t3


Detection of potential for lost notifies

AgSt06

Detection of Potential for Lost Notifies

  • Potential for lost notify

    • An execution trace tr has potential for lost notify if it contains a notify or notifyall event e such that there is a feasible permutation of tr in which e wakes up fewer threads than it does in tr.


Happens before ordering due to lost notifies

AgSt06

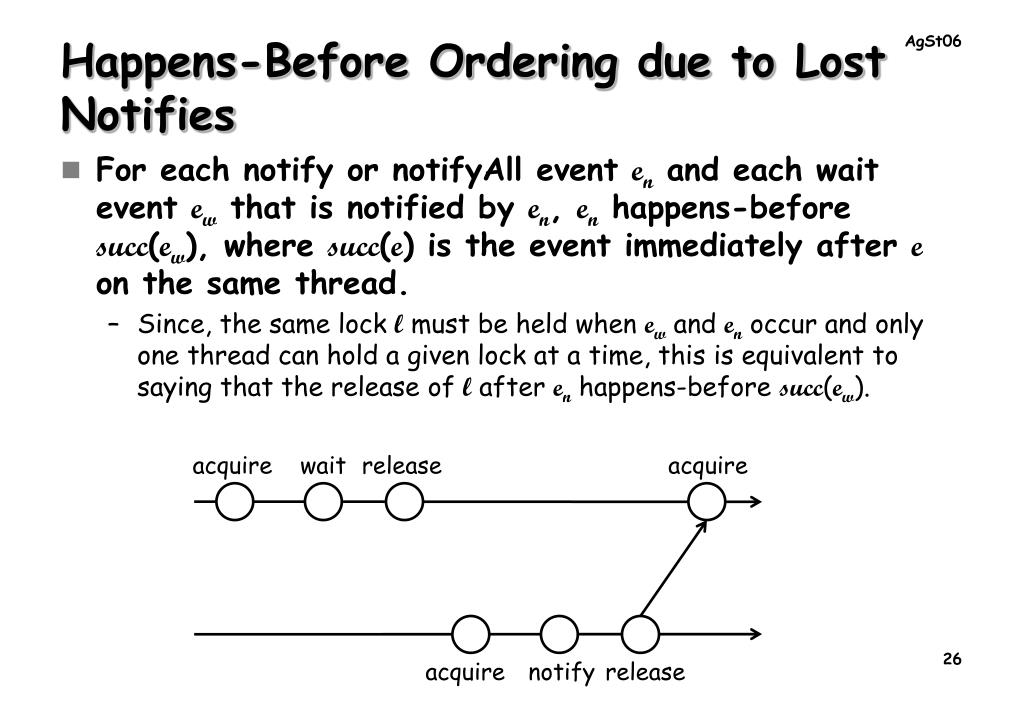

Happens-Before Ordering due to Lost Notifies

acquire

wait

release

acquire

  • For each notify or notifyAll event en and each wait event ew that is notified by en, en happens-before succ(ew), where succ(e) is the event immediately after e on the same thread.

    • Since, the same lock l must be held when ew and en occur and only one thread can hold a given lock at a time, this is equivalent to saying that the release of l after en happens-before succ(ew).

acquire

notify

release


Trace without lost notify

AgSt06

Trace without Lost Notify

acquire

wait

release

acquire

acquire

notify

release


Happens before ordering for the trace1

AgSt06

Happens-Before Ordering for the Trace

acquire

wait

release

acquire

acquire

notify

release


Feasible permutation with lost notify

AgSt06

Feasible Permutation with Lost Notify

acquire

wait

release

acquire

acquire

notify

release


Detection of potential deadlocks due to locks condition variables and semaphores

AgSt06

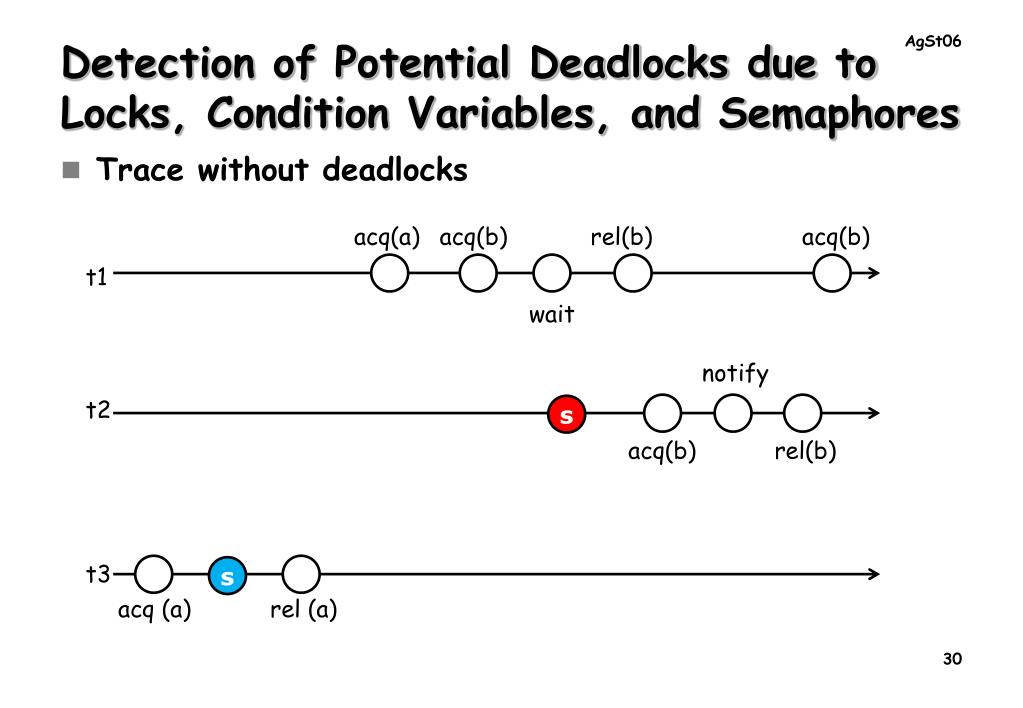

Detection of Potential Deadlocks due to Locks, Condition Variables, and Semaphores

acq(a)

acq(b)

rel(b)

acq(b)

t1

wait

notify

t2

s

acq(b)

rel(b)

t3

s

acq (a)

rel (a)

Trace without deadlocks


Rahul agarwal and scott d stoller padtad 2006 kim byung chul operating system lab in gnu

AgSt06

acq(a)

acq(b)

rel(b)

acq(b)

t1

wait

notify

t2

s

acq(b)

rel(b)

t3

s

acq (a)

rel (a)

Happens-before ordering for the trace


Rahul agarwal and scott d stoller padtad 2006 kim byung chul operating system lab in gnu

AgSt06

acq(a)

acq(b)

t1

wait

t2

s

t3

acq (a)

Feasible permutation with deadlock


Rahul agarwal and scott d stoller padtad 2006 kim byung chul operating system lab in gnu

AgSt06

acq(a)

acq(b)

rel(b)

acq(b)

t1

wait

notify

t2

s

acq(b)

rel(b)

t3

s

acq (a)

rel (a)

Feasible permutation with lost notifies
