Chapter 7 generating and processing random signals

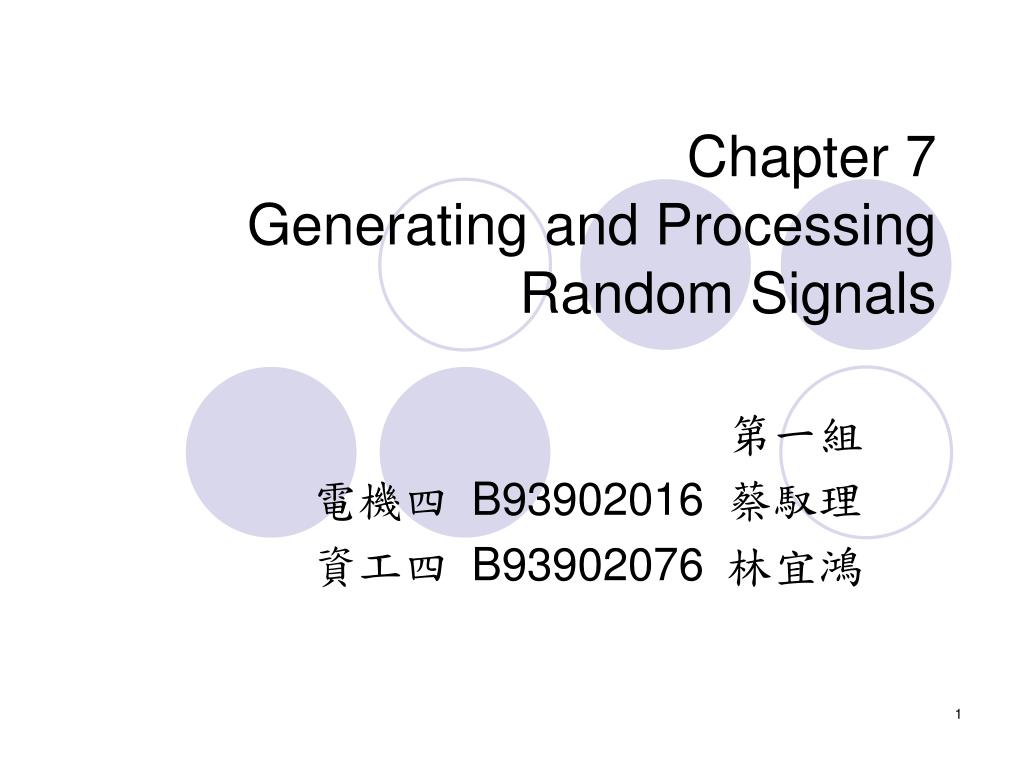

Chapter 7Generating and Processing Random Signals

第一組

電機四 B93902016蔡馭理

資工四 B93902076林宜鴻

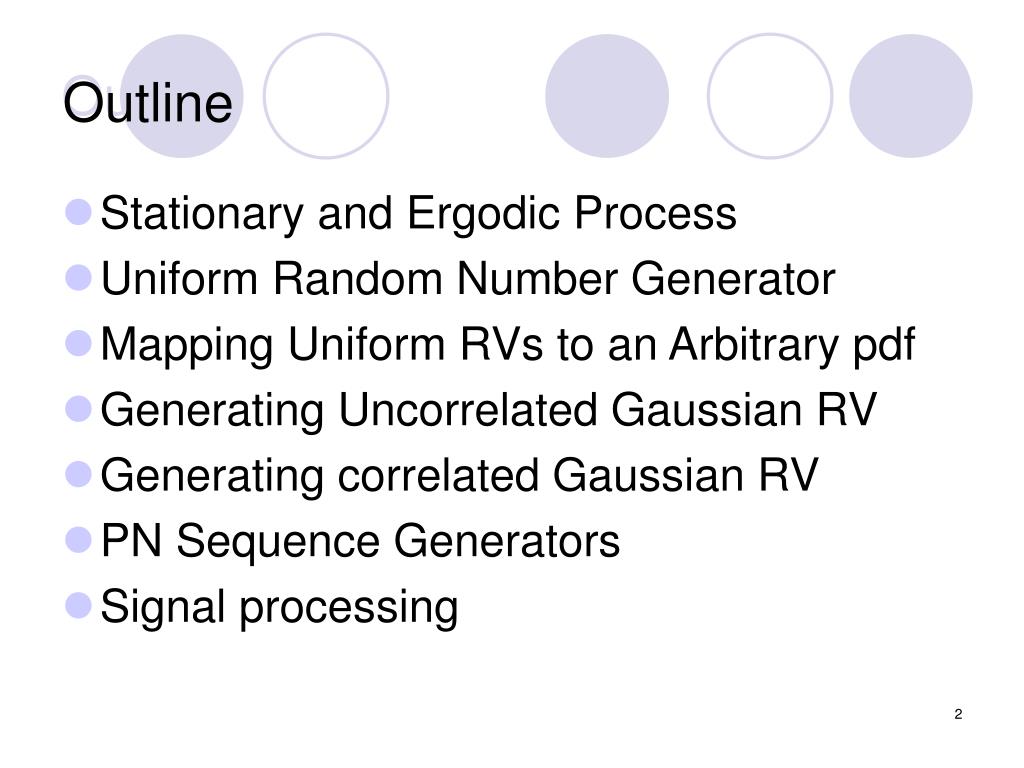

Outline

Outline

Outline

  • Stationary and Ergodic Process

  • Uniform Random Number Generator

  • Mapping Uniform RVs to an Arbitrary pdf

  • Generating Uncorrelated Gaussian RV

  • Generating correlated Gaussian RV

  • PN Sequence Generators

  • Signal processing


Random number generator

Random Number Generator

  • Noise, interference

  • Random Number Generator- computational or physical device designed to generate a sequence of numbers or symbols that lack any pattern, i.e. appear random, pseudo-random sequence

  • MATLAB - rand(m,n) , randn(m,n)


Stationary and ergodic process

Stationary and Ergodic Process

  • strict-sense stationary (SSS)

  • wide-sense stationary (WSS)

    Gaussian

  • SSS =>WSS ; WSS=>SSS

  • Time average v.s ensemble average

  • The ergodicity requirement is that the ensemble average coincide with the time average

  • Sample function generated to represent signals, noise, interference should be ergodic


Time average v s ensemble average

Time average

ensemble average

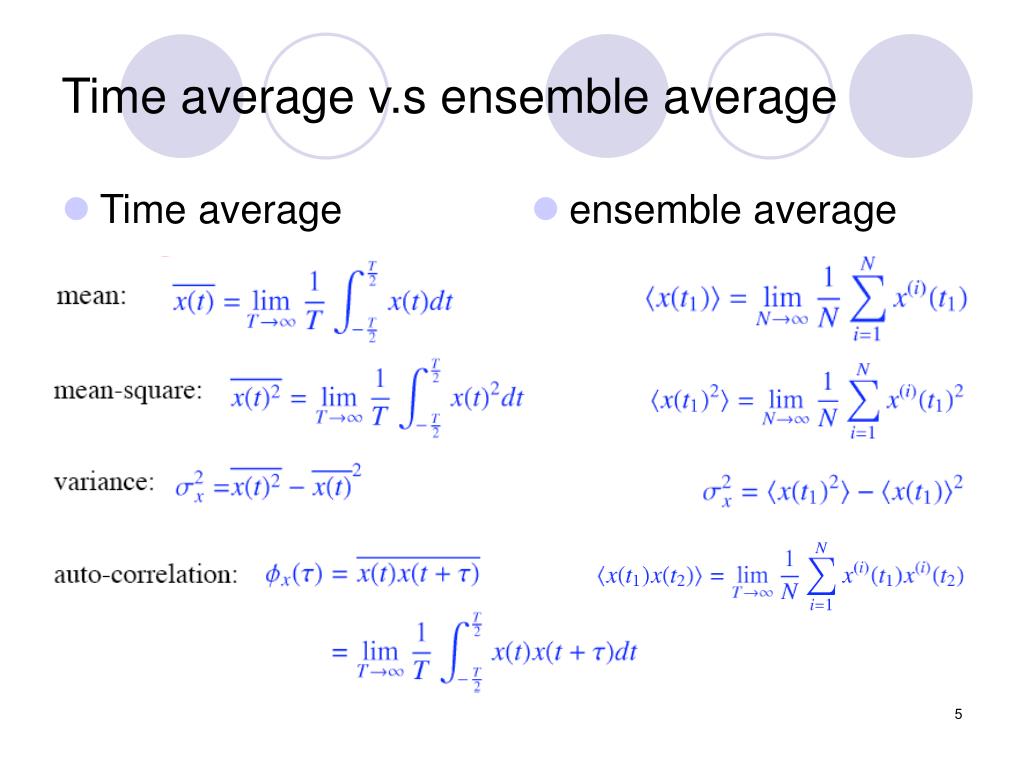

Time average v.s ensemble average


Example 7 1 n 100

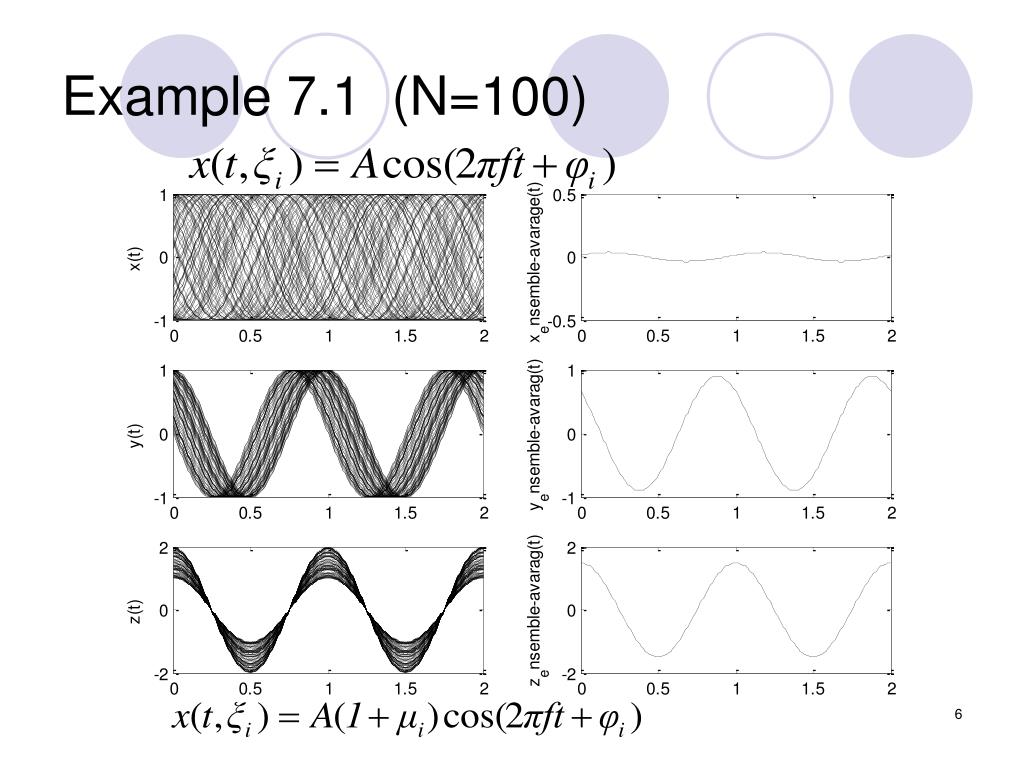

Example 7.1 (N=100)


Uniform random number genrator

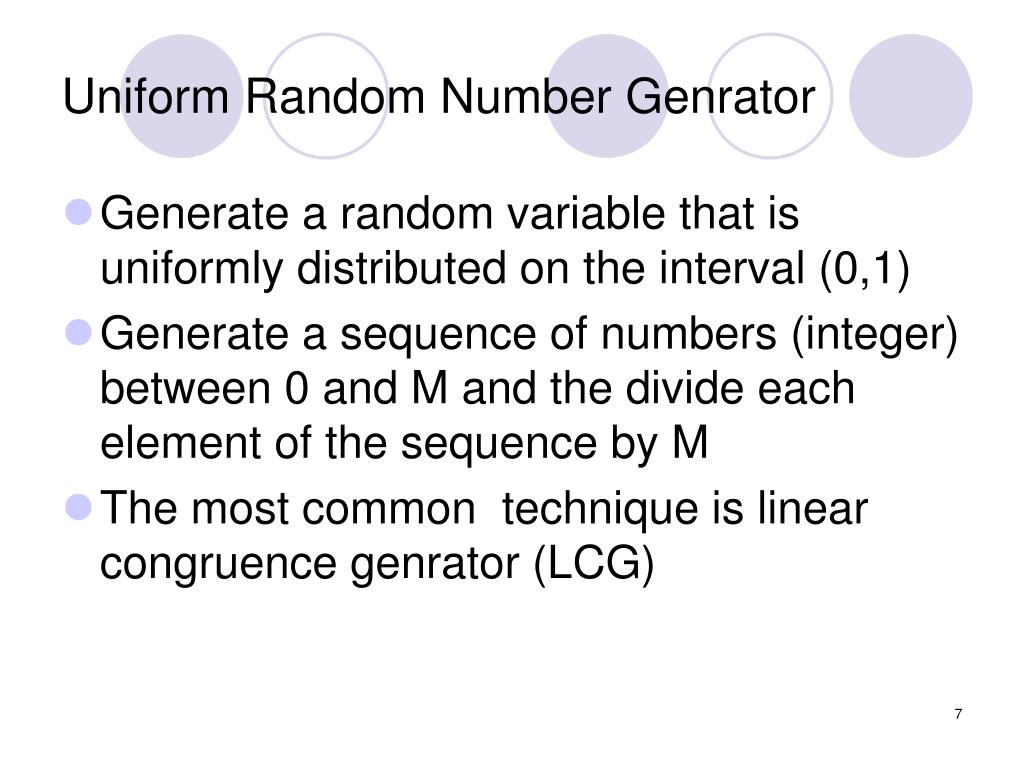

Uniform Random Number Genrator

  • Generate a random variable that is uniformly distributed on the interval (0,1)

  • Generate a sequence of numbers (integer) between 0 and M and the divide each element of the sequence by M

  • The most common technique is linear congruence genrator (LCG)


Linear congruence

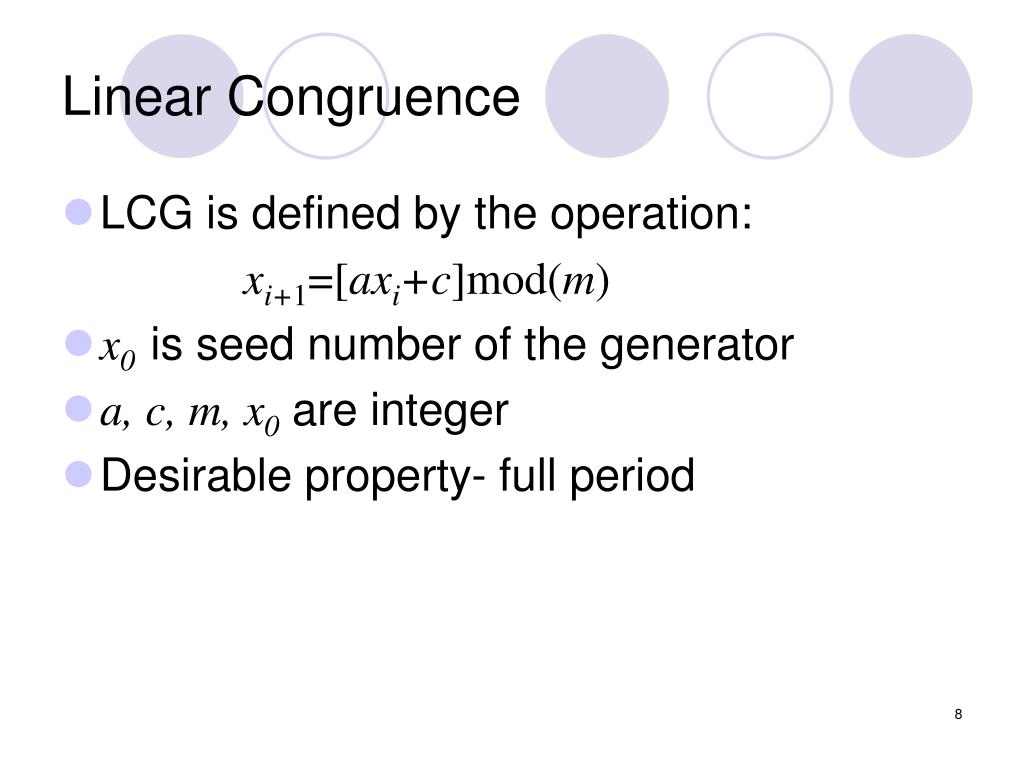

Linear Congruence

  • LCG is defined by the operation:

    xi+1=[axi+c]mod(m)

  • x0 is seed number of the generator

  • a, c, m, x0 are integer

  • Desirable property- full period

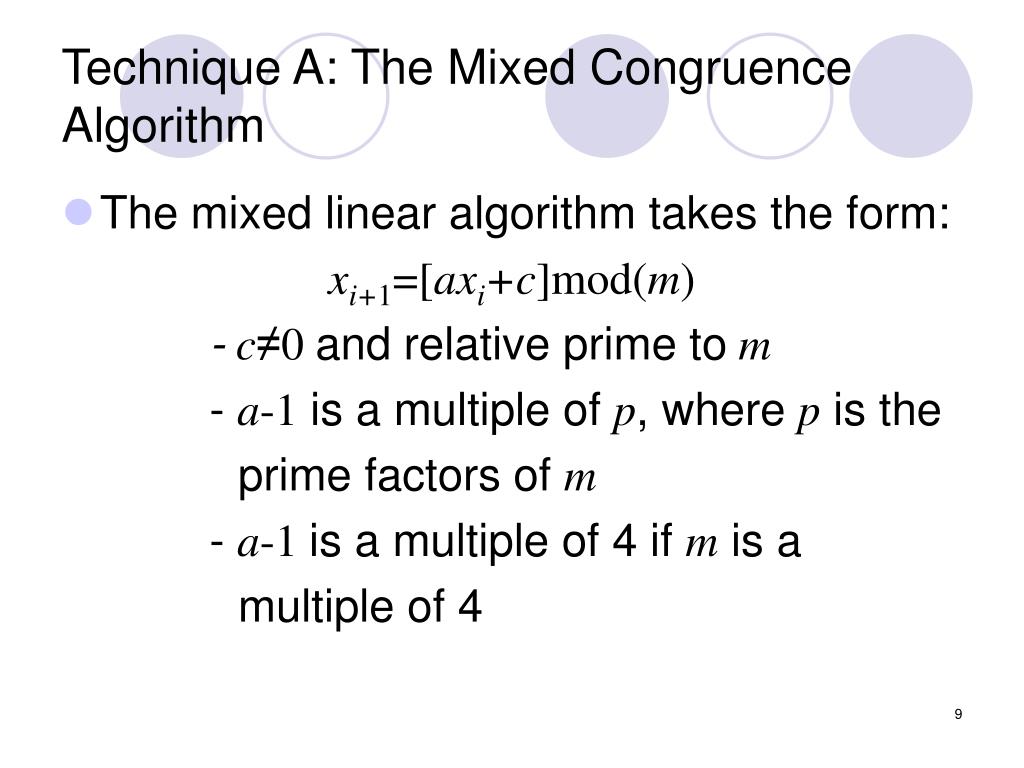

Technique a the mixed congruence algorithm

Technique A: The Mixed Congruence Algorithm

  • The mixed linear algorithm takes the form:

    xi+1=[axi+c]mod(m)

    - c≠0 and relative prime tom

    - a-1 is a multiple of p, where p is the

    prime factors of m

    - a-1 is a multiple of 4 ifm is a

    multiple of 4


Example 7 4

Example 7.4

  • m=5000=(23)(54)

  • c=(33)(72)=1323

  • a-1=k1‧2 or k2‧5 or 4‧k3

    so, a-1=4‧2‧5‧k =40k

  • With k=6, we have a=241

    xi+1=[241xi+ 1323]mod(5000)

  • We can verify the period is 5000, so it’s full period


Technique b the multiplication algorithm with prime modulus

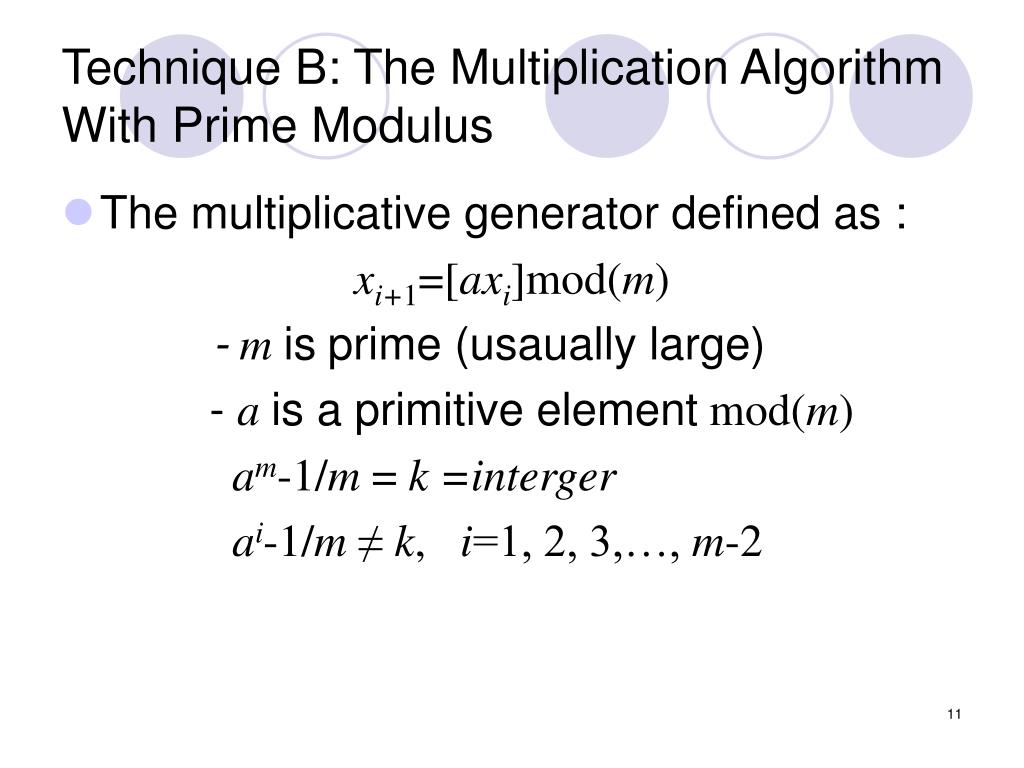

Technique B: The Multiplication Algorithm With Prime Modulus

  • The multiplicative generator defined as :

    xi+1=[axi]mod(m)

    - m isprime (usaually large)

    - a is a primitive elementmod(m)

    am-1/m = k =interger

    ai-1/m ≠ k, i=1, 2, 3,…, m-2


Technique c the multiplication algorithm with nonprime modulus

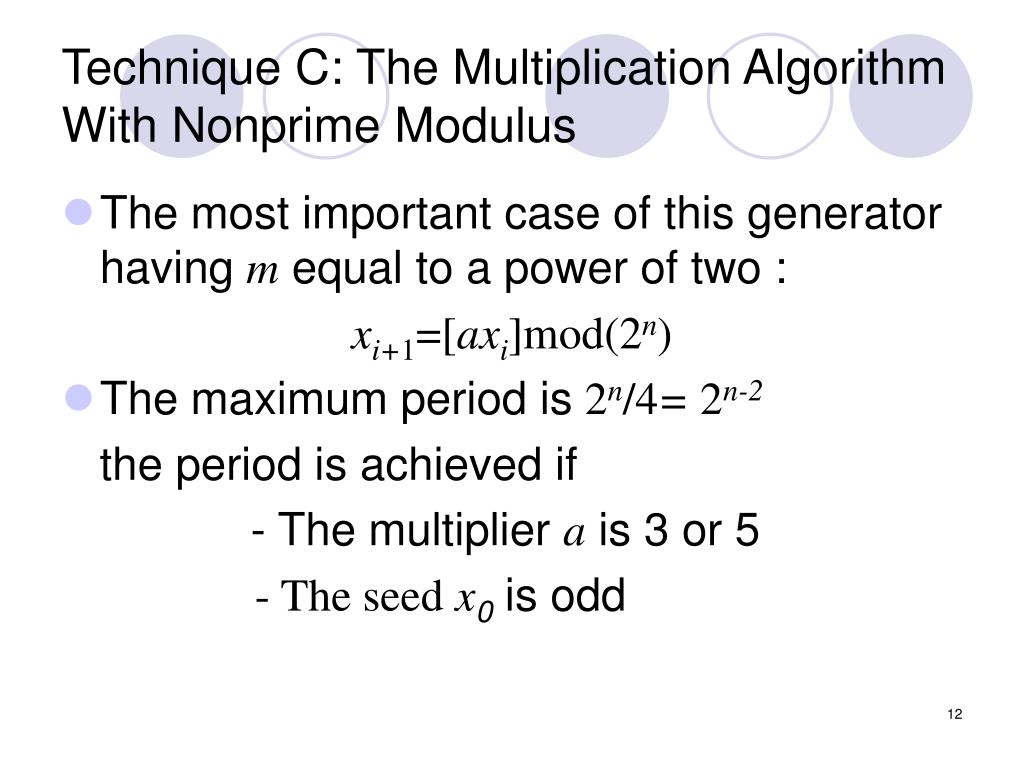

Technique C: The Multiplication Algorithm With Nonprime Modulus

  • The most important case of this generator having m equal to a power of two :

    xi+1=[axi]mod(2n)

  • The maximum period is 2n/4= 2n-2

    the period is achieved if

    - The multiplier a is 3 or 5

    - The seed x0is odd


Example of multiplication algorithm with nonprime modulus

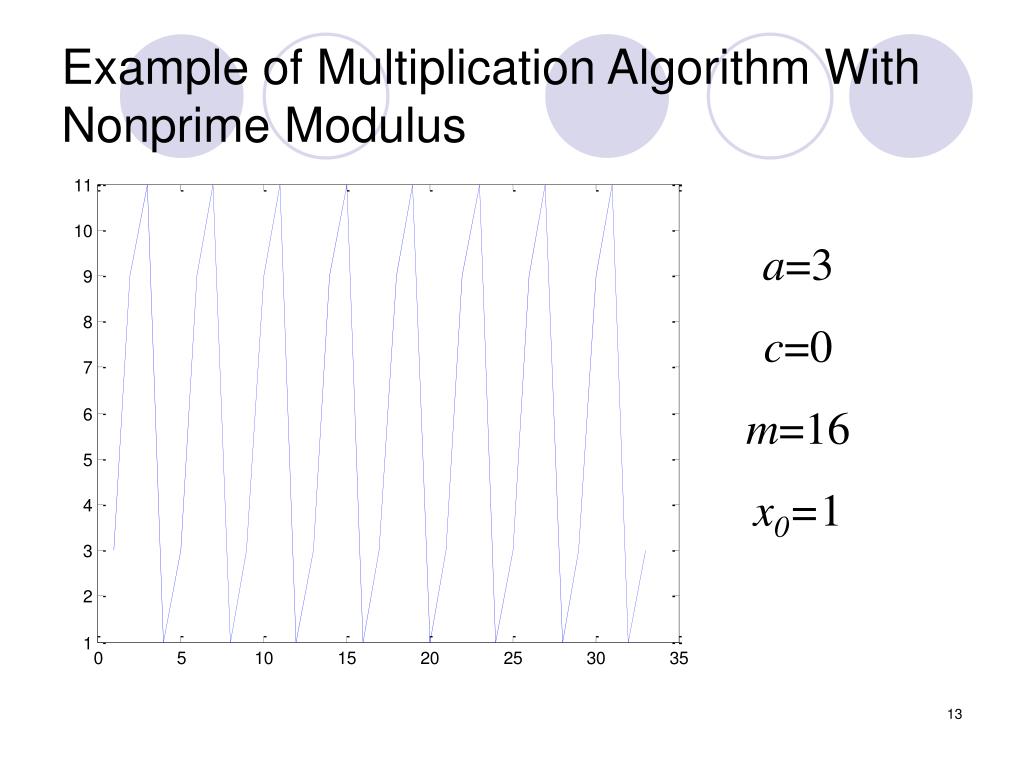

Example of Multiplication Algorithm With Nonprime Modulus

a=3

c=0

m=16

x0=1


Testing random number generator

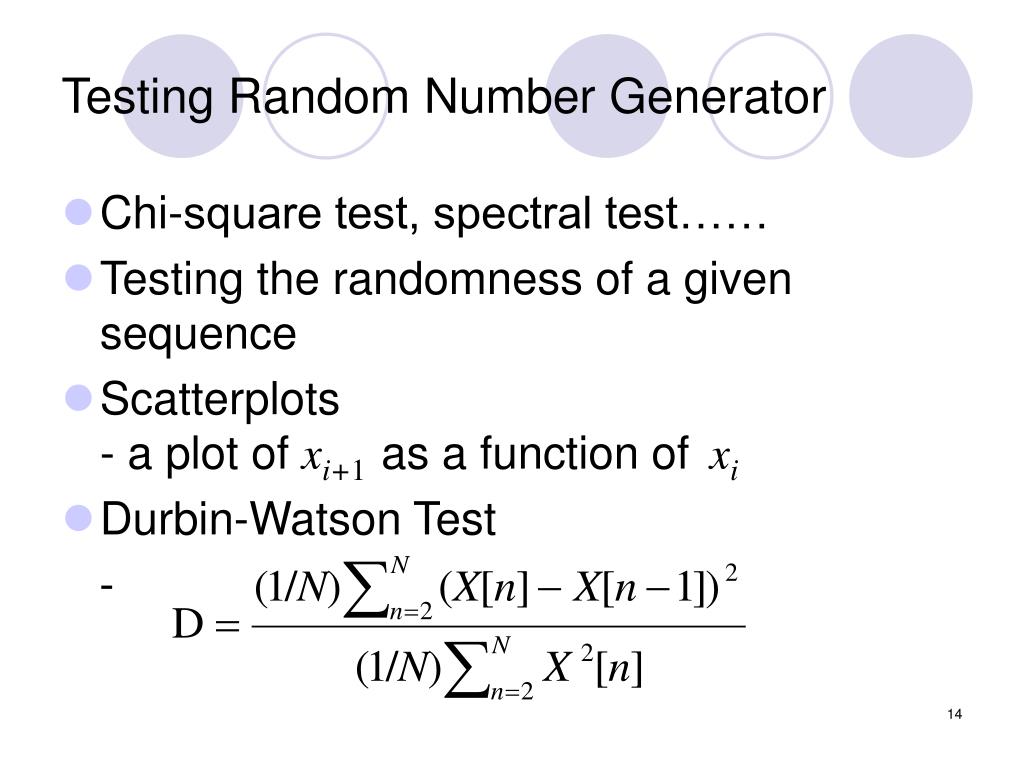

Testing Random Number Generator

  • Chi-square test, spectral test……

  • Testing the randomness of a given sequence

  • Scatterplots- a plot of xi+1 as a function of xi

  • Durbin-Watson Test

    -


Scatterplots example 7 5

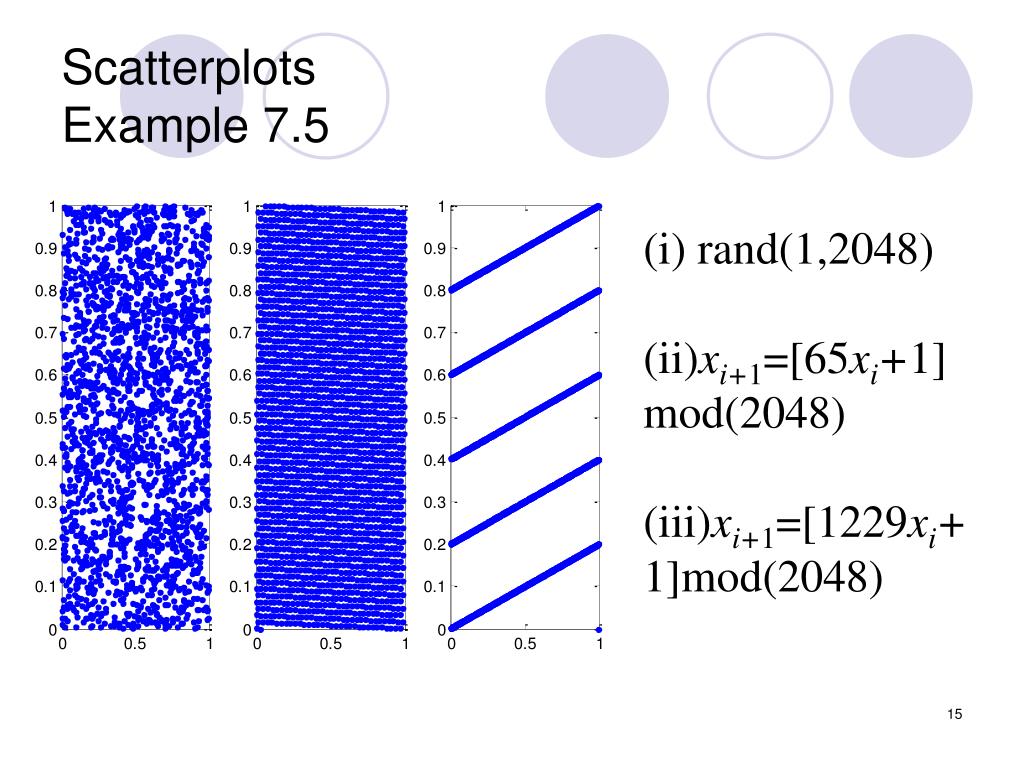

ScatterplotsExample 7.5

(i)rand(1,2048)

(ii)xi+1=[65xi+1]mod(2048)

(iii)xi+1=[1229xi+1]mod(2048)


Durbin watson test 1

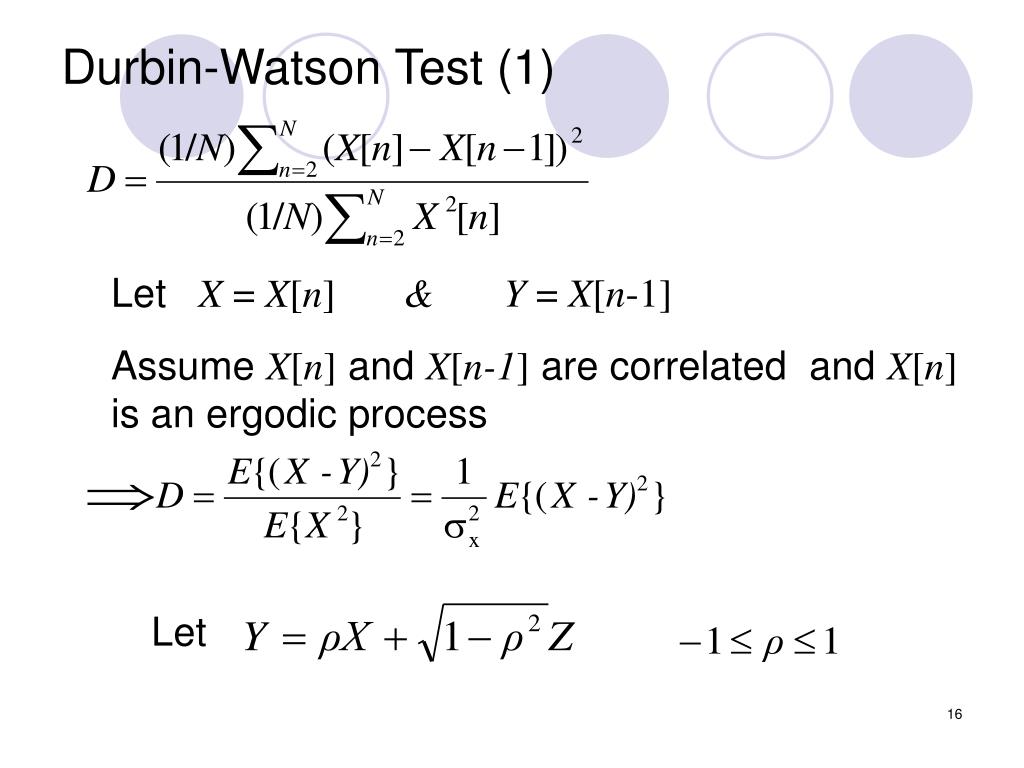

Durbin-Watson Test (1)

Let X = X[n]

& Y = X[n-1]

Assume X[n] and X[n-1] are correlated and X[n] is an ergodic process

Let


Durbin watson test 2

Durbin-Watson Test (2)

X and Z are uncorrelated and zero mean

D>2 – negative correlation

D=2 –-uncorrelation (most desired)

D<2 – positive correlation


Example 7 6

Example 7.6

  • rand(1,2048) - The value of D is 2.0081 and ρ is 0.0041.

  • xi+1=[65xi+1]mod(2048) - The value of D is 1.9925 and ρ is 0.0037273.

  • xi+1=[1229xi+1]mod(2048) - The value of D is 1.6037 and ρ is 0.19814.


Minimum standards

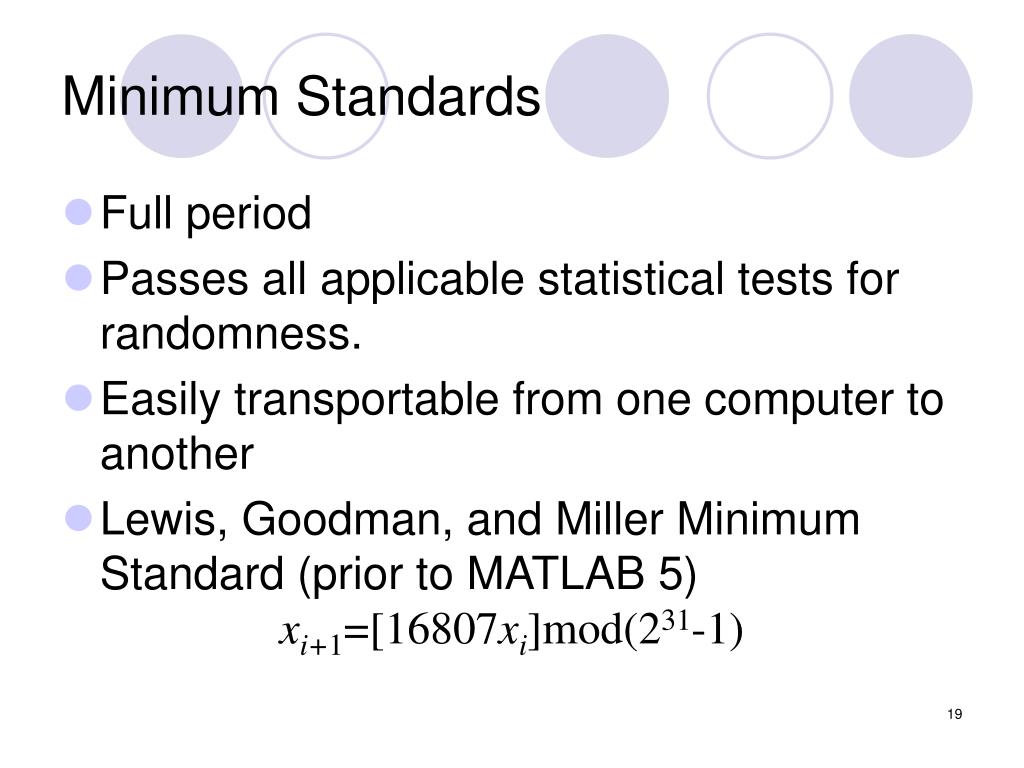

Minimum Standards

  • Full period

  • Passes all applicable statistical tests for randomness.

  • Easily transportable from one computer to another

  • Lewis, Goodman, and Miller Minimum Standard (prior to MATLAB 5)

    xi+1=[16807xi]mod(231-1)


Mapping uniform rvs to an arbitrary pdf

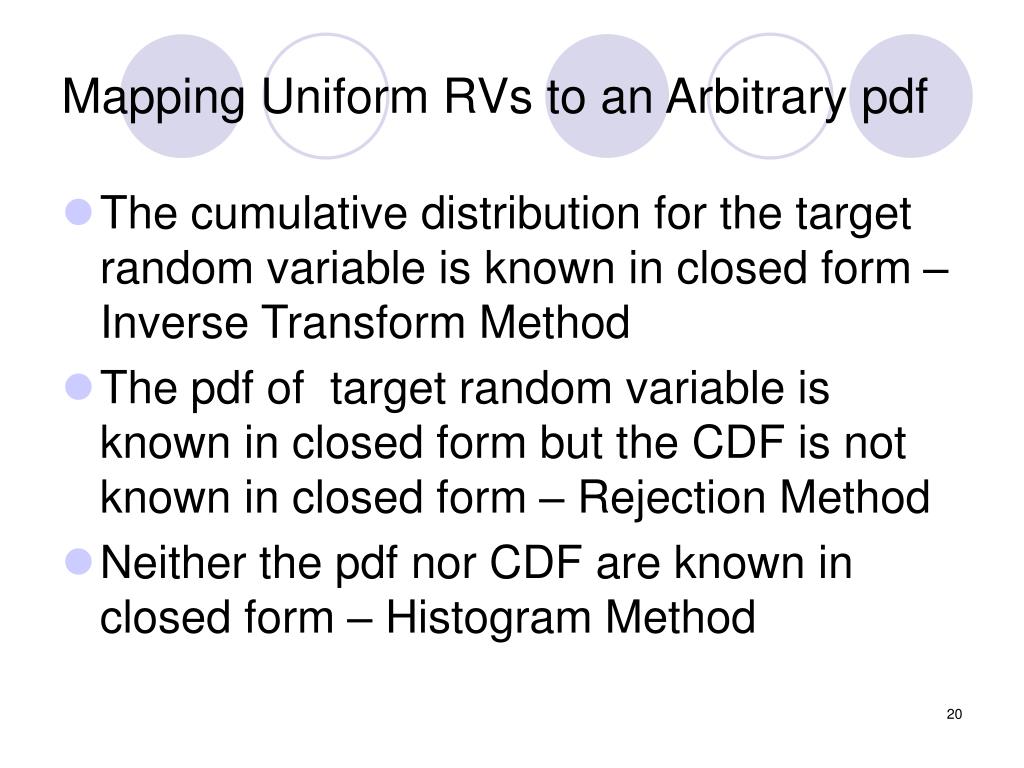

Mapping Uniform RVs to an Arbitrary pdf

  • The cumulative distribution for the target random variable is known in closed form – Inverse Transform Method

  • The pdf of target random variable is known in closed form but the CDF is not known in closed form – Rejection Method

  • Neither the pdf nor CDF are known in closed form – Histogram Method


Inverse transform method

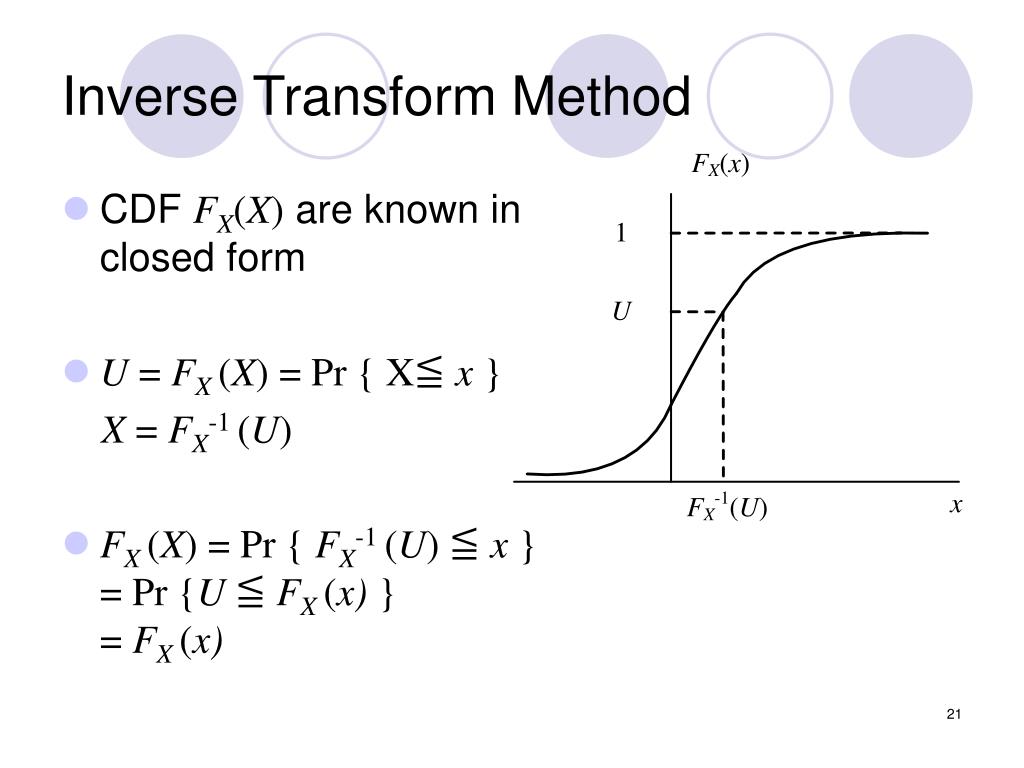

Inverse Transform Method

  • CDF FX(X) are known in closed form

  • U = FX (X) = Pr { X≦ x }

    X = FX-1(U)

  • FX (X) = Pr { FX-1(U) ≦ x } = Pr {U≦ FX (x) }= FX (x)


Example 7 8 1

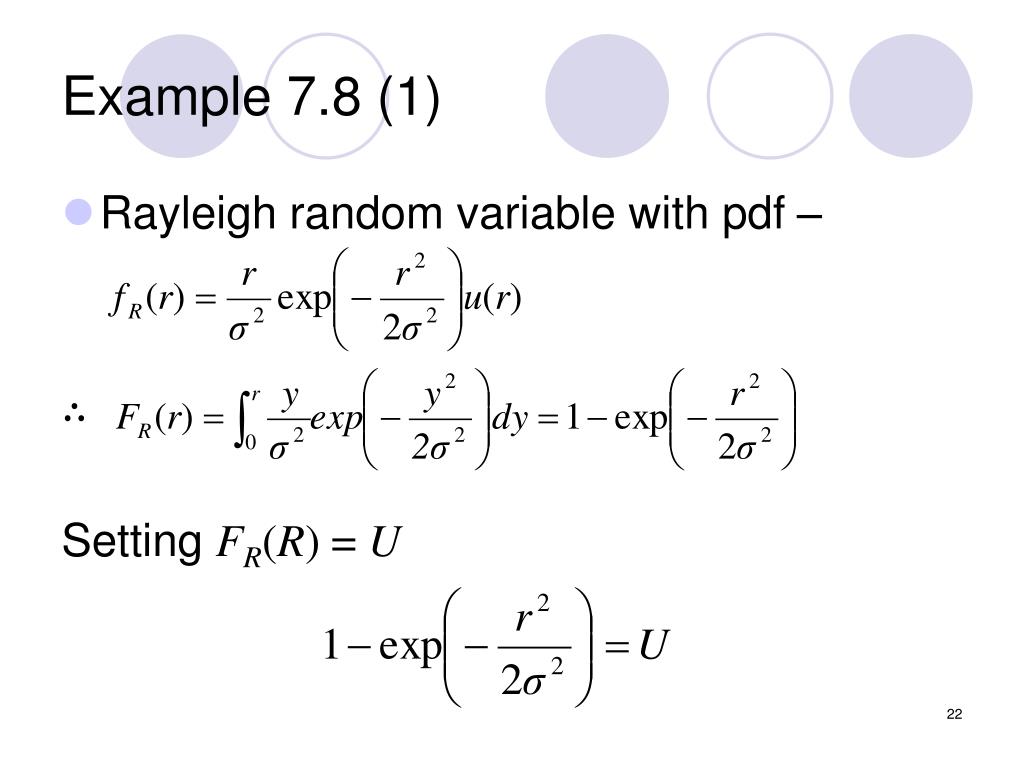

Example 7.8 (1)

  • Rayleigh random variable with pdf –

    Setting FR(R) = U


Example 7 8 2

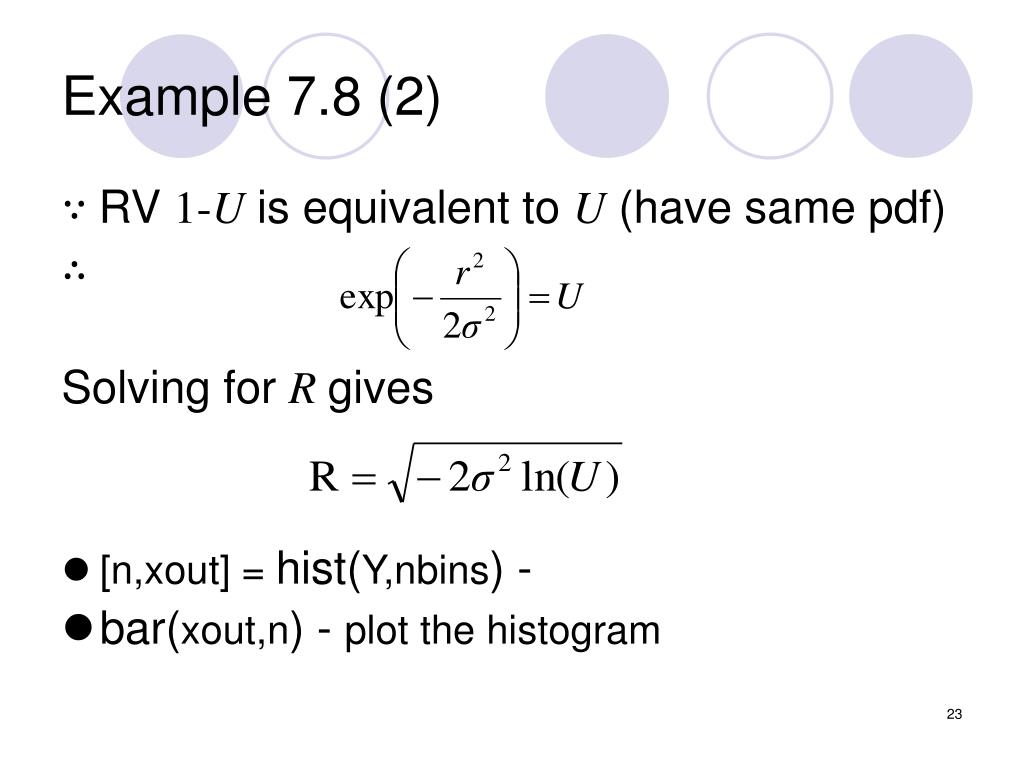

Example 7.8 (2)

∵RV 1-U is equivalent to U (have same pdf)

Solving for R gives

  • [n,xout] = hist(Y,nbins) -

  • bar(xout,n) - plot the histogram

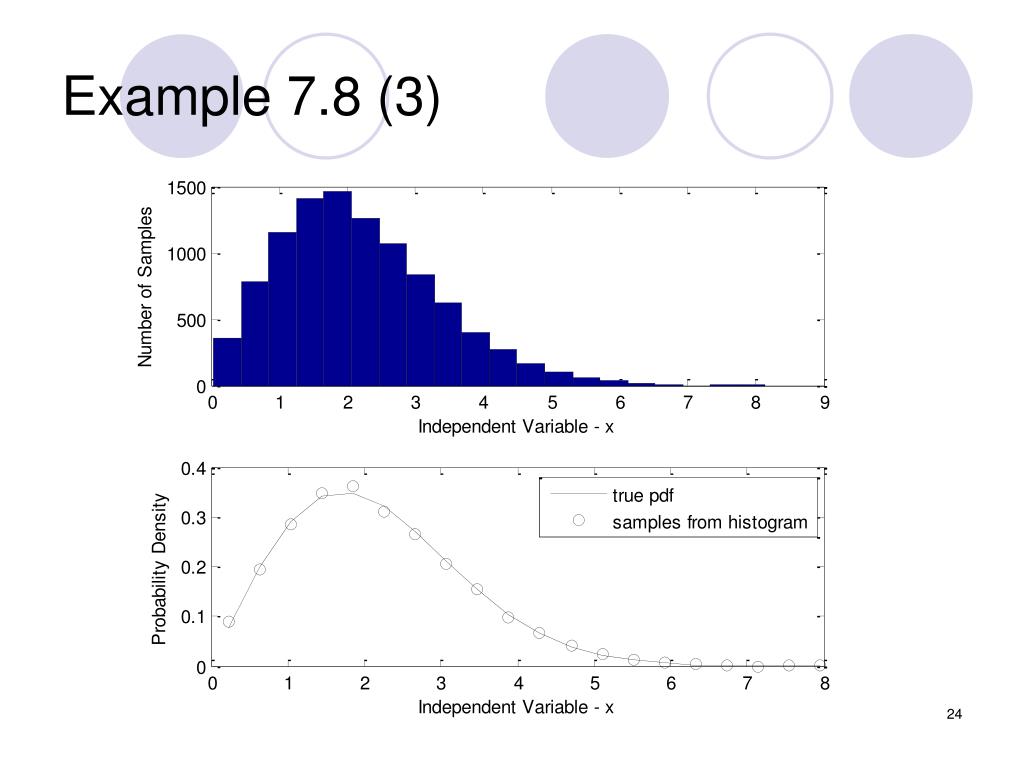

Example 7 8 3

Example 7.8 (3)


The histogram method

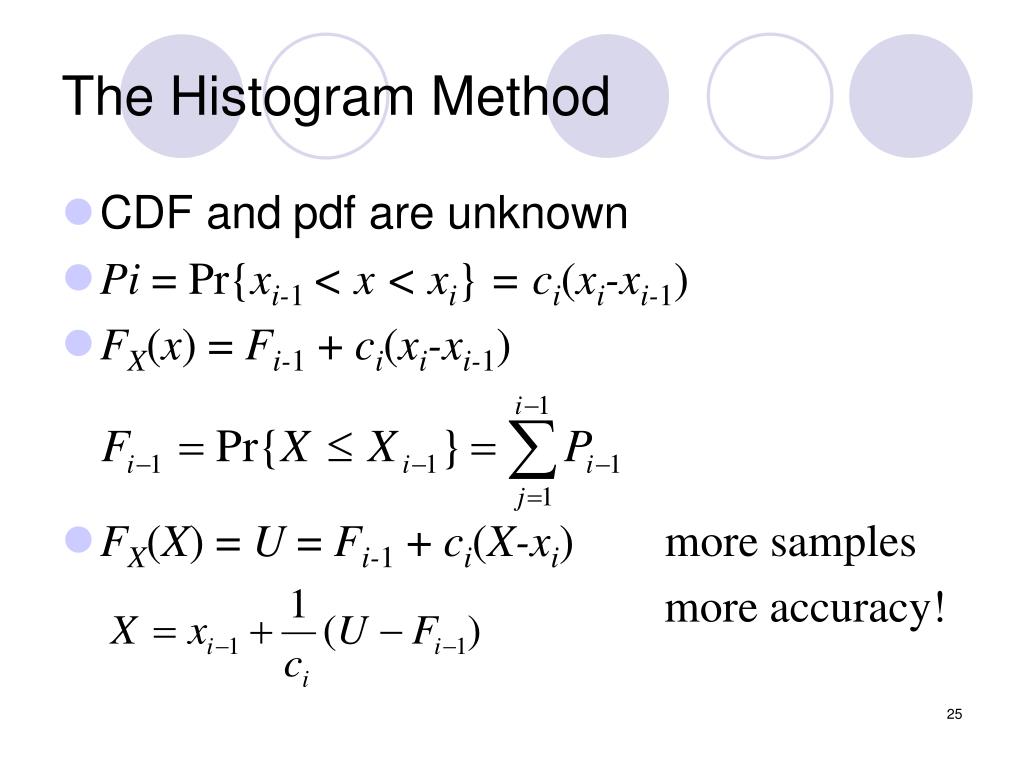

The Histogram Method

  • CDF andpdf are unknown

  • Pi =Pr{xi-1 < x < xi} = ci(xi-xi-1)

  • FX(x) = Fi-1 + ci(xi-xi-1)

  • FX(X) = U = Fi-1 + ci(X-xi) more samples

    more accuracy!


Rejection methods 1

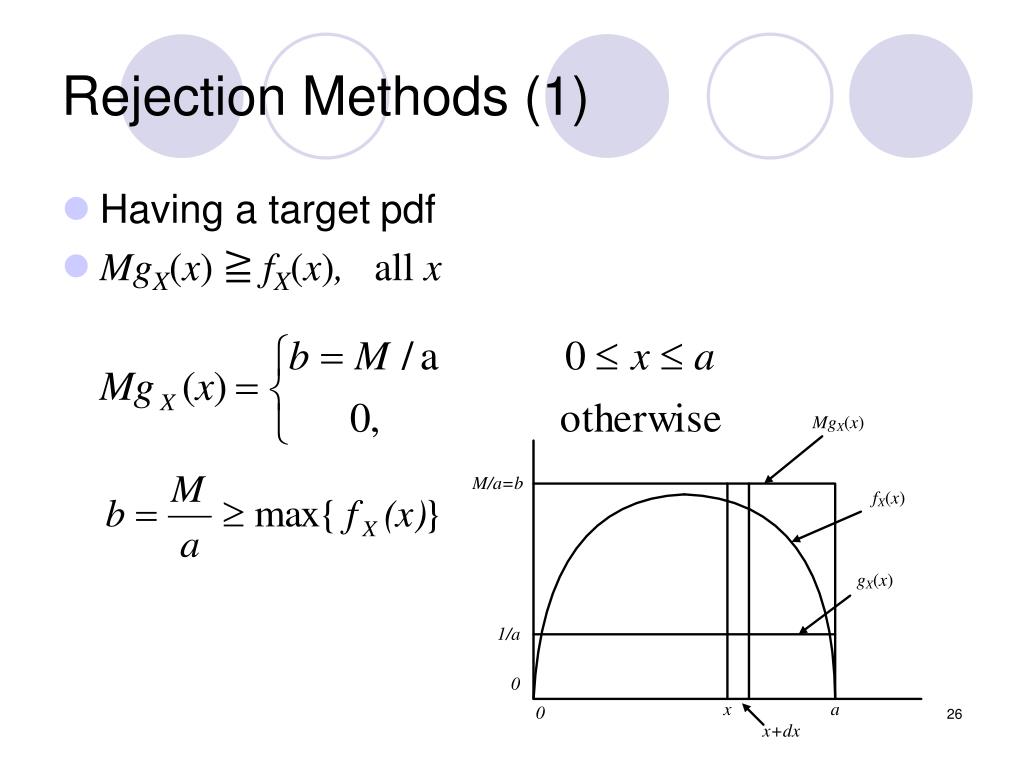

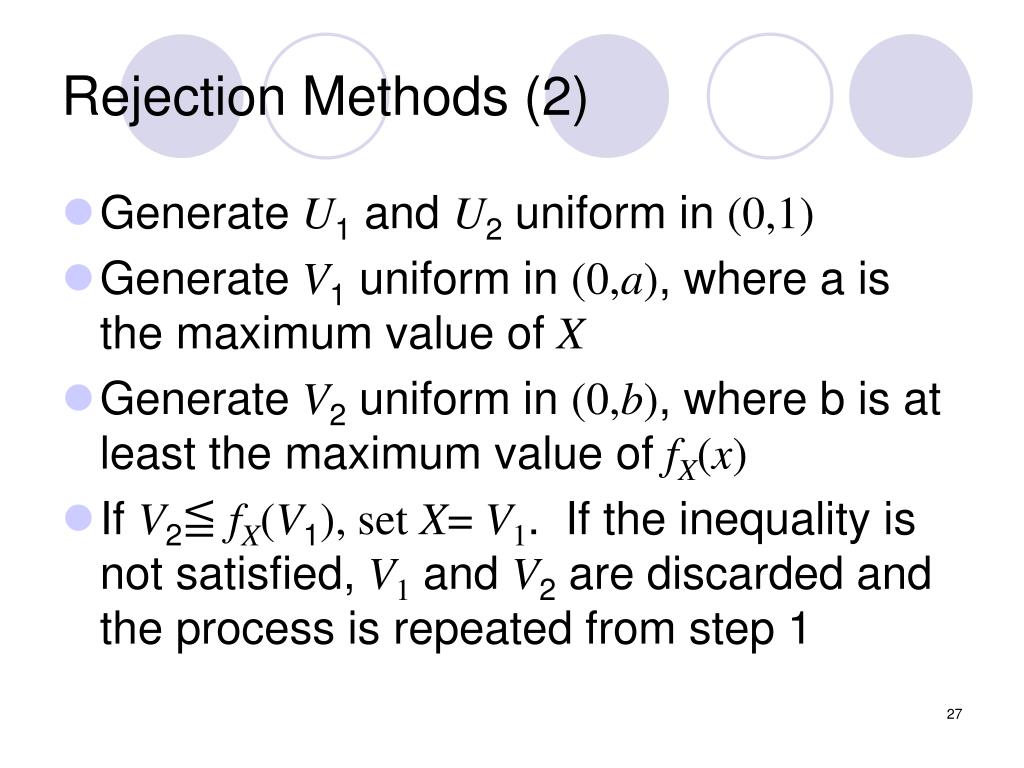

Rejection Methods (1)

  • Having a targetpdf

  • MgX(x)≧ fX(x), all x


Rejection methods 2

Rejection Methods (2)

  • Generate U1 and U2 uniform in (0,1)

  • Generate V1 uniform in (0,a), where a is the maximum value of X

  • Generate V2 uniform in (0,b), where b is at least the maximum value of fX(x)

  • If V2≦ fX(V1), set X= V1. If the inequality is not satisfied, V1 and V2 are discarded and the process is repeated from step 1


Example 7 9 1

Example 7.9 (1)


Example 7 9 2

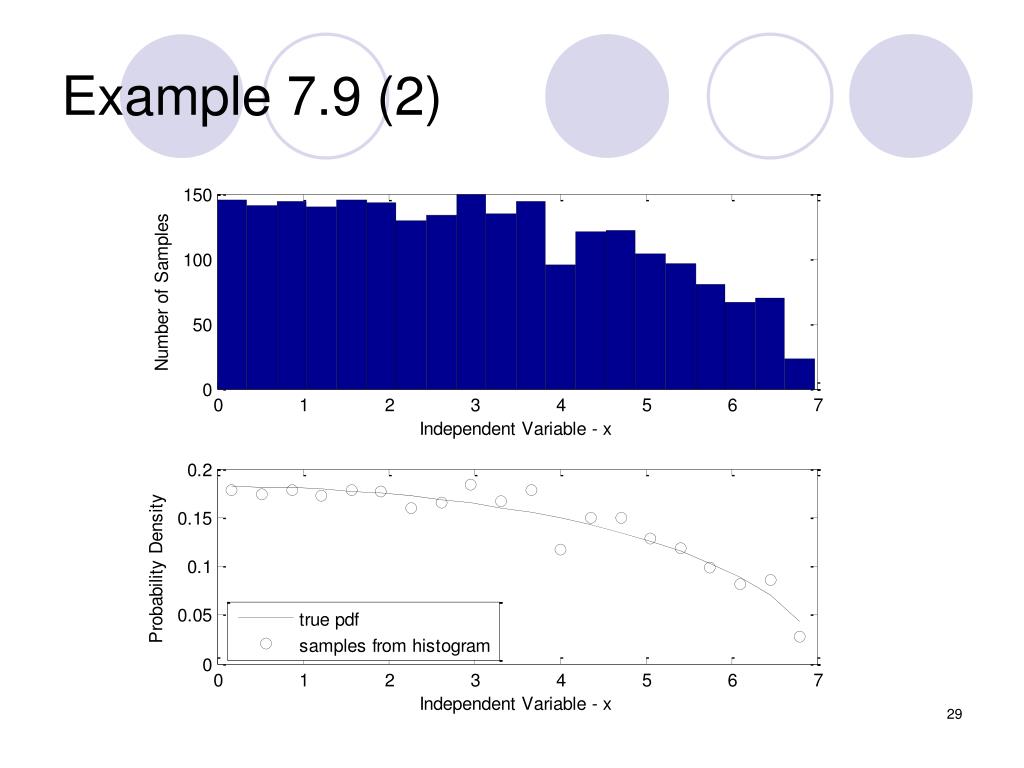

Example 7.9 (2)


Generating uncorrelated gaussian rv

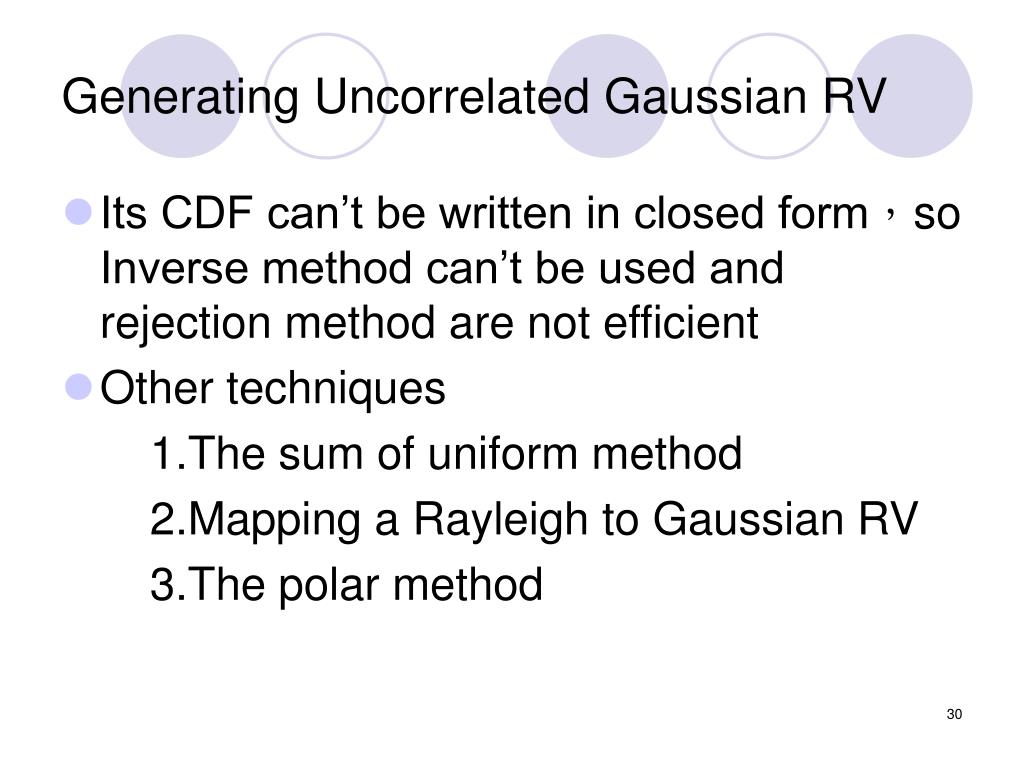

Generating Uncorrelated Gaussian RV

  • Its CDF can’t be written in closed form,so Inverse method can’t be used and rejection method are not efficient

  • Other techniques

    1.The sum of uniform method

    2.Mapping a Rayleigh to Gaussian RV

    3.The polar method


The sum of uniforms method 1

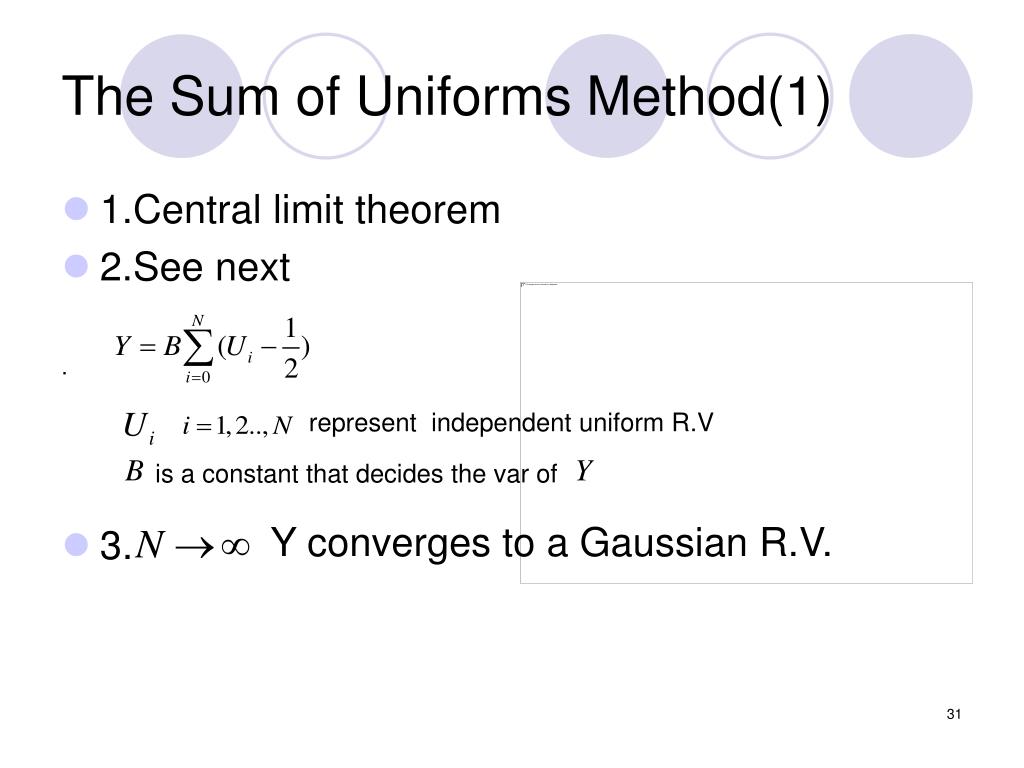

The Sum of Uniforms Method(1)

  • 1.Central limit theorem

  • 2.See next

    .

  • 3.

represent independent uniform R.V

is a constant that decides the var of

Y converges to a Gaussian R.V.


The sum of uniforms method 2

The Sum of Uniforms Method(2)

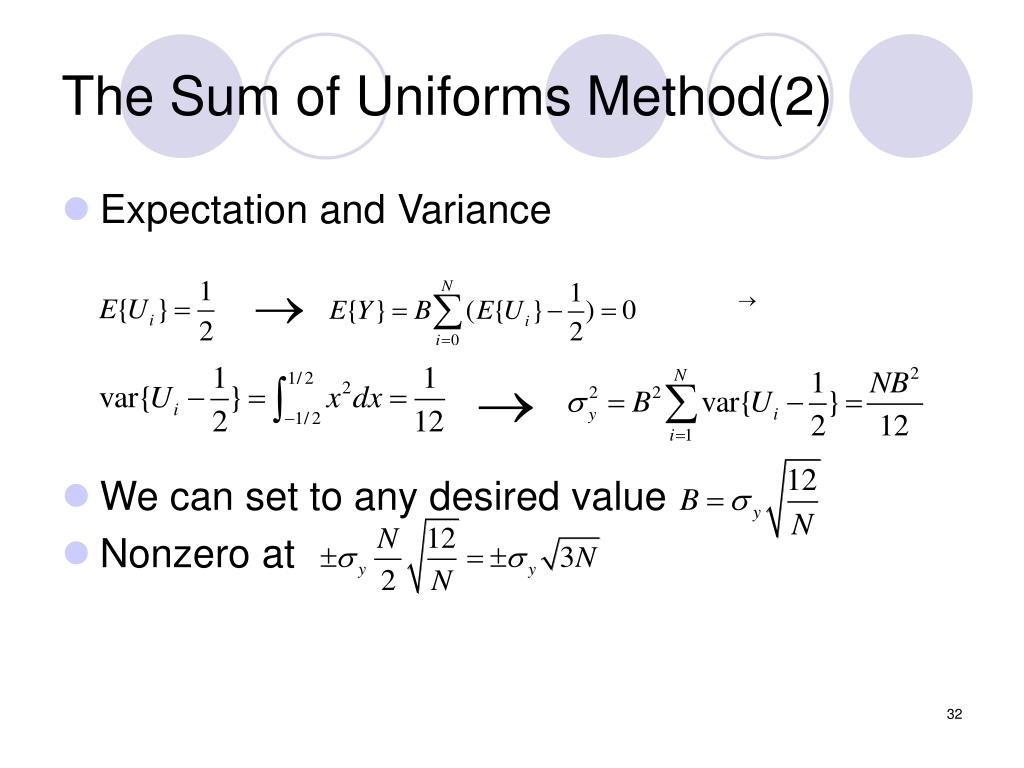

  • Expectation and Variance

  • We can set to any desired value

  • Nonzero at


The sum of uniforms method 3

The Sum of Uniforms Method(3)

  • Approximate Gaussian

  • Maybe not a realistic situation.


Mapping a rayleigh to gaussian rv 1

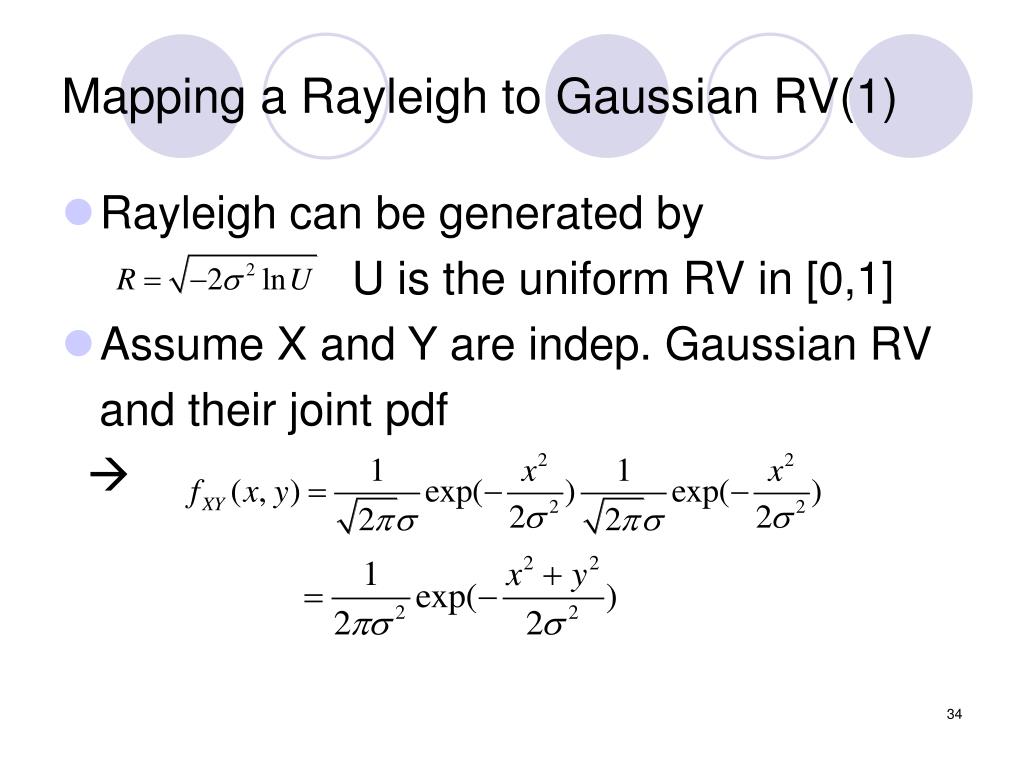

Mapping a Rayleigh to Gaussian RV(1)

  • Rayleigh can be generated by

    U is the uniform RV in [0,1]

  • Assume X and Y are indep. Gaussian RV

    and their joint pdf


Mapping a rayleigh to gaussian rv 2

Mapping a Rayleigh to Gaussian RV(2)

  • Transform

     let and

     and


Mapping a rayleigh to gaussian rv 3

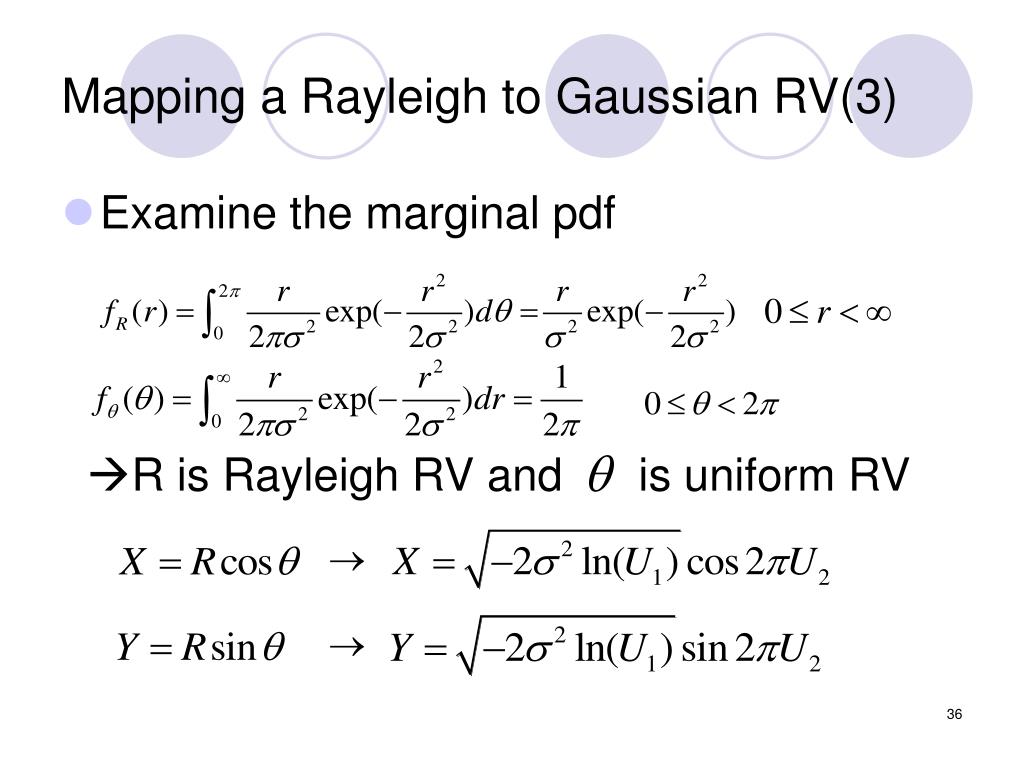

Mapping a Rayleigh to Gaussian RV(3)

  • Examine the marginal pdf

    R is Rayleigh RV and is uniform RV


The polar method

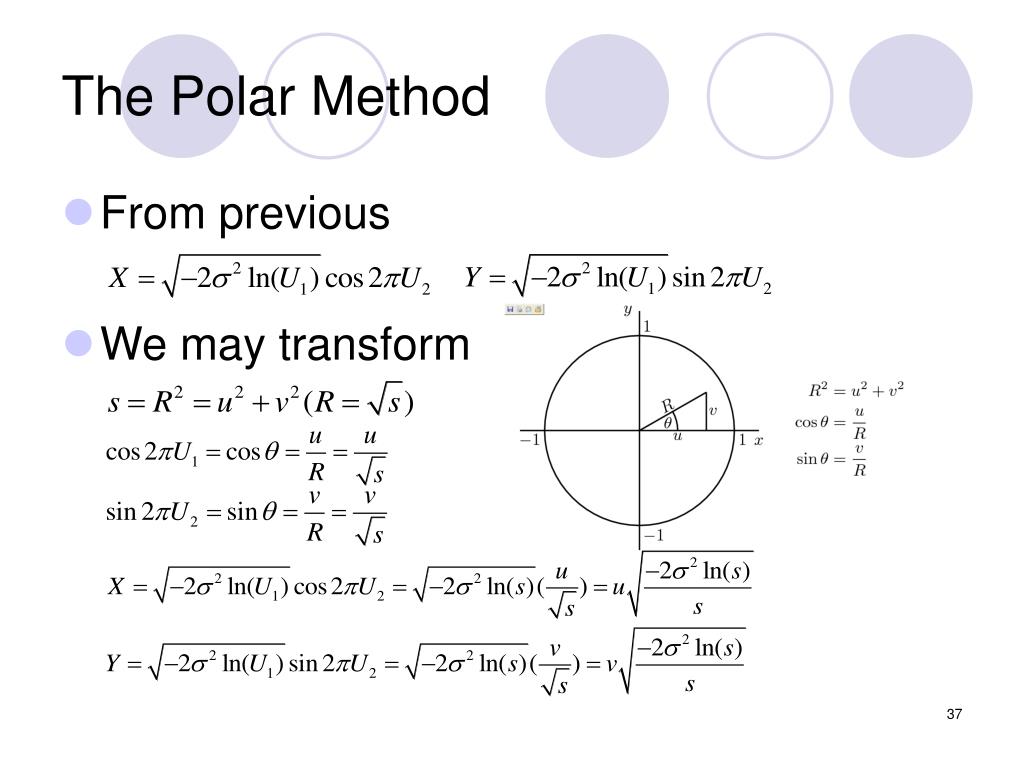

The Polar Method

  • From previous

  • We may transform


The polar method alothgrithm

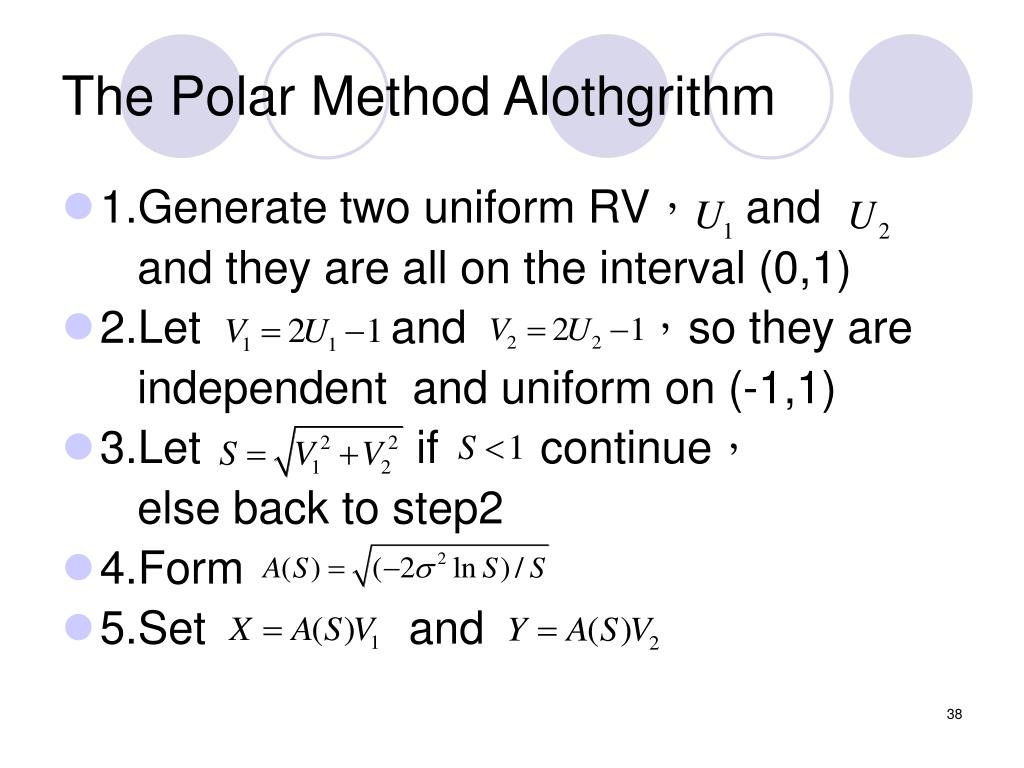

The Polar Method Alothgrithm

  • 1.Generate two uniform RV, and

    and they are all on the interval (0,1)

  • 2.Let and ,so they are

    independent and uniform on (-1,1)

  • 3.Let if continue,

    else back to step2

  • 4.Form

  • 5.Set and


Establishing a given correlation coefficient 1

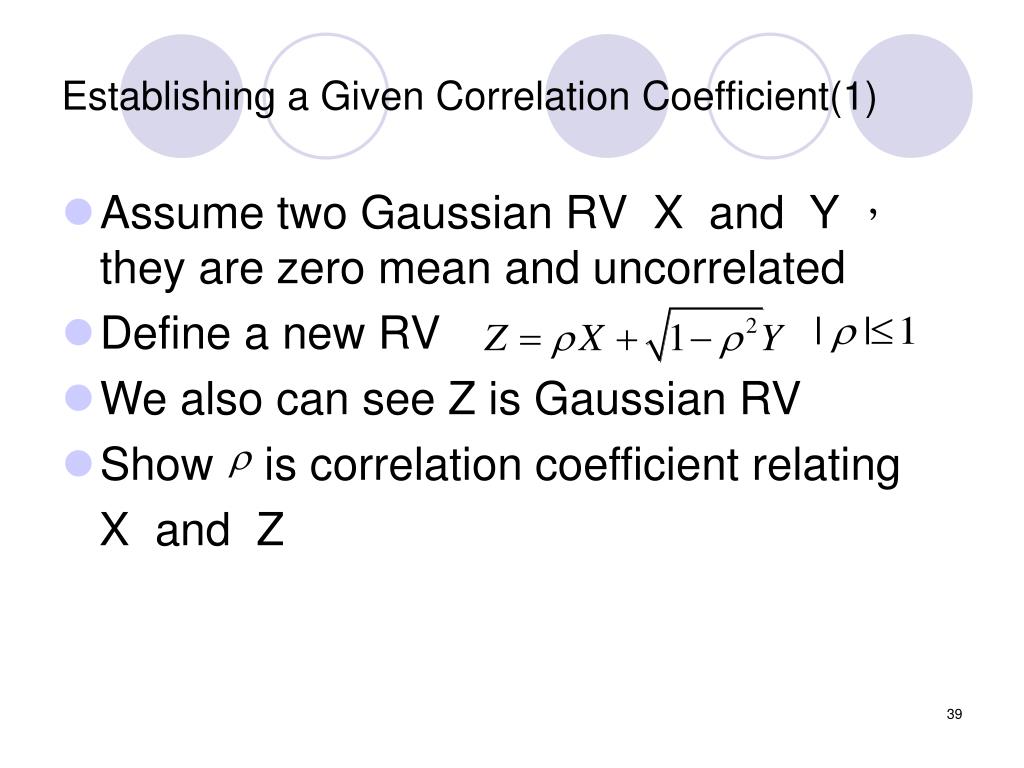

Establishing a Given Correlation Coefficient(1)

  • Assume two Gaussian RV X and Y ,they are zero mean and uncorrelated

  • Define a new RV

  • We also can see Z is Gaussian RV

  • Show is correlation coefficient relating

    X and Z


Establishing a given correlation coefficient 2

Establishing a Given Correlation Coefficient(2)

  • Mean,Variance,Correlation coefficient


Establishing a given correlation coefficient 3

Establishing a Given Correlation Coefficient(3)

  • Covariance between X and Z

  •  as desired


Pseudonoise pn sequence genarators

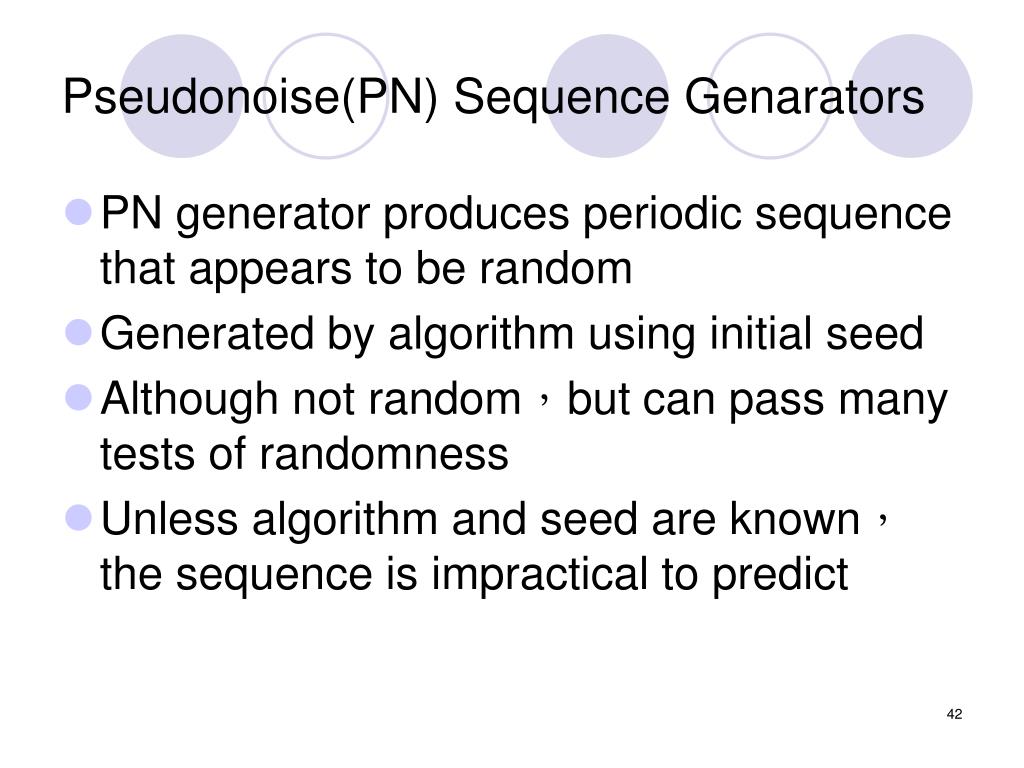

Pseudonoise(PN) Sequence Genarators

  • PN generator produces periodic sequence that appears to be random

  • Generated by algorithm using initial seed

  • Although not random,but can pass many tests of randomness

  • Unless algorithm and seed are known,the sequence is impractical to predict


Pn generator implementation

PN Generator implementation


Property of linear feedback shift register lfsr

Property of Linear Feedback Shift Register(LFSR)

  • Nearly random with long period

  • May have max period

  • If output satisfy period ,is called max-length sequence or m-sequence

  • We define generator polynomial as

  • The coefficient to generate m-sequence can always be found


Example of pn generator

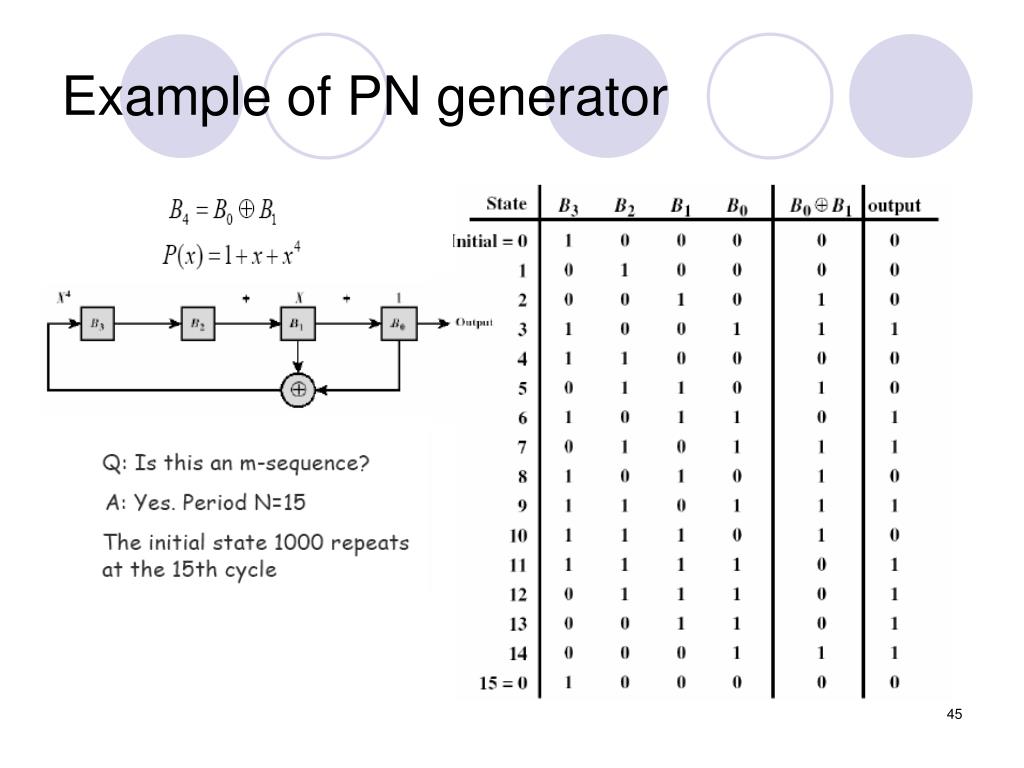

Example of PN generator

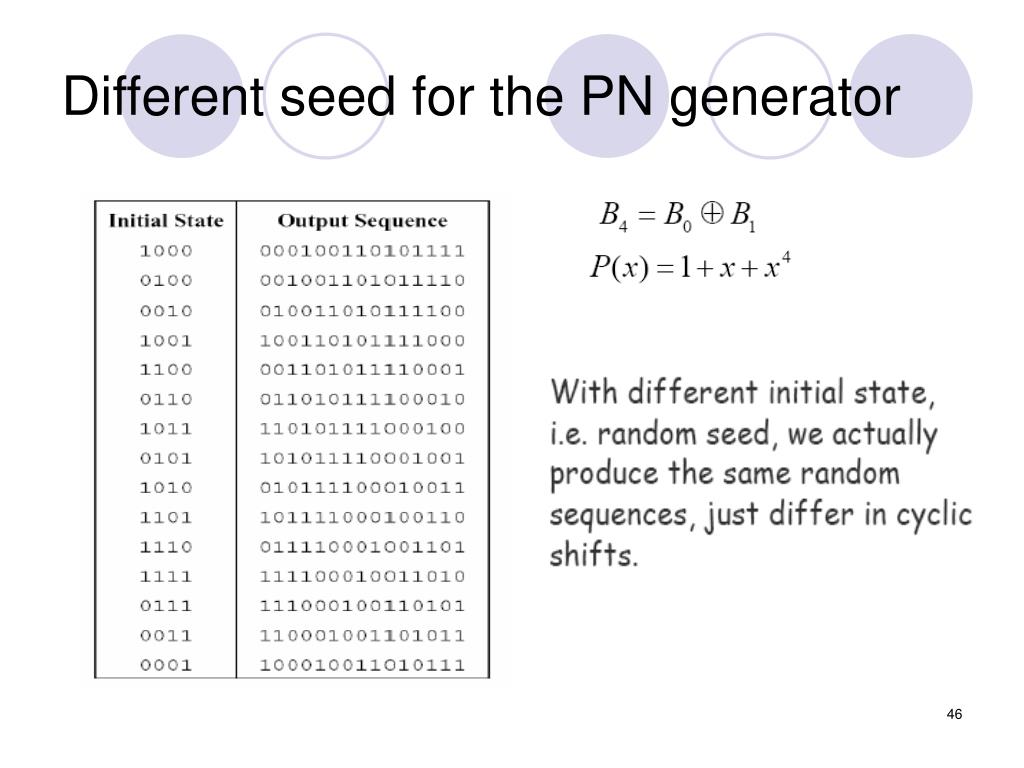

Different seed for the pn generator

Different seed for the PN generator

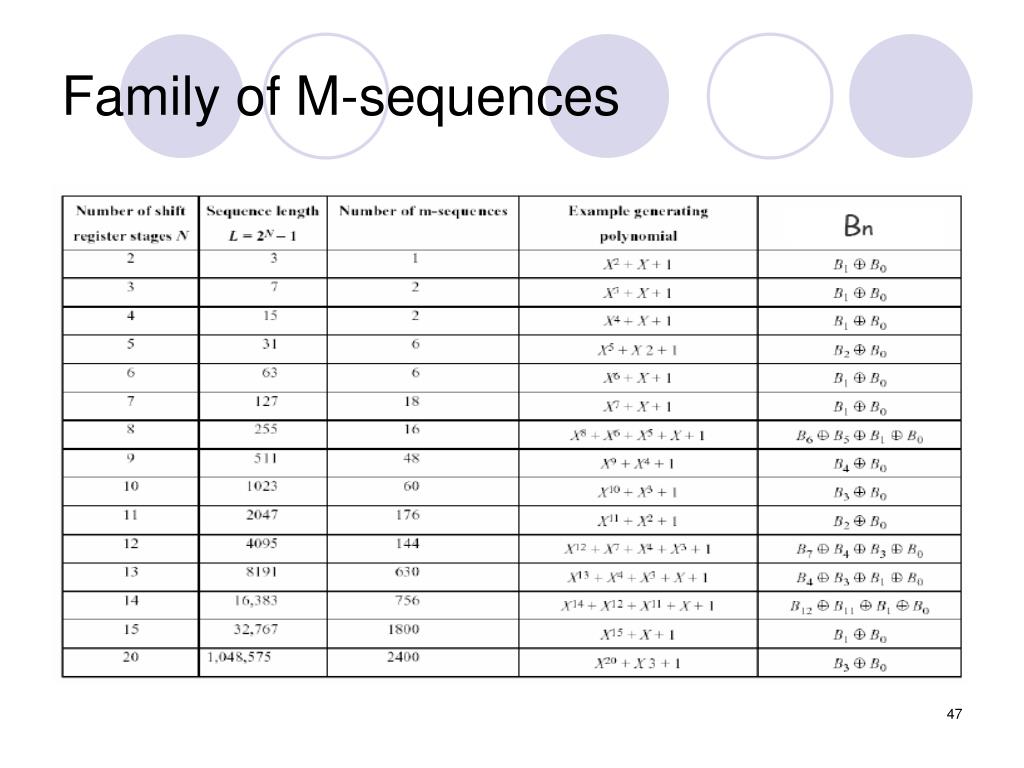

Family of m sequences

Family of M-sequences


Property of m sequence

Property of m-sequence

  • Has ones, zeros

  • The periodic autocorrelation of a m-sequence is

  • If PN has a large period,autocorrelation function approaches an impulse,and PSD is approximately white as desired


Pn autocorrelation function

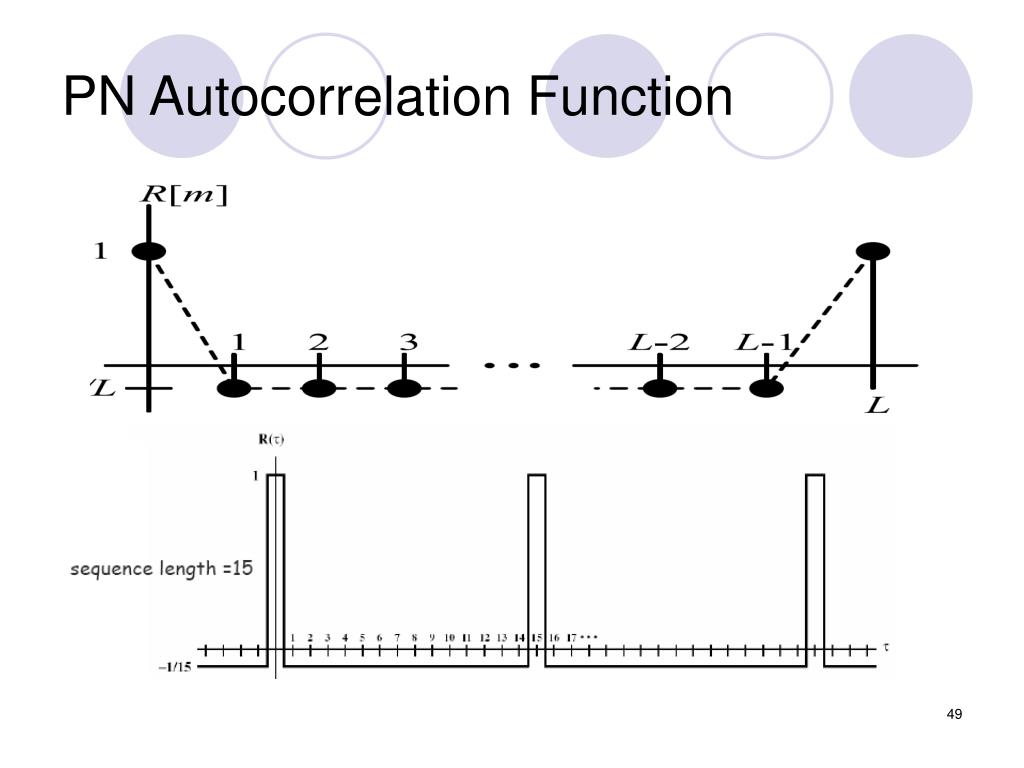

PN Autocorrelation Function


Signal processing

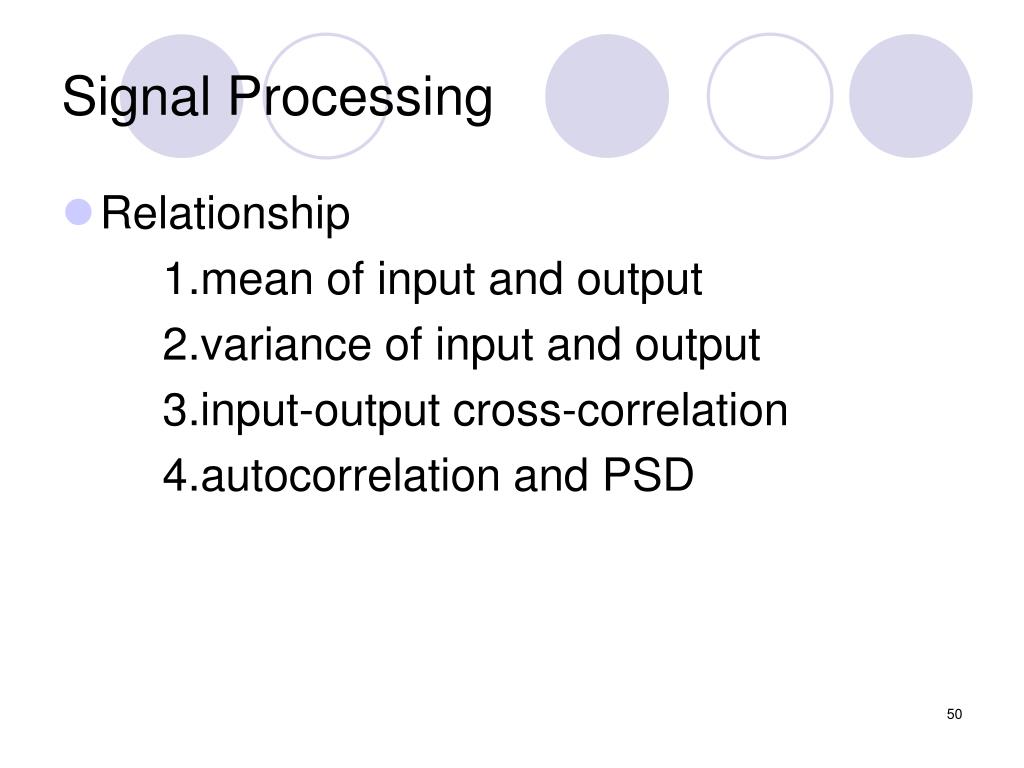

Signal Processing

  • Relationship

    1.mean of input and output

    2.variance of input and output

    3.input-output cross-correlation

    4.autocorrelation and PSD


Input output means

Input/Output Means

  • Assume system is linearconvolution

  • Assume stationarity assumption

  • We can get

  • and 


Input output cross correlation

Input/Output Cross-Correlation

  • The Cross-Correlation is defined by

  • This use is used in the development of a number of performance estimators,which will be developed in chapter 8


Output autocorrelation function 1

Output Autocorrelation Function(1)

  • Autocorrelation of the output

  • Can’t be simplified without knowledge of

    the Statistics of


Output autocorrelation function 2

Output Autocorrelation Function(2)

  • If input is delta-correlated(i.e. white noise)

    substitute previous equation


Input output variances

Input/Output Variances

  • By definition 

  • Let m=0 substitute into

  • But if is white noise sequence
