Http hypertext transfer protocol

HTTP - Hypertext Transfer Protocol

Arthur : Yigal Eliaspur

Date : 28.1.2001


Http overview

HTTP Overview

  • Web’s application-layer protocol

  • in use by the WWW since 1990

  • client/server paradigm

    • in the web:

      • clients : browsers (IExplorer,Netscape..)

      • server : web servers (Apache,IIS..)

  • Request/Response Protocol:

  • Web servers usually using TCP port 80

request

C

S

response


Http overview cont

HTTP Overview (cont.)

  • Stateless protocol - HTTP server maintains no information about the client.


Http versions

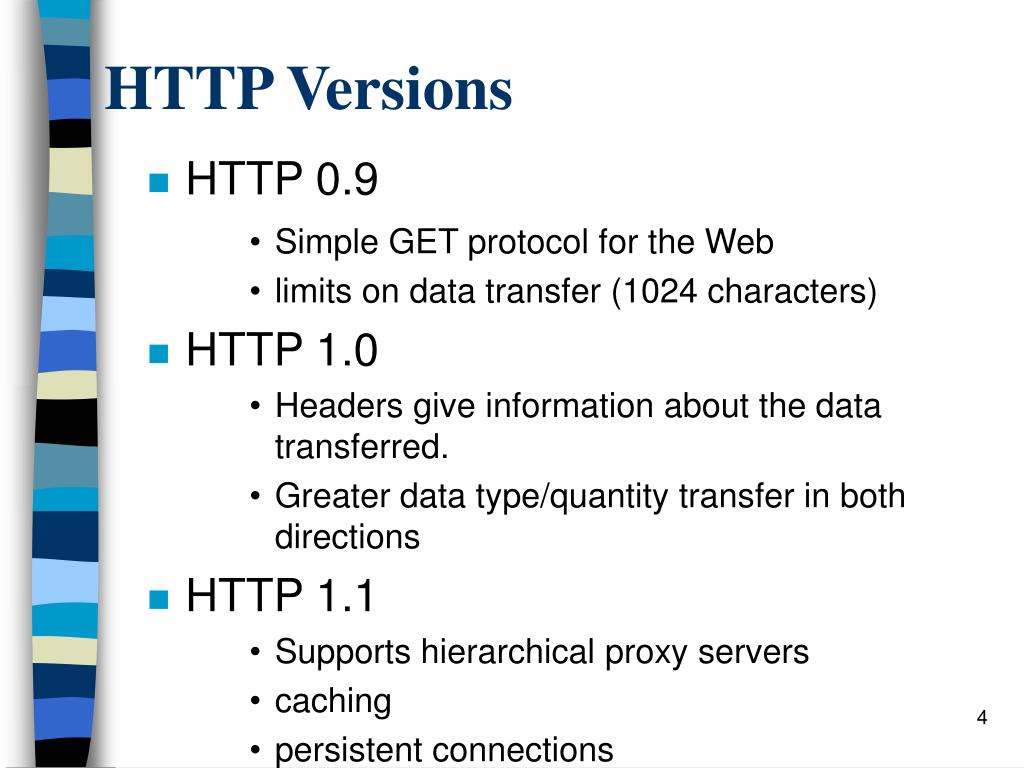

HTTP Versions

  • HTTP 0.9

    • Simple GET protocol for the Web

    • limits on data transfer (1024 characters)

  • HTTP 1.0

    • Headers give information about the data transferred.

    • Greater data type/quantity transfer in both directions

  • HTTP 1.1

    • Supports hierarchical proxy servers

    • caching

    • persistent connections


  • Http 0 9 get example

    HTTP 0.9 GET example

    • telnet www.cs.huji.ac.il 80

    • GET /~dbsi/index.html <CRLF>

    • output :

      • <HTML><HEAD>.......</HEAD><BODY>...............</BODY></HTML>

      • Connection closed by foreign host


    Http 1 0

    HTTP 1.0

    • developed between 1992 and 1996.

    • Exchange more than simple text

    • Headers allowed in both requests and responses

    • Extends GET request to allow headers

    • Adds HEAD request to get information

    • Adds POST request, sends information with the request


    Request message format

    Request message format

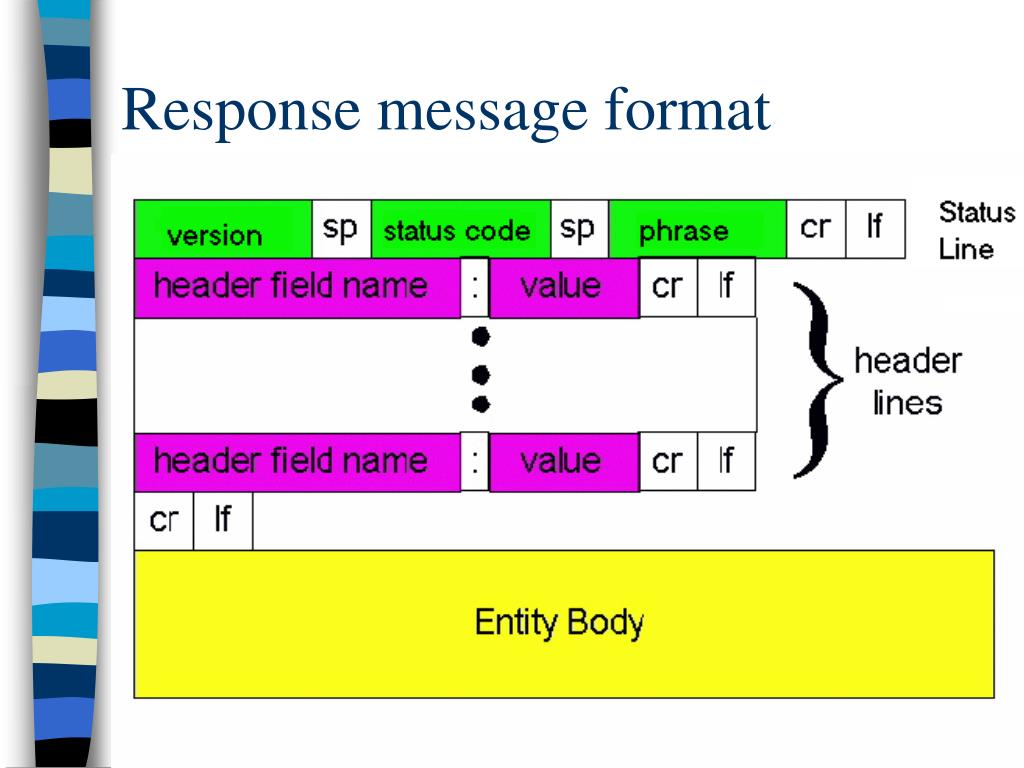

    Response message format

    Response message format


    Http request response example

    HTTP Request/Response example


    Response codes

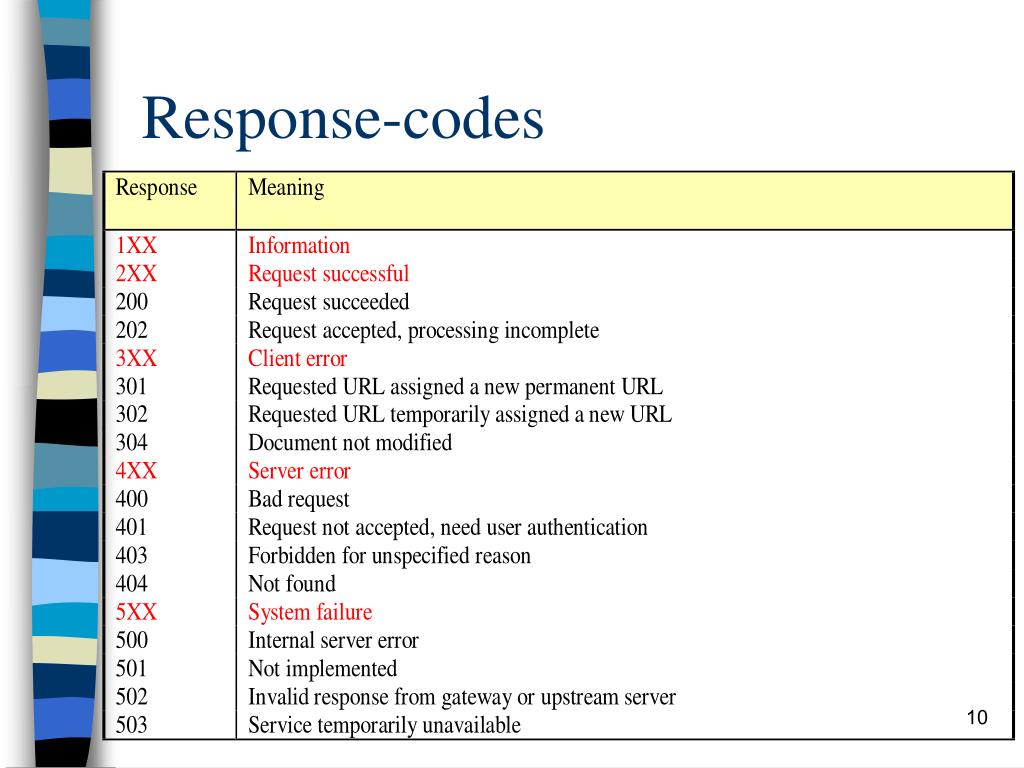

    Response-codes


    Headers types

    Headers types

    • General

      • Date, Pragma ..

    • Request

      • Authorization, From, If-Modifed-Since, Referer, User-Agent ..

    • Response

      • Location, Server, WWW-Authenticate ...

    • Entity

      • Allow, Content-Encoding, Content-Length, Content-Type, Expires, Last-Modified, extension-header...


    Post head messages

    POST & HEAD messages

    • POST

      • sends information with the request in the Entity Body.

      • Useful when the user fills out a form.

    • HEAD

      • return only the request result without the data itself (I.e. only the Status line and the Header lines)

      • use for debugging HTTP servers and for page update checking.

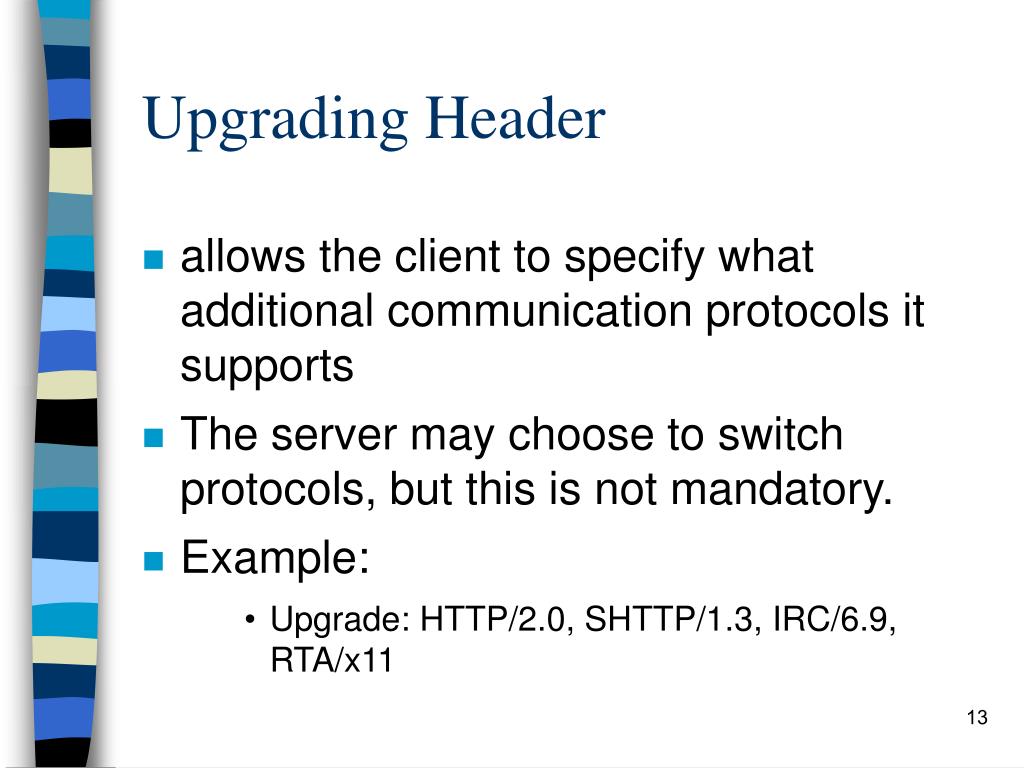

    Upgrading header

    Upgrading Header

    • allows the client to specify what additional communication protocols it supports

    • The server may choose to switch protocols, but this is not mandatory.

    • Example:

      • Upgrade: HTTP/2.0, SHTTP/1.3, IRC/6.9, RTA/x11


    Caching

    Caching

    • Why?

      • Reduces response time

        • Request is satisfied from cache closest to browser

        • Takes less time to get the page and display it

    • Reduces traffic

      • Each page only accessed from the server once

      • Reduces bandwidth used by browser

  • Saves money if client is paying by traffic

  • Keeps bandwidth requirements down


  • Caching cont

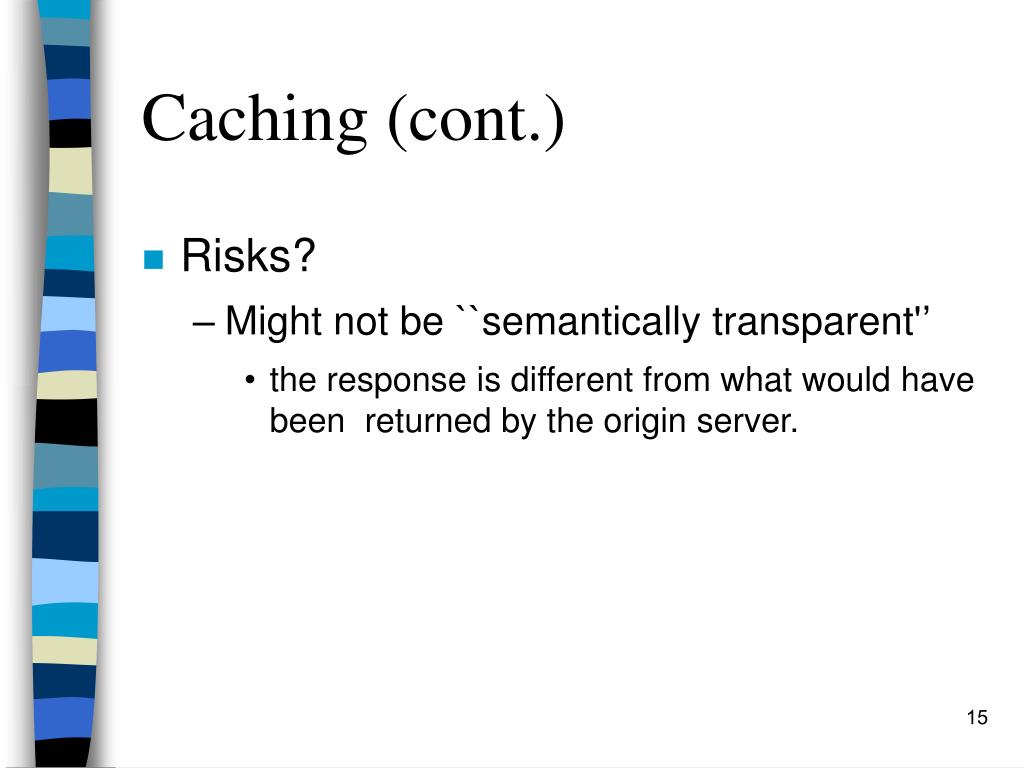

    Caching (cont.)

    • Risks?

      • Might not be ``semantically transparent'’

        • the response is different from what would have been returned by the origin server.


    Caching in http 1 0

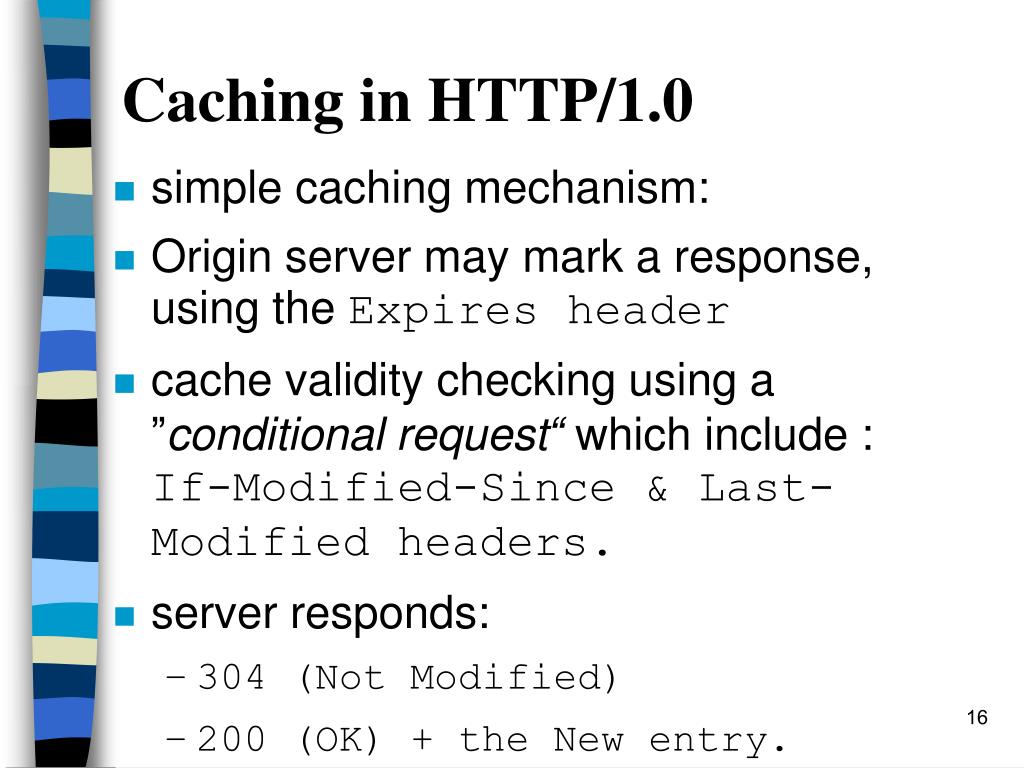

    Caching in HTTP/1.0

    • simple caching mechanism:

    • Origin server may mark a response, using the Expires header

    • cache validity checking using a ”conditional request“ which include : If-Modified-Since & Last-Modified headers.

    • server responds:

      • 304 (Not Modified)

      • 200 (OK) + the New entry.


    Caching in http 1 0 cont

    Caching in HTTP/1.0 (cont.)

    • The Pragma: no-cache request Header indicate that a request should not be satisfied from a cache.

    • PROBLEM - origin servers/clients can’t give full and explicit instructions to caches (will be explained later)


    Caching in http 1 1

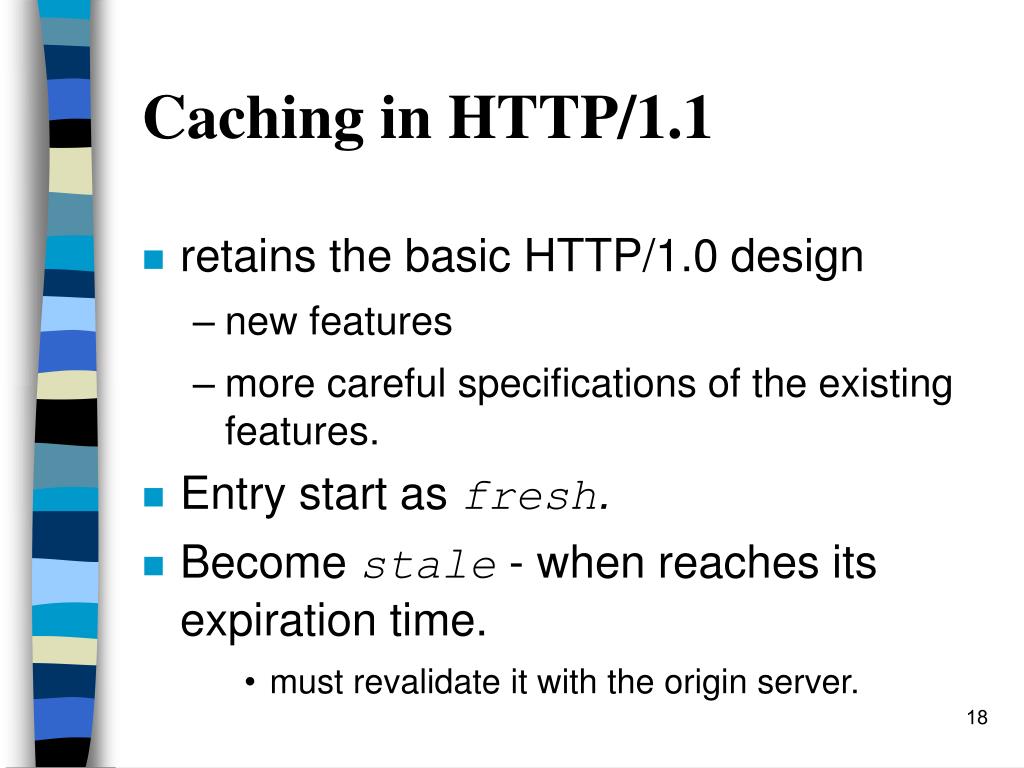

    Caching in HTTP/1.1

    • retains the basic HTTP/1.0 design

      • new features

      • more careful specifications of the existing features.

    • Entry start as fresh.

    • Become stale - when reaches its expiration time.

      • must revalidate it with the origin server.


    Caching in http 1 1 cont

    Caching in HTTP/1.1 (cont.)

    • cache validator string : entity tag.

      • two responses resource with the same entity tag must be identical.

      • Can include : fine-grained timestamp, internal database pointer . . .

      • If-None-Match header with one or more entity tags.

        • Much stronger then If-Modified-Since.


    Caching in http 1 1 cont1

    Caching in HTTP/1.1 (cont.)

    • Cache-Control header

      • server/client implicit directives to caches

      • directives examples:

        • max-age - relative expiration time.

          • HTTP/1.0 Expires header can lead to clock skew failure.

        • no-transform - prevent proxies response transformations.

          • like reduce image complexity over a slow link (WAP)

        • private & no-store - prevent the storage of some or all of a response.


    Caching in http 1 1 cont2

    Caching in HTTP/1.1 (cont.)

    • Vary header - include list of headers that identical the request beside the URL field.

      • For example : Accept-Language, Accept-Charset ...


    Cooperative cashing

    Cooperative Cashing


    Cooperative cashing cont

    Cooperative Cashing (cont.)

    • Higher level cache ( e.g. national cash)

      • larger user population

      • higher hit rates.

    • Multiple Web cashes which cooperate => Improve overall performance.

    • Cooperative cashes usualy built from clusters

      • divide the traffic overhead

      • improve storage capacity


    Cooperative cashing cont1

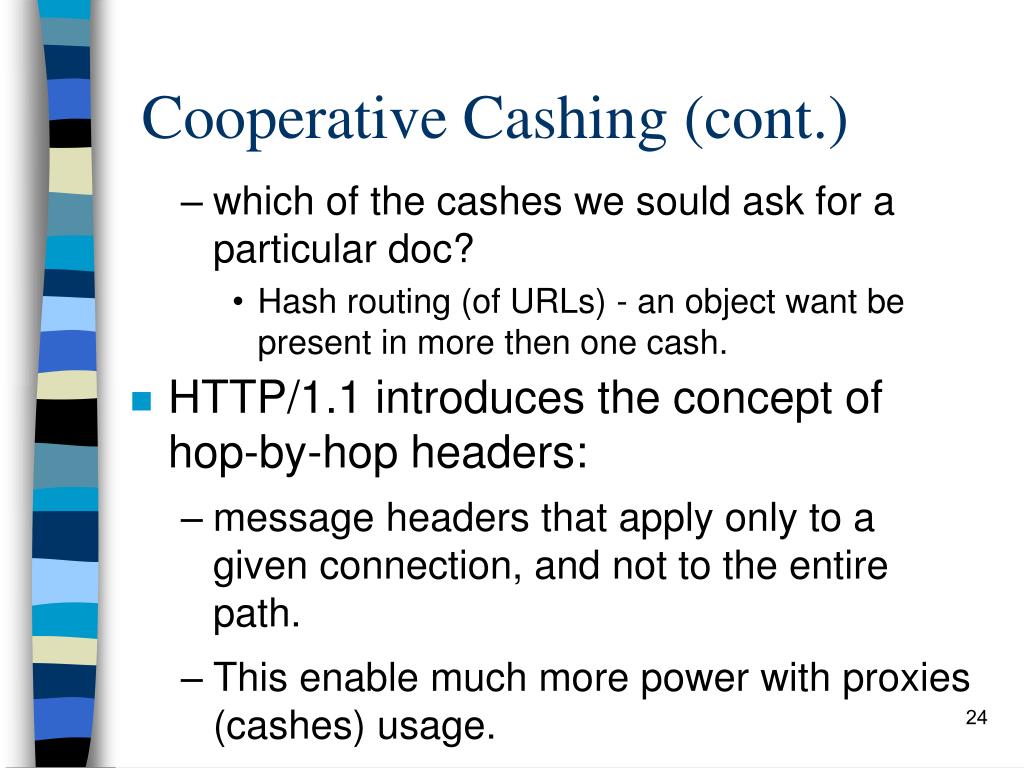

    Cooperative Cashing (cont.)

    • which of the cashes we sould ask for a particular doc?

      • Hash routing (of URLs) - an object want be present in more then one cash.

  • HTTP/1.1 introduces the concept of hop-by-hop headers:

    • message headers that apply only to a given connection, and not to the entire path.

    • This enable much more power with proxies (cashes) usage.


  • Cooperative cashing cont2

    Cooperative Cashing (cont.)

    • HTTP 1.1 hop-by-hop headers:

      • Connection

        • options that are desired for that particular connection (e.g connection:close.)

      • Public

        • lists the set of methods supported by the server

      • Proxy-Authenticate

        • enable authentication methods between two hops.

      • Transfer-Encoding -

        • compression method between two hops.

      • Upgrade

        • additional communication protocols supported.


    Persistent non persistent connections

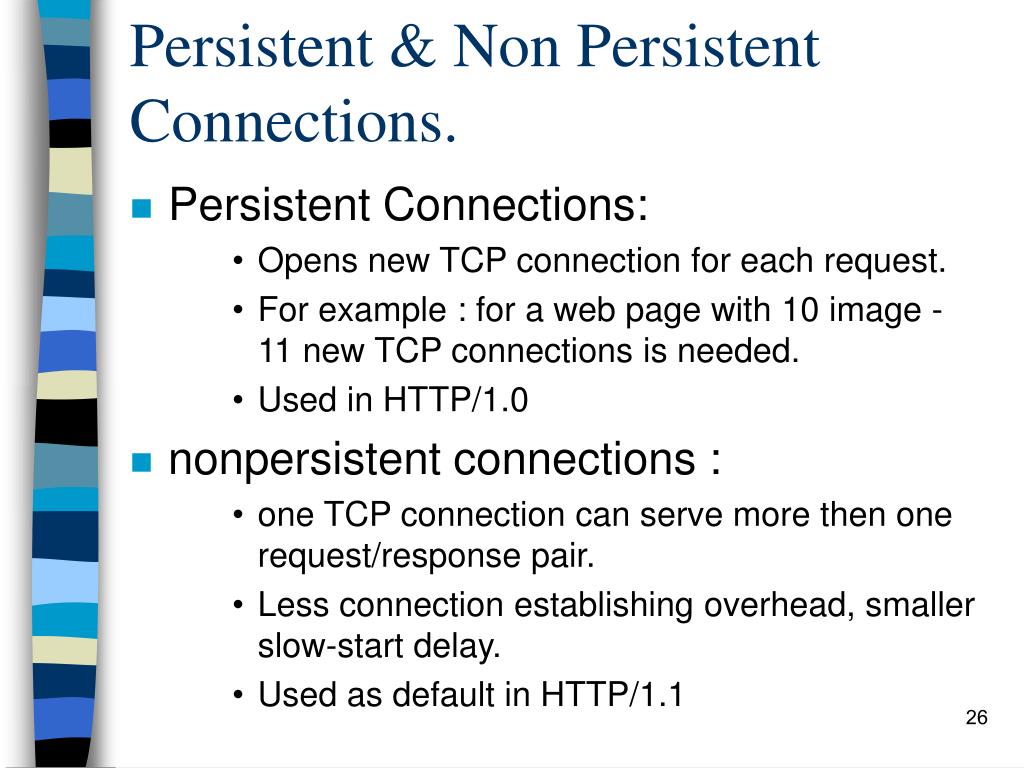

    Persistent & Non Persistent Connections.

    • Persistent Connections:

      • Opens new TCP connection for each request.

      • For example : for a web page with 10 image - 11 new TCP connections is needed.

      • Used in HTTP/1.0

  • nonpersistent connections :

    • one TCP connection can serve more then one request/response pair.

    • Less connection establishing overhead, smaller slow-start delay.

    • Used as default in HTTP/1.1


  • Persistent non persistent connections cont

    Persistent & Non Persistent Connections.(cont.)

    • nonpersistent connections, two types:

      • without pipelining

        • the client issues a new request only when the previous response has been arrived.

      • with pipelining

        • client send the request as soon as it encounters a reference.

        • Multiple request/response on the same TCP packet.

        • Or on back-to-back packets.


    Compression

    Compression

    • most image formats (GIF, JPEG, MPEG) are precompressed.

    • many other data types used in the Web are not.

    • compression could save almost 40% of the bytes sent via HTTP

    • need for negotiating the use of codings.


    Compression cont

    Compression (cont.)

    • Client send : Accept-Encoding header

      • indicate what content-codings it can handle, and which ones it prefers.

    • Server Send :

      • Content-Encoding header - forend-to-end coding indication.

      • Transfer-Encoding header - forhop-to-hop coding indication. (supported only in HTTP/1.1)


    W3c performance measurements

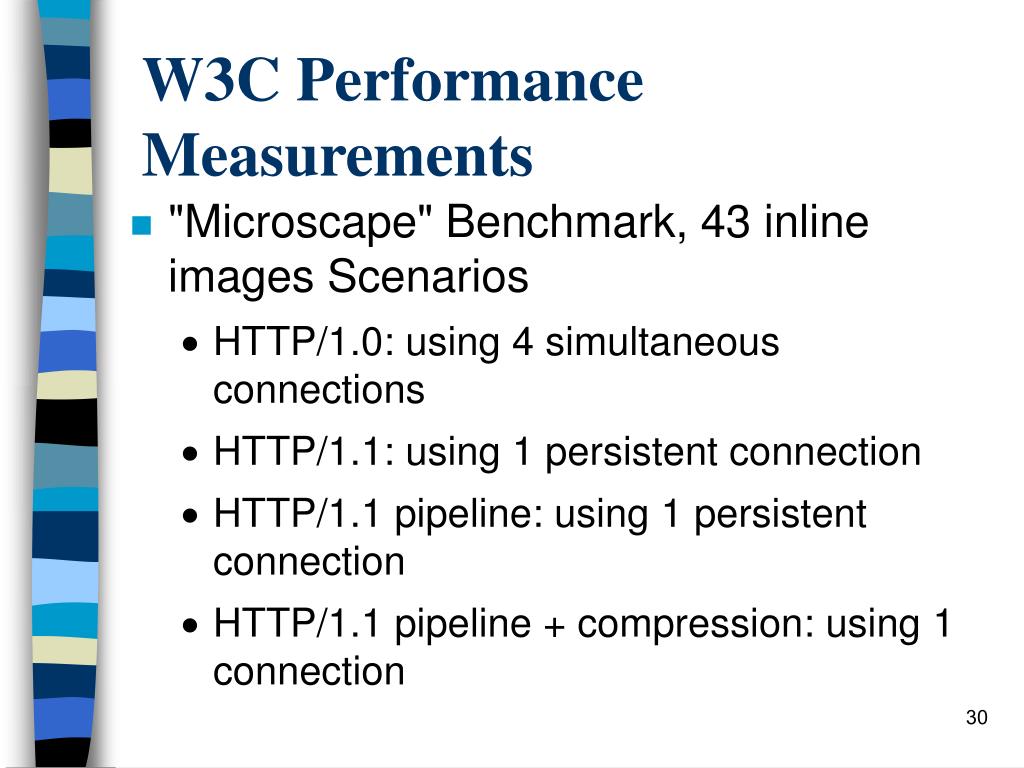

    W3C Performance Measurements

    • "Microscape" Benchmark, 43 inline images Scenarios

      • HTTP/1.0: using 4 simultaneous connections

      • HTTP/1.1: using 1 persistent connection

      • HTTP/1.1 pipeline: using 1 persistent connection

      • HTTP/1.1 pipeline + compression: using 1 connection


    W3c performance measurements cont

    W3C Performance Measurements (cont.)


    Authentication

    Authentication

    • Many sites require users to provide a username and password in order to access the documents housed on the server.

    • Provide mechanism for keeping track of users (more then security mechanism).

    • How does it’s work?

      • Client send

        • ordinary request message

      • server responds with

        • 401 Authorization Required status code

        • WWW-Authenticate header which specified how to perform authentication


    Authentication cont

    Authentication (cont.)

    • Client resend

      • the requested message but this time including Authorization header (e.g. user-name & password.)

    • The client continue to add this header for each following request to that server.


    Cookies

    Cookies

    • Another site mechanism for keeping tracks of users.

    • Example:

      • Client contact a web site for the first time.

      • Server response with :

        • Set-cookie : 1678453 header

      • client store the cookie value and the server name in a special “cookie file”.

      • For each further request for that server the client will add the

        • Cookie : 1678453 header


    Cookies cont

    Cookies (cont.)

    • Usage:

      • server requires authentication but doesn’t want to hassle a user with a user-name and password.

      • Remembering user’s preferences for advertising.

      • Enable creating a virtual shopping cart.

    • Problems

      • users who accesses the same site from different machines.


    References

    References

    • http://www.ietf.org/rfc/rfc2068.txt

    • http://www.ietf.org/rfc/rfc1945.txt

    • http://www.w3.org/Protocols/

    • http://www8.org/w8-papers/5c-protocols/key/key.html

    • Computer Networks by Joames Fokurose & Keith W.Ross.
