Presentation Transcript

Hip pelvis and thigh

Hip, Pelvis, and Thigh

Femoral acetabular joint

Femoral-Acetabular Joint

  • This area contains some of the strongest muscles in the body.

  • Tremendous demands on those muscles.

  • Vulnerable to injuries that can sideline athletes for long periods of time.

Anatomy of the hip pelvis thigh

Anatomy of the Hip, Pelvis, & Thigh

  • Ball & socket joint

  • Acetabulum- hip socket

    • Very deep

    • Covered by very thick, strong ligaments

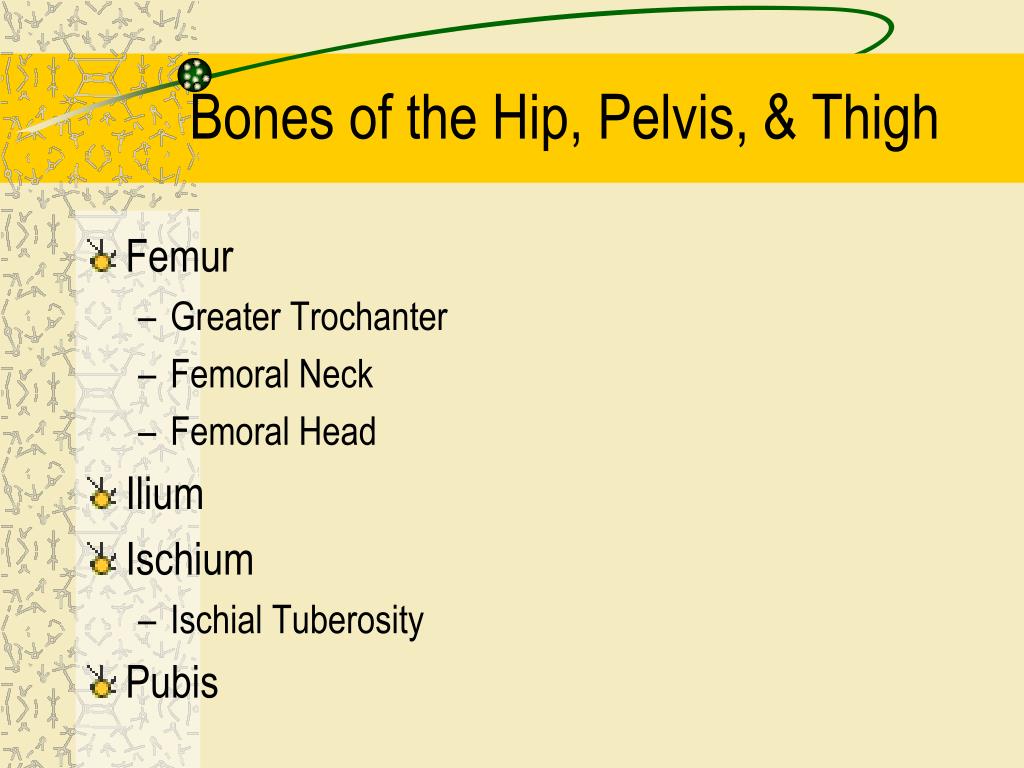

Bones of the hip pelvis thigh

Bones of the Hip, Pelvis, & Thigh

  • Femur

    • Greater Trochanter

    • Femoral Neck

    • Femoral Head

  • Ilium

  • Ischium

    • Ischial Tuberosity

  • Pubis

Ligaments of the femoral acetabular joint

Ligaments of the Femoral-Acetabular Joint

  • Iliofemoral Ligament

  • Ischiofemoral Ligament

Muscles of the hip region

Anterior Thigh

Rectus Femoris

Vastus Lateralis

Vastus Medialis

Vastus Intermedius


Anterior Hip



Posterior Thigh

Biceps Femoris



Posterior Hip

Gluteus Maximus

Gluteus Minimus

External Rotators

Muscles of the Hip Region

Muscles of the hip region1

Medial Thigh



Adductor Brevis

Adductor Longus

Adductor Magnus


Gluteus Medius

Tensor Fascia Latae

IT band

Greater Trochanteric Bursa

Muscles of the Hip Region

Movements of the femoral acetabular joint

Movements of theFemoral-Acetabular Joint

  • Flexion

  • Extension

  • Abduction

  • Adduction

  • Internal Rotation

  • External Rotation

  • Circumduction

Preventing hip injuries

Preventing Hip Injuries

  • Proper flexibility training

  • Appropriate equipment (football, hockey, etc.)

  • Proper strength training

Thigh injuries

Thigh Injuries

  • Contusion

    • Mechanism: direct blow

    • Signs & Symptoms: pain, swelling, bleeding, loss of function

      • 3 grades - determined by severity of symptoms

    • Treatment: PRICE, stretching, ultrasound, padding

Thigh injuries1

Thigh Injuries

  • Myositis Ossificans

    • Mechanism: result of quad contusion

      • Bone forms within muscle due to calcium build-up at injury site.

    • Signs & Symptoms: pain, weakness, loss of function

    • Rx: RICE, padding, NO ULTRASOUND

Thigh injuries2

Thigh Injuries

  • Strain

    • Quadriceps - sudden contraction, stretching

    • Hamstrings - excessive force due to muscle imbalance.

      • Re-injury very common

    • Groin - stretching

      • involves adductors and hip flexors

    • Signs & Symptoms: pain, loss of function, deformity

      • 3 grades

    • Rx: RICE

Thigh injuries3

Thigh Injuries

  • Acute Femoral Fracture

    • Mechanism: direct blow, fall from height

    • Signs & Symptoms: pain, deformity, unable to bear weight

    • Treatment: splint, 911

      • risk damage to soft tissue, arteries, and nerves

Femoral fracture

Femoral Fracture

Thigh injuries4

Thigh Injuries

  • Femoral Stress Fx (occurs at femoral neck)

    • Mechanism: overuse

      • usually associated with poor eating, menstrual irregularities

    • Signs & Symptoms: similar to strain or tendinitis but does not resolve

    • Treatment: rest, Non-Weight Bearing

Femoral neck stress fracture

Femoral Neck Stress Fracture

Hip injuries

Hip Injuries

  • Iliac Spine Contusion (Hip Pointer)

    • Mechanism: direct blow

    • Signs & Symptoms: pain, swelling, ecchymosis

      • abdominal and hip muscles attach on the iliac crest

    • Rx: RICE

Hip injuries1

Hip Injuries

  • Greater Trochanteric Bursitis

    • Mechanism: direct blow, repetitive hip flexion, extension, & abduction

    • Signs & Symptoms: pain at lateral hip, occasionally ‘snapping’ sensation

    • Treatment: rest, corticosteroids

Hip injuries2

Hip Injuries

  • Hip Subluxation/Dislocation

    • Mechanism: extreme force, usually posterior dislocations or severe internal rotation accompanied with a posterior blow to the femur.

      • More common in car accidents than sports

    • Signs & Symptoms: hip internally rotated and slightly flexed, extreme pain

    • Call Ambulance immediately

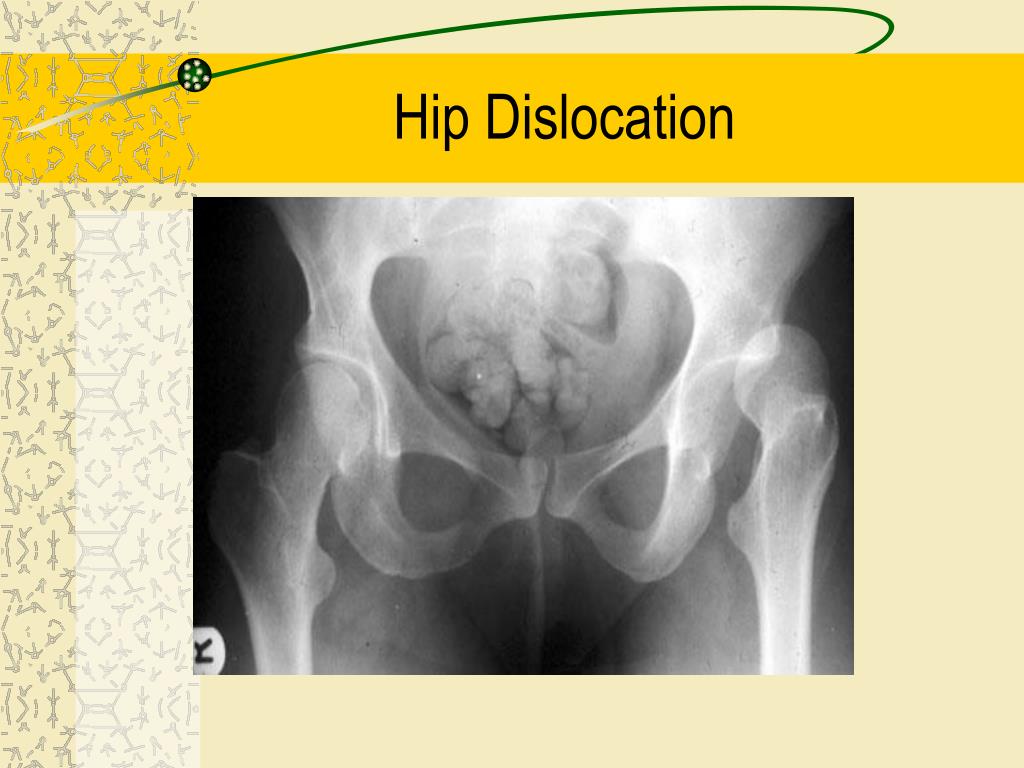

Hip dislocation

Hip Dislocation

Hip injuries3

Hip Injuries

  • Legg-Calve-Perthes Disease

    • Decrease in circulation in femoral head; avascular necrosis of articular cartilage

    • More common in children & teens who are still growing

    • Signs & Symptoms: persistent pain in knee & groin, walking with limp with all other injuries ruled out

Legg calve perthes disease

Legg-Calve-Perthes Disease

Bo jackson

Bo Jackson
