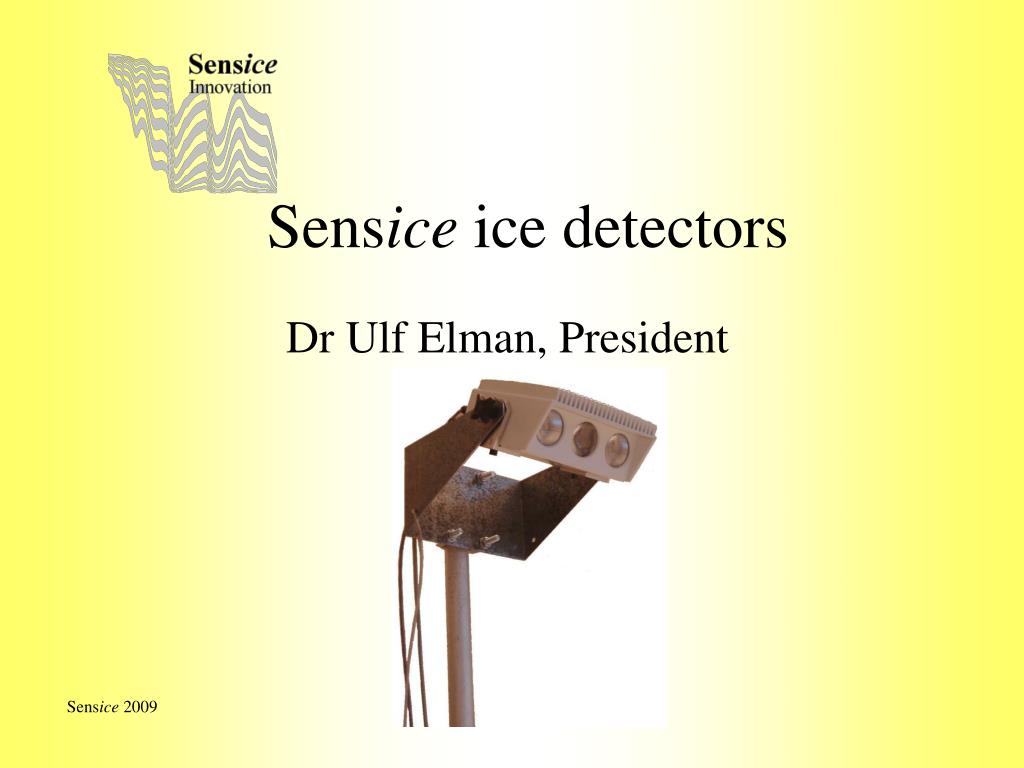

Sens ice ice detectors

Sensice ice detectors

Dr Ulf Elman, President

Sensice 2009


Sensice s superior detectors

Sensice’s superior detectors

Smart new design gives better performance

More advantageous price/performance ratio

  • Significantly reduced maintenance cost

Sensice 2009


Traffic accidents in sweden 1995 1999

Traffic accidents in Sweden 1995-1999:

  • 37828 at snowy or icy road surface conditions, of these did

  • 15589 occur during black ice conditions, and in addition did

  • 572 accidents related to aquaplaning occur

Sensice 2009


General properties

General properties

Uses infrared spectroscopy

IR reception A

IR emission

IR reception B

Sensice 2009

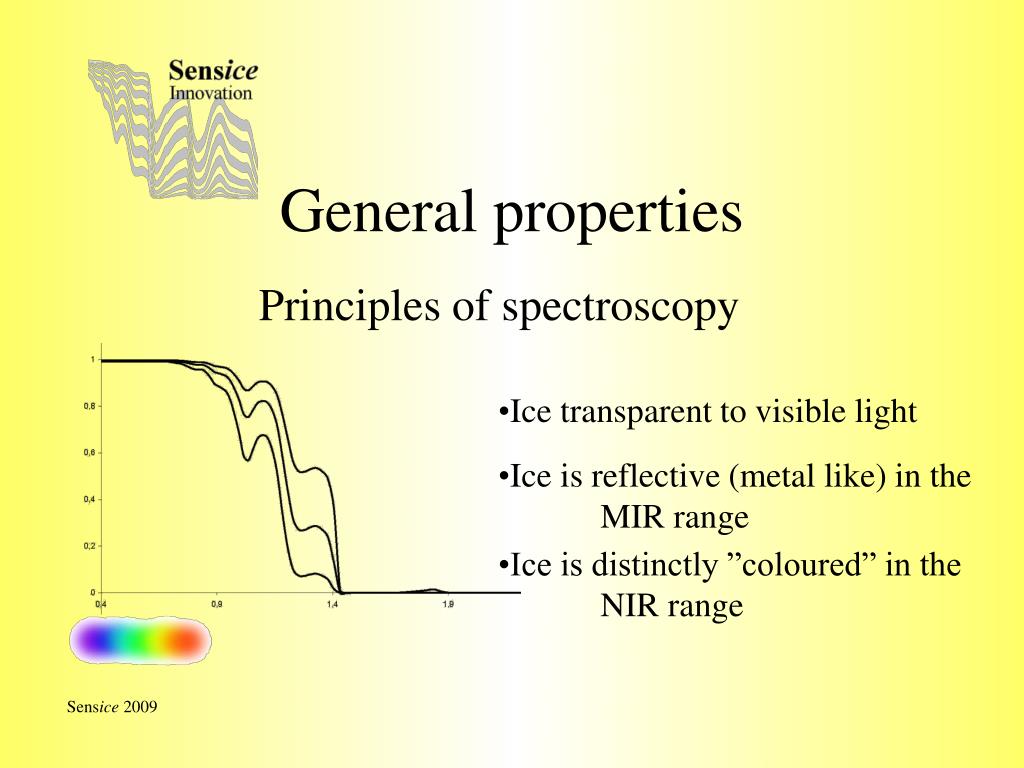

General properties1

General properties

  • Ice transparent to visible light

Principles of spectroscopy

  • Ice is reflective (metal like) in the MIR range

  • Ice is distinctly ”coloured” in the NIR range

Sensice 2009


Applications

Applications

Use with RWS

Sensice 2009


Applications1

Applications

Icing alert at building entrances

Sensice 2009

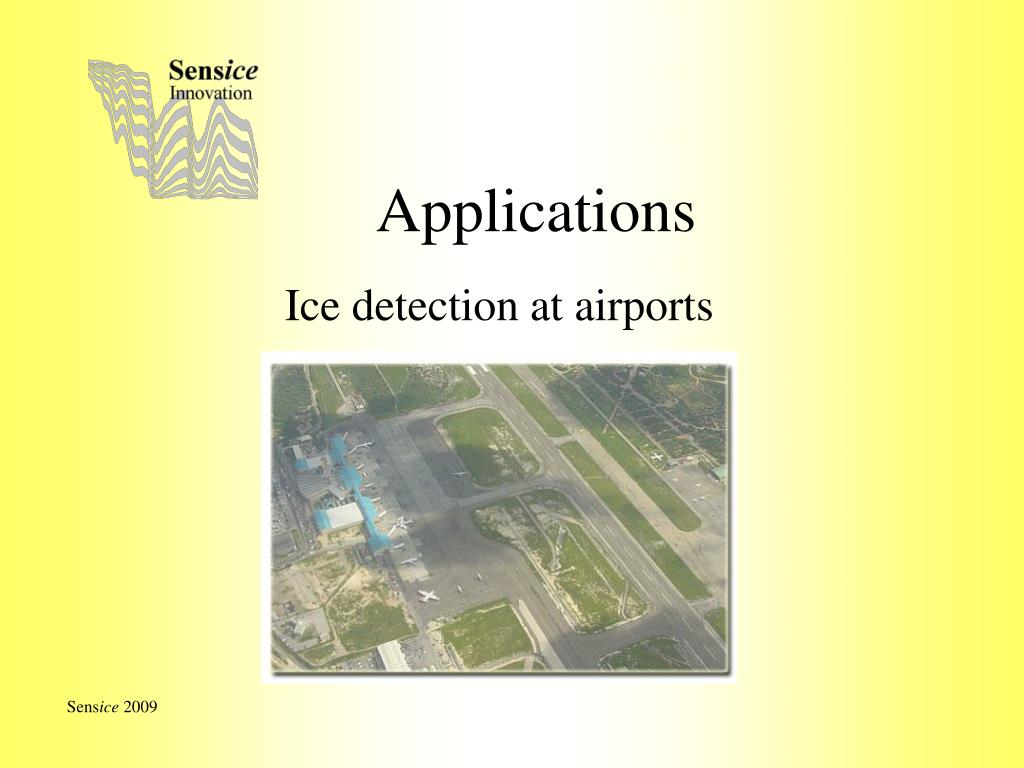

Applications2

Applications

Ice detection at airports

Sensice 2009


Applications3

Applications

Ice sheet or icicle buildup at sensitive spots

Sensice 2009


General properties2

General properties

Large thickness interval due to two wavelength detection

0.05mm – 3 cm

Sensice 2009


General properties3

General properties

1. Dry

2. Wet

Differentiates between six states:

3. Clear ice

4. Snow

5. Sleet

6. Wet clear ice

Sensice 2009


Mechanical properties

Mechanical properties

  • 182mm x 154mm x 82mm

  • 3.1 kg

Sensice 2009


Optical properties

Optical properties

  • Recommended range 3-15 m

  • Use at distances exceeding 25 m impractical

Detection range

Sensice 2009


Optical properties1

Optical properties

Angular dependence of detection range

Sensice 2009


Optical properties2

Optical properties

Detection range dependent on surface properties

Sensice 2009


Optical properties3

Optical properties

  • Beam divergence 12°

Detects over extended area

Sensice 2009


Optical properties4

Optical properties

Lamp exchange port

Sensice 2009


Electrical properties

Electrical properties

  • 12V DC

Power supply

  • 2.1A

Sensice 2009


Electrical properties1

Electrical properties

  • RS232

  • 19200 baud, one stop bit and no parity

Communication interface

  • New measurement results every 125 ms

Sensice 2009


Electrical properties2

Electrical properties

  • Power on LED

  • Hardware reset

Sensice 2009


Electrical properties3

Electrical properties

  • Calibration

Ports not intended for customer use

  • Software download

Sensice 2009


Resistance to environmental influences

Resistance to environmental influences

Precipitation immunity

  • Rain shield

Sensice 2009


Resistance to environmental influences1

Resistance to environmental influences

  • 22W heating

Dew and frost

Sensice 2009


Resistance to environmental influences2

Resistance to environmental influences

Temperature range -40°C to +60°

Sensice 2009


Sensice s superior detectors1

Sensice’s superior detectors

Smarter design gives betterdetectors

More advantageous price/performance ratio

  • Significantly reduced maintenance cost

Sensice 2009


Thank you

Thank you

Further information:

www.sensice.com

Inquiries:

[email protected]

Sensice 2009
