Cockshutt Plow Company Office and Timekeeper’s Building 66 Mohawk Street, Brantford, Ontario

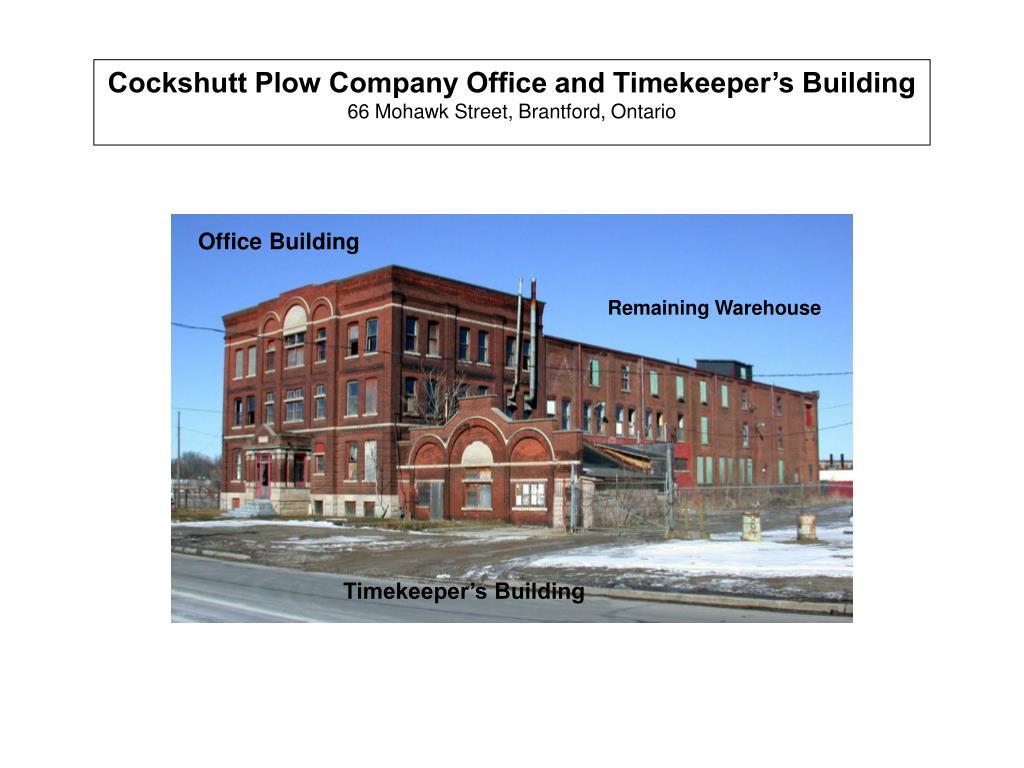

1. Cockshutt Plow Company Office and Timekeeper’s Building 66 Mohawk Street, Brantford, Ontario Office Building Remaining Warehouse Timekeeper’s Building

2. Key Architectural Features triple arch frontispiece with stone drip moulding carved namestone corbelled brick cornice solid stone string courses solid stone transom bars parapet with namestone triple arch with stone drip carved namestone brick and stone porch carved datestones

3. Foundation / First Floor The foundation walls of the raised basement are coursed range, rock-faced limestone topped with a single course of smooth dressed limestone. The main exterior wall material is a pressed red brick laid in a stretcher bond pattern. A recessed single brick course creates a rusticated appearance on the first floor wall surface and corner pilasters. The first floor outer bays have window heads with brick voussoirs in a skewback arch. The front left corner windows have are double-hung sashes with 3/3 horizontal panes. The top of the first floor is indicated by a rock-faced stone string course over four courses of corbelled brick. stone string course corbelled brick corner pilaster recessed brick course smooth dressed limestone coursed rock-faced limestone

4. North Elevation The north elevation continues the design of the side bays in the front façade. Three symmetrical bays contain double-hung windows with brick voussoir heads in a skewback arch. The centre and right bays of the first floor have window sashes with 3/3 horizontal panes. The first floor, centre bay has a grouping of three narrow windows. These features may indicate the company’s executive offices. The side entrance door has a wooden panel surround and contains side and transom lights as in the front entrance porch. 3/3 horizontal window panes 3 window grouping

5. stone lintel wooden mullion stone sill transom windows stone transom bar Feature Windows The outer bays of the triple arch frontispiece contain single window units with double-hung sashes 1/1 and a single transom window pane. The central bay has coupled windows divided by a wooden mullion. All windows have a stone lug sill but the unusual feature here is the large, solid stone transom bar.

6. stone drip moulding namestone stone lintel wooden mullion stone transom bar

7. coping brick dentils (alternating) architrave/frieze capital stone string course smooth pilaster corbelled brick Decorative Brickwork The transition between the second floor, third floor and roof level is indicated by four courses of corbelled brick. The third floor has a stone string course just over the skewback arch brick window heads. The corner pilasters rise to a corbelled brick capital (Tuscan Doric style) supporting a brickwork architrave/frieze. Above this is a large cornice composed of corbelled brick courses, header brick dentils (alternating) and a stone cornice cap or coping. The frontispiece top appears to have had some sort of parapet since removed.

8. parapet entabulature capital shaft side light datestone Main Entrance Porch A focal point in the symmetrical design of the office building façade is the brick and stone entrance porch. The three-sided front steps are substantial in size leading to a wide porch opening. The entrance has since been closed in with a wooden frame surrounding a single door, three transom lights and single side lights. The front corners of the porch have three piers with brick shafts, stone capitals and bases. Each group stands on a single, large datestone base. The left base is carved with the date of the company’s establishment (1877) and the right with the construction date of this particular building (1903) - 25 years in business. The piers support a stone entabulature and a brick parapet. The triangular peak has a stone coping and contains a carved namestone.

9. parapet step namestone stone string course stone transom bar Timekeeper’s Building This small, gable roof building had an impressive brick façade added in 1912. Its features were modelled on the Company Office building beside it with little deviation. The façade sillhouette is similar to the Office porch parapet but with two steps leading to a rectangular top. The three rounded arches are used again but with much larger proportions. Each arch springs from a stone string course across the entire width of the building front. As in the Office façade, the centre bay holds a carved namestone over a single coupled window unit with a solid stone transom bar.

10. Warehouse Building Heavy timber interior structural members repetition of 3 corbelled header bricks in cornice 12 identical 3-storey bays windows are double-hung with semi-circular brick heads and stone lug sills poured concrete loading platform

11. Grinding, Mounting and Blacksmith Shops (south east on Mohawk Street)

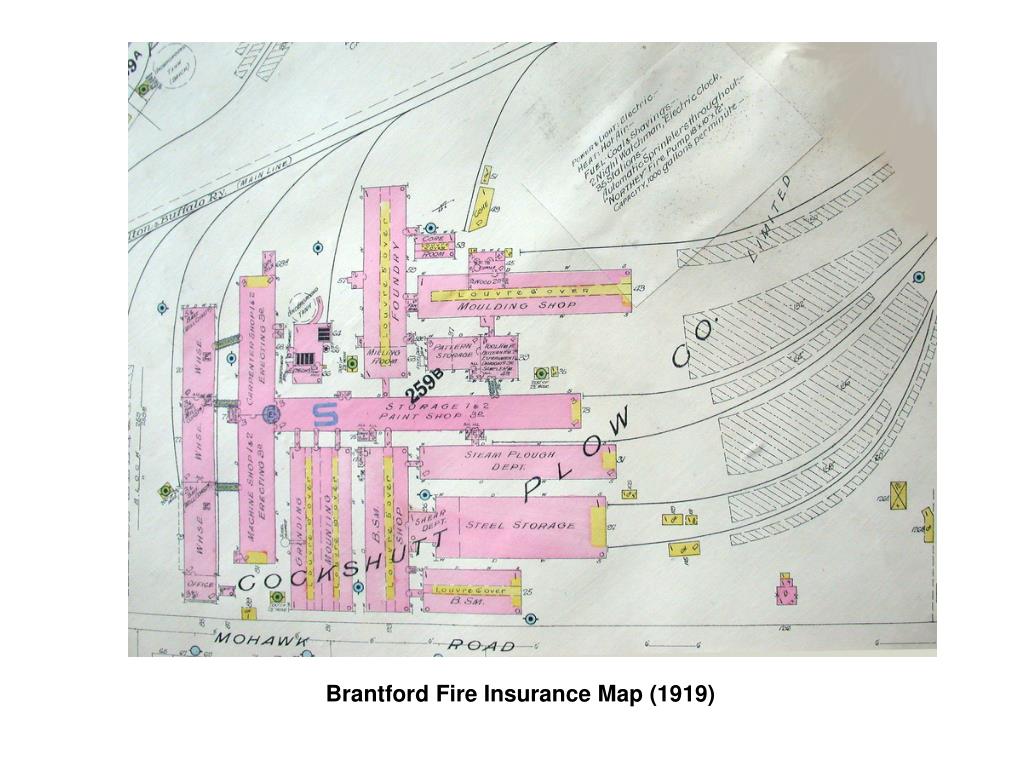

12. Brantford Fire Insurance Map (1919)
