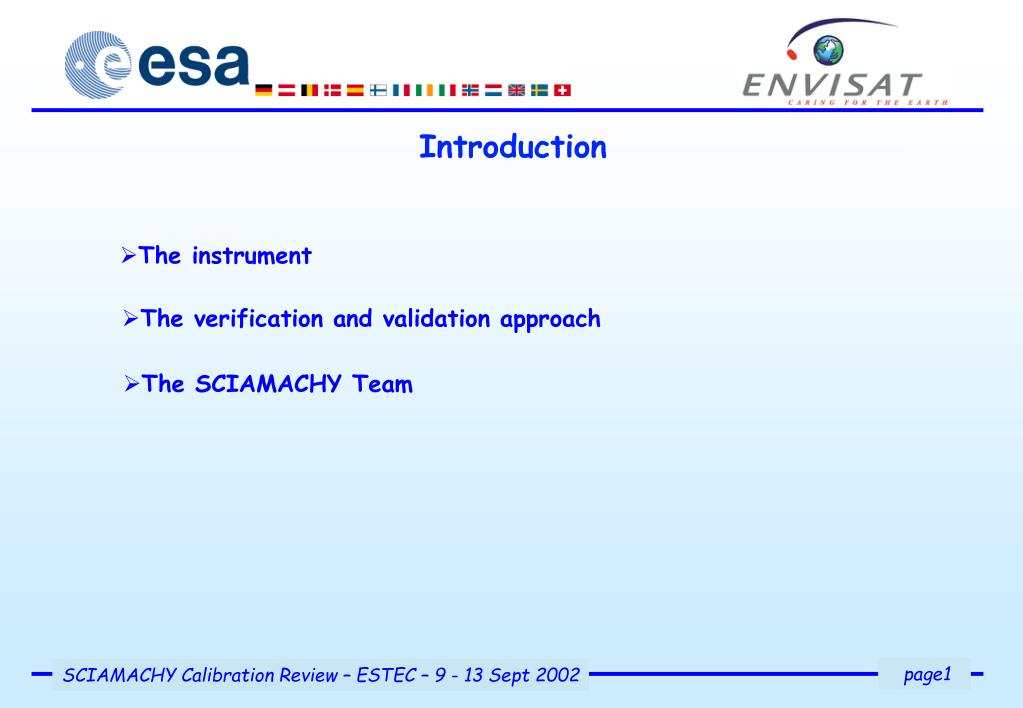

Introduction

Introduction

  • The instrument

  • The verification and validation approach

  • The SCIAMACHY Team


Sciamachy sc anning i maging a bsorption spectro m eter for a tmospheric ch artograph y

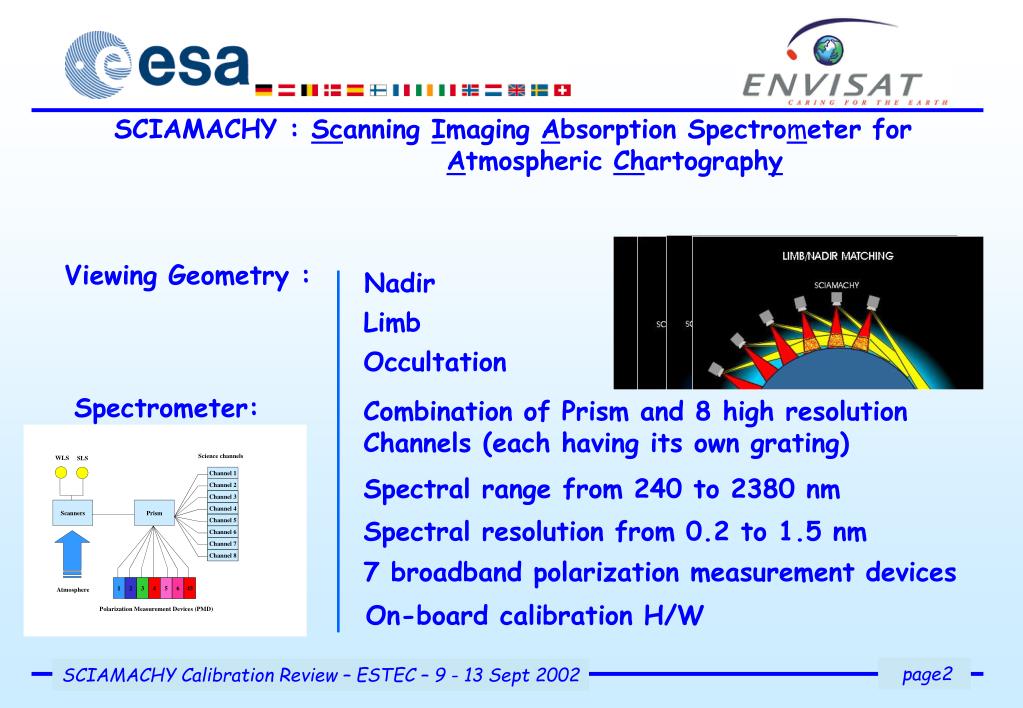

SCIAMACHY : Scanning Imaging Absorption Spectrometer for Atmospheric Chartography

Viewing Geometry :

Nadir

Limb

Occultation

Spectrometer:

Combination of Prism and 8 high resolution

Channels (each having its own grating)

Spectral range from 240 to 2380 nm

Spectral resolution from 0.2 to 1.5 nm

7 broadband polarization measurement devices

On-board calibration H/W


Verification and validation approach

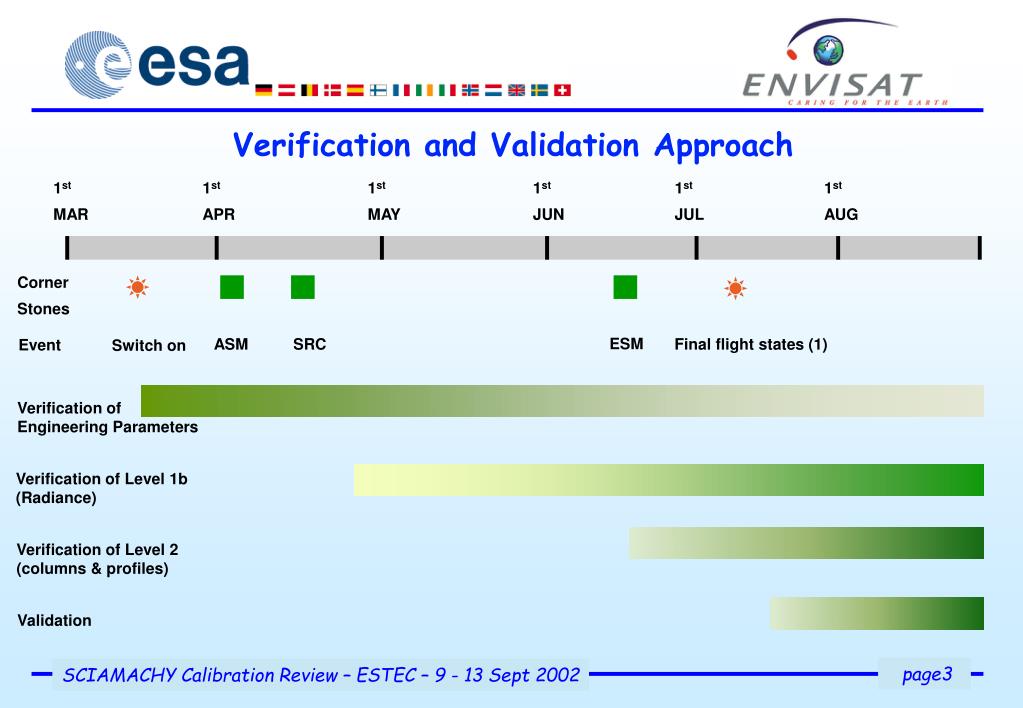

Verification and Validation Approach

1st

MAR

1st

APR

1st

MAY

1st

JUN

1st

JUL

1st

AUG

Corner

Stones

ESM

ASM

SRC

Final flight states (1)

Event

Switch on

Verification of

Engineering Parameters

Verification of Level 1b

(Radiance)

Verification of Level 2

(columns & profiles)

Validation


The sciamachy team

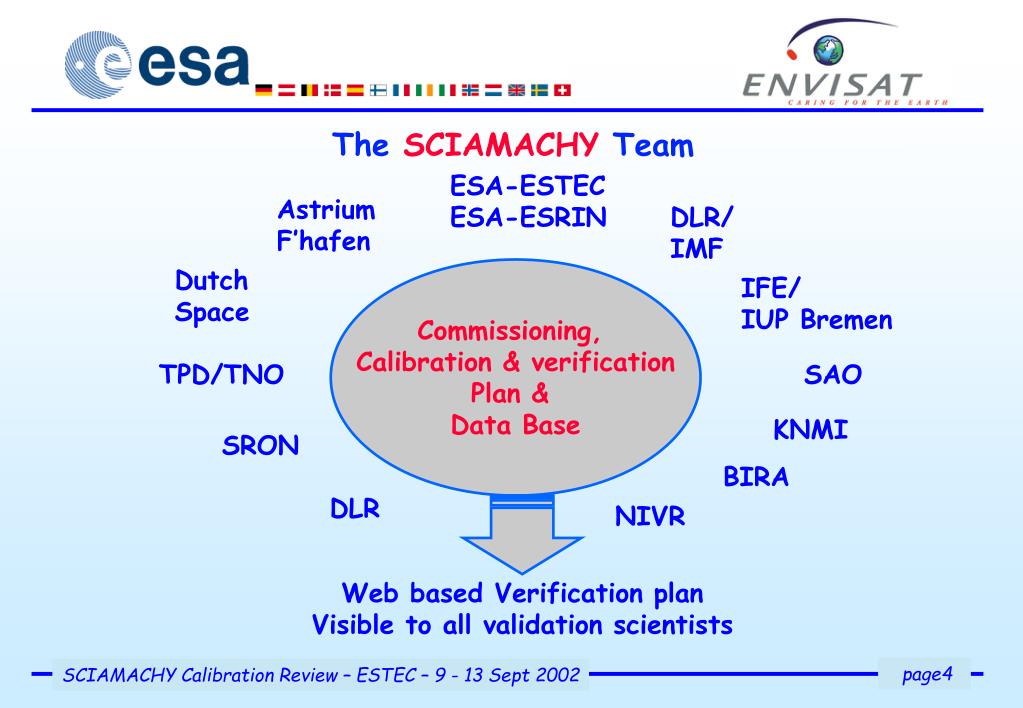

The SCIAMACHY Team

ESA-ESTEC

ESA-ESRIN

Astrium

F’hafen

DLR/

IMF

Commissioning,

Calibration & verification

Plan &

Data Base

Dutch

Space

IFE/

IUP Bremen

TPD/TNO

SAO

KNMI

SRON

BIRA

DLR

NIVR

Web based Verification plan

Visible to all validation scientists


  • Login
