Equilibrium calculations

Equilibrium calculations

  • To view as a slide show, Click on the “Slideshow” on the menu bar, and then on “View Show”

  • Click the mouse or press Page Down to go to the next slide

  • Press the Escape key to leave the presentation

  • Press Page Up to go back


Problem type 1

Problem type #1

  • Given some information about the conditions before equilibrium and after equilibrium, find the equilibrium constant.


Equilibrium calculations

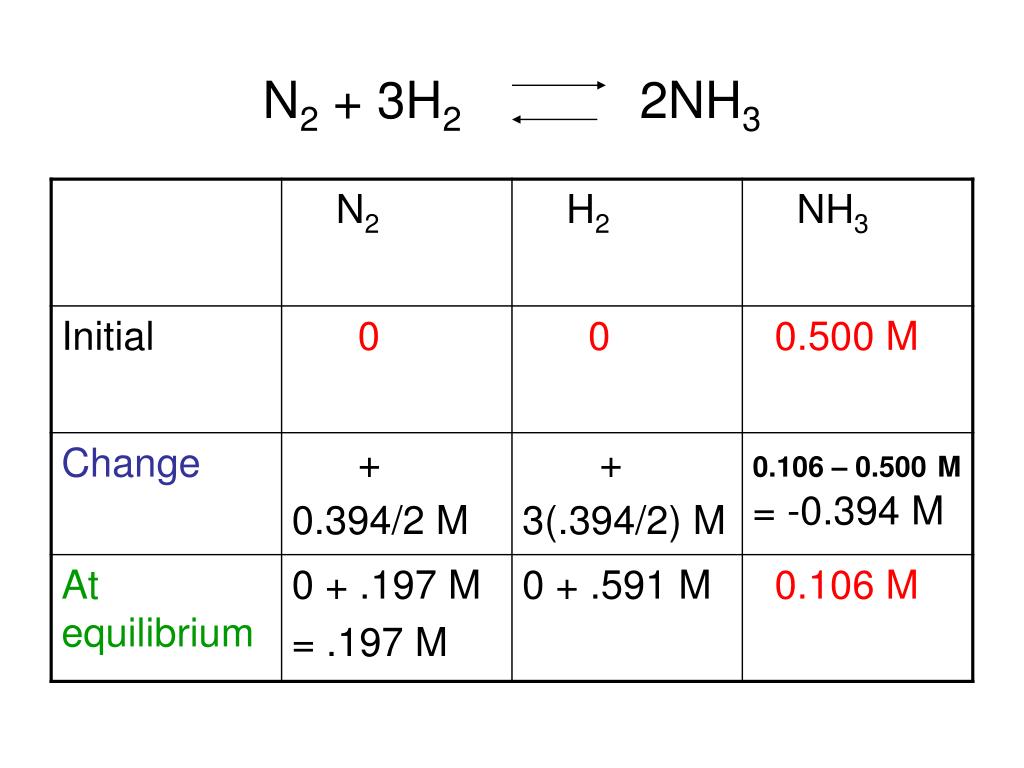

Suppose a flask was made to be 0.500 M in NH3 initially, and when equilibrium was reached, the [NH3] had dropped to 0.106 M. Find the value of K for:N2 + 3H22NH3


N 2 3h 2 2nh 3

N2 + 3H22NH3


N 2 3h 2 2nh 31

N2 + 3H22NH3


N 2 3h 2 2nh 32

N2 + 3H22NH3


N 2 3h 2 2nh 33

N2 + 3H22NH3


N 2 3h 2 2nh 34

N2 + 3H22NH3


N 2 3h 2 2nh 35

N2 + 3H22NH3


N 2 3h 2 2nh 36

N2 + 3H22NH3


N 2 3h 2 2nh 37

N2 + 3H22NH3

  • Let 2x be the amount of NH3 that reacts

  • Use stoichiometry of reaction!


N 2 3h 2 2nh 38

N2 + 3H22NH3

  • Let 2x be the amount of NH3 that reacts

  • 2x = 0.500 – 0.106 = 0.394


N 2 3h 2 2nh 39

N2 + 3H22NH3

  • Let 2x be the amount of NH3 that reacts

  • 2x = 0.500 – 0.106 = 0.394


Problem type 2a

Problem type #2a

  • Given information about conditions before equilibrium and the equilibrium constant, find the concentrations when equilibrium is reached.


Equilibrium calculations

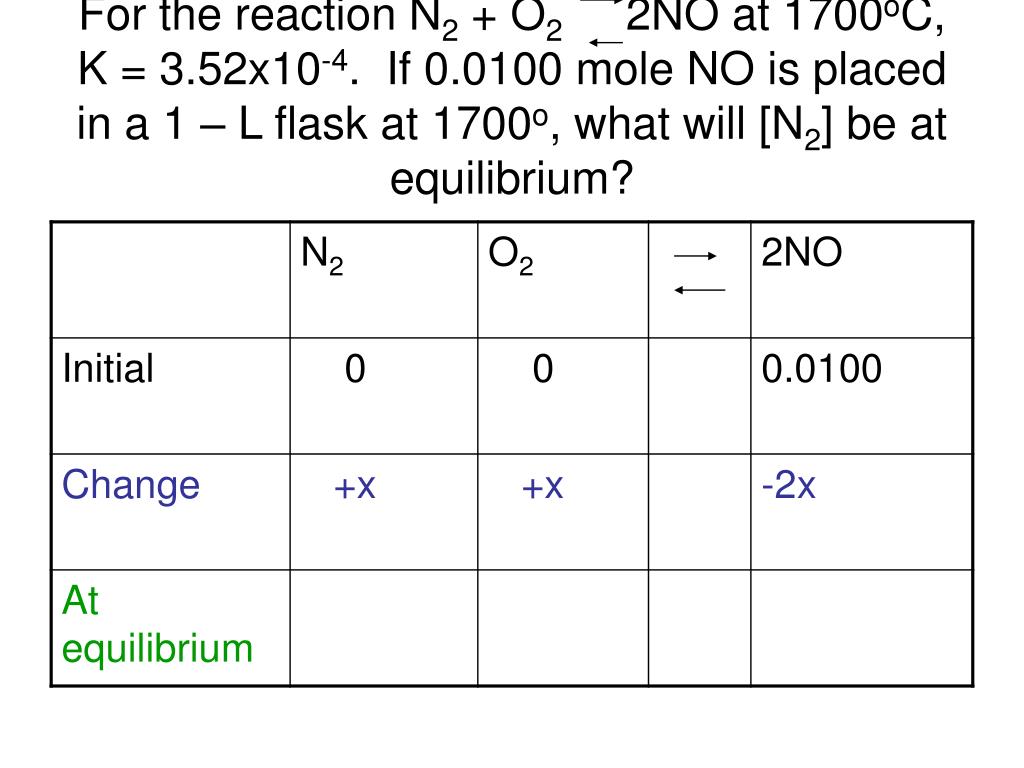

For the reaction N2 + O2 2NO at 1700oC, K = 3.52x10-4. If 0.0100 mole NO is placed in a 1 – L flask at 1700o, what will [N2] be at equilibrium?


Equilibrium calculations

For the reaction N2 + O2 2NO at 1700oC, K = 3.52x10-4. If 0.0100 mole NO is placed in a 1 – L flask at 1700o, what will [N2] be at equilibrium?


Equilibrium calculations

For the reaction N2 + O2 2NO at 1700oC, K = 3.52x10-4. If 0.0100 mole NO is placed in a 1 – L flask at 1700o, what will [N2] be at equilibrium?


Equilibrium calculations

  • 0.0100 - 2x = (1.88 x 10-2)x

  • 0.0100 = 2.02 x

  • x = 4.95 x 10-3 M = [N2] (also = [O2])

    Note that because K was small, most of the NO became N2 and O2

    Final [NO] = 0.0100 – 2(4.95 x 10-3) =1.00 x 10-4 M


Problem type 2b

Problem type #2b

  • Given information about conditions before equilibrium and the equilibrium constant, find the concentrations when equilibrium is reached.

  • . . . .But the math doesn’t work out as nicely


Equilibrium calculations

For the reaction F2 2F at 1000oC, K = 2.7 x10-3. If 1.0 mole F2 is placed in a 1 – L flask at 1000o, what will [F] be at equilibrium?


Equilibrium calculations

For the reaction F2 2F at 1000oC, K = 2.7 x10-3. If 1.0 mole F2 is placed in a 1 – L flask at 1000o, what will [F] be at equilibrium?


Equilibrium calculations

For the reaction F2 2F at 1000oC, K = 2.7 x10-3. If 1.0 mole F2 is placed in a 1 – L flask at 1000o, what will [F] be at equilibrium?


Equilibrium calculations

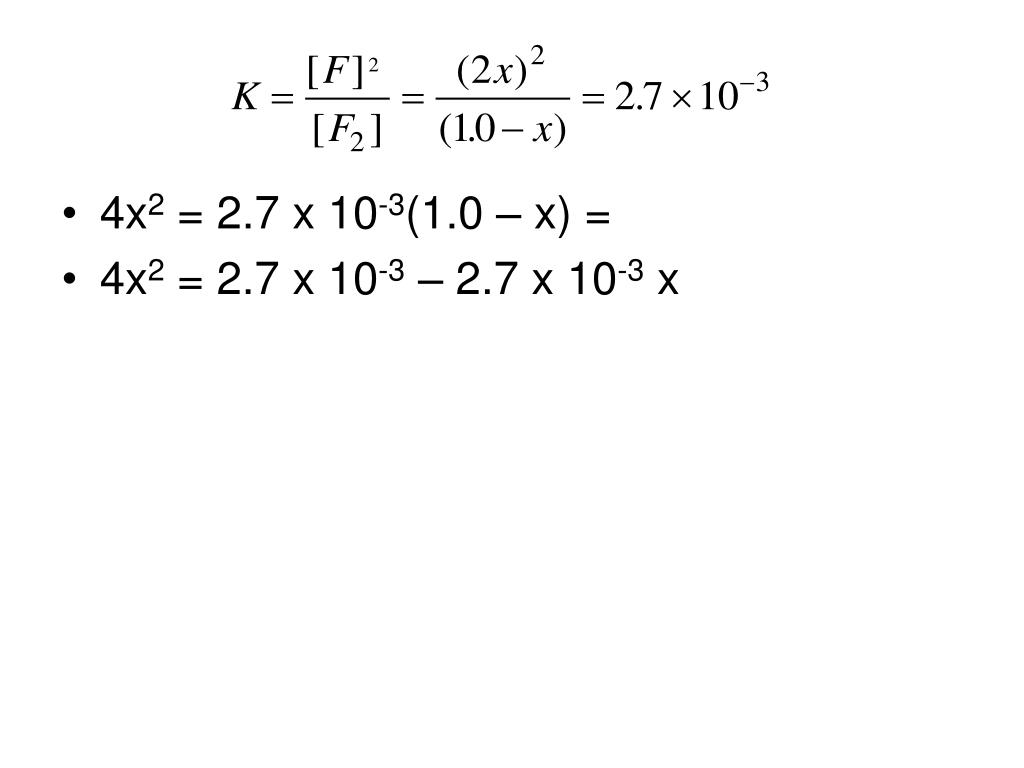

  • 4x2 = 2.7 x 10-3(1.0 – x) =

  • 4x2 = 2.7 x 10-3 – 2.7 x 10-3 x


Equilibrium calculations

  • 4x2 = 2.7 x 10-3(1.0 – x) =

  • 4x2 = 2.7 x 10-3 – 2.7 x 10-3 x

  • This is a quadratic equation

  • Rearrange to the form ax2 + bx + c = 0

    4x2 + 2.7x10-3x – 2.7 x 10-3 = 0

  • a = 4 b = 2.7 x 10-3 c = -2.7 x 10-3


Equilibrium calculations

4x2 + 2.7x10-3x – 2.7 x 10-3 = 0

  • a = 4 b = 2.7 x 10-3 c = -2.7 x 10-3


Equilibrium calculations

4x2 + 2.7x10-3x – 2.7 x 10-3 = 0

  • a = 4 b = 2.7 x 10-3 c = -2.7 x 10-3


We found x 0 0256 m

We found x = 0.0256 M


Don t memorize

Don’t memorize. . . .


Don t memorize1

Don’t memorize

  • UNDERSTAND


Problem type 2c

Problem type 2c

  • Maybe next time . . . . . . .
