Presentation Transcript


Consuming external data with business connectivity services in sharepoint 2010

Consuming External Data with Business Connectivity Services in SharePoint 2010

Name

Title

Company


Agenda

Agenda

  • Business Connectivity Services (BCS) Primer

  • Creating BCS Applications

  • BCS Security

  • BCS And Search


Business connectivity services bcs primer

Business Connectivity Services (BCS) Primer


Business connectivity services

Business Connectivity Services

SharePoint

Office Applications

Design Tools

BCS Client

Dev Platform

Business Intelligence

Enterprise Content Management

Collaboration Social

Enterprise Search

SharePointDesigner

External Lists

External Content Type Repository

Visual Studio

Business Data Connectivity

LOB

Web Service

WCF

DB

Web 2.0


Data connectivity

Data & Connectivity

SharePoint Client

BCS in Office Client

BCS in SharePoint

Identity Federation

service

BCS Meta

Data Store

Client Data

Cache

BDC

BDC

DB

Connector

WCF /WS

Connector

.NET Assembly

Connector

ASCustom

Connector

Client to Backend Direct Connection

External data

Persistence Store

Custom .NET assembly

Data Cubes

SQL

SAP

ORACLE

Siebel

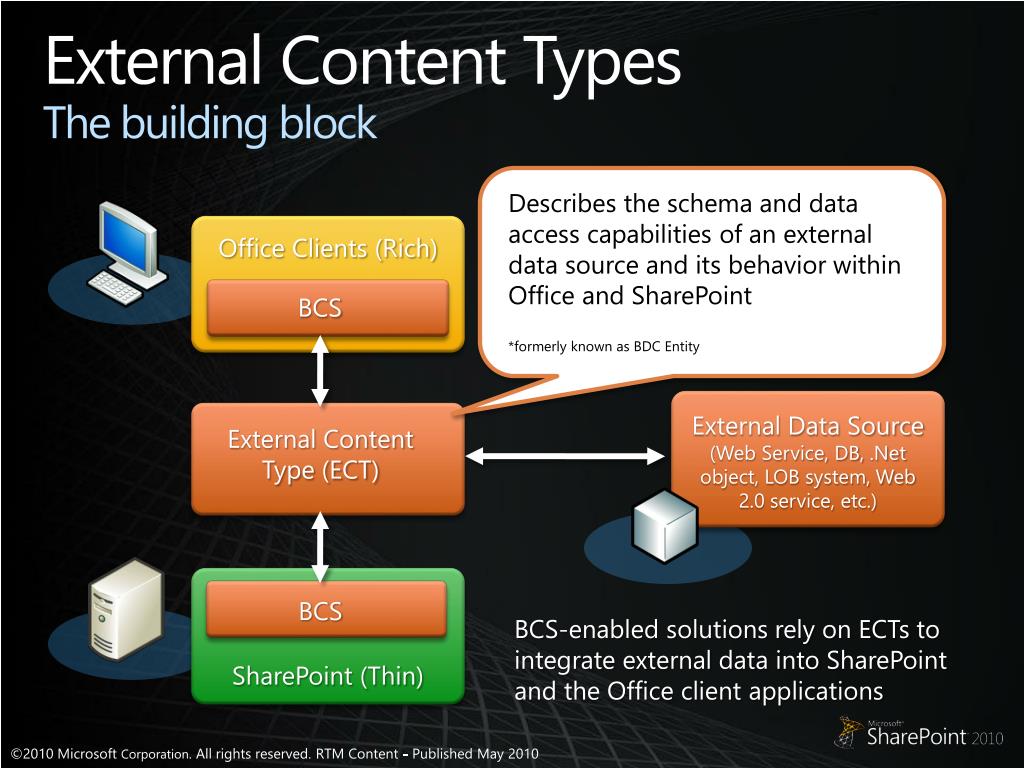

External content types the building block

External Content TypesThe building block

Describes the schema and data access capabilities of an external data source and its behavior within Office and SharePoint

*formerly known as BDC Entity

Office Clients (Rich)

BCS

External Data Source

(Web Service, DB, .Net object, LOB system, Web 2.0 service, etc.)

External Content Type (ECT)

BCS

BCS-enabled solutions rely on ECTs to integrate external data into SharePoint and the Office client applications

SharePoint (Thin)


Bcs server features by sku

BCS Server Features by SKU


Bdc runtime

BDC Runtime

  • Client & Server symmetrical model

    • Write back capable

    • Batch read operations

    • Navigate and create associations

    • Bulk APIs

    • Read blobs (streaming support)

    • Read and write back complex types (Dot notation)

  • Uniform experience across various systems types

  • Extensibility mechanisms

    • .NET Assembly Connector

    • Custom Connector

    • Secure Store Provider (custom)


  • External content type modeling with spd

    External Content Type Modeling with SPD

    demo


    Creating bcs applications

    Creating BCS Applications


    Solution types

    Out-of-box

    Surface data in External Lists

    Connect those lists to Outlook, SPW

    External Data Columns

    Solution Types

    • Custom connectivity for data aggregation, transformation, security, etc.

    • Use custom code to integrate data into any Office app

    • Business logic in forms

    • Create reusable components (UI parts, ECTs, actions)

    • Customize

      • InfoPath forms

      • Workflow

      • Web Part Pages

      • Outlook taskpane and ribbon

    Simple

    Intermediate

    Advanced

    NO CODE*

    CODE

    SharePoint Designer

    SharePoint SDK

    Visual

    Studio

    Developer

    Power User

    Advanced Developer

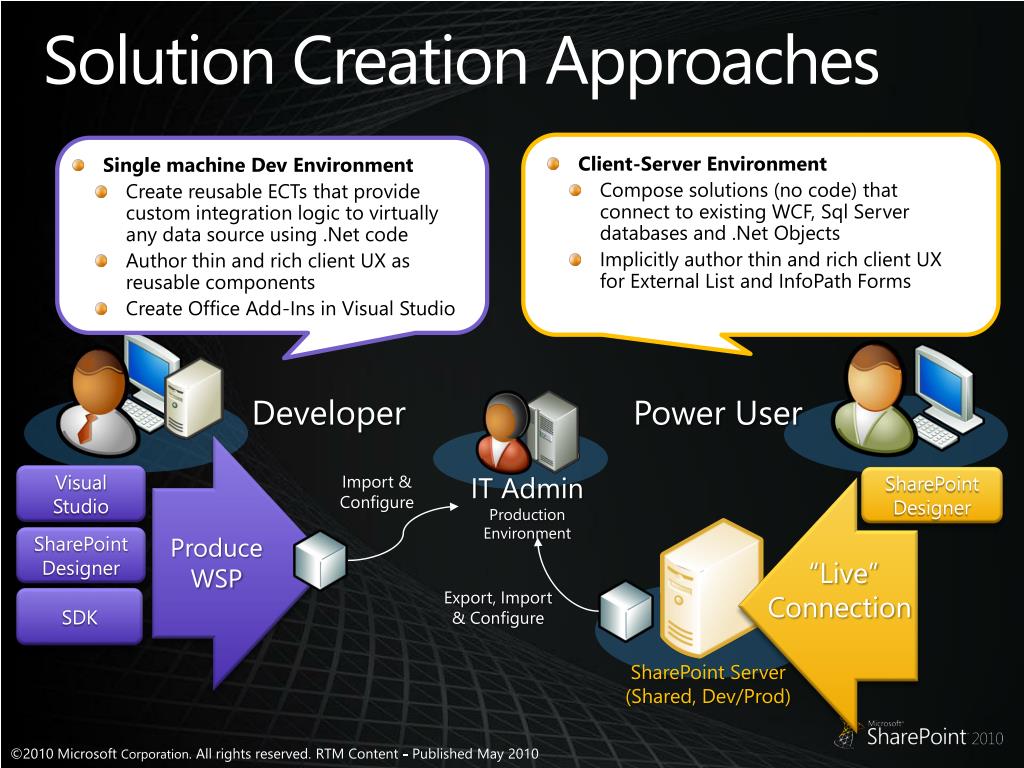

    Solution creation approaches

    Solution Creation Approaches

    • Client-Server Environment

      • Compose solutions (no code) that connect to existing WCF, Sql Server databases and .Net Objects

      • Implicitly author thin and rich client UX for External List and InfoPath Forms

    • Single machine Dev Environment

    • Create reusable ECTs that provide custom integration logic to virtually any data source using .Net code

    • Author thin and rich client UX as reusable components

    • Create Office Add-Ins in Visual Studio

    Import & Configure

    Produce WSP

    “Live” Connection

    Export, Import

    & Configure

    Developer

    Power User

    Visual

    Studio

    SharePoint Server

    (Shared, Dev/Prod)

    SharePoint Designer

    IT Admin

    Production Environment

    SharePoint

    Designer

    SDK


    Exposing your data from sharepoint

    Exposing Your Data From SharePoint

    • External Data Columns

    • External Lists

    • Chart WebPart

    • Business Data WebParts

      • Business Data List/Related List

      • Business Data Item Builder

      • Business Data Item

    • BDC OM

    • SharePoint OM

    • Client Side OM (CSOM)

    No Code Solutions

    Custom Code


    Bdc models in vs 2010

    BDC Models in VS 2010

    • BDC Model SharePoint Project Item (SPI)

    • Farm Feature with Feature Receiver ImportModelReceiver

    • BDC Model Designer

    • BDC Explorer

    • Minimal XML editing

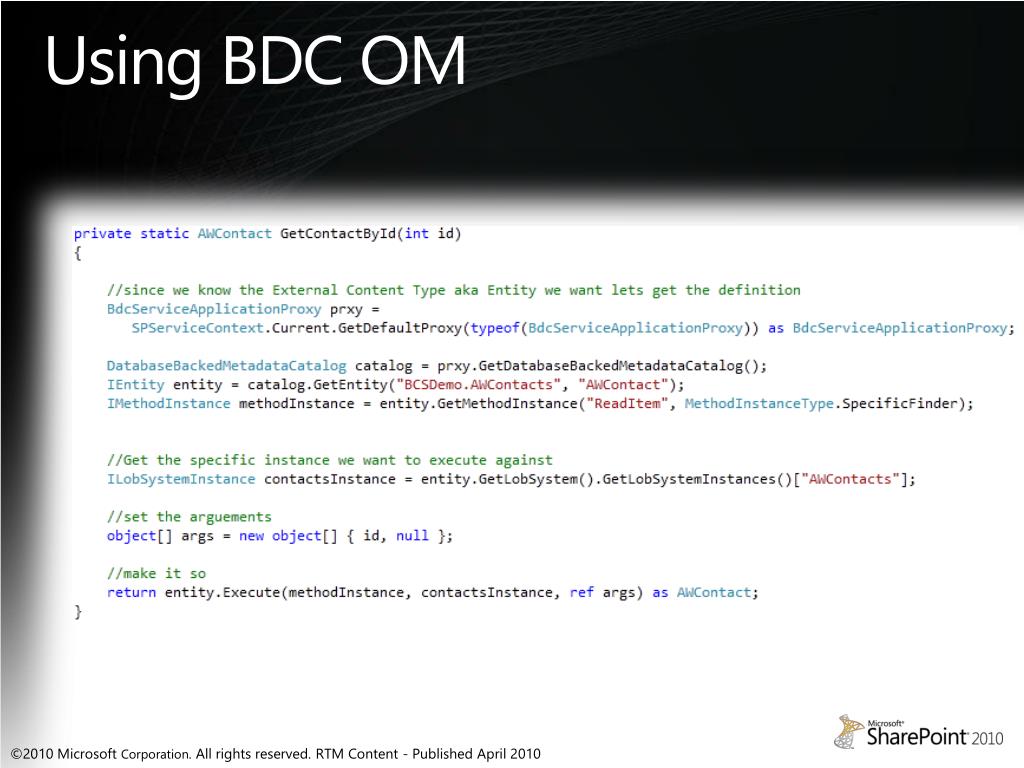

    Using bdc om

    Using BDC OM

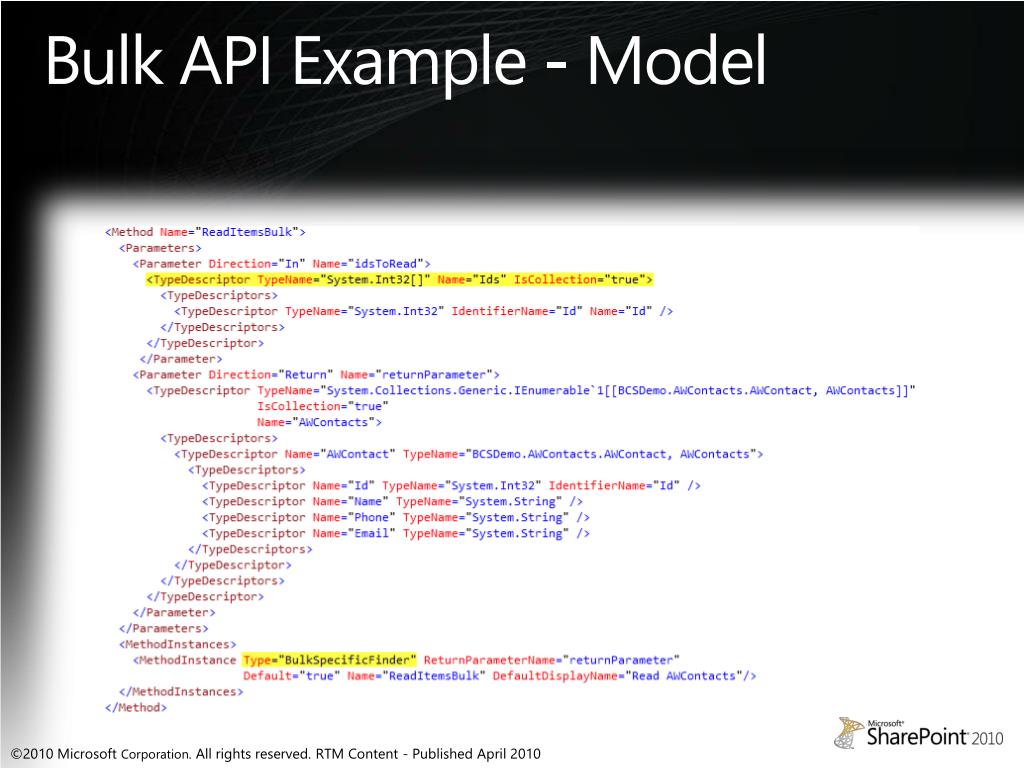

    Bulk api example model

    Bulk API Example - Model


    Bulk api example code

    Bulk API Example - Code


    Batching api example model

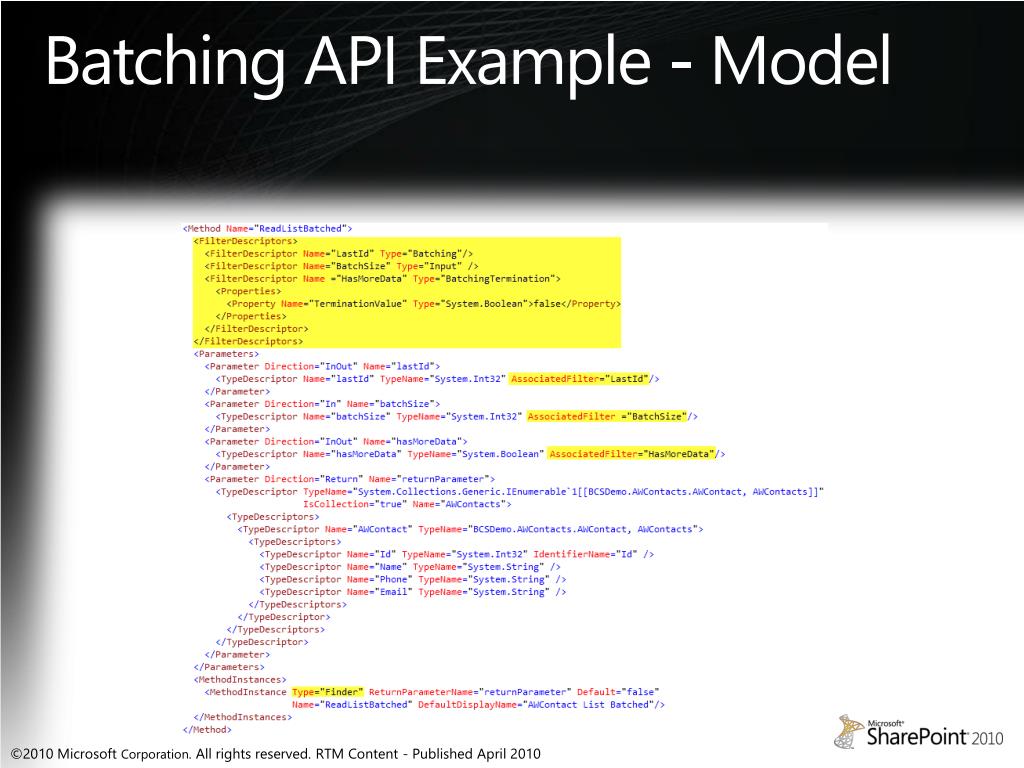

    Batching API Example - Model


    Batching api example code

    Batching API Example - Code


    Sharepoint client side om

    SharePoint & Client Side OM

    • Expose ECT as External List

    • CSOM

      • Use List and ListItem

    • SharePoint OM

      • Use SPList, SPListItem for CRUD

    • Limitations

      • Type must be represented within Table

      • ID Field type must be Int32

      • No Bulk or Batching API Support

      • SPListItem not strongly typed

      • No BLOB streaming support

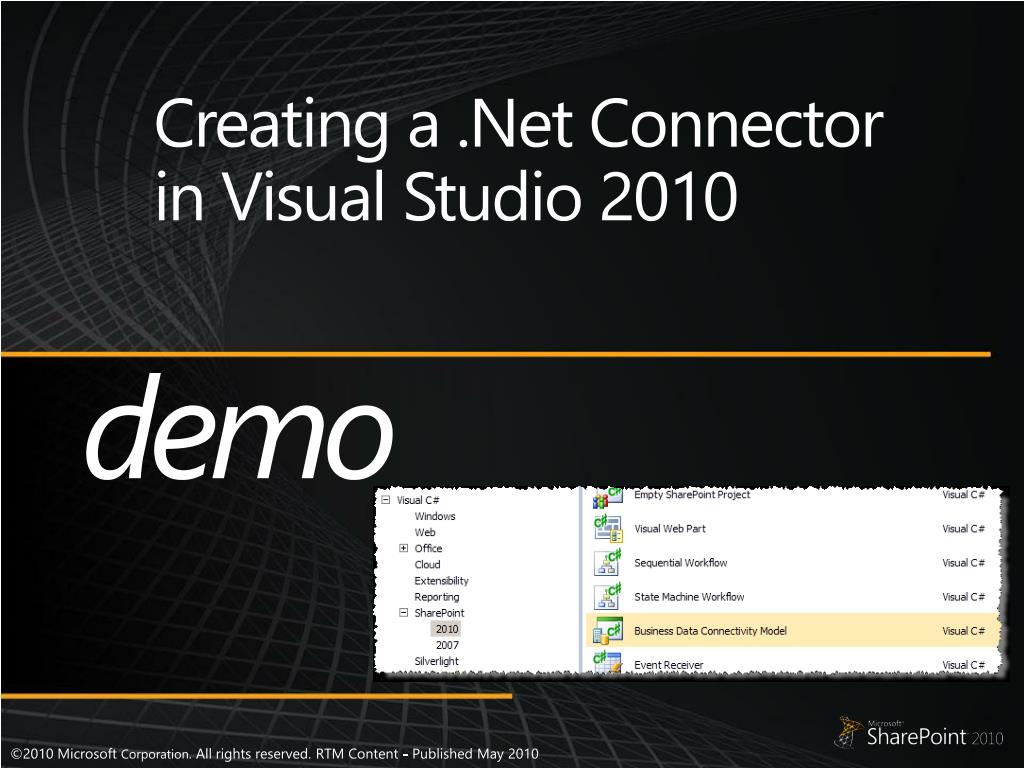

    Creating a net connector in visual studio 2010

    Creating a .Net Connector in Visual Studio 2010

    demo


    Bcs security

    BCS Security

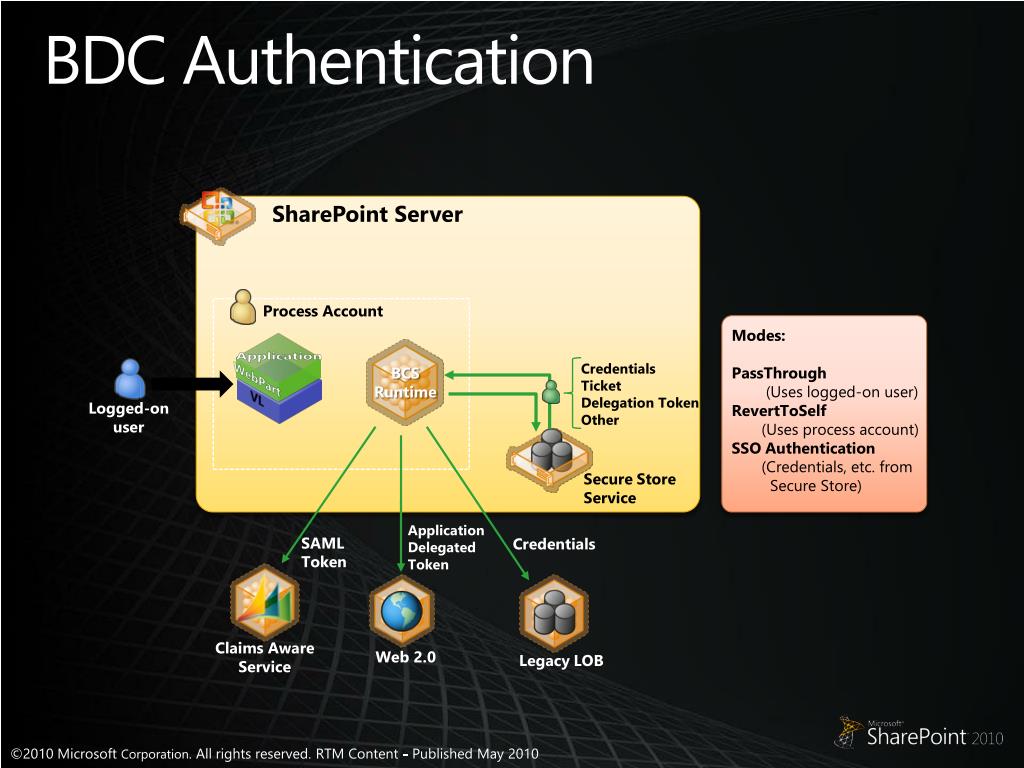

    Bdc authentication

    BDC Authentication

    SharePoint Server

    Process Account

    Modes:

    PassThrough

    (Uses logged-on user)

    RevertToSelf

    (Uses process account)

    SSO Authentication

    (Credentials, etc. from

    Secure Store)

    Application

    CredentialsTicket

    Delegation Token

    Other

    BCS

    Runtime

    WebPart

    VL

    Logged-on

    user

    Secure Store

    Service

    Application

    Delegated

    Token

    SAML

    Token

    Credentials

    Claims Aware

    Service

    Web 2.0

    Legacy LOB


    Secure store service sss

    Secure Store Service (SSS)

    • Used to avoid double-hop issue

    • Can be used for Impersonation

    • BDCAuthException throw when

      • Credentials are not found in SSS

      • BCS connector detects authentication exception from external data source

    • Default credentials page or custom page

    • Create your own SS Provider with ISecureStoreProvider


    Bcs authentication support matrix

    BCS Authentication Support Matrix

    n/a

    In code

    In code

    In code

    In code

    In code

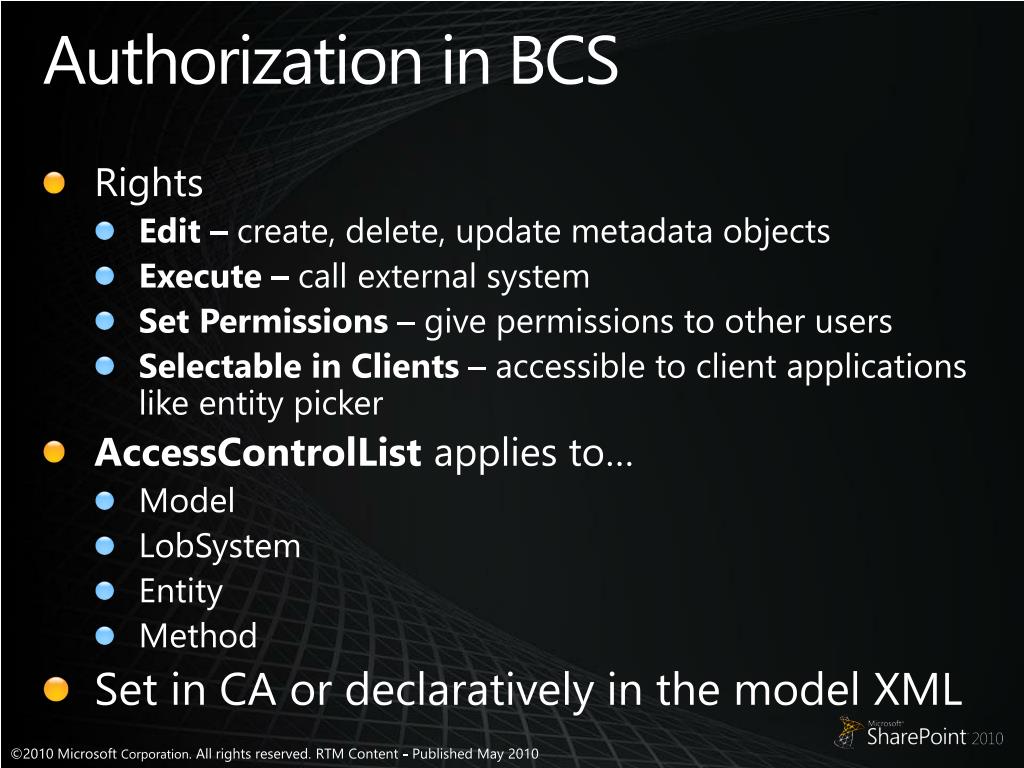

    Authorization in bcs

    Authorization in BCS

    • Rights

      • Edit – create, delete, update metadata objects

      • Execute – call external system

      • Set Permissions – give permissions to other users

      • Selectable in Clients – accessible to client applications like entity picker

    • AccessControlListapplies to…

      • Model

      • LobSystem

      • Entity

      • Method

    • Set in CA or declaratively in the model XML


    Bcs search

    BCS Search


    Enabling your model for search

    Enabling Your Model For Search

    • Search Specific Properties

      • ShowInSearchUI – LOB System

      • RootFinder – Finder Method and Instance

      • LastModifiedTimeStampField – Configure for incremental crawling

      • WindowsSecurityDescriptorField – SpecificFinder instance


    Summary

    Summary

    • Business Connectivity Services (BCS) Primer

    • Creating BCS Applications

    • BCS Security

    • BCS And Search
