Forces

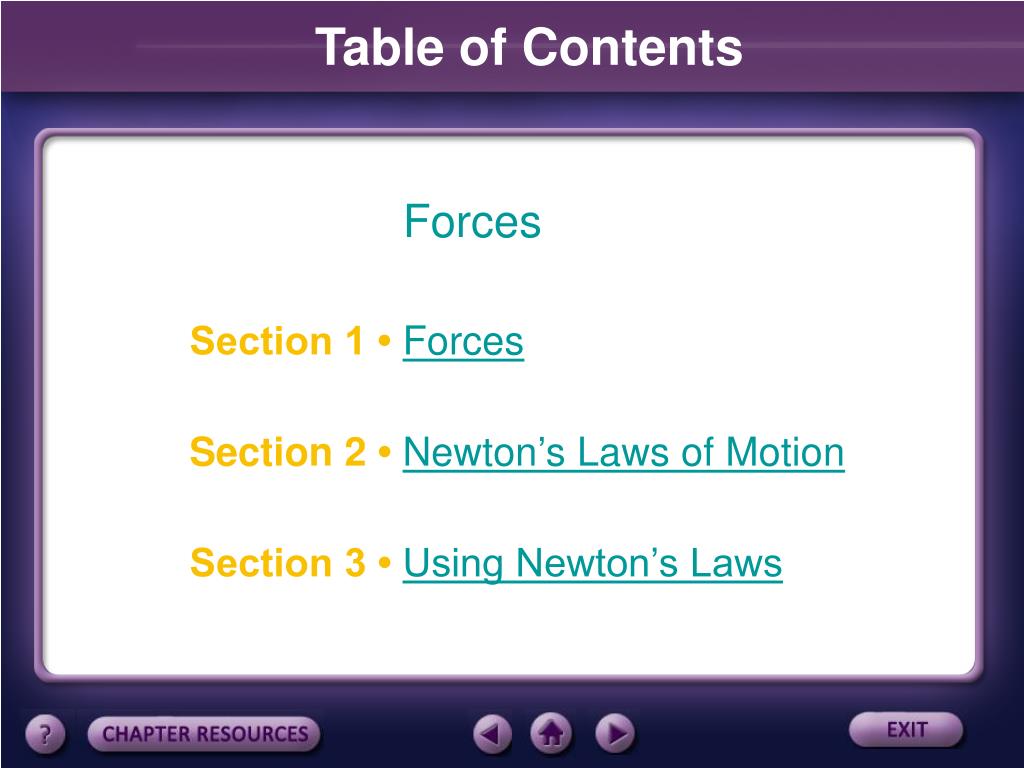

2. Table of Contents Forces Section 1 •Forces Section 2 •Newton’s Laws of Motion Section 3 •Using Newton’s Laws

3. What is force? • A force is a push or pull. • Sometimes it is obvious that a force has been applied. • But other forces aren’t as noticeable.

4. Changing Motion • A force can cause the motion of an object to change. • If you have played billiards, you know that you can force a ball at rest to roll into a pocket by striking it with another ball. Corbis/Punchstock

5. Changing Motion • The force of the moving ball causes the ball at rest to move in the direction of the force. Corbis/Punchstock

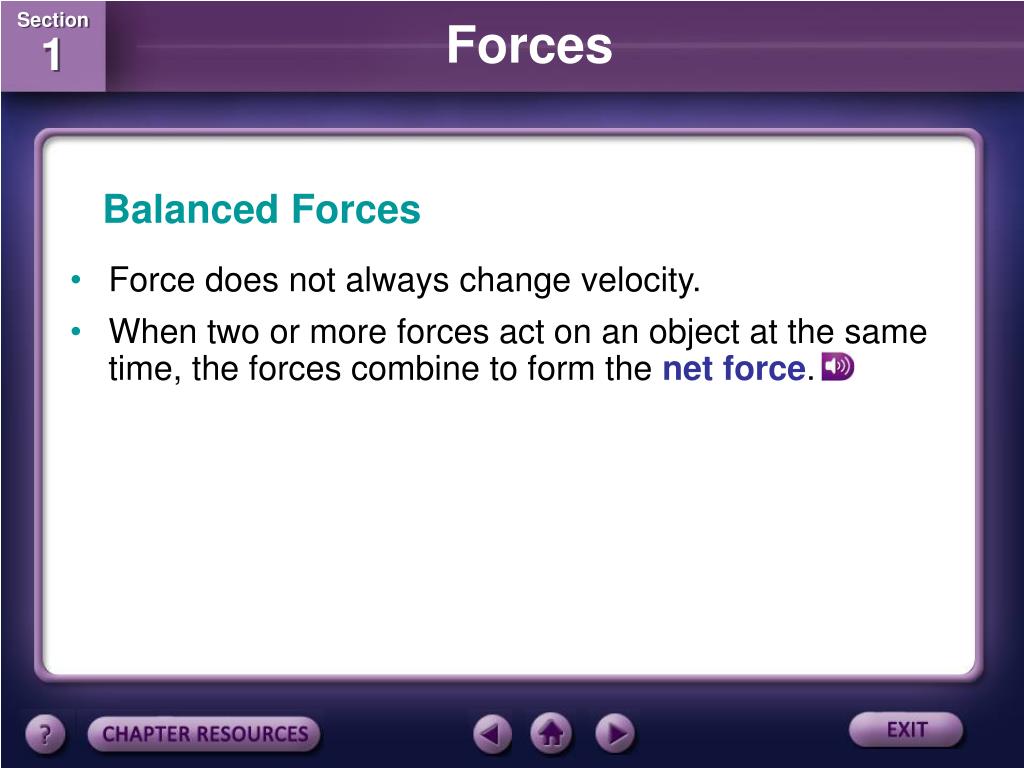

6. Balanced Forces • Force does not always change velocity. • When two or more forces act on an object at the same time, the forces combine to form the netforce.

7. Unbalanced Forces • The students are pushing on the box in the same direction. • These forces are combined, or added together, because they are exerted on the box in the same direction.

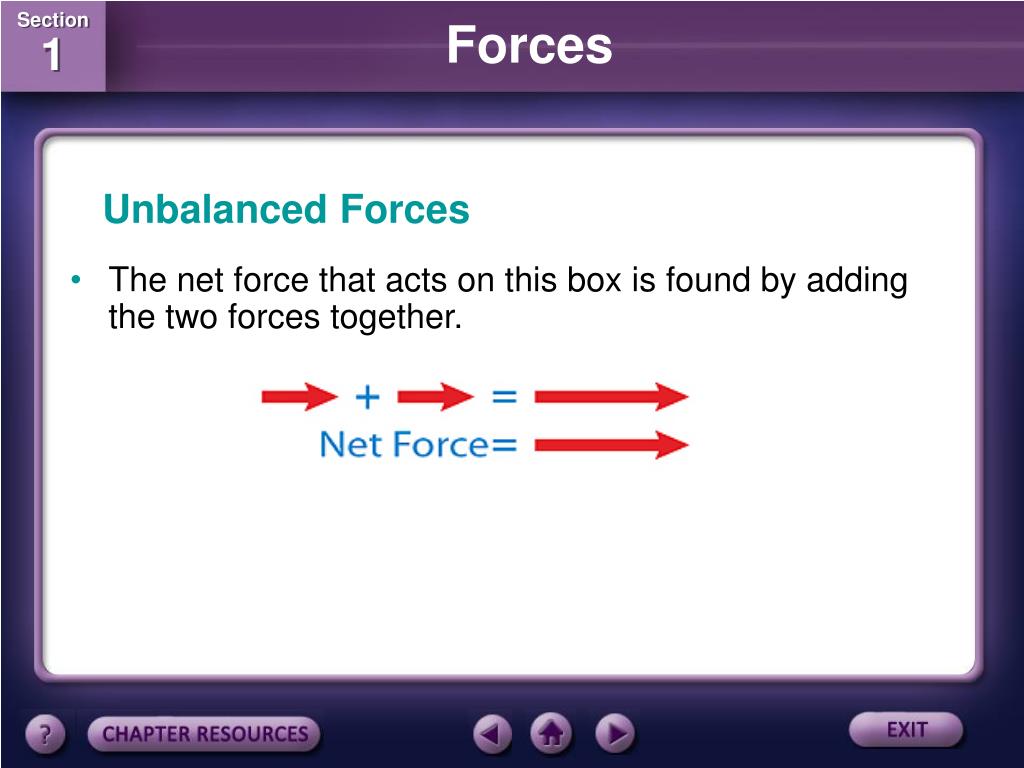

8. Unbalanced Forces • The net force that acts on this box is found by adding the two forces together.

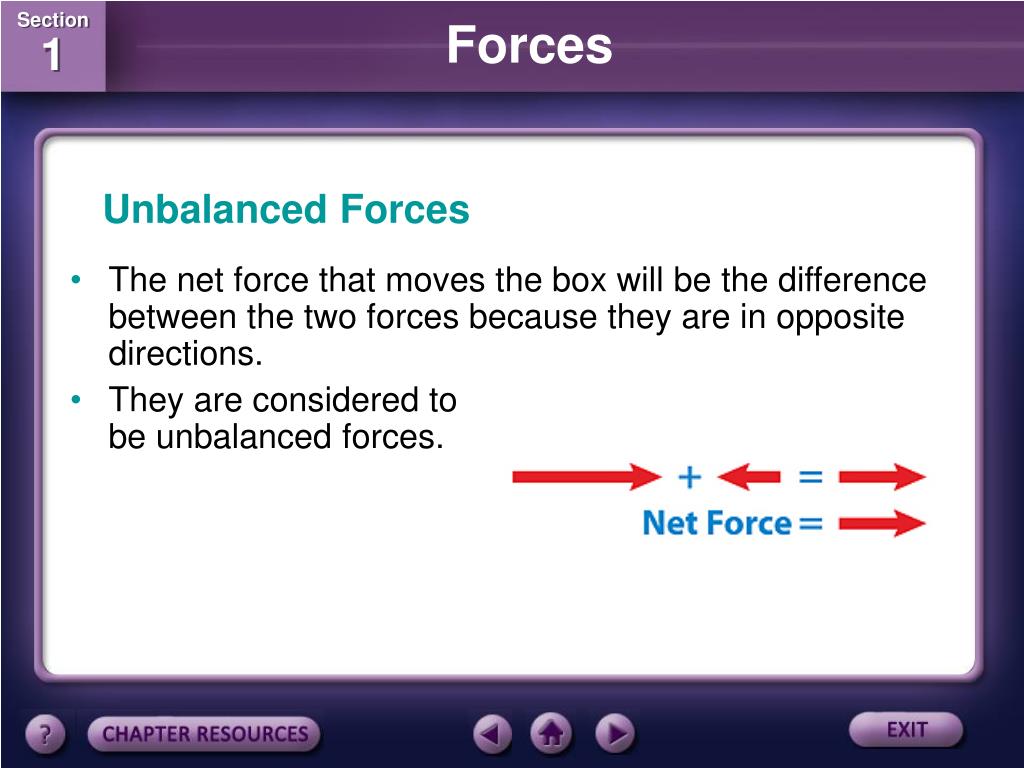

9. Unbalanced Forces • The net force that moves the box will be the difference between the two forces because they are in opposite directions. • They are considered to be unbalanced forces.

10. Balanced Forces • The net force on the box is zero because the two forces cancel each other. • Forces on an object that are equal in size and opposite in direction are called balanced forces.

11. Friction • Suppose you give a skateboard a push with your hand. • Does the skateboard keep moving with constant speed after it leaves your hand?

12. Friction • The force that slows the skateboard and brings it to a stop is friction. • Friction is the force that opposes the sliding motion of two surfaces that are touching each other. • The amount of friction between two surfaces depends on two factorsthe kinds of surfaces and the force pressing the surfaces together.

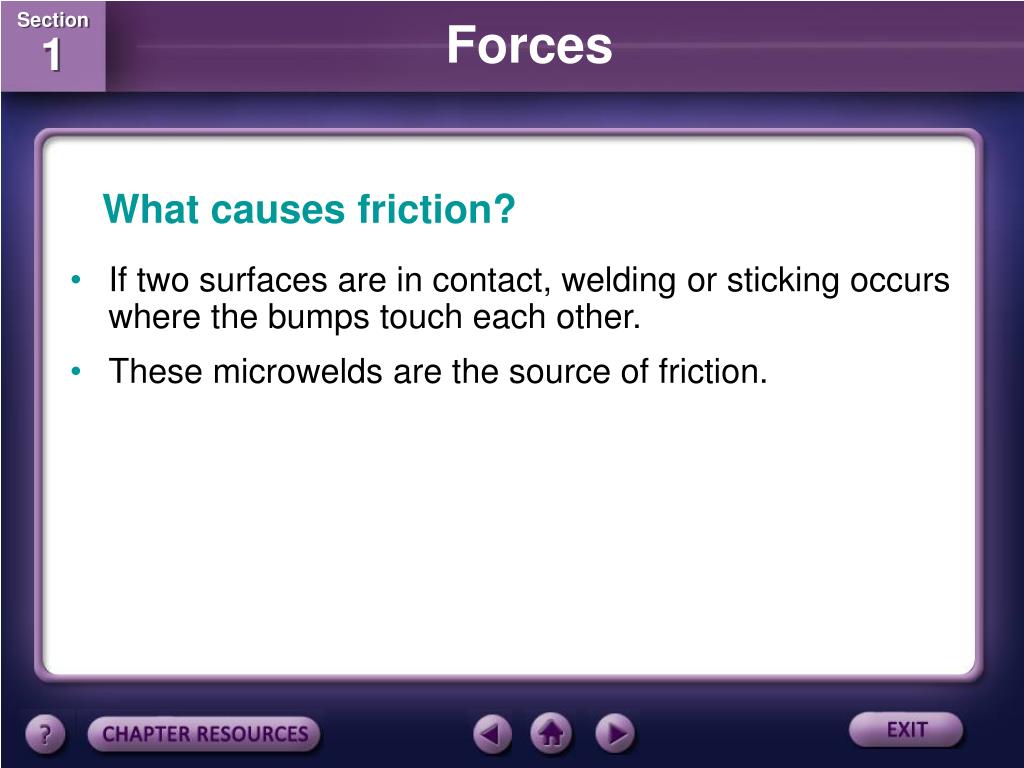

13. What causes friction? • If two surfaces are in contact, welding or sticking occurs where the bumps touch each other. • These microwelds are the source of friction.

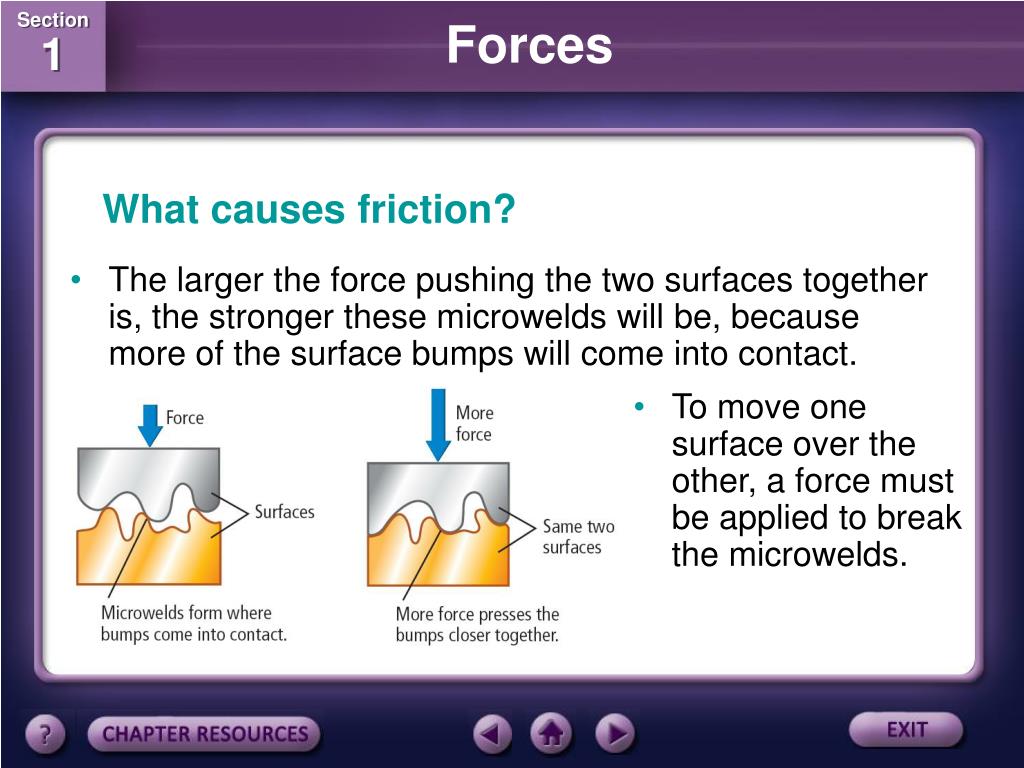

14. What causes friction? • The larger the force pushing the two surfaces together is, the stronger these microwelds will be, because more of the surface bumps will come into contact. • To move one surface over the other, a force must be applied to break the microwelds.

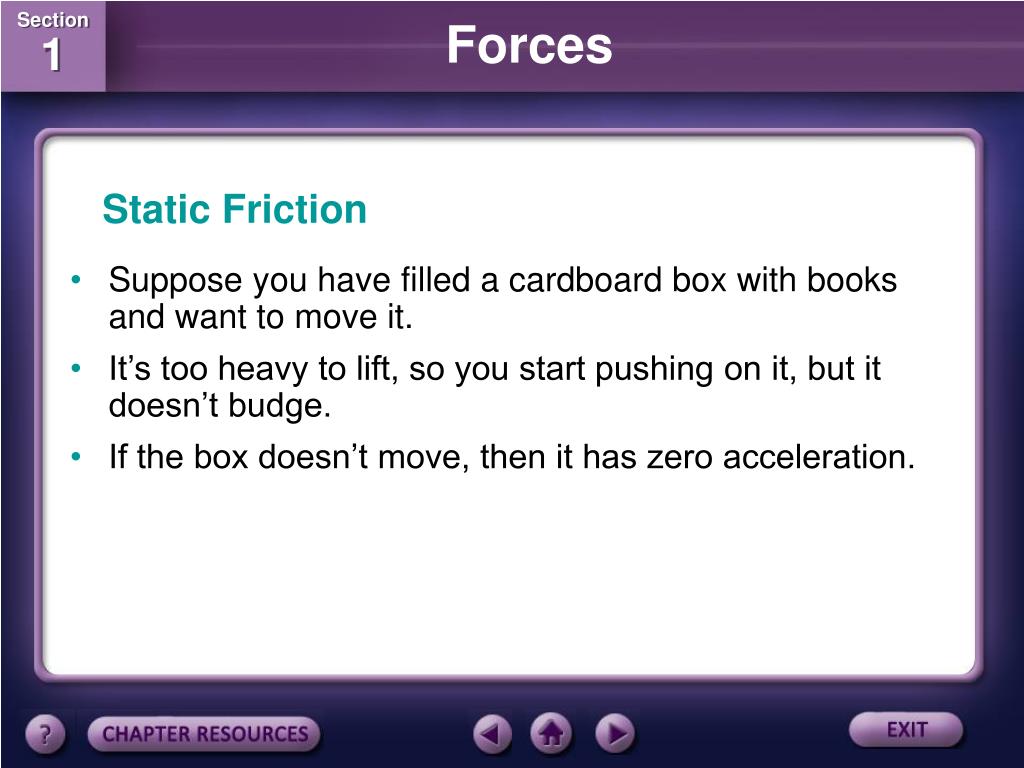

15. Static Friction • Suppose you have filled a cardboard box with books and want to move it. • It’s too heavy to lift, so you start pushing on it, but it doesn’t budge. • If the box doesn’t move, then it has zero acceleration.

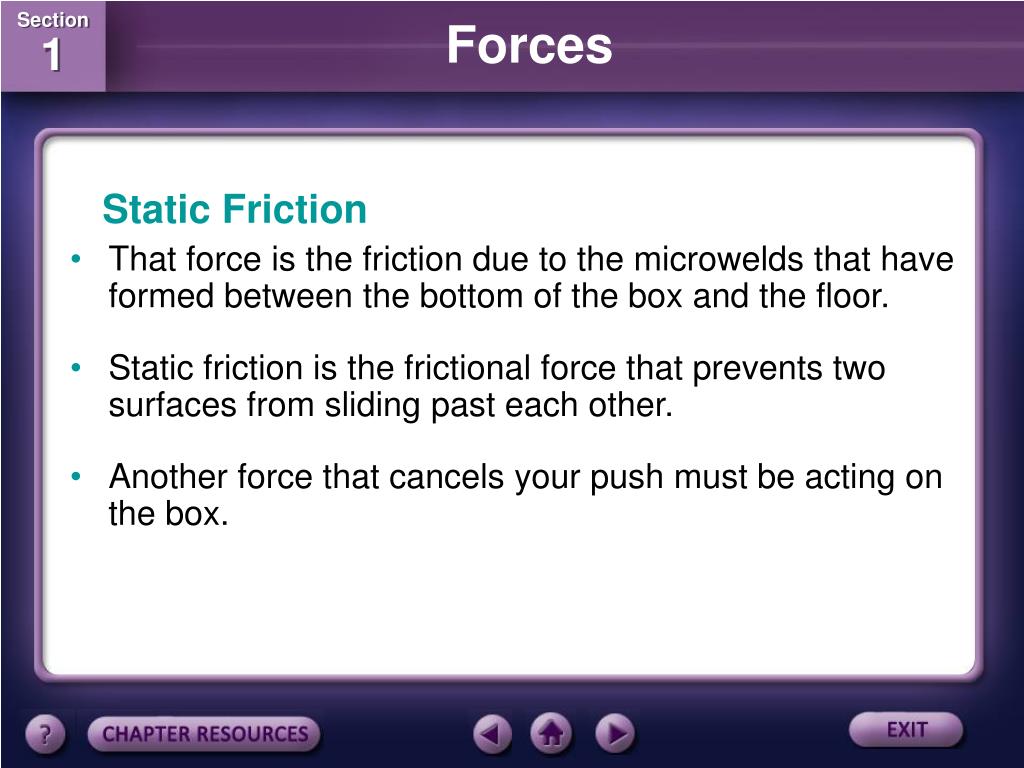

16. Static Friction • That force is the friction due to the microwelds that have formed between the bottom of the box and the floor. • Static friction is the frictional force that prevents two surfaces from sliding past each other. • Another force that cancels your push must be acting on the box.

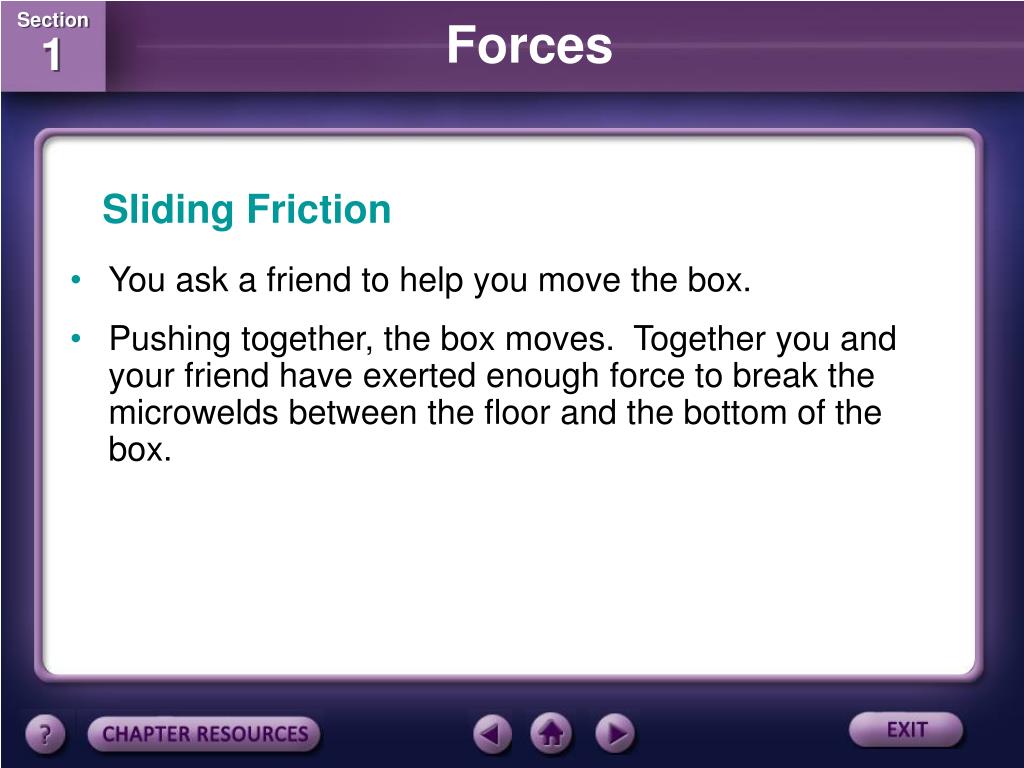

17. Sliding Friction • You ask a friend to help you move the box. • Pushing together, the box moves. Together you and your friend have exerted enough force to break the microwelds between the floor and the bottom of the box.

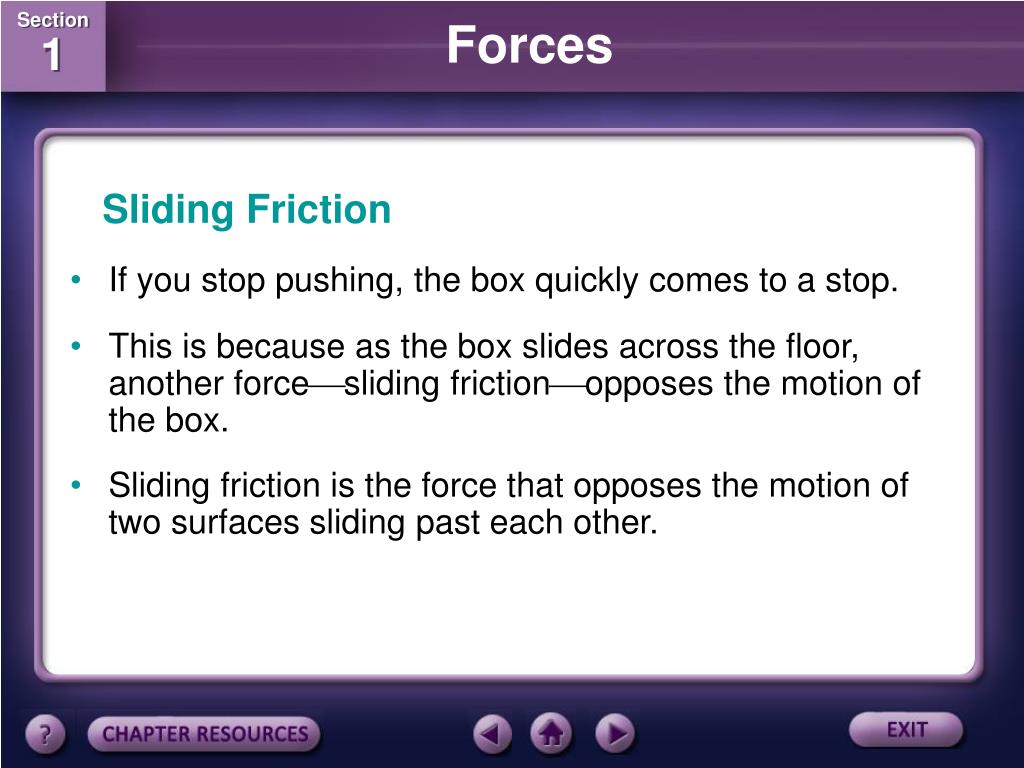

18. Sliding Friction • If you stop pushing, the box quickly comes to a stop. • This is because as the box slides across the floor, another forcesliding frictionopposes the motion of the box. • Sliding friction is the force that opposes the motion of two surfaces sliding past each other.

19. Rolling Friction • As a wheel rolls over a surface, static friction acts over the area where they wheel and the surface touch.

20. Rolling Friction • This special case of static friction is sometimes called rolling fiction. • Rolling friction prevents wheels from slipping. • When referring to tires on vehicles, the term traction is often used instead of friction.

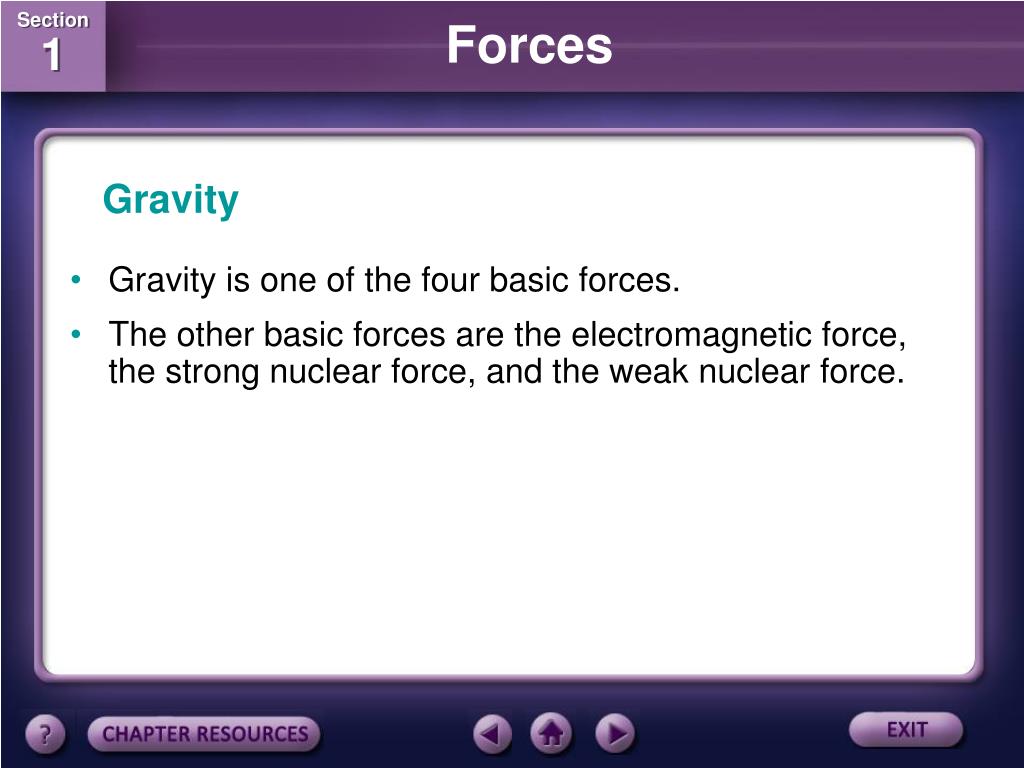

21. Gravity • Gravity is one of the four basic forces. • The other basic forces are the electromagnetic force, the strong nuclear force, and the weak nuclear force.

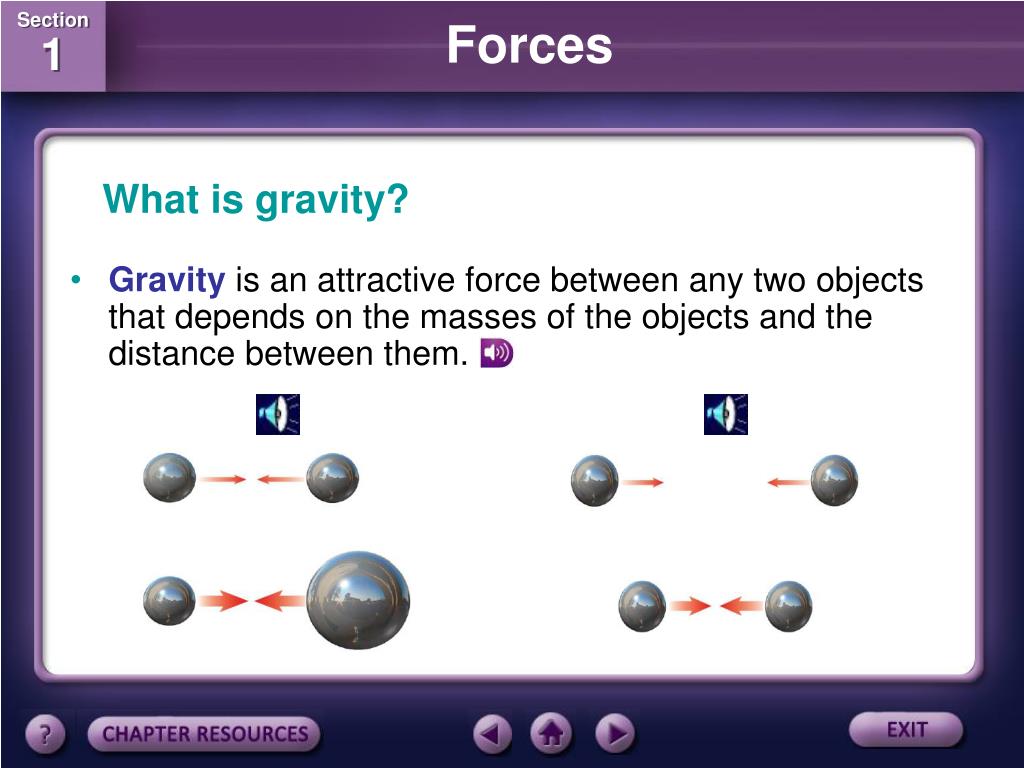

22. What is gravity? • Gravity is an attractive force between any two objects that depends on the masses of the objects and the distance between them.

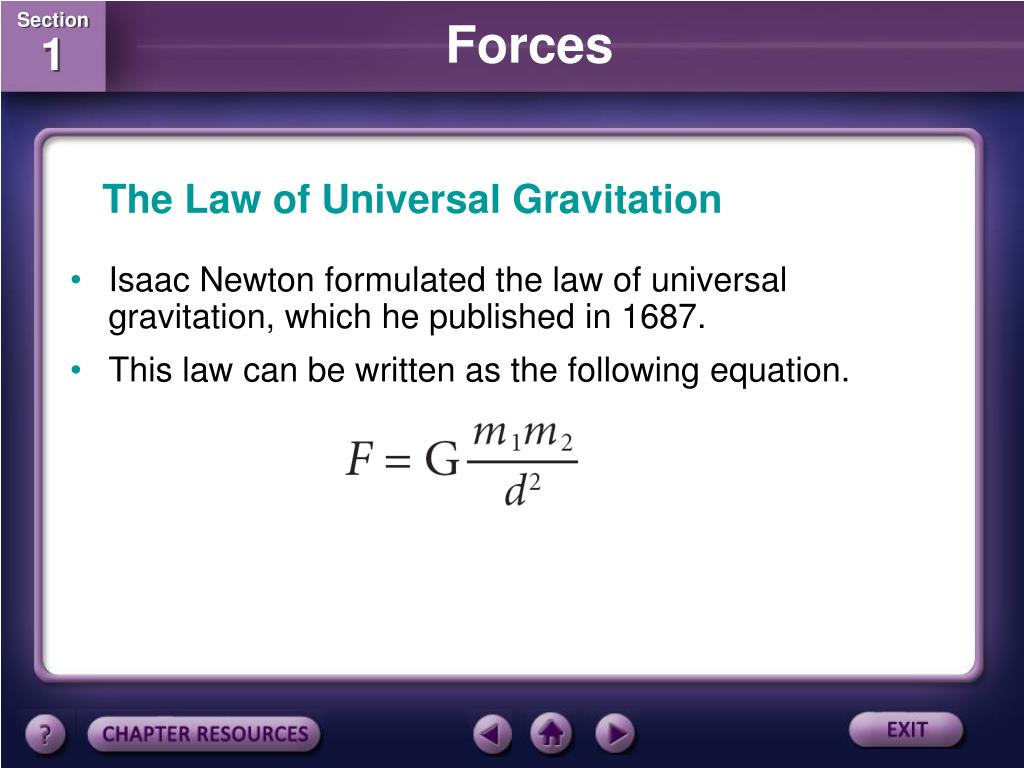

23. The Law of Universal Gravitation • Isaac Newton formulated the law of universal gravitation, which he published in 1687. • This law can be written as the following equation.

24. The Law of Universal Gravitation • In this equation G is a constant called the universal gravitational constant, and d is the distance between the two masses, m1 and m2. • The law of universal gravitation enables the force of gravity to be calculated between any two objects if their masses and the distance between them is known.

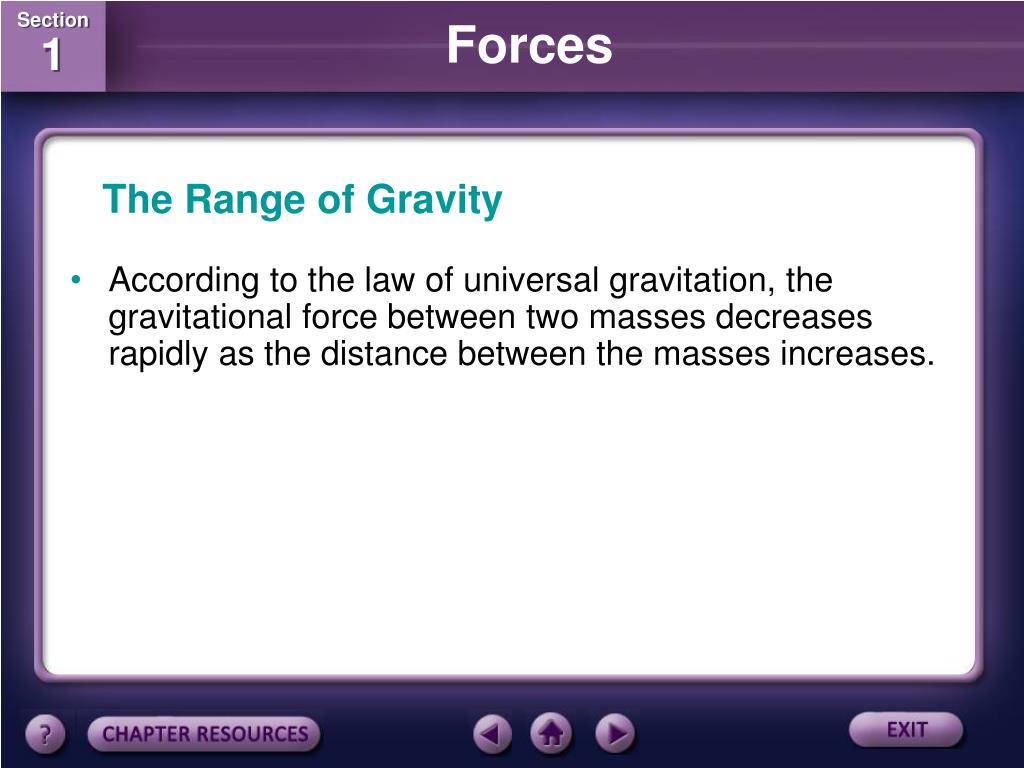

25. The Range of Gravity • According to the law of universal gravitation, the gravitational force between two masses decreases rapidly as the distance between the masses increases.

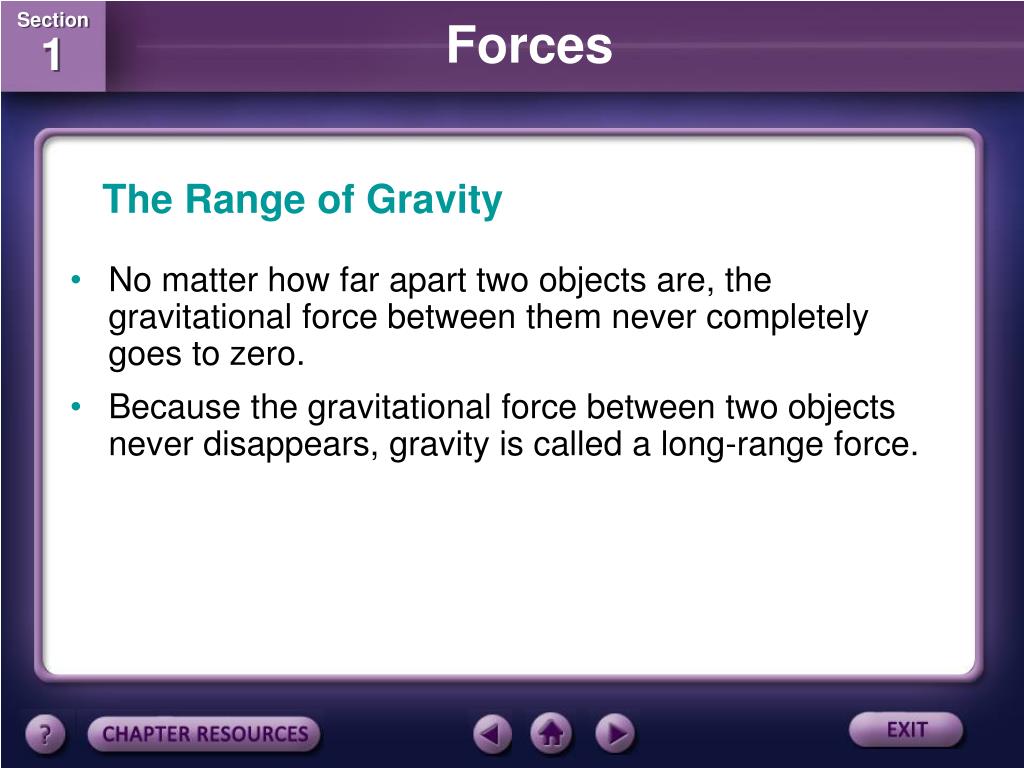

26. The Range of Gravity • No matter how far apart two objects are, the gravitational force between them never completely goes to zero. • Because the gravitational force between two objects never disappears, gravity is called a long-range force.

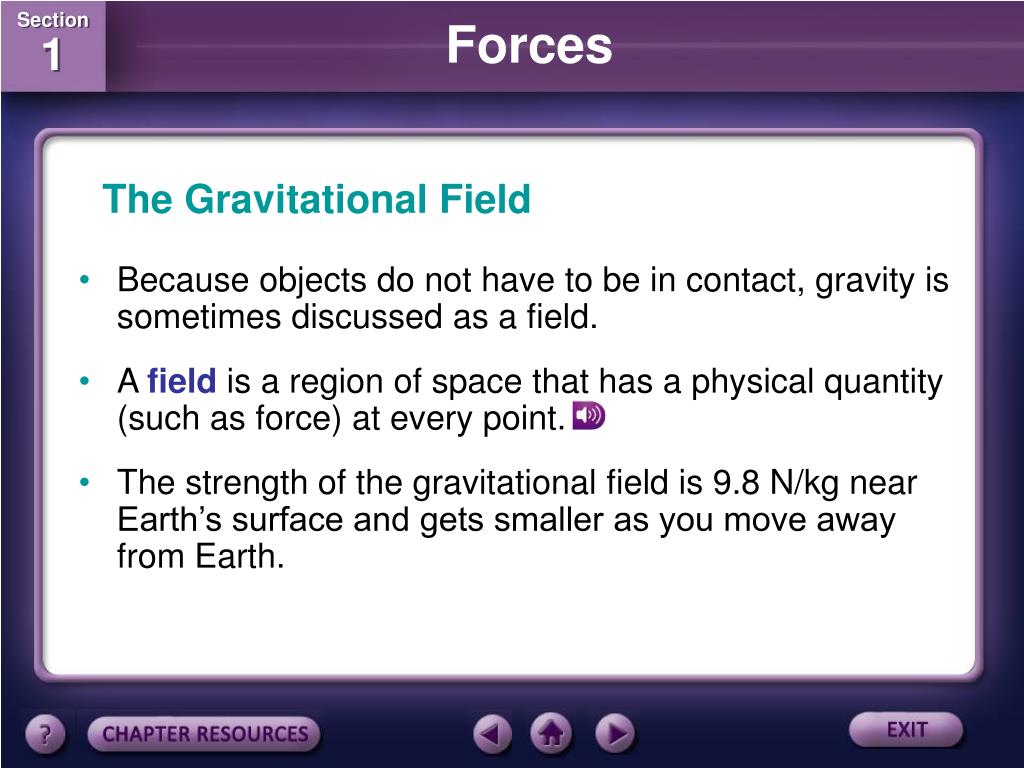

27. The Gravitational Field • Because objects do not have to be in contact, gravity is sometimes discussed as a field. • A field is a region of space that has a physical quantity (such as force) at every point. • The strength of the gravitational field is 9.8 N/kg near Earth’s surface and gets smaller as you move away from Earth.

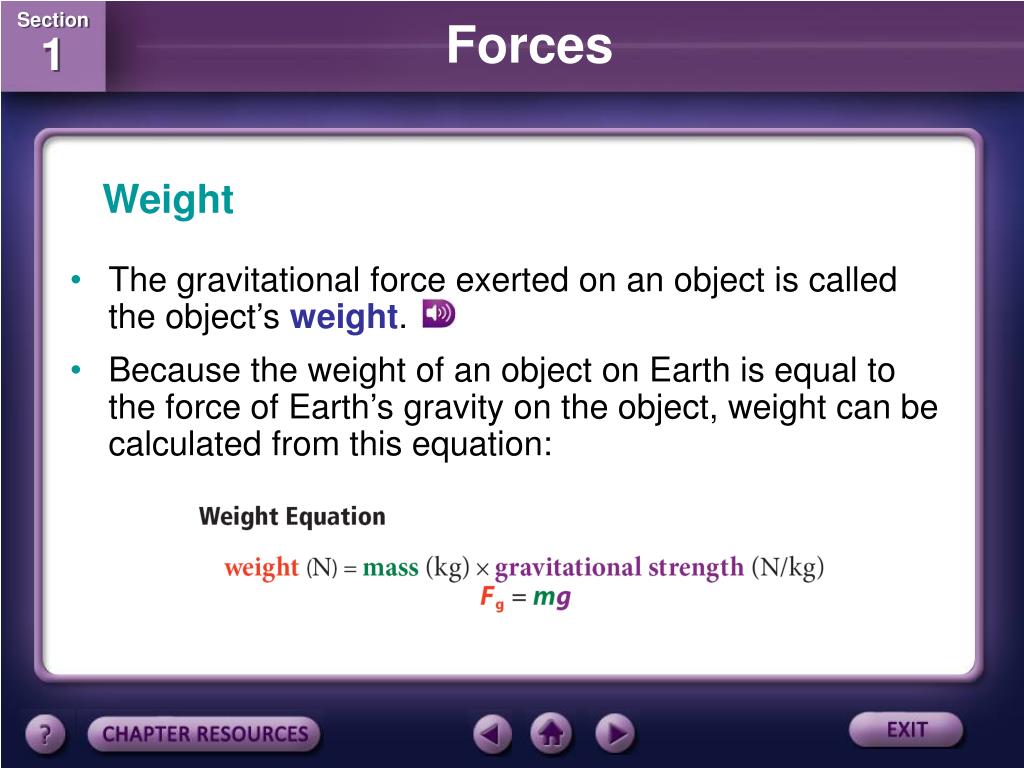

28. Weight • The gravitational force exerted on an object is called the object’s weight. • Because the weight of an object on Earth is equal to the force of Earth’s gravity on the object, weight can be calculated from this equation:

29. Weight and Mass • Weight and mass are not the same. • Weight is a force and mass is a measure of the amount of matter an object contains. • Weight and mass are related. Weight increases as mass increases.

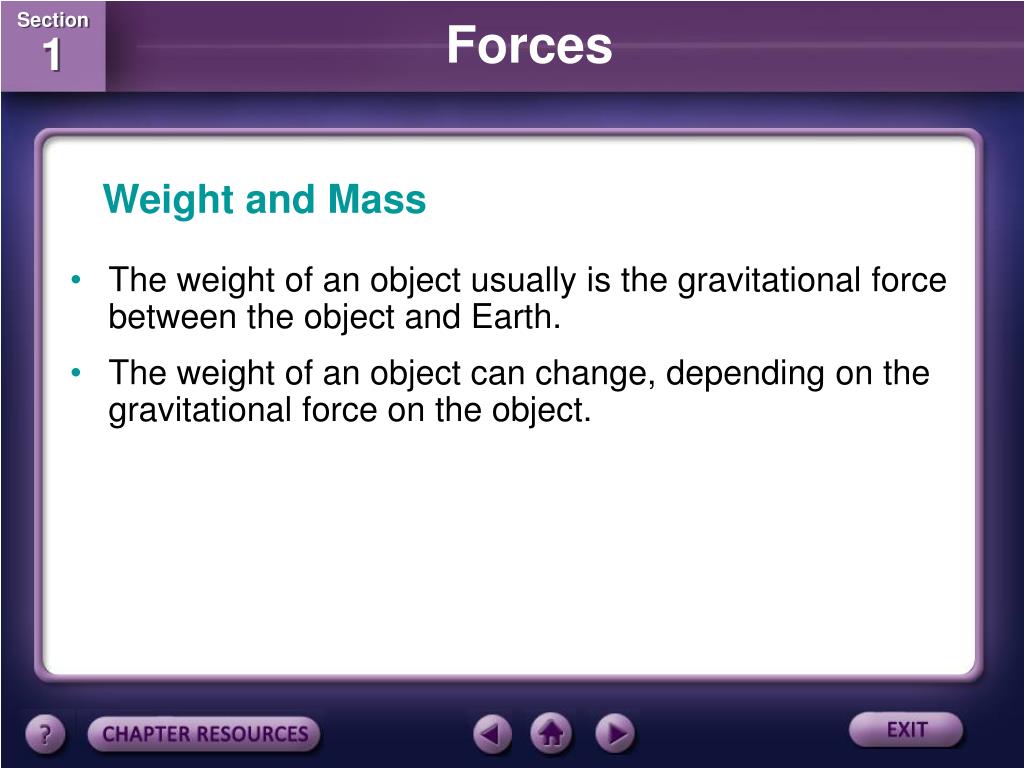

30. Weight and Mass • The weight of an object usually is the gravitational force between the object and Earth. • The weight of an object can change, depending on the gravitational force on the object.

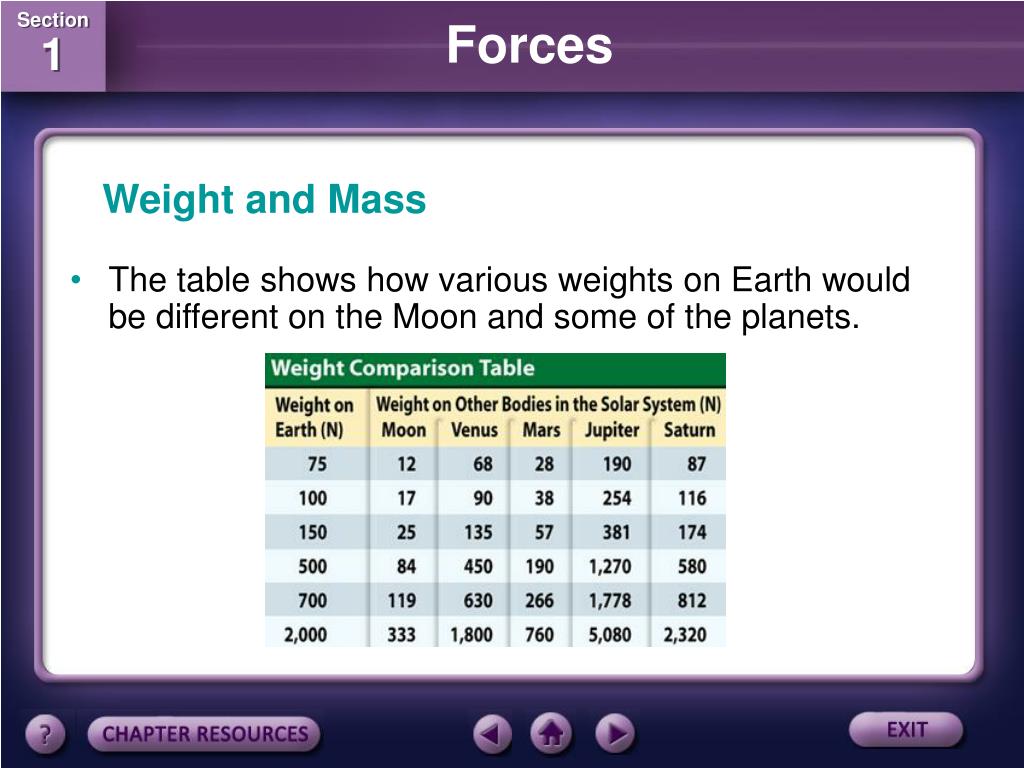

31. Weight and Mass • The table shows how various weights on Earth would be different on the Moon and some of the planets.

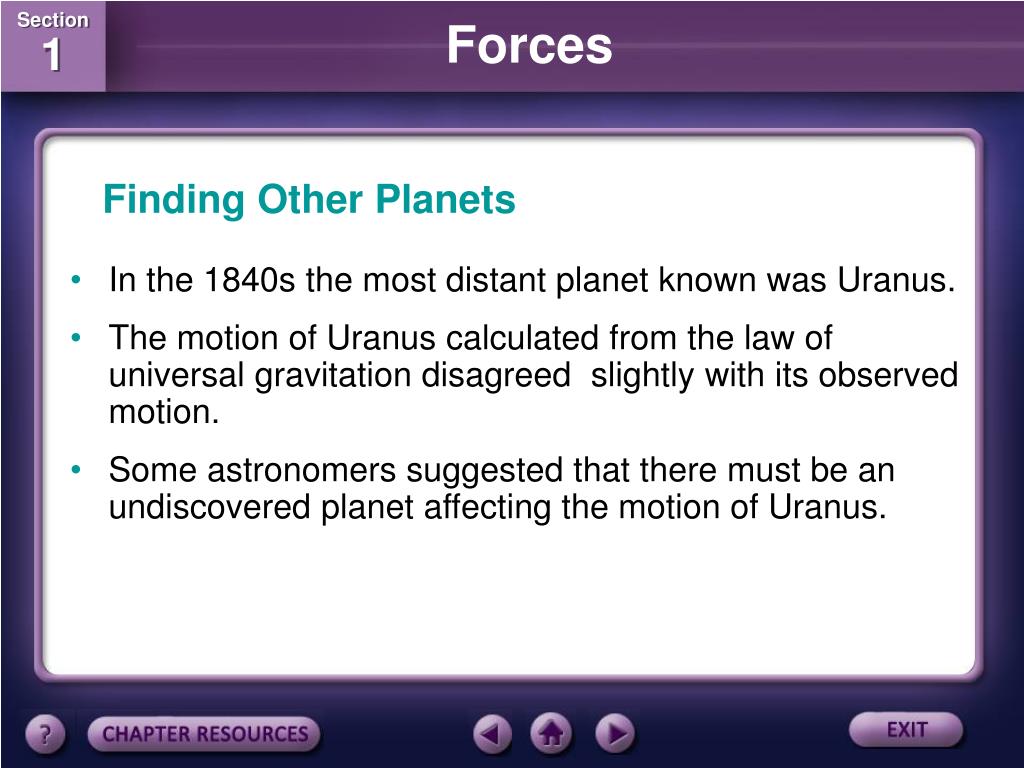

32. Finding Other Planets • In the 1840s the most distant planet known was Uranus. • The motion of Uranus calculated from the law of universal gravitation disagreed slightly with its observed motion. • Some astronomers suggested that there must be an undiscovered planet affecting the motion of Uranus.

33. Finding Other Planets • Using the law of universal gravitation and Newton’s laws of motion, two astronomers independently calculated the orbit of this planet. • As a result of these calculations, the planet Neptune was found in 1846. Elvele Images/Alamy

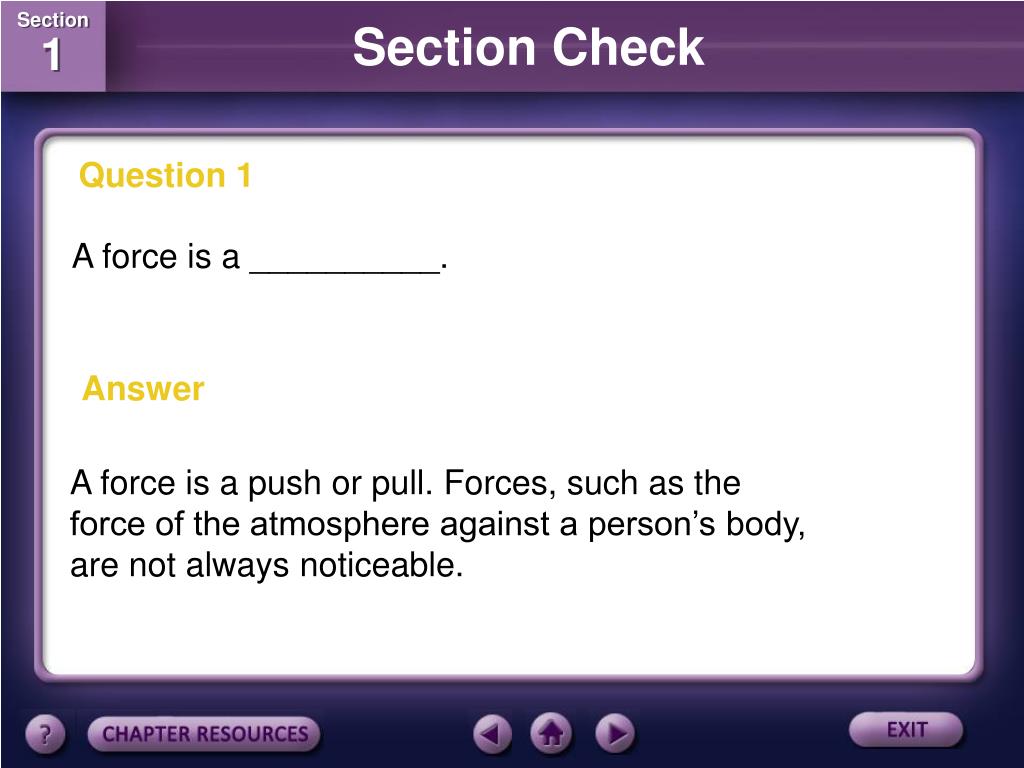

34. Section Check Question 1 A force is a __________. Answer A force is a push or pull. Forces, such as the force of the atmosphere against a person’s body, are not always noticeable.

35. Section Check Question 2 When are forces on an object balanced? Answer When forces are equal in size and opposite in direction, they are balanced forces, and the net force is zero.

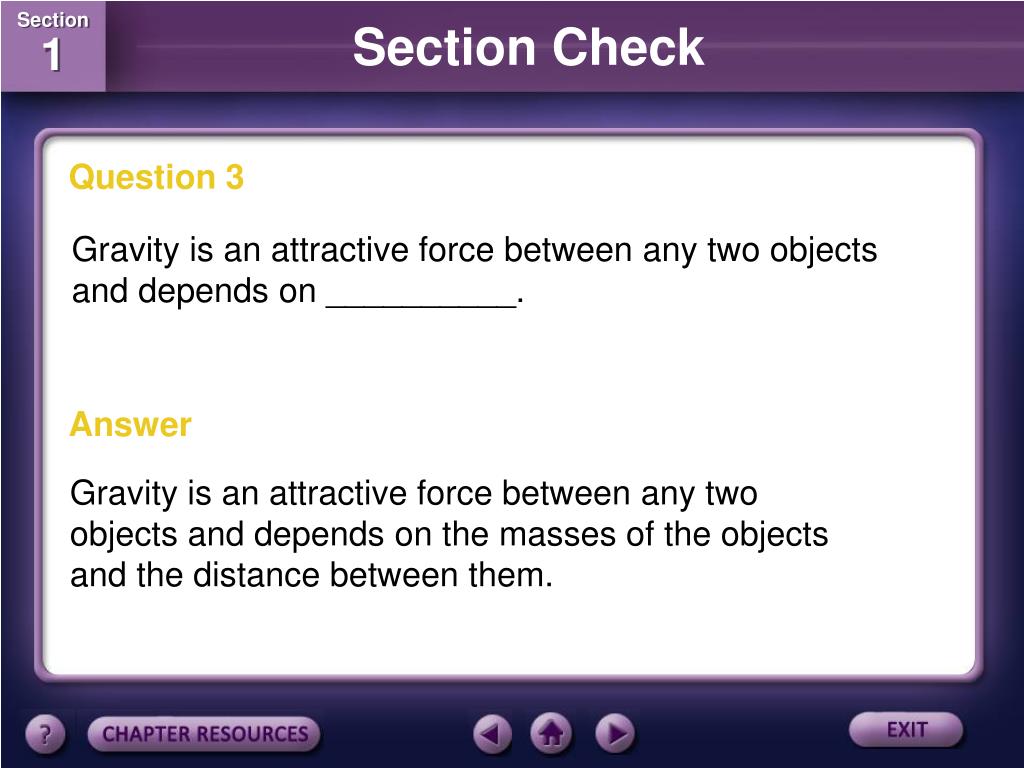

36. Section Check Question 3 Gravity is an attractive force between any two objects and depends on __________. Answer Gravity is an attractive force between any two objects and depends on the masses of the objects and the distance between them.

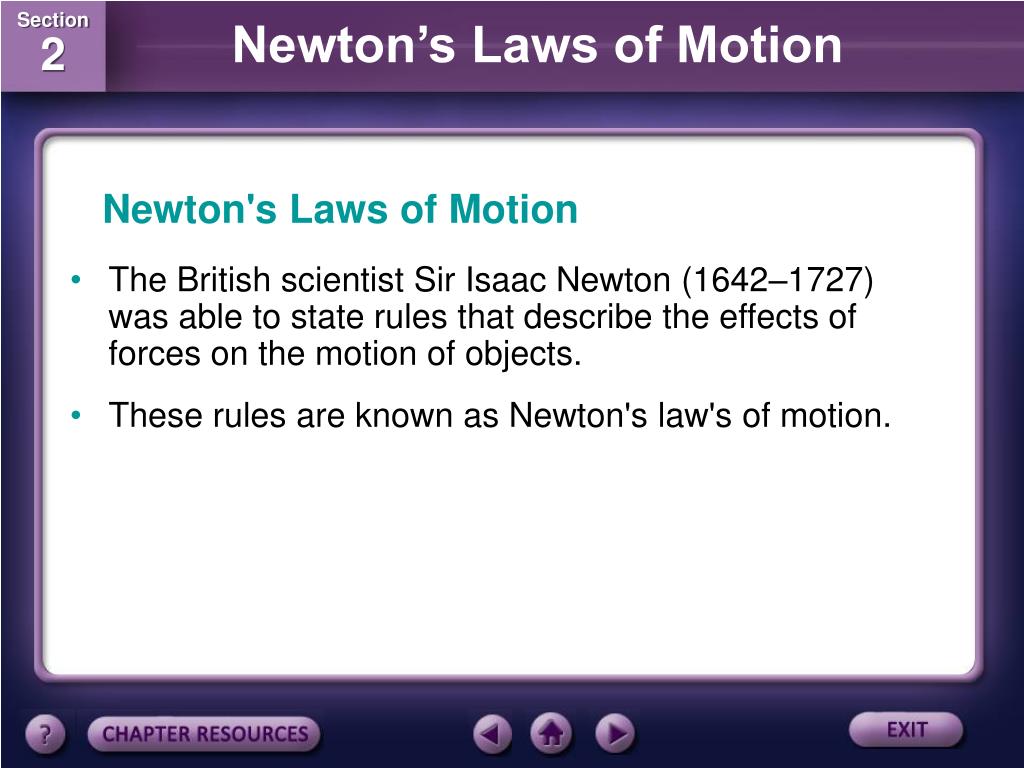

37. Newton's Laws of Motion • The British scientist Sir Isaac Newton (1642–1727) was able to state rules that describe the effects of forces on the motion of objects. • These rules are known as Newton's law's of motion.

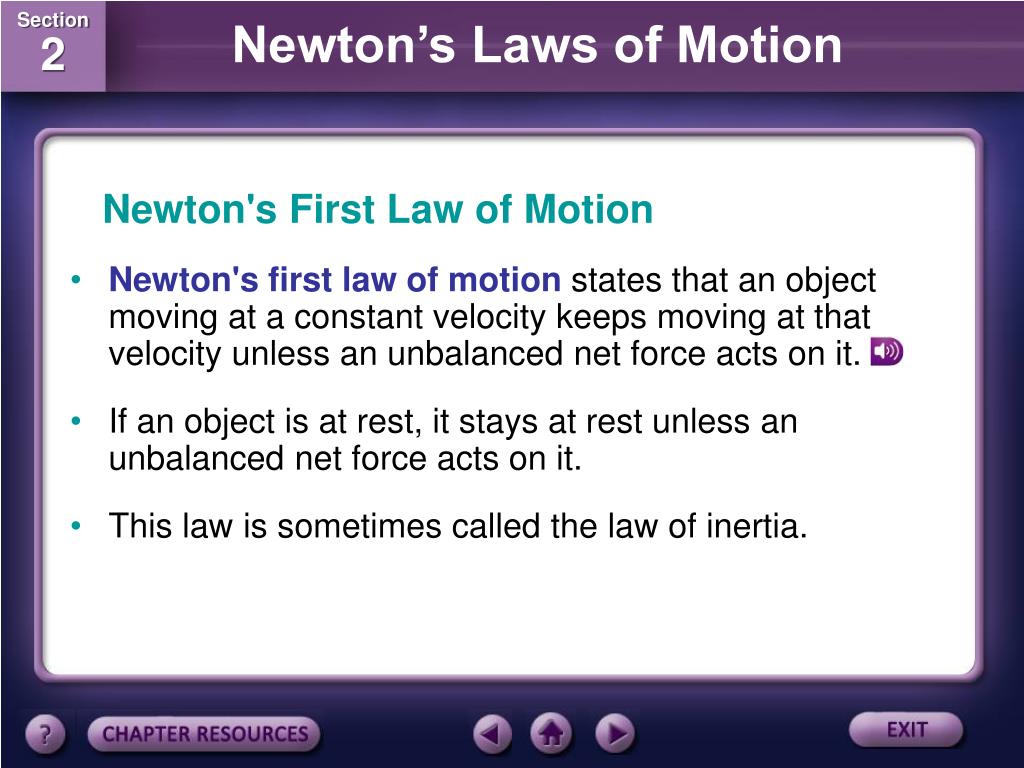

38. Newton's First Law of Motion • Newton's first law of motion states that an object moving at a constant velocity keeps moving at that velocity unless an unbalanced net force acts on it. • If an object is at rest, it stays at rest unless an unbalanced net force acts on it. • This law is sometimes called the law of inertia.

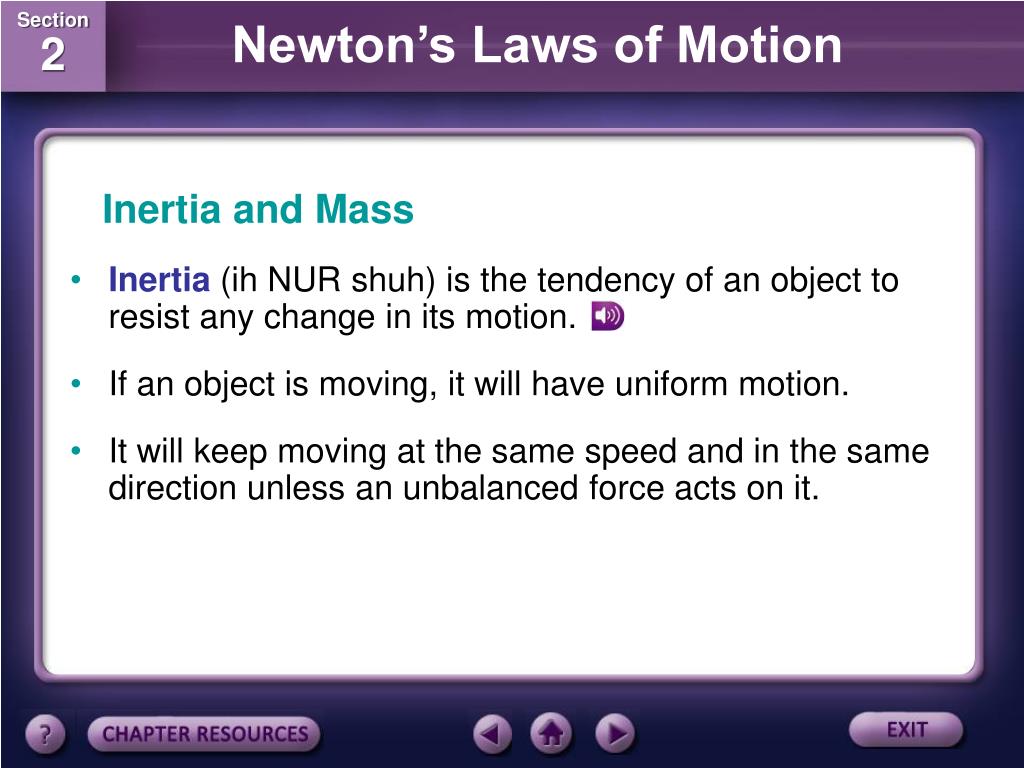

39. Inertia and Mass • Inertia (ih NUR shuh) is the tendency of an object to resist any change in its motion. • If an object is moving, it will have uniform motion. • It will keep moving at the same speed and in the same direction unless an unbalanced force acts on it.

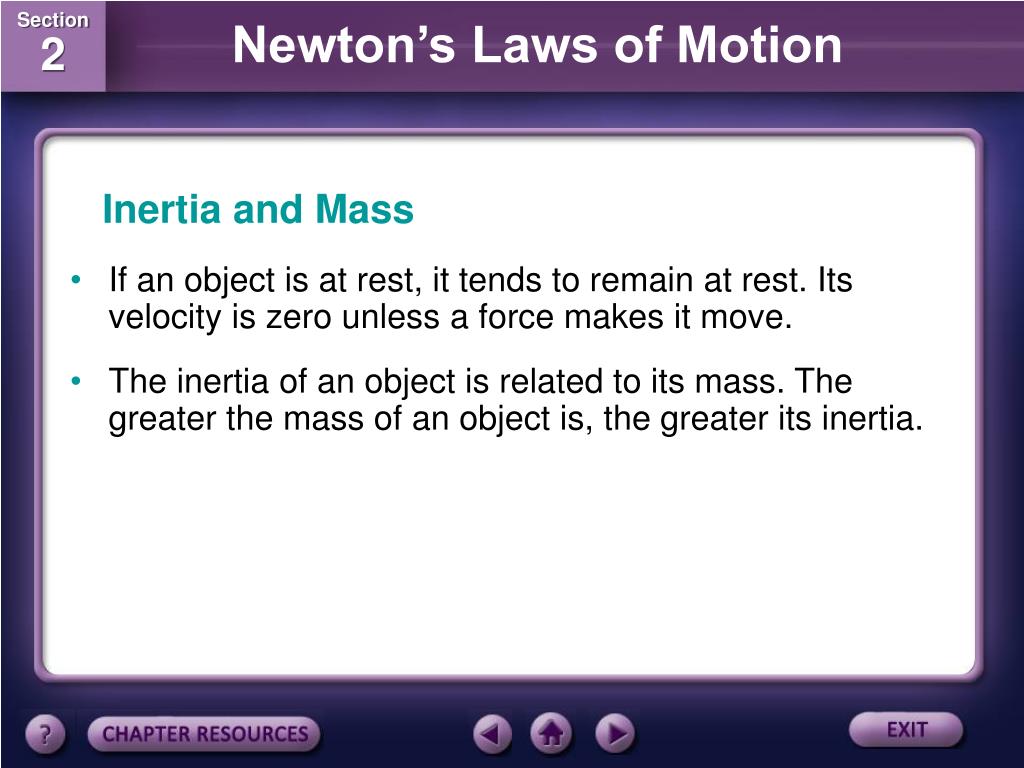

40. Inertia and Mass • If an object is at rest, it tends to remain at rest. Its velocity is zero unless a force makes it move. • The inertia of an object is related to its mass. The greater the mass of an object is, the greater its inertia.

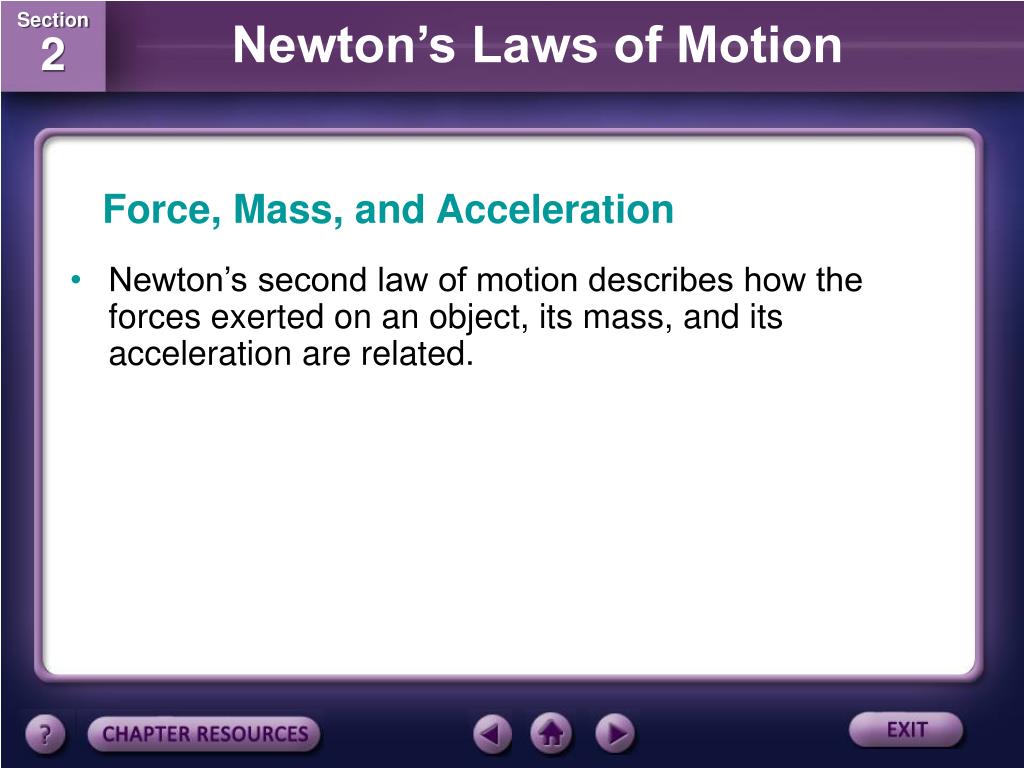

41. Force, Mass, and Acceleration • Newton’s second law of motion describes how the forces exerted on an object, its mass, and its acceleration are related.

42. Force and Acceleration • What’s different about throwing a ball horizontally as hard as you can and tossing it gently? • When you throw hard, you exert a much greater force on the ball. Getty Images

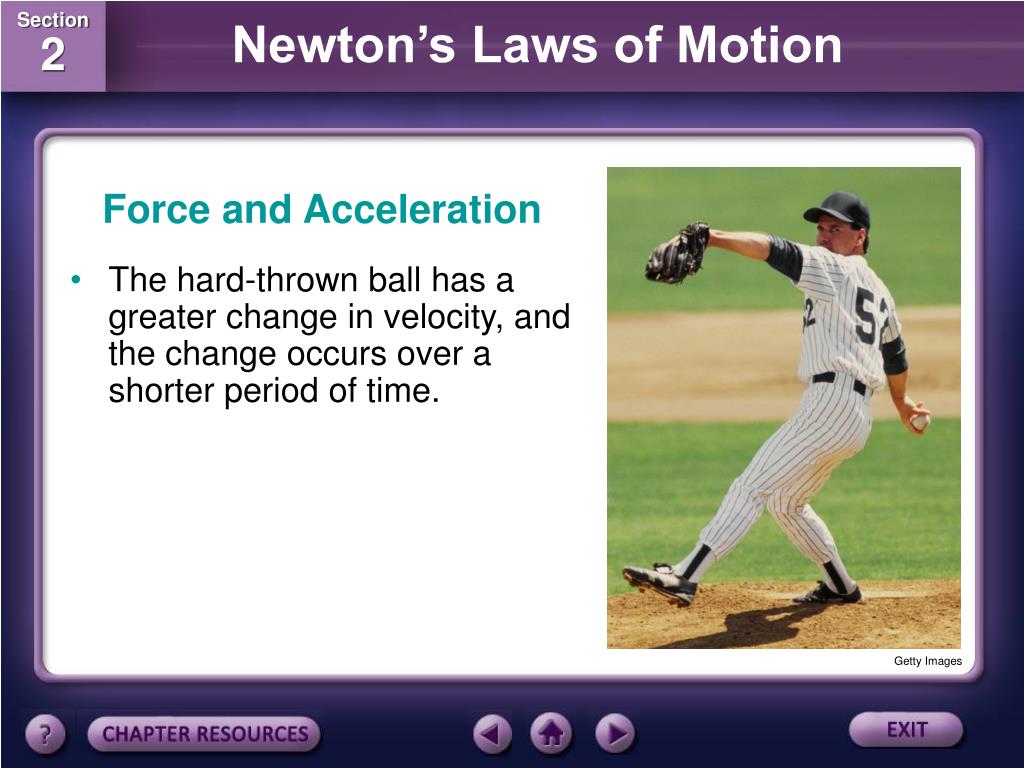

43. Force and Acceleration • The hard-thrown ball has a greater change in velocity, and the change occurs over a shorter period of time. Getty Images

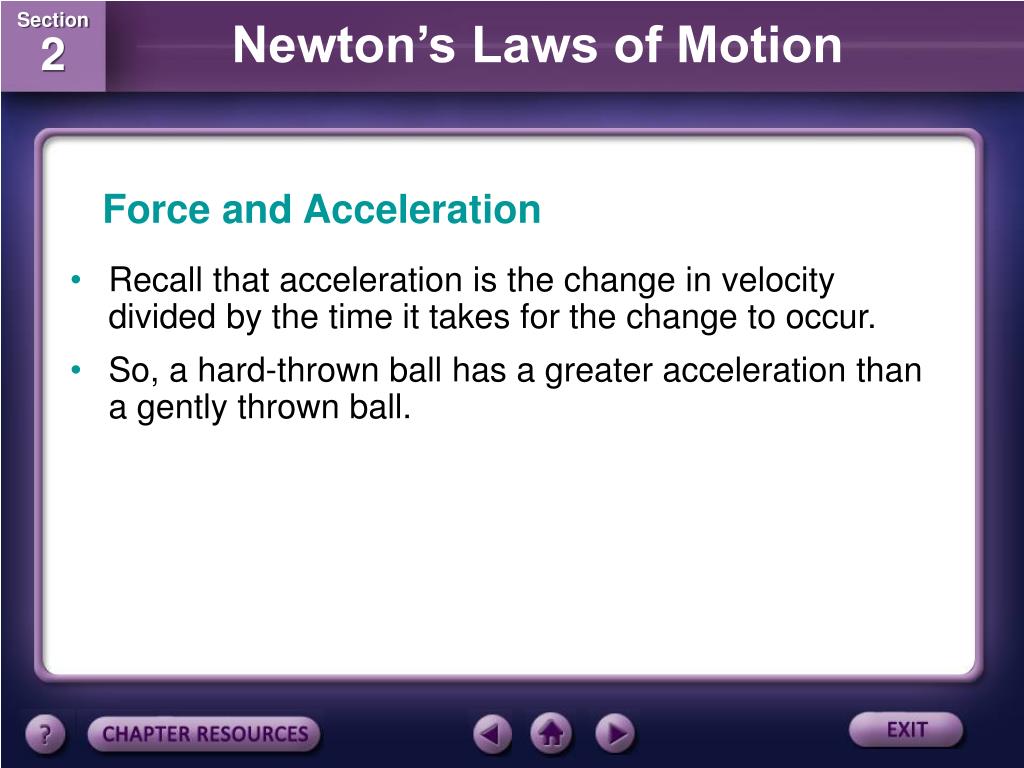

44. Force and Acceleration • Recall that acceleration is the change in velocity divided by the time it takes for the change to occur. • So, a hard-thrown ball has a greater acceleration than a gently thrown ball.

45. Mass and Acceleration • If you throw a softball and a baseball as hard as you can, why don’t they have the same speed? • The difference is due to their masses. Getty Images/Lars A. Niki

46. Mass and Acceleration • If it takes the same amount of time to throw both balls, the softball would have less acceleration. • The acceleration of an object depends on its mass as well as the force exerted on it. • Force, mass, and acceleration are related.

47. Newton’s Second Law • Newton’s second law of motion states that the acceleration of an object is in the same direction as the net force on the object, and that the acceleration can be calculated from the following equation:

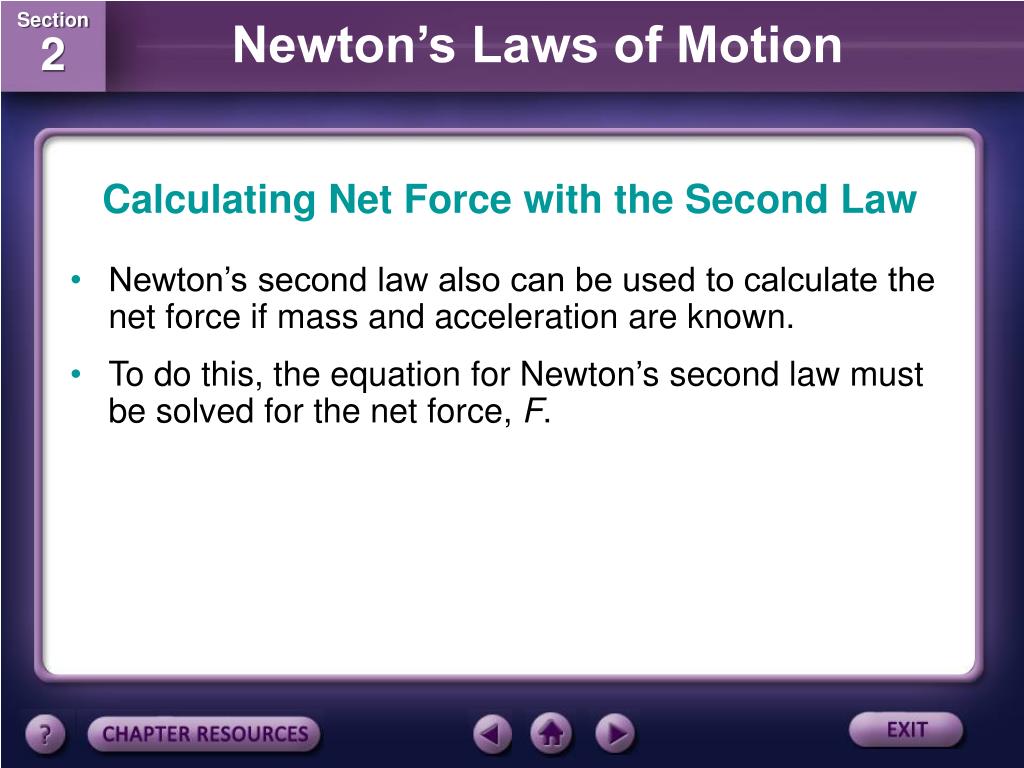

48. Calculating Net Force with the Second Law • Newton’s second law also can be used to calculate the net force if mass and acceleration are known. • To do this, the equation for Newton’s second law must be solved for the net force, F.

49. Calculating Net Force with the Second Law • To solve for the net force, multiply both sides of the equation by the mass: • The mass, m, on the left side cancels, giving the equation:

50. Newton’s Third Law • Newton’s third law of motion states that when one object exerts a force on a second object, the second one exerts a force on the first that is equal in strength and opposite in direction. • These forces are sometimes called the action and reaction forces.
