Computer algebra vs reality

Computer Algebra vs. Reality

Erik Postma and Elena Shmoylova

Maplesoft

June 25, 2009


Outline

Outline

  • Introduction

  • How to apply computer algebra techniques to real world problems?

  • Example

  • Open discussion


Introduction

Introduction

  • Computer algebra is based on symbolic computations

  • Benefit: Result is a nice closed form solution

  • Drawback: Problem itself should be nice too


Computer algebra methods

Computer Algebra Methods

  • Polynomial solvers for polynomial systems with coefficients in a rational extension field

  • Differential Groebner basis for polynomial DEs with coefficients in a rational extension field

  • Functional decomposition for multi- or univariate polynomials over a rational extension field

  • Index reduction for continuous and in some cases piecewise-continuous models


Common elements of real world problems

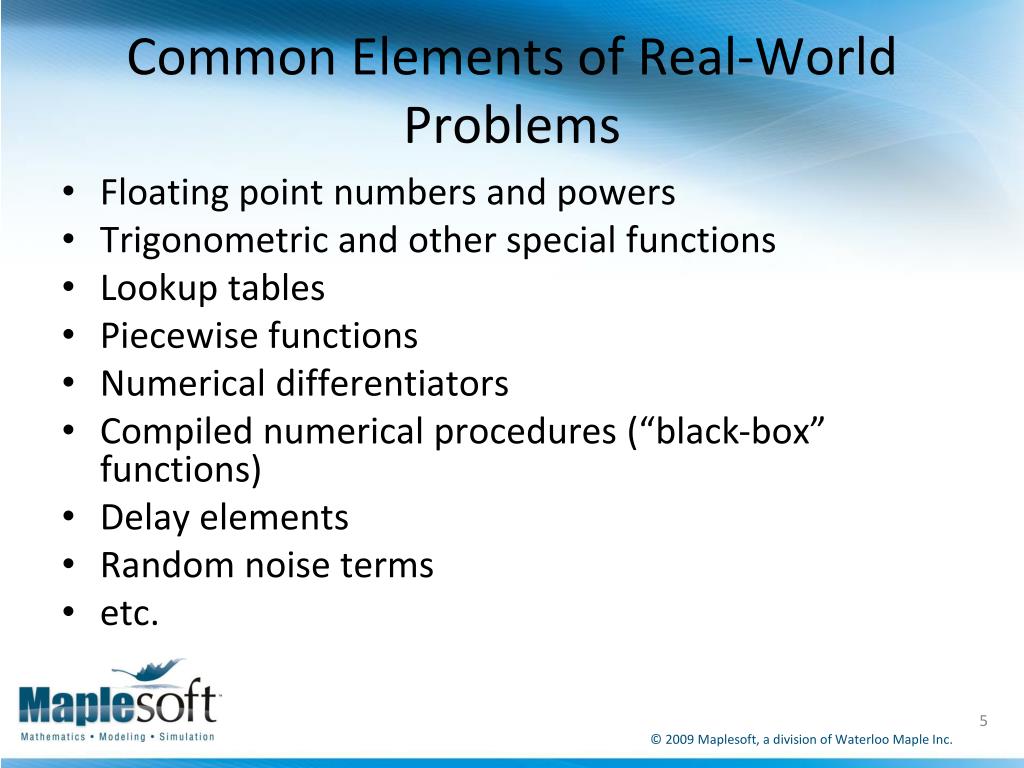

Common Elements of Real-World Problems

  • Floating point numbers and powers

  • Trigonometric and other special functions

  • Lookup tables

  • Piecewise functions

  • Numerical differentiators

  • Compiled numerical procedures (“black-box” functions)

  • Delay elements

  • Random noise terms

  • etc.


How to apply computer algebra techniques to real world problems

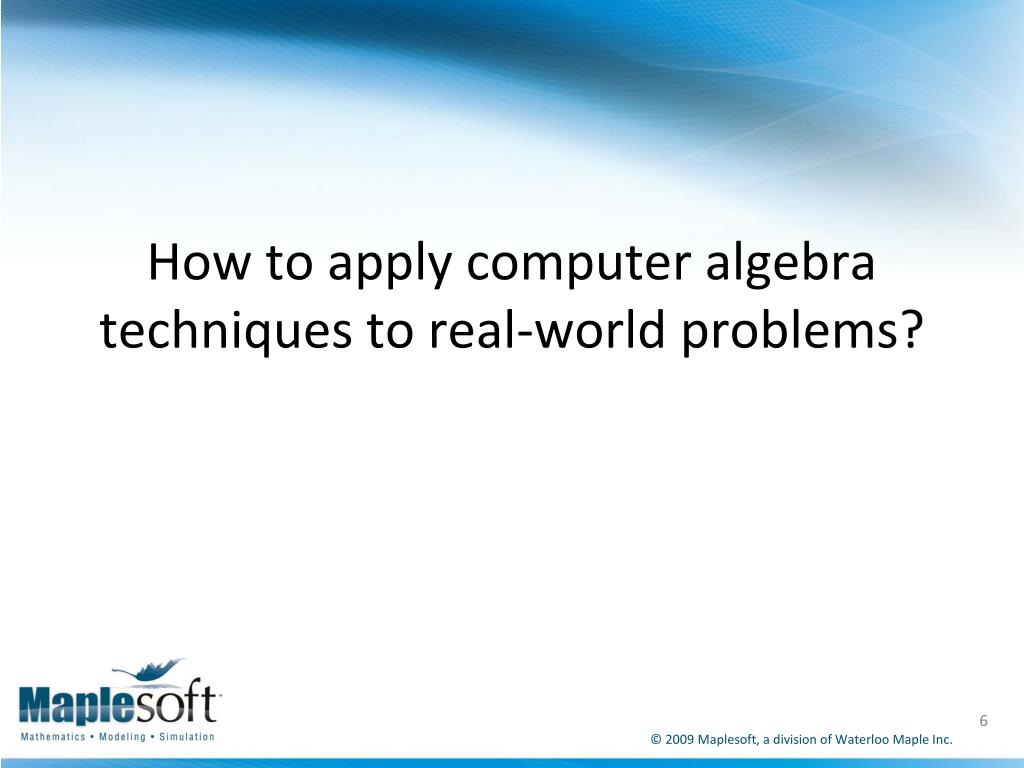

How to apply computer algebra techniques to real-world problems?


Convert one type of difficulty into another

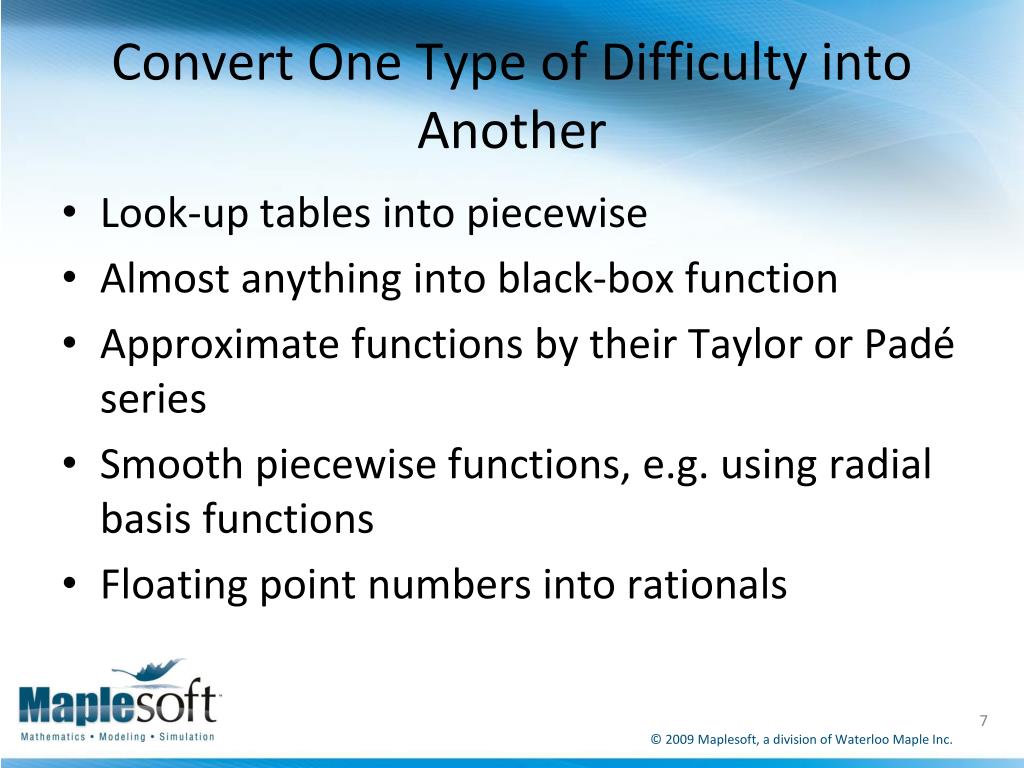

Convert One Type of Difficulty into Another

  • Look-up tables into piecewise

  • Almost anything into black-box function

  • Approximate functions by their Taylor or Padé series

  • Smooth piecewise functions, e.g. using radial basis functions

  • Floating point numbers into rationals


Remove difficulty from model

Remove Difficulty from Model

  • If a difficulty can be combined into a subsystem, remove the subsystem from the model

    • View its arguments as outputs of the model

    • View its result as inputs into the model

    • Use symbolic technique on the model

  • Limited to techniques that can deal with arbitrary external inputs


Floating point numbers

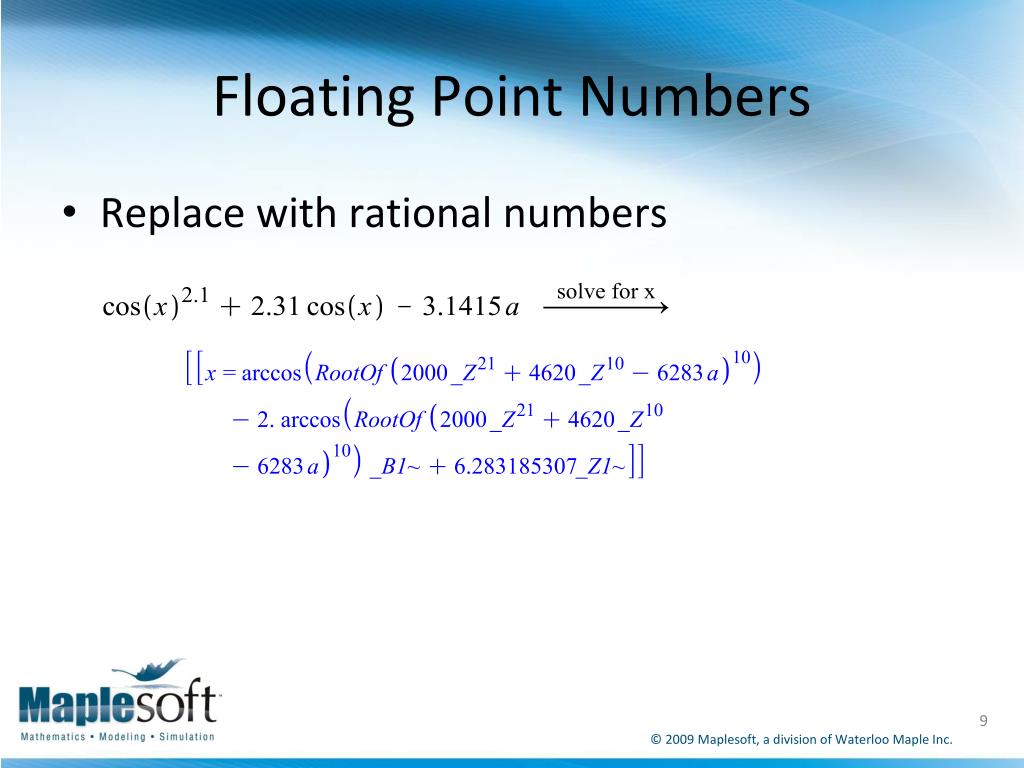

Floating Point Numbers

  • Replace with rational numbers


Initial conditions for hybrid dae models

Initial Conditions for Hybrid DAE Models

  • Problem:

    • User does not provide all initial conditions, need to find remaining initial conditions

  • Difficulty:

    • High-order DAEs have hidden constraints that may be needed to find initial conditions


Simple example

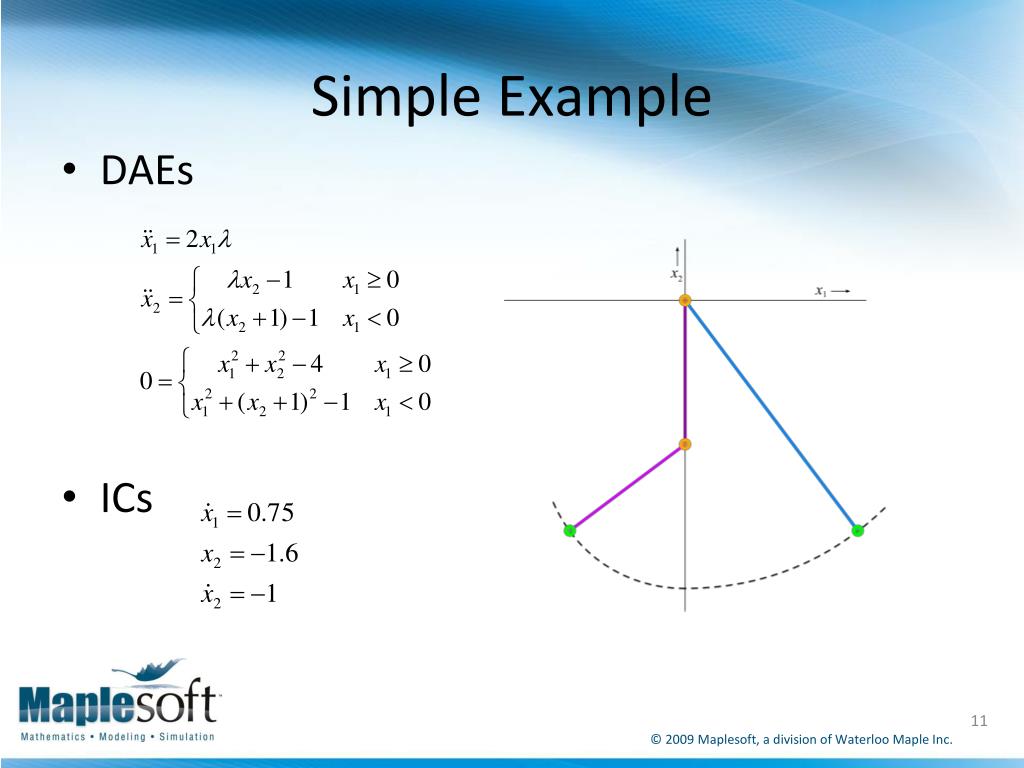

Simple Example

  • DAEs

  • ICs


Identifying mode i

Identifying Mode (I)

  • From constraint

  • Do not know what branch to choose

  • Index reduction can be performed on both branches

  • Hidden constraint


Identifying mode ii

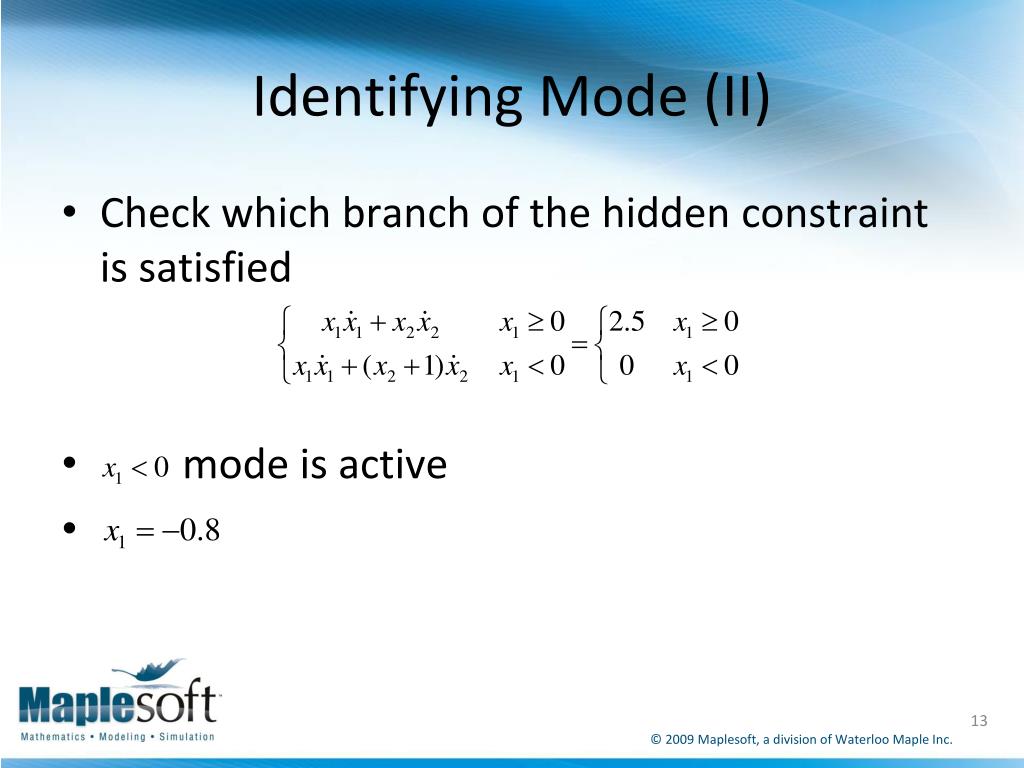

Identifying Mode (II)

  • Check which branch of the hidden constraint is satisfied

  • mode is active


Initial conditions for hybrid daes

Initial Conditions for Hybrid DAEs

  • To find ICs, hidden constraints are needed

  • To find hidden constraints, index reduction should be performed

  • It is infeasible to perform index reduction for all modes separately, need to know what mode system is in

  • To find mode of system, need to know the values of all variables, i.e. ICs


Open discussion how to apply computer algebra techniques to real world problems

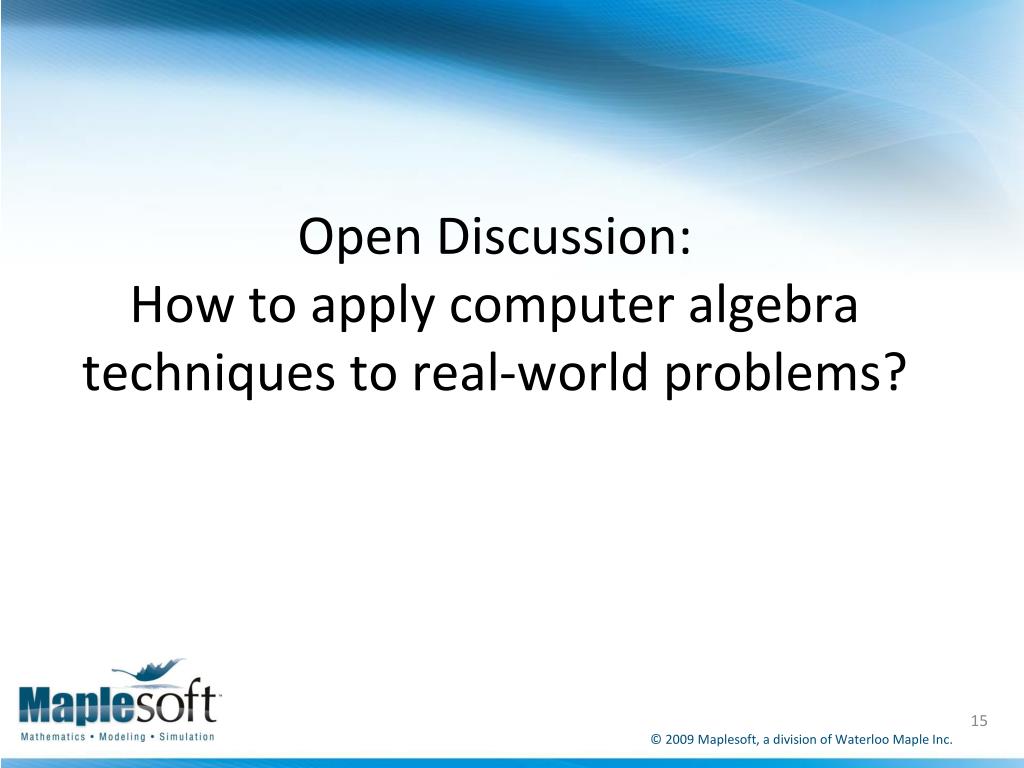

Open Discussion:How to apply computer algebra techniques to real-world problems?
