Bop features

BoP Features


Agenda

Agenda

  • Introduction

  • Performance

  • The Value propositions (AOS v5.1)

    • Availability

      • Element resiliency

      • Network resiliency

    • Security

      • Element security

      • Network security

    • Intelligence

    • Manageability

  • Next Step for future releases

    • Hardware

    • Software


Introduction

Introduction

The Distributed Processing Structure


Distributed processing structure

Distributed Processing Structure

  • Distributed Architecture

    • CMM

      • Controls the system

      • Provides a single interface for management (SNMP/CLI)

    • NIs

      • Provide wire-rate L2 and L3 forwarding

      • Provide distributed processing for

        • Source Learning

        • Spanning Tree

        • “slow-path” L2 & L3 forwarding for exception frames not switched or routed (IGMP - ARP)


Distributed processing structure1

Distributed Processing Structure

  • Communication between elements

    • NI <-> CMM and CMM <-> CMM

      • Using a shared bus (BBUS)

    • NI <-> NI

      • Using the Switching Fabric for high performance transfer (those “packets” are internally called IPC)


Performance

Performance


Performance1

Performance

  • OmniSwitch 7000 Family

    • OS-7700

      • Raw Switching Capacity:64 Gbps

      • Effective Switching Capacity:50 Gbps

      • Effective Throughput:30 Mpps

    • OS-7800

      • Raw Switching Capacity:128 Gbps

      • Effective Switching Capacity:100 Gbps

      • Effective Throughput: 60 Mpps

  • OmniSwitch 8800

    • Raw Switching Capacity:512 Gbps

    • Effective Switching Capacity:400 Gbps

    • Effective Throughput:240 Mpps


Performance2

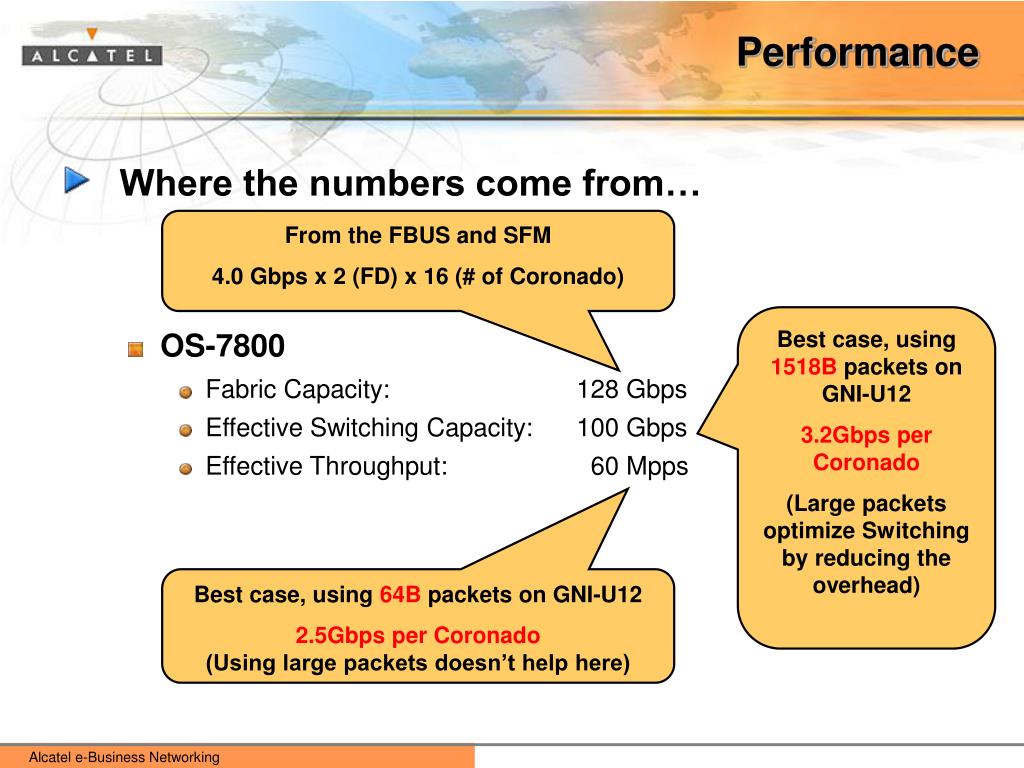

Performance

  • Where the numbers come from…

    • OS-7800

      • Fabric Capacity:128 Gbps

      • Effective Switching Capacity:100 Gbps

      • Effective Throughput: 60 Mpps

From the FBUS and SFM

4.0 Gbps x 2 (FD) x 16 (# of Coronado)

Best case, using 1518B packets on GNI-U12

3.2Gbps per Coronado

(Large packets optimize Switching by reducing the overhead)

Best case, using 64B packets on GNI-U12

2.5Gbps per Coronado(Using large packets doesn’t help here)


Performance3

Performance

  • Performance are …

    • Independents of traffic type

      • Layer 2 (OS-7800: 100Gbps & 60Mpps)

      • Layer 3 (OS-7800: 100Gbps & 60Mpps)

    • Based on packet size

      • Because of traffic related overhead

      • Only impacts the result on switching capacity, not throughput

60Mpps

19Mpps

6Mpps

5Mpps


Performance4

Performance

  • Layer 2 & Layer 3

    • Forwarding

      • Table: 128,000 entries

        • 32k L2-SA

        • 32k L2-DA

        • 64k L3/L4

      • Rate on Gig port:

      • Rate on 10/100 port:Wire-rate on GA hardware !

      • Rate on 100 port:

    • Broadcast:

      • Wire-rate, limited in throughput by SW (user defined)

    • Multicast:

      • Wire-rate for known Multicast Flow, limited in BW through SW

      • Processed in SW when flow is unknown or on 802.1Q link


Performance5

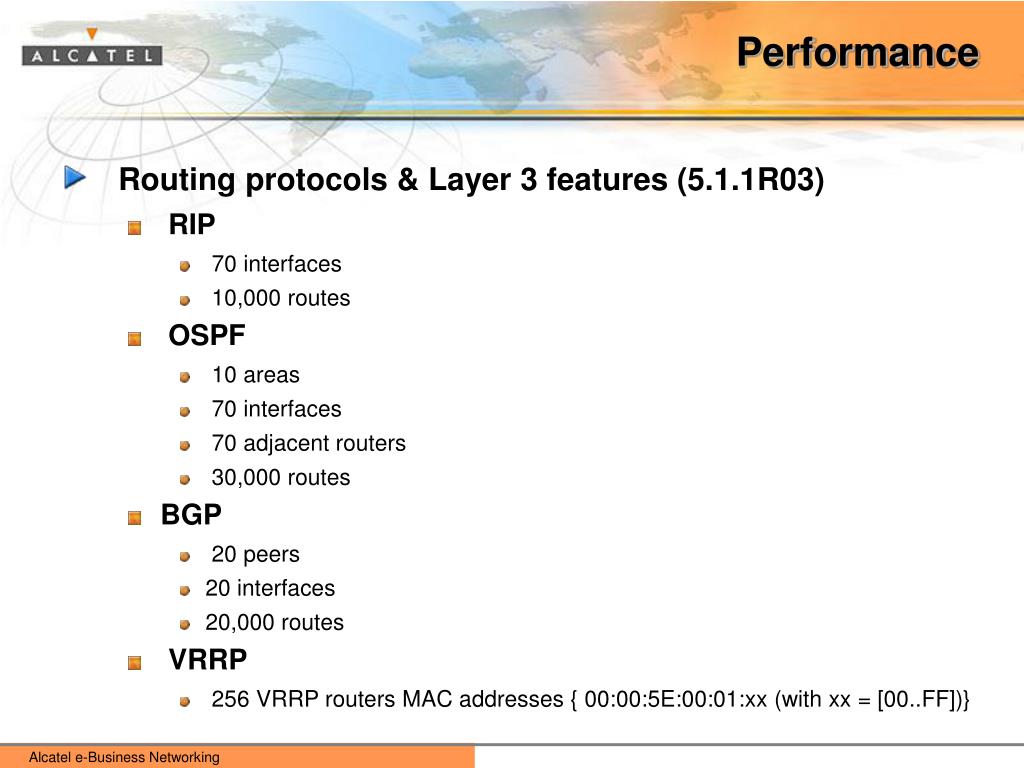

Performance

  • Routing protocols & Layer 3 features (5.1.1R03)

    • RIP

      • 70 interfaces

      • 10,000 routes

    • OSPF

      • 10 areas

      • 70 interfaces

      • 70 adjacent routers

      • 30,000 routes

    • BGP

      • 20 peers

      • 20 interfaces

      • 20,000 routes

    • VRRP

      • 256 VRRP routers MAC addresses { 00:00:5E:00:01:xx (with xx = [00..FF])}


Various numbers

Various Numbers

  • Bridging

    • 1024 VLANs

  • Routing

    • 256 IP interfaces in normal mode (1 MAC for all IP)

    • 32+32 IP interfaces in XOS mode (1 MAC per IP)

    • 1 IP interface per VLAN

  • QoS

    • 2048 Queues per NI

    • 64 Priority Descriptors per NI

    • 1 DSCP mapping table per NI

    • Ingress Flood Queue (per NI) : 5 Mbps

      • Set by SW and user configurable

    • Ingress Multicast Queues : 10 Mbps

      • Set by SW and user configurable / Total MC throughput of one Coronado is 610 Mbps


Various numbers1

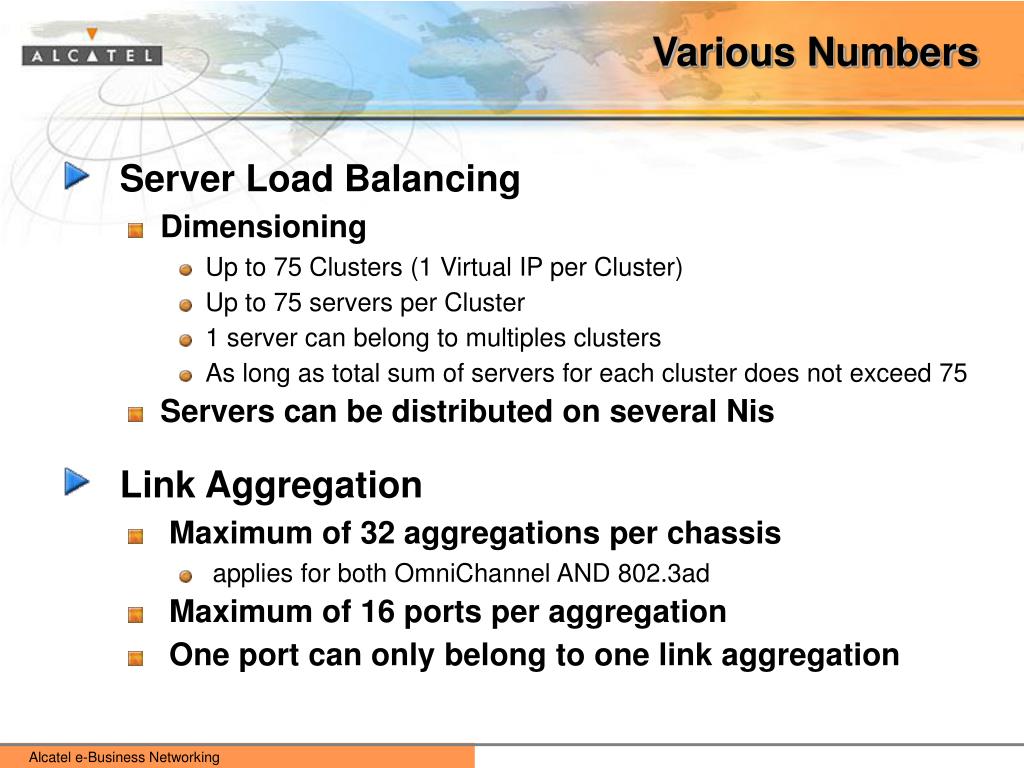

Various Numbers

  • Server Load Balancing

    • Dimensioning

      • Up to 75 Clusters (1 Virtual IP per Cluster)

      • Up to 75 servers per Cluster

      • 1 server can belong to multiples clusters

      • As long as total sum of servers for each cluster does not exceed 75

    • Servers can be distributed on several Nis

  • Link Aggregation

    • Maximum of 32 aggregations per chassis

      • applies for both OmniChannel AND 802.3ad

    • Maximum of 16 ports per aggregation

    • One port can only belong to one link aggregation


The aos v5 1

The AOS v5.1

Availability


Element resiliency

Element Resiliency

  • Redundant & Hot swappable

    • Modules (NI, CMM & SFM)

    • Power Supply Unit

    • Fans

  • Minimized CMM/Fabric boot and switch over time

    • Cold & Warm Boot time is around 90 seconds

    • Switch over time is around 10 seconds AND transparent to users (Smart Continuous Switching)

  • Power Monitoring

    • Checks the power requirement of newly inserted boards before feeding them.

  • Thermal shutdown

    • As soon as the temperature is above Tmax


Thermal protection

Thermal Protection

  • Automatic shutdown

    • 2 thresholds

      • TMax - Triggers shutdown (80 ºC - 176 ºF)

      • TNormal- Sends administrative alerts (default 60 ºC - 140 ºF)


Element resiliency1

Element Resiliency

  • Flash Memory – 32 MB per CMM

    • BootROM,

      • Checks and select the MiniBoot (default or backup)

      • BootROM is in a write protected area of the flash

    • MiniBoot

      • Starts the OS and loads services from the OS archive file (fos.img)

      • 2 versions are present on the Flash, the default and the backup

      • backup MiniBoot is in a write protected area of the flash

    • File System

      • Provides storage for system and configuration files

      • 2 versions are present on the flash, the working and the certified


Element resiliency2

Element Resiliency

  • Configuration rollback

    • Based on the working and certified File System

    • Applies to system files and configuration file

      • A certified version (SW + conf) will be used as a backup when dealing with any changes (modification, upgrades, …)

  • Downloadable bootstrap

    • Loading MiniBoot allows the use of FTP and ZMODEM

  • Dynamically loaded feature

    • Only the required services are loaded

    • Applies to Advanced Routing and Advanced Security

  • Unique MAC address for each chassis

    • Located on 2 EEPROM located on either the midplane (OS-8800) or the backplane (OS-7000)


Boot sequence image rollback

Flash/ROM

RAM

BootROM

1

2

MiniBoot

MiniBoot

root directory

4

3

boot.params

/working directory

kernel.lnk fromOS package

Productionkernel

5

/certified directory

kernel.lnk fromOS package

Boot Sequence / Image Rollback

  • Bootstrap Basic Operation

    • Initializes Hardware

    • Performs memory diagnostics

    • Selects a right Miniboot

  • Copy & execute MiniBoot

  • MiniBoot Basic Operation

    • Initializes basic kernel

  • Selection of image

    • Based on boot.params

  • Copy & load the OS

    • The image contains its own copy of the kernel specific to the SW version


Network resiliency l2

Network Resiliency – L2

  • Distributed L2 services

    • Continuous L2 services during fail over

  • Spanning Tree Protocol

    • Spanning Tree Protocol (802.1d w/o GARP)

    • Multiple Spanning Tree Protocol (proprietary, no standard)

    • Fast Spanning Tree Protocol (802.1w)

  • Link Aggregation

    • Static (OmniChannel) or Dynamic (802.3ad/LACP)

    • Load balancing based on L2 SA/DA (in bridging) or L3 SA/DA (in routing)


Distributed l2

Distributed L2

  • Source Learning

    • Independent from the presence of the CMM

      • CMM handles static entries

      • CMM maintains a GLOBAL DB of all MAC learnt for mngt only

    • Occurs whenever an L2 lookup miss

      • Miss on L2-SA: the SA/DA are sent to ALL Coronados + CMM

        • All Coronados perform a SA/DA lookup

        • Any other Coronado with the MAC-SA in their SA table will assume a move

        • Coronado w/ the MAC-DA in its SA table will update its DA table w/ the SA

      • Miss on L2-DA: the SA/DA are sent to ALL Coronados + CMM

        • All Coronados perform a SA/DA lookup

        • The Coronado with the MAC-DA in its SA table will answer to the request

        • The requester will update its DA table

        • The answerer will look if the MAC-SA is in its DA table, and update it if not


Distributed l21

Distributed L2

  • Source Learning

    • Each NI is different

      • Independent L2 (SA/DA) Forwarding Data Base (FDB)

      • PseudoCAM populated on demand

    • Aging time – Default to 300 seconds for L2 entries (SA)

      • Fast aging based on pCAM utilization

        • 85% full => divide aging time by 2 - age out in 150s

        • 95% full => divide aging time by 3 - age out in 100s

        • 99% full => divide aging time by 10 - age out in 30s

        • 100% full => no learning – packet is processed in slow path

    • When a NI is removed associated pCAM-DA are freed

    • During Fail-over

      • Flushing may occurs after the fail-over if the ‘certify’ flag is cleared


Distributed l22

Distributed L2

  • Distributed Spanning Tree

    • Principle

      • Continuous STP in case of CMM failure/take-over

      • No CMM CPU overload (load is spread across the NI)

    • Implementation

      • STP Manager on the CMM

        • Manages the configuration and transmits it to the STP Agent

        • Answers all users queries

      • STP Agent on the NI

        • Manages the dynamic events and performs the algorithm

        • Dynamic events can be either STP events or internal DSTP events

        • A STP events will generate DSTP events to others NI/CMM

    • During Fail-over

      • Only the STP manager is unavailable

      • STP Agents maintain the Spanning Tree Protocol on the switch


Network resiliency l3

Network Resiliency – L3

  • Routing Protocol

    • RIP, OSPF, BGP

    • DVMRP, PIM-SM

  • VRRP (RFC-2338)

  • OSPF ECMP

  • Distributed architecture

    • Limited impact during CMM fail-over on L3 flows (L3 tables are flushed once the CMM take-over)


Distributed l3

Distributed L3

  • ARP table & Layer 3 FDB are duplicated & synchronized

    • On each Coronado (SDRAM0)

    • On the CMM

    • PseudoCAM is still populated on demand on each Coronado

  • Unknown IP Destination Address

    • Will be processed by the SW (no ARP capability though)

    • Will have the L3 pCAM updated for next packets

  • During Fail-over

    • Chassis informs the NI – No more L3 (ARP and FDB) learning

    • Normal forwarding continues based on actual knowledge

    • Secondary CMM

      • Retrieves the ARP table from one NI

      • Retrieves L3 FDB from one NI and adds an ‘old’ tag for each entry

      • Adds/updates new entries with a ‘new’ tag

      • Flushes all ‘old’ entries after a timer expires


The aos v5 11

The AOS v5.1

Security


Element security

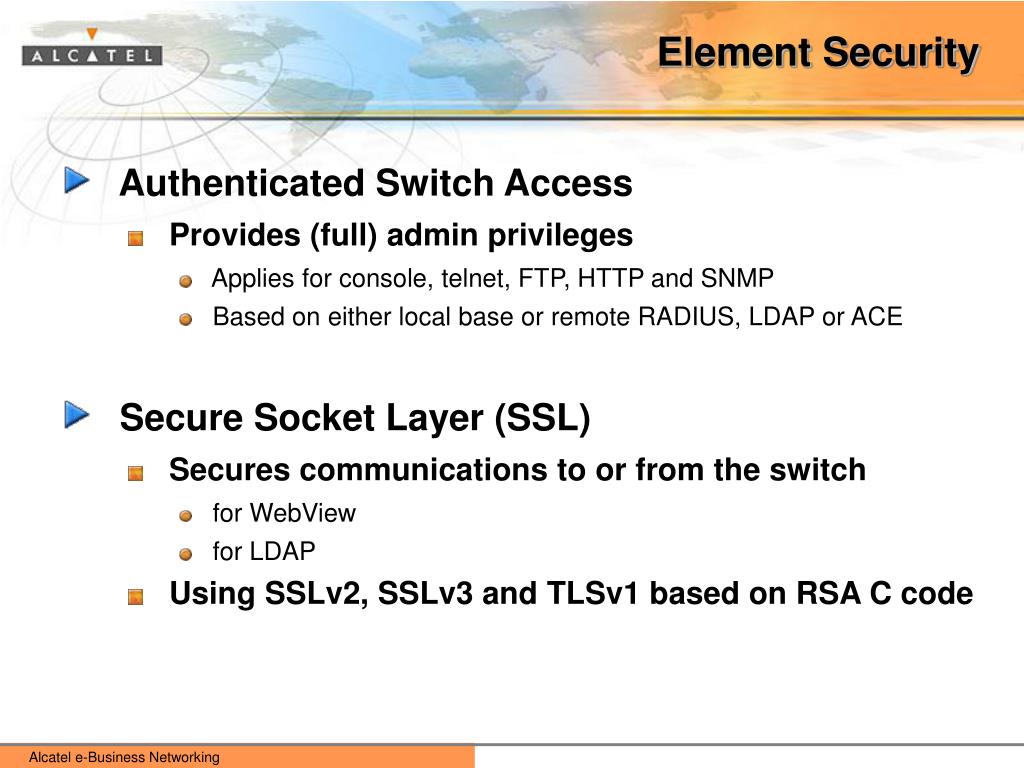

Element Security

  • Authenticated Switch Access

    • Provides (full) admin privileges

      • Applies for console, telnet, FTP, HTTP and SNMP

      • Based on either local base or remote RADIUS, LDAP or ACE

  • Secure Socket Layer (SSL)

    • Secures communications to or from the switch

      • for WebView

      • for LDAP

    • Using SSLv2, SSLv3 and TLSv1 based on RSA C code


Element security1

Element Security

  • Partition Management

    • Provides a customized access based on accounts

      • Applies for CLI, FTP, HTTP & SNMP

      • Based on either local base or remote LDAP/RADIUS

    • Defines the following domains

      • adminfile image bootrom telnet reset debug

      • systemsystem xip snmp rmon webmngt config

      • physical chassis module interface pmm flood health

      • networkip rip ospf bgp vrrp iprm ipx ipmr ipms

      • layer 2vlan bridge stp 802.1q linkagg bootp

      • servicesldap dhcp

      • policyqos policy slb

      • securitysession binding avlan aaa


Element security2

Element Security

  • Denial of Services defense

    • Provides defense against common attacks

      • Ping of Death

      • Land Attack

      • Smurf (by keeping the directed BC disabled)

      • Pepsi (feature of VxWork)

      • Bonk (feature of VxWork)

      • Boink (feature of VxWork)

  • SNMP v3

    • Backward compatible with v1 & v2

    • Provides

      • Authentication (MD5 or SHA)

      • Encryption (DES) of SNMP PDU


Network security

Network Security

  • Authenticated VLANs

    • Applies to users connected on authenticated ports

    • Users must authenticate through AV-Client, TELNET or HTTP

    • Authentication is based on either local base or LDAP/RADIUS

    • Then, the client MAC is associated within the correct VLAN

  • ACL

    • ASIC-based packet filtering based on L2/L3/L4

    • Policies are created either from CLI/WebView

    • Each policy is global to the switch and has …

      • a precedence (0..65535) – higher comes first

      • a flag to be characterized as reflexive In case a flow is allowed while its answer is not

      • an action – accept, drop or deny


Access control list

Access Control List

  • ACL is the filtering part of policies

    • Policies apply to prioritization, bandwidth mngt, filtering, IP translation, server load balancing and IPMS filtering

  • ACL policies come from

    • WebView (SNMP) /CLI

  • ACL policies apply

    • For the whole chassis

    • At ingress only

    • On Layer 2 & Layer 3 / Layer 4


Access control list1

Access Control List

  • Description of an ACL policy

    • Parameters are

      • Policy name<name>

      • Condition name<name>

      • Action name<name>

      • Precedence0-65535(higher first)

      • ReflexiveY/N

    • Condition

      • Layer 2

        • MAC-DA, src port, src VLAN, dest port, dest VLAN

      • Layer 3 / Layer 4

        • IP-DA, IP-SA, L4 protocol (UDP/TCP) , TCP/UDP dest Port, TCP/UDP src Port

    • Action

      • Accept, Drop or Deny


Access control list2

Access Control List

  • Side effects / Limitations of ACL

    • Selective flush on existing pCAM entries if needed

      • Learning (in slow path) must be re-initiated

      • Impact decreased by having all policies pushed at once

    • Fragmented frames are processed in SW

    • Excessive consumption of pCAM entries can occur

      • According to the classification requests

    • At first, deny will behave like drop (no ICMP msg)


Network security1

Network Security

  • NAT / PAT

    • Hide private addresses from public

      • NAT : one-to-one

      • PAT : many-to-one (only on TCP/UDP – no ICMP)

  • Binding VLAN

    • Based on 6 combinations

      • MAC + Port + IP

      • MAC + Port

      • MAC + IP

      • MAC + Port + Protocol

      • Port + Protocol

      • Port + IP


The aos v5 12

The AOS v5.1

Intelligence


Intelligence

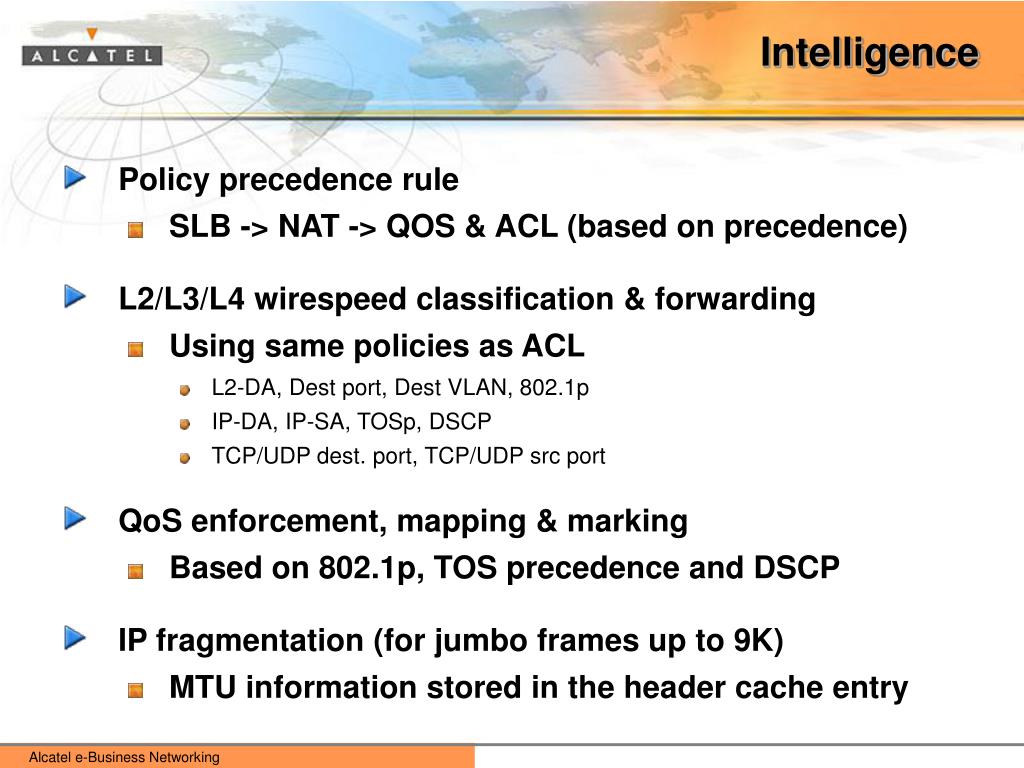

Intelligence

  • Policy precedence rule

    • SLB -> NAT -> QOS & ACL (based on precedence)

  • L2/L3/L4 wirespeed classification & forwarding

    • Using same policies as ACL

      • L2-DA, Dest port, Dest VLAN, 802.1p

      • IP-DA, IP-SA, TOSp, DSCP

      • TCP/UDP dest. port, TCP/UDP src port

  • QoS enforcement, mapping & marking

    • Based on 802.1p, TOS precedence and DSCP

  • IP fragmentation (for jumbo frames up to 9K)

    • MTU information stored in the header cache entry


Intelligence1

Intelligence

  • Server Load Balancing

    • Provides a Virtual IP for a cluster of servers

    • Distributes traffic to the server based on IP-SA in Round Robin fashion

    • Provides Health Monitoring of the servers based on

      • Link states (port Up or Down)

      • ICMP(answering ping request from the CMM)

  • Congestion avoidance

    • 802.3x

      • At ingress – whenever a port is consuming too much buffers in the Queue Manager a pause frame is transmitted

      • At egress – whenever a pause frame is received, a coupon is sent to Nantucket to pause traffic transmission


The aos v5 13

The AOS v5.1

Manageability

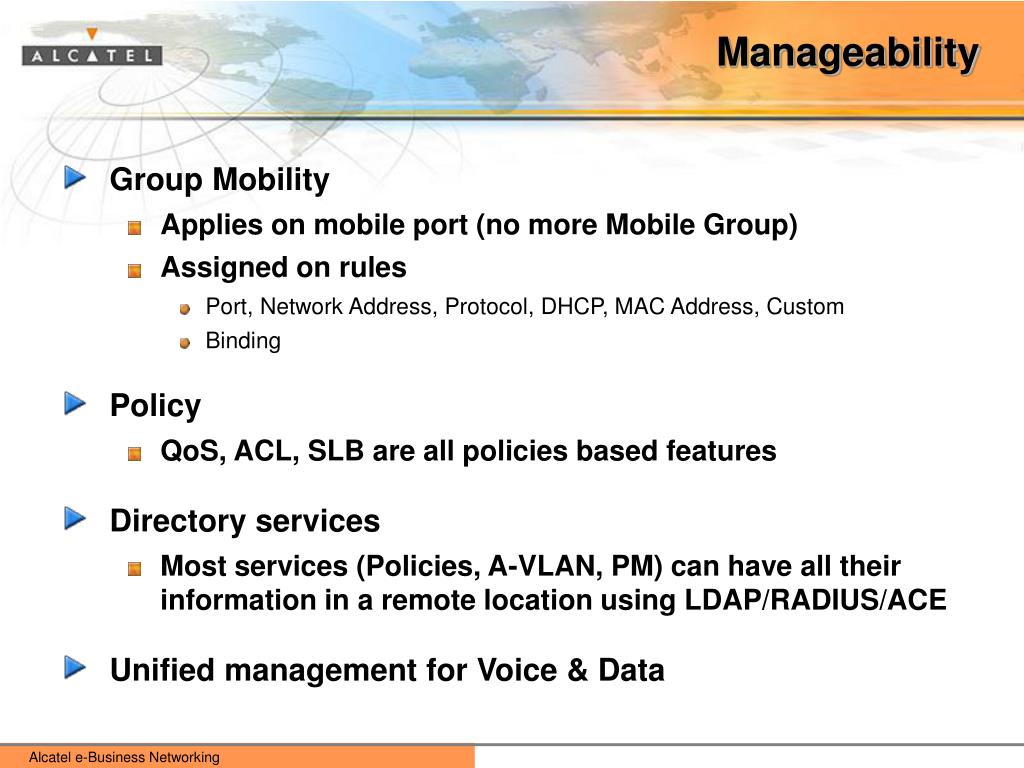

Manageability

Manageability

  • Group Mobility

    • Applies on mobile port (no more Mobile Group)

    • Assigned on rules

      • Port, Network Address, Protocol, DHCP, MAC Address, Custom

      • Binding

  • Policy

    • QoS, ACL, SLB are all policies based features

  • Directory services

    • Most services (Policies, A-VLAN, PM) can have all their information in a remote location using LDAP/RADIUS/ACE

  • Unified management for Voice & Data


Group mobility

Group Mobility

  • VLAN Classification

    • Based on GM rules if the GM bit of the port is set

    • Default GId or 802.1Q-VId is used otherwise

    • pCAM lookup based on L2-SA, Protocol and SPPN

  • Default VLAN handling (renaming)

    • Default VLAN enable-> default_Group

      • Will default VLAN be supported when no GM rules match ?

    • Default VLAN permanent-> move_from_def

      • Will default VLAN be supported when a GM rule matches ?

    • Default VLAN restore-> move_to_def

      • Will the default VLAN be restored when the matching GM ages out ?


Next step

Next Step


Next step hw

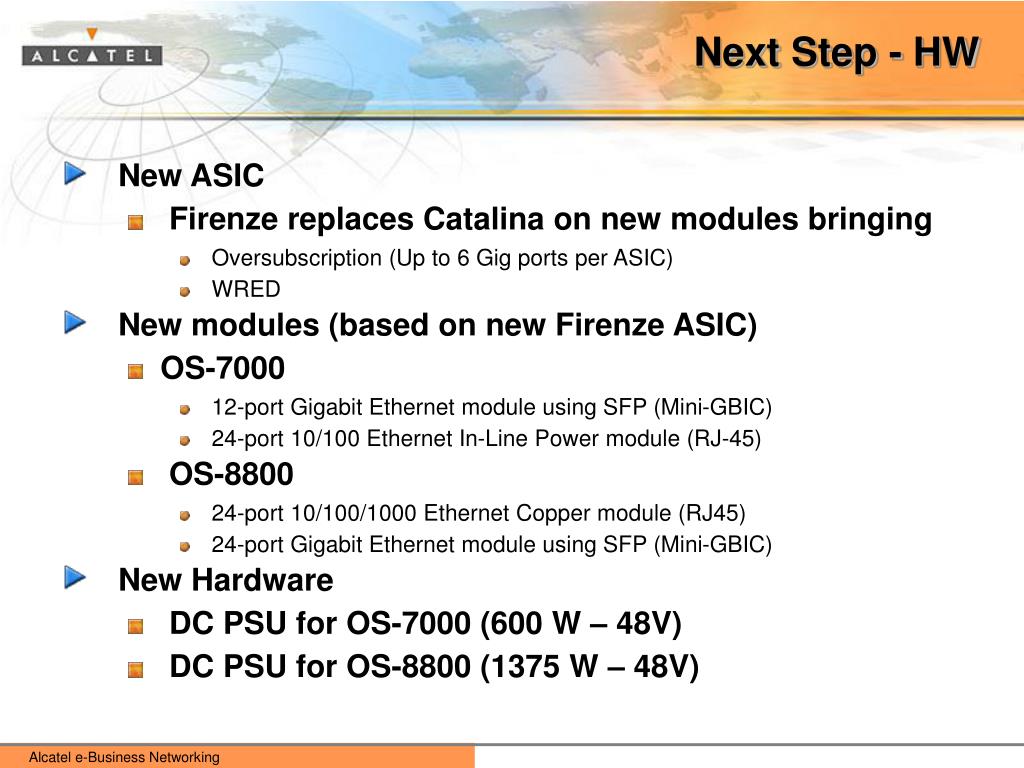

Next Step - HW

  • New ASIC

    • Firenze replaces Catalina on new modules bringing

      • Oversubscription (Up to 6 Gig ports per ASIC)

      • WRED

  • New modules (based on new Firenze ASIC)

    • OS-7000

      • 12-port Gigabit Ethernet module using SFP (Mini-GBIC)

      • 24-port 10/100 Ethernet In-Line Power module (RJ-45)

    • OS-8800

      • 24-port 10/100/1000 Ethernet Copper module (RJ45)

      • 24-port Gigabit Ethernet module using SFP (Mini-GBIC)

  • New Hardware

    • DC PSU for OS-7000 (600 W – 48V)

    • DC PSU for OS-8800 (1375 W – 48V)


Next step sw

Next Step - SW

  • Version 5.1.x

    • NetBIOS Relay

    • Extended Local Proxy ARP

    • Policy Based Routing L3/L4

  • Version 5.2

    • IEEE 802.1v – VLAN Classif. by protocol and port

    • IEEE 802.1x

    • IEEE 802.1s

    • Secure Shell (SSH)

    • and more to come …


Thank you

THANK YOU !!!

Any questions ???


Hw roadmap

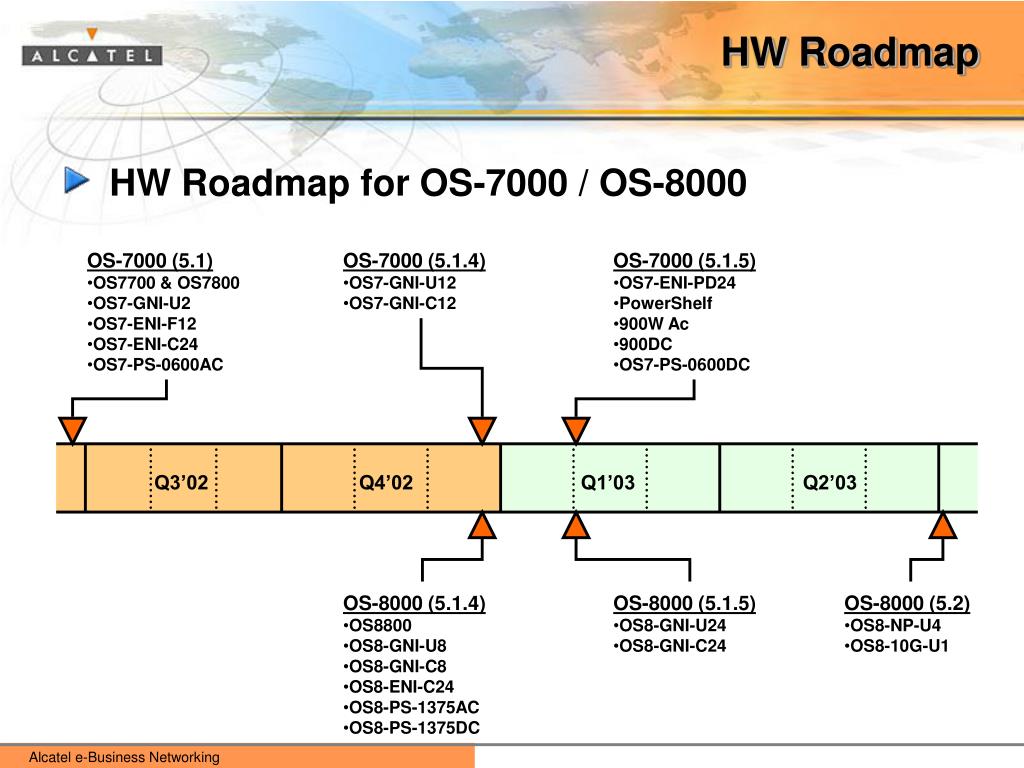

HW Roadmap

  • HW Roadmap for OS-7000 / OS-8000

  • OS-7000 (5.1)

  • OS7700 & OS7800

  • OS7-GNI-U2

  • OS7-ENI-F12

  • OS7-ENI-C24

  • OS7-PS-0600AC

  • OS-7000 (5.1.4)

  • OS7-GNI-U12

  • OS7-GNI-C12

  • OS-7000 (5.1.5)

  • OS7-ENI-PD24

  • PowerShelf

  • 900W Ac

  • 900DC

  • OS7-PS-0600DC

Q3’02

Q4’02

Q1’03

Q2’03

  • OS-8000 (5.1.4)

  • OS8800

  • OS8-GNI-U8

  • OS8-GNI-C8

  • OS8-ENI-C24

  • OS8-PS-1375AC

  • OS8-PS-1375DC

  • OS-8000 (5.1.5)

  • OS8-GNI-U24

  • OS8-GNI-C24

  • OS-8000 (5.2)

  • OS8-NP-U4

  • OS8-10G-U1


Sw roadmap

SW Roadmap

  • SW Roadmap for OS-7000 / OS-8000

AOS 5.1.1

First release of AOS

  • AOS 5.1.4

  • 802.1x

  • NTP

  • AOS 5.2

  • MPLS

  • IPv6

  • SSH

  • Multineting

Q3’02

Q4’02

Q1’03

Q2’03

  • AOS 5.1.3

  • Policy Based Routing

  • Netbios (UDP) Relay

  • Multiple (Per VLAN) DHCP

  • Learned Port Security

  • Local Proxy ARP

  • SSH Basic

  • End User Partitioning

  • StoneBeat HA support

  • AOS 5.1.5

  • Multicast VLAN


  • Login
