D endocrine function tests

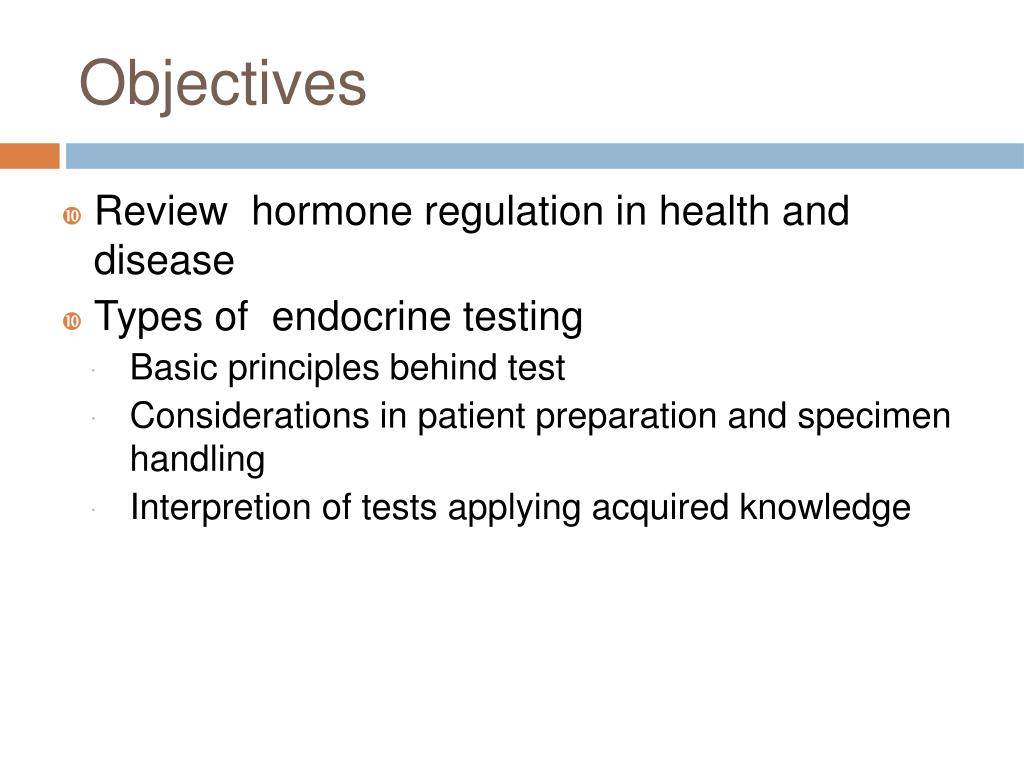

  • Review hormone regulation in health and disease

  • Types of endocrine testing

    • Basic principles behind test

    • Considerations in patient preparation and specimen handling

    • Interpretion of tests applying acquired knowledge

Endocrine system

Endocrine System

  • Composed of different glands that secrete hormones directly in the blood

  • Some hormones are regulatory in nature

    • Trophic hormones, releasing hormones

D endocrine function tests

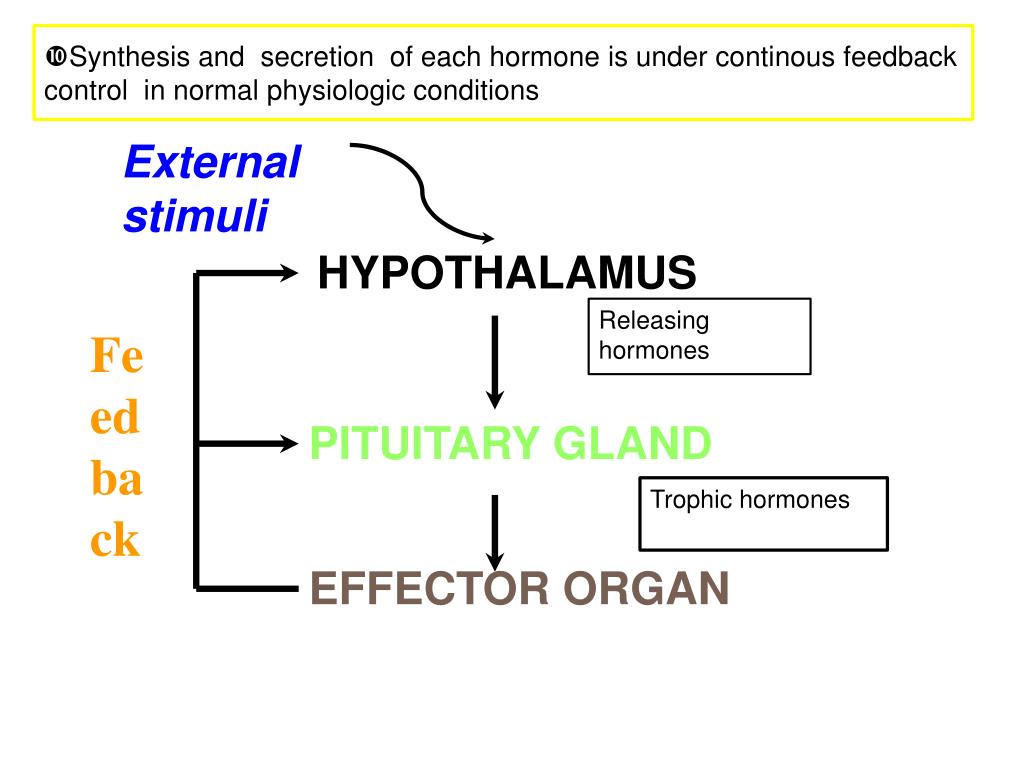

  • Synthesis and secretion of each hormone is under continous feedback control in normal physiologic conditions

External stimuli


Feed back

Releasing hormones


Trophic hormones


Diagnosis of endocrine disorders

Diagnosis of Endocrine Disorders

  • Normally, hormone concentration in circulation falls within a predictable range

  • Most hormones are conveniently measured by RIA or other immunoassays.

D endocrine function tests

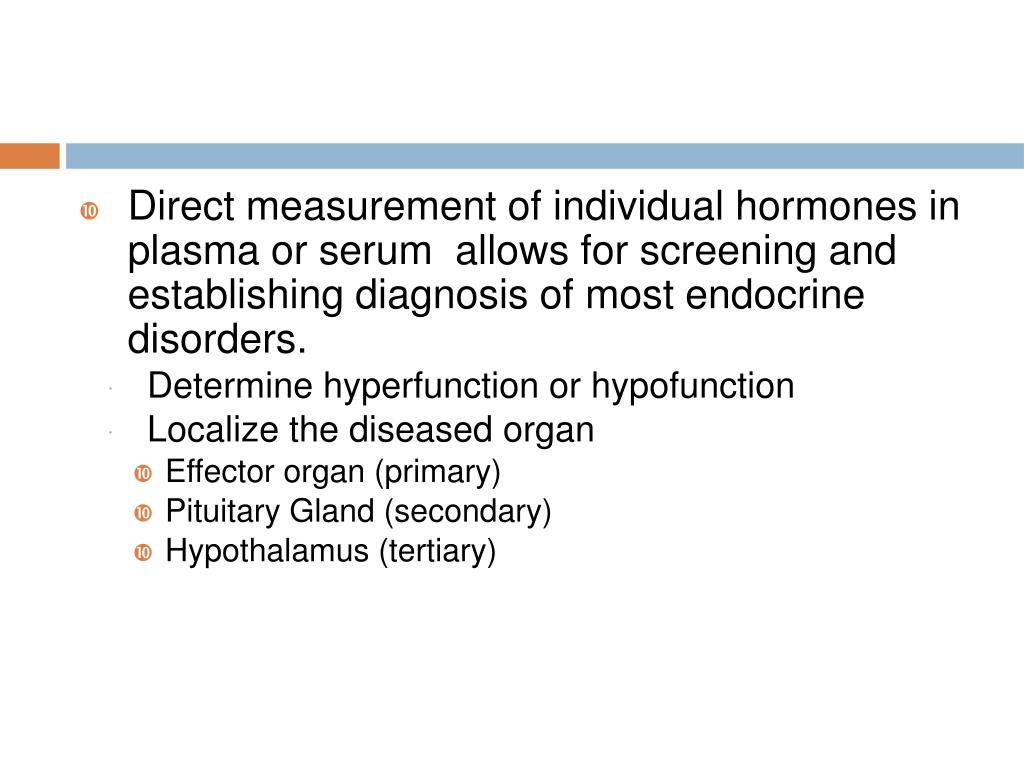

  • Direct measurement of individual hormones in plasma or serum allows for screening and establishing diagnosis of most endocrine disorders.

    • Determine hyperfunction or hypofunction

    • Localize the diseased organ

      • Effector organ (primary)

      • Pituitary Gland (secondary)

      • Hypothalamus (tertiary)

Endocrine disorders

Endocrine disorders

  • 1o excess àhigh target organ hormones; lowtrophic hormone

  • 1o deficiencyàlow target organ hormone; high trophic hormone

  • 2o excessà high trophic hormone and hormones of target gland

  • 2o deficiencyà low trophic hormone and hormones of the target gland

  • 3o deficiencyà low trophic hormone and hormones of the target gland

Assessment of hormone function

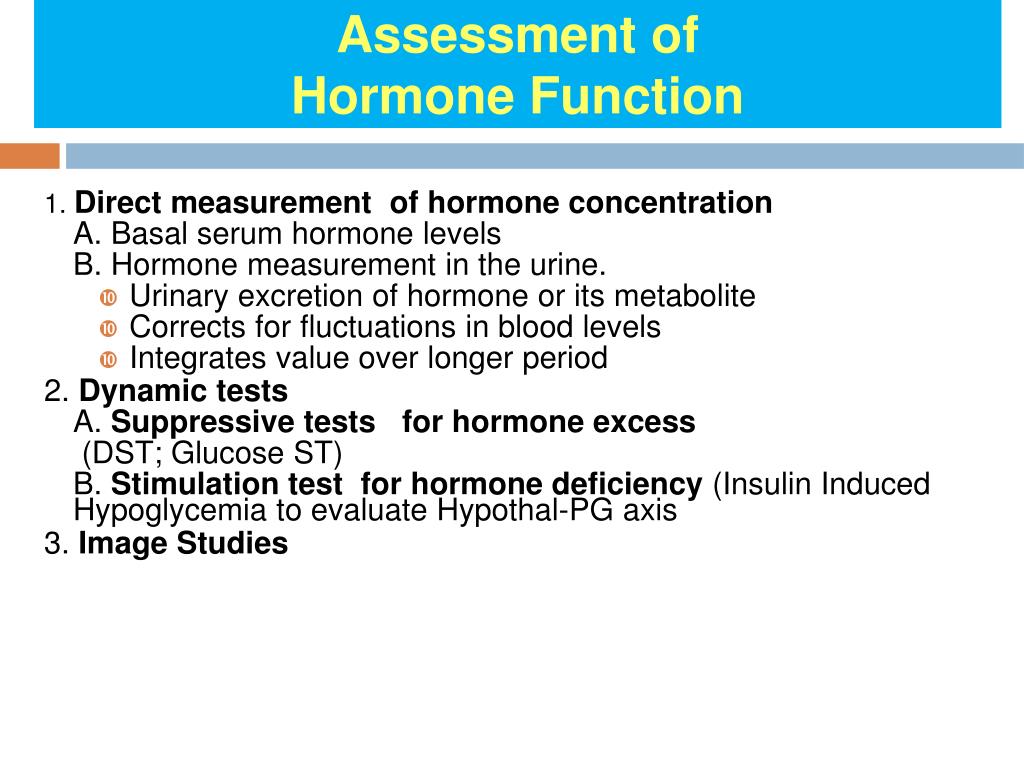

Assessment of Hormone Function

1. Direct measurement of hormone concentration

A. Basal serum hormone levels

B. Hormone measurement in the urine.

  • Urinary excretion of hormone or its metabolite

  • Corrects for fluctuations in blood levels

  • Integrates value over longer period

    2. Dynamic tests

    A. Suppressive tests for hormone excess

    (DST; Glucose ST)

    B. Stimulation test for hormone deficiency (Insulin Induced Hypoglycemia to evaluate Hypothal-PG axis

    3. Image Studies

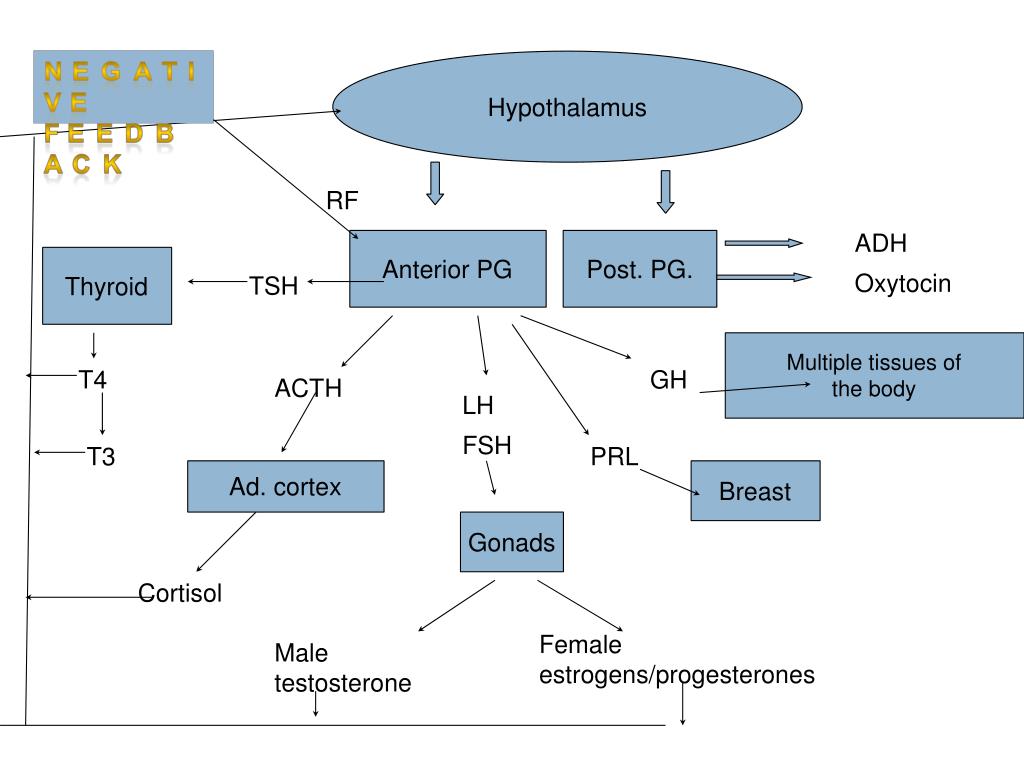

D endocrine function tests

Ad. cortex



Multiple tissues of

the body


Post. PG.

Anterior PG














Female estrogens/progesterones

Male testosterone

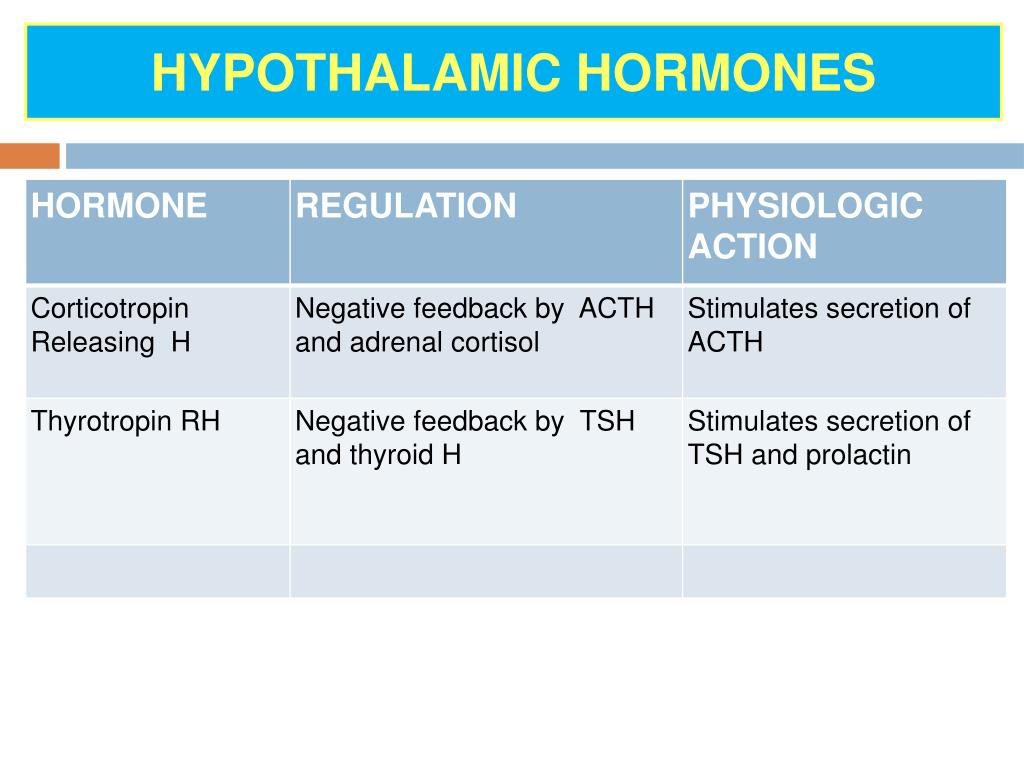

Hypothalamic hormones


Anterior pituitary hormones


Adrenocorticotrophic h acth

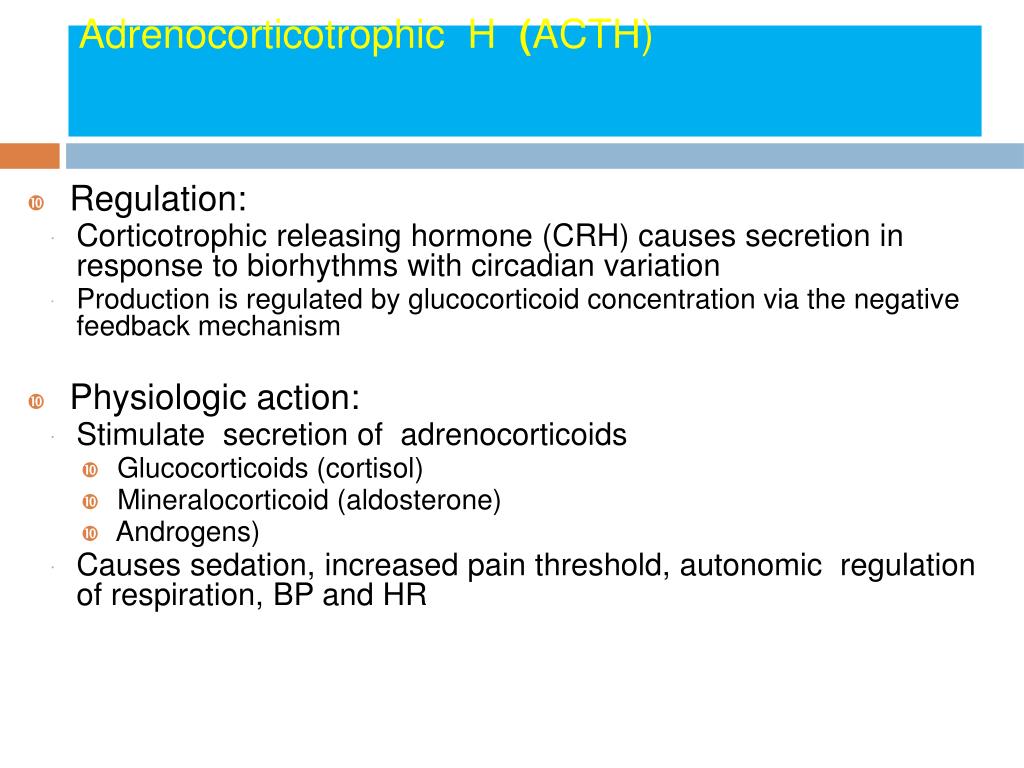

Adrenocorticotrophic H (ACTH)

  • Regulation:

    • Corticotrophic releasing hormone (CRH) causes secretion in response to biorhythms with circadian variation

    • Production is regulated by glucocorticoid concentration via the negative feedback mechanism

  • Physiologic action:

    • Stimulate secretion of adrenocorticoids

      • Glucocorticoids (cortisol)

      • Mineralocorticoid (aldosterone)

      • Androgens)

    • Causes sedation, increased pain threshold, autonomic regulation of respiration, BP and HR

Adrenocorticotrophic h acth1

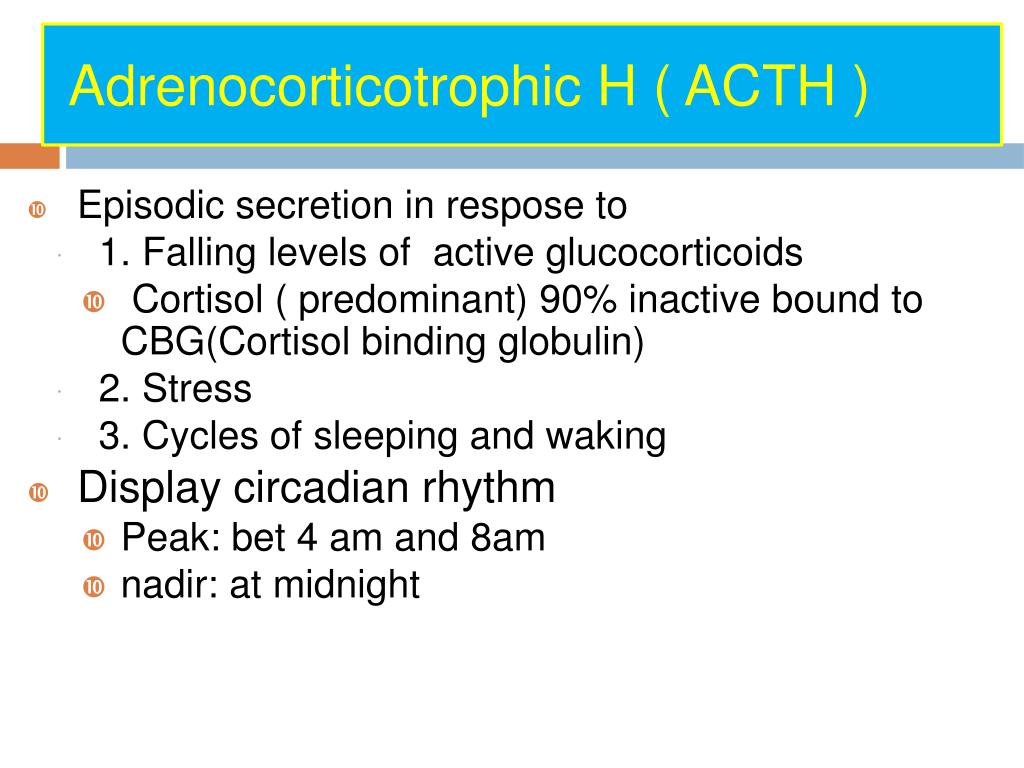

Adrenocorticotrophic H ( ACTH )

  • Episodic secretion in respose to

    • 1. Falling levels of active glucocorticoids

      • Cortisol ( predominant) 90% inactive bound to CBG(Cortisol binding globulin)

    • 2. Stress

    • 3. Cycles of sleeping and waking

  • Display circadian rhythm

    • Peak: bet 4 am and 8am

    • nadir: at midnight

Adrenocorticotrophic h

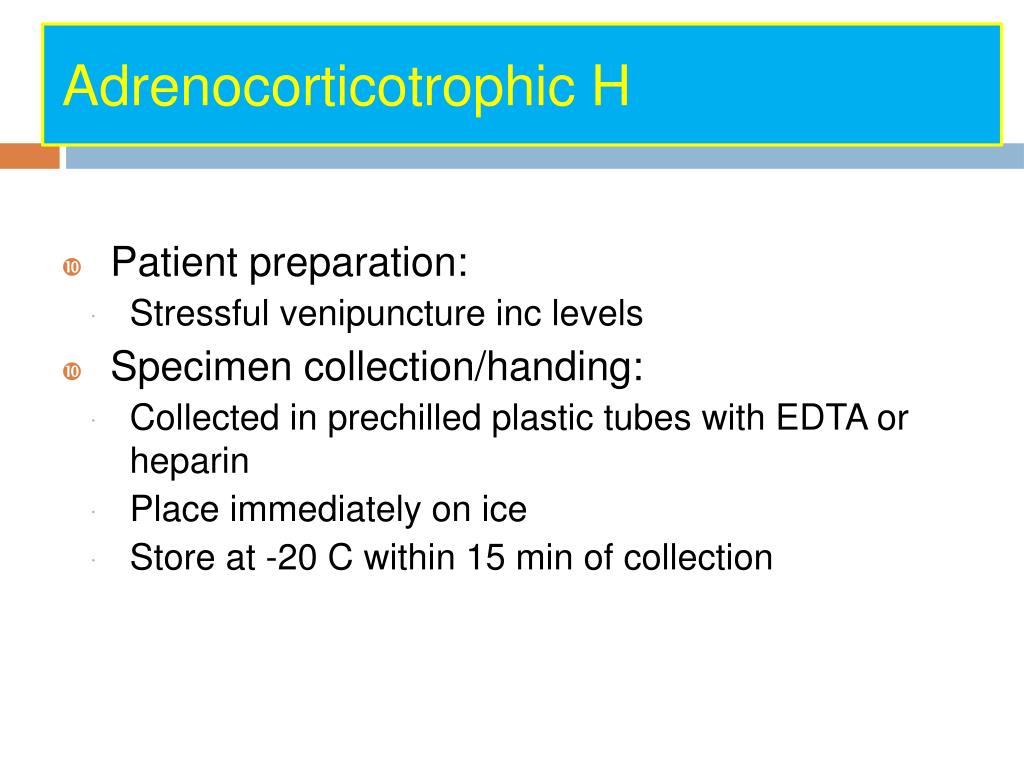

Adrenocorticotrophic H

  • Patient preparation:

    • Stressful venipuncture inc levels

  • Specimen collection/handing:

    • Collected in prechilled plastic tubes with EDTA or heparin

    • Place immediately on ice

    • Store at -20 C within 15 min of collection

Tsh or thyrotropin

TSH or Thyrotropin

  • Regulation:

    • TRH from hypothalamus causes secretion in response to low levels of thyroid hormones (T3, T4)

  • Physiologic Function:

    • Stimulates secretion of T3, T4

D endocrine function tests


  • Serum TSH is single best screening test for thyroid fxn followed by FT4

  • Useful for evaluating both thyroid and pituitary function

  • Elevated serum level:

    • sensitive and specific indicator of primary HYPOTHYROIDISM

  • Normal or decreased level: secondary or tertiary hypothyroidism

Growth hormone

Growth Hormone

  • AKA : somatotropin

  • Most abundant hormone of ant PG

Growth hormone1

Growth Hormone

  • Regulation:

    • GHRH and GHIH regulates its secretion in response to

      • exercise

      • stress,

      • hypoglycemia

      • Amino acids

      • testosterone

      • estrogen levels

  • Physiologic Function:

    • Promotes growth of soft tissue , cartilage and bone

    • Stimulates Pr synthesis , fat and CHO metabolism

Growth hormone2

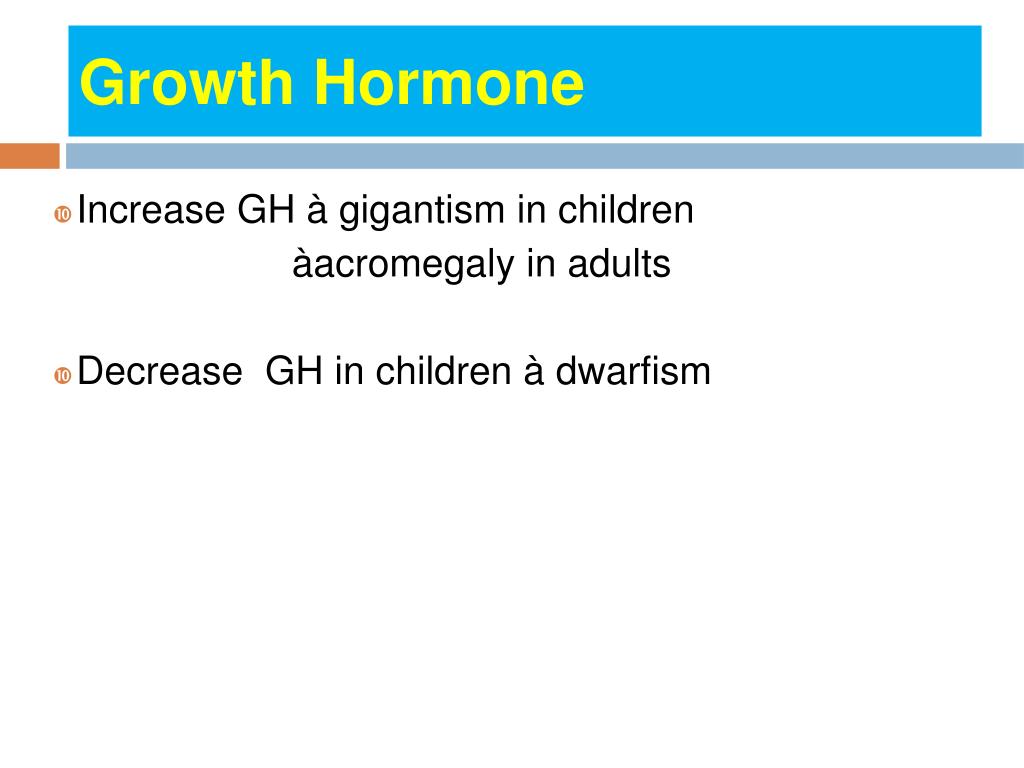

Growth Hormone

  • Increase GH à gigantism in children

    àacromegaly in adults

  • Decrease GH in children à dwarfism

D endocrine function tests

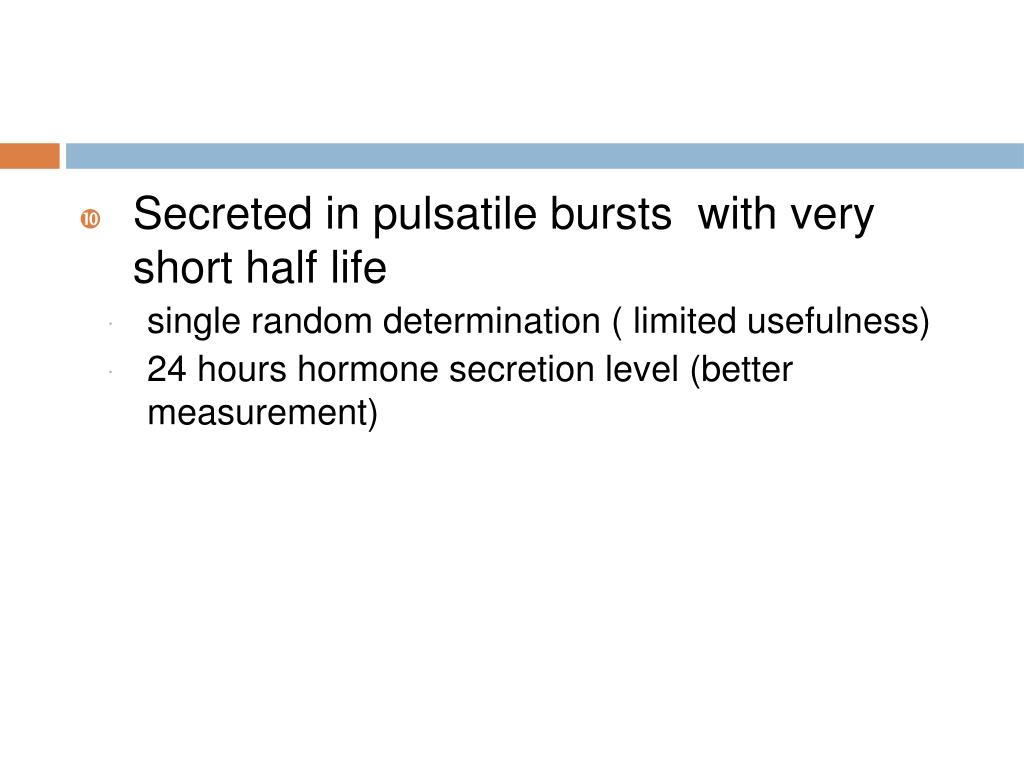

  • Secreted in pulsatile bursts with very short half life

    • single random determination ( limited usefulness)

    • 24 hours hormone secretion level (better measurement)

Growth hormone3

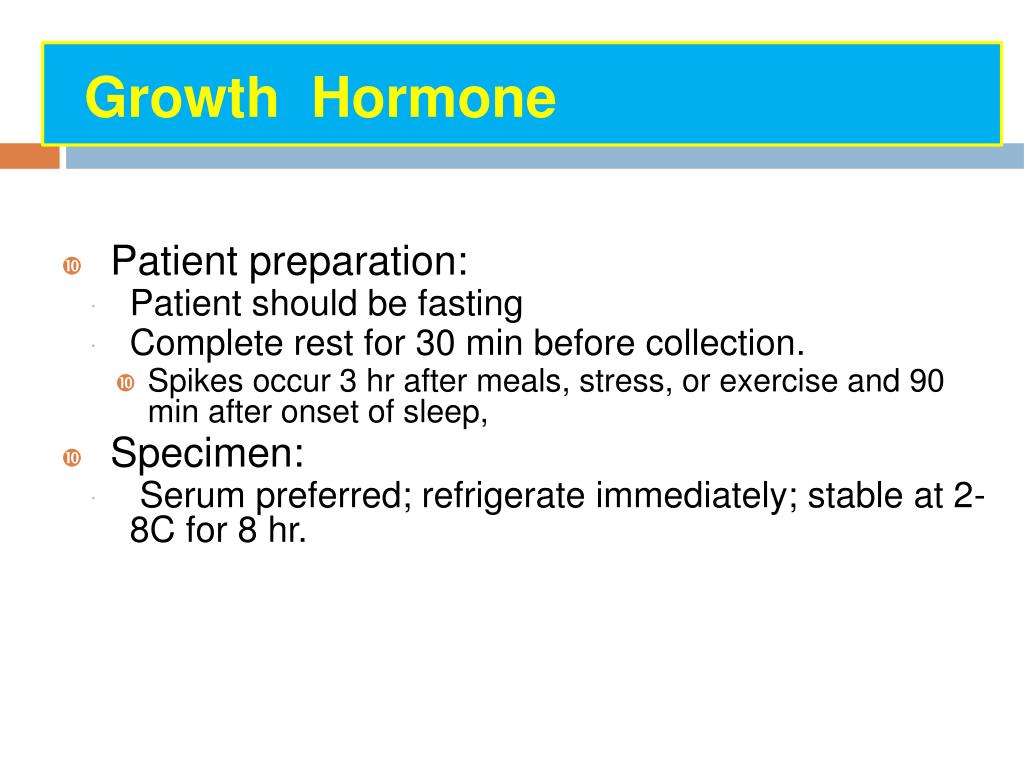

Growth Hormone

  • Patient preparation:

    • Patient should be fasting

    • Complete rest for 30 min before collection.

      • Spikes occur 3 hr after meals, stress, or exercise and 90 min after onset of sleep,

  • Specimen:

    • Serum preferred; refrigerate immediately; stable at 2-8C for 8 hr.

Prolactin hormone

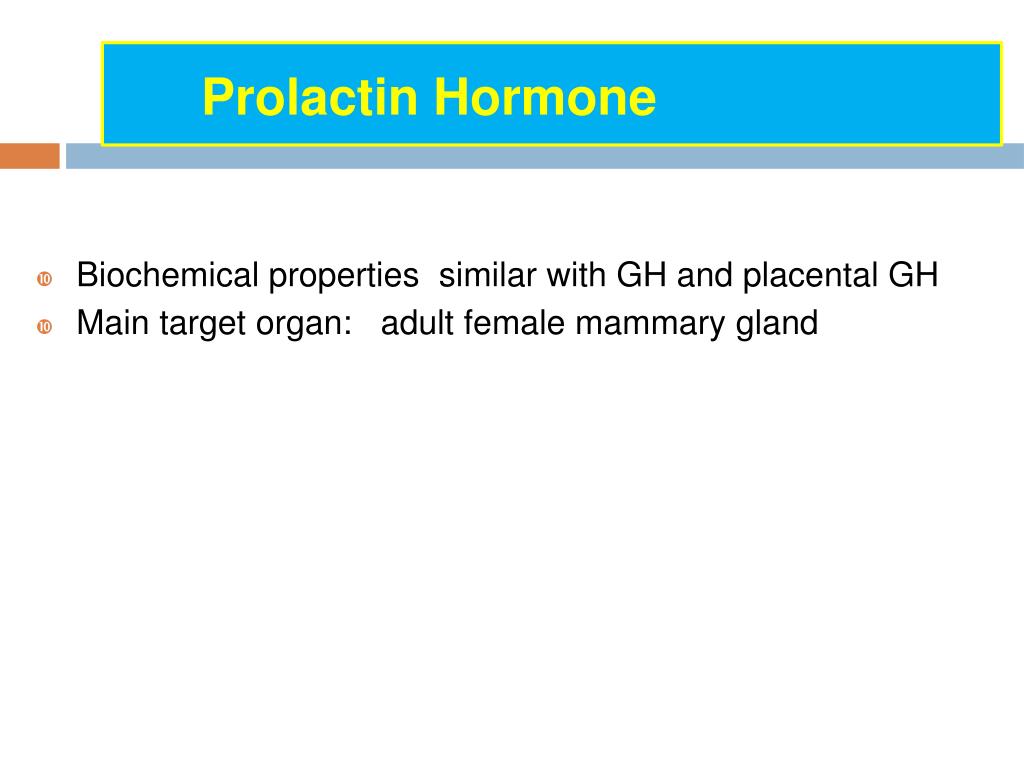

Prolactin Hormone

  • Biochemical properties similar with GH and placental GH

  • Main target organ: adult female mammary gland

D endocrine function tests

  • Regulation:

    • Regulated by TRH, dopamine

  • Physiologic Function:

    • Increased in pregnancy, sucking

    • Initiates lactation ; growth of mammary tissues; controls osmolality, fat , CHO , Vit D metab and steroidogenesis in the ovary and testis

D endocrine function tests

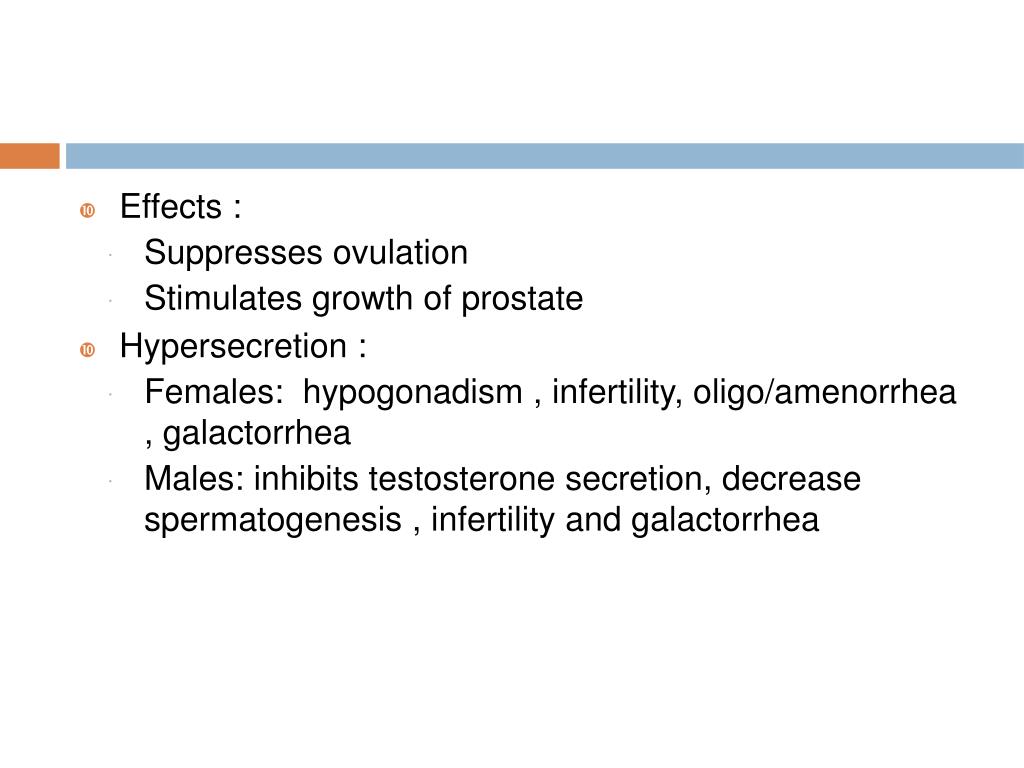

  • Effects :

    • Suppresses ovulation

    • Stimulates growth of prostate

  • Hypersecretion :

    • Females: hypogonadism , infertility, oligo/amenorrhea , galactorrhea

    • Males: inhibits testosterone secretion, decrease spermatogenesis , infertility and galactorrhea

Prolactin hormone1

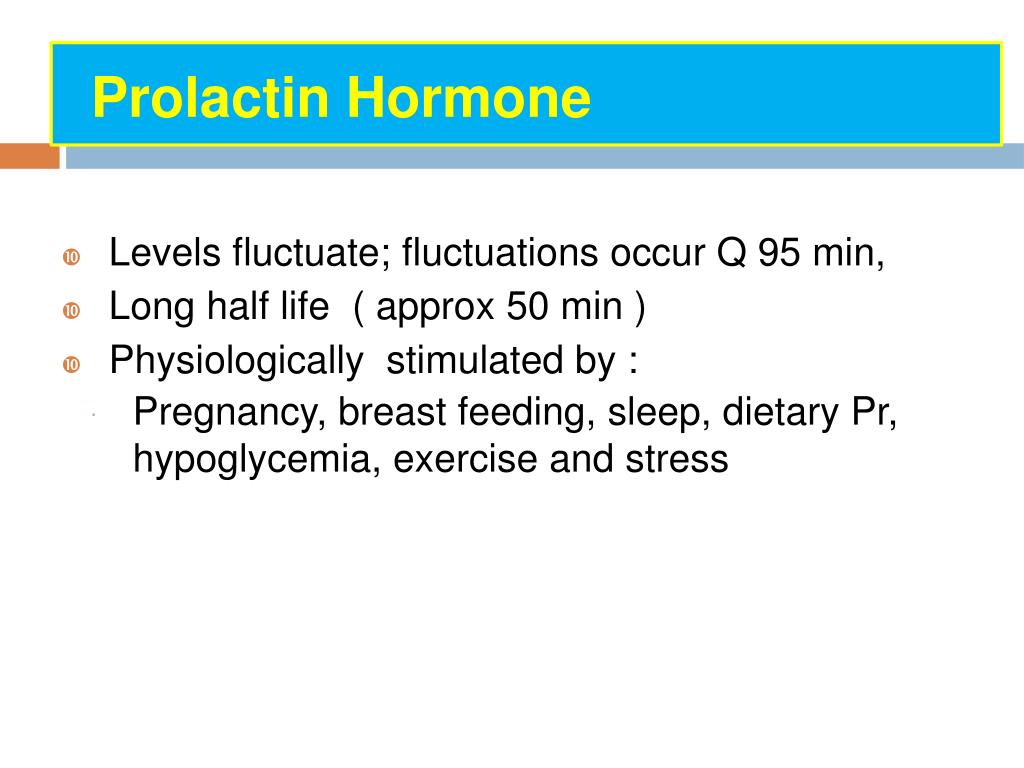

Prolactin Hormone

  • Levels fluctuate; fluctuations occur Q 95 min,

  • Long half life ( approx 50 min )

  • Physiologically stimulated by :

    • Pregnancy, breast feeding, sleep, dietary Pr, hypoglycemia, exercise and stress

Prolactin hormone2

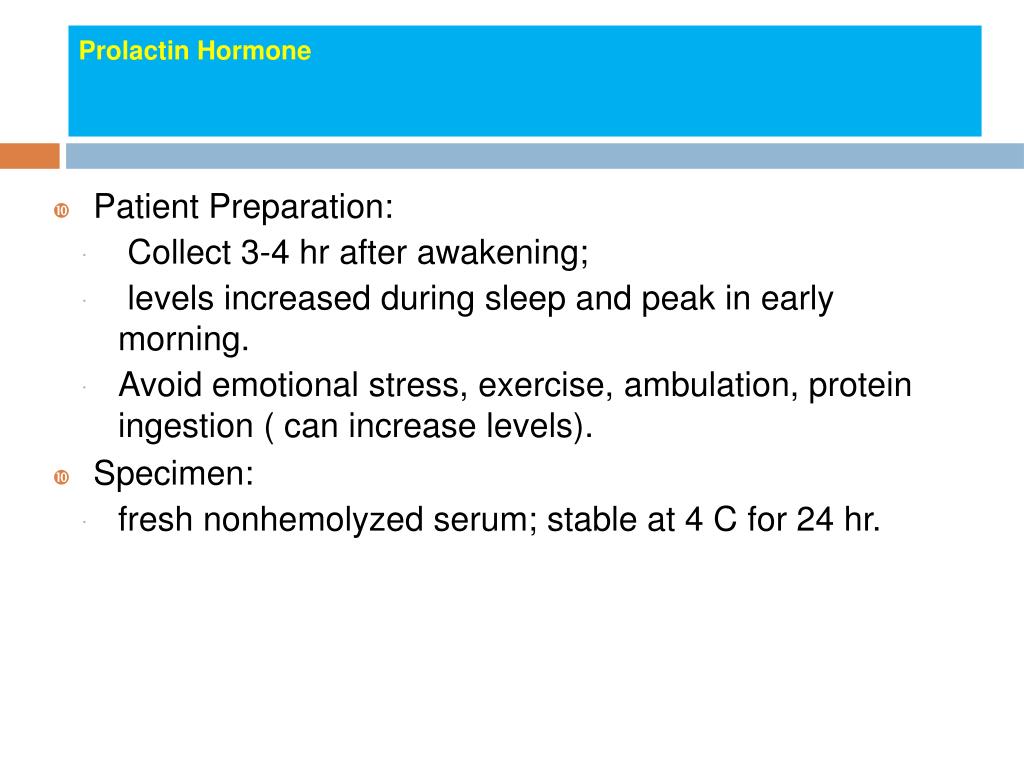

Prolactin Hormone

  • Patient Preparation:

    • Collect 3-4 hr after awakening;

    • levels increased during sleep and peak in early morning.

    • Avoid emotional stress, exercise, ambulation, protein ingestion ( can increase levels).

  • Specimen:

    • fresh nonhemolyzed serum; stable at 4 C for 24 hr.

Follicle stimulating and luteinizining h

Follicle Stimulating and Luteinizining H

  • Regulated by GnRH from hypothalamus

  • Controls the functional activity of gonads

  • Exhibit episodic, circadian and cyclic variations– best to use serial blood tests or timed urine collection

  • Specimen:

    • Serum, plasma and urine acceptable;

    • Stable 8 days at room temp; two weeks at 4C

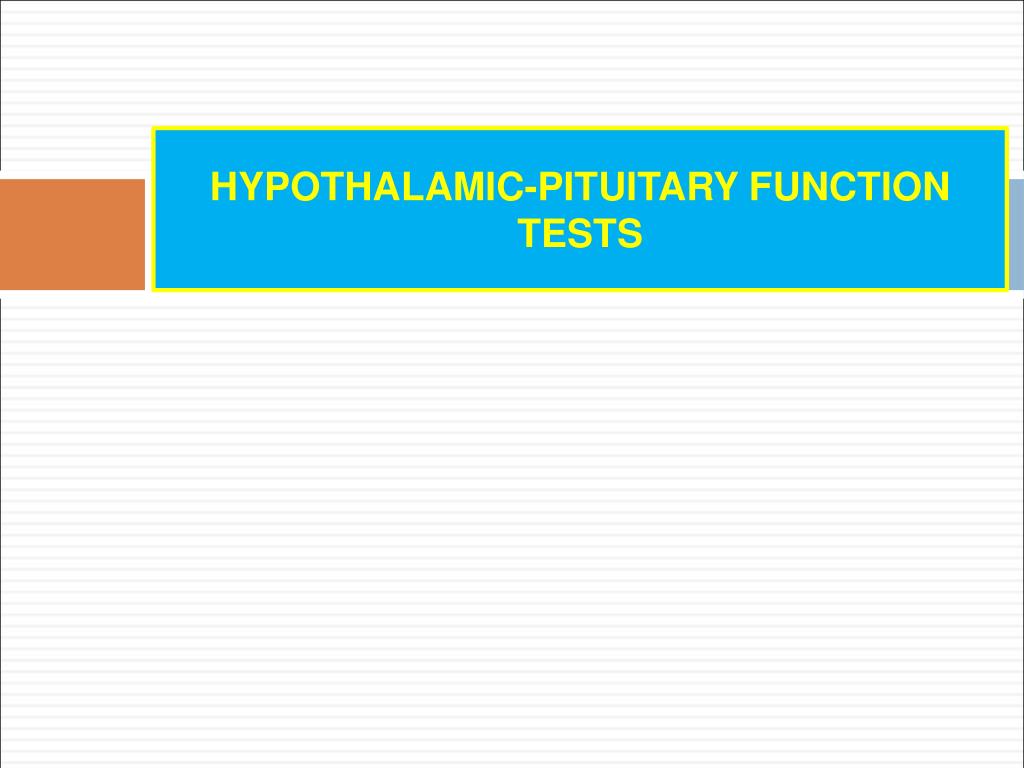

Hypothalamic pituitary function tests




  • Most are due to benign tumors that are autonomous and do not respond to negative feedback control

    • GHsecreted by pituitary adenoma is not suppressed by glucose

  • Exception to the rule of suppressibility:

    • Prolactinoma and Pit adenoma that secrete ACTH(Pituitary Cushing); both are partially autonomous

Gh excess acromegaly

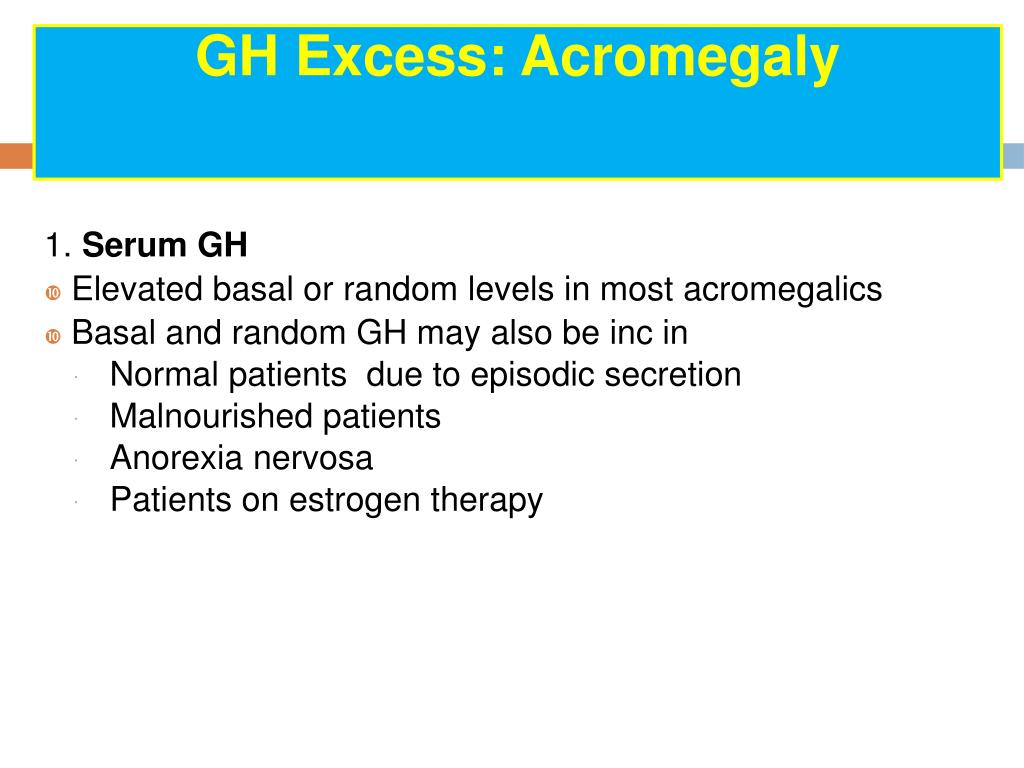

GH Excess: Acromegaly

1. Serum GH

  • Elevated basal or random levels in most acromegalics

  • Basal and random GH may also be inc in

    • Normal patients due to episodic secretion

    • Malnourished patients

    • Anorexia nervosa

    • Patients on estrogen therapy

D endocrine function tests

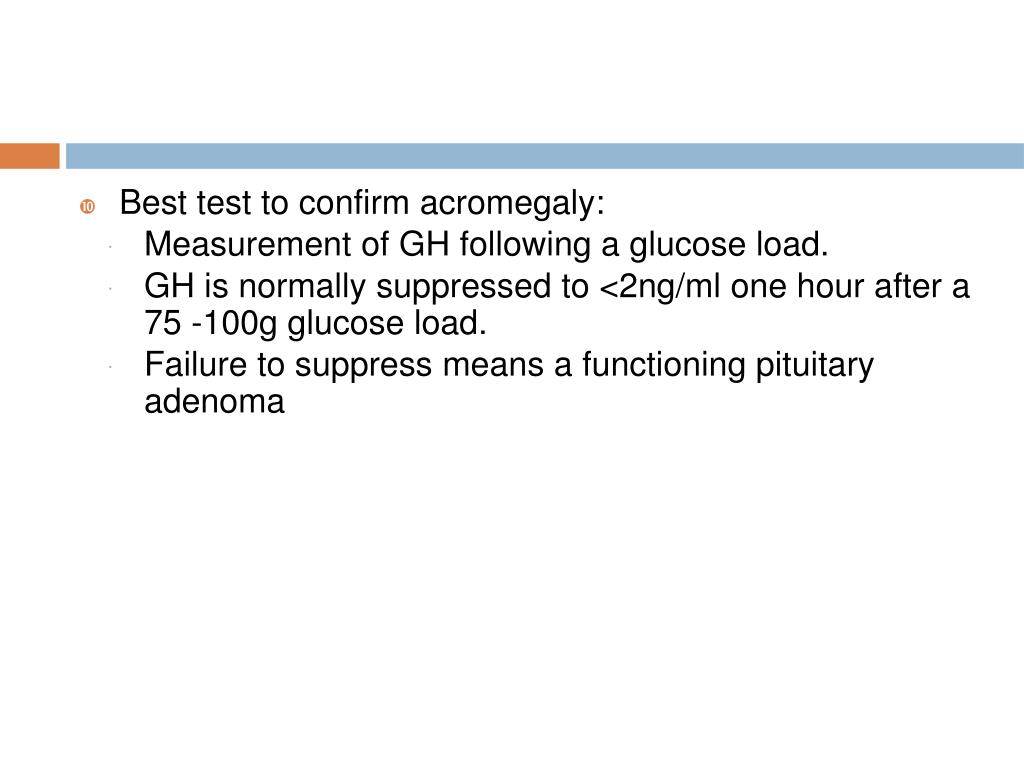

  • Best test to confirm acromegaly:

    • Measurement of GH following a glucose load.

    • GH is normally suppressed to <2ng/ml one hour after a 75 -100g glucose load.

    • Failure to suppress means a functioning pituitary adenoma

Pituitary hyperpituitarism

Pituitary Hyperpituitarism

2. Serum Somatomedin C

  • Synthesized mainly in the liver

  • Mediates most of the major growth promoting effects of GH

  • Involved in negative feedback regulation of Normal GH secretion

  • Serum level of SM-C is a good screening test for acromegaly

    • Basal SM-C is elevated in acromegaly

    • Maybe elevated in adolescents during the peripubertal growth spurt and during pregnancy

Hypopituitarism gh deficiency

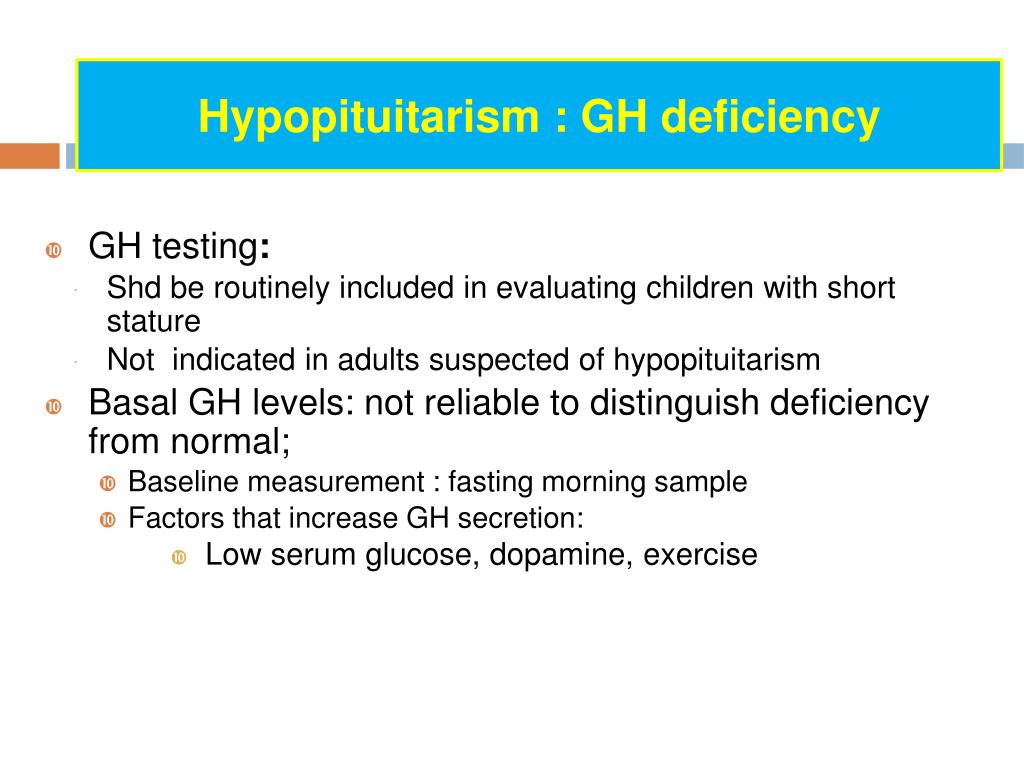

Hypopituitarism : GH deficiency

  • GH testing:

    • Shd be routinely included in evaluating children with short stature

    • Not indicated in adults suspected of hypopituitarism

  • Basal GH levels: not reliable to distinguish deficiency from normal;

    • Baseline measurement : fasting morning sample

    • Factors that increase GH secretion:

      • Low serum glucose, dopamine, exercise

Laboratory diagnosis hypopituatarism gh deficiency

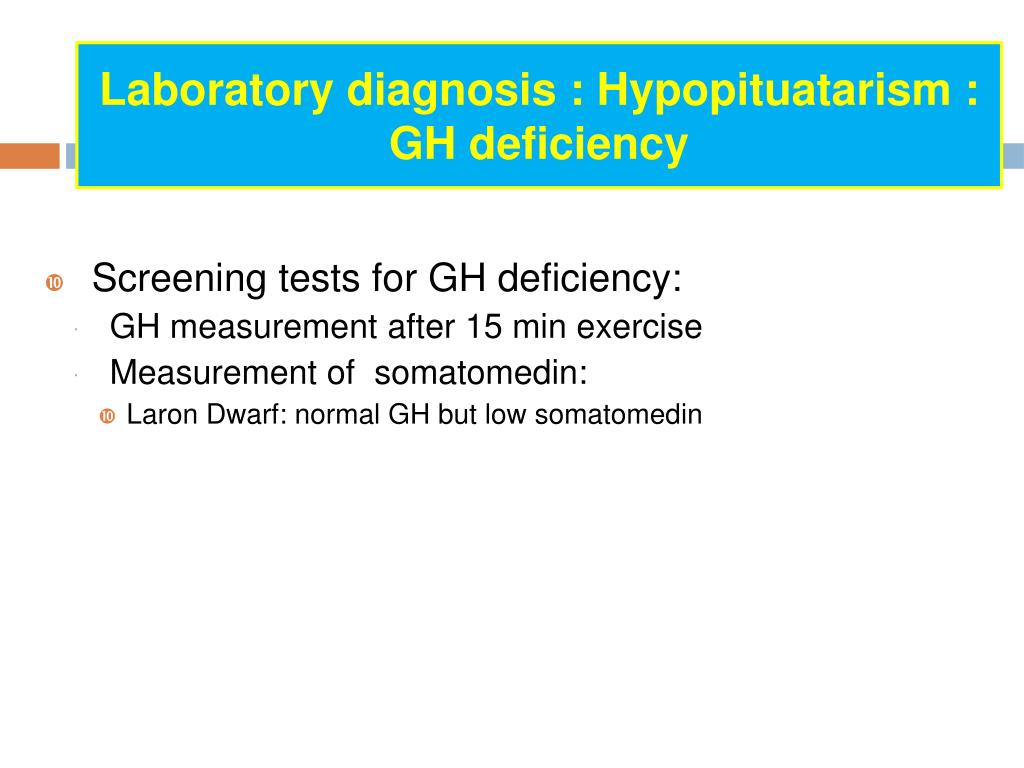

Laboratory diagnosis : Hypopituatarism : GH deficiency

  • Screening tests for GH deficiency:

    • GH measurement after 15 min exercise

    • Measurement of somatomedin:

      • Laron Dwarf: normal GH but low somatomedin

Stimulation test to confirm gh deficiency

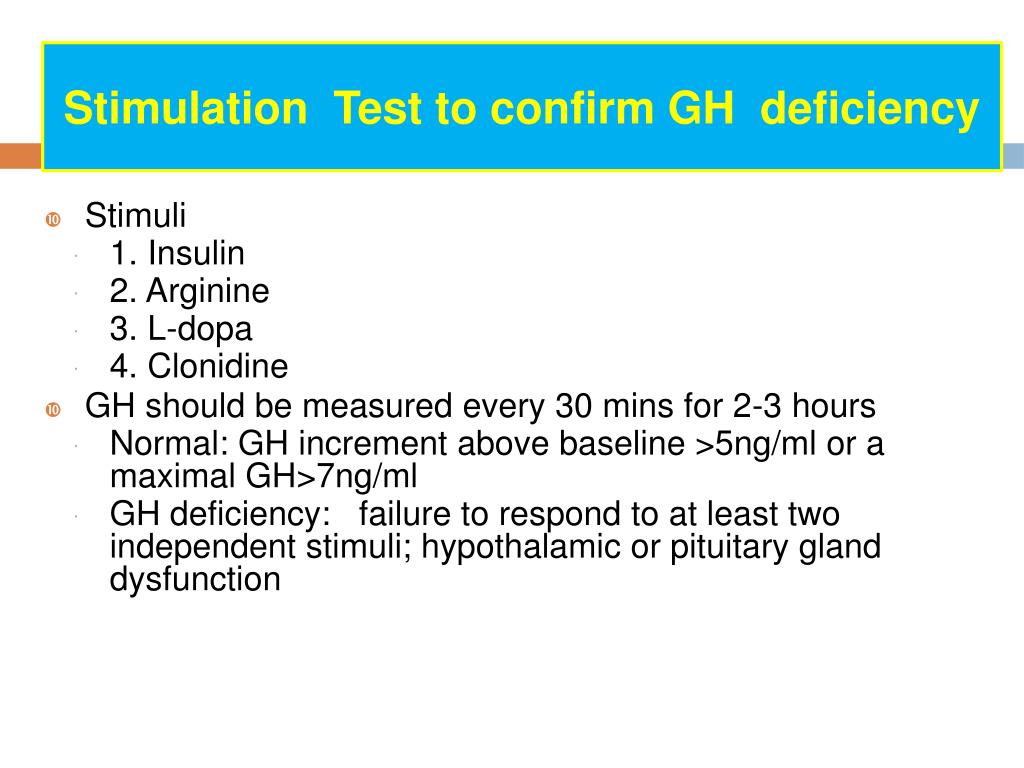

Stimulation Test to confirm GH deficiency

  • Stimuli

    • 1. Insulin

    • 2. Arginine

    • 3. L-dopa

    • 4. Clonidine

  • GH should be measured every 30 mins for 2-3 hours

    • Normal: GH increment above baseline >5ng/ml or a maximal GH>7ng/ml

    • GH deficiency: failure to respond to at least two independent stimuli; hypothalamic or pituitary gland dysfunction

Stimulation test

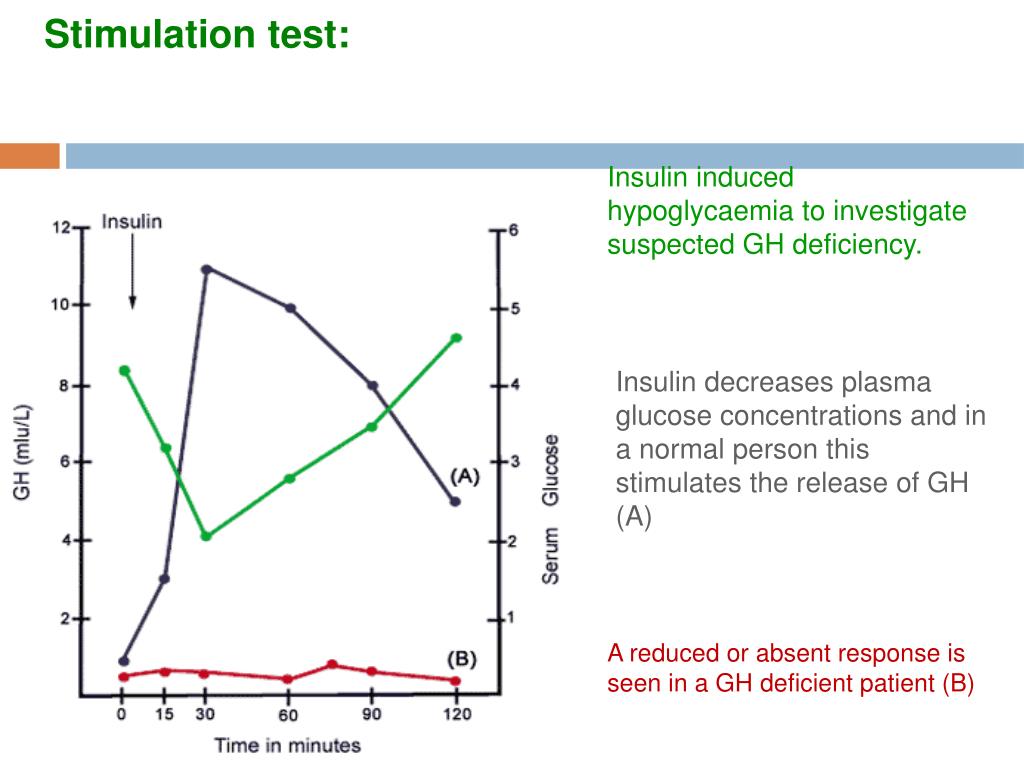

Stimulation test:

Insulin induced hypoglycaemia to investigate suspected GH deficiency.

Insulin decreases plasma glucose concentrations and in a normal person this stimulates the release of GH (A)

A reduced or absent response is seen in a GH deficient patient (B)

Stimulation test to confirm gh deficiency1

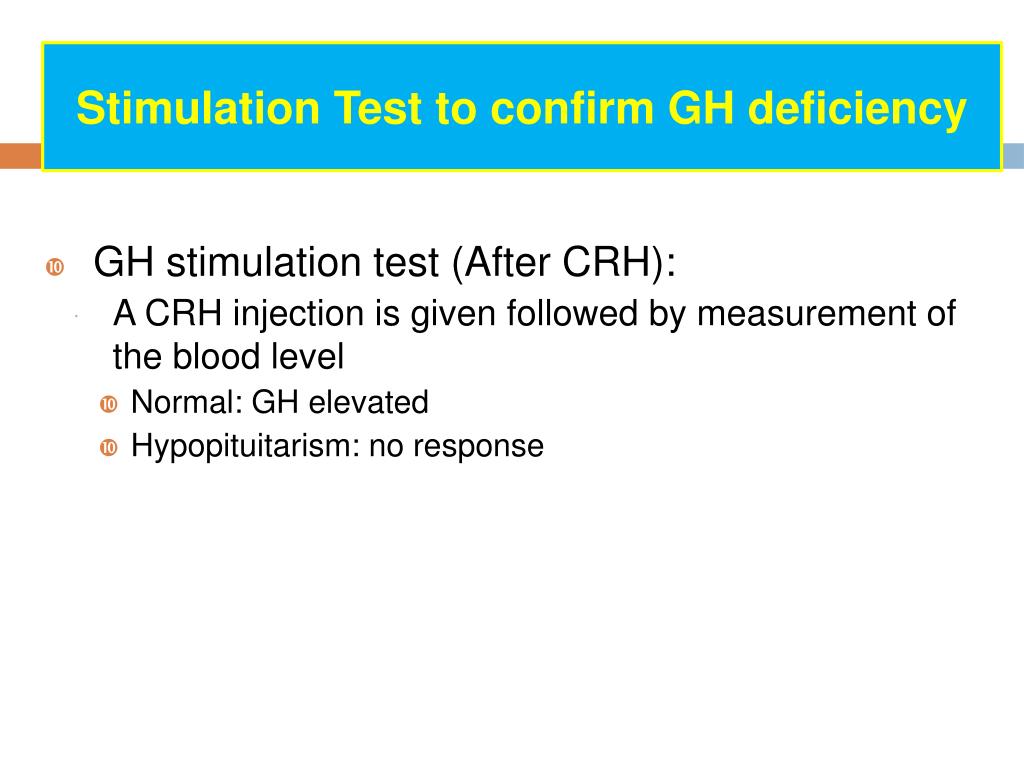

Stimulation Test to confirm GH deficiency

  • GH stimulation test (After CRH):

    • A CRH injection is given followed by measurement of the blood level

      • Normal: GH elevated

      • Hypopituitarism: no response

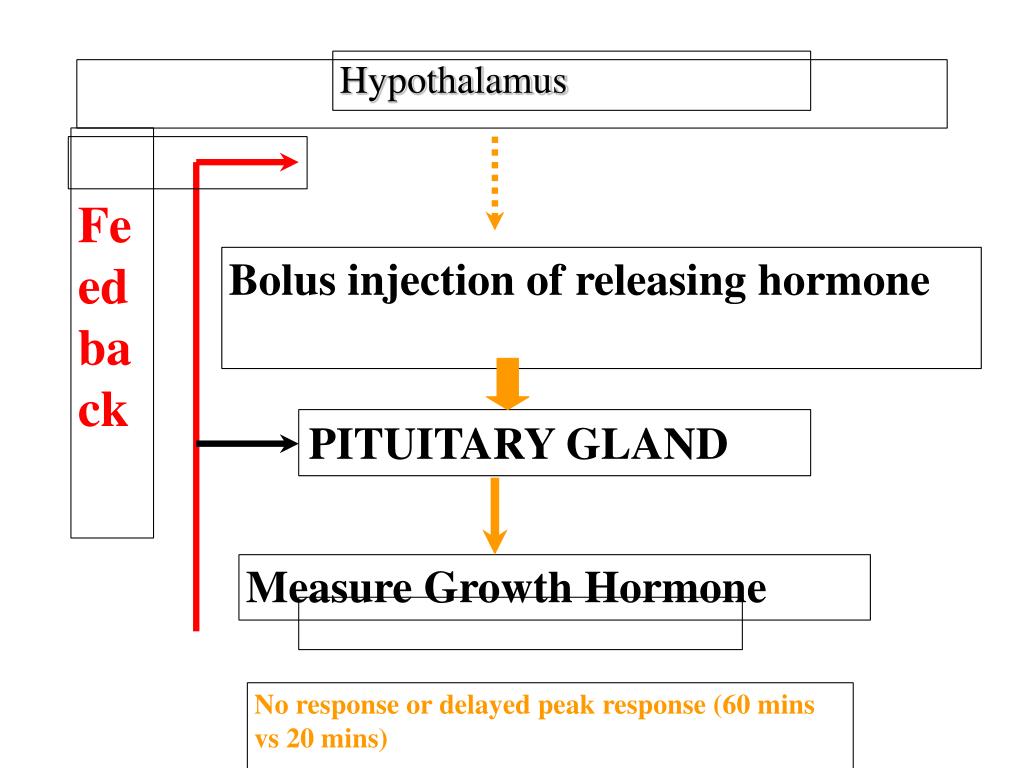

D endocrine function tests


Feed back

Bolus injection of releasing hormone


Measure Growth Hormone

No response or delayed peak response (60 mins vs 20 mins)

Adrenal function tests


Hormones of adrenal gland

Hormones of Adrenal Gland :

  • Hormones of adrenal cortex (adrenal corticosteroids) :

    • Glucocorticoid ( cortisol ) secreted by cells in zona fasciculata –

    • Mineralocorticoid ( aldosterone ) secreted by cells in z. glomerulosa-

    • Sex hormones (testosterone and estradiol ) secreted by cells in zona reticularis

  • Catecholamines (dopamine, epinephrine and NE) secreted by chromaffin cells of adrenal medulla

Glucocorticoid cortisol

Glucocorticoid (Cortisol)

  • Physiologic action:

    • Affects metabolism of proteins, CHO and lipids

    • Stimulates gluconeogenesis by the liver, inhibits the effects of insulin and decrease the rate of glucose use in the cells

  • Regulation:

    • Secreted in response to stress and ACTH

    • Normally:

      secretion higher in early morning (6-8am)

      lower in the evening (4-6pm);

      lowest at midnight

  • Cortisol excess (Cushing’s Syndrome and in patients under stress): loss of diurnal variation in secretion

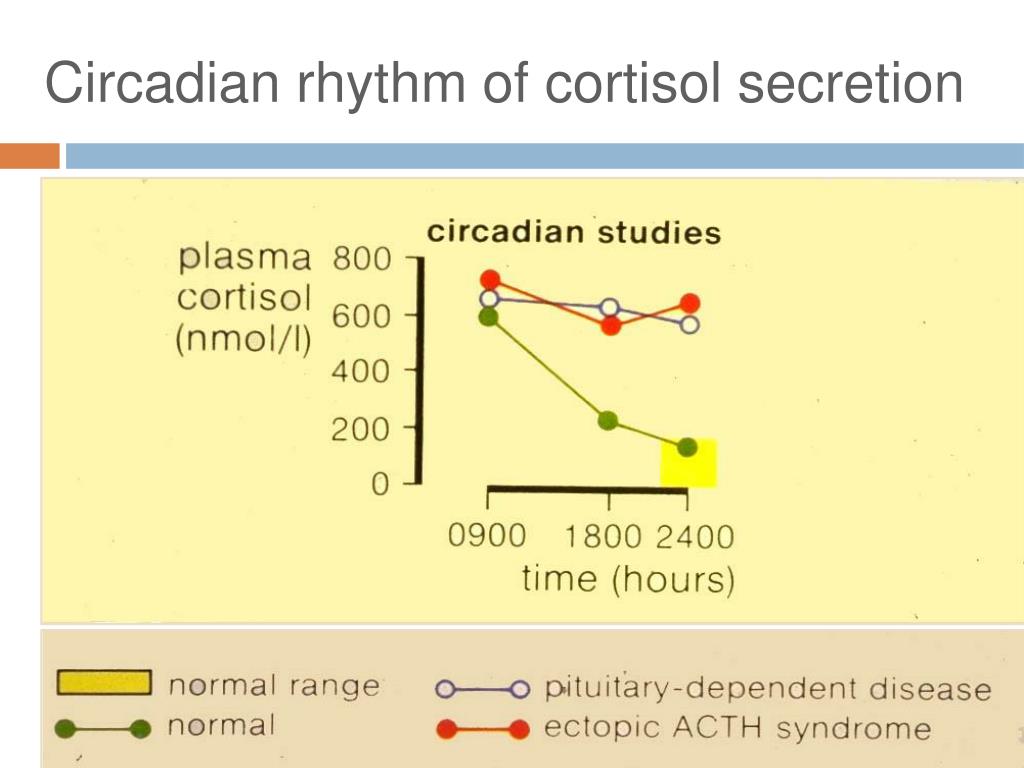

Circadian rhythm of cortisol secretion

Circadian rhythm of cortisol secretion

Feedback control of adrenal corticosteroid synthesis and release

Feedback control of Adrenal Corticosteroid synthesis and release

Decreased blood levels of adrenal corticosteroids, stress

Hypothalamus secretes corticotrophin releasing hormone (CRH)

Hormone secretion suppressed via negative feedback

Ant Pit g gland secretes ACTH

Adrenal cortex secretes hormones (cortisol)

Corticosteroid excess cushing syndrome

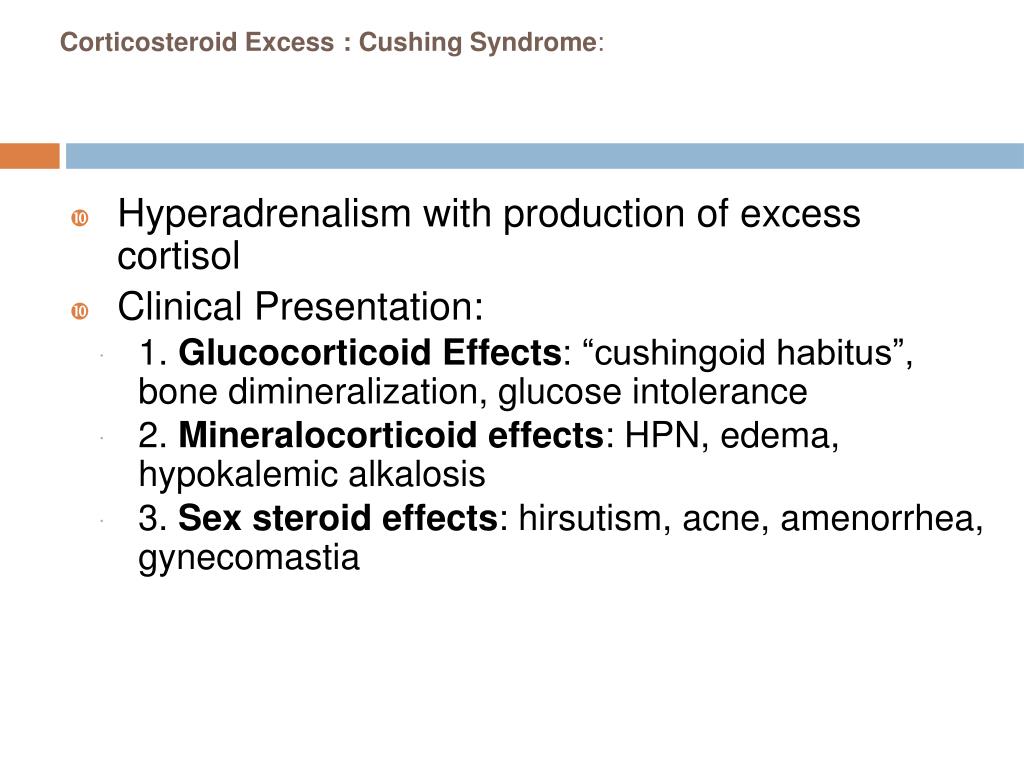

Corticosteroid Excess: Cushing Syndrome:

  • Hyperadrenalism with production of excess cortisol

  • Clinical Presentation:

    • 1. Glucocorticoid Effects: “cushingoid habitus”, bone dimineralization, glucose intolerance

    • 2. Mineralocorticoid effects: HPN, edema, hypokalemic alkalosis

    • 3. Sex steroid effects: hirsutism, acne, amenorrhea, gynecomastia

Cushing syndrome causes

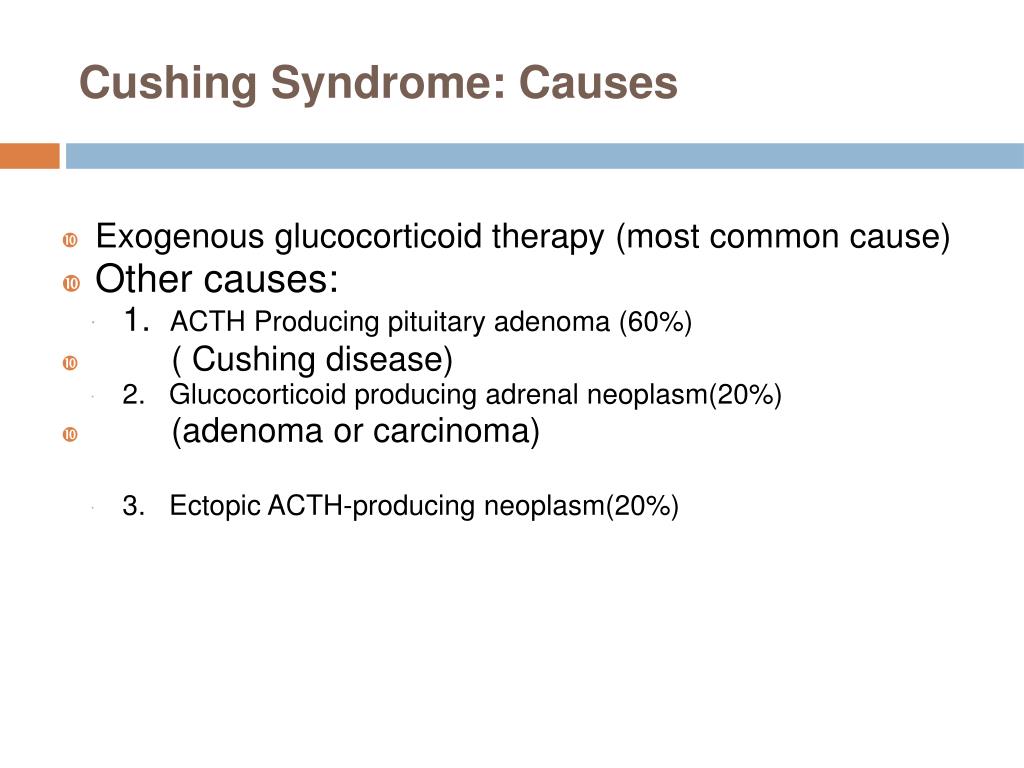

Cushing Syndrome: Causes

  • Exogenous glucocorticoid therapy (most common cause)

  • Other causes:

    • 1. ACTH Producing pituitary adenoma (60%)

  • ( Cushing disease)

    • 2. Glucocorticoid producing adrenal neoplasm(20%)

  • (adenoma or carcinoma)

    • 3. Ectopic ACTH-producing neoplasm(20%)

Tests for adrenal hormone function

Tests for Adrenal Hormone Function

1. Serum cortisol

-Secretion is episodic and pulsatile in response to ACTH

-Single determination neither specific or sensitive

-90-97% is bound to CBG or transcortin

- Elevated in adrenal hyperfunction (Cushing’s Sx)

- Decreased in adrenal hypofunction (Addison’s)

- Diurnal rhythm of cortisol secretion is lost in Cushing Sx and patients under stress

D endocrine function tests

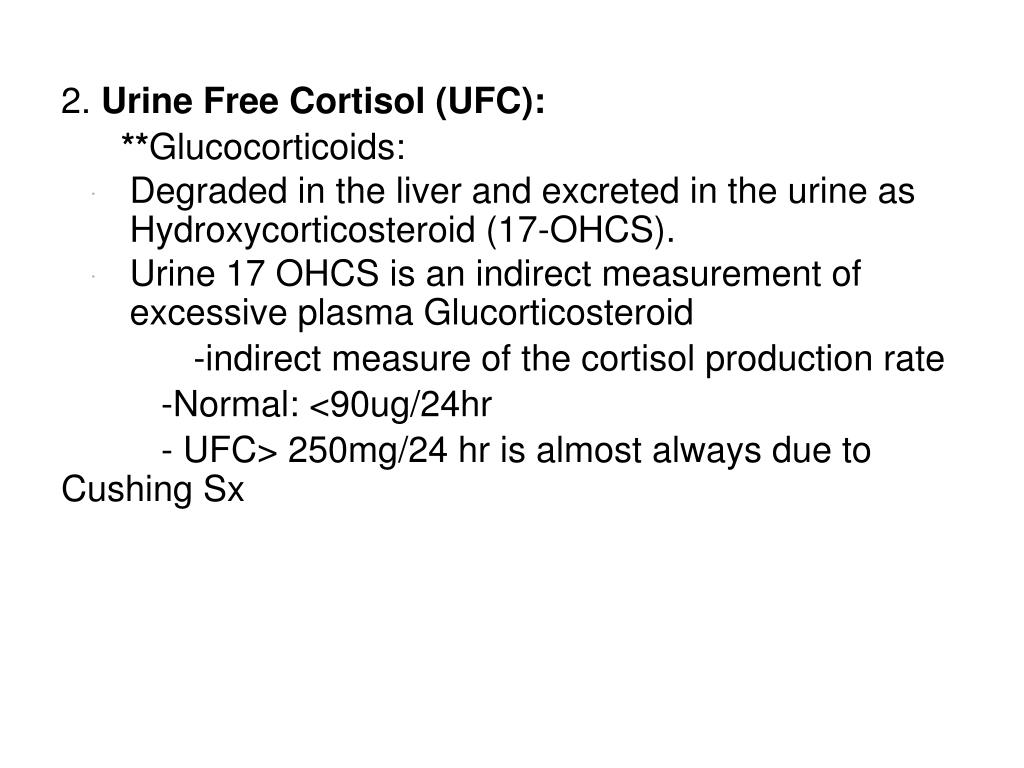

2. Urine Free Cortisol (UFC):


  • Degraded in the liver and excreted in the urine as Hydroxycorticosteroid (17-OHCS).

  • Urine 17 OHCS is an indirect measurement of excessive plasma Glucorticosteroid

    -indirect measure of the cortisol production rate

    -Normal: <90ug/24hr

    - UFC> 250mg/24 hr is almost always due to Cushing Sx

D endocrine function tests

  • 3. Dexamethasone Suppression Test

    • Dexamethasone: cortisol analoque that should suppress ACTH in normal person and reduce cortisol.

  • Rapid DST for screening (low Dose DST)

    • Administer 1 mg dexamethasone at 11pm; measure 8am the following day:

    • Normal: Suppressed cortisol <5ug/dl

    • No suppression in Cushing’s Sx: useful for screening

D endocrine function tests

Dexamethasone Suppression Test

Normal person: dexamethasone will suppress ACTH secretion (feedback) and cortisol production is consequently reduced.

No suppression to low dose: Cushing Syndrome

Ectopic ACTH Syndrome: no suppression even to HDST

In pituitary- dependent Cushings only high doses may suppress ACTH secretion

Adrenal function test

Adrenal Function Test

1. Plasma ACTH level

  • Increased : pituitary tumors

    ectopic ACTH producing tumors

  • Decreased: cortisol producing tumors in adrenals

    exogenous hormones

Adrenal function test1

Adrenal Function Test

  • 2. Overnight HIGH DOSE DST:

    • Procedure: Administer 8mg at 11pmà measure serum cortisol 8am before and on the morning following dexamethasone

  • ACTH producing adenoma : Suppression of cortisol to 50% of basal

  • Adrenal neoplasm or ACTH syndrome: No suppression of cortisol

Primary adrenal insufficiency addison s disease

Primary Adrenal Insufficiency (Addison’s Disease)

  • Deficiency of all adrenal steroids

  • Relatively rare

  • Results from progressive destruction of adrenals by local disease or systemic disorder

Adrenal function test for adrenal insufficiency

Adrenal Function Test for Adrenal Insufficiency

  • 3. Metyrapone test

    Metapyrone: Blocks 11 beta-hydroxylase in ad. cortex which reduces synthesis of cortisol hence stimulate synthesis of ACTH with proximal buildup of deoxycortisol in adrenal

  • Procedure:

  • 1. Administer 3.0 mg metyrapone at midnight.

  • 2. Measure cortisol and 11 deoxycortisol at 8am baseline

  • and post-metyrapone

D endocrine function tests



11-β Hydroxylase


  • Metapyrone: Blocks 11 beta-hydroxylase in ad. cortex which reduces synthesis of cortisol hence stimulate synthesis of ACTH with proximal buildup of deoxycortisol in adrenal

D endocrine function tests

  • Metyrapone Test:

    • Normal response: fall in cortisol to <5ug/dl and increase in ACTH, 11 deoxycortisol and urinary 17-OHCS

    • Cushing’s Dse: Increase in 11-deoxycortisol levels

    • Adrenal tumors/Ectopic ACTH: 11-deoxycortisol fails to increase

    • Failure of cortisol to fall invalidates the test

    • Not routinely used, although maybe better than High dose DST

Adrenal function test2

Adrenal Function Test

  • Cortisone Stimulation (Cosyntropin); ACTH Stimulation

    • Screening test; less time consuming; can be done on OPD basis

    • Cortrosyn (synthetic subunit of ACTH) have full stimulating effect of ACTH in healthy individuals

      -à failure to respond : adrenal insufficiency

  • Procedure:

  • 1. Get 4ml fasting blood venous sample at 8am

  • 2. Administer cosyntropin IM/IV

  • 3. Get 4ml samples at 30 and 60 mins after

Mineralocorticoid aldosterone

Mineralocorticoid (Aldosterone)

  • Regulation:

    • ALDOSTERONE (predominant mineralocorticoid) is secreted by cells in the zona glomerulosa in response to ANGIOTENSIN (mainly); and by ACTH (not significant)

  • Clinical effects

    • Retains Na and H20 accompanied by K depletion leads to excess intravascular volumeà HPN



  • Elevated levels (primary aldosteronism)

    • Conn’s disease ( aldosterone producing adenoma)

  • Elevated levels (secondary aldosteronism) because of extenal stimuli or greater activity in the RAS:

    • Salt depletion

    • Potassium loading

    • Cardiac Failure

    • Nephrotic syndrom

    • Diuretic abuse



  • Decreased levels of aldosterone:

    • Aldosterone deficiency

    • Addison’s disease

Tests for hyperaldosteronism

Tests for hyperaldosteronism:

  • 1. Basal level of plasma aldosterone

    *limited diagnostic value

  • 2. Urinary Aldosterone

  • 3. Captopril Suppression Test

    • Angiotensin- converting enzyme inhibitor: decrease the renin-stimulated aldosterone production secondary aldosteronism; no response in primary aldosteronism

Test for hyperaldosteronism

Test for hyperaldosteronism:

  • 5. Aldosterone Suppression test (Isotonic Saline infusion)

    • Normal response à suppress aldosterone release by decreasing renin

    • Primary aldosteronism à lack of aldosterone suppression

  • 6. Aldosterone Stimulation Test ( Sodium restricted from diet)

    • Normal responseà renin level increased

    • Primary aldosteronismà slight or no response in renin level

Adrenal insufficiency

Adrenal Insufficiency:

  • 1. Serum cortisol decreased

  • 2. Rapid ACTH stimulation test

  • 3. Long ACTH stimulation test

  • 4. Serum ACTH

    • Elevated in primary adrenal insufficiency

    • Decreased in secondary and tertiary

  • 5. Metapyrone test

Pheochromocytoma cathecolamine excess

PHEOCHROMOCYTOMA: Cathecolamine Excess

  • 1. Increased cathecolamines at all times.

    • Cathecolamines: either epinephrine or norepinephrine is increased and should be assayed separately.

    • Plasma norepinephrine >750pg/ml or

    • Epinephrine >100pg/ml are found in 90-95% of patients

  • 2. Urine test

    • Vanyllmandelic acid

    • Total metanephrine

    • Fractionated cathecholamines

Pheochromocytoma cathecolamine excess1

PHEOCHROMOCYTOMA: Cathecolamine Excess

  • 3. Clonidine Suppression test:

    • Clonidine (alpha agonist) à decrease efferent symphathetic flow

      • Normal: Norepinephrine level within N range

      • Pheochromocytoma: exaggerated response

Pheochromocytoma patient preparation

PHEOCHROMOCYTOMA: Patient Preparation

  • Blood should be drawn through a previously inserted catheter from a patient who is fasting, resting quietly and non-stressed.

  • If patient is to kept on antiHPN meds during resting

    • The least interfering agents shld be used:

      • diuretics.

      • Vasodilators, and

      • alpha or Beta adrenergic blockers.

Thyroid disorders


Thyroid function

Thyroid function

Hormone regulation

Hormone Regulation

  • TRH à TSH

    • iodine uptake, organification

    • synthesis & release of thyroid hormone

  • T4/T3 Regulate:

    • basal metabolism, thermogenesis, lipogenesis

    • fetal CNS development

Regulation of thyroid hormone secretion

Regulation of thyroid hormone secretion

  • >99% of thyroid hormones are carried in plasma bound to protein

  • <1% is free & active

    • Thyroxin-binding protein (TBG) binds most of the T4 and T3

      • TBG is synthesed by liver, ∴severe liver disease → ↓TBG → ↓ TT4 due to ↓ protein-bound T4

      • ↑ Estrogen (ex. Pregnancy) → ↑ synthesis of TBG → ↑ total T4 due to ↑ protein-bound T4

    • Albumin and pre-albumin also carry T4 and T3 in plasma

Thyroid hormones

Thyroid Hormones

  • Triiodothyronine (T3)

    • 80% in Periphery

      • Liver/kidney remove iodine from T4

    • t1/2: 1-1.5 days

  • Thyroxine (T4)

    • Thyroid gland

    • t1/2: 8 days

Binding proteins

Binding Proteins

  • T4/T3 99% protein bound

    • Prevents excess tissue uptake

    • Maintains accessible reserve

D endocrine function tests


Protein* binding + 0.03% free T4



Protein* binding + 0.3% free T3


(10-20x less than T4)

Total T460-155 nM

Total T30.7-2.1 nM


*TBG 75%

TBPA 15%

Albumin 10%

Thyroid function tests

Thyroid Function Tests :

  • TSH

  • T3

  • T4

  • FTI ( free thyroxine index ), FT4 ( free thyroxine )

  • TRH

  • TBG ( Thyroid binding globulin )

D endocrine function tests

  • More T4 in serum (5.5 to 12.5 ug/dl) T3 in serum 9(100 to 200ng/dl)

  • T3 exerts the major hormone effects à thus more phyiologically significant

  • T4 converted by peripheral nonthyroidal tissues to T3

  • T4 may have no direct effect until converted to T3

Thyroid function tests1



    • Stimulated by TRH (from hypothalamus)

    • Serum TSH is single best screening test for thyroid fxn followed by FT4

    • Useful for evaluating both thyroid and pituitary function

    • Elevated serum level:

      • sensitive and specific indicator of primary HYPOTHYROIDISM

    • Normal or decreased level: secondary or tertiary hypothyroidism

Clinical uses of tsh

Clinical Uses of TSH

  • Screening for euthyroidism

  • Initial screening and diagnosis for hyperthyroidism (dec. to undetectable levels except in rare TSH-secreting pituitary adenoma) and hypothyroidism

  • Useful in early or subclinical hypothyroidism before the patient develops clinical findings

Clinical uses of tsh1

Clinical uses of TSH

  • Differentiate primary (increased levels) from central [pituitary or hypothalamic] hypothyroidism (decreased levels)

  • Monitor adequate thyroid hormone replacement therapy in primary hypothyroidism

Tsh increased in

TSH increased in :

  • Primary untreated hypothyroidism

  • Hypothyroidism receiving insufficient thyroid hormone replacement therapy

  • Hashimoto thyroiditis

Thyroid function tests total t4 and t3



    • Total thyroxine (T4) is a good index of thyroid fxn when TBG are normal

    • T3 level- in cases of hyperthyroidisn with normal or low T4: T4; useful in monitoring therapy

Thyroid function tests total thyroxine t4


  • High: hyperthyroidism and acute thyroiditis

  • Low: hypothyroidism and chronic thyroiditis

  • Affected by concentration of binding proteins (TBG)

Thyroid function tests total serum t3 triiodothyronine

THYROID FUNCTION TESTS:Total Serum T3 ( Triiodothyronine )

  • Elevated proportionately to T4 in hyperthyroidism

  • Decreased in hypothyroidism

  • T3 thyrotoxicosis ( 5% of ind.) T3 elevated while T4 is normal

  • Not routinely measured except to monitor tx of T3 thyrotoxicosis

Thyroid function tests thyroxine binding globulin

THYROID FUNCTION TESTS: Thyroxine Binding Globulin

  • A glycoprotein: synthesized in the liver

  • Principal serum carrier for T4 ( 75% ) and T3

  • Less than 1% of T3 and T4 are in the free form which determines function

    • Estrogen influences thyroxin binding

    • Phenytoin, coumarin, heparin clofibrate and aspirin compete with T3 & T4 for TBG binding sites

  • Measurement is rarely indicated

T3 uptake

T3 Uptake

  • Indirect measurement of unsaturated TBG in blood

  • Determination is expressed in arbitrary terms is inversely proportional to the TBG

    • Low T3U is indicative of conditions where there is elevated levels of TBG uptake

T3 uptake1

T3 Uptake

  • Hypothyroidism: insufficient T4 to saturate TBGà unbound TBG is elevated and T3U values are low

  • Pregnant patients: TBG are increased proportionately more than T4 levelsà high levels of unbound TBG reflected in low T3U values

  • Useful only when T4 is done

  • Used to calculate FTI or F7

T3 uptake2

T3 Uptake

  • Procedure:

    • Known amount of radiolabeled T3 is added to test serum

    • Available binding sites in test serum combine with labeled T3 inversely proportional to the amount of endogenous T4 already bound

D endocrine function tests

  • Low endogenous T4 (hypothyroid) à many TBG sites free to react with labeled T3—measured residual radiocativity is low

  • High endogenous T4 (hyperthyroid) à few TBG sites free to react with labeled T3à measured residual radioactivity is high

D endocrine function tests

  • Resin is used to measure residual radioctivity

    • Low residual activity—numerous binding sites unoccupied( low endogenous T4)

    • High residual activity—few binding sites unoccupied( high endogenous T4)

  • Results are expressed as % radioactivity left unbound

  • Hyperthyroidism: both T4 and T3U high values

  • Hypothyroidism: both T4 and T3U have low values

Thyroid function tests free thyroxine index


  • Correlates better with clinical status

    in the presence of abnormalities in TBG

  • Calculated as the product of absolute thyroid hormone and the binding capacity of TBG

    • FTI= Measured FT4 (T4 x Value of T3 Uptake)

      • (Reference Interval=1-4.2)

      • Normal in pregnancy;

      • low in hypothyroidism;

      • high in hyperthyroidism

Thyroid function tests2

Thyroid Function Tests

Interpreting thyroid function tests

Interpreting Thyroid Function Tests

Clinical patterns of thyroid disease

Clinical patterns of thyroid disease

  • Hyperthyroidism-

    • Lab: excessive levels of TH ( T3 , T4 ) ;

    • S/sx: heat intolerance, palpitation, weight loss, tachycardia tremors

    • Causes: Graves Ds, toxic adenoma, toxic goiter , TSH secreting pituitary adenoma

D endocrine function tests

  • Hypothyroidism –

    • Lab: decrease levels of TH

    • S/sx: Bradycardia, cold sensitivity, dry skin, muscle weakness , myxedema, cretinism

    • Causes : TG ablation and destruction ( primary ) ; pituitary hypofuncytion of TSH (secondary )

Laboratory diagnosis of thyroid disease

Laboratory Diagnosis of Thyroid Disease

  • 1° thyroid dis. is abnormality in the thyroid gland

    • TRH and TSH level just reflect N feedback response

  • 2° thyroid dis. is really an abnormality in pituitary gland which cause error in amount of TSH produced

    • T4 and T3 conc’n just reflect N feedback response

  • 3° thyroid dis. is abnormality in hypothalamus causing error of TRH produced

    • Both TSH and T4 & T3 levels just reflect N feedback response

Measuring trophic hormones and hormones of the peripheral endocrine gland

Measuring trophic hormones and hormones of the peripheral endocrine gland

High TSH - Low T3/T4 1o


Low TSH - High T3/T4 1o


Low TSH - Low T3/T4 2o


Euthyroid sick syndrome

“Euthyroid Sick Syndrome”

  • Severe illness often results in low serum levels of T3 and T4

  • Causes:

    • 1. Decreased in serum pre albumin in severe illnessà decrease in hormone binding capacity

    • 2. Fall in amount of T4 deiodinatd to T3 with increase in the metabolic pathways leadig to the inactive product reverse T3

  • Diagnosis: demonstrating normal TSH level.

  • Login
