Ethernet and Types of Ethernet Switch

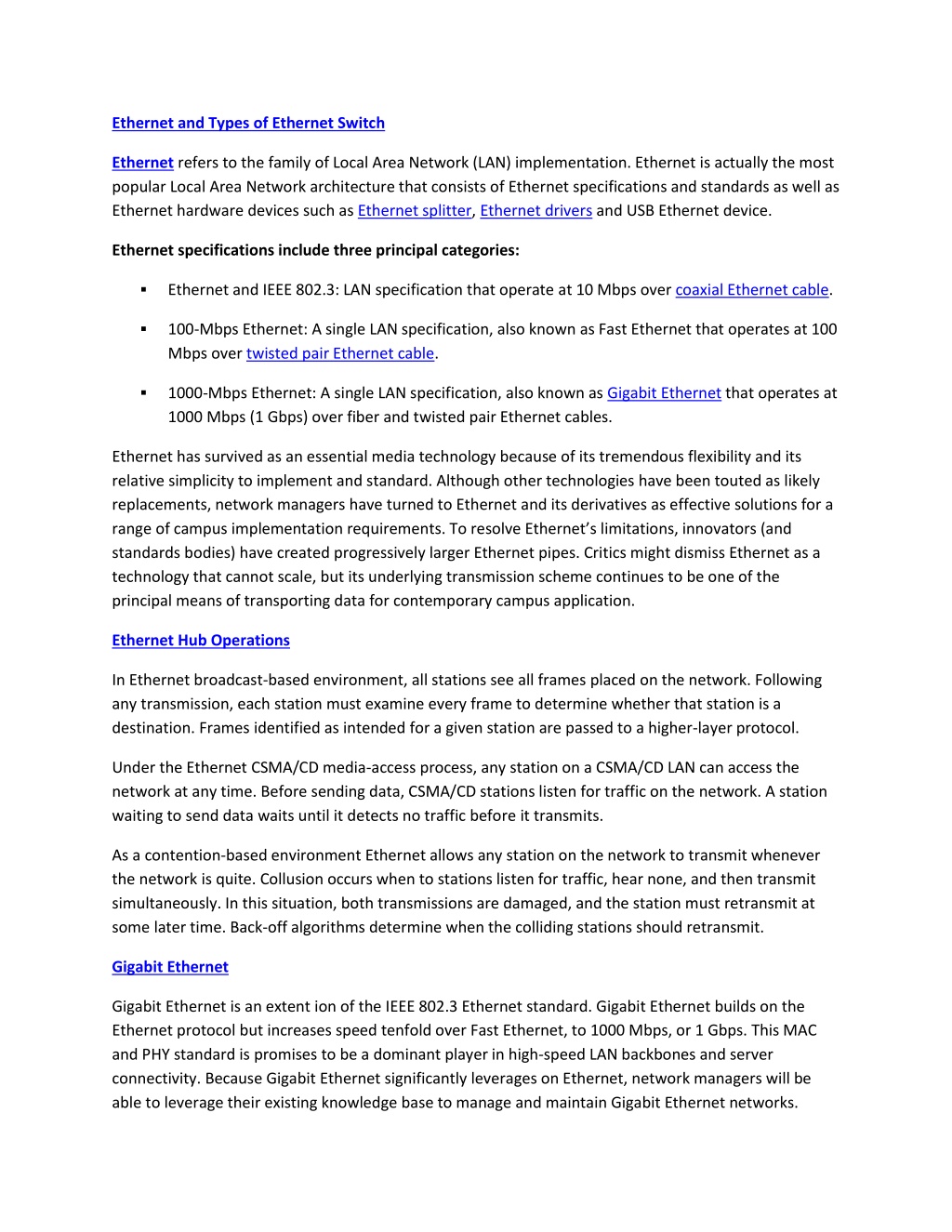

1. Ethernet and Types of Ethernet Switch Ethernet refers to the family of Local Area Network (LAN) implementation. Ethernet is actually the most popular Local Area Network architecture that consists of Ethernet specifications and standards as well as Ethernet hardware devices such as Ethernet splitter, Ethernet drivers and USB Ethernet device. Ethernet specifications include three principal categories:  Ethernet and IEEE 802.3: LAN specification that operate at 10 Mbps over coaxial Ethernet cable.  100-Mbps Ethernet: A single LAN specification, also known as Fast Ethernet that operates at 100 Mbps over twisted pair Ethernet cable.  1000-Mbps Ethernet: A single LAN specification, also known as Gigabit Ethernet that operates at 1000 Mbps (1 Gbps) over fiber and twisted pair Ethernet cables. Ethernet has survived as an essential media technology because of its tremendous flexibility and its relative simplicity to implement and standard. Although other technologies have been touted as likely replacements, network managers have turned to Ethernet and its derivatives as effective solutions for a range of campus implementation requirements. To resolve Ethernet’s limitations, innovators (and standards bodies) have created progressively larger Ethernet pipes. Critics might dismiss Ethernet as a technology that cannot scale, but its underlying transmission scheme continues to be one of the principal means of transporting data for contemporary campus application. Ethernet Hub Operations In Ethernet broadcast-based environment, all stations see all frames placed on the network. Following any transmission, each station must examine every frame to determine whether that station is a destination. Frames identified as intended for a given station are passed to a higher-layer protocol. Under the Ethernet CSMA/CD media-access process, any station on a CSMA/CD LAN can access the network at any time. Before sending data, CSMA/CD stations listen for traffic on the network. A station waiting to send data waits until it detects no traffic before it transmits. As a contention-based environment Ethernet allows any station on the network to transmit whenever the network is quite. Collusion occurs when to stations listen for traffic, hear none, and then transmit simultaneously. In this situation, both transmissions are damaged, and the station must retransmit at some later time. Back-off algorithms determine when the colliding stations should retransmit. Gigabit Ethernet Gigabit Ethernet is an extent ion of the IEEE 802.3 Ethernet standard. Gigabit Ethernet builds on the Ethernet protocol but increases speed tenfold over Fast Ethernet, to 1000 Mbps, or 1 Gbps. This MAC and PHY standard is promises to be a dominant player in high-speed LAN backbones and server connectivity. Because Gigabit Ethernet significantly leverages on Ethernet, network managers will be able to leverage their existing knowledge base to manage and maintain Gigabit Ethernet networks.

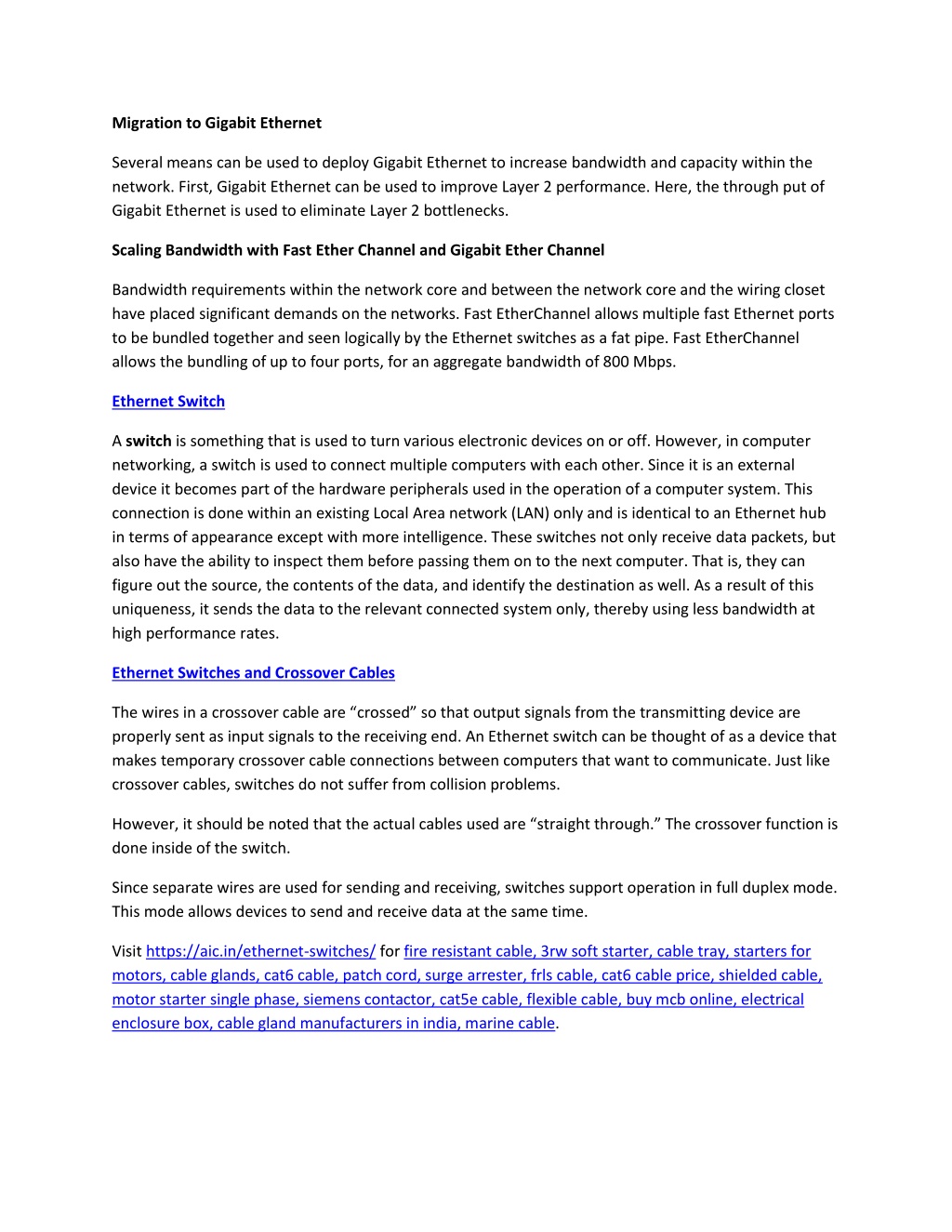

2. Migration to Gigabit Ethernet Several means can be used to deploy Gigabit Ethernet to increase bandwidth and capacity within the network. First, Gigabit Ethernet can be used to improve Layer 2 performance. Here, the through put of Gigabit Ethernet is used to eliminate Layer 2 bottlenecks. Scaling Bandwidth with Fast Ether Channel and Gigabit Ether Channel Bandwidth requirements within the network core and between the network core and the wiring closet have placed significant demands on the networks. Fast EtherChannel allows multiple fast Ethernet ports to be bundled together and seen logically by the Ethernet switches as a fat pipe. Fast EtherChannel allows the bundling of up to four ports, for an aggregate bandwidth of 800 Mbps. Ethernet Switch A switch is something that is used to turn various electronic devices on or off. However, in computer networking, a switch is used to connect multiple computers with each other. Since it is an external device it becomes part of the hardware peripherals used in the operation of a computer system. This connection is done within an existing Local Area network (LAN) only and is identical to an Ethernet hub in terms of appearance except with more intelligence. These switches not only receive data packets, but also have the ability to inspect them before passing them on to the next computer. That is, they can figure out the source, the contents of the data, and identify the destination as well. As a result of this uniqueness, it sends the data to the relevant connected system only, thereby using less bandwidth at high performance rates. Ethernet Switches and Crossover Cables The wires in a crossover cable are “crossed” so that output signals from the transmitting device are properly sent as input signals to the receiving end. An Ethernet switch can be thought of as a device that makes temporary crossover cable connections between computers that want to communicate. Just like crossover cables, switches do not suffer from collision problems. However, it should be noted that the actual cables used are “straight through.” The crossover function is done inside of the switch. Since separate wires are used for sending and receiving, switches support operation in full duplex mode. This mode allows devices to send and receive data at the same time. Visit https://aic.in/ethernet-switches/ for fire resistant cable, 3rw soft starter, cable tray, starters for motors, cable glands, cat6 cable, patch cord, surge arrester, frls cable, cat6 cable price, shielded cable, motor starter single phase, siemens contactor, cat5e cable, flexible cable, buy mcb online, electrical enclosure box, cable gland manufacturers in india, marine cable.
