Presentation Transcript


Lcfg installation

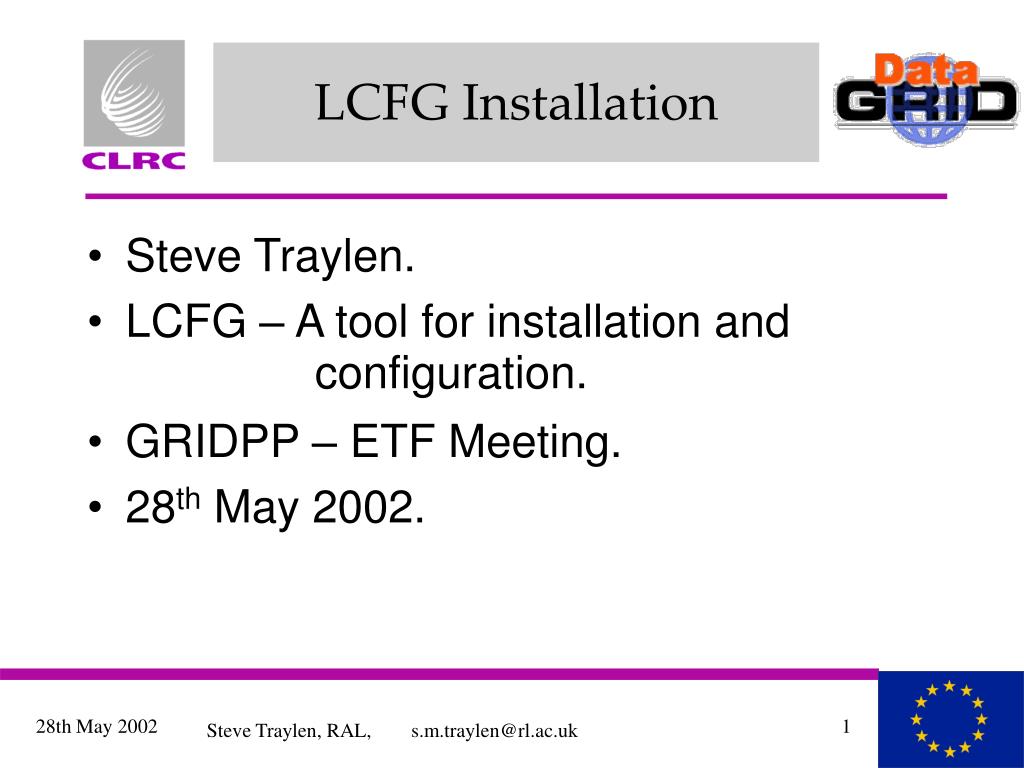

LCFG Installation

  • Steve Traylen.

  • LCFG – A tool for installation and configuration.

  • GRIDPP – ETF Meeting.

  • 28th May 2002.

Steve Traylen, RAL, [email protected]


About lcfg

About LCFG

  • Started at Edinburgh 9 years ago by Alastair Scobie and Paul Anderson.

  • Installs an RPM based Linux system and configures it.

  • Each machine defined by exactly one profile.

  • Management also possible; the main difference to Kickstart type methods.

Steve Traylen, RAL, [email protected]


How lcfg works in one slide

<inet>

<allow cfg:template="allow_$ tag_$ daemon_$">

<allow_RECORD cfg:name="telnet">

<allow>192.168., 192.135.30.</allow>

</allow_RECORD>

.....

</auth>

<user_RECORD cfg:name="mickey">

<userhome>/home/MickeyMouseHome</userhome>

<usershell>/bin/tcsh</usershell>

</user_RECORD>

XML profiles

Config files

+inet.services telnet login ftp

+inet.allow telnet login ftp sshd

+inet.allow_telnet ALLOWED_NETWORKS

+inet.allow_login ALLOWED_NETWORKS

+inet.allow_ftp ALLOWED_NETWORKS

+inet.allow_sshd ALL

+inet.daemon_sshd yes

.....

+auth.users myckey

+auth.userhome_mickey /home/mickey

+auth.usershell_mickey /bin/tcsh

LCFG Config Files

Read

Profile

Load

Profile

HTTP

rdxprof

ldxprof

/etc/shadow

Profile

Generic

/etc/group

Object

Make XML

Profile

Component

/etc/passwd

....

mickey:x:999:20::/home/Mickey:/bin/tcsh

....

Web Server

Local cache

/etc/services

XML Profile

LCFG Objects

/etc/inetd.conf

Profile

/etc/hosts.allow

in.telnetd : 192.168., 192.135.30.

in.rlogind : 192.168., 192.135.30.

in.ftpd : 192.168., 192.135.30.

sshd : ALL

Object

Client nodes

Server

inet

auth

How LCFG Works in One Slide.

Abstract configuration parameters for all nodes stored in a central repository

A collection of agents read configuration parameters and either generate traditional config files or directly manipulate various services

Enrico Ferro, INFN-LNL


Lcfg server components

LCFG Server Components.

Steve Traylen, RAL, [email protected]


Software installation

Software Installation

  • Install a plain Redhat 6.2.

  • Central Software Repository.

  • Scripts for checking for and installing updates.

  • Scripts for configuring software from profiles.

Steve Traylen, RAL, [email protected]


Machine profiles

Machine Profiles

  • EDG profiles are in CVS as is all EDG software.

  • Profiles allow for localisation via site-cfg.h

  • Profiles can modified for hardware differences.

  • Modular construction allows an experiment to maintain its components.

Steve Traylen, RAL, [email protected]


Client installs

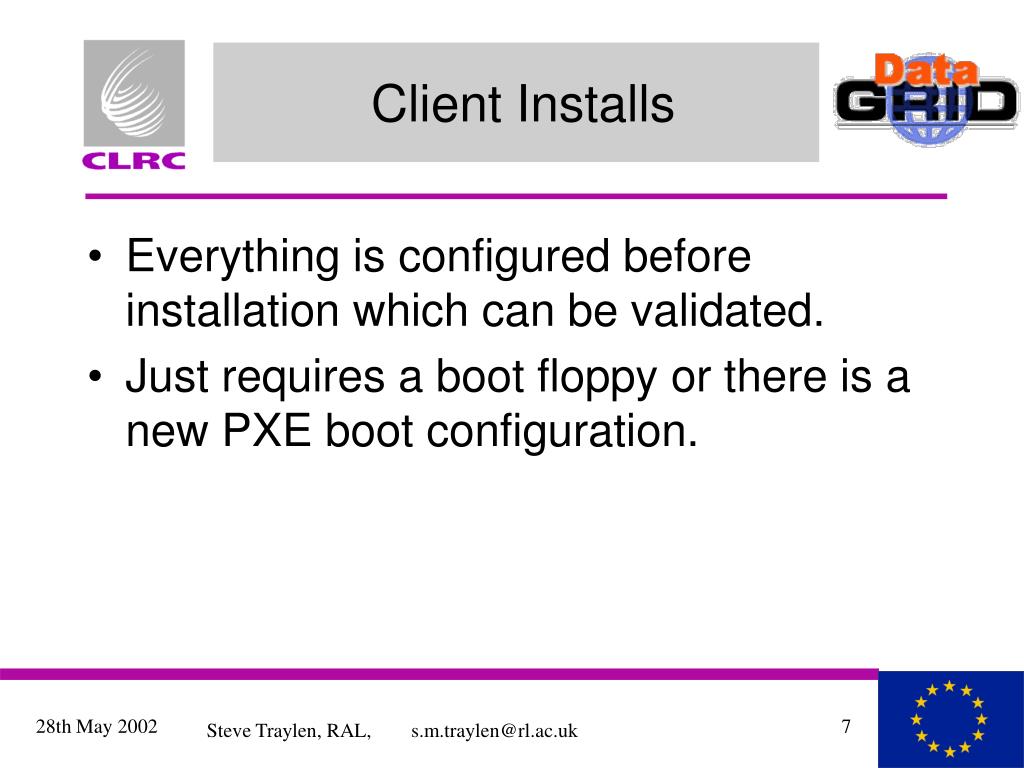

Client Installs

  • Everything is configured before installation which can be validated.

  • Just requires a boot floppy or there is a new PXE boot configuration.

Steve Traylen, RAL, [email protected]


Lcfg what is bad

LCFG, What is Bad?

  • Adds a whole new layer of configuration.

    • Sysadmins have to learn to configure /etc/resolv.conf again.

    • A software developer knows how to configure /etc/edg/info-mds.conf but not /var/obj/conf/profile/source/ComputingElement.h.

  • Security problems: host authentication is weak, no shadow passwords.

Steve Traylen, RAL, [email protected]


Lcfg what is good

LCFG, What Is Good?

  • Configuration is modular so similar machines are easy.

  • Configuration can be modified.

    • Converting a CE to an SE, less than a minute.

    • Installing and backing out is possible.

  • Snap shot of configuration is available including all the tiny incremental changes.

Steve Traylen, RAL, [email protected]


Lcfg what is good1

LCFG, What is Good

  • Machine profiles create well defined enviroments for end users.

  • Whole installations can be developed rather than individual bits of software.

Steve Traylen, RAL, [email protected]
