Model pH u protočnom reaktoru

Model pH u protočnom reaktoru. K. L. q 1. q 2. q 0. pH. q. sustav. q. pH. L = NaOH jaka lužina K = CH 3 COOH slaba kiselina. T = konstanta h = konstanta. Zadatak: izvesti matematički model procesa. Reakcije disocijacije. k 1. H 2 0 HO - + H +. k -1.

aglaia
Download Presentation

Model pH u protočnom reaktoru

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

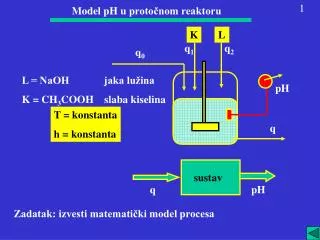

  1. Model pH u protočnom reaktoru K L q1 q2 q0 pH q sustav q pH L = NaOH jaka lužina K = CH3COOH slaba kiselina T = konstanta h = konstanta Zadatak: izvesti matematički model procesa

  2. Reakcije disocijacije k1 H20 HO-+ H+ k -1 k2 CH3COOH CH3COO - + H+ k -2 k3 NaOH OH- + Na+ k-3

  3. Bilance za ione k2 CH3COOH CH3COO - + H+ k -2 Pretpostavka: koncentracija H20 je konstantna koncentracija je uključena u koeficijent brzine disocijacije

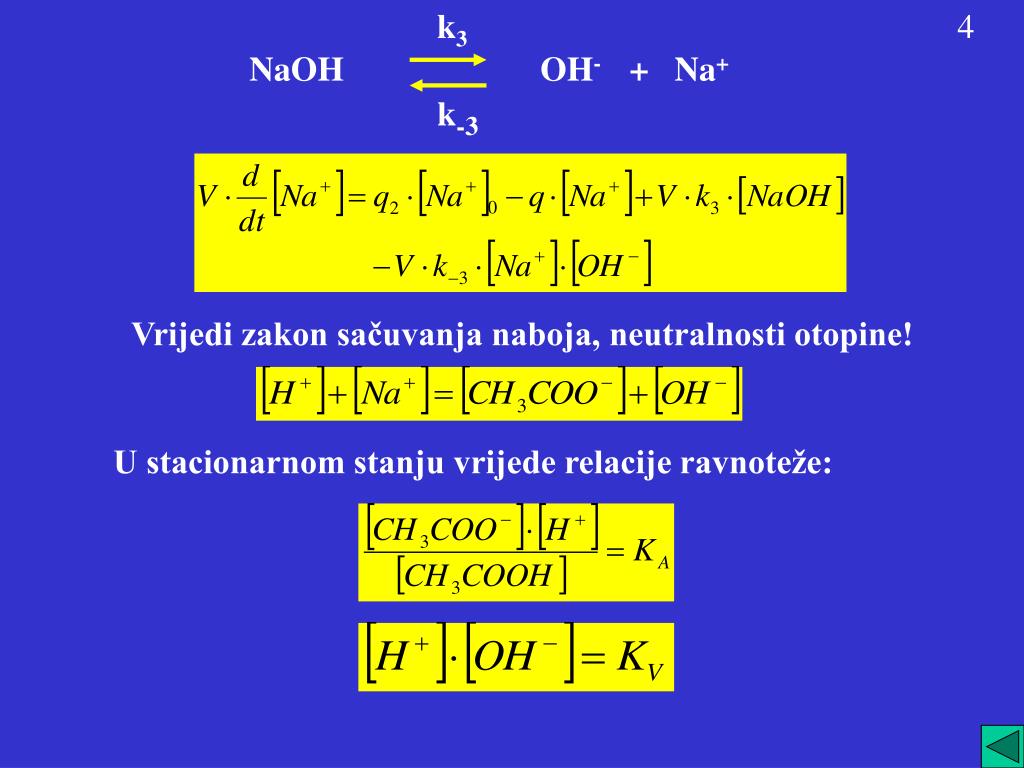

  4. k3 NaOH OH- + Na+ k-3 Vrijedi zakon sačuvanja naboja, neutralnosti otopine! U stacionarnom stanju vrijede relacije ravnoteže:

  5. Uvedemo novu oznaku y=ukupna koncentracija kiseline Uvedemo novu oznaku x= ukupna koncentracija lužine Uvjet neutralnosti postaje:
