Einstein’s Happiest Thought

Einstein’s Happiest Thought. Micro-world Macro-World Lecture 7. Equivalence between gravity & acceleration. a. Man in a closed box on Earth. m I a. m G g. g. Since m G =m I , if a=-g , the conditions are equivalent. Man in a closed box on an accelerating rocket in deep outer space.

agalia
Download Presentation

Einstein’s Happiest Thought

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Einstein’s Happiest Thought Micro-world Macro-World Lecture 7

  2. Equivalence between gravity & acceleration a Man in a closed box on Earth mIa mGg g Since mG=mI, if a=-g, the conditions are equivalent Man in a closed box on an accelerating rocket in deep outer space.

  3. The happiest thought I cannot tell the difference between being on earth or in a deep-space rocket accelerating with a=-g

  4. Imagination This cannot be due to coincidence. There must be some basic truth involved.

  5. Einstein didn’t accept mG=mI as a coincidence These two environments must be exactly equivalent.

  6. Einstein Equivalence Principlein his words we [...] assume the complete physical equivalence of a gravitational field and a corresponding acceleration o the reference system [Einstein, 1907]

  7. So what? What would happen if I were to shine a light beam through a window on the rocket? sraight line sraight line

  8. If the rocket is accelerating, the light beam bends ½at2

  9. L Since the accelerating rocket and gravity are equivalent, gravity must cause light to bend on Earth’s surface ½gt2 for our room L≈6m: very, very tiny effect

  10. Does gravity cause light to bend? Very tiny effect: need very strong gravity and a long lever arm. Look at the bending of light from a star by the Sun. (Only possible at an eclipse.) Sir Arthur Eddington 1882-1944 gsun ≈ 27xgearth

  11. Eddington’s 1919 Expeditions

  12. 1919 Eclipse Africa Measurement: q =0.000550±0.000030 in agreement with Einstein’s prediction 1919 eclipse

  13. New York Times:

  14. Gravitational lensing

  15. “Dark Matter” astronomy

  16. Mass induces curvature in space-time

  17. The curvature is what we feel as gravity

  18. 120 Seoul  Rio

  19. Cartesian vs non-Cartesian coords 170 Seoul  Rio

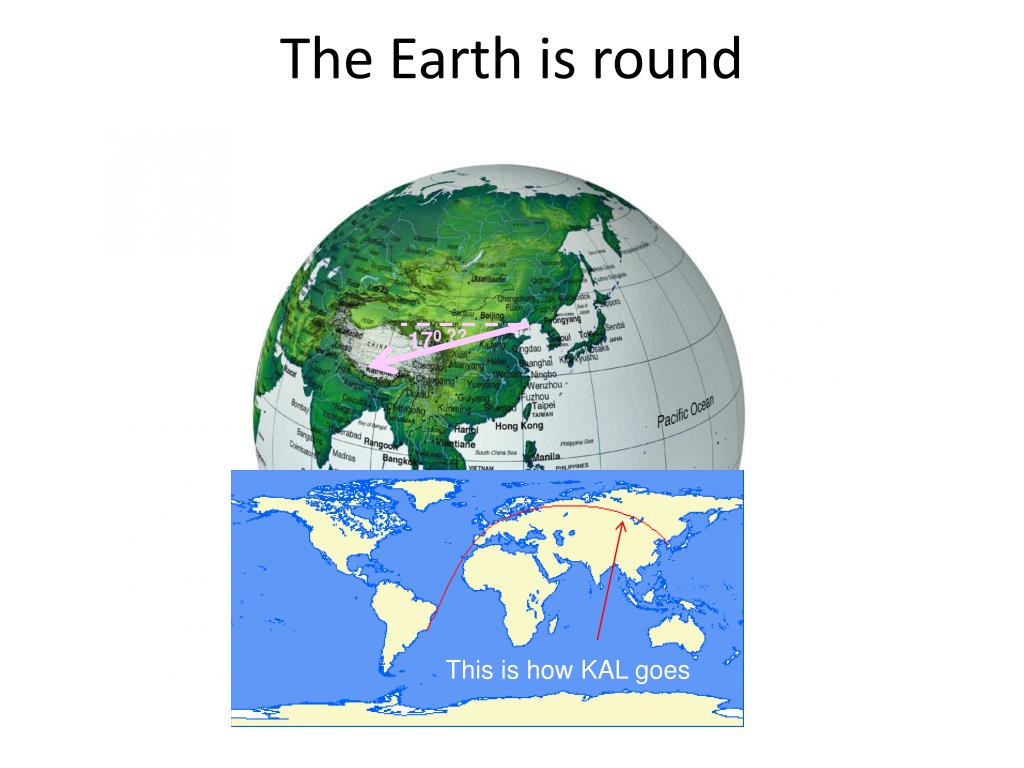

  20. The Earth is round 170 ?? This is how KAL goes

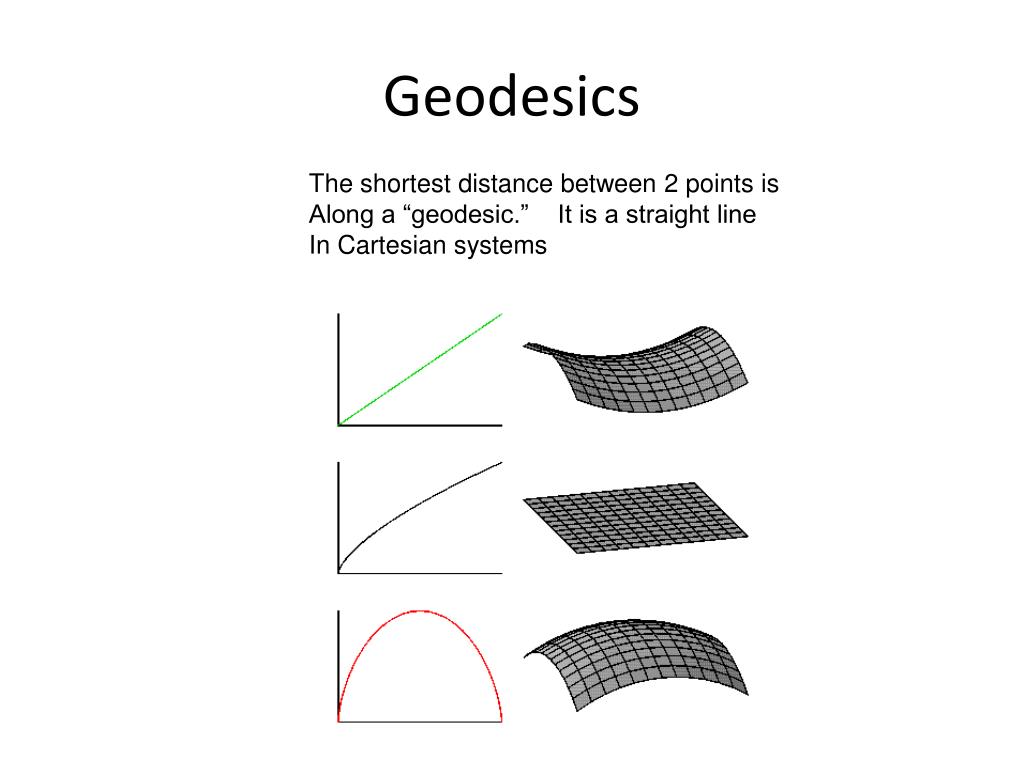

  21. Geodesics The shortest distance between 2 points is Along a “geodesic.” It is a straight line In Cartesian systems

  22. Great Circlesspherical geometry The shortest distance between two points on the Earth’s surface correspond to “Great Circles”: the intersections of planes passing through the center of the Earth with the Earth’s surface.

  23. In this figure, the shortest distances are indicated by the blue lines.
