Ibm inform ix dynamic server

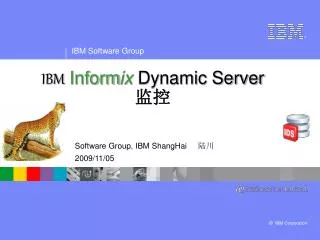

IBMInformix Dynamic Server 监控

Software Group, IBM ShangHai 陆川

2009/11/05


Ibm inform ix dynamic server

监控的重要性:

1.了解系统运行状况

2.报警

3.协助诊断问题

  • 处理运行故障

  • 调整性能


Ibm inform ix dynamic server

影响系统性能的5大要素

  • 磁盘

  • CPU

  • 内存

  • 网络

  • 应用


Ibm inform ix dynamic server

监控工具介绍

  • onstat

  • SMI

  • oncheck

  • OpenAdminTool (仅限于11版本使用)

  • 复制的监控


Onstat d chunk

onstat –d 监控chunk的剩余空间

address chunk/dbs offset size free bpages flags pathname

c0000001ce473028 1 1 0 200000 168435 PO-B /dev/dbs/rootdbs

c0000001ce473df0 2 2 64 200000 99947 PO-B /dev/dbs/phylogdbs

c0000001d0028028 3 3 64 1000000 49947 PO-B /dev/dbs/logdbs

c0000001d00281c0 4 4 64 500000 494397 PO-B /dev/dbs/tmpdbs1

c0000001d0028358 5 5 64 500000 493597 PO-B /dev/dbs/tmpdbs2

c0000001d00284f0 6 6 64 500000 496397 PO-B /dev/dbs/tmpdbs3

c0000001d0028688 7 7 64 4000000 641 PO-B /dev/dbs/userdbs-1

c0000001d0028820 8 7 64 4000000 380 PO-B /dev/dbs/userdbs-2

第7个dbspace由两个chunk组成


Onstat r 2 2 onstat

onstat –r 2每隔2描重复执行当前的onstat命令

onstat –d –r 2

address chunk/dbs offset size free bpages flags pathname

c0000001ce473028 1 1 0 200000 168435 PO-B /dev/dbs/rootdbs

c0000001ce473df0 2 2 64 200000 99947 PO-B /dev/dbs/phylogdbs

c0000001d0028028 3 3 64 1000000 49947 PO-B /dev/dbs/logdbs

c0000001d00281c0 4 4 64 500000 494397 PO-B /dev/dbs/tmpdbs1

c0000001d0028358 5 5 64 500000 493597 PO-B /dev/dbs/tmpdbs2

c0000001d00284f0 6 6 64 500000 496397 PO-B /dev/dbs/tmpdbs3

c0000001d0028688 7 7 64 4000000 641 PO-B /dev/dbs/userdbs-1

c0000001d0028820 8 7 64 4000000 380 PO-B /dev/dbs/userdbs-2


Onstat d io

onstat –D 监控IO读写是否倾斜以及数据库恢复的进度

INFORMIX-OnLine Version 11.50.UC2 -- On-Line -- Up 122 days 20:48:40 -- 72616 s

Dbspaces

address number flags fchunk nchunks flags owner name

c3fa80e8 1 1 1 1 N informix rootdbs

c3fa84b0 2 2001 2 1 N T informix tempdbs

c3fa8518 3 1 3 1 N informix db1

c3fa8580 4 1 4 1 N informix db2

4 active, 2047 maximum

Chunks

address chk/dbs offset page Rd page Wr pathname

c3fa8150 1 1 0 1259 289 /home/informix/ROOTDBS

c3fa8228 2 2 0 11 11 /home/informix/TEMPDBS

c3fa8300 3 3 0 6740492 3758910 /home/informix/db1

c3fa83d8 4 4 0 6 0 /home/informix/db2

4 active, 2047 maximum


Onstat f

onstat –F 获得清页线索的信息

INFORMIX-OnLine Version 11.50.UC2 -- On-Line -- Up 122 days 20:51:45 -- 72616 s

Fg Writes LRU Writes Chunk Writes

0 103854321 31153092

address flusher state data

c0000001cef5d860 0 I 0 = 0X0

c0000001cef5e098 1 I 0 = 0X0

c0000001cef5e8d0 2 I 0 = 0X0

c0000001cef5f108 3 I 0 = 0X0

states: Exit Idle Chunk Lru

state: I 空闲

C 正在执行checkpoint

L 正在执行 LRU Writes

data : 显示正在写的chunk编号

共有4个清页线索


Onstat l

onstat –l 监控物理日志和逻辑日志

INFORMIX-OnLine Version 11.50.UC2 -- On-Line -- Up 122 days 20:56:26 -- 72616 s

Physical Logging

Buffer bufused bufsize numpages numwrits pages/io

P-2 0 16 274 22 12.45

phybegin physize phypos phyused %used

10003f 500 433 0 0.74

Logical Logging

Buffer bufused bufsize numrecs numpages numwrits recs/pages pages/io

L-2 0 16 2437 113 31 21.6 3.6

address number flags uniqid begin size used %used

c3ecc55c 1 U-B---- 7 100233 250 250 100.00

c3ecc578 2 U---C-L 8 10032d 250 106 42.40

c3ecc594 3 F------ 0 100427 250 0 0.00

c3ecc5b0 4 F------ 0 100521 250 0 0.00

c3ecc5cc 5 U-B---- 5 10061b 250 250 100.00

c3ecc5e8 6 U-B---- 6 100715 250 250 100.00

物理日志当前使用的百分比

以页面为单位

使用百分比

已备份

当前日志


Onstat m 20 checkpoint

onstat –m 察看数据库日志的最后20行,checkpoint时间和间隔

Mon Nov 4 11:23:51 1996

11:23:51 Logical Log 7 Complete.

11:27:10 Checkpoint Completed: duration was 0 seconds.

Tue Dec 31 11:16:01 1996

11:16:01 Checkpoint Completed: duration was 1 seconds.

11:21:00 Checkpoint Completed: duration was 0 seconds.

11:26:01 Checkpoint Completed: duration was 0 seconds.

11:36:01 Checkpoint Completed: duration was 0 seconds.

两个时间相减,可以

得到checkpoint间隔

从Informix 1版本开始,checkpoint不在阻塞交易。


Onstat p

onstat –p 监控数据库实例的轮廓信息

INFORMIX-OnLine Version 11.50.UC2 -- On-Line -- Up 122 days 20:58:17 -- 72616 s

Profile

dskreads pagreads bufreads %cached dskwrits pagwrits bufwrits %cached

1535 1548 13734 88.82 484 818 3280 85.24

isamtot open start read write rewrite delete commit rollbk

10135 1520 1284 3057 875 6 7 20 0

ovlock ovuserthread ovbuff usercpu syscpu numckpts flushes

0 0 0 39.04 28.34 10 70772

bufwaits lokwaits lockreqs deadlks dltouts ckpwaits compress seqscans

241 1 11196 0 0 0 174 101

ixda-RA idx-RA da-RA RA-pgsused lchwaits

31 0 329 360 40

select

insert

update

delete

read

write

rewrite

delete


Onstat r lrus

onstat –R 监控每个lrus队列的写的情况

8 buffer LRU queue pairs priority levels

# f/m pair total % of length LOW HIGH

0 f 1250 100.0% 1250 1250 0

1 m 3.0% 0 0 0

2 f 1250 100.0% 1250 1250 0

3 m 3.0% 0 0 0

4 F 1250 99.9% 1249 1249 0

5 m 3.1% 1 1 0

6 f 1250 100.0% 1250 1250 0

7 m 3.0% 0 0 0

8 f 1250 100.0% 1250 1250 0

9 m 3.0% 0 0 0

10 f 1250 100.0% 1250 1250 0

11 m 3.0% 0 0 0

12 f 1250 100.0% 1250 1250 0

13 m 3.0% 0 0 0

14 f 1250 100.0% 1250 1250 0

15 m 3.0% 0 0 0

1 dirty, 10000 queued, 10000 total, 16384 hash buckets, 4096 buffer size

start clean at 60.000% (of pair total) dirty, or 750 buffs dirty, stop at 50.000%

在Informix 11版本之前,可以协助你配置lru_max_dirty和lru_min_dirty的值


Onstat g ppf partnum

onstat –g ppf 察看全表扫描的次数较多的表的partnum

Partition profiles

partnum lkrqs lkwts dlks touts isrd iswrt isrwt isdel bfrd bfwrt seqsc

12 0 0 0 0 733836 0 0 0 538183 0 0

15 0 0 0 0 253950 0 0 0 605030 0 0

20 0 0 0 0 1039 0 0 0 122354 0 0

22 0 0 0 0 852962 0 0 0 0 0 0

23 0 0 0 0 172 0 0 0 0 0 0

24 0 0 0 0 6 0 0 0 0 0 0

25 0 0 0 0 36 0 0 0 0 0 0

26 0 0 0 0 115627 0 0 0 24 24 0

28 0 0 0 0 18 0 0 0 0 0 0

40 0 0 0 0 136669 0 0 0 40 24 0

700098 0 0 0 0 1035 0 0 0 0 0 348


Onstat g seg virtual segment

onstat –g seg监控virtual segment的个数

SHMVIRTSIZE

Segment Summary:

id key addr size ovhd class blkused blkfree

1382041601 1382041601 c000000 9568256 215632 R 2299 37

1382041602 1382041602 c920000 8388608 896 V 1433 615

1382041603 1382041603 d120000 8388608 896 V 3 2045

1382041604 1382041604 d920000 8192000 896 V 1 1999

1382041605 1382041605 e0f0000 8192000 896 V 1 1999

1382041606 1382041606 e8c0000 8192000 896 V 1 1999

Total: - - 50921472 - - 3738 8694

SHMADD


Onstat g rea vp

onstat –g rea 监控哪种类型vp个数不够

IBM Informix Dynamic Server Version 9.40.FC4 -- On-Line -- Up 03:29:23 -- 49728 Kbytes

Ready threads:

tid tcb rstcb prty status vp-class name

36 c0000001cfe7c1f0 0 4 sleeping forever 1cpu sqlexec

45 c0000001cff39330 0 4 sleeping forever 3cpu sqlexec


Onstat g sql sql

onstat –g sql 监控数据库当前执行的SQL

Sess SQL Current Iso Lock SQL ISAM F.E.

Id Stmt type Database Lvl Mode ERR ERR Vers Explain 91463230 SELECT userdb DR Wait 10 0 0 9.03 Off 91463220 SELECT userdb CR Wait 10 0 0 9.03 Off 91463169 SELECT userdb DR Wait 10 0 0 9.03 Off 91463156 SELECT userdb DR Wait 10 0 0 9.03 Off 91463153 SELECT userdb DR Wait 10 0 0 9.03 Off 91463152 SELECT userdb DR Wait 10 0 0 9.03 Off 91463125 SELECT userdb DR Wait 10 0 0 9.03 Off 91463108 SELECT userdb DR Wait 10 0 0 9.03 Off 91463078 SELECT userdb DR Wait 10 0 0 9.03 Off 91463071 SELECT userdb DR Wait 10 0 0 9.03 Off 91463070 SELECT userdb DR Wait 10 0 0 9.03 Off 91463069 SELECT userdb DR Wait 10 0 0 9.03 Off 91463065 SELECT userdb DR Wait 10 0 0 9.03 Off 91463064 SELECT userdb DR Wait 10 0 0 9.03 Off 91462455 SELECT userdb DR Wait 10 0 0 9.03 Off


Onstat g ses

onstat –g ses 监控用户连接和每个用户申请的内存

session #RSAM total used dynamic

id user tty pid hostname threads memory memory explain

91463257 informix - 0 - 0 12288 11360 off

91463230 vbs4 3 25744 rp7420_3 1 200704 196080 off

91463220 vbs4 tf 2600 rp7420_3 1 126976 118696 off

91463169 vbs4 3 25742 rp7420_3 1 196608 195728 off

91463156 vbs4 3 25738 rp7420_3 1 196608 195728 off

6241034 cics - 27187 rp7420_3 1 8306688 6902968 off

2452249 webuser - -1 38.19.8. 1 102400 73288 off

2451594 webuser - -1 38.19.8. 1 102400 70984 off

175 filesvr - 8236 rp7420_3 1 69632 52688 off


Onstat g sql session id onstat g ses session id sql

onstat –g sql #session_id# /onstat –g ses #session_id#监控某个用户连接执行的SQL

IBM Informix Dynamic Server Version 9.40.FC3 -- On-Line -- Up 20:25:10 -- 65600 Kbytes

Sess SQL Current Iso Lock SQL ISAM F.E.

Id Stmt type Database Lvl Mode ERR ERR Vers Explain

211 SELECT stores7 CR Not Wait 0 0 9.03 Off

Current statement name : slctcur

Current SQL statement :

select * from orders

Last parsed SQL statement :

select * from orders


Onstat g ath

onstat –g ath 监控数据库线索

Threads:

tid tcb rstcb prty status vp-class name

3 c0000001cfa83630 0 2 sleeping forever 33pio pio vp 0

4 c0000001cfaa4630 0 2 sleeping forever 34aio aio vp 0

5 c0000001cfac5630 0 2 sleeping forever 35msc msc vp 0

6 c0000001cfaf6630 0 2 sleeping forever 36aio aio vp 1

7 c0000001cfb17630 0 2 sleeping forever 37aio aio vp 2

8 c0000001cfb38630 0 2 sleeping forever 38aio aio vp 3

9 c0000001cfb59630 0 2 sleeping forever 39aio aio vp 4

10 c0000001cfb7a630 0 2 sleeping forever 40aio aio vp 5

11 c0000001cfb9b890 c0000001cef5d028 4 sleeping secs: 1 5cpu main_loop()

12 c0000001cfac5ce0 0 2 sleeping forever 1cpu sm_poll

13 c0000001cf9a0760 0 2 running 3cpu sm_poll

14 c0000001cf9c46c8 0 2 sleeping forever 4cpu sm_poll

15 c0000001cf9e9630 0 2 running 5cpu sm_poll

16 c0000001cfa06dc8 0 2 sleeping forever 6cpu sm_poll

17 c0000001cfa31c98 0 2 IO idle 7cpu sqlexec

18 c0000001cfa55c10 0 2 IO waiting 41soc sqlexec


Onstat g sch informix

onstat –g sch 监控informix进程信息

MT global info:

sessions threads vps lngspins

64 97 15 6642

sched calls thread switches yield 0 yield n yield forever

total: 1142174954 421309247 1112260992 52108 4260081

per sec: 686165 184933 681261 6 2545

Virtual processor summary:

class vps usercpu syscpu total

cpu 7 8794.93 162.63 8957.56

aio 4 0.01 0.05 0.06

lio 1 0.00 0.01 0.01

pio 1 0.00 0.01 0.01

adm 1 0.08 0.07 0.15

msc 1 0.32 0.36 0.68

total 15 8795.34 163.13 8958.47


Onstat g sch continue

onstat –g sch (continue)

Individual virtual processors:

vp pid class usercpu syscpu total

1 340366 cpu 1781.23 32.50 1813.73

2 188608 adm 0.08 0.07 0.15

3 397352 cpu 1250.20 42.36 1292.56

4 192554 cpu 1357.92 20.49 1378.41

5 413984 cpu 1103.27 16.95 1120.22

6 352738 cpu 1109.89 17.19 1127.08

7 438398 cpu 1083.12 16.49 1099.61

8 434616 cpu 1109.30 16.65 1125.95

9 479720 lio 0.00 0.01 0.01

10 446548 pio 0.00 0.01 0.01

11 315866 aio 0.01 0.02 0.03

12 282730 msc 0.32 0.36 0.68

13 151896 aio 0.00 0.01 0.01

14 192836 aio 0.00 0.01 0.01

15 434408 aio 0.00 0.01 0.01

tot 8795.34 163.13 8958.47


Onstat u

onstat –u 监控用户线索

Userthreads

address flags sessid user tty wait tout locks nreads nwrites

c0000001cef632c8 Y--P--D 41 informix - c000000000669138 0 0 0 0

c0000001cef63b00 ---P--D 38 informix - 0 0 0 0 0

c0000001cef64338 Y--P--- 171 cics - c0000001d094d7b0 0 1 338361014 16983197

c0000001cef64b70 Y--P--- 80311498 cics - c0000001dd75f688 0 1 34928980 1134299

c0000001cef653a8 Y--P--- 175 filesvr - c0000001d0cffe48 0 1 557 0

c0000001cef65be0 Y--P--- 136 cics - c0000001d09a3f58 0 1 0 0

c0000001cef66c50 Y--P--- 163 cics - c0000001d0af9028 0 1 329562872 16960921

93 active, 256 total, 201 maximum concurrent


Onstat k

onstat –k 监控锁的使用情况

address wtlist owner lklist type tblsnum rowid key#/bsiz

c000000001671840 0 c0000001cef75270 0 S 100002 204 0

c000000002d4c7b8 0 c0000001e4c7abf8 c000000009b3f298 IX 700030 0 0

c000000003283470 0 c0000001e4c5f028 0 S 100002 204 0

c0000000037beef8 0 c0000001cef85970 0 S 100002 204 0

c000000004952688 0 c0000001e4c70798 0 S 100002 204 0

c000000004fa9ec8 0 c0000001cef653a8 0 S 100002 204 0

c000000004fa9fb8 0 c0000001cef75aa8 0 S 100002 204 0

c000000005073c00 0 c0000001cef8d4b8 c00000001cb0fb70 IX 700030 0 0

c000000006ac1c88 0 c0000001cef970e0 c0000000300ceb98 IX 700030 0 0

c0000000079dde88 0 c0000001e4c74120 c0000000297e0190 IX 700030 0 0

c000000008151c78 0 c0000001e4c759c8 0 S 100002 204 0

c0000000088e25c8 0 c0000001cef65be0 0 S 100002 204 0

c000000009b3f298 0 c0000001e4c7abf8 0 S 100002 204 0

c000000009bb9368 0 c0000001e4c75190 0 S 100002 204 0

96 active, 8000000 total, 524288 hash buckets, 0 lock table overflows

锁类型

非零,说明有锁等待

表的partition number


Onstat b

onstat –b 监控修改的内存页信息

address userthread flgs pagenum memaddr nslots pgflgs xflgs owner waitlist c000000045521d58 0 80 31:3909144 c0000000695bf800 3 2801 80 ffffffffffffffff 0 c000000045973bb0 0 80 31:3909112 c00000006cff4000 3 2801 80 ffffffffffffffff 0 c000000045a57068 0 80 31:3909162 c00000006dbea800 3 2801 80 ffffffffffffffff 0 c000000045c9d458 0 80 17:2025672 c00000006fa8f800 3 2801 80 ffffffffffffffff 0 c0000000466ac838 0 80 17:2025666 c000000078219800 3 2801 80 ffffffffffffffff 0 c000000046bef2d0 0 80 25:1878844 c00000007c8fa000 3 801 80 ffffffffffffffff 0 c000000047e21418 0 82 23:597119 c00000008be23800 4 2801 80 ffffffffffffffff c0000001cef98988

c000000047f66390 0 80 25:1874864 c00000008cf3e000 3 801 80 ffffffffffffffff 0 c0000000480dd790 0 80 25:1878795 c00000008e2fe000 3 801 80 ffffffffffffffff 0 c0000000484977b0 0 80 31:3909173 c000000091534000 3 2801 80 ffffffffffffffff 0

222 modified, 3000000 total, 4194304 hash buckets, 2048 buffer size


Onstat t tblspace

onstat –t 监控tblspace的信息

n address flgs ucnt tblnum physaddr npages nused npdata nrows nextns

20 c0000001d002daa8 0 1 100001 1:14 400 364 0 0 4

181 c0000001d0119028 0 1 200001 2:4 50 2 0 0 1

182 c0000001d01195a0 0 1 300001 3:4 50 2 0 0 1

183 c0000001d0119b58 0 1 400001 4:4 6800 6800 0 0 51

184 c0000001d011a028 0 1 500001 5:4 6800 6800 0 0 51

185 c0000001d011a5e0 0 1 600001 6:4 6800 6800 0 0 51

186 c0000001d01207d0 0 1 700001 7:4 2800 2800 0 0 34

187 c0000001d007b028 0 80 700002 7:5 112 107 56 855 14

234 c0000001d176c7d8 0 8 700031 7:52 16 16 15 143 2

239 c0000001d1770c20 0 8 700036 7:761 8 8 0 0 2


Onstat x

onstat –x 监控事务,可以用于监控事务回滚

address flags userthread locks beginlg curlog logposit isol retrys coord

c0000001e808b4a0 A---- c0000001e4c81f08 1 0 0 0x0 COMMIT 0

c0000001e808b970 A-B-- c0000001e4c738e8 2 47212 47212 0x14ee8048 DIRTY 0

c0000001e808bbd8 A---- c0000001e4c7c4a0 1 0 0 0x0 COMMIT 0

c0000001e808c578 A--c0000001cef73190 1 0 0 0x0 COMMIT 0

c0000001e808c7e0 A---- c0000001cef68d30 2 0 0 0x0 DIRTY 0

c0000001e808ca48 A-B-- c0000001e4c62178 2 47212 47212 0x14e8c048 DIRTY 0

129 active, 384 total, 369 maximum concurrent


Onstat c btree scan

onstat –C 监控Btree scan线索的信息

Btree Cleaner Info

BT scanner profile Information

==============================

Active Threads 1

Global Commands 20000 Building hot list

Number of partition scans 153184

Main Block 0xc0000001cfdfd128

BTC Admin 0xc0000001cef62258

BTS info id Prio Partnum Key Cmd

0xc0000001cfdffed8 0 Low 0x00000000 0 40 Yield N

Number of leaves pages scanned -209876806

Number of leaves with deleted items 82481260

Time spent cleaning (sec) 2837591

Number of index compresses 5376280

Number of deleted items 718862270

Number of index range scans 0

Number of index leaf scans 150021


Onstat g dic

onstat –g dic 监控数据字典的信息

Dictionary Cache: Number of lists: 31, Maximum list size: 10

list# size refcnt dirty? heapptr table name

-----------------------------------------------------------------------------------------------------------------------------------

0 10 0 no c0000001e5765038 [email protected]:informix.sysptprof

0 no c0000001e26f9838 [email protected]:informix.sysdbstab

22 no c0000001d25ce838 [email protected]:vbs4.glscycltotal

31 no c0000001da538838 [email protected]:vbs4.putout_message

1 yes c0000001ddbaf038 [email protected]:vbs4.putout_message

1 yes c0000001d2306838 [email protected]:vbs4.cmsholdm

1 yes c0000001eae68838 [email protected]:vbs4.putout_message

2 yes c0000001e8f00838 [email protected]:vbs4.cmsholdm

1 yes c0000001ea1ec838 [email protected]:vbs4.cmsholdm

1 yes c0000001dbe79038 [email protected]:vbs4.putout_message


Onstat g dsc

onstat –g dsc 监控表中列的数据分布的信息

Distribution Cache:

Number of lists : 31

DS_POOLSIZE : 127

Distribution Cache Entries:

list# id ref_cnt dropped? heap_ptr distribution name

----------------------------------------------------------------------------------------------------------------------------------

3 [email protected]:vbs4.pubcycdealcall.calldate

4 [email protected]:vbs4.pubcycbrccallreg.brc

[email protected]:vbs4.pubcycbrccallreg.callstat

[email protected]:vbs4.pubcycbrccallreg.batchno


Onstat g prc routine

onstat –g prc 监控用户定义routine的信息

UDR Cache:

Number of lists: 31

PC_POOLSIZE: 127

UDR Cache Entries:

list# id ref_cnt dropped? heap_ptr udr name

--------------------------------------------------------------

[email protected]:.inssubtranslog

[email protected]:.dpsbigamttrans_insert

[email protected]:.lnsacctdyninfo_update

[email protected]:.dpsacclnkreg_delete


Onstat g pos informix

onstat –g pos 监控informix相关的环境信息

1 7 0 infos ver/size 2 272

2 1 0 snum 0 52564801 0 hcbserver

3 4 0 onconfig path /informix/etc/onconfig.hcb

4 5 0 host sdome-1

5 6 0 oninit ver IBM Informix Dynamic Server Version 11.50.FC5

6 6 8 0 sqlhosts path /informix/etc/sqlhosts


Onstat g ioa io chunk

onstat –g ioa 监控IO对列和chunk的读写情况

AIO global info:

6 aio classes

55 open files

64 max global files

AIO I/O queues:

q name/id len maxlen totalops dskread dskwrite dskcopy

kio 0 0 236 1293043824 1214749492 78294332 0

kio 1 0 481 2380980578 2276414912 104565666 0

kio 2 0 609 2045476140 1965648808 79827332 0

kio 3 0 481 1991822503 1895287615 96534888 0

kio 4 0 480 1679929856 1588936761 90993095 0

kio 5 0 147 1452406514 1365478601 86927913 0

kio 6 0 474 906868572 863069638 43798934 0


Onstat g ioa continue

onstat –g ioa (continue)

AIO I/O vps:

class/vp s io/s totalops dskread dskwrite dskcopy wakeups io/wup errors

kio 0 s 81.4 470968790 398738691 72230099 0 716722633 0.7 0

kio 1 i 267.1 1544737196 1449517115 95220081 0 2784672407 0.6 0

kio 2 s 183.1 1059085669 983459368 75626301 0 1783627036 0.6 0 kio 3 s 198.1 1145478835 1056564463 88914372 0 1998799317 0.6 0 kio 4 i 142.3 823275247 739055143 84220104 0 1373892196 0.6 0 kio 5 i 105.8 611934071 531708739 80225332 0 975037600 0.6 0

kio 6 s 51.5 297584863 257965729 39619134 0 438395613 0.7 0


Onstat g ioa continue1

onstat –g ioa (continue)

AIO global files:

gfd pathname totalops dskread dskwrite io/s

3 /dev/dbs/rootdbs 1334981 814062 520919 0.2

4 phylogdbs 9387514 1500 9386014 1.6

5 /dev/dbs/logdbs 13167118 3431695 9735423 2.3

6 /dev/dbs/tmpdbs1 36653365 11795428 24857937 6.3

7 /dev/dbs/tmpdbs2 37799245 12638544 25160701 6.5

8 /dev/dbs/tmpdbs3 34376857 9445985 24930872 5.9

9 userdbs-1 284466220 256566488 27899732 49.2

10 userdbs-2 363701648 353593295 10108353 62.9


Onstat g nta

onstat –g nta 监控数据库的连接信息

Individual thread network information (basic):

netscb type thread name sid

c0000001dff148a8 soctcp sqlexec 91463230

c0000001d0473c88 soctcp sqlexec 91463220

c0000001d6816cb8 soctcp sqlexec 91463169

c0000001d6910a70 soctcp sqlexec 91463156

c0000001cfdc74f0 soctcp sqlexec 91463153

c0000001dff10428 soctcp sqlexec 91463152

c0000001d83eccb0 soctcp sqlexec 91463125

c0000001d0b6f028 soctcp sqlexec 91463108

c0000001cfc2ab50 ipcshm sm_poll 7

c0000001cfc13b50 ipcshm sm_poll 6

c0000001cfbfcae8 ipcshm sm_poll 5


Onstat g nta1

onstat –g nta监控数据库的连接时间

Individual thread network information (times):

netscb thread name sid open read write address c0000001dff148a8 sqlexec 91463230 02:47:35 02:47:35 02:47:35 c0000001d0473c88 sqlexec 91463220 02:47:34 02:47:38 02:47:38 c0000001d6816cb8 sqlexec 91463169 02:47:28 02:47:28 02:47:28 c0000001d6910a70 sqlexec 91463156 02:47:27 02:47:27 02:47:27 c0000001cfdc74f0 sqlexec 91463153 02:47:27 02:47:27 02:47:27 c0000001dff10428 sqlexec 91463152 02:47:26 02:47:26 02:47:26 c0000001d83eccb0 sqlexec 91463125 02:47:24 02:47:24 02:47:24 c0000001d0b6f028 sqlexec 91463108 02:47:22 02:47:22 02:47:22


Onstat g nta2

onstat –g nta监控连接成功和失败的信息

Client TypeCallsAcceptedRejectedRead Write

sqlexec yes 9145971015 -721091574 -607189481

srvinfx yes 0 0 0 0

onspace yes 0 0 0 0

onlog yes 0 0 0 0

onparam yes 0 0 0 0

oncheck yes 10 0 71744 264616

onload yes 0 0 0 0

onunload yes 0 0 0 0

onmonitor yes 1 0 60 61

dr_accept yes 0 0 0 0

cdraccept no 0 0 0 0

ontape yes 3444 0 282315963 282319410

srvstat yes 0 0 0 0

asfecho es 0 0 0 0

listener yes 0 0 91463180 15

crsamexec yes 0 0 0 0

safe yes 0 0 0 0

onutil yes 0 0 0 0

客户端类型

接受和拒绝的次数


Onstat g opn partition

onstat –g opn 监控被打开的partition的信息

tid rstcb isfd op_mode op_flags partnum ucount ocount lockmode

218 0xcef64338 0 0x00000400 0x00000397 0x00700002 2 2 0

218 0xcef64338 1 0x00000002 0x00000003 0x00700002 2 2 0

218 0xcef64338 4 0x00000400 0x00000407 0x007002ca 1 0 0

218 0xcef64338 5 0x00000440 0x00000713 0x00700138 1 0 0

218 0xcef64338 6 0x00000400 0x00000407 0x00700135 1 0 0

218 0xcef64338 7 0x00000408 0x00000413 0x008018c2 1 0 0


Onstat g dri hdr

onstat –g dri 监控HDR的状态

Data Replication:

Type State Paired server Last DR CKPT (id/pg)

primary off amit_secondary -1 / -1

DRINTERVAL 2

DRTIMEOUT 30

DRAUTO 0

DRLOSTFOUND /vobs/tristarm/sqldist/etc/dr.lostfound

DRIDXAUTO 0


Onstat g tpf thread

onstat –g tpf 监控thread的轮廓信息

tid lkreqs lkw dl to lgrs isrd iswr isrw isdl isct isrb lx bfr bfw lsus lsmx seq

0 10 0 0 0 95564 3 0 0 0 0 0 0 3124077 2592376 1353340088 0 0


Onstat g arc

onstat –g arc 最近的备份信息

Dbspaces - Archive Status

name numberlevel date log log-position

rootdbs 1 0 02/17/2009.03:46 47179 0x87dc018

phylogdbs 2 0 02/17/2009.03:48 47179 0x8824018

logdbs 3 0 02/17/2009.03:48 47179 0x8825018

userdbs 7 0 02/17/2009.03:48 47179 0x8825018


Onstat g dis

onstat –g dis 监控机器上有几个实例以及启动状态

There are 2 servers found

Server : hcbserver

Server Number : 0

Server Type : IDS

Server Status : Up

Server Version : IBM Informix Dynamic Server Version 9.40.FC5

Shared Memory : 0

INFORMIXDIR : /informix

ONCONFIG : /informix/etc/onconfig.hcb

SQLHOSTS : /informix/etc/sqlhosts

Host : sdome-1Server

Server : frntserver

Server Number : 1


Sql query drill down onstat g his

SQL Query Drill Down – onstat –g his

需要配置:SQLTRACE level=LOW,ntraces=2000,size=2,mode=global

Database: db3

Statement text:

insert into t1 select 0, tabname from systables,sysindexes where

systables.tabid < 100

INSERT using table [ t1 ]

Iterator/Explain

================

ID Left Right Est Cost Est Rows Num Rows Type

3 0 0 5 15 55 Disk Scan

4 0 0 18 92 92 Disk Scan

2 3 4 287 1380 5060 Nested Join

1 2 0 1 1 5060 Insert

Statement information:

Sess_id User_id Stmt Type Completion Time Run Time

16 200 INSERT 09:15:23 13.0619

Statement Statistics:

Page Buffer Read Buffer Page Buffer Write

Read Read % Cache IDX Read Write Write % Cache

1212 21340 94.32 0 1312 16448 92.02

Lock Lock Lock Log Num Disk Sort

Requests Waits Time (S) Records Sort Sort Time (S)

5061 0 0 1265 0 0 0

Total Total Avg Max LK Wait I/O Wait Avg Rows

Executions Time (S) Time (S) Time (S) Time (S) Time (S) Per Sec

1 13.0619 13.0619 13.0619 0.0000 3.8790 387.3854

Estimated Estimated Actual SQL ISAM Isolation SQL

Cost Rows Rows Error Error Level Memory

288 1381 5060 0 0 NL 127696


Onstat g ckp

onstat –g ckp

Auto Checkpoins=On RTO_SERVER_RESTART=60 seconds Estimated recovery time 7 seconds

Critical Sections Physical Log Logical Log

Clock Total Flush Block # Ckpt Wait Long # Dirty Dskflu Total Avg Total Avg

Interval Time Trigger LSN Time Time Time Waits Time Time Time Buffers /Sec pages /Sec Pages /Sec

1 18:41:36 Startup 1:f8 0.0 0.0 0.0 0 0.0 0.0 0.0 4 4 3 0 1 0

2 18:41:49 Admin 1:11c12cc 0.3 0.2 0.0 1 0,0 0.0 0.0 2884 2884 1966 162 4549 379

3 18:42:21 Llog 8:188 2.3 2.0 2.0 1 0.0 2.0 2.0 14438 7388 318 10 65442 2181

4 18:42:44 *User 10:19c018 0.0 0.0 0.0 1 0.0 0.0 0.0 39 39 536 21 20412 816

5 18:46:21 RTO 12:188 54.8 54.2 0.0 30 0.6 0.4 0.6 68232 1259 210757 1033 150118 735

Max Plog Max Llog Max Dskflush Avg Dskflush Avg Dirty Blocked

pages/sec pages/sec Time pages/sec pages/sec Time

8796 6581 54 43975 2314 0


Onstat g ckp1

onstat –g ckp


Onstat g alice

onstat –g alice

Partnum Mode BM_Sz Used_Pg Examined Dirty_Pg # I/O Found Eff

0x00900003 10 17536 4486540 266997444 71606 2086125 17200 0.8 %


View what has been cleaned onstat c clean

View what has been Cleaned onstat –C clean

Btree Cleaner Info

Index Cleaned Statistics

=========================

Partnum Key Dirty Hits Clean Time Pg Examined Items Del Pages/Sec

0x00100002 1 0 0 2 2 2.00

0x00100003 1 0 0 6 0 6.00

0x00100003 2 0 0 2 0 2.00

0x00100004 1 0 0 22 955 22.00

0x00100004 2 0 0 9 439 9.00

0x00100005 1 0 0 1 0 1.00

0x00200003 1 6 91 8096 14501 88.97

0x00300003 1 C 61 130 12108 11829 93.14

0x00300004 1 28787 0 0 0 0.00

Total time spent

cleaning this index

Index currently

being cleaned

Index items removed

from this index


Operation by index onstat c part

Operation by Index onstat –C part

Btree Cleaner Info

Index Statistics

================

Partnum Key Positions Compress Split

0x00100002 1 2429 0 0

0x00100003 1 4 0 0

0x00100114 1 36 0 0

0x00100114 2 22 0 0

0x00100114 3 22 0 0

0x00100118 1 14353 1 922

0x00100119 1 C 0 2198 17750

0x0010011a 1 310 2 1367

0x0010011b 1 0 1 1224

0x0010011b 1 0 1 1224

# of splits

on the index

# of times an index has

been used for reading


Onstat g cpu

onstat –g cpu

IBM Informix Dynamic Server Version 11.10.F -- On-Line -- Up 7 days 20:09:14 -- 54744 Kbytes

Thread CPU Info:

tid name vp Last Run CPU Time #scheds status

*2 lio vp 0 3lio 06/27 13:26:39 28.6397 3749 IO Idle

*3 pio vp 0 4pio 06/27 13:25:09 5.0609 517 IO Idle

*4 aio vp 0 5aio 06/27 13:29:23 31.1610 112645 IO Idle

*5 msc vp 0 6msc 06/27 13:27:57 0.1137 50 IO Idle

*6 aio vp 1 7aio 06/27 13:29:23 19.1152 5524 IO Idle

7 main_loop() 1cpu 06/27 13:31:55 7.1407 678090 sleeping secs: 1

*8 sm_poll 1cpu 06/27 13:31:55 677245.0333 940398 running

9 sm_listen 1cpu 06/27 13:27:57 0.0057 32 sleeping forever

10 sm_discon 1cpu 06/27 13:31:55 2.5516 676641 sleeping secs: 1

11 flush_sub(0) 1cpu 06/27 13:31:55 1.7716 677707 sleeping secs: 1

*12 aio vp 2 8aio 06/27 13:29:23 21.7697 727 IO Idle

*13 aio vp 3 9aio 06/27 13:25:09 23.7650 677 IO Idle

*14 aio vp 4 10aio 06/27 13:25:09 18.0777 1118 IO Idle

*15 aio vp 5 11aio 06/27 13:25:09 17.0063 350 IO Idle

16 aslogflush 1cpu 06/27 13:31:55 2.0833 676638 sleeping secs: 1

17 btscanner_0 1cpu 06/27 13:31:35 1.7299 22352 sleeping secs: 31

*18 onmode_mon 1cpu 06/27 13:31:55 2.9390 676641 sleeping secs: 1

*40 dbScheduler 1cpu 06/27 13:29:23 1.5202 3444 sleeping secs: 148

*41 dbWorker1 1cpu 06/27 13:24:22 0.9907 2655 sleeping forever

*42 dbWorker2 1cpu 06/27 13:24:22 1.0513 2908 sleeping forever

43 bf_priosweep() 1cpu 06/27 13:30:10 0.4217 2255 cond wait bp_cond

45 sqlexec 1cpu 06/20 14:46:53 0.0561 322 cond wait sm_read

46 sqlexec 1cpu 06/20 01:45:59 6.9784 32301 cond wait sm_read


Rss onstat g rss secondary node primary rss server

RSS: onstat –g rss <secondary_node> (Primary)显示某个RSS Server的信息

$ onstat -g rss war

IBM Informix Dynamic Server Version 11.10.FC1 -- On-Line (Prim) -- Up 1 days 06:49:10 -- 196608 Kbytes

RSS Server control block: 0xf202f68

RSS server name: war

RSS server status: Active

RSS connection status: Connected

Log transmission status: Active

Next log page to send(log id,page): 4,48

Sequence number of next buffer to send: 1279

Sequence number of last buffer acked: 1265

Log Pages Snooped:

RSS Srv From From Tossed

name Cache Disk (LBC full)

war 3448 1053 0


Rss onstat g rss verbose primary rss

RSS: onstat –g rss verbose (Primary) (所有RSS的信息)

$ onstat -g rss verbose

IBM Informix Dynamic Server Version 11.10.FC1 -- On-Line (Prim) -- Up 1 days 06:51:01 -- 196608 Kbytes

Local server type: HDR Primary

Index page logging status: Enabled

Index page logging was enabled at: 2007/05/15 08:50:18

Number of RSS servers: 2

RSS Server information:

RSS Server control block: 0xf202f68

RSS server name: war

RSS server status: Active

RSS connection status: Connected

Log transmission status: Active

Next log page to send(log id,page): 4,48

Sequence number of next buffer to send: 1279

Sequence number of last buffer acked: 1265

RSS Server control block: 0xf202e20

RSS server name: uabrs

RSS server status: Active

RSS connection status: Connected

Log transmission status: Active

Next log page to send(log id,page): 4,48

Sequence number of next buffer to send: 313

Sequence number of last buffer acked: 299


Rss onstat g rss log primary

RSS: onstat –g rss log (Primary)

$ onstat -g rss log

IBM Informix Dynamic Server Version 11.10.FC1 -- On-Line (Prim) -- Up 1 days 06:52:24 -- 196608 Kbytes

Log Pages Snooped:

RSS Srv From From Tossed

name Cache Disk (LBC full)

war 3448 1053 0

uabrs 47 4454 0


Rss onstat g rss secondary

RSS: onstat –g rss (Secondary)

$ onstat -g rss

IBM Informix Dynamic Server Version 11.10.FC1 -- Read-Only (RSS) -- Up 1 days 05:46:19 -- 196608 Kbytes

Local server type: RSS

Server Status : Active

Source server name: boy

Connection status: Connected

Last log page received(log id,page): 4,47


Sds onstat

SDS: onstat监控:

  • onstat –g sds

    • primary

      Local server type: Primary

      Number of SDS servers:1

      SDS server information

      SDS srv SDS srv Connection Last LPG sent

      name status status (log id,page)

      sec Active Connected 2,2939

    • Secondary

      Local server type: SDS

      Server Status : Active

      Source server name: prim

      Connection status: Connected

      Last log page received(log id,page): 2,2939


Sds onstat1

SDS: onstat监控:

  • onstat -g sds verbose

    • primary

      Number of SDS servers:1

      Updater node alias name :prim

      SDS server control block: 0x151eba7b0

      server name: sec

      server type: SDS

      server status: Active

      connection status: Connected

      Last log page sent(log id,page):2,2939

      Last log page flushed(log id,page):2,2939

      Last LSN acked (log id,pos):2,12038536

      Sequence number of next buffer to send: 14

      Sequence number of last buffer acked: 0

      Time of lask ack:2007/04/24 11:07:15

      Total LSNs posted:0

      Total LSNs sent:0

      Total page flushes posted:0

      Total page flushes sent:0


Sds onstat2

SDS: onstat监控:

  • onstat –g sds <servername>

    • Primary only

      $onstat -g sds sec

      SDS server control block: 0x151eba7b0

      server name: sec

      server type: SDS

      server status: Active

      connection status: Connected

      Last log page sent(log id,page):2,2939

      Last log page flushed(log id,page):2,2939

      Last LSN acked (log id,pos):2,12038536

      Sequence number of next buffer to send: 14

      Sequence number of last buffer acked: 0

      Time of lask ack:2007/04/24 11:07:15

      Total LSNs posted:0

      Total LSNs sent:0

      Total page flushes posted:0

      Total page flushes sent:0


Sds onstat3

SDS: onstat监控:

  • onstat –g sds verbose

    • secondary

      SDS server control block: 0x151552860

      Local server type: SDS

      Server Status : Active

      Source server name: prim

      Connection status: Connected

      Last log page received(log id,page): 2,2939

      Next log page to read(log id,page):2,2940

      Last LSN acked (log id,pos):2,12038536

      Sequence number of last buffer received: 0

      Sequence number of last buffer acked: 0

      Current paging file:ers=500000

      Current paging file size:2048

      Old paging file:/tmp/chunk1

      Old paging file size:12288


Smart blob

Smart blob的监控


Ibm inform ix dynamic server

监控工具介绍

  • onstat

  • SMI

  • oncheck

  • OpenAdminTool (仅限于11版本使用)

  • 复制的监控


Ibm inform ix dynamic server

什么是SMI

System Monitoring interface(SMI)提供了和onstat输出相同的信息,但它给用户提供了其他的一些便利之处:

  • 通过SQL语句访问共享内存结构

  • 提供特定用户的profile信息

  • 系统表的描述保存在

    $INFORMIXDIR/etc/sysmaster.sql

    中,所有SMI的监控信息都是通过

    这些系统表获得


Ibm inform ix dynamic server

通过SMI监控全表扫描

select p.dbsname,

p.tabname,

t.nrows,

sum(p.seqscans) tot_seqscans

from sysmaster:sysptprof p, <userdb>:systables t

where p.dbsname not like "sys%"

and p.dbsname = “<userdb>"

and p.tabname = t.tabname

and t.tabid > 99

and t.nrows >20000

group by 1,2,3

having sum(p.seqscans) > 3

order by 3 desc,4 desc;


Ibm inform ix dynamic server

通过SMI监控锁等待

select p.dbsname,

p.tabname,

t.nrows,

t.locklevel,

sum(p.lockwts) lockwts

from sysmaster:sysptprof p, <userdb>:systables t

where p.dbsname not like "sys%"

and p.dbsname = “<userdb>"

and p.tabname = t.tabname

and t.tabid > 99

group by 1,2,3,4

order by 5 desc;


Smi dbspace

通过SMI监控 dbspace上的空间使用情况

select name dbspace,

sum(chksize)*pagesize allocated,

sum(nfree)*pagesize free,

round(((sum(chksize) - sum(nfree))/sum(chksize))*100) pcused

from sysmaster:sysdbspaces d, sysmaster:syschunks c

where d.dbsnum = c.dbsnum

group by 1

order by 4 desc;


Ibm inform ix dynamic server

通过SMI监控每个表的空间的使用情况

select t.tabname table_name,

p.nptotal*4 allocated_space,

p.npused*4 used_space,

p.npdata*4 data_space,

(p.nptotal - p.npused)*4 free_space

from sysmaster:systabnames t, <userdb>:systables a,

sysmaster:sysptnhdr p

where t.partnum = p.partnum

and a.tabname = t.tabname

and tabid > 99

group by 1,2,3,4,5

order by 2 desc;


Ibm inform ix dynamic server

监控工具介绍

  • onstat

  • SMI

  • oncheck

  • OpenAdminTool (仅限于11版本使用)

  • 复制的监控


Oncheck

oncheck能做什么?


Oncheck usage

oncheck usage


Oncheck usage continue

oncheck usage(continue)


Oncheck pt stores demo items

oncheck –pT stores_demo:items输出

TBLspace Report for stores_demo:luchuan.items

Physical Address 1:32733

Creation date 03/16/2009 09:46:19

TBLspace Flags 801 Page Locking

TBLspace use 4 bit bit-maps

Maximum row size 18

Number of special columns 0

Number of keys 0

Number of extents 1

Current serial value 1

Current SERIAL8 value 1

Current BIGSERIAL value 1

Current REFID value 1

Pagesize (k) 4

First extent size 8

Next extent size 8

Number of pages allocated 8

Number of pages used 2

Number of data pages 1

Number of rows 67


Ibm inform ix dynamic server

Partition partnum 1048963

Partition lockid 1048963

Extents

Logical Page Physical Page Size Physical Pages

0 1:33278 8 8

TBLspace Usage Report for stores_demo:luchuan.items

Type Pages Empty Semi-Full Full Very-Full

---------------- ---------- ---------- ---------- ---------- ----------

Free 6

Bit-Map 1

Index 0

Data (Home) 1

----------

Total Pages 8

Unused Space Summary

Unused data slots 117

Unused bytes per data page 20

Total unused bytes in data pages 20

Home Data Page Version Summary

Version Count

0 (current) 1


Ibm inform ix dynamic server

Index 104_10 fragment partition rootdbs in DBspace rootdbs

Physical Address 1:32734

Creation date 03/16/2009 09:46:19

TBLspace Flags 801 Page Locking

TBLspace use 4 bit bit-maps

Maximum row size 18

Number of special columns 0

Number of keys 1

Number of extents 1

Current serial value 1

Current SERIAL8 value 1

Current BIGSERIAL value 1

Current REFID value 1

Pagesize (k) 4

First extent size 6

Next extent size 6

Number of pages allocated 6

Number of pages used 2

Number of data pages 0

Number of rows 0

Partition partnum 1048964

Partition lockid 1048963

Extents

Logical Page Physical Page Size Physical Pages

0 1:33286 6 6


Ibm inform ix dynamic server

监控工具介绍

  • onstat

  • SMI

  • oncheck

  • OpenAdminTool (仅限于11版本使用)

  • 复制的监控


Open admin tool oat

功能强大的开放管理工具Open Admin Tool (OAT)

  • 基于PHP的开源的基于浏览器的

    图形界面工具

  • 定义和管理自动化的任务(task)

  • 创建和显示性能直方图以用于

    分析和调优

  • 在一个地点管理很多实例

  • 可进一步显示所有的细节

  • 可方便的通过扩展进行配置


Oat the open admin tool

OAT – The Open Admin Tool


Oat space administration dbspaces 1

OAT – Space Administration – Dbspaces (1)

  • This view provides a graphical summary of instance wide dbspace storage, and a text summary by dbspace at the bottom. Clicking on a dbspace highlighted in blue generates the next screen ……


Oat space administration recovery logs checkpoints

OAT – Space Administration – Recovery Logs – Checkpoints


Oat server administration mach clusters

OAT – Server Administration – MACH - Clusters


Oat server administration mach add an sds server 1

OAT – Server Administration - MACH – Add an SDS Server (1)


Oat server administration mach add an sds server 2

OAT – Server Administration - MACH – Add an SDS Server (2)


Oat server administration mach modify status

OAT – Server Administration – MACH – Modify Status


Oat server admin system validation check extents

OAT – Server Admin - System Validation – Check Extents

  • This is a dbspace level extent check and integrity operation.


Oat virtual processors vp adding or dropping a vp

OAT – Virtual Processors (VP) – Adding or Dropping a VP

  • At the bottom of the VP screen, OAT allows the DBA to add or drop a Virtual Processor by VP type. A post execution status message is printed at the top of the screen.


Oat enterprise replication domain 2

OAT – Enterprise Replication – Domain (2)

  • An ER Screen Showing a Server cluster not so well….


Oat er server status 1

OAT – ER – Server Status (1)

  • A warning that the server is getting near threshold limits for DDRBLOCK. Click the server image to see the ER server state.


Oat er server status 2

OAT – ER – Server Status (2)

  • Normally, to solve a DDRBLOCK issue, you add more logical logs, until we have log space availability of 25% free. Using OAT exclusively to solve a problem…easily.


Oat enterprise replication node details 1

OAT – Enterprise Replication – Node Details (1)

  • For each node in an ER Cluster, OAT provides:

    • Node Status Summary Screen

      • Capture and Apply state summaries.

      • Send and Receive queue summaries.

      • Network Connectivity Summary and Transmission rates.

    • Node Graphical and Text Capture Details.

    • Target/Replicate Send Queue Stats.

    • Graphical Network Message Send/Receive Stats.

    • Node ER Disk Utilization.


Oat enterprise replication node details 2

OAT – Enterprise Replication – Node Details (2)

  • For each node in an ER Cluster, OAT provides (con’td):

    • Node Apply Stats with Network Latency & Transactions.

    • Node Aborted Transaction & Row Information Spooling Stats.

    • Node ER Error Details when found.

    • ER Node Configuration details only.

  • To see the ER domain in OAT, you must first configure the cluster using the CDR command line utility and elements of the cluster must be on-line.

  • OAT can now bring an existing non ER server into an ER domain for the first time.


Oat node details er disk space usage

OAT – Node Details – ER Disk Space Usage


Oat performance analysis sql explorer

OAT - Performance Analysis – SQL Explorer

  • The SQL Explorer allows the DBA to drill down on a specific SQL Statement by clicking on the zoom picture next to the statement type.


Oat performance analysis sql explorer 1

OAT - Performance Analysis – SQL Explorer (1)


Oat performance analysis sql explorer zoom

OAT - Performance Analysis – SQL Explorer - Zoom

  • This is the statement chosen from the previous screen shot. To drill yet further here, to see all data associated with this particular statement iteration, click on the zoom pic on the left.


Oat performance analysis system reports

OAT - Performance Analysis – System Reports

  • Currently, there are 24 predefined reports.


Oat performance analysis system reports sample 1

OAT - Performance Analysis – System Reports – Sample 1

  • The data is generated on demand and may also be shown text only. Shown is Virtual Processors.


Oat performance analysis system reports sample 2

OAT - Performance Analysis – System Reports – Sample 2

  • Shown here is part of Operating System Resources…..


Oat sql toolbox databases table view

OAT – SQL ToolBox – Databases – Table View

  • Click on the browse button next to the table name …..


Oat performance analysis session explorer locks

OAT - Performance Analysis – Session Explorer – Locks

  • Session Explorer shows session related resources. You can see the locks, threads, memory, network or environment, as well as an overall session profile.


Oat performance analysis session explorer threads

OAT - Performance Analysis – Session Explorer – Threads

  • The current threads in use on a single session ….


Oat performance analysis session explorer environment

OAT - Performance Analysis – Session Explorer – Environment

  • The environment variables related to a single user session.


Oat performance analysis session explorer profile

OAT - Performance Analysis – Session Explorer – Profile

  • Cumulative session related data for a single session….


Oat server administration auto update statistics general

OAT – Server Administration - Auto Update Statistics - General

  • Table statistics administration for OAT occurs here. The graphic shows statistics status by table need; the text shows the need by database. See the Appendix for more on Auto Update Statistics.


Ibm inform ix dynamic server

监控工具介绍

  • onstat

  • SMI

  • oncheck

  • OpenAdminTool (仅限于11版本使用)

  • 复制的监控


Ibm inform ix dynamic server

通过SMI监控

  • 察看SERVER的状态

    select servername, servstate from syscdrserver;

  • 察看复制定义的状态

    select replname, replstate from syscdrrepl;

    或者通过cdr list repl察看

  • 察看组的状态

    select g.grpname, r.replstate

    from syscdrgrp g, syscdrrepl r

    where g.grpname = r.grpname

    group by 1,2


Onstat g ddr

onstat –g ddr: 监控日志阅读器的状态

DDR -- Running --

# Events Snoopy Snoopy Replay Replay Current Current

Buffers ID Position ID Position ID Position

512 25 4f18c 24 18 25 51000


Onstat g rqm onstat g rqm brief

onstat –g rqm/onstat –g rqm BRIEF 监控发送队列

Queue trg_send (all totals approximate)

# Txns in memory: 48

Server grp_east (222) # txns in queue: 48

Server grp_west (333) # txns in queue: 48


Onstat g nif

onstat –g nif: 监控网络接口信息

NIF anchor Block : a572090

nifGstateRUN

nifRetryTimeout300

CDR connections:

IDNameStateSendReceived

333grp_westRUN5980 173

111grp_corpRUN 18429 25108


Onstat g dss

onstat –g dss :监控事务和记录行的处理情况

---- Datasync Statistics for grp_east as of 99/06/01 14:19:42----

SourceTxTxTxRowsRowslast Tx

ServerProcessCommitAbortedAbortedCommitProccestime

------- ---------- --------- ---------- --------- --------- ----------------

1111238612386001238699/06/01 13:56:03

333 1 1 0 0 1 99/05/28 15:13:47

DS thread statistics

cmtTimeTxTxTxLast Tx

Name< localCommittedAbortedProcessedProcessed Time

--------- -------- ---------------- ----------- ------------------ ----------------------

CDRD_0 0 482 0 482 99/05/28 15:23:11

Tables (99.6%)

Database:stores

CDRD_1 0 1 0 1 99/05/28 15:13:47

Tables (0.0%)

Databases: stores


Ibm inform ix dynamic server

HP上的监控工具

top 监控每个cpu的使用情况

glance 可以监控多个指标,如disk busy, memory ,cpu等

iostat 监控每个disk繁忙的程度

ulimit -a 检查用户限定值,nofiles值和数据库用户连接数有关系


Ibm inform ix dynamic server

AIX监控工具

监控内存的使用

nmon 可以免费下载的工具,监控剩 余内 存等多项指标

监控每个cpu的利用率

sar –P ALL 1 100

ulimit –a 中的nofiles值和数据库用户连接数有关系


Sun ulimit

Sun上ulimit的设置

/etc/system :

set rlim_fd_cur=1024 #nofiles的设置

set rlim_fd_max=1024


Ibm inform ix dynamic server

第三方的监控产品

AGS

: Server Studio

http://www.serverstudio.com/

:DBSonar

http://www.cobrasonic.com/


  • Login
