  1. Beyond TCP Congestion Control 2007

  2. Extensions to TCP • End-to-end congestion control • Selective acknowledgements: TCP SACK • Delay-based congestion avoidance: TCP Vegas • TCP-Friendly Rate Control: TFRC • Binomial Congestion Control • Router - assisted Congestion Control • Active Queue Mgmt. (AQM) and RED • Explicit congestion notification: ECN • eXplicit Control Protocol: XCP • Discriminating between congestion losses and other losses: cross-layer signaling and guesses losses

  3. Outline • TCP-Friendly Rate Control (TFRC) • Binomial Congestion Control

  4. TCP-Friendly • Any alternative congestion control scheme needs to coexist with TCP in FIFO queues in the best-effort Internet, or be protected from TCP in some manner. • To co-exist with TCP, it must impose the same long-term load on the network: • No greater long-term throughput as a function of packet loss and delay so TCP doesn't suffer • Not significantly less long-term throughput or it's not too useful

  5. TFRC: TCP-Friendly Rate Control • Equation-based congestion control • Rate-based • Use a model of TCP's throughout as a function of the loss rate, RTT and RTO directly in a congestion control algorithm • If transmission rate is higher than that given by the model, reduce the transmission rate to the model's rate • Otherwise increase the transmission rate • Much slower increase than TCP • Decrease is also slower • 4 – 8 RTTs to halve speed

  6. An Improved "Steady State" Model A pretty good improved model of TCP Reno, including timeouts, Sigcomm 1998: • 1st term corresponds to simple Loss Model • 2nd term corresponds to complicated timeout behavior • Is critical in situations with > 5% loss rates where timeouts occur frequently

  7. TFRC Details • The devil's in the details • How to measure the loss rate? • How to respond to persistent congestion? • How to use RTT and prevent oscillatory behavior? • Not as simple as first thought

  8. TFRC Performance (Simulation)

  9. TFRC Performance (Experimental)

  10. Is AIMD the Only Answer? • Akella et al.: exploring congestion control • AIAD with a tiny bit of MD works better than AIMD • Binomial cc: Bansal and Balakrishnan • Nonlinear window adjustment algorithms • Can be TCP-friendly, and smoother (for media)

  11. Binomial Congestion Control • In AIMD • Increase: Wn+1 = Wn +  • Decrease: Wn+1 = (1- ) Wn =Wn -  Wn • In Binomial • Increase: Wn+1 = Wn + /Wnk • Decrease: Wn+1 = Wn -  Wnl • k=0 & l=1  AIMD • l < 1 results in less than multiplicative decrease • Good for multimedia applications

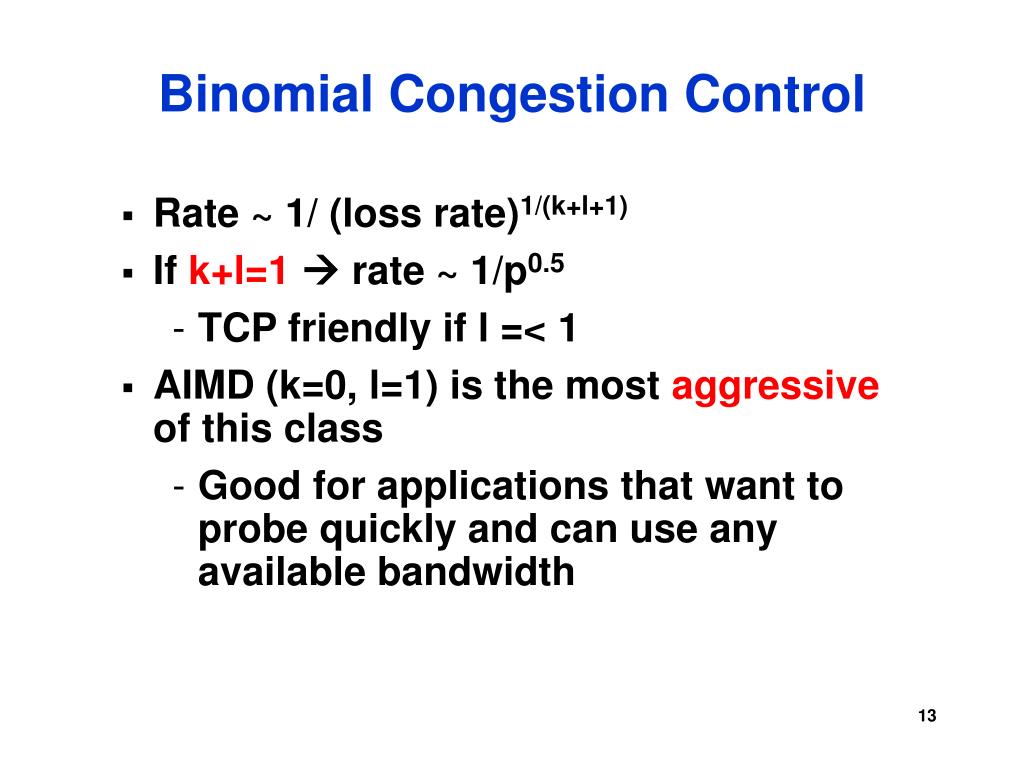

  12. Binomial Congestion Control • Rate ~ 1/ (loss rate)1/(k+l+1) • If k+l=1 rate ~ 1/p0.5 • TCP friendly if l =< 1 • AIMD (k=0, l=1) is the most aggressive of this class • Good for applications that want to probe quickly and can use any available bandwidth
