experiences with coralcdn a five year operational view

Experiences with CoralCDNA Five-Year Operational View

Michael J. Freedman

Princeton University

www.coralcdn.org

a cooperative self organizing cdn
A Cooperative, Self-Organizing CDN

Client

Resolver

2

5

1

CoralCDN

HTTP Proxy

CoralCDN

DNS Server

CoralCDN

HTTP Proxy

CoralCDN

DNS Server

Coral index node

Coral index node

3

6

CoralCDN

4

CoralCDN

HTTP Proxy

CoralCDN

DNS Server

CoralCDN

HTTP Proxy

Coral index node

Coral index node

Goal: To make desired content widely available

regardless of publisher’s own resources, by

organizing and utilizing any cooperative resources

http example com path

http://example.com/path

http://example.com.nyud.net/path

daily request volume
Daily Request Volume

2M clients – 2 TB content – 20K origin domains

From 300-400 PlanetLab servers

based on peer to peer dht
Based on peer-to-peer DHT

CoralCDN

HTTP Proxy

CoralCDN

DNS Server

CoralCDN

HTTP Proxy

CoralCDN

DNS Server

Coral index node

Coral index node

CoralCDN

CoralCDN

HTTP Proxy

CoralCDN

DNS Server

CoralCDN

HTTP Proxy

Coral index node

Coral index node

Weakened consistency + algorithms that prevent tree saturation during lookup

Decentralized clustering for locality and hierarchical lookup

Cooperative HTTP / DNS that leverages locality

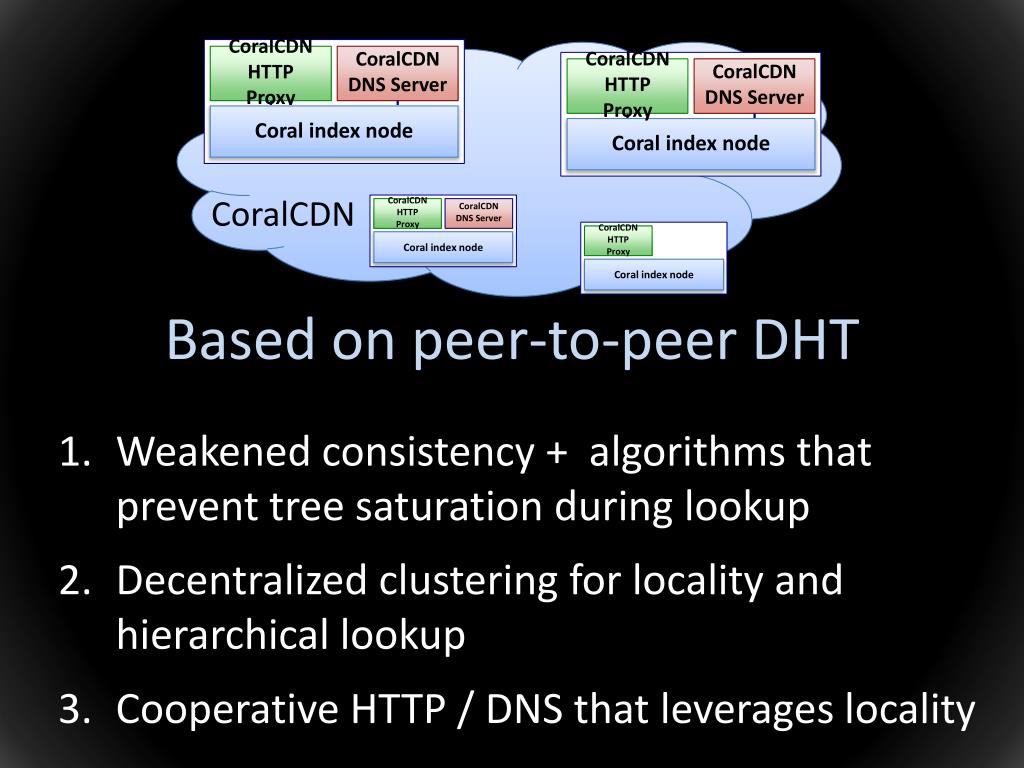

based on peer to peer dht13
Based on peer-to-peer DHT

CoralCDN

HTTP Proxy

CoralCDN

DNS Server

CoralCDN

HTTP Proxy

CoralCDN

DNS Server

Coral index node

Coral index node

CoralCDN

CoralCDN

HTTP Proxy

CoralCDN

DNS Server

CoralCDN

HTTP Proxy

Coral index node

Coral index node

Weakened consistency + algorithms that prevent tree saturation during lookup

Decentralized clustering for locality and hierarchical lookup

Cooperative HTTP / DNS that leverages locality

slide14

CoralCDN

HTTP Proxy

CoralCDN

DNS Server

CoralCDN

HTTP Proxy

CoralCDN

DNS Server

Coral index node

Coral index node

CoralCDN

CoralCDN

HTTP Proxy

CoralCDN

DNS Server

CoralCDN

HTTP Proxy

Coral index node

Coral index node

Interactions with the External Environment

Virtualization Layer

Clients

Origin Domains

slide15

Experiences

    • Naming
    • Fault Tolerance
    • Resource management
  • Revisit CoralCDN’s design
naming
Naming

Flexible, open API

x

Mismatch with domain-based access control policies

coralcdn s platform as a service api

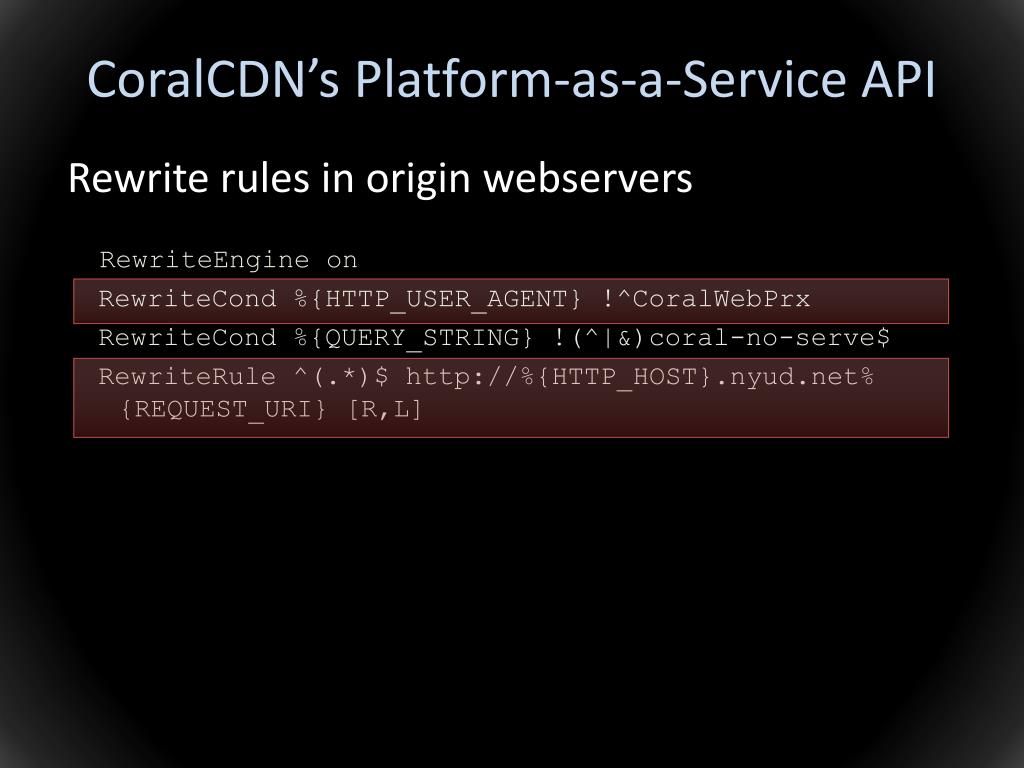

CoralCDN’s Platform-as-a-Service API

Rewrite rules in origin webservers

RewriteEngine on

RewriteCond %{HTTP_USER_AGENT} !^CoralWebPrx

RewriteCond %{QUERY_STRING} !(^|&)coral-no-serve$

RewriteRule ^(.*)$ http://%{HTTP_HOST}.nyud.net% {REQUEST_URI} [R,L]

elastic provisioning
Elastic Provisioning

CoralCDN’s Platform-as-a-Service API

Rewrite rules in origin webservers

RewriteEngine on

RewriteCond %{HTTP_USER_AGENT} !^CoralWebPrx

RewriteCond %{QUERY_STRING} !(^|&)coral-no-serve$

RewriteCond %{HTTP_REFERER} slashdot\.org [NC]

RewriteCond %{HTTP_REFERER} digg\.com [NC,OR]

RewriteCond %{HTTP_REFERER} blogspot\.com [NC,OR]

RewriteRule ^(.*)$ http://%{HTTP_HOST}.nyud.net% {REQUEST_URI} [R,L]

  • Sites integrate with load/bandwidth monitoring
naming conflation

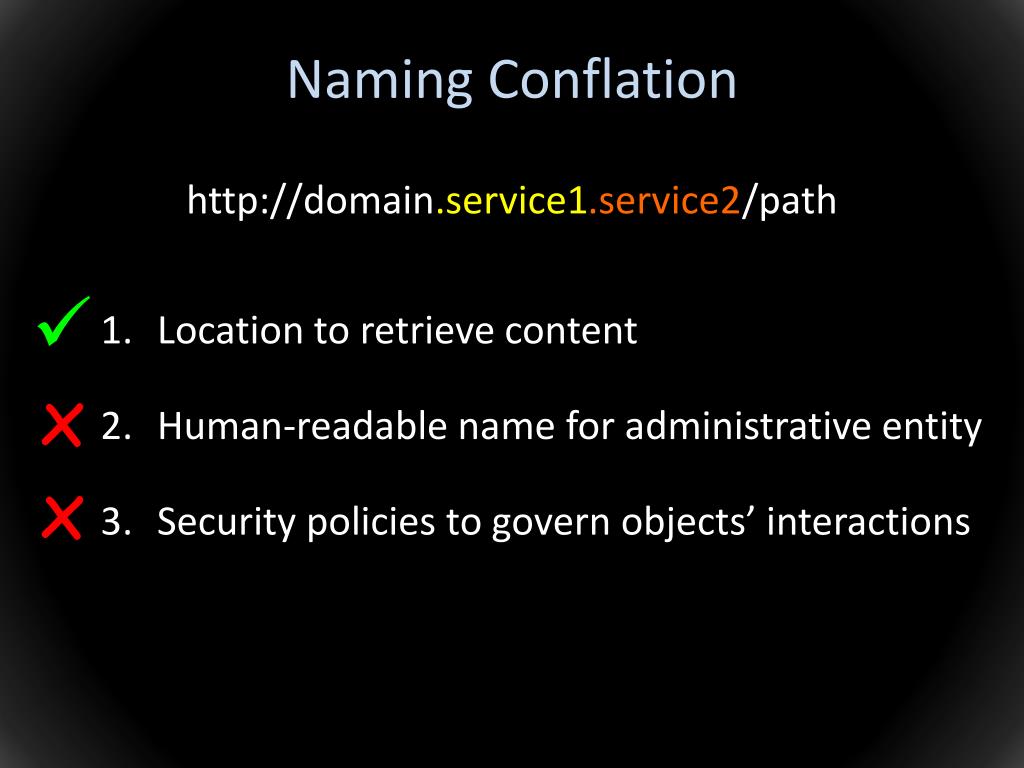

Naming Conflation

http://domain/path

.service1

.service2

x

x

Location to retrieve content

Human-readable name for administrative entity

Security policies to govern objects’ interactions

domain based security policies

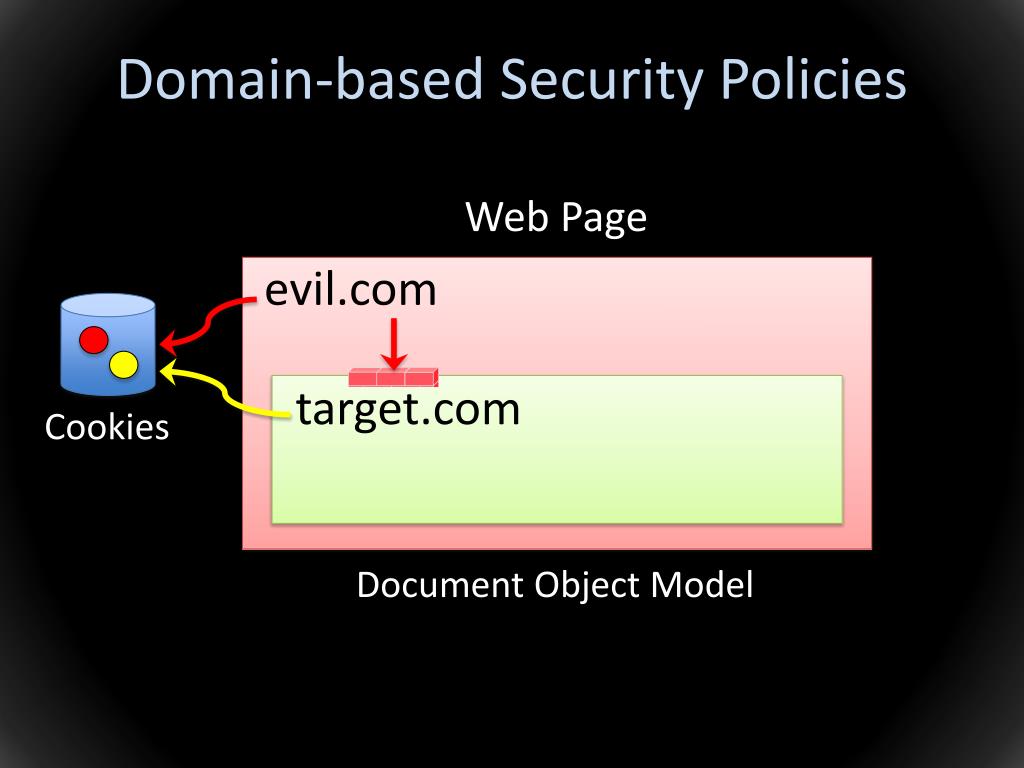

Domain-based Security Policies

Web Page

evil.com

target.com

Cookies

Document Object Model

domain based security policies21

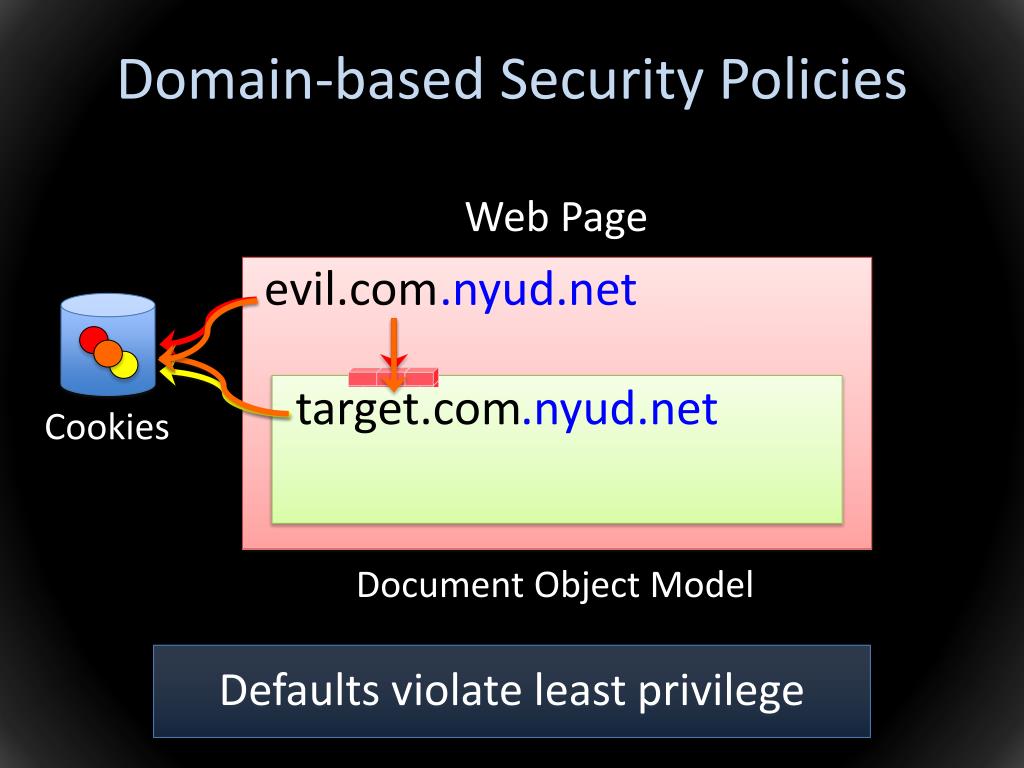

Domain-based Security Policies

Web Page

evil.com

.nyud.net

target.com

.nyud.net

Cookies

Document Object Model

Defaults violate least privilege

fault tolerance failure decoupling
Fault Tolerance: Failure Decoupling

  • Internal failures:
  • DHT nodes
  • DNS servers, HTTP proxies
  • Management service

x

  • External failures:
  • Decouple IPs from hosts
  • Interactions with origin sites
  • - Node failures
  • - DHT / DHS / HTTP level
  • - Management layer
  • Couldn\'t decouple IPs from host
happens
happens!

Origin Status

CoralCDN Reaction

Cache negative results

Serve stale content

Use whole-file overwrites

  • Unresponsive
  • Returns error code
  • Reply truncated
happens24
happens!

Origin Status

CoralCDN Reaction

Cache negative results

Serve stale content

Use whole-file overwrites

  • Unresponsive
  • Returns error code
  • Reply truncated

Maintain status quo unless improvements are possible

what is failure
What is “failure”?

Return values should have fail-safe defaults

resource management
Resource Management

Control over bandwidth consumption

x

Control and visibility into environment’s resources

  • - Node failures
  • - DHT / DHS / HTTP level
  • - Management layer
  • Couldn\'t decouple IPs from host
some timeline

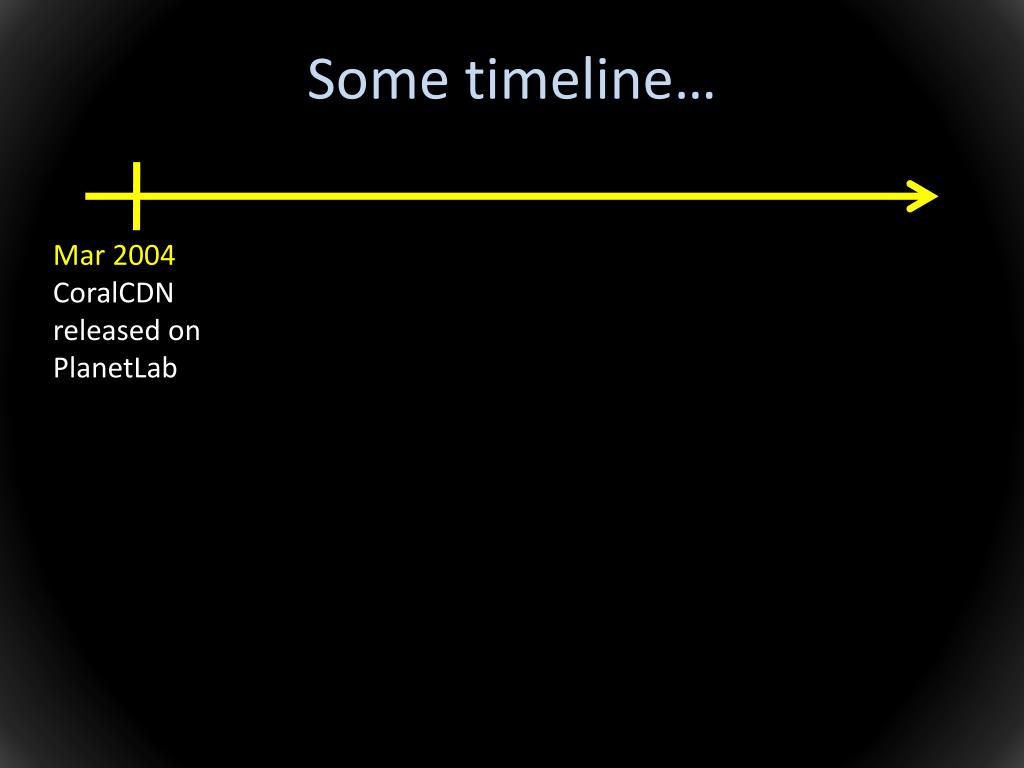

Some timeline…

Mar 2004

CoralCDN

released on

PlanetLab

some timeline28

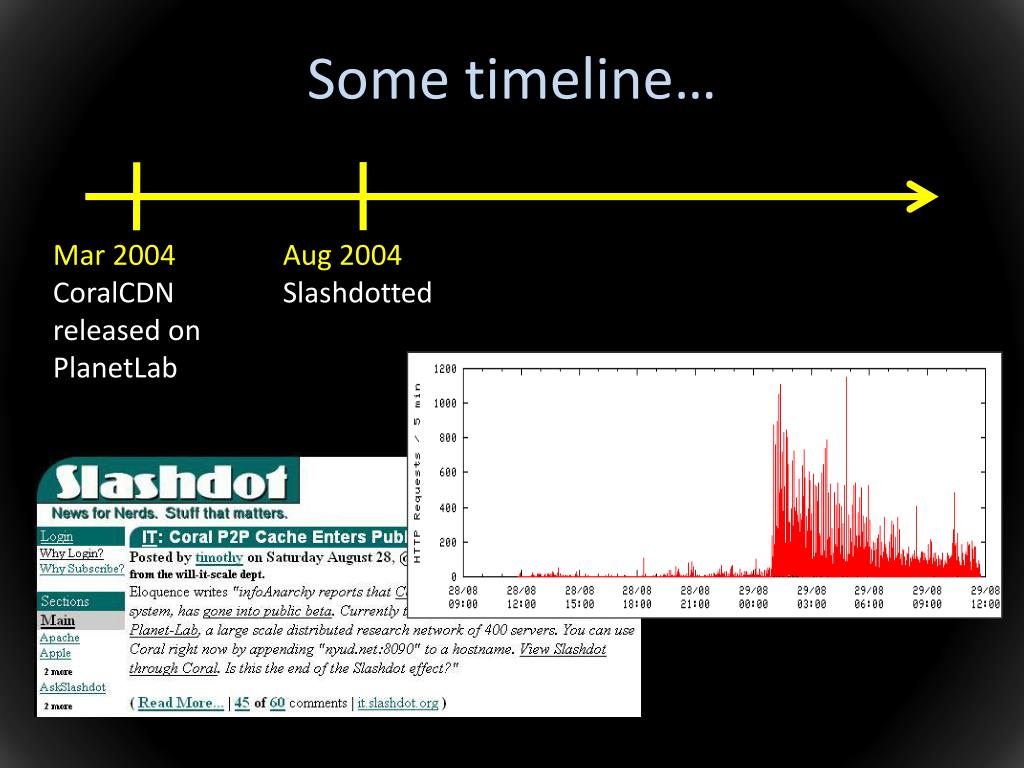

Some timeline…

Mar 2004

CoralCDN

released on

PlanetLab

Aug 2004

Slashdotted

some timeline29
Some timeline…

Mar 2004

CoralCDN

released on

PlanetLab

Aug 2004

Slashdotted

Dec 2004

Asian

Tsunami

PlanetLab traffic jumps

Site threatens to yank PL

PL admin kills slice

Slice restored next day

Initiates discussion of resource limits for slices

demand supply enter fair sharing algorithms

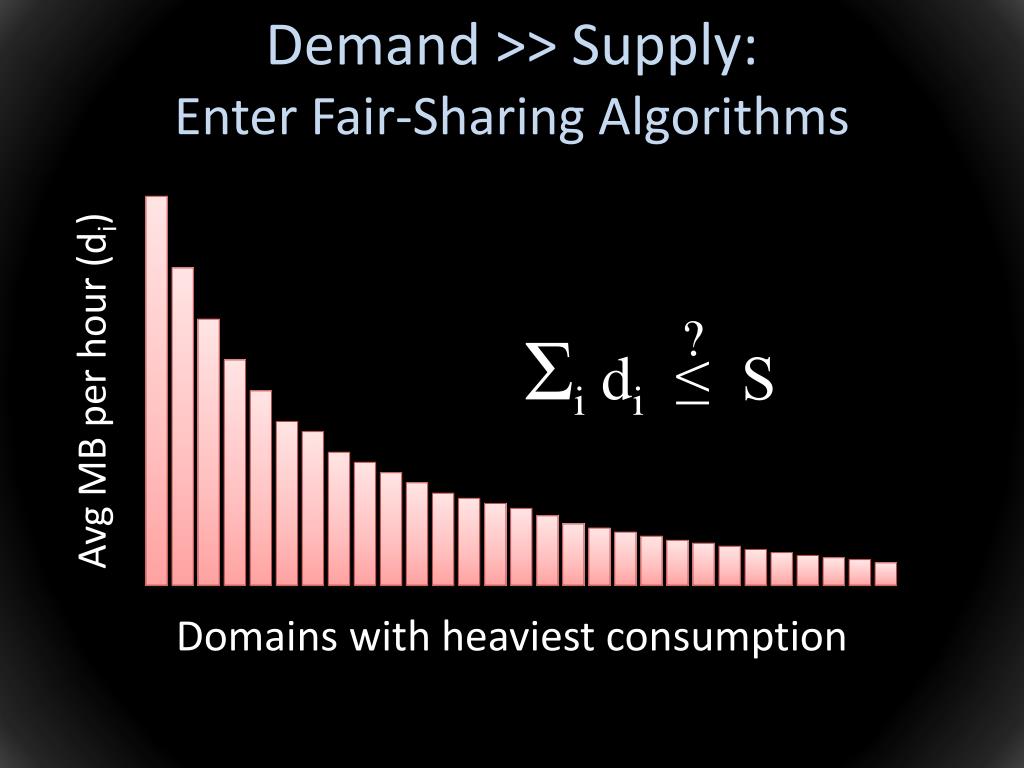

Demand >> Supply:Enter Fair-Sharing Algorithms

?

Σi di ≤ S

Avg MB per hour (di)

Domains with heaviest consumption

demand supply enter fair sharing algorithms31
Demand >> Supply:Enter Fair-Sharing Algorithms

find max λ, s.t.

Σimin (λ, di) ≤ S

λ

Avg MB per hour (di)

Domains with heaviest consumption

demand supply enter fair sharing algorithms32
Demand >> Supply:Enter Fair-Sharing Algorithms

find max λ, s.t.

Σimin (λ, di) ≤ S

λ

Domains with heaviest consumption

admission control under fair sharing
Admission Control under Fair-Sharing

~10 kB imgs

3.3% rejected

~5 MB videos

89% rejected

Demand > 10 TB Supply ≤ 2 TB

some timeline34

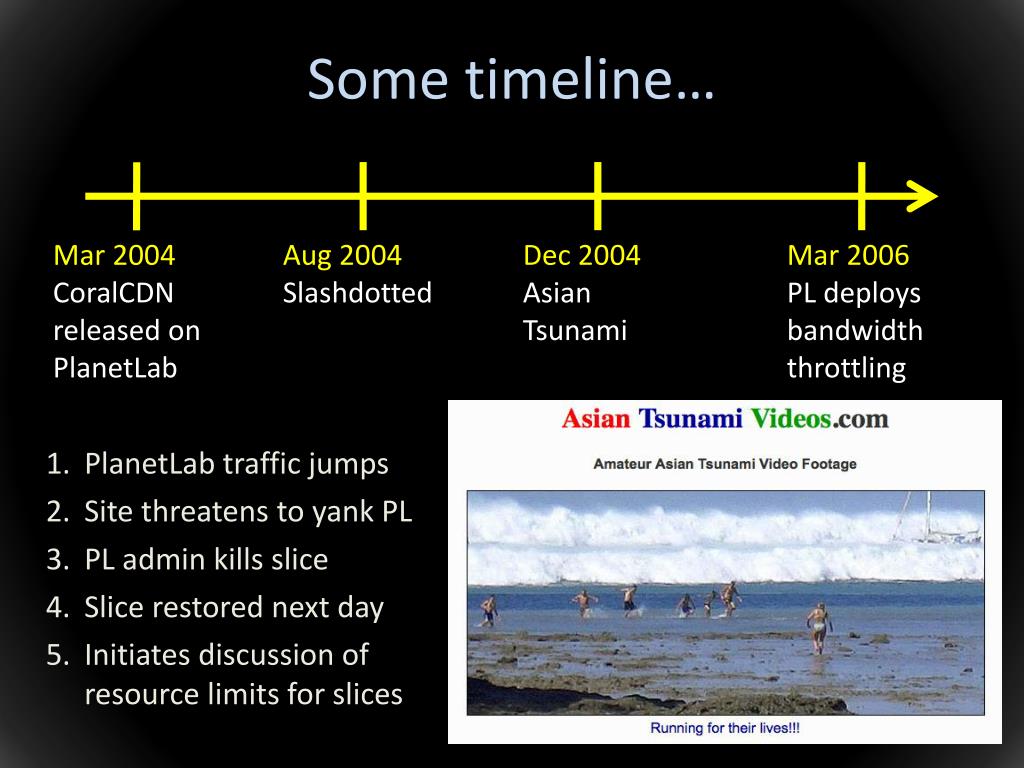

Some timeline…

Mar 2004

CoralCDN

released on

PlanetLab

Aug 2004

Slashdotted

Dec 2004

Asian

Tsunami

Mar 2006

PL deploys

bandwidth

throttling

PlanetLab traffic jumps

Site threatens to yank PL

PL admin kills slice

Slice restored next day

Initiates discussion of resource limits for slices

resource management us vs them
Resource Management: Us vs. Them

Application Hammer

Platform Hammer

Track all network traffic

If total > 80% daily rate, BW shaping in kernel

  • Track HTTP traffic
  • If site > fair share rate, reject via HTTP 403
  • If total > peak rate, close server socket
resource management us vs them36
Resource Management: Us vs. Them

Application Hammer

Track all network traffic

If total > 80% daily rate, BW shaping in kernel

Platform Hammer

  • Track HTTP traffic
  • If site > fair share rate, reject via HTTP 403
  • If total > peak rate, close server socket

Result: HTTP traffic is 1/2 - 2/3 of all traffic

Lower layers should expose greater

visibility and control over resources

slide37

Experiences

    • Naming
    • Fault Tolerance
    • Resource management
  • Revisit CoralCDN’s design
usage scenarios

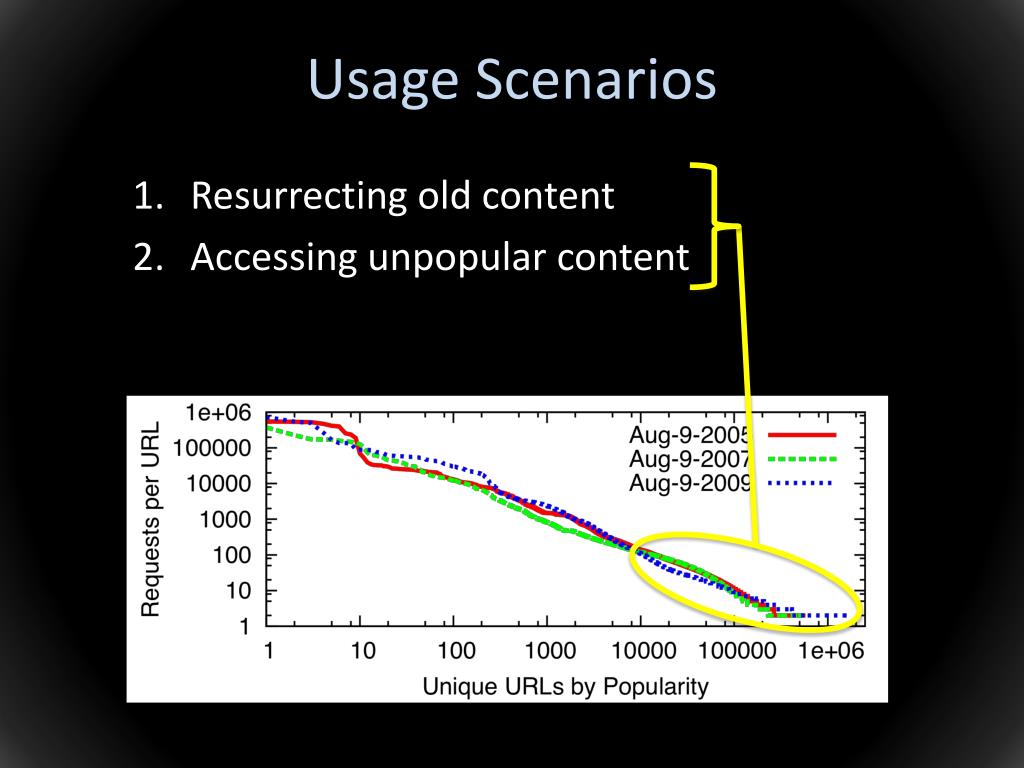

Usage Scenarios

Resurrecting old content

Accessing unpopular content

usage scenarios39
Usage Scenarios

Resurrecting old content

Accessing unpopular content

Serving long-term popular content

usage scenarios40
Usage Scenarios

Resurrecting old content

Accessing unpopular content

Serving long-term popular content

usage scenarios41

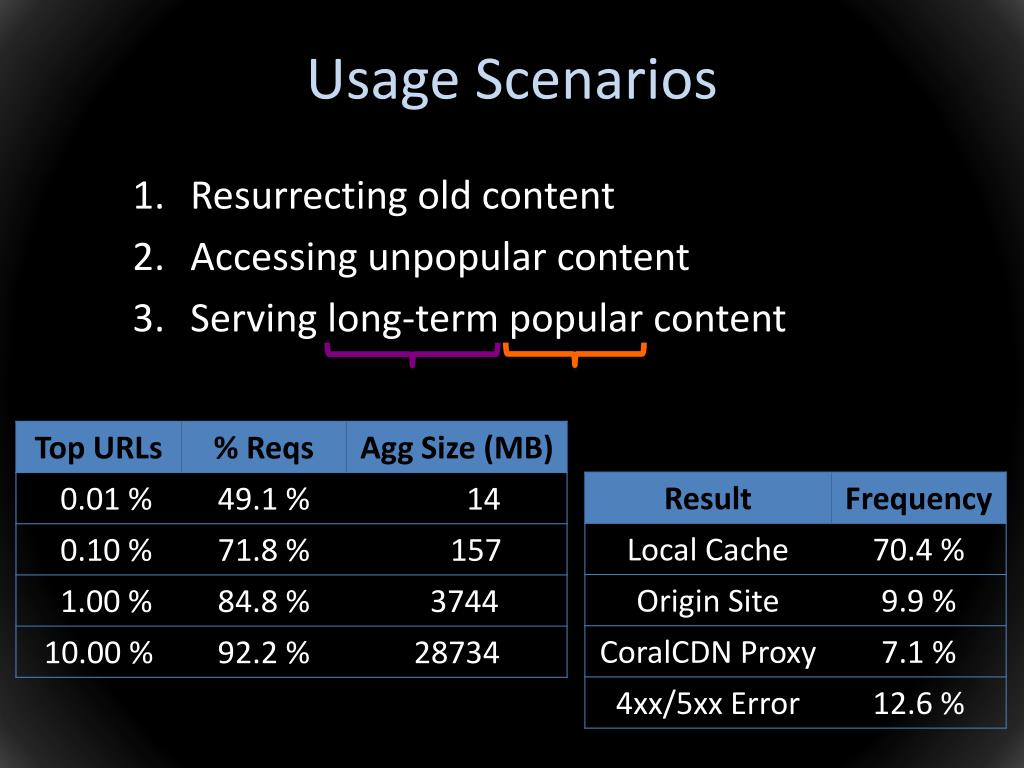

Usage Scenarios

Resurrecting old content

Accessing unpopular content

Serving long-term popular content

usage scenarios42
Usage Scenarios

Resurrecting old content

Accessing unpopular content

Serving long-term popular content

Surviving flash crowds to content

usage scenarios43
Usage Scenarios

Resurrecting old content

Accessing unpopular content

Serving long-term popular content

Surviving flash crowds to content

usage scenarios44
Usage Scenarios

5 second epochs

10 minute epochs

Resurrecting old content

Accessing unpopular content

Serving long-term popular content

Surviving flash crowds to content

conclusions
Conclusions?

Most requested content is long-term popular and already cached locally

“Flash” crowds occur, but on order of minutes

conclusions46
Conclusions?
  • Focus on long-term popular
  • Little / no HTTP cooperation
  • Global discovery (e.g., DNS)
  • Focus on flash crowds
  • Regional coop. as default
  • Global coop. as failover

Most requested content is long-term popular and already cached locally

“Flash” crowds occur, but on order of minutes

reconfiguring coralcdn s design
Reconfiguring CoralCDN’s design

Latency 90% Origin Load 5% Failover to global 0.5%

Leverage Coral hierarchy for lookup

reconfiguring coralcdn s design48

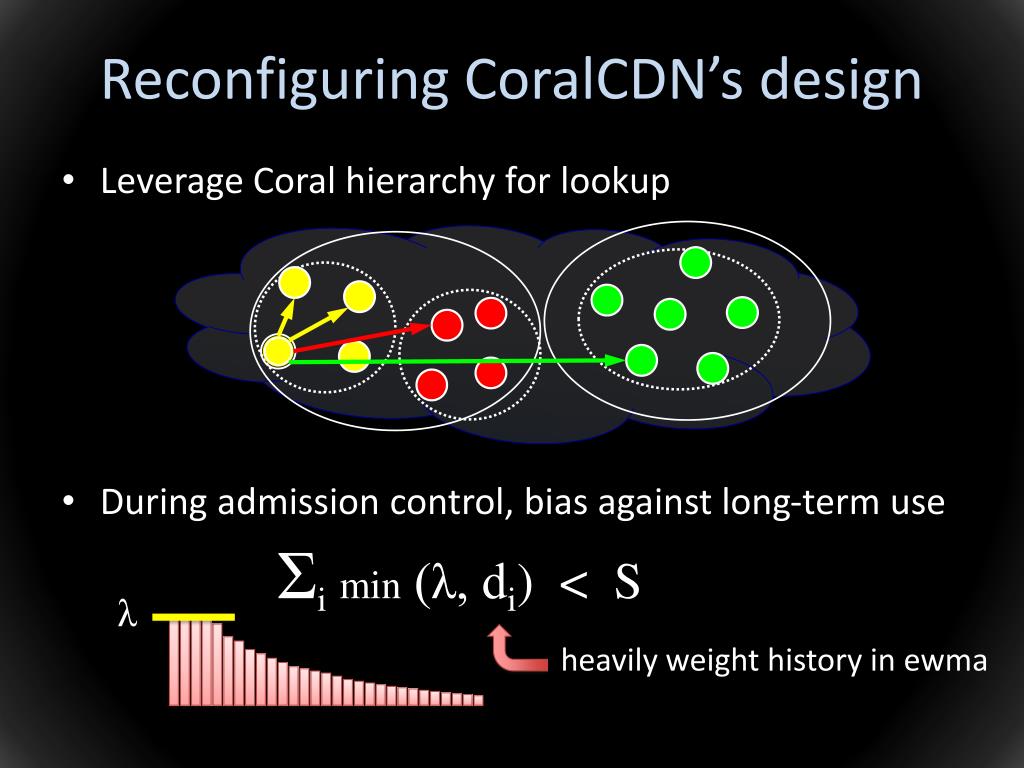

Reconfiguring CoralCDN’s design

Σimin (λ, di) < S

λ

heavily weight history in ewma

Leverage Coral hierarchy for lookup

During admission control, bias against long-term use

conclusions49

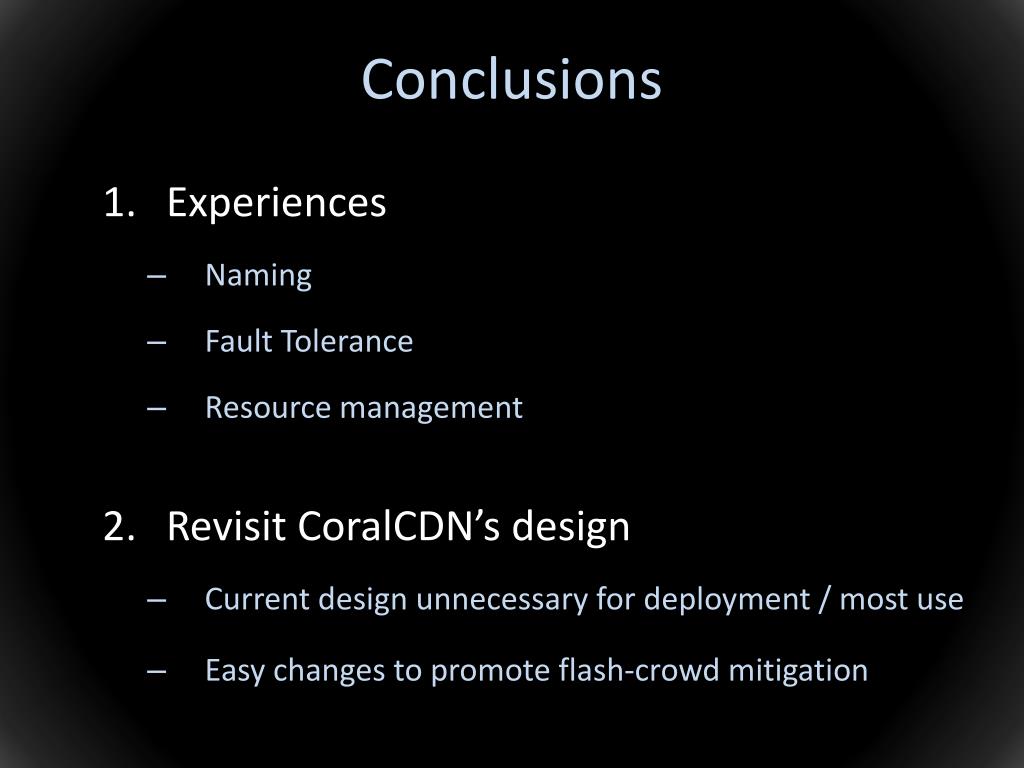

Conclusions
  • Experiences
    • Naming
    • Fault Tolerance
    • Resource management
  • Revisit CoralCDN’s design
    • Current design unnecessary for deployment / most use
    • Easy changes to promote flash-crowd mitigation
can we reach internet scale
Can we reach Internet scale?

www.firecoral.net

Initial beta-release

of browser-based P2P web cache
