  1. Transitioning from Algorithms to Software Thomas Kue Southern Arkansas University Dr. Ernst Leiss University of Houston REU Summer 2011

  2. Outline • VMM and the Memory Hierarchy Problem • The First Experiment • The Improved Algorithm • Results • Retesting the Algorithm • Revisiting Example: Adding Matrices • A Basic Algorithm • Adding Matrices: Summary • Providing Implementation • Results • Conclusion

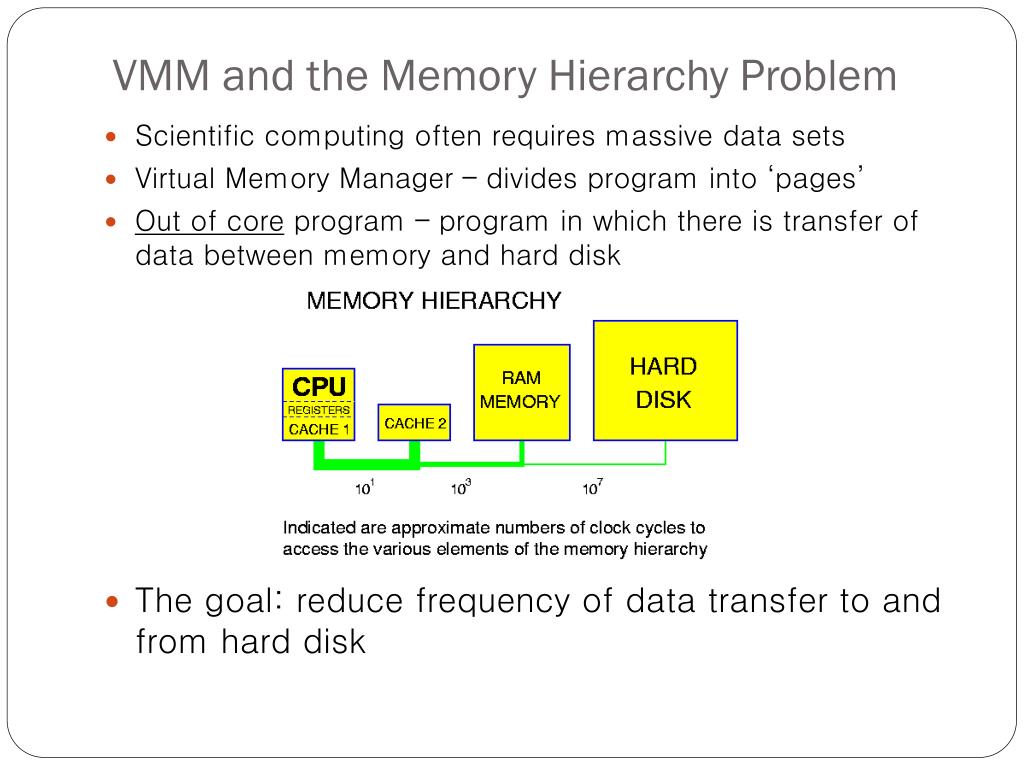

  3. VMM and the Memory Hierarchy Problem • Scientific computing often requires massive data sets • Virtual Memory Manager – divides program into ‘pages’ • Out of core program – program in which there is transfer of data between memory and hard disk • The goal: reduce frequency of data transfer to and from hard disk

  4. The First Experiment • We start with Algorithm 1: • Premise: • M is a zero n×n matrix larger than main memory. • A data item is a triple [i,j,x], where i and j (1≤i,j≤n) are row and column indices and x is a real value to be added to M • Each data item is randomly assigned • Because of this randomness, locality is poor • Algorithm Analysis shows the number of page swaps for Algorithm 1 is 9m/10, where m is the number of data items[Leiss, 2007]. while more input do{ read a triple [i,j,x]; M[i,j] := M[i,j] + x; }

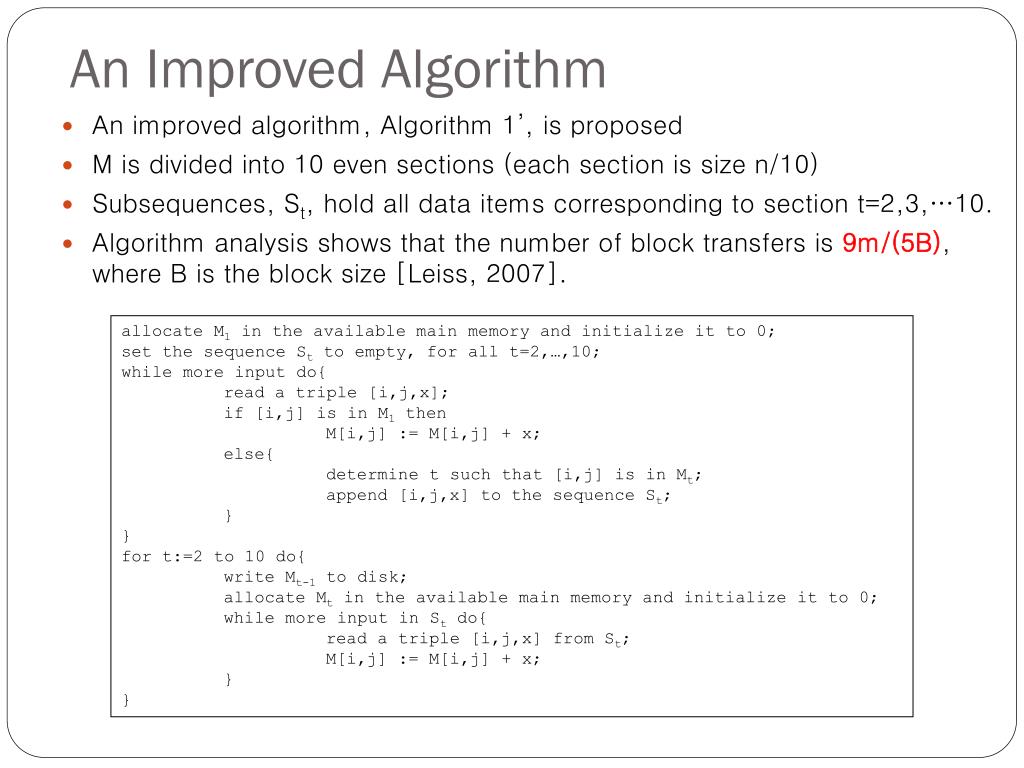

  5. An Improved Algorithm • An improved algorithm, Algorithm 1’, is proposed • M is divided into 10 even sections (each section is size n/10) • Subsequences, St, hold all data items corresponding to section t=2,3,…10. • Algorithm analysis shows that the number of block transfers is 9m/(5B), where B is the block size[Leiss, 2007]. • allocate M1 in the available main memory and initialize it to 0; • set the sequence St to empty, for all t=2,…,10; • while more input do{ • read a triple [i,j,x]; • if [i,j] is in M1 then • M[i,j] := M[i,j] + x; • else{ • determine t such that [i,j] is in Mt; • append [i,j,x] to the sequence St; • } • } • for t:=2 to 10 do{ • write Mt-1 to disk; • allocate Mt in the available main memory and initialize it to 0; • while more input in St do{ • read a triple [i,j,x] from St; • M[i,j] := M[i,j] + x; • } • }

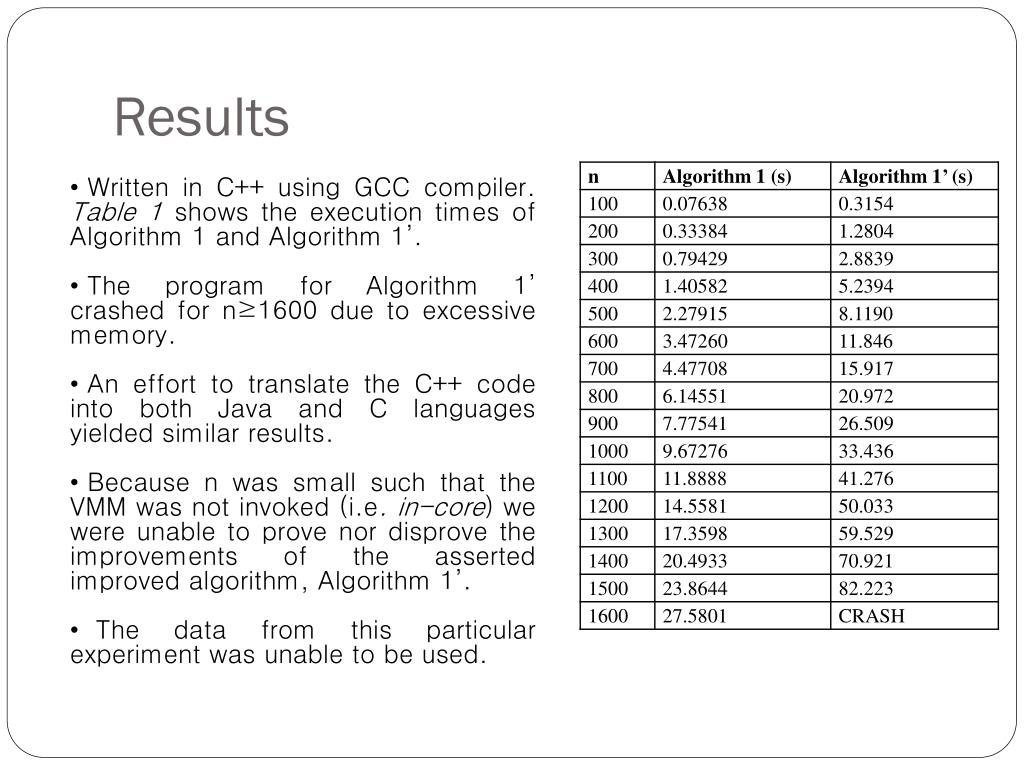

  6. Results • Written in C++ using GCC compiler. Table 1 shows the execution times of Algorithm 1 and Algorithm 1’. • The program for Algorithm 1’ crashed for n≥1600 due to excessive memory. • An effort to translate the C++ code into both Java and C languages yielded similar results. • Because n was small such that the VMM was not invoked (i.e. in-core) we were unable to prove nor disprove the improvements of the asserted improved algorithm, Algorithm 1’. • The data from this particular experiment was unable to be used.

  7. Algorithm 1 Retested • After the previous experiment failed to run properly, we set out to show the real problem of the original algorithm when transitioning from algorithms to software. • We set m=16000 × 16000 × 100 • In setting m constant, each experiment run will process the same amount of data items and should produce similar timings. • Seemingly good algorithms may not provide properly efficient implementation as anticipated • But do the proposed improved algorithms actually show improvements in implementation?

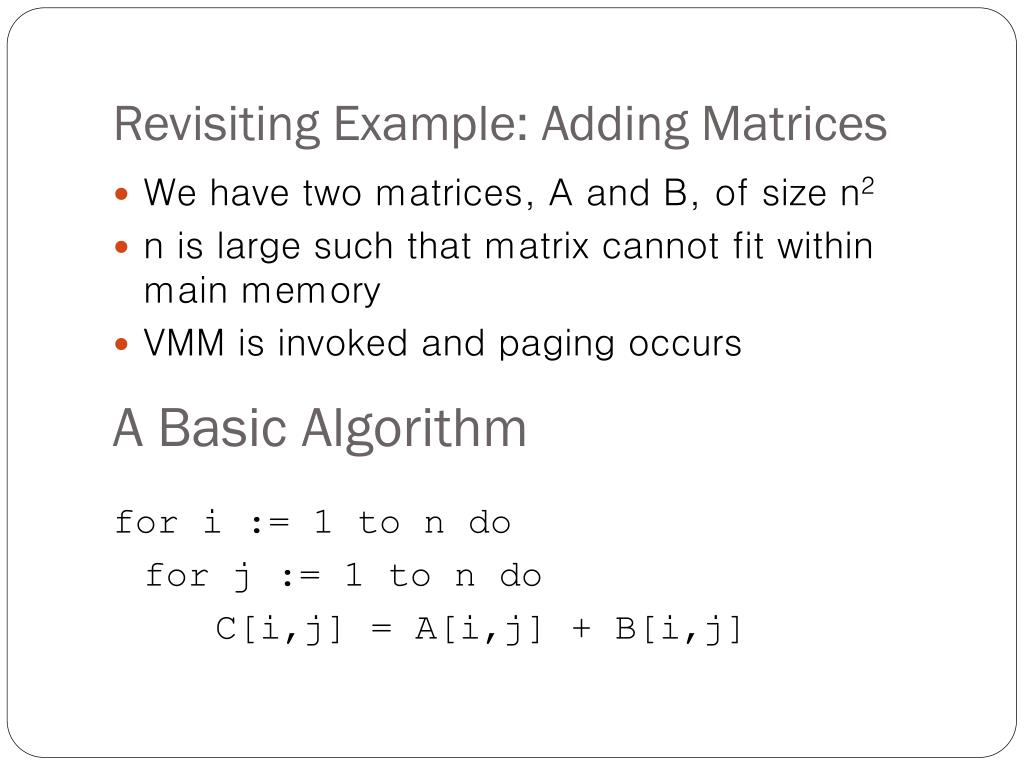

  8. Revisiting Example: Adding Matrices • We have two matrices, A and B, of size n2 • n is large such that matrix cannot fit within main memory • VMM is invoked and paging occurs A Basic Algorithm for i := 1 to n do for j := 1 to n do C[i,j] = A[i,j] + B[i,j]

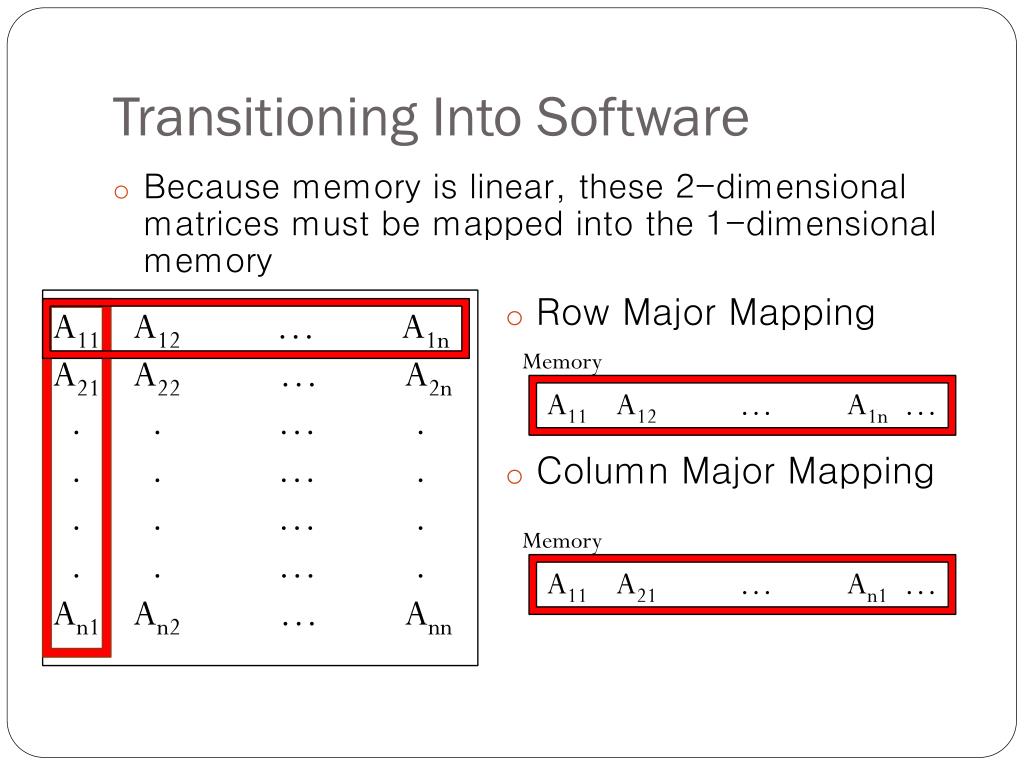

  9. Transitioning Into Software • Because memory is linear, these 2-dimensional matrices must be mapped into the 1-dimensional memory • Row Major Mapping • Column Major Mapping A11 A12 … A1n A21 A22 … A2n . . … . . . … . . . … . . . … . An1 An2 … Ann Memory A11 A12 … A1n … Memory A11 A21 … An1 …

  10. Problems Transitioning Into Software • Assume column major mapping • Assume one column = one page • Assume memory can hold three pages (1 from each matrix) Our basic algorithm: for i := 1 to n do for j := 1 to n do C[i,j] = A[i,j] + B[i,j] A11 A12 … A1n A21 A22 … A2n . . … . . . … . . . … . . . … . An1 An2 … Ann Memory A11 A21 … An1 A12 A22 … An2 • Total # of page swaps: 3n2

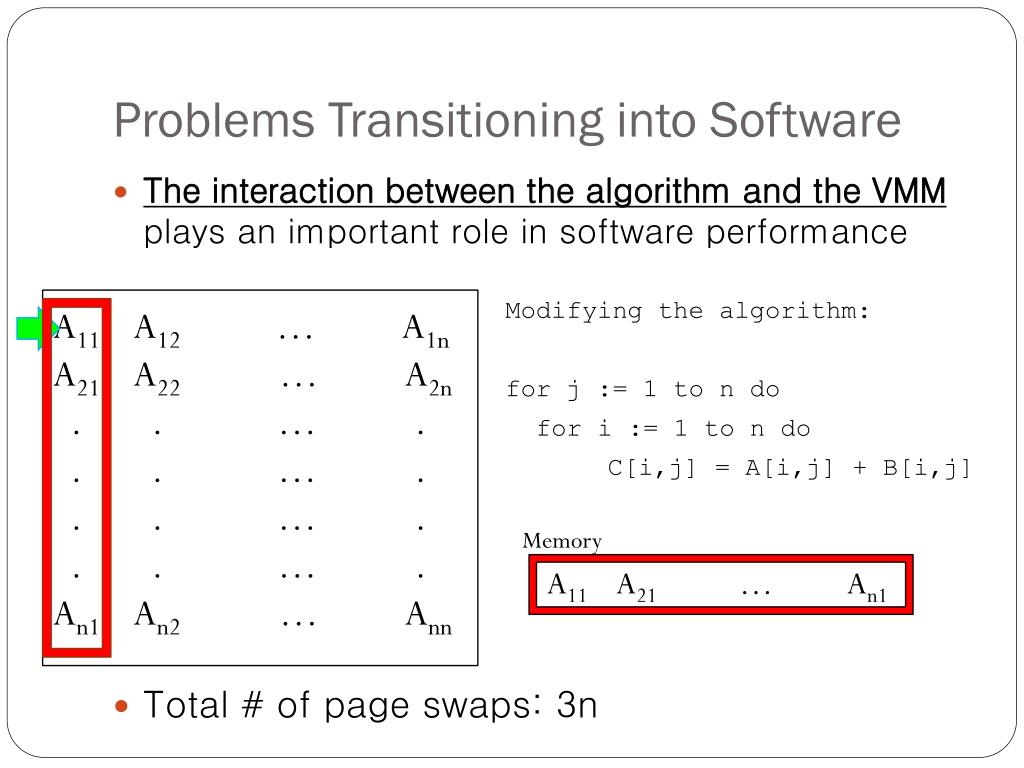

  11. Problems Transitioning into Software • The interaction between the algorithm and the VMM plays an important role in software performance Modifying the algorithm: for j := 1 to n do for i := 1 to n do C[i,j] = A[i,j] + B[i,j] A11 A12 … A1n A21 A22 … A2n . . … . . . … . . . … . . . … . An1 An2 … Ann Memory A11 A21 … An1 • Total # of page swaps: 3n

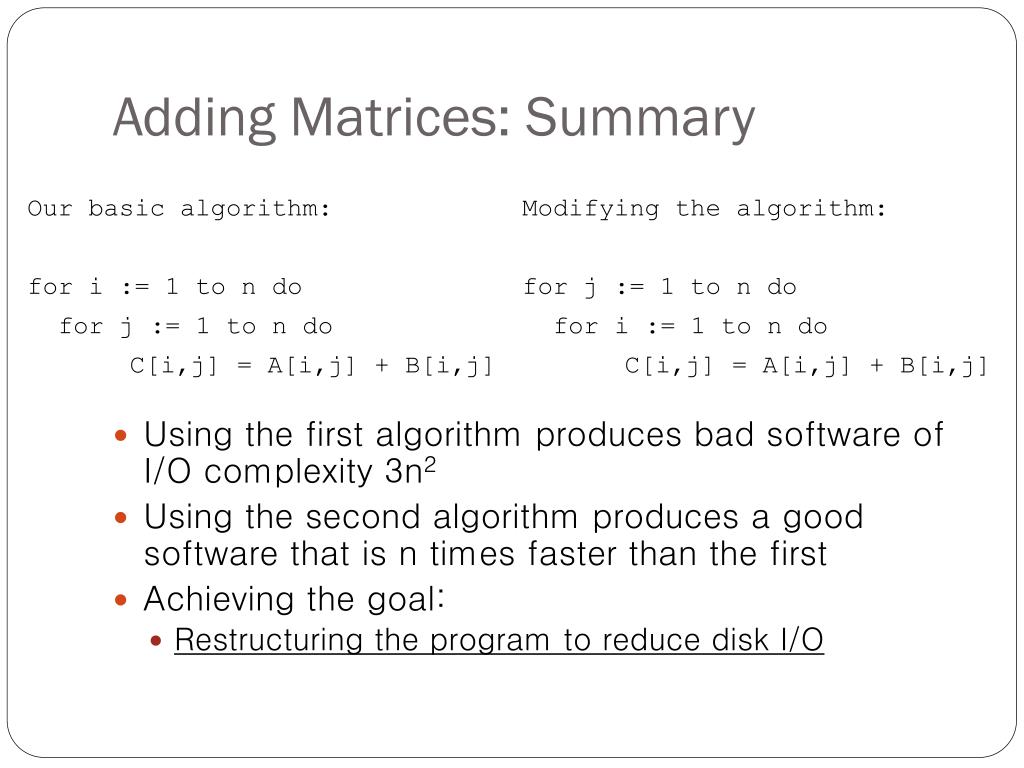

  12. Adding Matrices: Summary • Using the first algorithm produces bad software of I/O complexity 3n2 • Using the second algorithm produces a good software that is n times faster than the first • Achieving the goal: • Restructuring the program to reduce disk I/O • Our basic algorithm: • for i := 1 to n do • for j := 1 to n do • C[i,j] = A[i,j] + B[i,j] Modifying the algorithm: for j := 1 to n do for i := 1 to n do C[i,j] = A[i,j] + B[i,j]

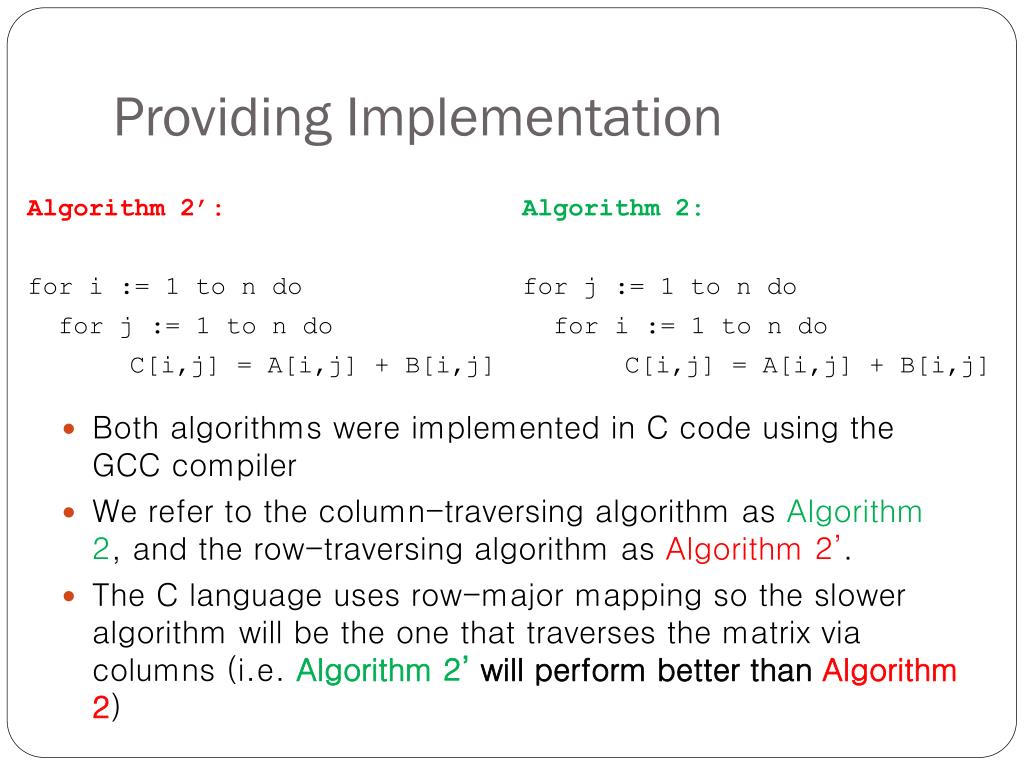

  13. Providing Implementation • Both algorithms were implemented in C code using the GCC compiler • We refer to the column-traversing algorithm as Algorithm 2, and the row-traversing algorithm as Algorithm 2’. • The C language uses row-major mapping so the slower algorithm will be the one that traverses the matrix via columns (i.e. Algorithm 2’ will perform better than Algorithm 2) • Algorithm 2’: • for i := 1 to n do • for j := 1 to n do • C[i,j] = A[i,j] + B[i,j] Algorithm 2: for j := 1 to n do for i := 1 to n do C[i,j] = A[i,j] + B[i,j]

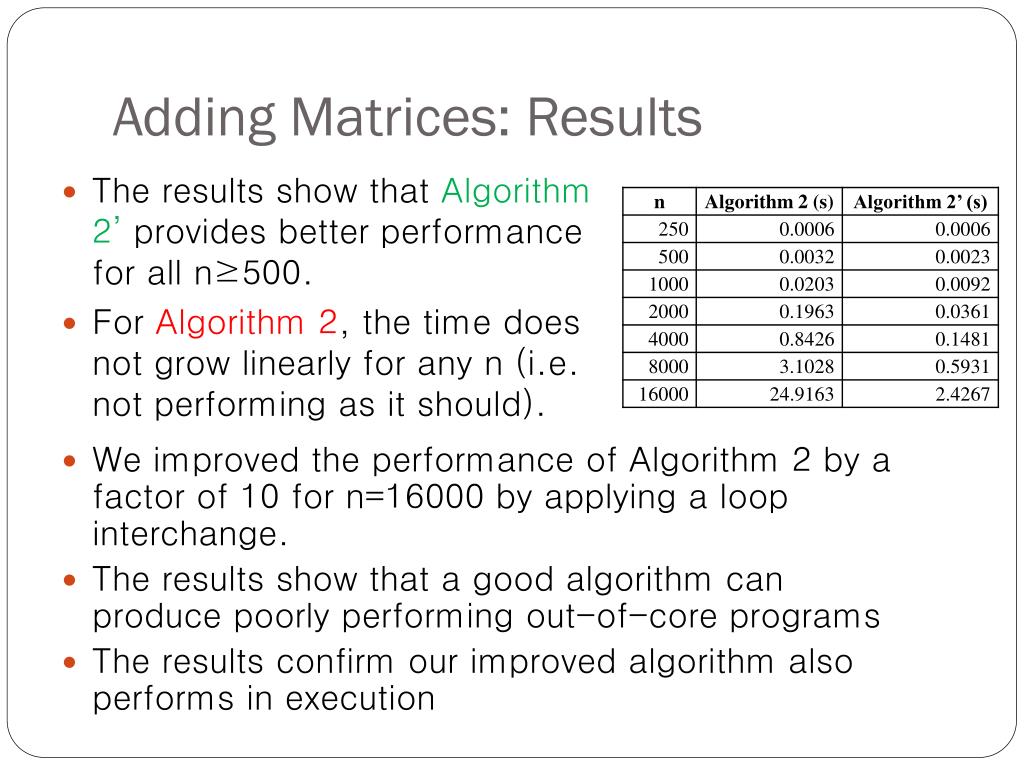

  14. Adding Matrices: Results • The results show that Algorithm 2’ provides better performance for all n≥500. • For Algorithm 2, the time does not grow linearly for any n (i.e. not performing as it should). • We improved the performance of Algorithm 2 by a factor of 10 for n=16000 by applying a loop interchange. • The results show that a good algorithm can produce poorly performing out-of-core programs • The results confirm our improved algorithm also performs in execution

  15. Conclusion • Algorithms can produce poorly performing out of core programs. • The performance of out-of-core programs can be improved via loop transformations using information from algorithm and dependence analysis. • Using this information, it is intended that a tool be developed that automatically utilizes the methods discussed in this project to improve the performance of out-of-core applications.

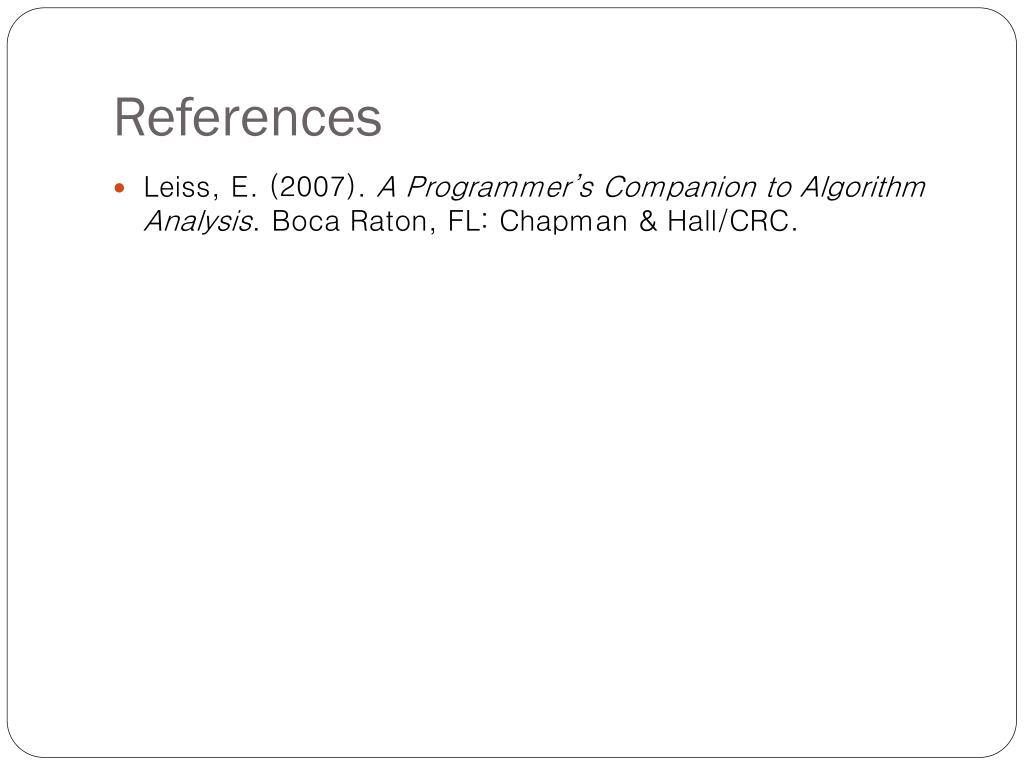

  16. References • Leiss, E. (2007). A Programmer’s Companion to Algorithm Analysis. Boca Raton, FL: Chapman & Hall/CRC.
