  1. Invensys Platform and InTouch Implementations, PG & E, Diablo Canyon Nuclear Plant OXNU132 Presented by Kris D. Jentzsch Project Engineer, PG&E DCPP November 8, 2011

  2. Pillars of Operational Excellence and Focus of This Discussion Operational Excellence Level 3 (Multi-plant/Multi-site) Environment And Safety People Level 2 (Plant Floor/Area) Asset Level 1 (Resource/Asset) Control

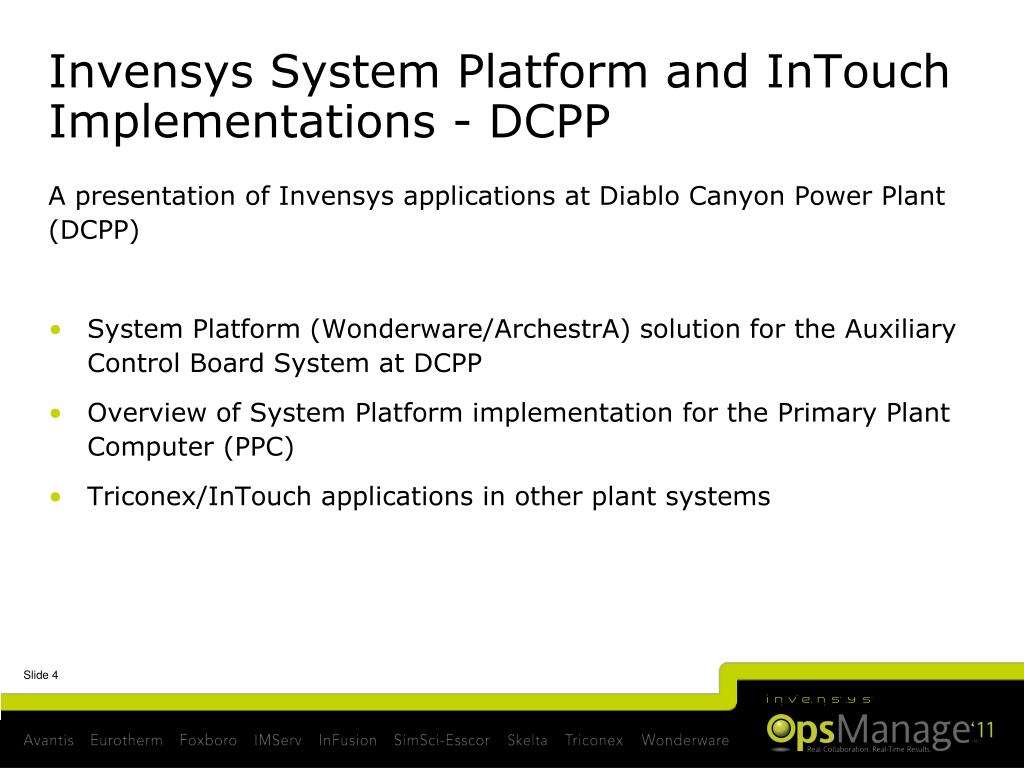

  3. Invensys System Platform and InTouch Implementations - DCPP • A presentation of Invensys applications at Diablo Canyon Power Plant (DCPP) • System Platform (Wonderware/ArchestrA) solution for the Auxiliary Control Board System at DCPP • Overview of System Platform implementation for the Primary Plant Computer (PPC) • Triconex/InTouch applications in other plant systems

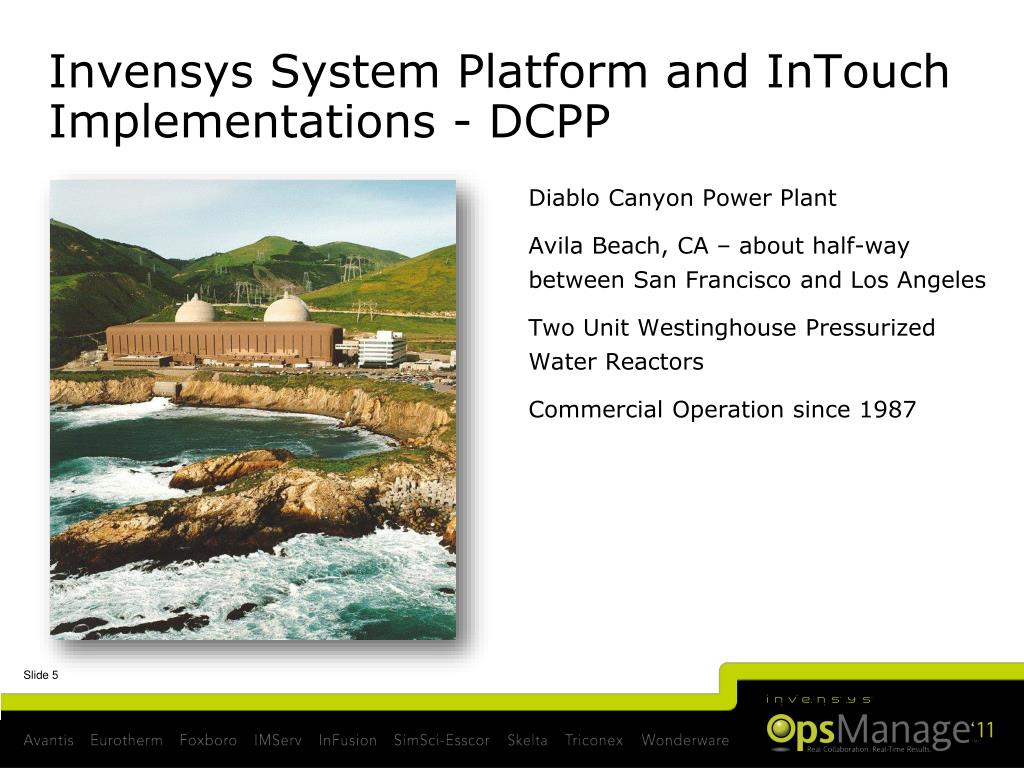

  4. Invensys System Platform and InTouch Implementations - DCPP Diablo Canyon Power Plant Avila Beach, CA – about half-way between San Francisco and Los Angeles Two Unit Westinghouse Pressurized Water Reactors Commercial Operation since 1987

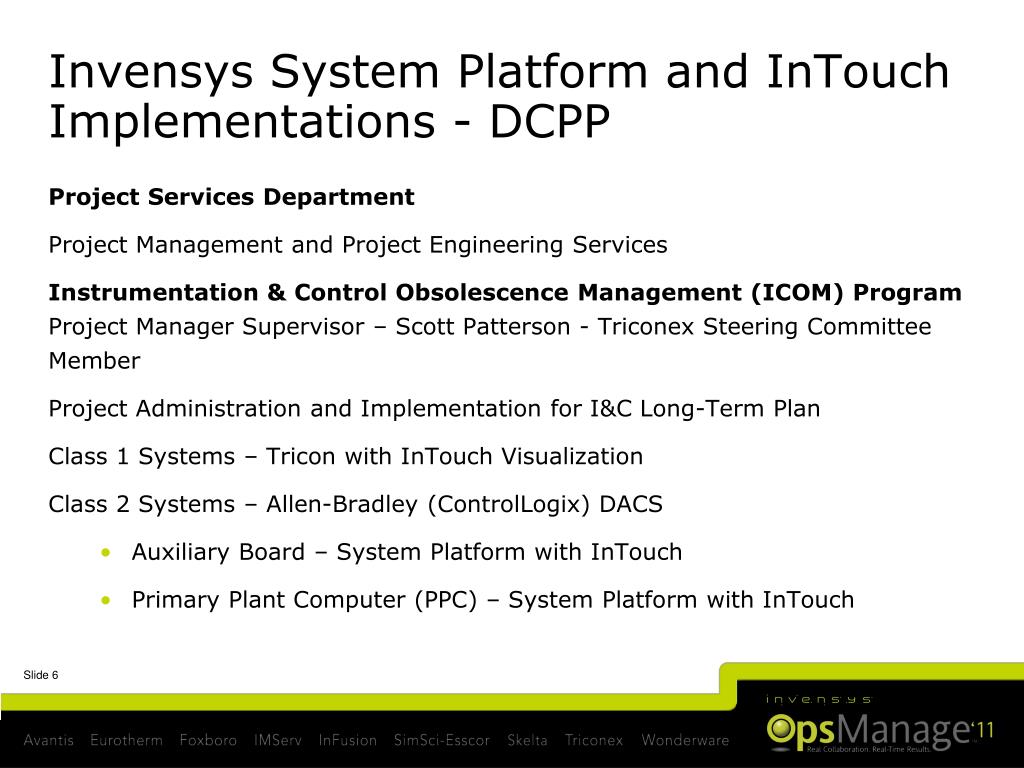

  5. Invensys System Platform and InTouch Implementations - DCPP • Project Services Department • Project Management and Project Engineering Services • Instrumentation & Control Obsolescence Management (ICOM) ProgramProject Manager Supervisor – Scott Patterson - Triconex Steering Committee Member • Project Administration and Implementation for I&C Long-Term Plan • Class 1 Systems – Tricon with InTouch Visualization • Class 2 Systems – Allen-Bradley (ControlLogix) DACS • Auxiliary Board – System Platform with InTouch • Primary Plant Computer (PPC) – System Platform with InTouch

  6. Auxiliary Board Project • Auxiliary Board Operation • Plant Operators control the gathering, treatment, and discharge of hazardous waste products created during operation of the DCPP U1 and U2 power plants. • Liquid Radwaste System (LRW) collects and processes the radioactive liquid wastes generated during plant operation. • Gaseous Radwaste System (GRW) collects and processes the radioactive gaseous wastes generated during plant operation. • Chemical and Volume Control System (CVCS) collects and processes borated radioactive effluents from the Reactor Coolant System. • Reduces the activity to levels acceptable for discharge to the environment.

  7. Auxiliary Board Project • Originally a Fluidic Logic controlled system • Discrete pneumatic NAND devices • Negative Logic • Components Obsolete in early 90’s • Control System lacking in Human Performance factors design • Piecemeal changes during construction and early years of operation

  8. Auxiliary Board Project GRW Console LRW Console

  9. Auxiliary Board Project

  10. Auxiliary Board Project Challenges Hardware Implementation Retrofit to existing panels Operational Needs Wiring Issues Interface to other obsolete components Interface to existing pneumatic devices No infrastructure for communication devices Software Implementation Soft Controls Human Performance Factors Operator Obsolescence Display of Information Alarming Schemes Site Policies and Operating Procedures Maintenance Interfaces

  11. Auxiliary Board Project Solution • Data Acquisition and Control • Allen-Bradley ControlLogix • Small Footprint for retrofitting panels • Available Redundancy Operation • Versatile Interfaces to existing plant components • Vendor Network for communication between chassis • Ethernet Communication to System Platform • Invensys System Platform • Redundant Application Object Servers (10.1 SP2) • Historian (10.0) • InTouch Operator Interface (10.1) • Historian Client (Active Factory) Trending (10.0) • Interface to Plant Data Network (PDN) • Ethernet Communications

  12. Auxiliary Board Project Solution

  13. Auxiliary Board Project Leveraging Graphics Vector-Based Graphics can be used to your advantage to address Human Performance Factors Make on-screen icons to represent plant components as accurately as possible Provides Operator familiarity and comfort Recognizable Graphics designed from Vendor manuals or from digital photos

  14. Leveraging Graphics

  15. Leveraging Graphics On Screen Displays representing plant components as accurately as possible

  16. Leveraging Graphics On Screen Displays representing plant components as accurately as possible

  17. Leveraging Graphics - Operator Comfort Virtual Protective Plexiglass Cover

  18. Leveraging Graphics - Operator Comfort

  19. Leveraging Graphics - Operator Comfort

  20. Leveraging Graphics – RFS/RTS Removal from Service/Return to Service (RFS/RTS) of Components for Maintenance

  21. Leveraging Graphics – RFS/RTS

  22. Leveraging Graphics – RFS/RTS

  23. Leveraging Graphics – RFS/RTS

  24. Leveraging Graphics – Status Displays

  25. Leveraging Graphics – Status Displays

  26. Auxiliary Board Project Then Now

  27. PPC System Platform Plant Processing Computer (PPC) Monitoring System for Main Control Room – no Controls ControlLogix DACS – approx 1500 points/Unit Redundant Application Object Servers (10.1) Complex Calculation Applications – Leak Rates, Reactor Power INSQL Historian (9.0) InTouch Operator Interface (10.1) Active Factory Trending (9.2) Interface to multiple plant system Ethernet Communications

  28. Wonderware InTouch Apps Main Turbine Control System (MTCS) Maintenance Terminal and Control Operator Interface MSR Controller (part of MTCS) Interface to a Tricon Feedwater Control System Maintenance Terminal, Control Operator Interface, and Control Board Display Interface to Tricon Feedpump and Main Turbine Vibration Control Board Display Interface to a Bently Nevada 3500 Vibration System Instrument Rack Maintenance Terminal About 100 instrument loops Interface to a Tricon Aux and Fuel Handling Bldg Ventilation Control System Maintenance Terminals and Control Board Display Interface to a Tricon

  29. Thank You!Questions
