Presentation Transcript
vdt occupational ergonomics objectives
VDTOCCUPATIONAL ERGONOMICSObjectives
  • Identify and Evaluate the Ergonomic Risk Factors Associated With VDT Environments
  • Develop Effective Engineering and Administrative Controls to Minimize Exposures Associated With VDT Environments
current vdt issues

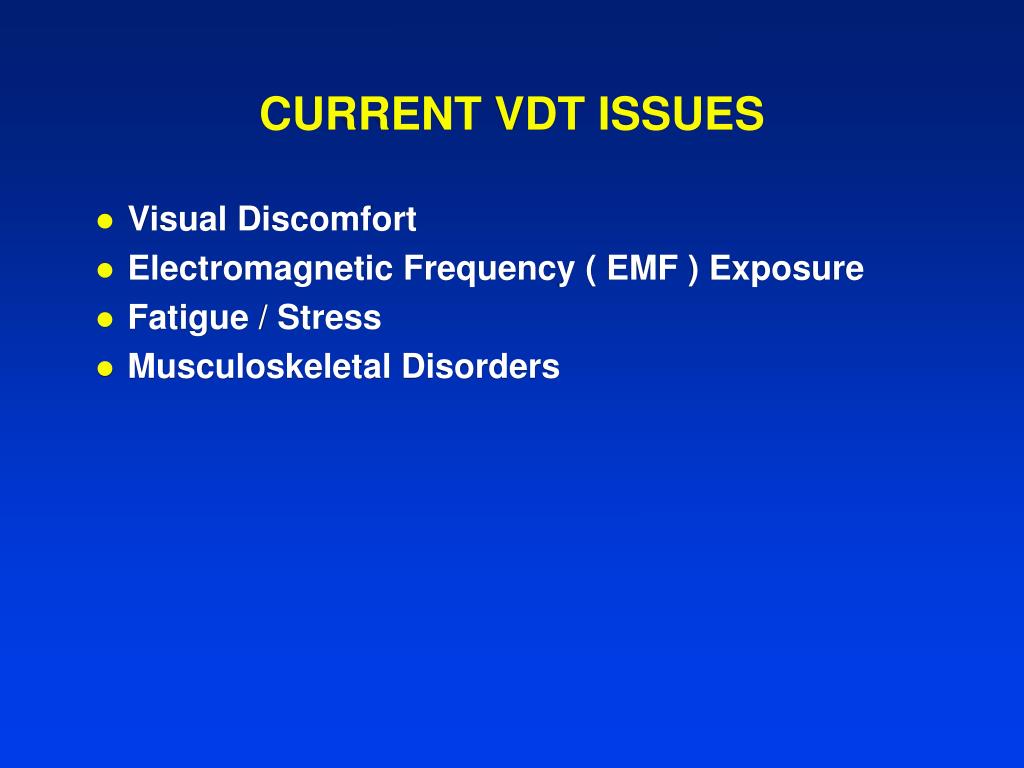

CURRENT VDT ISSUES
  • Visual Discomfort
  • Electromagnetic Frequency ( EMF ) Exposure
  • Fatigue / Stress
  • Musculoskeletal Disorders
visual discomfort complaints
VISUAL DISCOMFORTComplaints
  • Eye Strain - Largest Single Complaint
  • Burning / Itching Eyes
  • Headaches
  • Cataracts
visual discomfort causes
VISUAL DISCOMFORTCauses
  • Eye Muscle Strain / Fatigue
  • Dry Eyes
  • Uncorrected Vision Problems
  • Vision Correcting Eyewear - Focusing Difficulties
  • Possible Indoor Air Quality ( IAQ ) Relationship

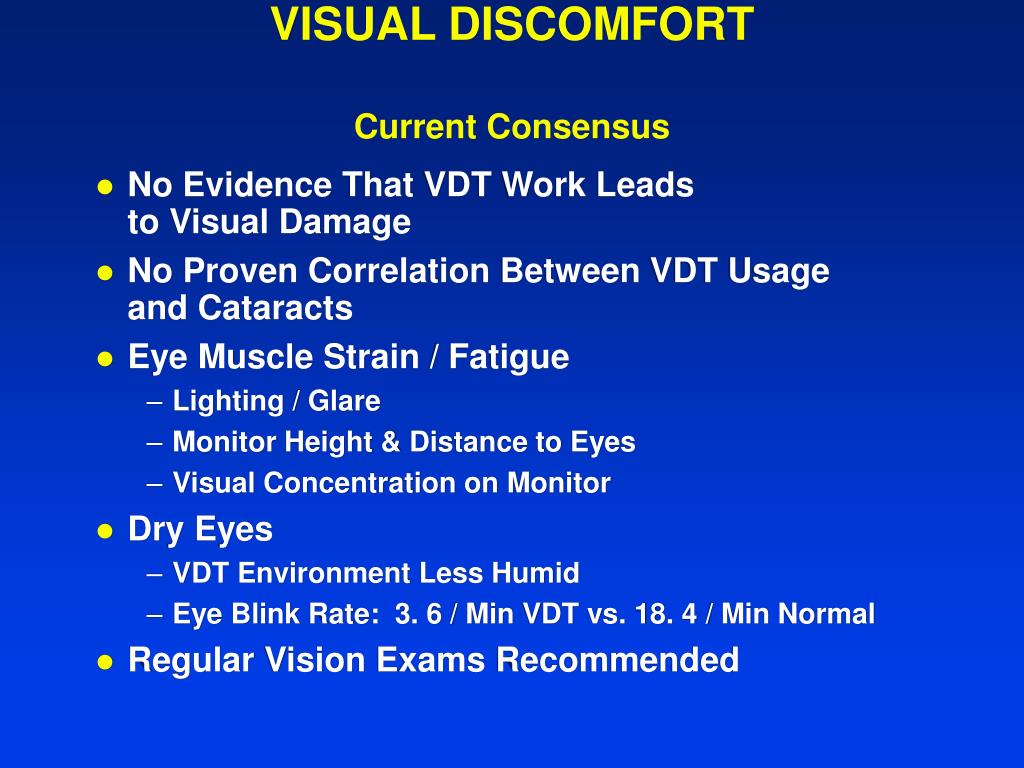

visual discomfort current consensus
VISUAL DISCOMFORTCurrent Consensus
  • No Evidence That VDT Work Leads to Visual Damage
  • No Proven Correlation Between VDT Usageand Cataracts
  • Eye Muscle Strain / Fatigue
    • Lighting / Glare
    • Monitor Height & Distance to Eyes
    • Visual Concentration on Monitor
  • Dry Eyes
    • VDT Environment Less Humid
    • Eye Blink Rate: 3. 6 / Min VDT vs. 18. 4 / Min Normal
  • Regular Vision Exams Recommended

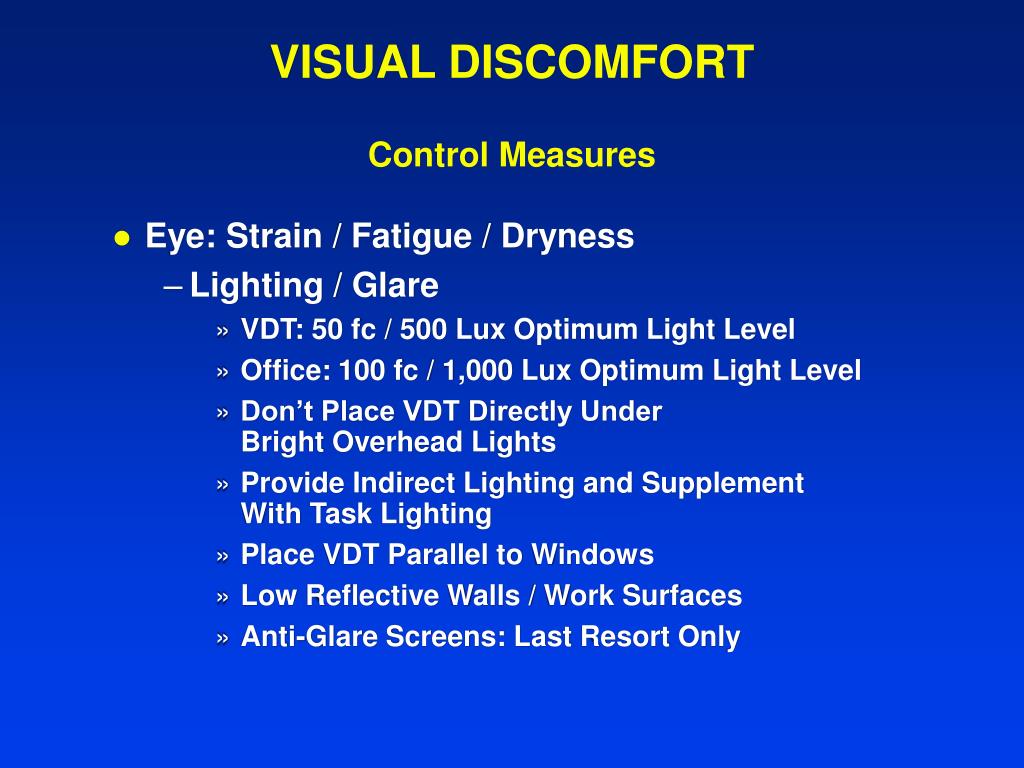

visual discomfort control measures
VISUAL DISCOMFORTControl Measures
  • Eye: Strain / Fatigue / Dryness
    • Lighting / Glare
      • VDT: 50 fc / 500 Lux Optimum Light Level
      • Office: 100 fc / 1,000 Lux Optimum Light Level
      • Don’t Place VDT Directly Under Bright Overhead Lights
      • Provide Indirect Lighting and Supplement With Task Lighting
      • Place VDT Parallel to Windows
      • Low Reflective Walls / Work Surfaces
      • Anti-Glare Screens: Last Resort Only
visual discomfort control measures1
VISUAL DISCOMFORTControl Measures
  • Eye: Strain / Fatigue / Dryness
    • Ensure Monitor Display Quality
      • No Apparent Flicker (Older Monitors)
      • Adjustable Brightness and Contrast
      • High Resolution and Polarity
    • Adjust Monitor Height and Distance
      • Top Character Line on Screen 15 - 20 DegreesBelow Horizontal Eye Level & Monitor Angled Appropriately Upward
      • Eye to Screen Distance 20”- 40” ( Operator Preference Studies 25. 5”- 31” )
visual discomfort control measures2
VISUAL DISCOMFORTControl Measures
  • Eye: Strain / Fatigue / Dryness
    • Eye Focusing / Muscle Defatigue Exercises
      • 1 Min. Rest / Exercise Break ( Focus / Refocus ) After 15 Min. Continuous VDT Work
    • Remember to Blink Eyes Frequently
      • > 18 Blinks / Min. Minimum to Refresh Eyes
    • Contact Lens Wearers Should SupplementOwn Tears Via Eye / Rewetting Drops
visual discomfort control measures3
VISUAL DISCOMFORTControl Measures
  • Vision / Eyewear
    • Regular Eye Exams
      • New Hire / Transfer
      • Annual
    • VDT Specific Corrective Lenses
      • Fixed Focal Length
      • No Bi / Tri-Focals
    • Inform Optometrist / Ophthalmologist of VDT Work and Eye / Screen Distance
      • Some VDT Users May Need a Correction Diff.From One Needed For Reading / Driving

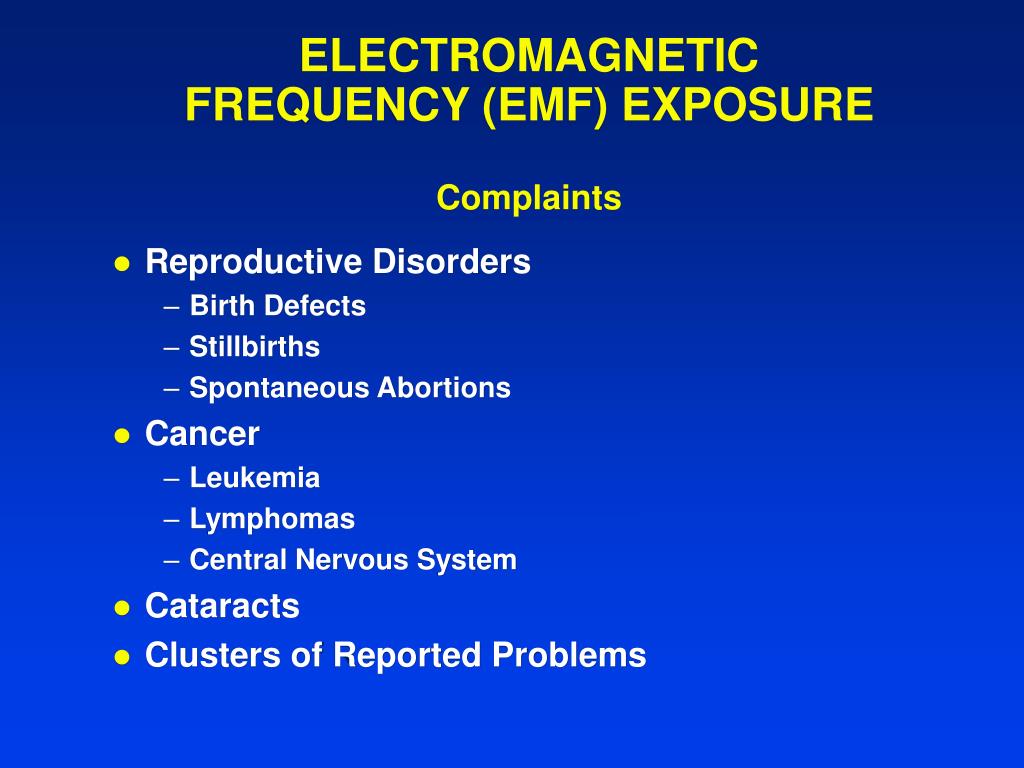

electromagnetic frequency emf exposure complaints
ELECTROMAGNETICFREQUENCY (EMF) EXPOSUREComplaints
  • Reproductive Disorders
    • Birth Defects
    • Stillbirths
    • Spontaneous Abortions
  • Cancer
    • Leukemia
    • Lymphomas
    • Central Nervous System
  • Cataracts
  • Clusters of Reported Problems
emf exposure concerns
EMF EXPOSUREConcerns
  • EMF Radiation ?
    • Ionizing
      • X-Ray
    • Non-Ionizing
      • Infrared
      • Microwave
      • Radiowave
      • VLF
      • ELF
  • Or Are Other Factors the Real Issue ?
emf exposure current consensus
EMF EXPOSURECurrent Consensus
  • Recent Studies Conclude: Emissions of All Types of EMFs Are Well Below Accepted Occupational and Environmental Health and Safety Limits
  • No Direct Causal Link Established BetweenVDT Use and Reproductive Disorders, Canceror Cataract Formation
  • Other Factors ( Smoking, Alcohol, Drugs, Age,Socioeconomic Status, etc. ) Have a Greater Known Effect
  • Work Stress May be a Factor
  • More Research Needed / Ongoing to Determine Correlational / Causal Links
emf exposure control measures
EMF EXPOSUREControl Measures
  • Monitor / CPU Position
    • Front: Min. 12” Away = < 1 milligauss (mG)
    • Rear: Min. 24” Away = < 1 milligauss (mG)
      • Essentially “ 0 ” Exposure
  • Minimize Exposure to Known Reproductive and Carcinogenic Risk Factors
    • Smoking, Alcohol & Drugs
  • Workstation and Job Task Design / Redesignto Minimize Work Stress and Maximize Comfort Level
fatigue stress complaints
Fatigue / StressComplaints
  • Generalized Aches and Pains
  • Constant Fatigue
  • Sleeping / Eating Disorders
  • Increased Reliance Upon Coping Mechanisms
    • Smoking, Alcohol & Drugs
  • Ulcers
  • High Blood Pressure
  • Coronary Heart / Artery Disease
fatigue stress causes
Fatigue / StressCauses
  • Anxiety About Job Security
  • Anxiety About Ability to Operate Equipment
    • Computer Phobia
  • Job Ambiguities
  • Perceived Lack of Control Over Job
  • Concerns About Productivity
  • Shiftwork / OT / Repetitive Work
  • Co-worker / Supervisor / Personal Issues
  • Workstation Design / Layout
fatigue stress current consensus

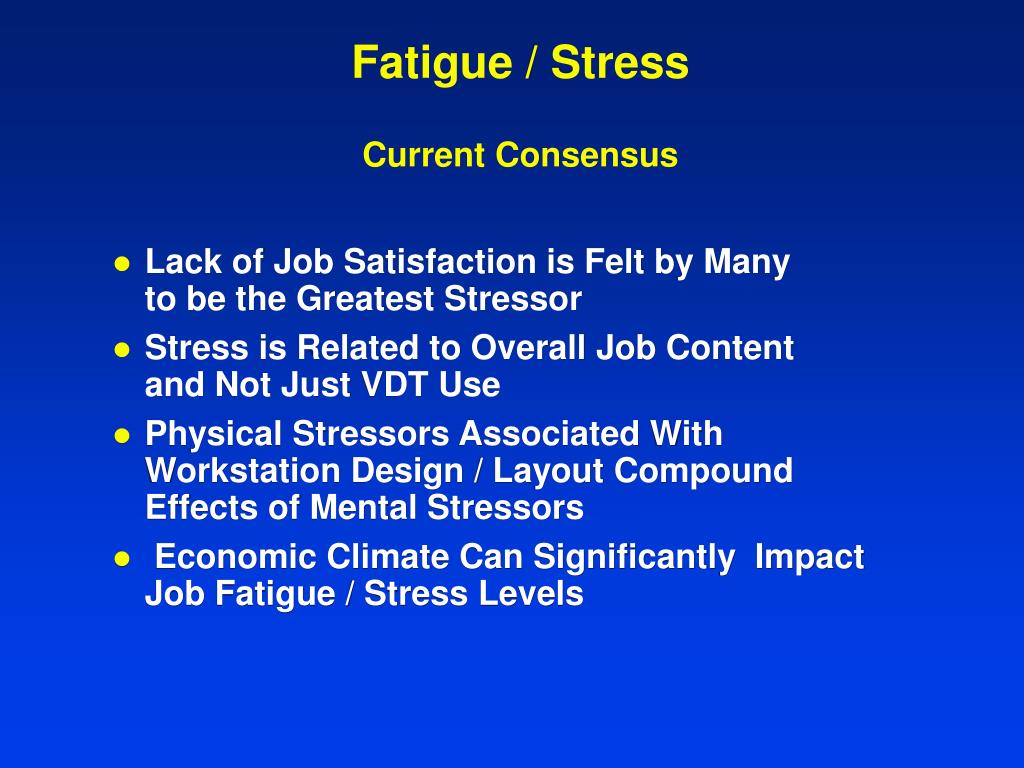

Fatigue / StressCurrent Consensus
  • Lack of Job Satisfaction is Felt by Manyto be the Greatest Stressor
  • Stress is Related to Overall Job Contentand Not Just VDT Use
  • Physical Stressors Associated With Workstation Design / Layout Compound Effects of Mental Stressors
  • Economic Climate Can Significantly Impact Job Fatigue / Stress Levels
fatigue stress control measures
Fatigue / StressControl Measures
  • Design / Redesign Jobs to IncreaseEmployee Control and Involvement
  • Keep Employees Informed About Job Status, Anticipated Changes andProgress in Achieving Goals
  • Provide Ergonomically Well-DesignedWorkstations
  • Train Employees in Proper Adjustment of Workstation Features
  • Promote On / Off Job Wellness Programs
musculoskeletal disorders complaints
Musculoskeletal DisordersComplaints
  • # 1 - Neck / Shoulder Pain
  • # 2 - Low Back Pain
  • # 3 - CTS / Wrist Pain
musculoskeletal disorders causes

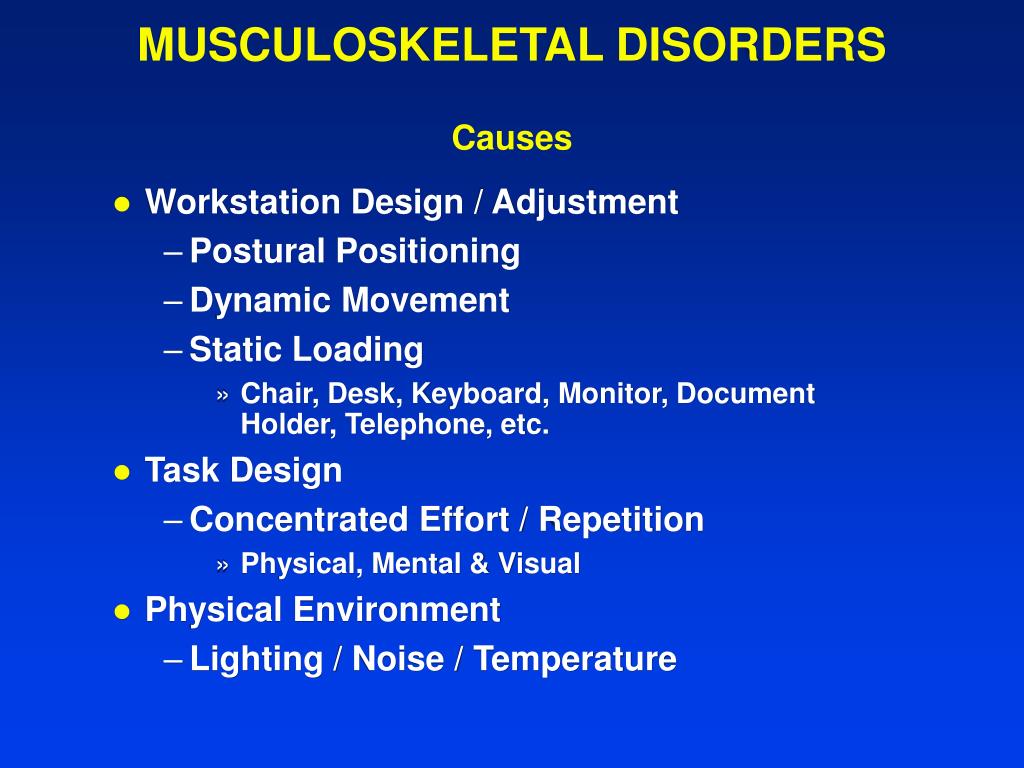

MUSCULOSKELETAL DISORDERSCauses
  • Workstation Design / Adjustment
    • Postural Positioning
    • Dynamic Movement
    • Static Loading
      • Chair, Desk, Keyboard, Monitor, DocumentHolder, Telephone, etc.
  • Task Design
    • Concentrated Effort / Repetition
      • Physical, Mental & Visual
  • Physical Environment
    • Lighting / Noise / Temperature

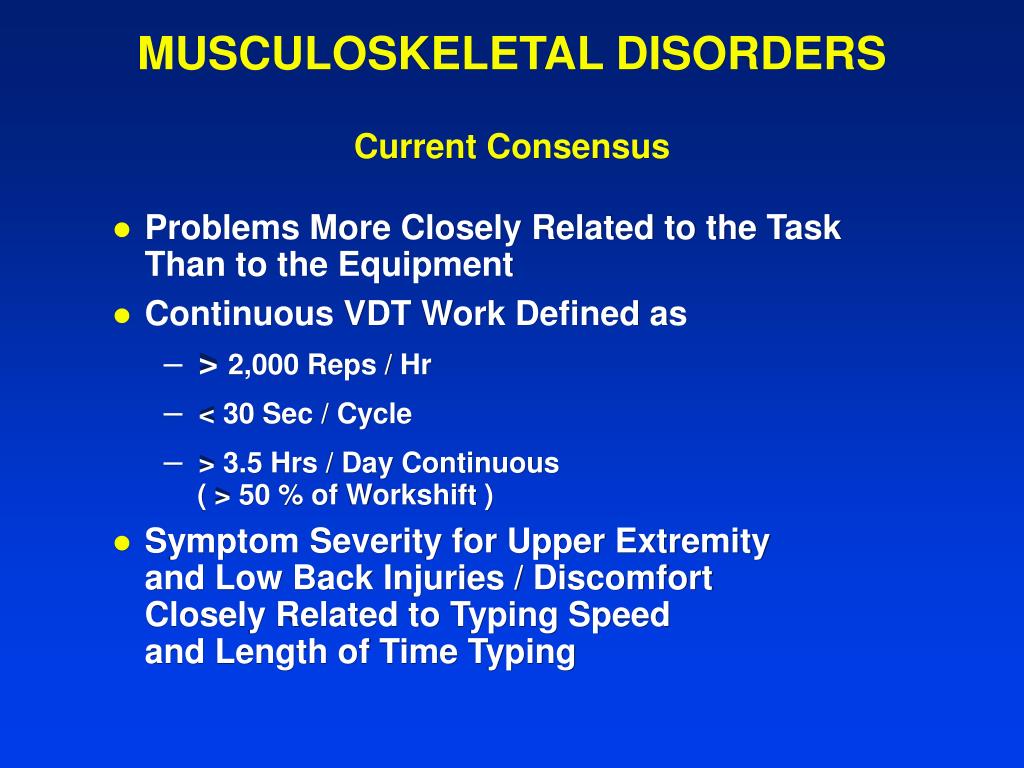

musculoskeletal disorders current consensus
MUSCULOSKELETAL DISORDERSCurrent Consensus
  • Problems More Closely Related to the TaskThan to the Equipment
  • Continuous VDT Work Defined as
    • > 2,000 Reps / Hr
    • < 30 Sec / Cycle
    • > 3.5 Hrs / Day Continuous ( > 50 % of Workshift )
  • Symptom Severity for Upper Extremity and Low Back Injuries / Discomfort Closely Related to Typing Speed and Length of Time Typing
musculoskeletal disorders current consensus1

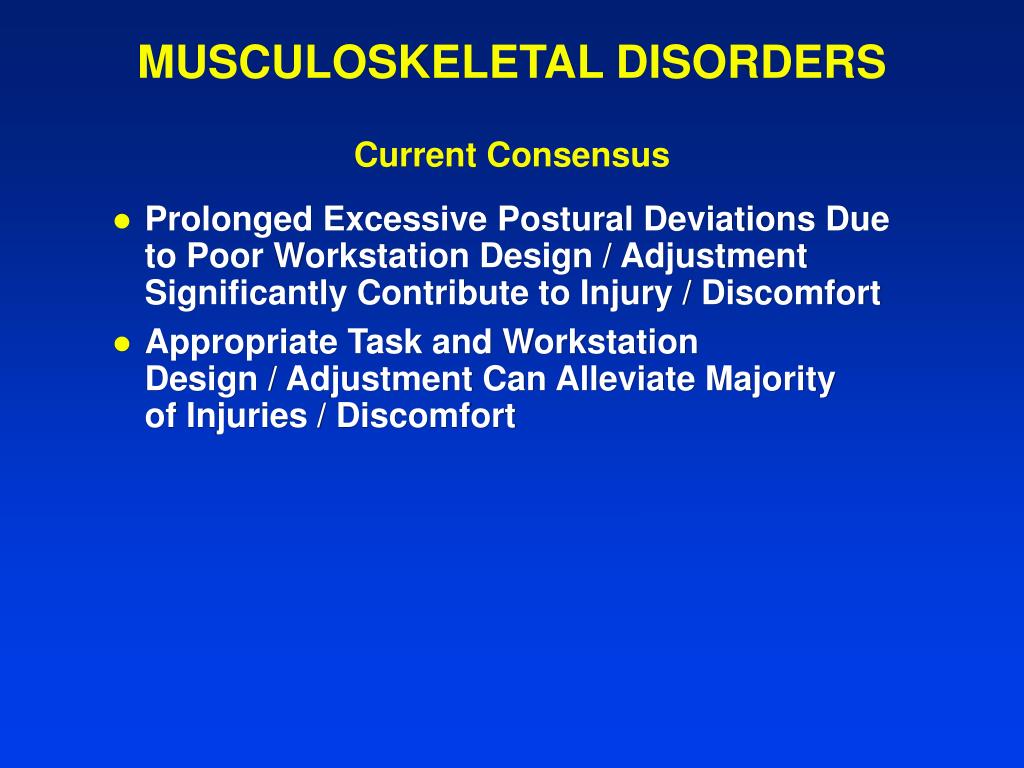

MUSCULOSKELETAL DISORDERSCurrent Consensus
  • Prolonged Excessive Postural Deviations Dueto Poor Workstation Design / AdjustmentSignificantly Contribute to Injury / Discomfort
  • Appropriate Task and Workstation Design / Adjustment Can Alleviate Majority of Injuries / Discomfort
musculoskeletal disorders control measures
MUSCULOSKELETAL DISORDERSControl Measures
  • Chair - Maximum Adjustability
    • Height - 5 Caster Base
    • Seat Pan - Waterfall Edge
    • Backrest - Lumbar Support
    • Armrests - Optional but Preferred
  • Footrest - Adjustable Height / Tilt
    • Relieves Body Weight Pressure on Spine
    • Improves Foot Position Relativeto Chair Height
musculoskeletal disorders control measures1
MUSCULOSKELETAL DISORDERSControl Measures
  • Monitor
    • Adjustability For Height and Distance
      • Top Character Line 15 - 20 Degrees Below HorizontalEye Level & Monitor Angled Appropriately Upward
      • Eye to Screen Distance 20” - 40” ( Operator Preference Studies 25. 5”- 31” )
      • Articulating Monitor Stand
  • Keyboard / Mouse
    • Detached For Ease of Movement
    • Adjustability For Height and Distance
      • Articulating Tray
    • Wrist Support and Mouse Pad
    • Detached Numeric Keypad
musculoskeletal disorders control measures2

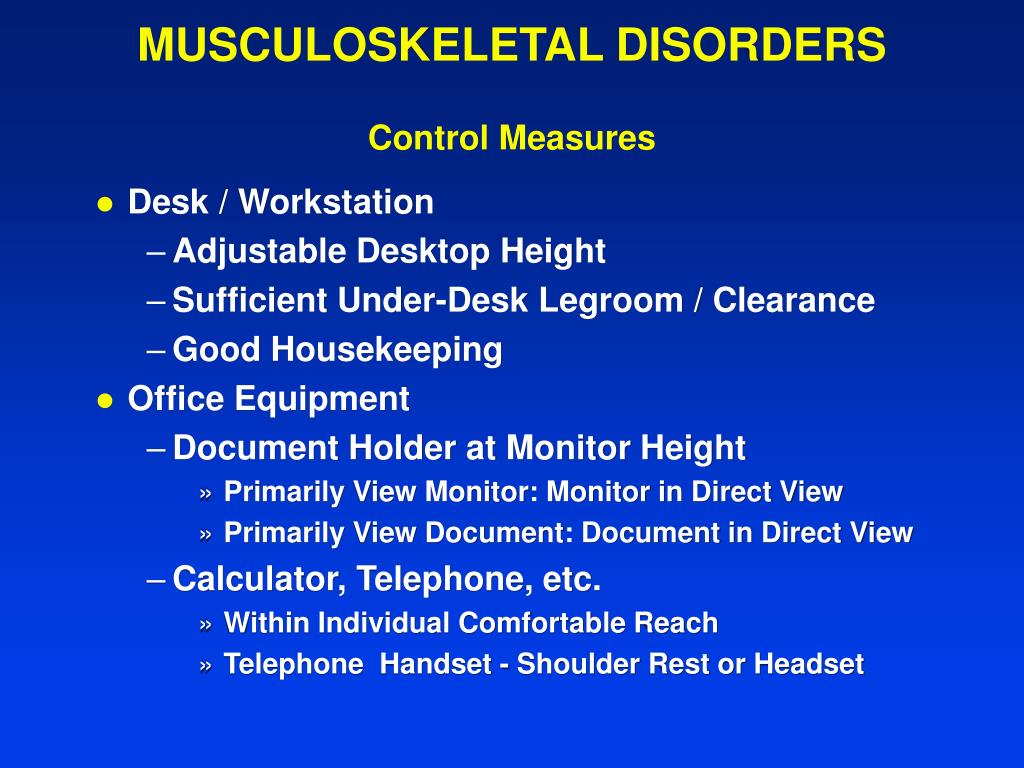

MUSCULOSKELETAL DISORDERSControl Measures
  • Desk / Workstation
    • Adjustable Desktop Height
    • Sufficient Under-Desk Legroom / Clearance
    • Good Housekeeping
  • Office Equipment
    • Document Holder at Monitor Height
      • Primarily View Monitor: Monitor in Direct View
      • Primarily View Document: Document in Direct View
    • Calculator, Telephone, etc.
      • Within Individual Comfortable Reach
      • Telephone Handset - Shoulder Rest or Headset

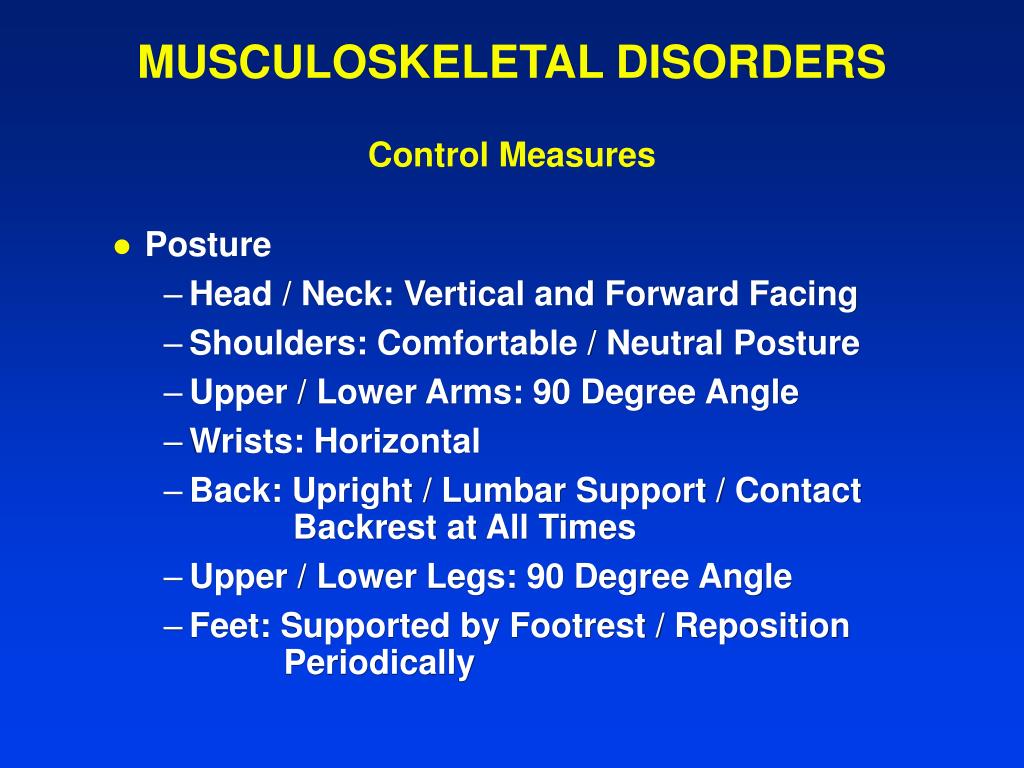

musculoskeletal disorders control measures3
MUSCULOSKELETAL DISORDERSControl Measures
  • Posture
    • Head / Neck: Vertical and Forward Facing
    • Shoulders: Comfortable / Neutral Posture
    • Upper / Lower Arms: 90 Degree Angle
    • Wrists: Horizontal
    • Back: Upright / Lumbar Support / Contact Backrest at All Times
    • Upper / Lower Legs: 90 Degree Angle
    • Feet: Supported by Footrest / Reposition Periodically
musculoskeletal disorders control measures4
MUSCULOSKELETAL DISORDERSControl Measures
  • Posture
    • Office Equipment Within IndividualComfortable Reach
    • Monitor, Keyboard and Chair Adjustments Are Interrelated
    • Training: Proper Posture / Adjustment of Workstation Features
      • New Hire / Transfer / Periodic Refresher
      • Supervisor Enforcement
musculoskeletal disorders control measures5

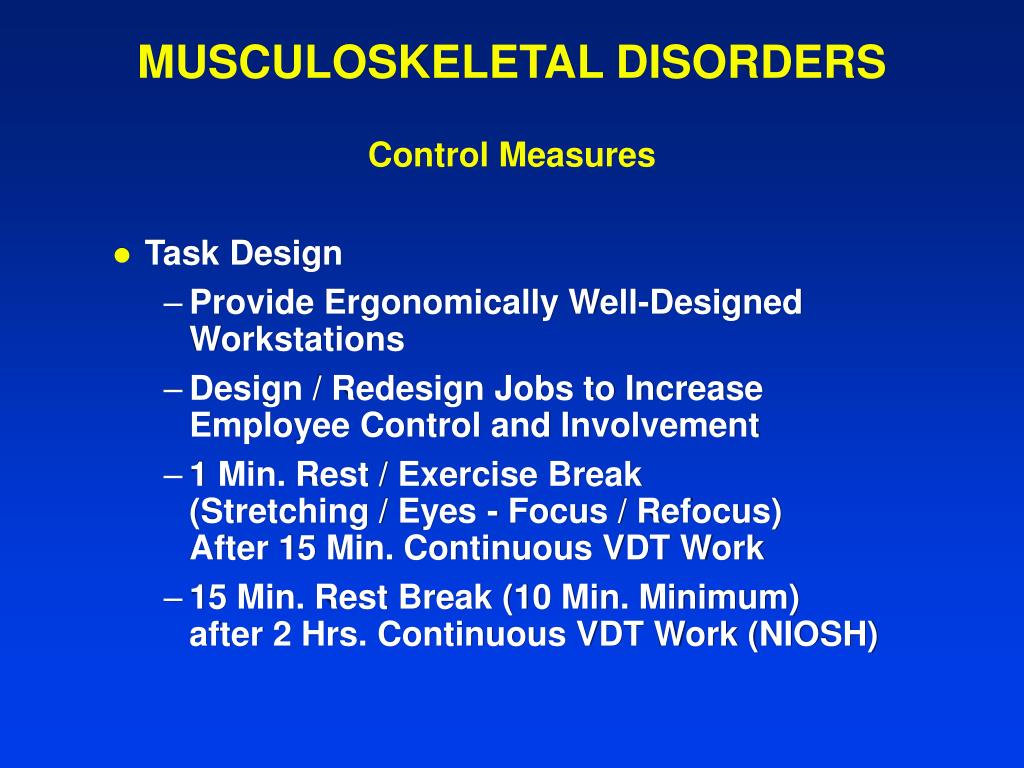

MUSCULOSKELETAL DISORDERSControl Measures
  • Task Design
    • Provide Ergonomically Well-DesignedWorkstations
    • Design / Redesign Jobs to IncreaseEmployee Control and Involvement
    • 1 Min. Rest / Exercise Break (Stretching / Eyes - Focus / Refocus)After 15 Min. Continuous VDT Work
    • 15 Min. Rest Break (10 Min. Minimum)after 2 Hrs. Continuous VDT Work (NIOSH)
musculoskeletal disorders control measures6
MUSCULOSKELETAL DISORDERSControl Measures
  • Environment
    • Humidity: 50 - 70 %
    • Room Temperature: 70 - 75 Degrees ( F )
    • Lighting: VDT - 50 fc / 500 Lux Optimum Office - 100 fc / 1,000 Lux Optimum
vdt occupational ergonomics summary evaluation control measures
VDTOCCUPATIONAL ERGONOMICSSummaryEvaluation / Control Measures
  • Total Job Environment
    • Workstation Design & Adjustment
    • Physical Environment
    • Task Design
    • Training
  • Emphasize Good Ergonomics
    • Design / Redesign / Adjustment
  • Promote On / Off Job Wellness
