  1. CS527: (Advanced) Topics in Software Engineering(Software Testing and Analysis) Darko Marinov August 23, 2011

  2. Course Overview • Graduate seminar on program analysis (for bug finding), emphasis: systematic testing (for concurrent code) • Focus on a (research) project • Papers: reading in advance, writing reports, presenting, and discussing • Project: initial proposal, progress report, [final presentation, based on enrollment size], paper • One homework assignment (maybe two) to help with projects

  3. Administrative Info • Meetings: TR 2-3:15pm, 1302 SC • Credit: 4 graduate hours • Auditors welcome for discussions • Can come to any lecture, mostly self-contained • Prerequisites: some software engineering and programming languages

  4. Evaluation • Grading • Project [40%] • Presentation [20%] • Participation (reports and discussion) [20%] • Homework assignment(s) [20%] • Distribution • Grades will be A- centered • No guarantee for A (or even a passing grade)! • Project is the most important

  5. Project • Proposal (due in late September) • Progress report (in November) • [Presentation (after Thanksgiving Break)] • Paper (last day of classes) • 15 students who took similar classes published 12 papers based on their projects • I’m happy to help, no co-authorship required

  6. Fair Warnings • This class will differ from most you take • Seminar style, reading papers • Centered around (research) projects • Projects are NOT easy • Require that you explore a topic in great depth • The topic can/should be fairly narrow

  7. Repeated Warning • Project matters the MOST • If you like open-ended projects, do take this course • If you don’t like open-ended projects, please drop this course now • If you’re unsure, please discuss with me • The worst scenario: take the course but realize you don’t like projects

  8. Project Overview • Testing/analysis of some open-source code • We will use mostly Java this semester • You can use C#/C/C++/C--/Clojure/Cecil…http://en.wikipedia.org/wiki/List_of_programming_languages#C • Sample topics • Automated unit testing • Test coverage and adequacy criteria • Test-input generation, test oracles • Test maintenance • …

  9. Course Communication • Wikihttp://wiki.engr.illinois.edu/display/cs527fa11 • Mailing listcs527-fa11 AT cs.illinois.edu

  10. Personnel • Instructor: Darko Marinov • Office: 3116 SC, hours: by appointment • Phone number: 217-265-6117 • NetID: marinov • TA: Shin Hwei Tan • NetID: stan6 • Please use your netid@illinois.edu email addresses for communication

  11. Signup Sheet • Name • NetID (please write it legibly) • Program/Year • Group • Interests • Please also sign up on Wiki (if possible,as there are some delays with netids)

  12. This Lecture: Overview • Why look for bugs? • What are bugs? • Where they come from? • How to detect them?

  13. Some Costly “Bugs” • NASA Mars space missions • Priority inversion (2004) • Different metric systems (1999) • BMW airbag problems (1999) • Recall of >15000 cars • Ariane 5 crash (1996) • Uncaught exception of numerical overflow • http://www.youtube.com/watch?v=kYUrqdUyEpI • Your own (in)famous example?

  14. Some “Bugging” Bugs • An example bug on my laptop • “Jumping” file after changing properties • Put a read-only file on the desktop • Change properties: rename and make not read-only • Your own favorite example?

  15. Economic Impact • “The Economic Impact of Inadequate Infrastructure for Software Testing”NIST Report, May 2002 • $59.5B annual cost of inadequate software testing infrastructure • $22.2B annual potential cost reduction from feasible infrastructure improvements

  16. Estimates • Extrapolated from two studies (5% of total) • Manufacturing: transportation equipment • Services: financial institutions • Number of simplifying assumptions • “…should be considered approximations” • What is important for you? • Correctness, performance, functionality

  17. Terminology • Anomaly • Bug • Crash • Defect • Error • Failure, fault • Glitch • Hangup • Incorrectness • J…

  18. Dynamic vs. Static • Incorrect (observed) behavior • Failure, fault • Incorrect (unobserved) state • Error, latent error • Incorrect lines of code • Fault, error

  19. “Bugs” in IEEE 610.12-1990 • Fault • Incorrect lines of code • Error • Faults cause incorrect (unobserved) state • Failure • Errors cause incorrect (observed) behavior • Not used consistently in literature!

  20. Correctness • Common (partial) properties • Segfaults, uncaught exceptions • Resource leaks • Data races, deadlocks • Statistics based • Specific properties • Requirements • Specification

  21. RequirementsAnalysis DesignChecking ImplementationUnit Testing IntegrationSystem Testing MaintenanceVerification Traditional Waterfall Model

  22. Phases (1) • Requirements • Specify what the software should do • Analysis: eliminate/reduce ambiguities, inconsistencies, and incompleteness • Design • Specify how the software should work • Split software into modules, write specifications • Checking: check conformance to requirements

  23. Phases (2) • Implementation • Specify how the modules work • Unit testing: test each module in isolation • Integration • Specify how the modules interact • System testing: test module interactions • Maintenance • Evolve software as requirements change • Verification: test changes, regression testing

  24. Testing Effort • Reported to be >50% of development cost [e.g., Beizer 1990] • Microsoft: 75% time spent testing • 50% testers who spend all time testing • 50% developers who spend half time testing

  25. When to Test • The later a bug is found, the higher the cost • Orders of magnitude increase in later phases • Also the smaller chance of a proper fix • Old saying: test often, test early • New methodology: test-driven development(write tests before code)

  26. Software is Complex • Malleable • Intangible • Abstract • Solves complex problems • Interacts with other software and hardware • Not continuous

  27. Software Still Buggy • Folklore: 1-10 (residual) bugs per 1000 nbnc lines of code (after testing) • Consensus: total correctness impossibleto achieve for (complex) software • Risk-driven finding/elimination of bugs • Focus on specific correctness properties

  28. Approaches for Detecting Bugs • Software testing • Model checking • (Static) program analysis

  29. Software Testing • Dynamic approach • Run code for some inputs, check outputs • Checks correctness for some executions • Main questions • Test-input generation • Test-suite adequacy • Test oracles

  30. Other Testing Questions • Maintenance • Selection • Minimization • Prioritization • Augmentation • Evaluation • Fault Characterization • …

  31. Model Checking • Typically hybrid dynamic/static approach • Checks correctness for all executions • Some techniques • Explicit-state model checking • Symbolic model checking • Abstraction-based model checking

  32. Static Analysis • Static approach • Checks correctness for all executions • Some techniques • Abstract interpretation • Dataflow analysis • Verification-condition generation

  33. Comparison • Level of automation • Push-button vs. manual • Type of bugs found • Hard vs. easy to reproduce • High vs. low probability • Common vs. specific properties • Type of bugs (not) found

  34. Soundness and Completeness • Do we detect all bugs? • Impossible for dynamic analysis • Are reported bugs real bugs? • Easy for dynamic analysis • Most practical techniques and tools are both unsound and incomplete! • False positives • False negatives

  35. Analysis for Performance • Static compiler analysis, profiling • Must be sound • Correctness of transformation: equivalence • Improves execution time • Programmer time is more important • Programmer productivity • Not only finding bugs

  36. Combining Dynamic and Static • Dynamic and static analyses equal in limit • Dynamic: try exhaustively all possible inputs • Static: model precisely every possible state • Synergistic opportunities • Static analysis can optimize dynamic analysis • Dynamic analysis can focus static analysis • More discussions than results

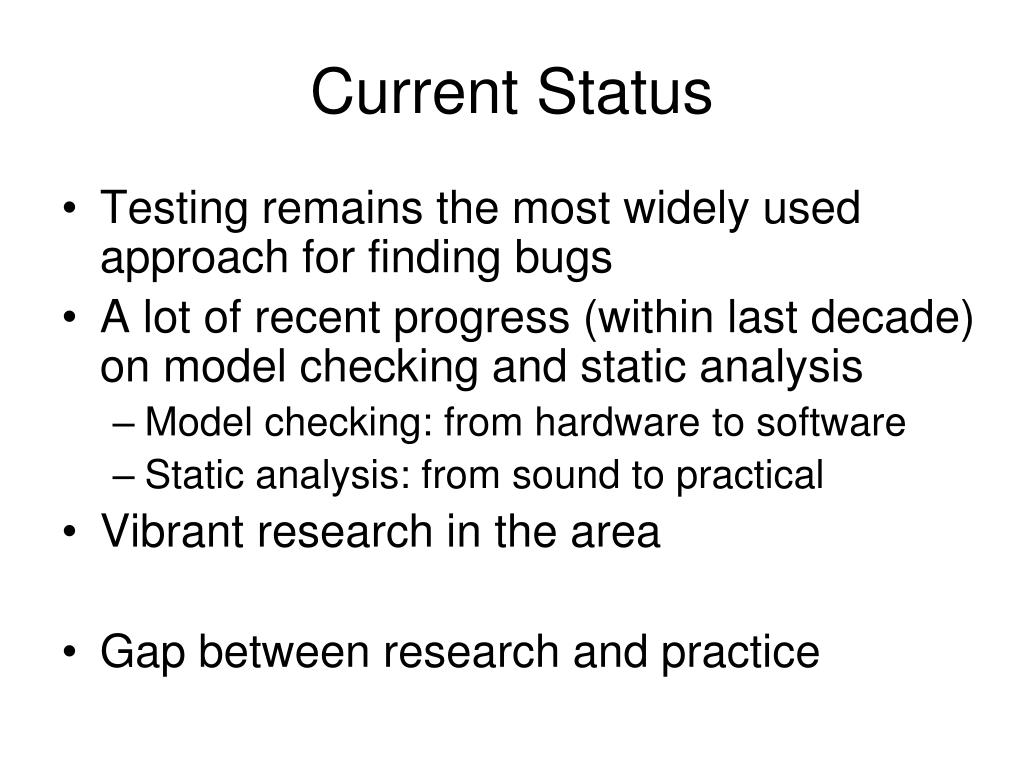

  37. Current Status • Testing remains the most widely used approach for finding bugs • A lot of recent progress (within last decade) on model checking and static analysis • Model checking: from hardware to software • Static analysis: from sound to practical • Vibrant research in the area • Gap between research and practice

  38. Topics Related to Finding Bugs • How to eliminate bugs? • Debugging • How to prevent bugs? • Programming language design • Software development processes • How to show absence of bugs? • Theorem proving • Model checking, program analysis

  39. Next Lecture • Thursday, August 25, at 2pm, 1302 SC • Texts to read (listed on Wiki) • How to Read an Engineering Research Paperby William G. Griswold • Writing Good Software Engineering Research Papersby Mary Shaw (ICSE 2003) • If you have read that paper, read on another area • You don’t have to write any report now • Assignment 0: Modify “People” on Wiki
