E211 using web services and mobile devices to monitor adaptive server enterprise performance

E211 Using Web Services and Mobile Devices to Monitor Adaptive Server Enterprise Performance

  • John Arnott

    • Principal Consultant

    • Progressive Database Systems

    • [email protected]


About progressive database systems

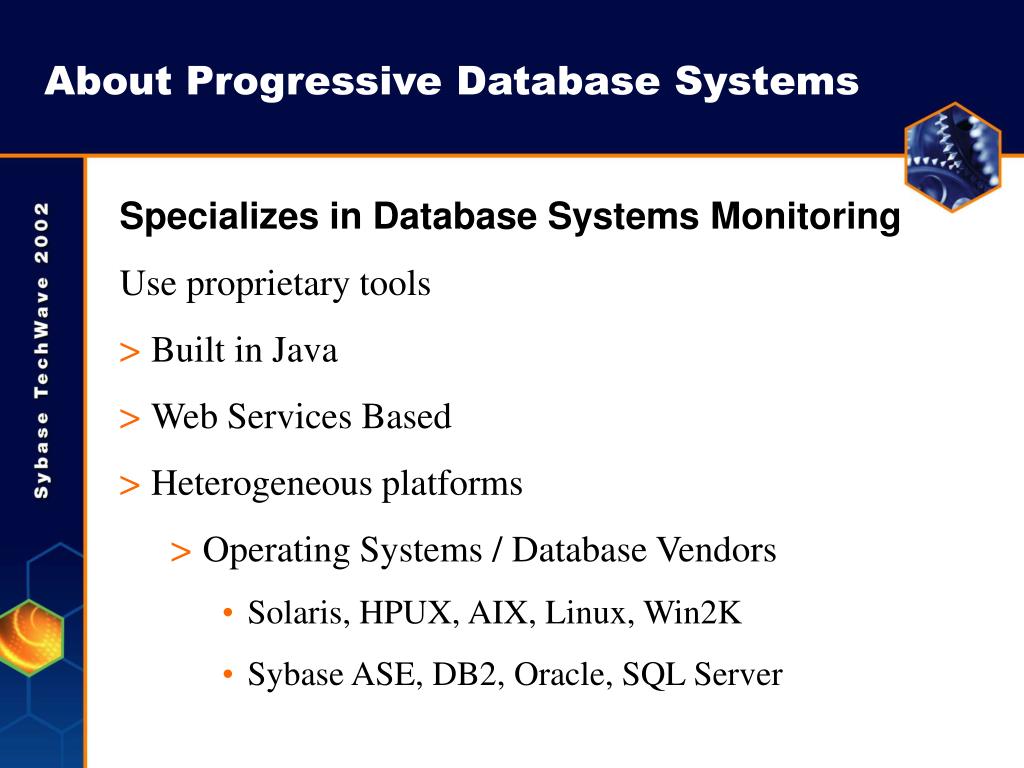

About Progressive Database Systems

Specializes in Database Systems Monitoring

Use proprietary tools

  • Built in Java

  • Web Services Based

  • Heterogeneous platforms

    • Operating Systems / Database Vendors

      • Solaris, HPUX, AIX, Linux, Win2K

      • Sybase ASE, DB2, Oracle, SQL Server


Why remote database monitoring

Why Remote Database Monitoring

  • Database Centric Era

  • Proliferation of Servers

  • IT Budgets Constrained

  • High Expectations of DBAs

  • Mobile Society


Old methods of monitoring

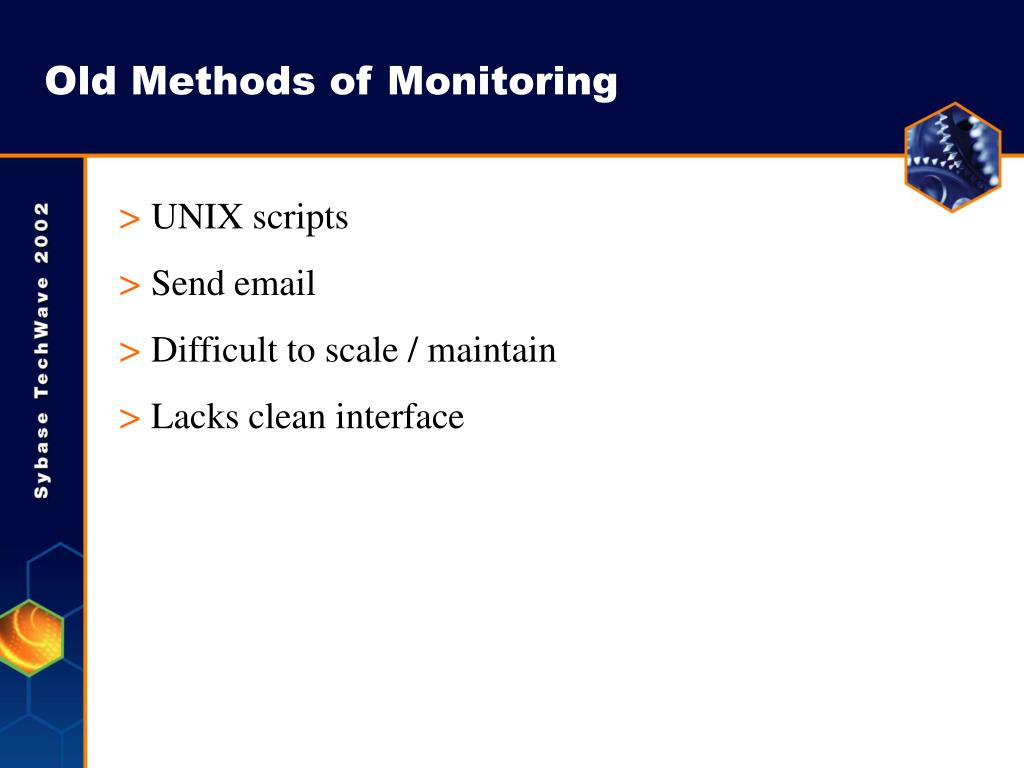

Old Methods of Monitoring

  • UNIX scripts

  • Send email

  • Difficult to scale / maintain

  • Lacks clean interface


What ase features require monitoring

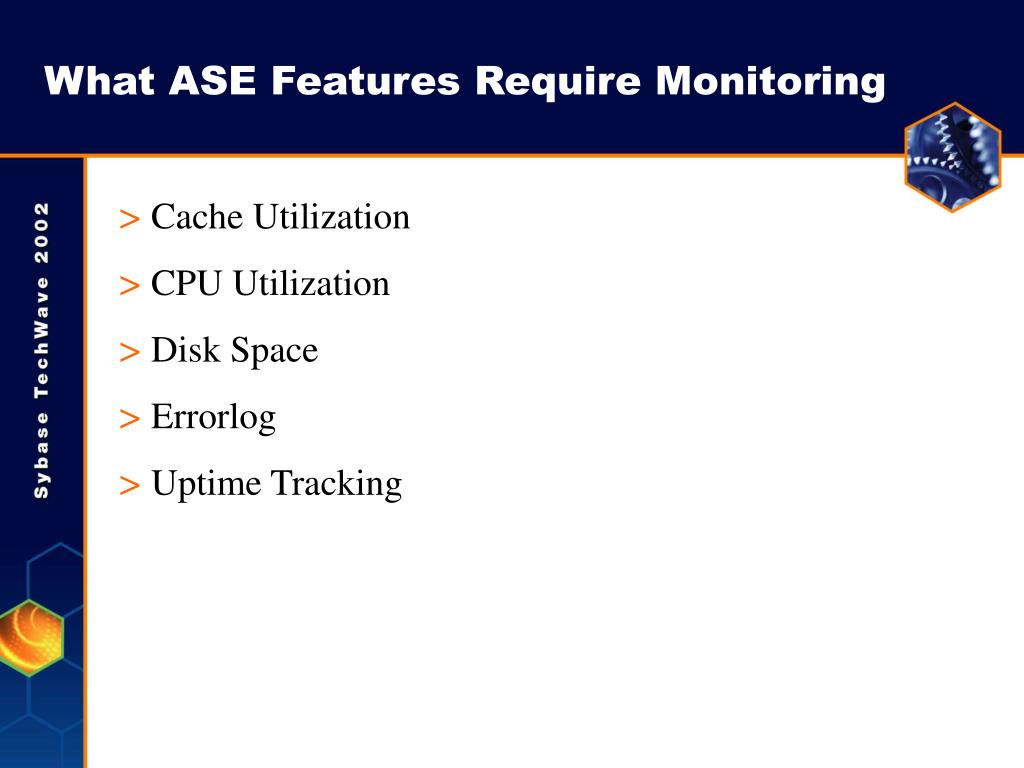

What ASE Features Require Monitoring

  • Cache Utilization

  • CPU Utilization

  • Disk Space

  • Errorlog

  • Uptime Tracking


What are web services

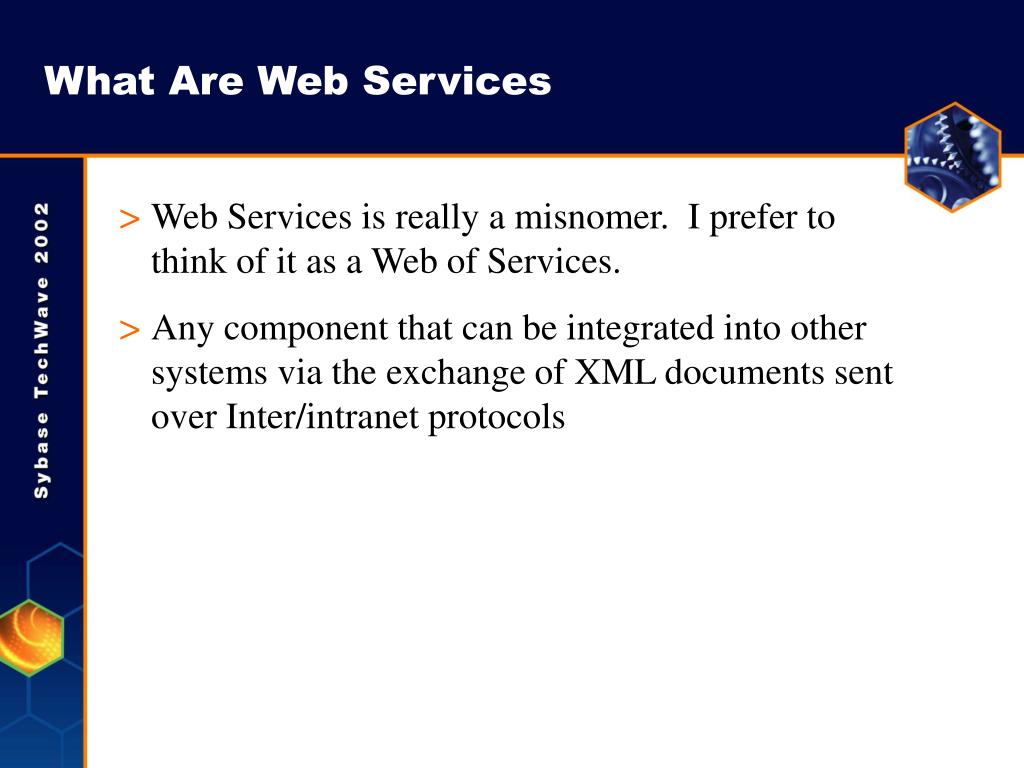

What Are Web Services

  • Web Services is really a misnomer. I prefer to think of it as a Web of Services.

  • Any component that can be integrated into other systems via the exchange of XML documents sent over Inter/intranet protocols


Why use web services

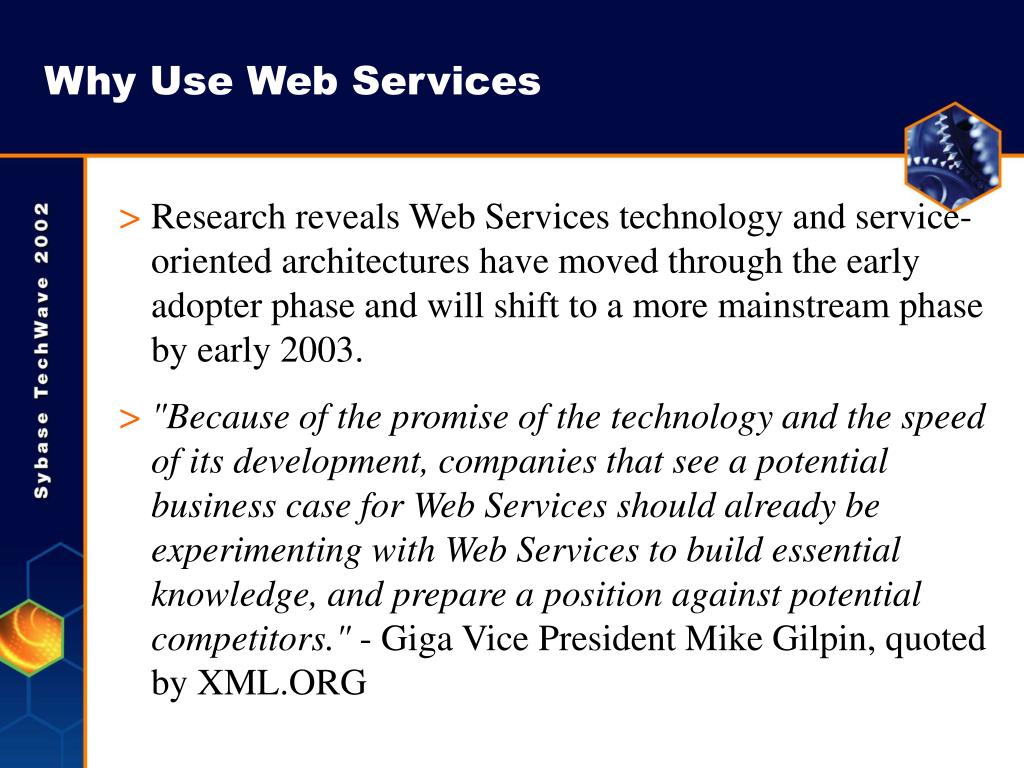

Why Use Web Services

  • Research reveals Web Services technology and service-oriented architectures have moved through the early adopter phase and will shift to a more mainstream phase by early 2003.

  • "Because of the promise of the technology and the speed of its development, companies that see a potential business case for Web Services should already be experimenting with Web Services to build essential knowledge, and prepare a position against potential competitors." - Giga Vice President Mike Gilpin, quoted by XML.ORG


Distributed components again

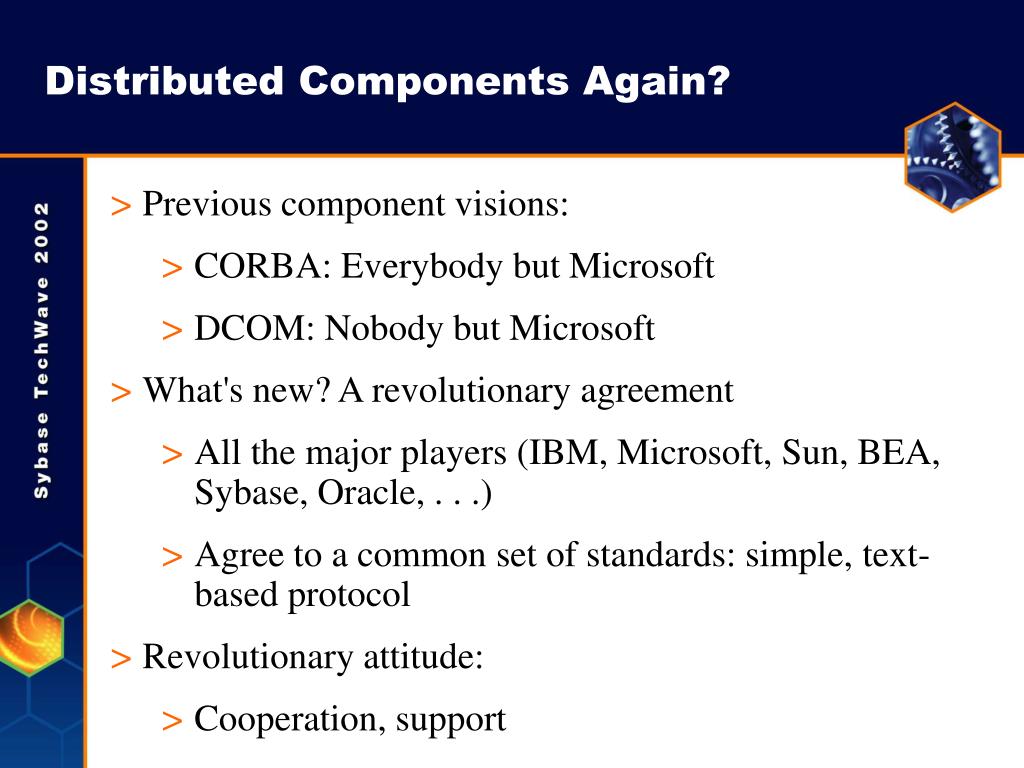

Distributed Components Again?

  • Previous component visions:

    • CORBA: Everybody but Microsoft

    • DCOM: Nobody but Microsoft

  • What's new? A revolutionary agreement

    • All the major players (IBM, Microsoft, Sun, BEA, Sybase, Oracle, . . .)

    • Agree to a common set of standards: simple, text-based protocol

  • Revolutionary attitude:

    • Cooperation, support


Xml the foundation

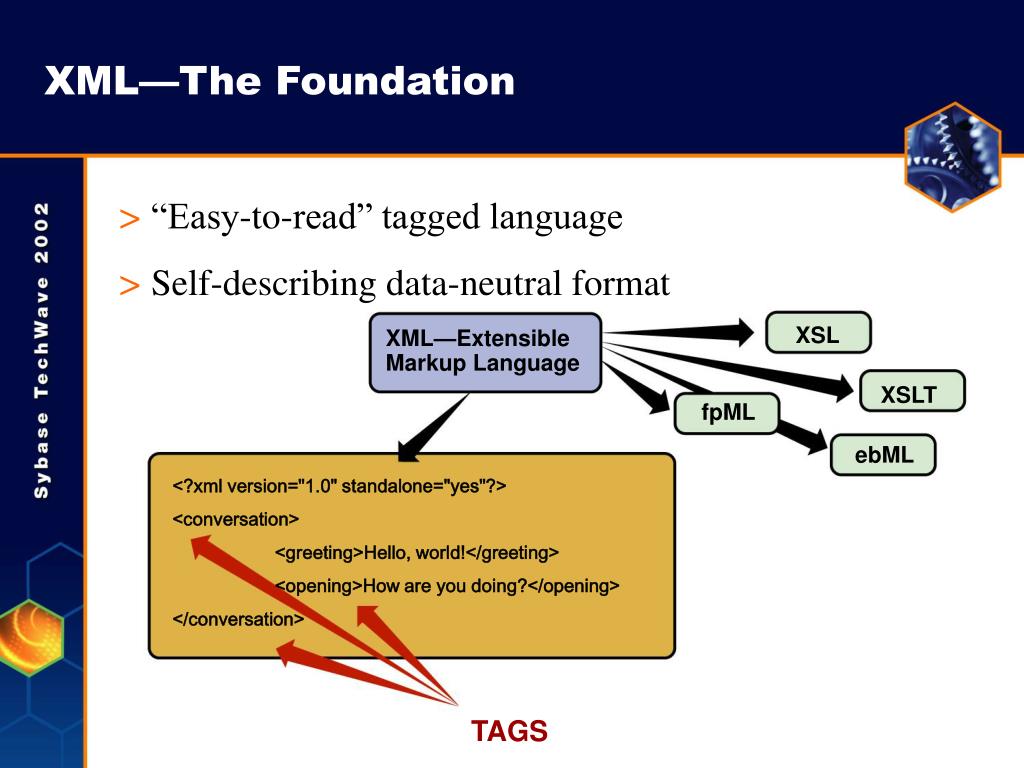

XML—The Foundation

  • “Easy-to-read” tagged language

  • Self-describing data-neutral format

XSL

XML—Extensible

Markup Language

XSLT

fpML

ebML

<?xml version="1.0" standalone="yes"?>

<conversation>

<greeting>Hello, world!</greeting>

<opening>How are you doing?</opening>

</conversation>

TAGS


Soap simple object access protocol

Standard Protocol

(HTTP, SMTP, etc.)

Protocol Headers

SOAP Envelope

<Envelope> encloses payload

SOAP Header

<Header> encloses headers

Headers

Individual headers

SOAP Body

<Body> contains SOAP

Message Name & Data

Message Name

& Data

XML Encoded SOAP

Message Name & Data

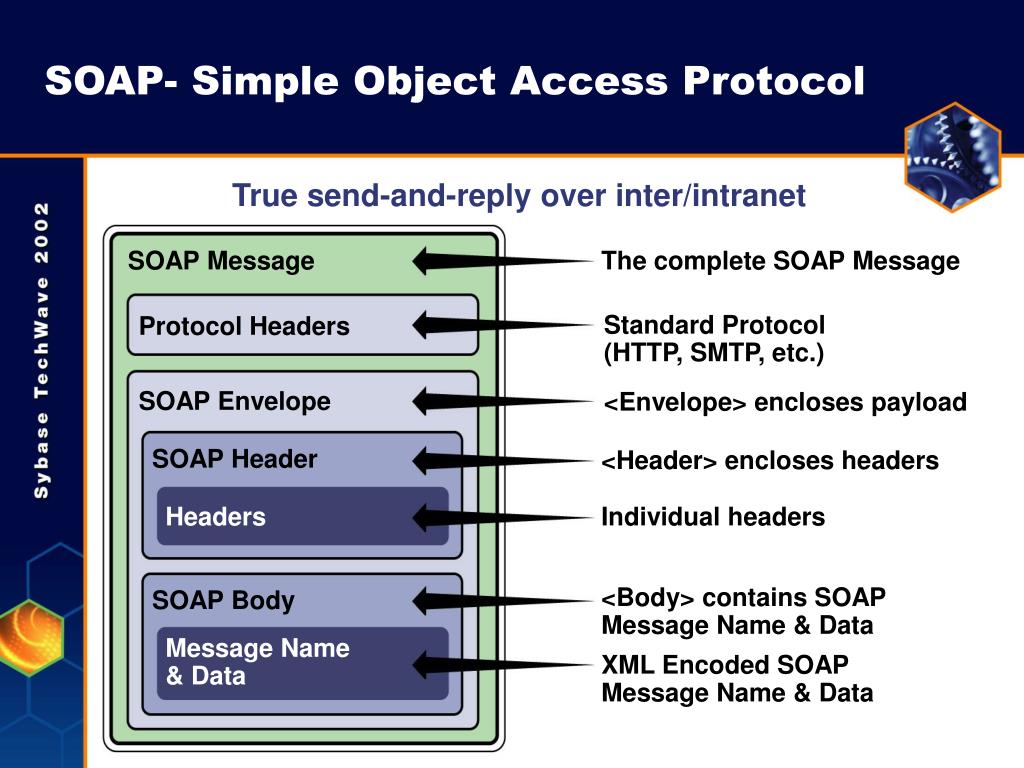

SOAP- Simple Object Access Protocol

True send-and-reply over inter/intranet

SOAP Message

The complete SOAP Message

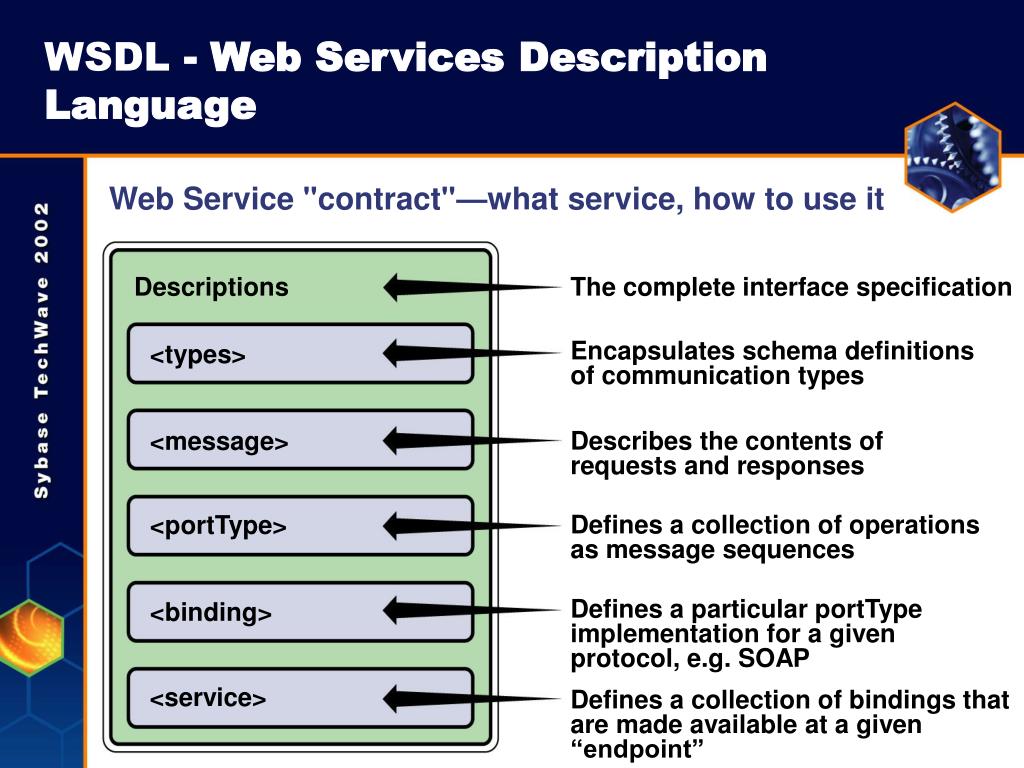

Wsdl web services description language

<types>

Encapsulates schema definitions

of communication types

<message>

Describes the contents of

requests and responses

<portType>

Defines a collection of operations

as message sequences

<binding>

Defines a particular portType

implementation for a given

protocol, e.g. SOAP

<service>

Defines a collection of bindings that are made available at a given “endpoint”

WSDL - Web Services Description Language

Web Service "contract"—what service, how to use it

Descriptions

The complete interface specification


Ease of maintenance

Application

Data

Application

Application

Application

Application

Application

Application

Application

Application

Data Abstraction XML Web Service

Data

Ease of Maintenance

  • Single application with useful results

  • Data was useful for additional applications

  • Additional applications tied in directly

  • Eventually over 90 additional applications

Application

Application

Application

Application

Application

Application

Application

Data

  • Create a Web Service intermediary

  • Applications switch to use Web Service

  • Get results in XML

  • Database can change as needed


Application monitoring

Statistics

Monitor

FTP

Scripts

Scripts

Scripts

Data

Data

Data

  • Use Web Services to collect statistics

  • Monitor interacts directly with web services

  • FTP latency eliminated

  • Timely response to problems

Monitor

Web Services

Web Services

Web Services

Data

Data

Data

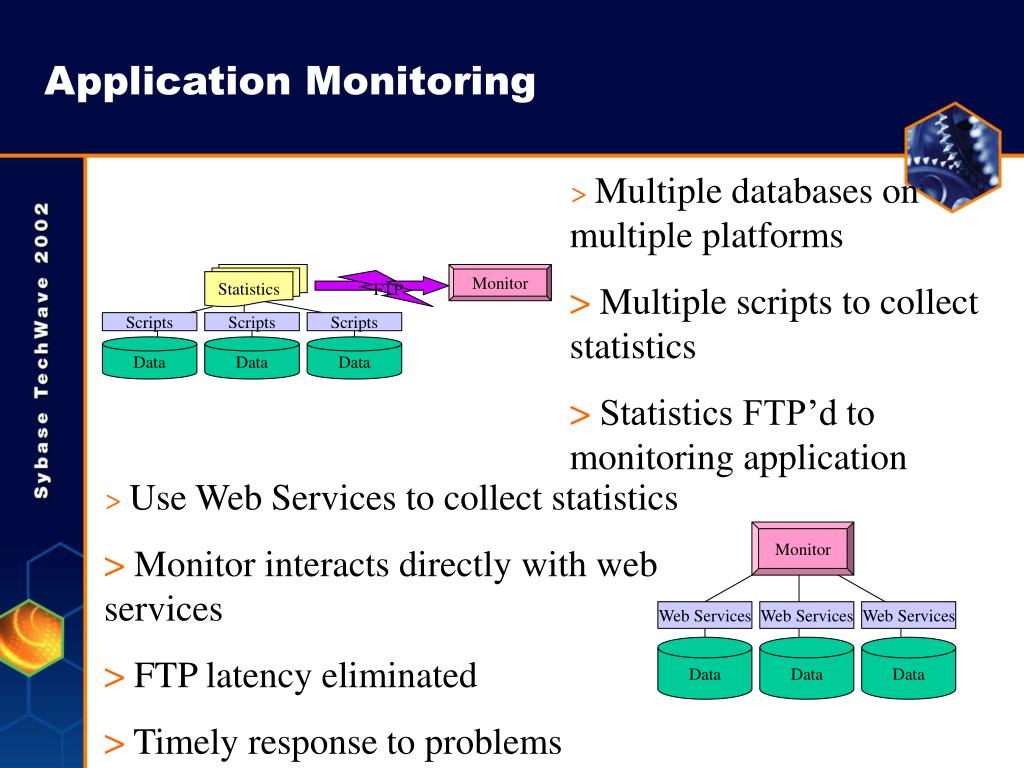

Application Monitoring

  • Multiple databases on multiple platforms

  • Multiple scripts to collect statistics

  • Statistics FTP’d to monitoring application


Wireless and portals

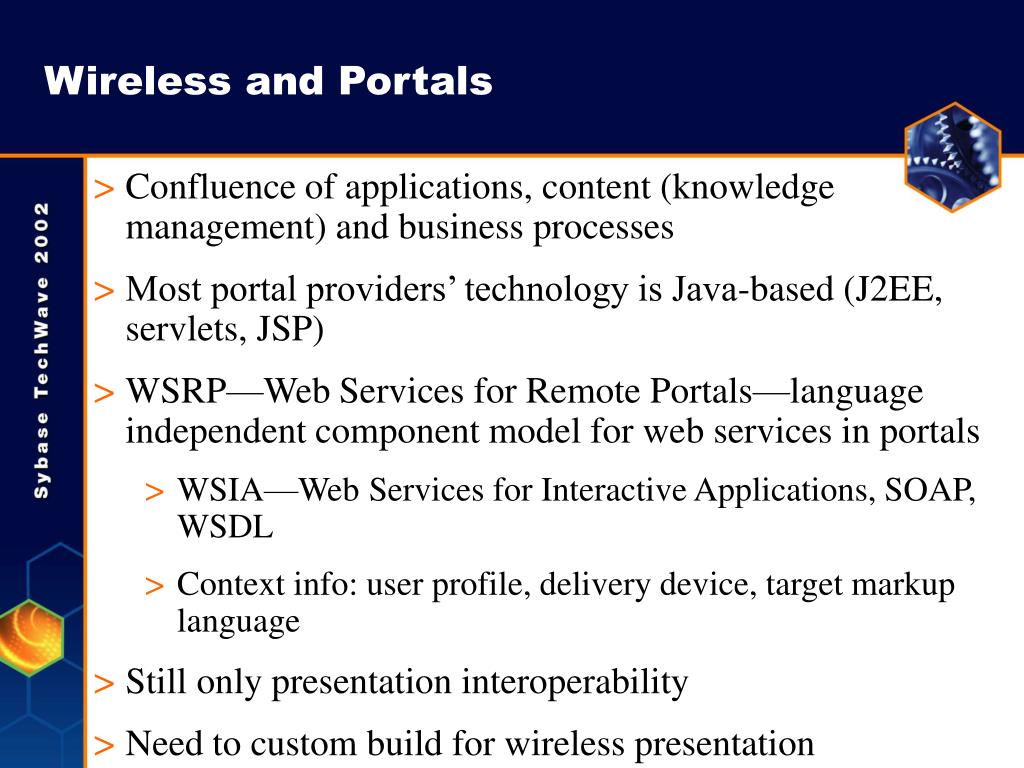

Wireless and Portals

  • Confluence of applications, content (knowledge management) and business processes

  • Most portal providers’ technology is Java-based (J2EE, servlets, JSP)

  • WSRP—Web Services for Remote Portals—language independent component model for web services in portals

    • WSIA—Web Services for Interactive Applications, SOAP, WSDL

    • Context info: user profile, delivery device, target markup language

  • Still only presentation interoperability

  • Need to custom build for wireless presentation


Wireless applications guidelines

Wireless Applications: Guidelines

  • Thin v Thick client architectures

    • WAP

    • .NET Compact Framework, J2ME

  • Network efficiency depends on application design within a given architecture

    • Simple thin client

    • Simple thick client

    • Thin client with cache

    • Thick client with lazy fetch


Wireless applications guidelines cont d

Wireless Applications: Guidelines (cont’d)

  • Key criteria

    • Patterns of usage by users of application

    • Need for availability

    • Ease of deployment


Security overview

Security Overview

  • Web Services security must be built in—it must leverage, not replace existing security infrastructure and investments

  • Security must be treated as a “first class” architectural entity

  • Security must be end-to-end

    • Origin to fulfillment

    • Across process tiers and domains

  • Security is considered a part of the Web Service interface of each exposed component


Security requirements

Security Requirements

  • Communication protocol requirements

    • Authentication—verify identity of provider/consumer

    • Authorization/access control—“paid customers only”

    • Session-level confidentiality—eavesdropping prevention

    • End-to-end confidentiality—parts exposed but not all

    • Session-level integrity—request/service safe in transit

    • End-to-end integrity—parts exposed but not all

    • Non-repudiation of origin—can’t deny service was requested

    • Non-repudiation of receipt—can’t deny request was received

    • Replay prevention—can’t “cash a check” twice

    • Delegation—when a WS provider invokes another, which is consumer/provider, under which authority


Security requirements cont d

Security Requirements (cont’d)

  • Provider implementation requirements

    • Firewall friendliness—HTTP/HTTPS used to get around firewalls, but that defeats why you have firewalls at all

    • Auditing/accountability—logs kept in case of breach, and to account for actions by authorized users

    • Availability—as per SLA, not vulnerable to DoS attacks

    • Assurance—WS implementation has not introduced vulnerabilities into enterprise systems/processes

    • Virus/Malware prevention—virus/malicious software can not infiltrate along with service requests

    • Internal controls—control what the WS implementation does, even at request of authorized user

    • Traceability—each transaction traceable across all tiers/domains, maintaining consistent security


Security best practices

Security: Best Practices

  • Identify all participants in a transaction based on a variety of authentication mechanisms

  • Establish a “user context” (combination of user identity and security-relevant attributes at each processing tier

  • Apply sophisticated authorization policies to these user contexts

  • Pass user context to other tiers/domains, establishing context for entire transaction—eliminating need to re-authorize

  • Perform audits end-to-end—each step of transaction and identities of participants

  • Maintain consistent security across diverse processing platforms

  • Provide flexibility in creation, authorization and transmission of user contexts


Security standards and industry

Security: Standards and Industry

  • Standards:

    • SSL (SOAP over HTTPS)–Enables confidentiality for message transport

    • XML-SIG–Enables message authentication and nonrepudiation

    • XML Encryption–Enables confidentiality for message lifetime

    • XKMS–XML Key Management Specification

    • SAML–Security Assertion Markup Language


Security standards and industry cont d

Security: Standards and Industry (cont’d)

  • Products:

    • Oblix NetPoint Access XML

    • Identity XML

    • Netregrity TransactionMinder SAML

    • Quadrasis EASI Security Unifier


Infrastructure

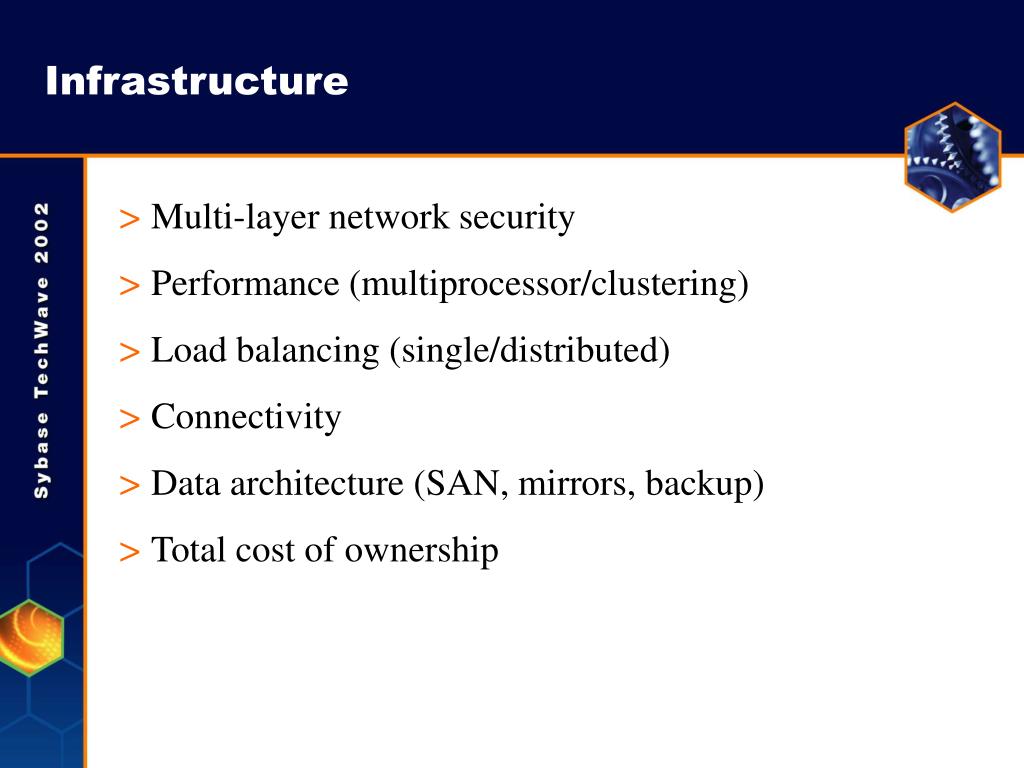

Infrastructure

  • Multi-layer network security

  • Performance (multiprocessor/clustering)

  • Load balancing (single/distributed)

  • Connectivity

  • Data architecture (SAN, mirrors, backup)

  • Total cost of ownership


Getting started strategy

Getting Started: Strategy

  • Identify Applications

    • Hubs—applications accessed by many others

    • Inflexible—applications requiring extensive effort to connect

    • Frequently modified

  • Define Scope and Functionality

    • Unit of work—component should be “atomic”

    • Commonly accessed—many systems will use it the same way

    • Frequency/degree of change—priority to stable API


Getting started strategy cont d

Getting Started: Strategy (cont’d)

  • Expose Web Services Internally

    • Technical and security issues

    • Volume control

    • Build model of service architecture/application integration

    • Gain experience

  • Expose Web Services Externally

    • Trusted partners/known processes

    • End-to-end management—up/downstream

    • Security, service levels


Getting started developers

Getting Started: Developers

  • Learn XML, Web Services and related technologies

    • XML Schemas, XSLT

    • SOAP, WSDL

  • Your industry specific vocabularies

  • Understand and internalize design and architecture implications

  • Understand and internalize reuse and component implications

  • Understand and internalize process and life cycle implications


Getting started it

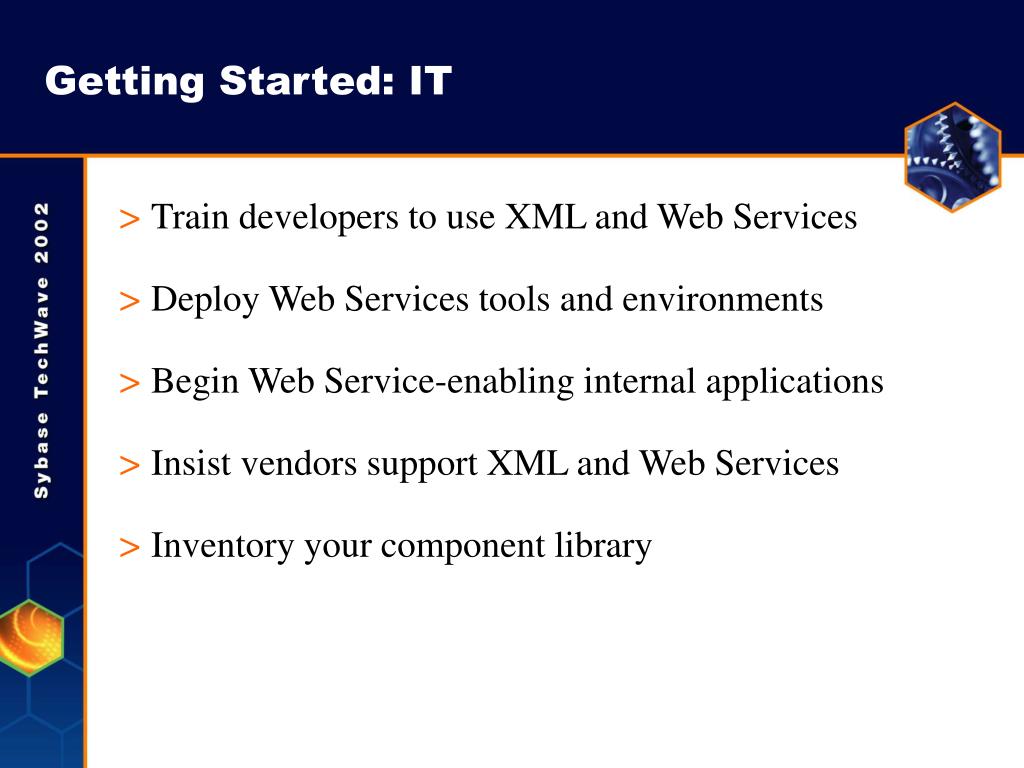

Getting Started: IT

  • Train developers to use XML and Web Services

  • Deploy Web Services tools and environments

  • Begin Web Service-enabling internal applications

  • Insist vendors support XML and Web Services

  • Inventory your component library


Why mobile devices

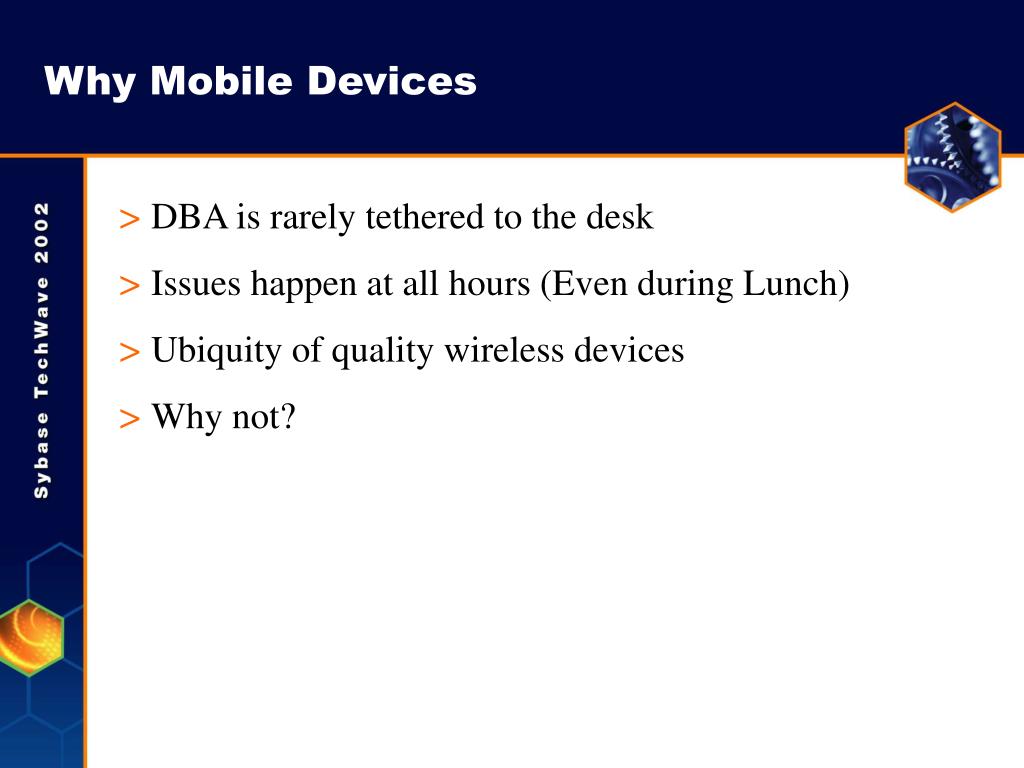

Why Mobile Devices

  • DBA is rarely tethered to the desk

  • Issues happen at all hours (Even during Lunch)

  • Ubiquity of quality wireless devices

  • Why not?


Which devices consume web services

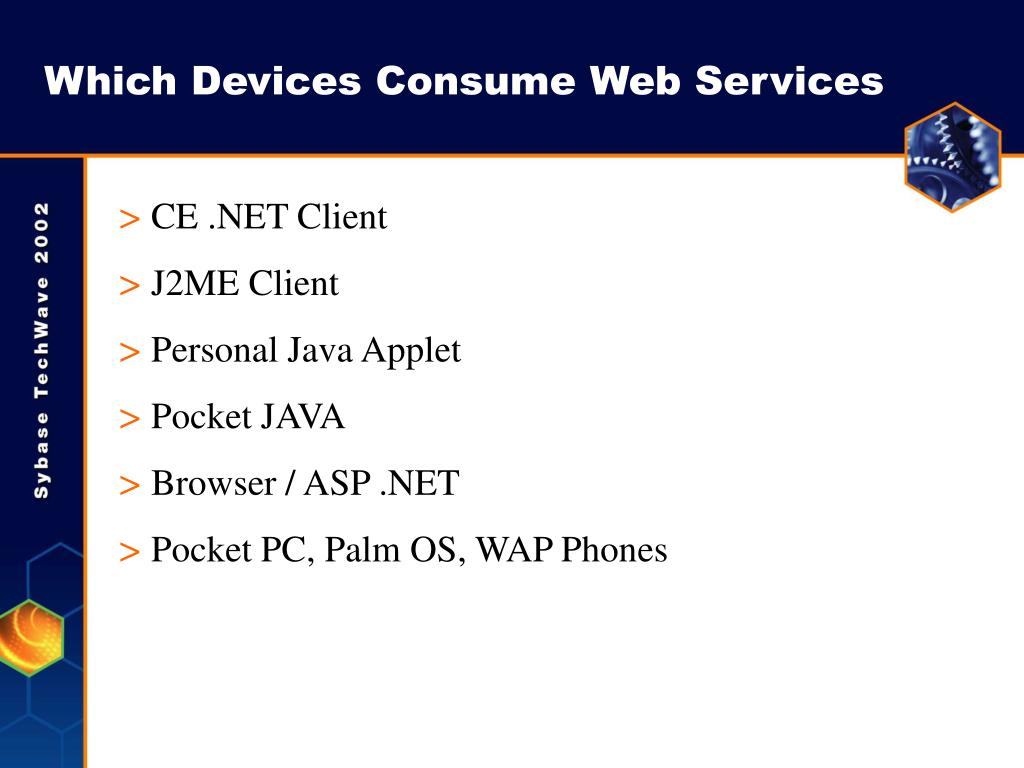

Which Devices Consume Web Services

  • CE .NET Client

  • J2ME Client

  • Personal Java Applet

  • Pocket JAVA

  • Browser / ASP .NET

  • Pocket PC, Palm OS, WAP Phones


What if my device cannot consume web services

What If My Device Cannot Consume Web Services?

  • Any device that can browse the internet can be used

  • Create an Application Server tier that consumes web services and delivers pure HTML


A monitoring architecture

A Monitoring Architecture


Server component

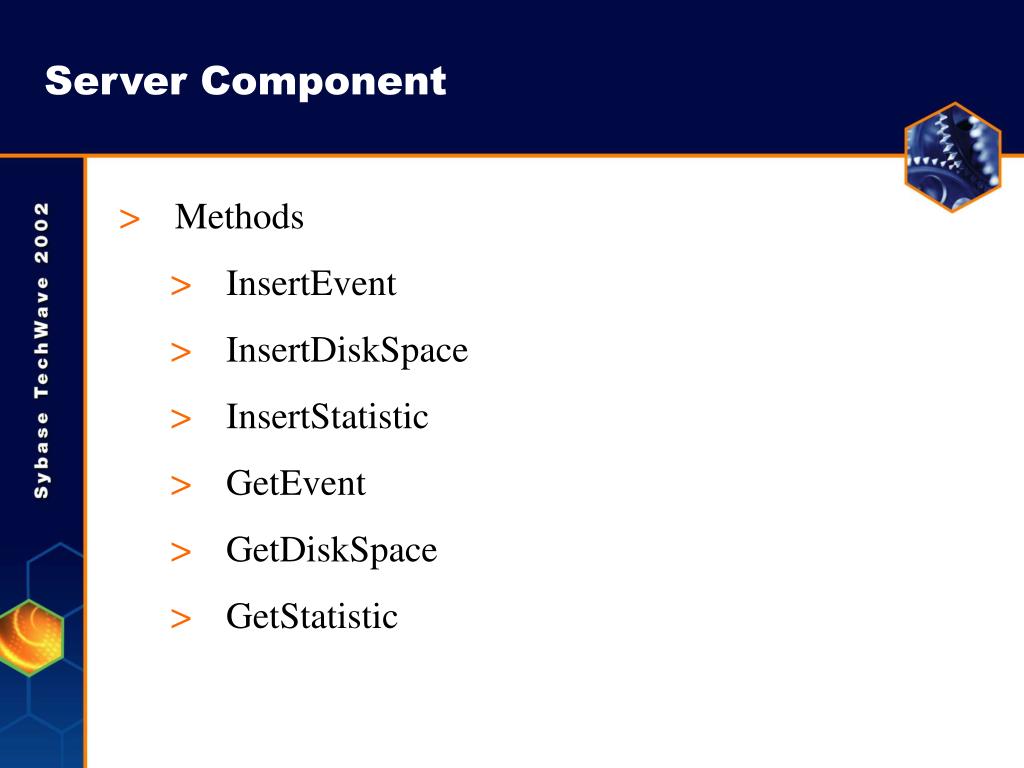

Server Component

  • Methods

    • InsertEvent

    • InsertDiskSpace

    • InsertStatistic

    • GetEvent

    • GetDiskSpace

    • GetStatistic


Collection component

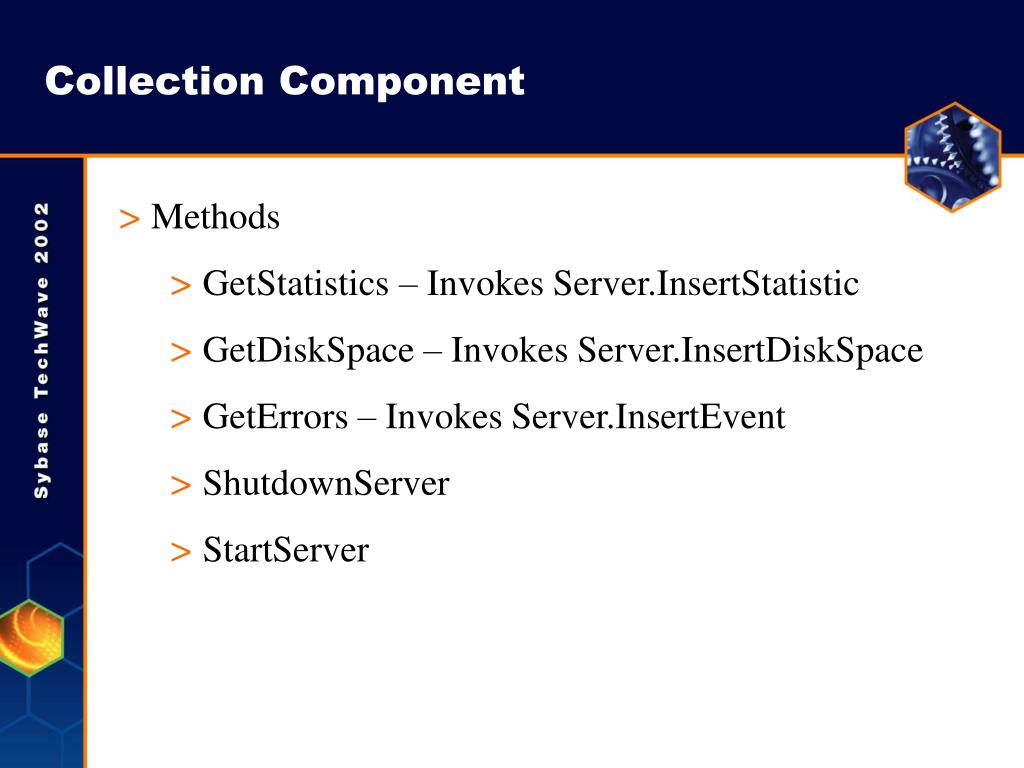

Collection Component

  • Methods

    • GetStatistics – Invokes Server.InsertStatistic

    • GetDiskSpace – Invokes Server.InsertDiskSpace

    • GetErrors – Invokes Server.InsertEvent

    • ShutdownServer

    • StartServer

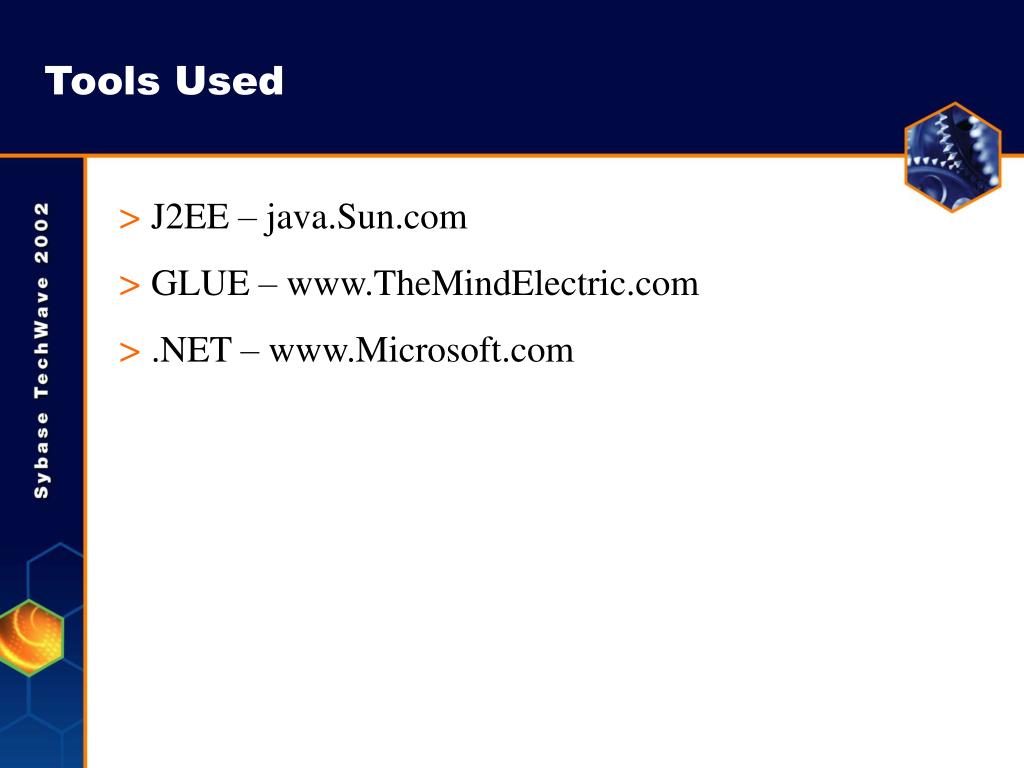

Tools used

Tools Used

  • J2EE – java.Sun.com

  • GLUE – www.TheMindElectric.com

  • .NET – www.Microsoft.com

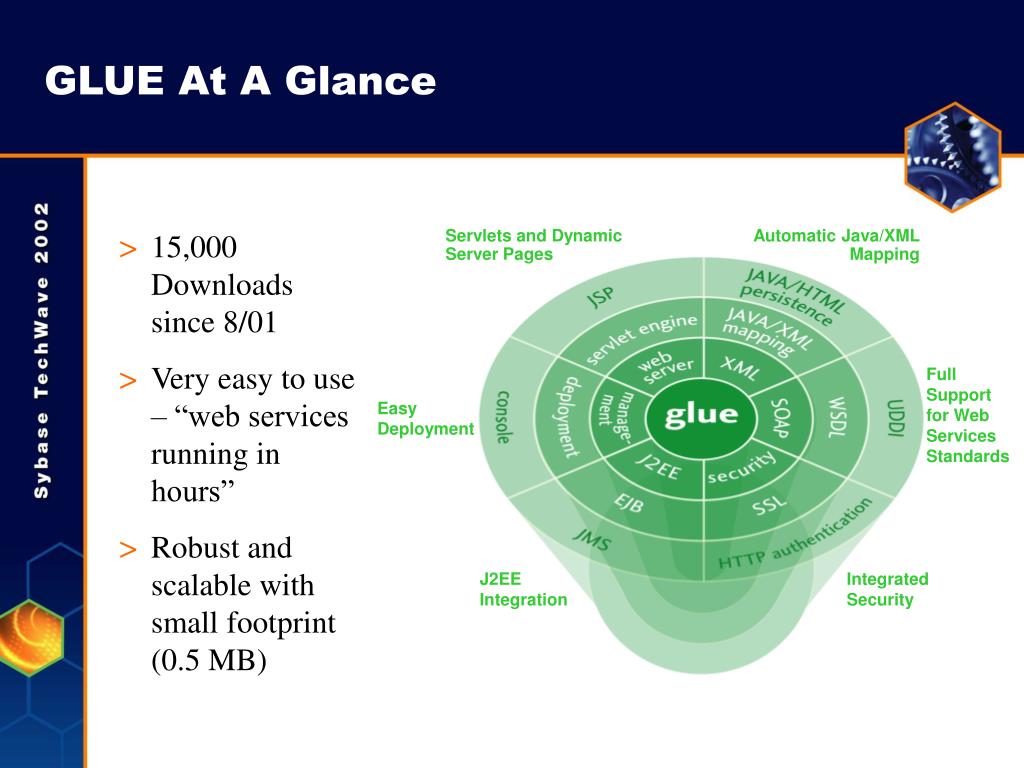

Glue at a glance

GLUE At A Glance

  • 15,000 Downloads since 8/01

  • Very easy to use – “web services running in hours”

  • Robust and scalable with small footprint (0.5 MB)

Servlets and Dynamic Server Pages

Automatic Java/XML Mapping

Full Support for Web Services Standards

Easy Deployment

J2EE Integration

Integrated Security


Glue ease of use

GLUE – Ease of Use

  • GLUE is the simplest, fastest, most comprehensive Java platform for deploying and consuming web services

  • Publishing a web service requires only 1 line of code:

    “Registry.publish ( “exchange”, new Exchange () );”

  • “GLUE is…powerful voodoo (for) web services.” – Rick Ross, President of JavaLobby


Glue in action

GLUE In Action


Adoption of glue

Adoption of GLUE

100+ Global 500 Users + Adoption in Key Markets


E211 using web services and mobile devices to monitor adaptive server enterprise performance

Demo


Color palette title can go to two lines

Color PaletteTitle can go to two lines

Please choose from this color palette when highlighting text or graphics.

Arrow Styles


  • Login
