The nervous system





Major structures of the nervous system

Major Structures of the Nervous System

  • Brain, cranial nerves, spinal cord, spinal nerves, ganglia, enteric plexuses and sensory receptors

Nervous system divisions

Nervous System Divisions

  • Central nervous system(CNS)

    • consists of the brain and spinal cord

  • Peripheral nervous system(PNS)

    • consists of cranial and spinal nerves that contain both sensory and motor fibers

    • connects CNS to muscles, glands & all sensory receptors

Subdivisions of the pns

Subdivisions of the PNS

  • Somatic (voluntary) nervous system (SNS)

    • neurons from cutaneous and special sensory receptors to the CNS

    • motor neurons to skeletal muscle tissue

  • Autonomic (involuntary) nervous systems

    • sensory neurons from visceral organs to CNS

    • motor neurons to smooth & cardiacmuscle and glands

      • sympathetic division (speeds up heart rate)

      • parasympathetic division (slow down heart rate)

  • Enteric nervous system (ENS)

    • involuntary sensory & motor neurons control GI tract

    • neurons function independently of ANS & CNS



  • Functional unit of nervous system

  • Have capacity to produce action potentials

    • electrical excitability

  • Cell body

    • single nucleus with prominent nucleolus

    • Nissl bodies (chromatophilic substance)

      • rough ER & free ribosomes for protein synthesis

    • Neurofilaments give cell shape and support

    • Microtubules move material inside cell

  • Cell processes = dendrites & axons

The basic unit of the nervous system neuron

The basic unit of the nervous system = neuron?

  • Dendrites receive stimuli

  • Nerve cell body

    @ nucleus transmits the stimuli

  • Axon transmits the impulse to another dendrite

Parts of a neuron

Parts of a Neuron

Neuroglial cells

Nucleus with Nucleolus

Axons or Dendrites

Cell body



  • Conducts impulses towardscell body

  • Typically short, highly branched & unmyelinated

  • Surfaces specialized for contact with other neurons

  • Contains neurofibrils & Nissl bodies

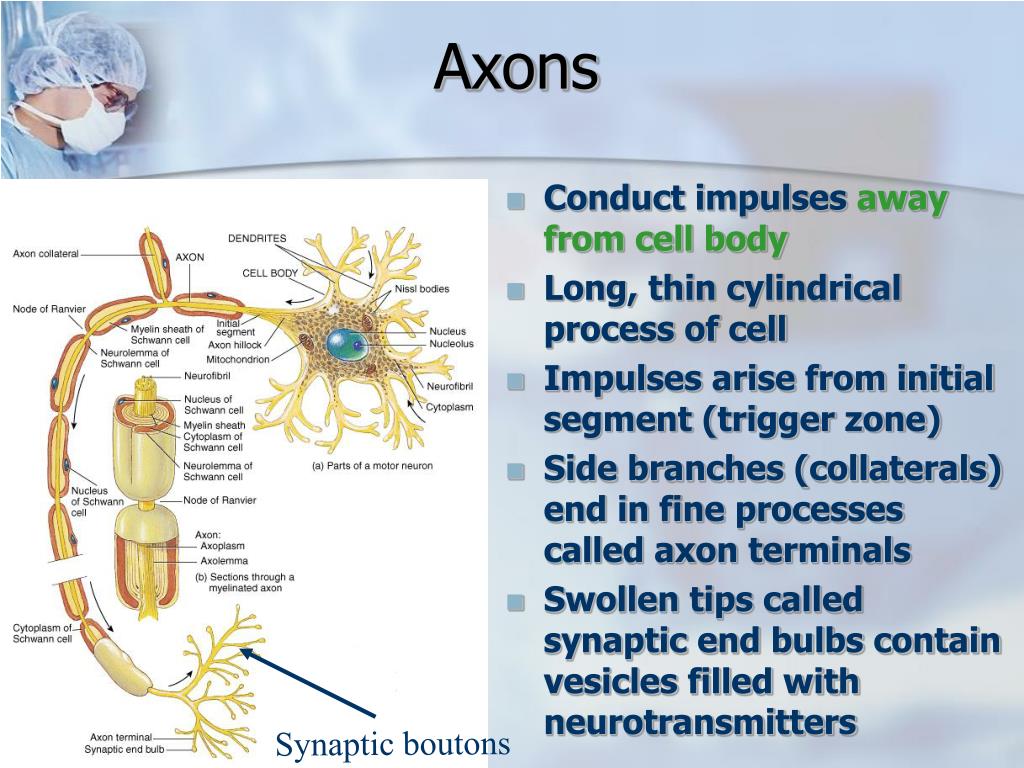

  • Conduct impulses away from cell body

  • Long, thin cylindrical process of cell

  • Impulses arise from initial segment (trigger zone)

  • Side branches (collaterals) end in fine processes called axon terminals

  • Swollen tips called synaptic end bulbs contain vesicles filled with neurotransmitters

Synaptic boutons

Functional classification of neurons

Functional Classification of Neurons

  • Sensory (Afferent) neurons

    • transport sensory information from skin, muscles, joints, sense organs & viscera to CNS

  • Motor (Efferent) neurons

    • send motor nerve impulses to muscles & glands

  • Interneurons (Association) neurons

    • connect sensory to motor neurons

    • 90% of neurons in the body

What is a synapse

What is a synapse ?

  • Junction of two neurons

  • Neurotransmitterconvert the electrical impulse into a chemical message

Axon ending terminal bud

Axon ending: terminal bud

  • Transfers the electrical nerve impulse

  • By chemical neuron-transmitters

  • From one neuron to the next

The action potential summarized

The Action Potential: Summarized

Chemical synapses

Chemical Synapses

  • Action potential reaches end bulb and voltage-gated Ca+ 2 channels open

  • Ca+2 flows inward triggering release of neurotransmitter

  • Neurotransmitter crosses synaptic cleft & binding to receptors

    • the more neurotransmitter released the greater the change in potential of the postsynaptic cell

  • Synaptic delay is 0.5 msec

  • One-way information transfer

The central nervous system

The Central Nervous System:

1) Spinal Cord

2) Brain

  • medulla for


  • cerebellum for


  • cerebrum for

    higher thinkingbw

Spinal cord protection

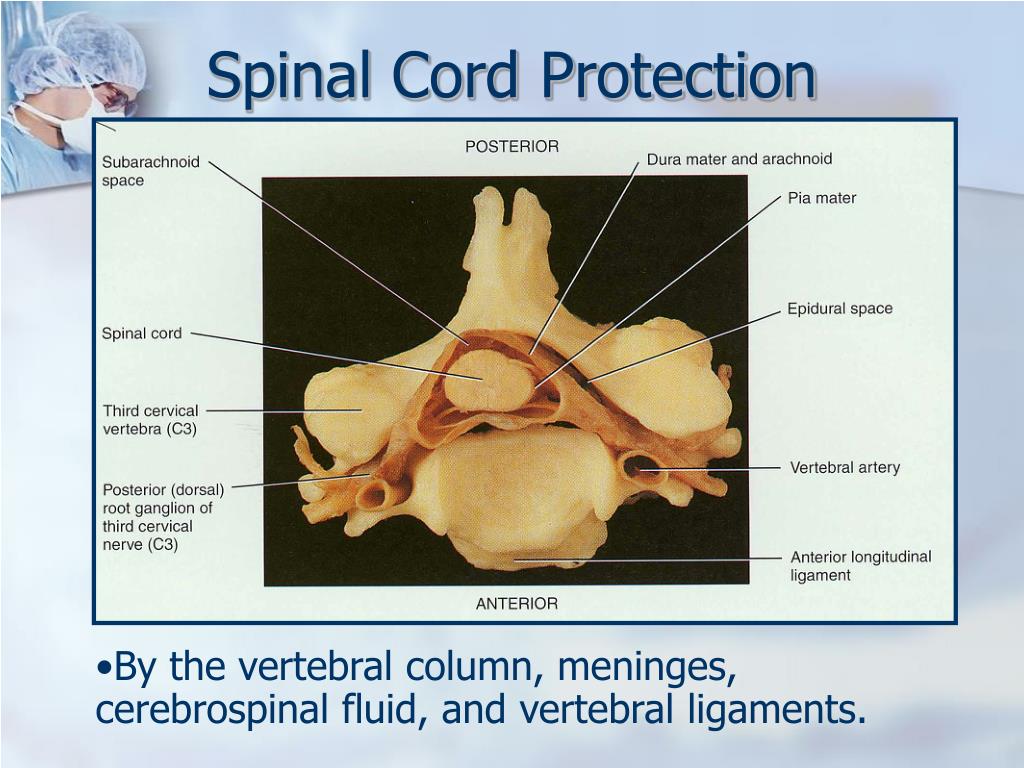

Spinal Cord Protection

  • By the vertebral column, meninges, cerebrospinal fluid, and vertebral ligaments.

External anatomy of spinal cord

External Anatomy of Spinal Cord

  • Flattened cylinder

  • 16-18 Inches long & 3/4 inch diameter

  • In adult ends at L2

  • In newborn ends at L4

  • Growth of cord stops at age 5

  • Cervical enlargement

    • upper limbs

  • Lumbar enlargement

    • lower limbs

Spinal cord spinal nerves

Spinal Cord & Spinal Nerves

  • Spinal nerves begin as roots

  • Dorsal or posterior root is incoming sensory fibers

    • dorsal root ganglion (swelling) = cell bodies of sensory nerves

  • Ventral or anterior root is outgoing motor fibers

Spinal nerves

Spinal Nerves

  • 31 Pairs of spinal nerves

  • Named & numbered by the cord level of their origin

    • 8 pairs of cervical nerves (C1 to C8)

    • 12 pairs of thoracic nerves(T1 to T12)

    • 5 pairs of lumbar nerves (L1 to L5)

    • 5 pairs of sacral nerves (S1 to S5)

    • 1 pair of coccygeal nerves

  • Mixed sensory & motor nerves

The brain and cranial nerves

The Brain and Cranial Nerves

  • almost 3 lb.

  • Brain functions in sensations, memory, emotions, decision making, behavior

Principal parts of the brain

Principal Parts of the Brain

  • Cerebrum

  • Diencephalon

    • thalamus & hypothalamus

  • Cerebellum

  • Brainstem

    • medulla, pons & midbrain

Medulla oblongata

Medulla Oblongata

  • Continuation of spinal cord

  • Ascending sensory tracts

  • Descending motor tracts

  • Nuclei of 5 cranial nerves

  • Cardiovascular center

    • force & rate of heart beat

    • diameter of blood vessels

  • Respiratory center

    • medullary rhythmicity area sets basic rhythm of breathing

  • Information in & out of cerebellum

  • Reflex centers for coughing, sneezing, swallowing etc

The nervous system


  • One inch long

  • White fiber tracts ascend and descend

  • Pneumotaxic & apneustic areas help control breathing

  • Middle cerebellar peduncles carry sensory info to the cerebellum

  • Cranial nerves 5-7

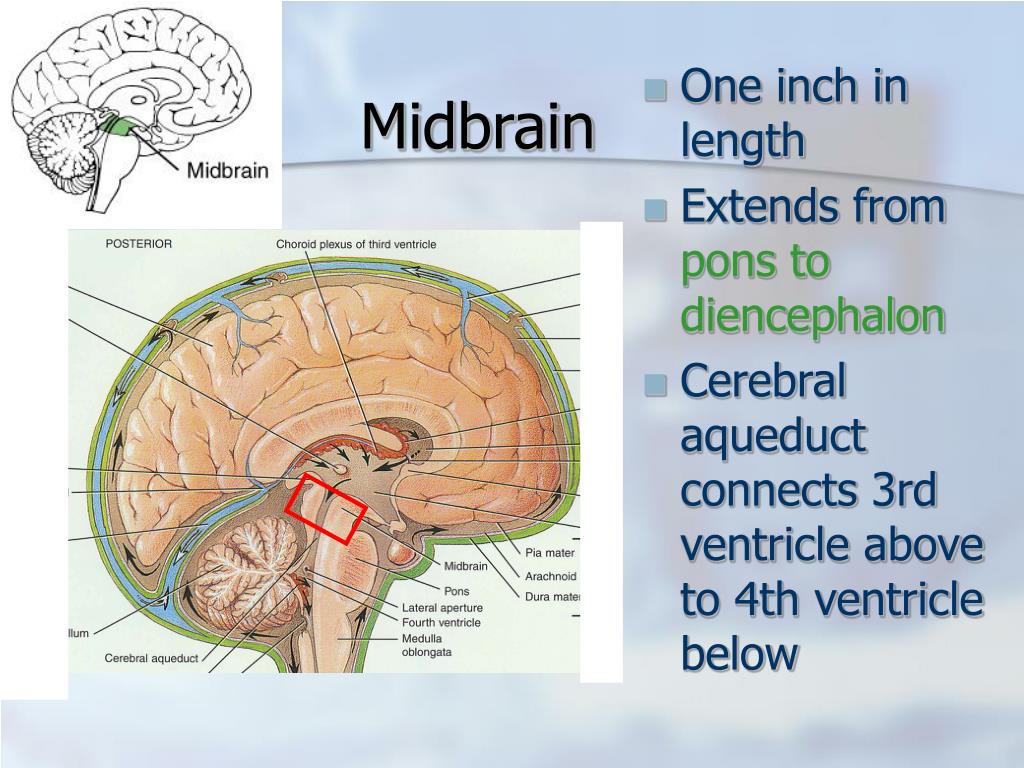

  • One inch in length

  • Extends from pons to diencephalon

  • Cerebral aqueduct connects 3rd ventricle above to 4th ventricle below

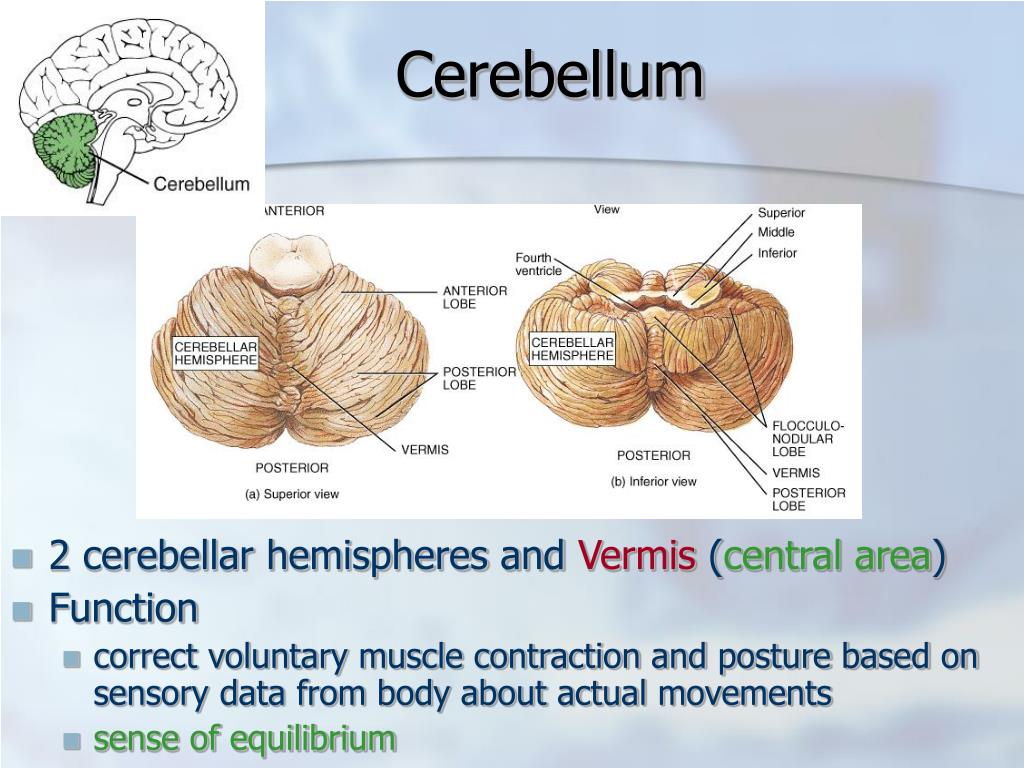

  • 2 cerebellar hemispheres and Vermis (central area)

  • Function

    • correct voluntary muscle contraction and posture based on sensory data from body about actual movements

    • sense of equilibrium



  • 1 inch long mass of gray mater in each half of brain (connected across 3rd ventricle by intermediate mass)

  • Relay station for sensory information on way to cortex

  • Crude perception of some sensations



  • Dozen or so nuclei in 4 major regions

    • mammillary bodies are relay station for olfactory reflexes;infundibulum suspends the pituitary gland

  • Major regulator of homeostasis

    • receives somatic and visceral input, taste, smell & hearing information; monitors osmotic pressure, temperature of blood

Functions of hypothalamus

Functions of Hypothalamus

  • Controls and integrates activities of ANS which regulates smooth, cardiac muscle and glands

  • Synthesizes regulatory hormones that control the anterior pituitary

  • Contains cell bodies of axons that end in posterior pituitary where they secrete hormones

  • Regulates rage, aggression, pain, pleasure & arousal

  • Feeding, thirst & satiety centers

  • Controls body temperature

  • Regulates daily patterns of sleep



  • Pineal Gland

    • endocrine gland the size of small pea

    • secretes melatonin during darkness

    • promotes sleepiness & sets biological clock

  • Habenular Nuclei

    • emotional responses to odors

Cerebrum cerebral hemispheres

Cerebrum(Cerebral Hemispheres)

  • Cerebral cortex is gray matteroverlying white matter

    • 2-4 mm thick containing billionsof cells

    • grew so quickly formed folds(Gyri) and grooves (Sulci or Fissures)

  • Longitudinal fissure separates left & right cerebral hemispheres

  • Corpus Callosum is band of white matter connecting left and right cerebral hemispheres

  • Each hemisphere is subdivided into 4 lobes

Right versus left cerebrum

Right versus left Cerebrum

Limbic system

Limbic System

  • Emotional brain--intense pleasure & intense pain

  • Strong emotions increase efficiency of memory

2 types of nervous responses

2 Types of Nervous Responses?

A. Voluntary

  • the brain &

  • spinal cord

    B. Involuntary or

    Autonomic System

  • Sympathetic

  • Parasympathetic

Somatic sensory pathways

Somatic Sensory Pathways

  • First-order neuron conduct impulses to brainstem or spinal cord

    • either spinal or cranial nerves

  • Second-order neurons conducts impulses from spinal cord or brainstem to thalamus--cross over to opposite side before reaching thalamus

  • Third-order neuron conducts impulses from thalamus to primary somatosensory cortex (postcentral gyrus of parietal lobe)

Somatic motor pathways

Somatic Motor Pathways

  • Control of body movement

    • motor portions of cerebral cortex

      • initiate & control precise movements

    • Basal Ganglia help establish muscle tone & integrate semivoluntary automatic movements

    • Cerebellum helps make movements smooth & helps maintain posture & balance

  • Somatic motor pathways

    • direct pathway from cerebral cortex to spinal cord & out to muscles

    • indirect pathway includes synapses in basal ganglia, thalamus, reticular formation & cerebellum

The autonomic nervous system

The Autonomic Nervous System

  • Regulate activity of smooth muscle, cardiac muscle & certain glands

  • Structures involved

    • general visceral afferent neurons (Sensory)

    • general visceral efferent neurons (Motor)

    • integration center within the brain

  • Receives input from limbic system and other regions of the cerebrum

The autonomic nervous system1

The Autonomic Nervous System

Autonomic versus somatic ns

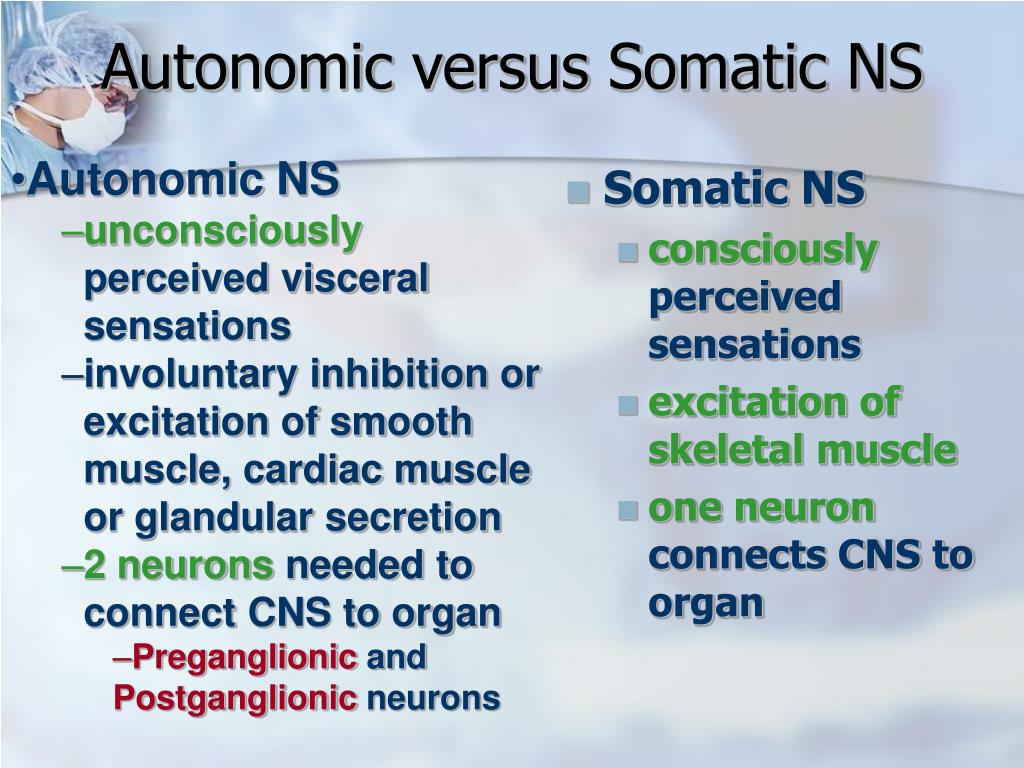

Autonomic versus Somatic NS

  • Autonomic NS

    • unconsciously perceived visceral sensations

    • involuntary inhibition or excitation of smooth muscle, cardiac muscle or glandular secretion

    • 2 neurons needed to connect CNS to organ

      • Preganglionic and Postganglionic neurons

  • Somatic NS

    • consciously perceived sensations

    • excitation of skeletal muscle

    • one neuron connects CNS to organ

Autonomic versus somatic ns1

Autonomic versus Somatic NS

  • Notice that the ANS pathway is a 2 neuron pathway while the Somatic NS only contains one neuron.

Divisions of the ans

Divisions of the ANS

  • 2 major divisions

    • Parasympathetic

    • Sympathetic

  • Dual innervation (2 nerve supplies)

    • 1 speeds up organ

    • 1 slows down organ

    • Sympathetic NS increases heart rate

    • Parasympathetic NS decreases heart rate

Sympathetic responses

Sympathetic Responses

  • Dominance by the sympathetic system is caused by physical or emotional stress –

    • “E situations”: emergency, embarrassment, excitement, exercise

  • Alarm Reaction = Flight or Fight Response

    • dilation of pupils, increase of heart rate, force of contraction & BP

    • decrease in blood flow to nonessential organs

    • increase in blood flow to skeletal & cardiac muscle

    • airways dilate & respiratory rate increases

    • blood glucose level increase

  • Long lasting due to lingering of NE in synaptic gap and release of norepinephrine by the adrenal gland

Parasympathetic responses

Parasympathetic Responses

  • Enhance “Rest-and-Digest” activities

  • Mechanisms that help conserve and restore body energy during times of rest

  • Normally dominate over sympathetic impulses

  • SLUDD Type Responses =salivation, lacrimation, urination, digestion & defecation and 3 “decreases”--- decreased HR, diameter of airways and diameter of pupil

  • Paradoxical Fear when there is no escape route or no way to win

    • causes massive activation of parasympathetic division

    • loss of control over urination and defecation

Control of autonomic ns

Control of Autonomic NS

  • Not aware of autonomic responses because control center is in lower regions of the brain

  • Hypothalamus is major control center

    • Input: emotions and visceral sensory information

      • smell, taste, temperature, osmolarity of blood, etc

    • Output: to nuclei in brainstem and spinal cord

    • posterior & lateral portions control sympathetic NS

      • increase heart rate, inhibition GI tract, increase temperature

    • anterior & medial portions control parasympathetic NS

      • decrease in heart rate, lower blood pressure, increased GI tract secretion and mobility

  • Login
