Crex software

CREX software

Milan Dragosavac

WMO BUFR training course Langen 17-20 April 2007


Requirements for crex software
Requirements for CREX software

  • Suitable for small volume of observations

  • Building blocks for other applications

  • Encoding

  • Decoding

  • Conversion to BUFR

  • Low maintenance costs

  • Portable

WMO BUFR training course Langen 17-20 April 2007


Programming languages used
Programming languages used

  • Fortran 77

    - All CREX subroutines and functions

  • C

    - Reading/writing CREX data

    - gbyte, sbyte routines unpack/pack bytes

WMO BUFR training course Langen 17-20 April 2007


Ecmwf crex software
Ecmwf CREX software

  • How to get the software?

    The software can be downloaded from Ecmwf web site

    http://www.ecmwf.int/products/data/software/

  • Go to Free download and get crex_000320.tar.gz file

  • gunzip crex_000320.tar.gz

  • cd crex_000320

  • Read README file for explanations

  • Execute make command which will create libcrex.a

  • cd example

  • Running make will create number of executables

WMO BUFR training course Langen 17-20 April 2007


Ecmwf crex software1
Ecmwf CREX software

  • Content of crex_000310 directory

    -rw-r----- 1 maa ma 450 Jul 5 2006 Makefile

    -rw-r----- 1 maa ma 10758 Jul 5 2006 README

    -rwxr----- 1 maa ma 3662 Jul 5 2006 build_library

    drwxr-x--- 2 maa ma 4096 Jul 5 2006 config

    drwxr-x--- 2 maa ma 4096 Feb 12 07:53 crexdc

    drwxr-x--- 2 maa ma 4096 Feb 12 11:07 crextables

    drwxr-x--- 2 maa ma 4096 Jul 5 2006 doc

    drwxr-x--- 3 maa ma 4096 Feb 12 09:27 example

    -

WMO BUFR training course Langen 17-20 April 2007


Ecmwf crex software2
Ecmwf CREX software

rwxr----- 1 maa ma 3107 Jul 5 2006 install

-rw-r----- 1 maa ma 1196 Jul 5 2006 licence

drwxr-x--- 2 maa ma 4096 Jul 5 2006 options

drwxr-x--- 2 maa ma 4096 Feb 12 07:53 pbio

WMO BUFR training course Langen 17-20 April 2007


Ecmwf crex software3
Ecmwf CREX software

  • config directory contains various configuration files

    for different platforms and compilers

  • options directory contains various options for different platforms

  • You can make additional configurations and options if needed

WMO BUFR training course Langen 17-20 April 2007


Ecmwf crex software4
Ecmwf CREX software

  • pbio

    pbio directory contain all c and fortran routines needed for BUFR and CREX IO

    all routines are part of bufr and crex libraries

  • crexdc

    crexdc directory contain all crex software source code routines which are written in fortran 77

WMO BUFR training course Langen 17-20 April 2007


Ecmwf crex software5
Ecmwf CREX software

  • example

    bufr2crex.F

    create_crex.F

    crex2bufr.F

    crextdexp.F

    decode_crex.F

  • doc

    doc directory contain CREX User’s Guide and Reference Manual in pdf format

WMO BUFR training course Langen 17-20 April 2007


Ecmwf crex software6
Ecmwf CREX software

  • Crex is table driven code form

    - no need to transfer element names, units …

    - no need to change CREX software for new observations

  • Crex table B – classification elements

    - reference number

    - element name

    - element unit

    - scale

    - data width in bytes

WMO BUFR training course Langen 17-20 April 2007


Ecmwf crex software7
Ecmwf CREX software

  • Crex table D – list of common sequences to describe the data

    - table B elements

    - operators

    - other table D descriptors

  • Crex table C – text and meaning of code/flag tables

WMO BUFR training course Langen 17-20 April 2007


Ecmwf crex software8
Ecmwf CREX software

  • CREX table naming convention

    BXXYYZZ

    DXXYYZZ

    B - Crex table B

    D - Crex table D

    XX - Crex Master table used “00”

    YY - Crex edition number used “01”

    ZZ - Crex table version number “03”

WMO BUFR training course Langen 17-20 April 2007


Ecmwf crex software9
Ecmwf CREX software

  • PATH for CREX tables

    export CREX_TABLES=/xxx/

    setenv CREX_TABLES /xxx/

    The path must end with back slash “/”

  • Check digit indicator

    export USE_E=true

    setenv USE_E true

WMO BUFR training course Langen 17-20 April 2007


Ecmwf crex software10
Ecmwf CREX software

  • Defaults

    Integer missing value indicator

    NVIND=2147483647

    Real*8 missing value indicator

    RVIND= 1.7E38

WMO BUFR training course Langen 17-20 April 2007


Decoding crex data
Decoding CREX data

There are 4 steps in CREX data processing

  • Open crex input file

  • Read in one crex message at a time

  • Expand crex message

  • Use the data

    Repeat last three steps until the end of file is reached

WMO BUFR training course Langen 17-20 April 2007


Pbio routines
PBIO routines

FORTRAN routines to handle products in an unblocked binary file

subroutine PBOPEN ( kunit, filename, mode, kerr )

Input arguments:

filename - character variable

mode - character variable ‘r’ read, ‘w’ write, ‘a’ append, ‘r+’ read and write

Output arguments:

kunit - integer unit number

kerr - integer status return code

WMO BUFR training course Langen 17-20 April 2007


Pbio routines1
PBIO routines

kerr - 0, successful

-1, file does not exist

-2, invalid file name

-3, invalid open mode specified

WMO BUFR training course Langen 17-20 April 2007


Pbio routines2
PBIO routines

subroutine PBCLOSE (kunit, kret)

Input argument is an integer:

kunit - unit number from PBOPEN

Output argument is an integer:

kret – status return code

0 - OK

-1 - error in handling the file

WMO BUFR training course Langen 17-20 April 2007


Pbio routines3
PBIO routines

subroutine PBWRITE( kunit, karray, kount, kerr)

Input arguments are integers:

kunit – unit number from PBOPEN

karray- an integer array holding bytes for write

kount – number of bytes to write to the file

Output arguments:

kret – status return code

>= 0 number of bytes written to the file

-1 Error in writing to the file

WMO BUFR training course Langen 17-20 April 2007


Pbio routines4
PBIO routines

  • Subroutine PBCREX( KUNIT, KARRAY, KINLEN,

    KOUTLEN, KRET)

    Input arguments:

    KUNIT - unit number returned by PBOPEN

    KARRAY - integer array big enough to hold crex message

    KINLEN - size in bytes of KARRAY

    Output arguments:

    KOUTLEN - size in bytes of the CREX product read

    KRET - 0 if OK

WMO BUFR training course Langen 17-20 April 2007


Pbio routines5
PBIO routines

KRET -1 if EOF is hit before CREX product is read

-2 if file read error is generated

-3 if size of KARRAY is not sufficient for the CREX product

WMO BUFR training course Langen 17-20 April 2007


Crex software fortran routines
CREX software FORTRAN routines

  • CREX expansion

    subroutine crexex( kbufl, ybuff, ksup, ksec0,ksec1, ksec3, kelem, cnames, cunits, kvals, values, cvals, kerr)

    Input arguments:

    kbufl - length of bufr message in words

    ybuff - character string containing crex message

    kelem - expected number of expanded elements

    kvals - the size of values array in words

WMO BUFR training course Langen 17-20 April 2007


Crex software fortran routines1
CREX software FORTRAN routines

Output arguments:

ksup - an array containing supplementary information

ksec0 - integer array of 3 words containing CREX

section 0 information

ksec1 - integer array of at least 40 words containing

CREX section 1 information

ksec3 - integer array of 4 words

cnames – character*64 array of kelem containing element names

cunits - character*24 array of kelem containing element units

WMO BUFR training course Langen 17-20 April 2007


Crex software fortran routines2
CREX software FORTRAN routines

values - real*8 array of kvals containing expanded data

cvals - character*80 array of kvals containing code table or CCITTIA5 CREX element entries

kerr - return error code

WMO BUFR training course Langen 17-20 April 2007

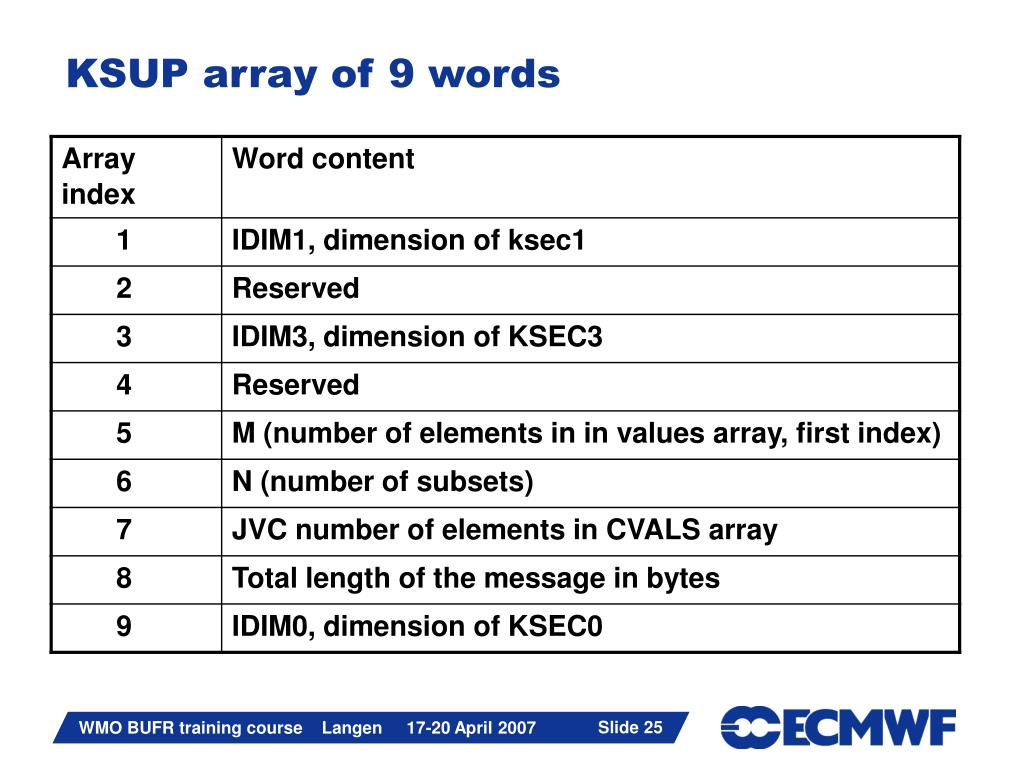

Ksup array of 9 words
KSUP array of 9 words

WMO BUFR training course Langen 17-20 April 2007


Ksec0 array
KSEC0 array

WMO BUFR training course Langen 17-20 April 2007


Ksec1 array
KSEC1 array

WMO BUFR training course Langen 17-20 April 2007


Ksec1 array1
KSEC1 array

WMO BUFR training course Langen 17-20 April 2007


Ksec3 array
KSEC3 array

WMO BUFR training course Langen 17-20 April 2007


Crex software fortran routines3
CREX software FORTRAN routines

  • Values array is of type real*8

  • If crex table B element is CCITTIA5, corresponding element contain a real number, when truncated to an integer represents

    index*1000+length

    where

    index – subscript of the element in CVALS array where character strings are stored

    length – number of characters in the string

WMO BUFR training course Langen 17-20 April 2007


Crex software fortran routines4
CREX software FORTRAN routines

In the case of multi-subset data, one dimensional array

VALUES contains all subsets. Index to values array of

i-th element of observation is:

index=i+(nsub-1)*kelem

WMO BUFR training course Langen 17-20 April 2007


Crex software fortran routines5
CREX SOFTWARE fortran ROUTINES

  • CREX encoding

    subroutine crexen (ksec0, ksec1, ksec3, ktdlen, crexktdlst, kdlen, kdata, kelem, kvals, values, cvals, kbufl, kerr)

    Input arguments:

    ksec0 - an integer array containing section 0 information

    ksec1 - an integer array containing section 1 information

    ksec3 - an integer array of size 4 containing number of subsets

WMO BUFR training course Langen 17-20 April 2007


Crex software fortran routines6
CREX software FORTRAN routines

ktdlen - an integer, number of data descriptors to be packed in section 1 of crex message

crexktdlst - an integer array containing ktdlen descriptors

kdlen - an integer, dimension of kdata array

kdata - an integer array containing delayed replication values

kelem - an integer containing expected number of expanded elements

kvals - an integer containing expected number of data values

WMO BUFR training course Langen 17-20 April 2007


Crex software fortran routines7
CREX software FORTRAN routines

values - real*8 array of kvals words containing element values

cvals - character*80 array of kvals words containing CCITTIA5 elements

Output arguments:

kbufl - an integer containing the length of bufr message in words

kbuff - an integer array containing packed bufr message

kerr - integer, status return code

WMO BUFR training course Langen 17-20 April 2007


Ksec0 array1
KSEC0 array

WMO BUFR training course Langen 17-20 April 2007


Ksec1 array2
KSEC1 array

WMO BUFR training course Langen 17-20 April 2007


Ksec1 array3
KSEC1 array

WMO BUFR training course Langen 17-20 April 2007


Ksec3 array1
KSEC3 array

WMO BUFR training course Langen 17-20 April 2007


Crex software fortran routines8
CREX software FORTRAN routines

  • Printing routines

    subroutine CREXPRS0 (ksec0)

    Input arguments:

    ksec0 – an array containing section 0 information

WMO BUFR training course Langen 17-20 April 2007


Crex software fortran routines9
CREX software FORTRAN routines

  • subroutine crexprs1 ( ksec1,ksec3, ktdlen, ktdlst, ktdexl, ktdexp, kelem, cnames)

    Input arguments:

    ksec1 - an integer array containing CREX section 1

    ksec3 - an integer array containing number of subsets

    ktdlen - number of data descriptors in section 1

    ktdlst - an array containing data descriptors in section 1

    ktdexl - number of entries in the list of expanded data descriptors

    ktdexp - an array containing expanded data descriptors

WMO BUFR training course Langen 17-20 April 2007


Crex software fortran routines10
CREX software FORTRAN routines

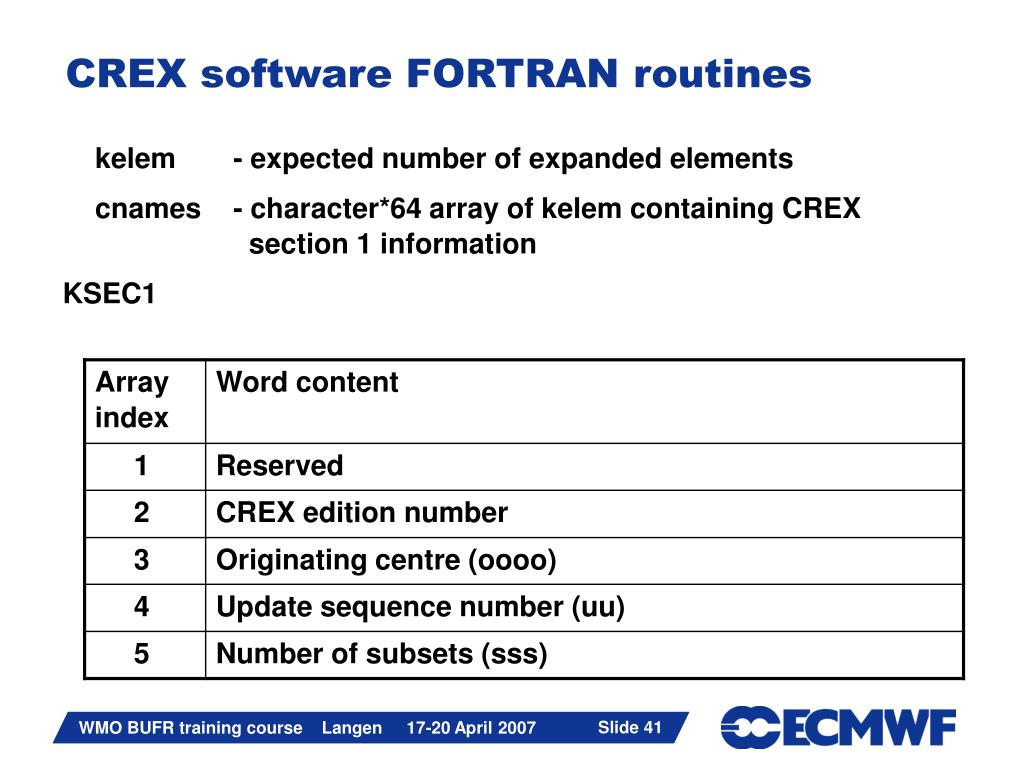

kelem - expected number of expanded elements

cnames - character*64 array of kelem containing CREX section 1 information

KSEC1

WMO BUFR training course Langen 17-20 April 2007


Crex software fortan routines
CREX software FORTAN routines

WMO BUFR training course Langen 17-20 April 2007


Crex software fortran routines11
CREX software FORTRAN routines

WMO BUFR training course Langen 17-20 April 2007


Crex software fortran routines12
CREX software FORTRAN routines

ksec3

WMO BUFR training course Langen 17-20 April 2007


Crex software fortran routines13
CREX software FORTRAN routines

  • Subroutine crexsel2 (kbubset, kelem, ktdlen, ktdlst, ktdexl, ktdexp, cnames, cunits, kerr)

    Input arguments:

    ksubset - subset number

    kelem - number of expected elements

    Output arguments:

    ktdlen - number of data descriptors in section 1

    ktdlst - list of data descriptors in section 1

WMO BUFR training course Langen 17-20 April 2007


Crex software fortran routines14
CREX software FORTRAN routines

ktdexl - number of expanded data descriptors

ktdexp - array containing expanded data descriptors

cnames - array containing element names

cunits - array containing element units

kerr - return error code

WMO BUFR training course Langen 17-20 April 2007


Crex software fortran routines15
CREX software FORTRAN routines

  • Subroutine crexprt ( k, ksub1, ksub2, kelem, cnames, cunits, cvals, kvals, values, ksup, ksec1, kerr)

    Input arguments:

    k - switch to print with/without code tables content

    0 – no code table content, 1 – code table content

    ksub1 – starting subset

    ksub2 – ending subset

    kelem – dimension of cnames, cunits arrays

    cnames- character*64 array containing element names

WMO BUFR training course Langen 17-20 April 2007


Crex software fortran routines16
CREX software FORTRAN routines

cunits – character*24 array containing element units

kvals – dimension of values array

values – real*8 array ( expanded data values)

ksup – an array containing supplementary information

ksec1 – an integer array of 40 containing section 1

WMO BUFR training course Langen 17-20 April 2007


Crex software fortran routines17
CREX software FORTRAN routines

KSUP

WMO BUFR training course Langen 17-20 April 2007


Crex software fortran routines18
CREX software FORTRAN routines

KSEC1

WMO BUFR training course Langen 17-20 April 2007


Crex software fortran routines19
CREX software FORTRAN routines

WMO BUFR training course Langen 17-20 April 2007


Crex software fortran routines20
CREX software FORTRAN routines

WMO BUFR training course Langen 17-20 April 2007


Crex software fortran routines21
CREX software FORTRAN routines

  • CREX template design

    Basic idea is to know one to one correspondence between data descriptors expanded and the data values

    To achieve that use:

    subroutine CREXDES ( k, ksec1, ktdlen, crexktdlst, kdlen, kdata, kelem, ktdexl, crexktdexp, cnames, cunits, kerr)

    Input arguments:

    k - an integer, 0 no print; 1 – print

WMO BUFR training course Langen 17-20 April 2007


Crex software fortran routines22
CREX software FORTRAN routines

ksec1 - an integer array containing section 1 information.

Set the following words

ksec1(2) – Bufr edition number

ksec1(3) – Originating centre

ksec1(8) – Version number of local tables used

ksec1(15) – version number of master table used

ktdlen – number of data descriptors

crexktdlst- list of data descriptors in section 1

kdlen – dimension of kdata array

kdata - an integer array containing delayed replications

kelem – expected number of expanded elements

WMO BUFR training course Langen 17-20 April 2007


Crex software fortran routines23
CREX software FORTRAN routines

Output arguments:

ktdexl – number of expanded elements

crexktdexp – integer array containing list of expanded

elements

cnames – character *64 array containing element names

cunits – character*24 array containing element units

kerr – status return code

WMO BUFR training course Langen 17-20 April 2007


Crex software fortran routines24
CREX software FORTRAN routines

  • Program to use for template design

    …/crex_000320/example/crextdexp.F

  • Conversion CREX to BUFR

    …/crex_000320/example/crex2bufr.F

  • Conversion BUFR to CREX

    …/crex_000320/example/bufr2crex.F

WMO BUFR training course Langen 17-20 April 2007


Crex software and pre processing
CREX software and pre-processing

  • What happens when crex data reach DPC

  • How to organize observation

  • Pre-process observations

    - unpacking

    - re-organization of data

    - possible quality control

    - grouping of observations which belong to

    particular analysis cycle

    - creating RDB key for further more efficient processing

    - packing the data into BUFR format

    - writing data into RDB

WMO BUFR training course Langen 17-20 April 2007


Crex software and pre processing1
CREX software and pre-processing

  • Alternatively

    - unpack crex message

    - write unpacked values into DB

    - make decisions about archiving

WMO BUFR training course Langen 17-20 April 2007


ad
