JT-60U 的实验进展

JT-60U 的实验进展. 2003-04-25. JT-60U: R = 3~3.4m, a = 0.6-1.1m, b = 1.0-1.7m, Ip < 5MA, Bt ~ 4T. Advanced Tokamak Research. High Q High beta. ITER. Improved confinement MHD & Instability. Heat control Particle control. Long pulse SteadyState. Non-inductive CD. JT-60U.

Download Presentation

JT-60U 的实验进展

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. JT-60U的实验进展 2003-04-25

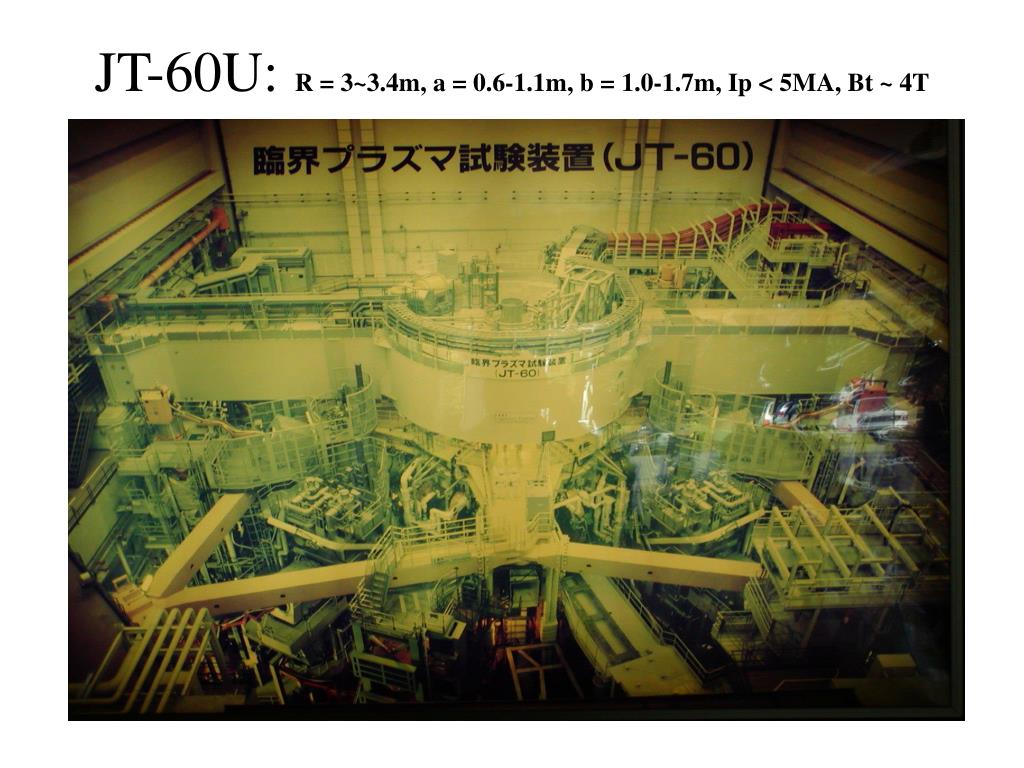

  2. JT-60U:R = 3~3.4m, a = 0.6-1.1m, b = 1.0-1.7m, Ip < 5MA, Bt ~ 4T

  3. Advanced Tokamak Research • High Q • High beta ITER Improved confinement MHD & Instability • Heat control • Particle control • Long pulse • SteadyState Non-inductive CD JT-60U

  4. Advanced operation regimes • (1) Reversed shear mode with ITB • (2) High b ELMy H-mode

  5. Reversed shear mode with ITB

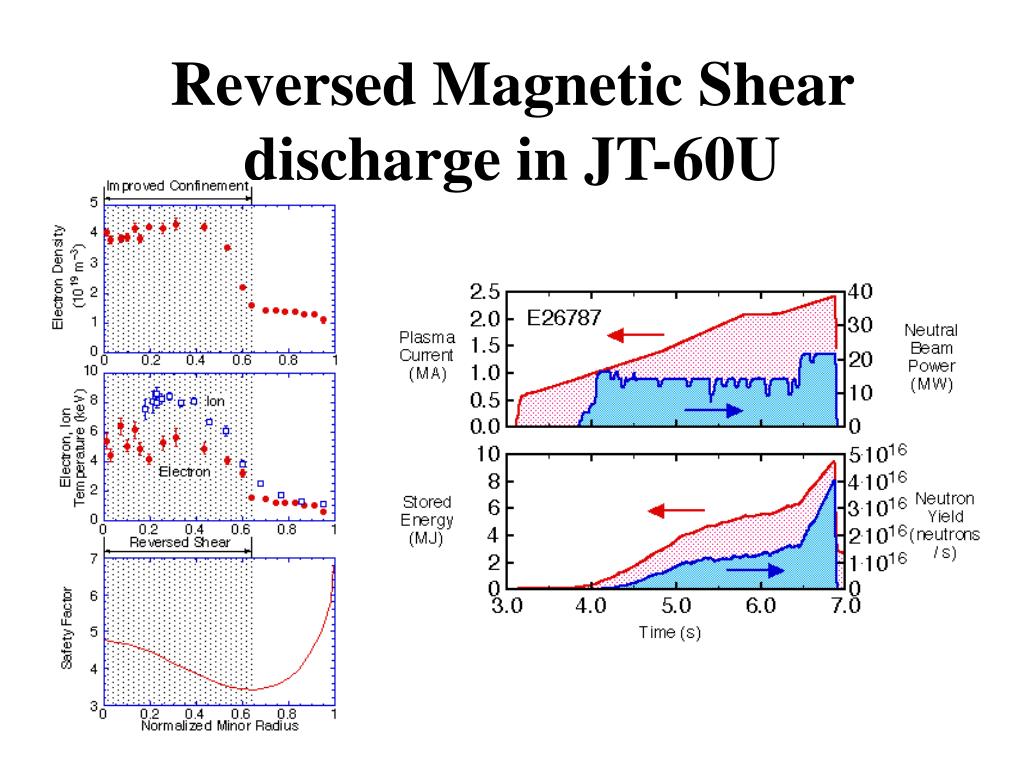

  6. Reversed Magnetic Shear discharge in JT-60U

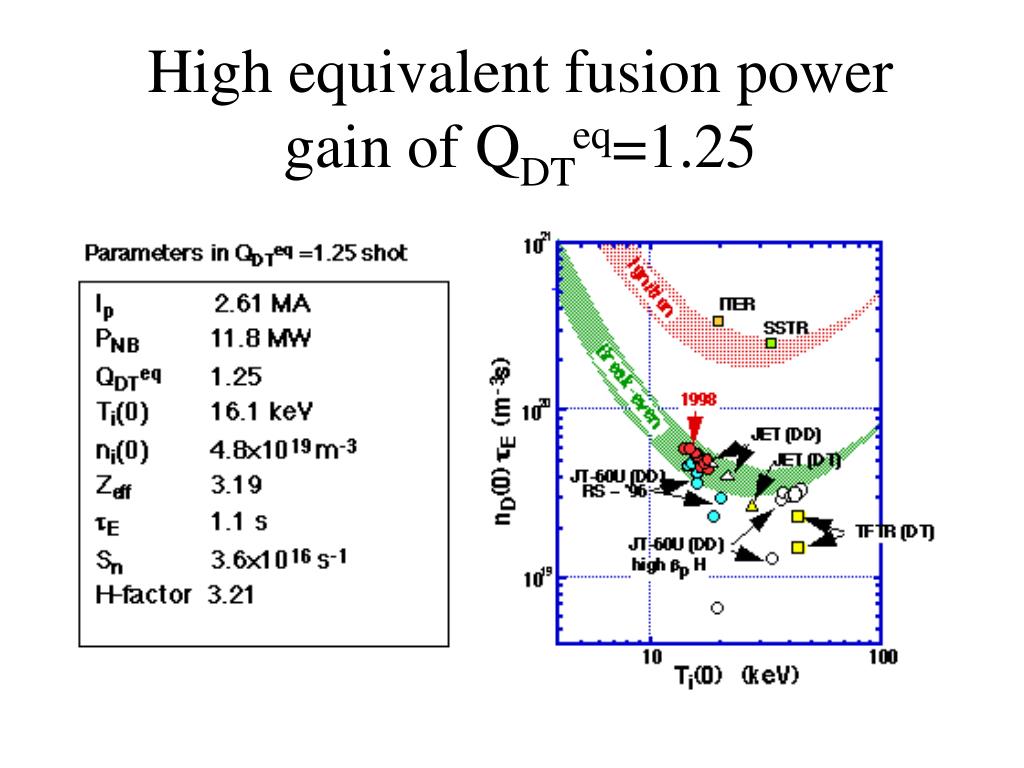

  7. High equivalent fusion power gain of QDTeq=1.25

  8. Sustainment of Negative Magnetic Shear with LHCD

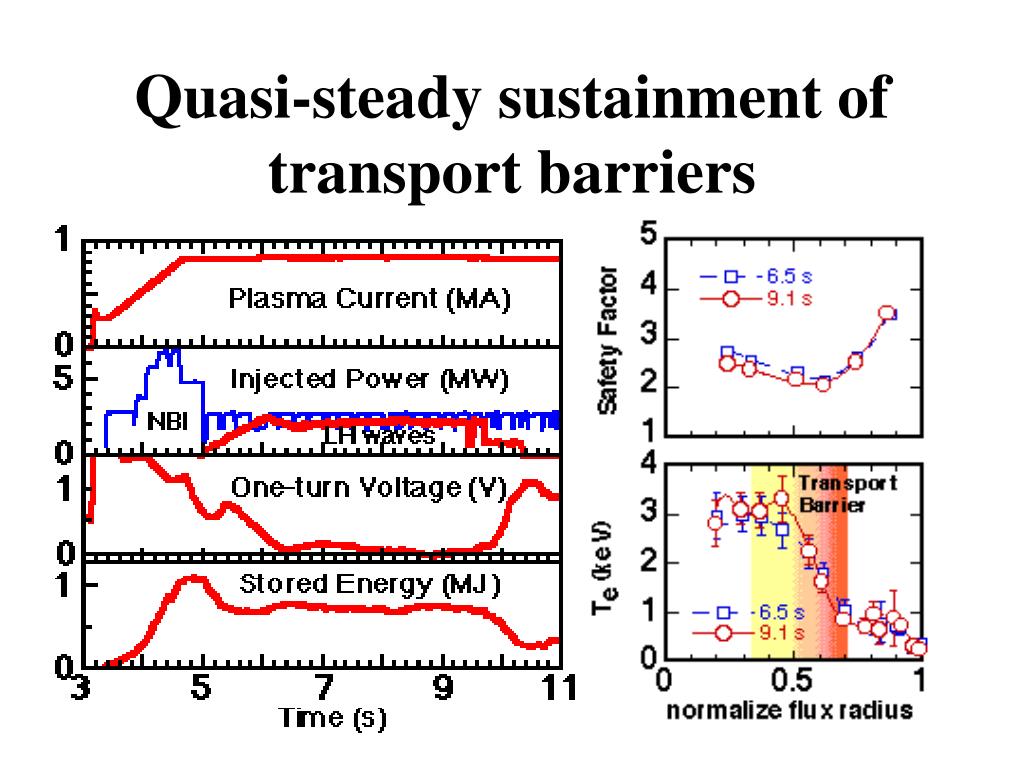

  9. Quasi-steady sustainment of transport barriers

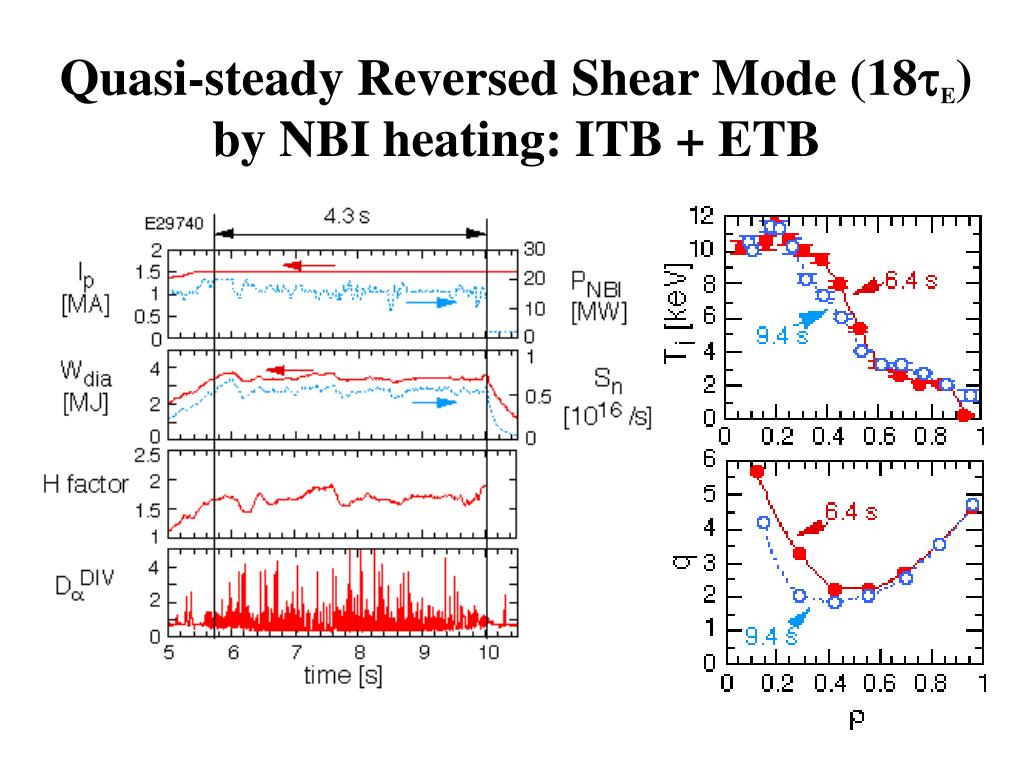

  10. Quasi-steady Reversed Shear Mode (18tE) by NBI heating: ITB + ETB

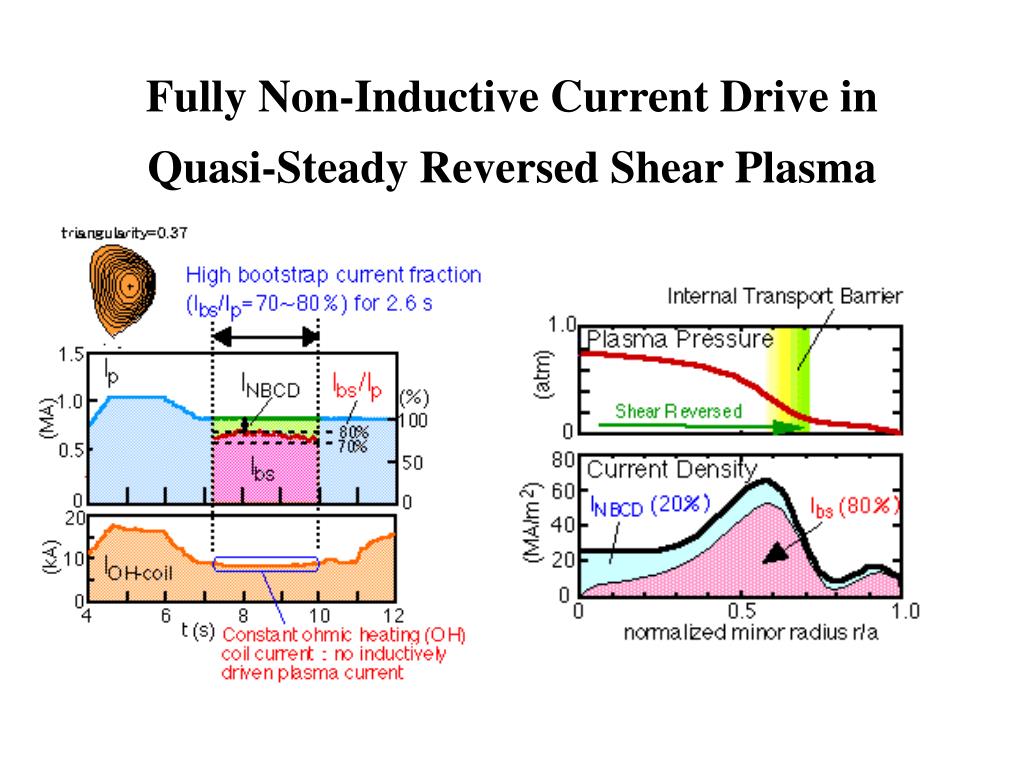

  11. Fully Non-Inductive Current Drive in Quasi-Steady Reversed Shear Plasma

  12. Formation of Internal Transport Barrier

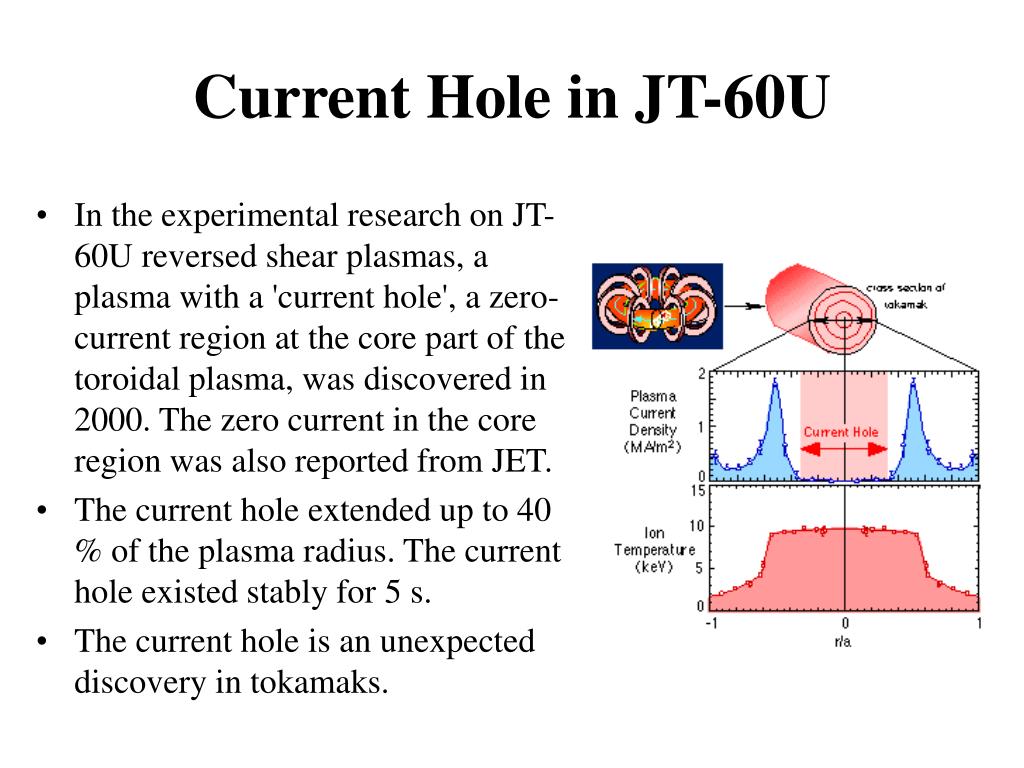

  13. Current Hole in JT-60U • In the experimental research on JT-60U reversed shear plasmas, a plasma with a 'current hole', a zero-current region at the core part of the toroidal plasma, was discovered in 2000. The zero current in the core region was also reported from JET. • The current hole extended up to 40 % of the plasma radius. The current hole existed stably for 5 s. • The current hole is an unexpected discovery in tokamaks.

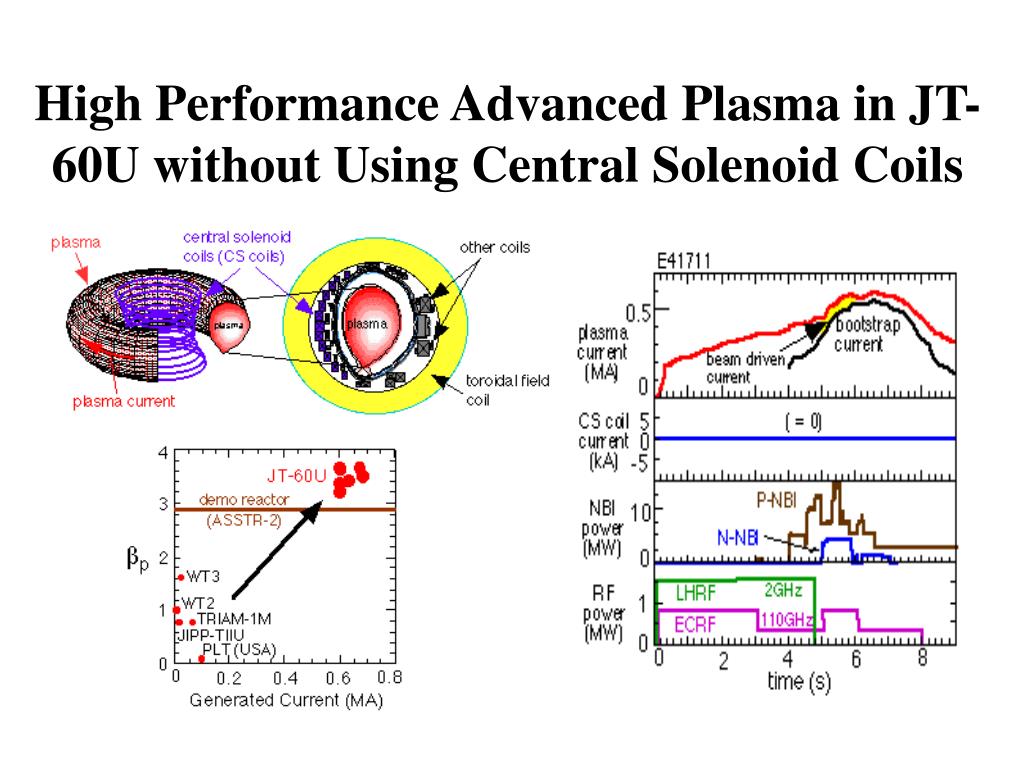

  14. High Performance Advanced Plasma in JT-60U without Using Central Solenoid Coils

  15. High b ELMy H-mode

  16. High performance ELMy H-mode

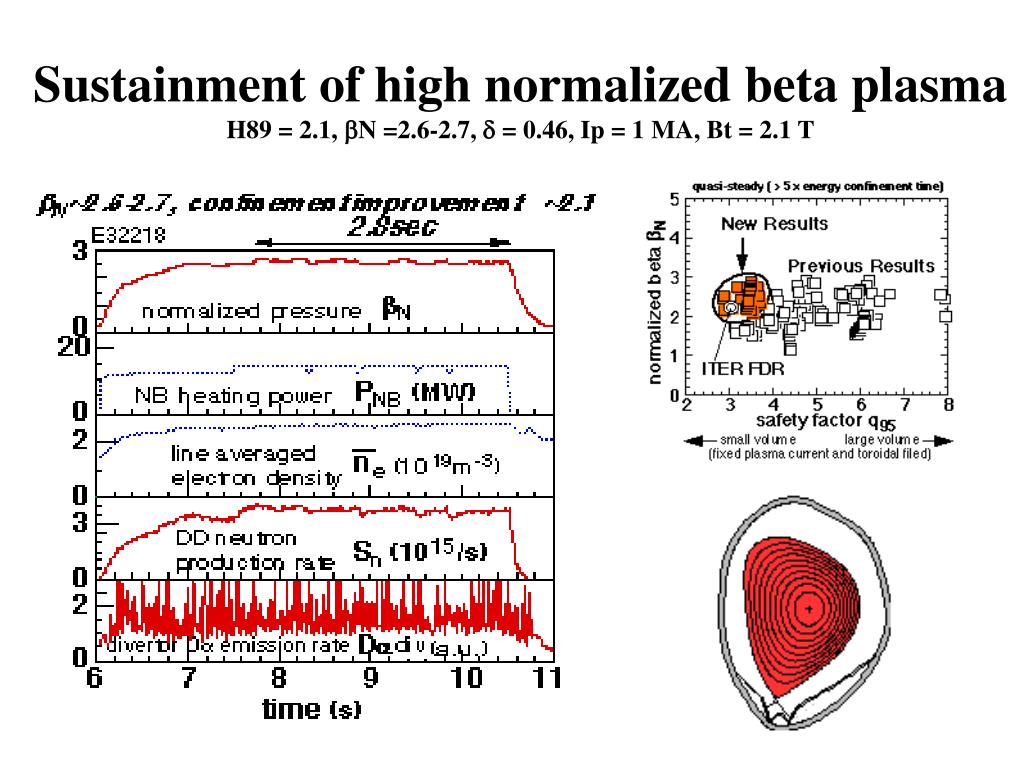

  17. Sustainment of high normalized beta plasma H89 = 2.1, bN =2.6-2.7, d = 0.46, Ip = 1 MA, Bt = 2.1 T

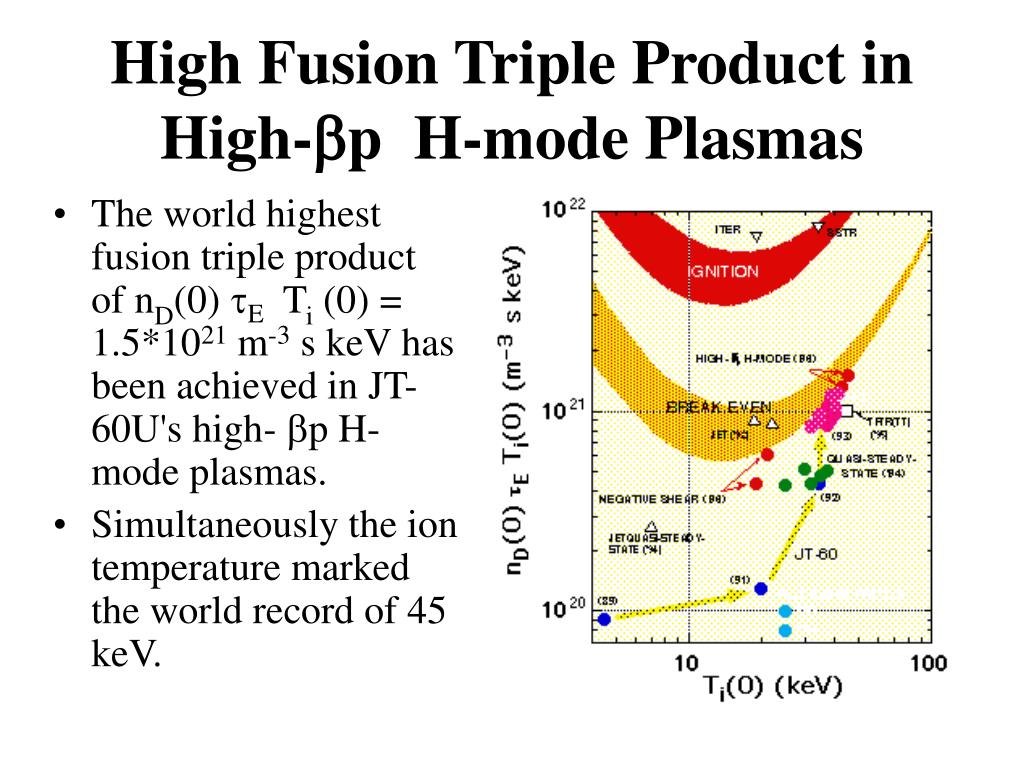

  18. High Fusion Triple Product in High-bp H-mode Plasmas • The world highest fusion triple product of nD(0) tE Ti (0) = 1.5*1021 m-3 s keV has been achieved in JT-60U's high- bp H-mode plasmas. • Simultaneously the ion temperature marked the world record of 45 keV.

  19. Non-inductive steady-state high-bp H-mode plasmas at high density (60tE)

  20. Steady state high performance device is needed • High Q • High beta ITER Improved confinement MHD & Instability • Heat control • Particle control • Long pulse • SteadyState Non-inductive CD JT-60U

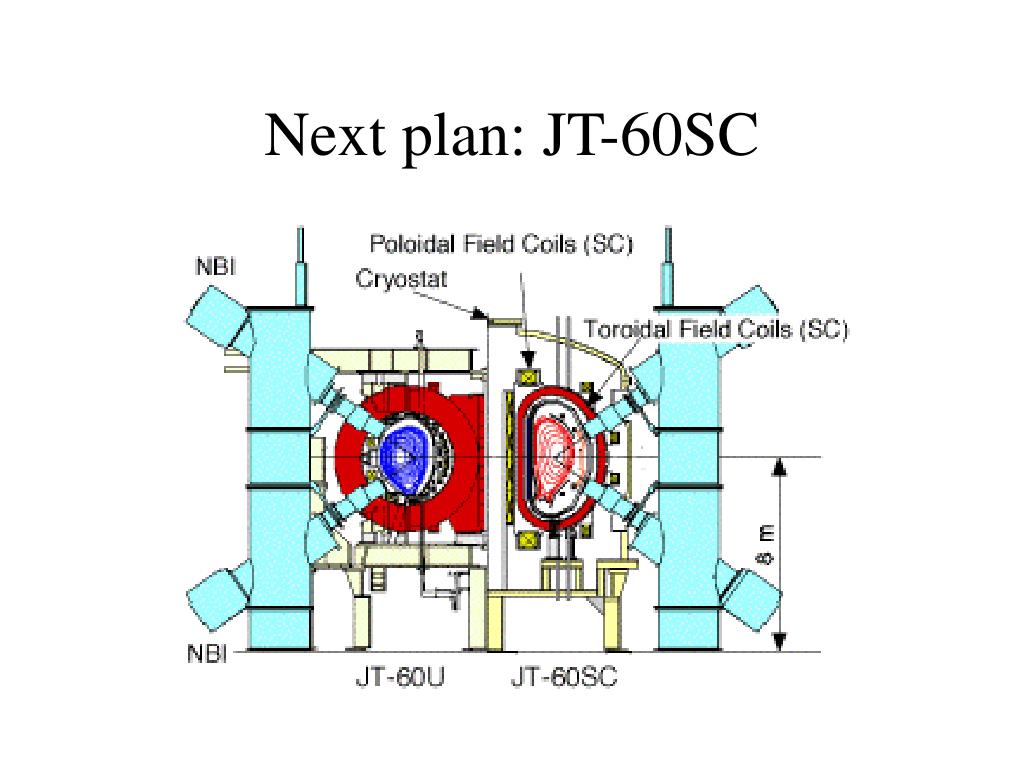

  21. Next plan: JT-60SC

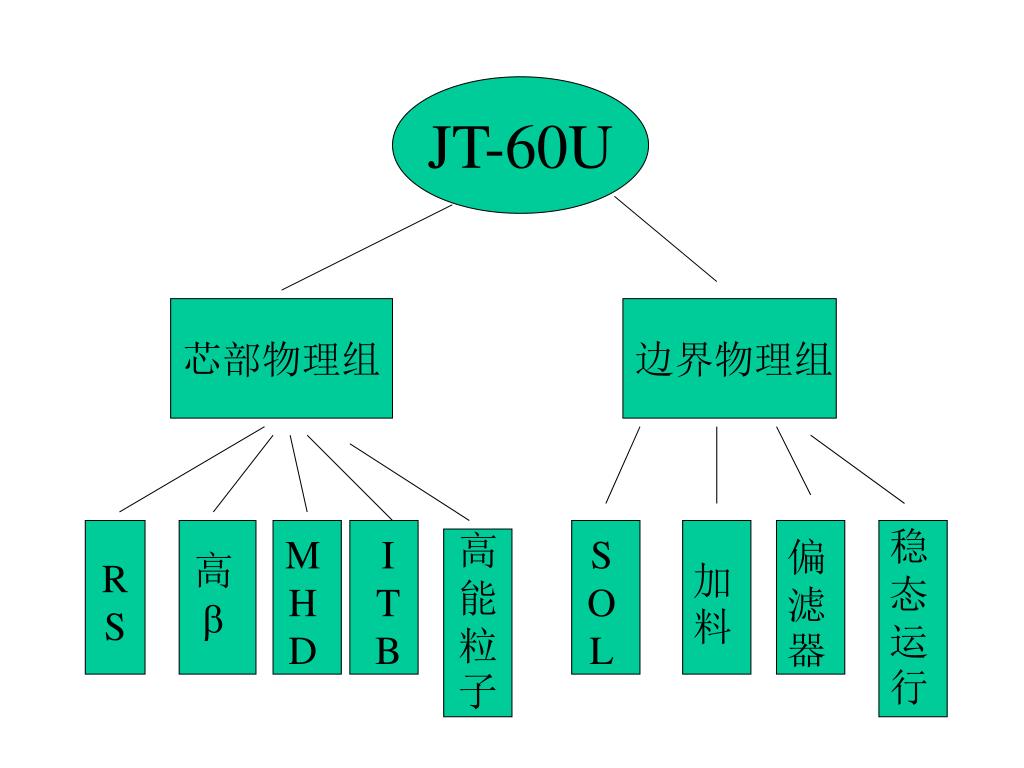

  22. JT-60U 芯部物理组 边界物理组 高 b RS MHD I TB 高能粒子 SOL 加料 偏滤器 稳态运行

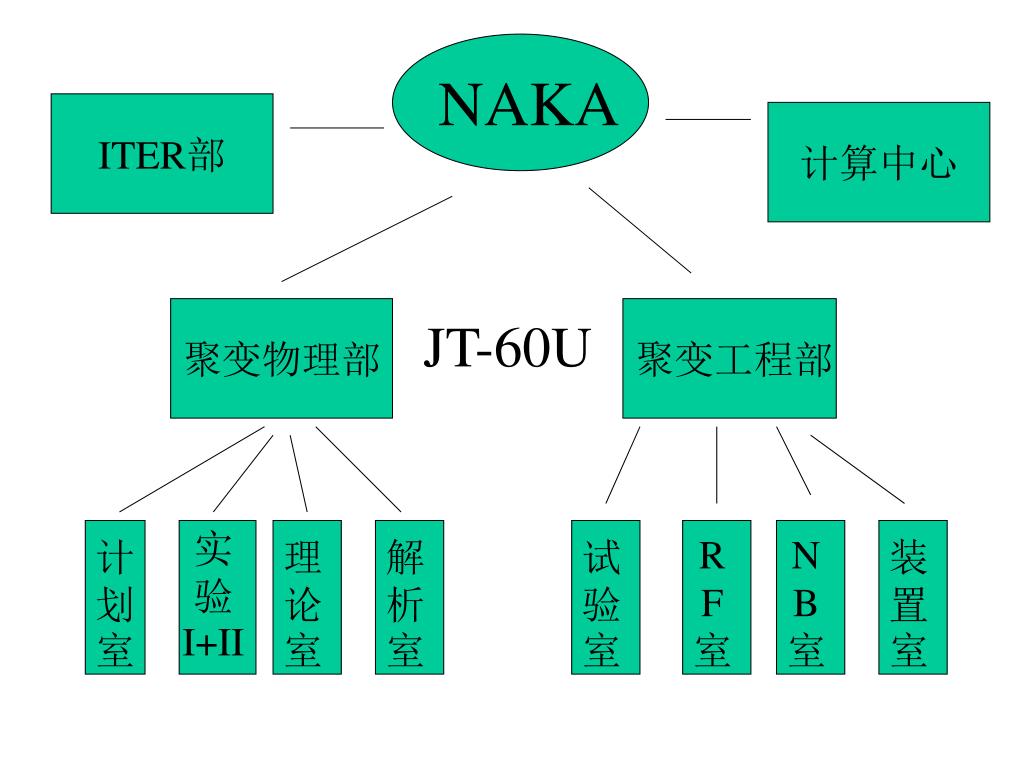

  23. NAKA ITER部 计算中心 聚变物理部 JT-60U 聚变工程部 实验I+II 计划室 理论室 解析室 试验室 RF室 NB室 装置室
